4-10 — FRONT AXLE (#60676) — 112 parça
çizim 174072
105
BalonParca AdiParca NoAdetTipApplied Date
105 BOLT; BRKT FIX
M8X12 FLANGE 		0-28050-812-0 04 1 1102-

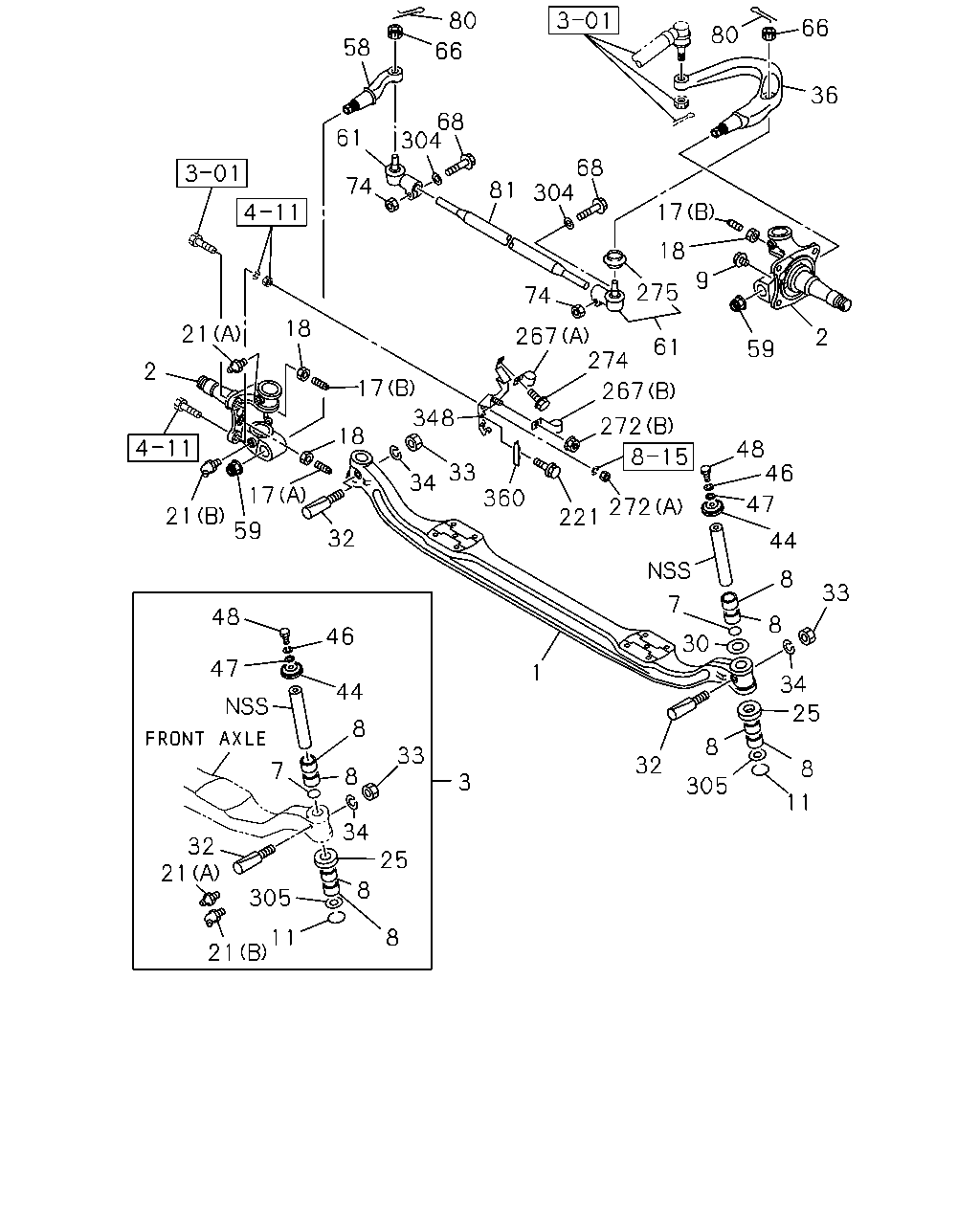

çizim 174104
48 46 44 8 47 7 33 3 8 34 25 8 8 11 21 305 21 32 8 30 7 44 47 46 48 33 8 8 34 25 8 11 305 32 1 272 274 61 267 59 2 9 18 17 36 66 80 66 58 68 68 304 81 304 74 61 74 267 275 33 34 348 17 18 360 272 221 18 21 2 17 59 21 32 80
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 8-98057-479-2 01 1 1102-
2 KNUCKLE; FRT AXLE 1-43131-127-1 01 1 1102-
2 KNUCKLE; FRT AXLE 1-43132-127-1 01 1 1102-
3 KING PIN SET 1-87831-295-3 01 1 1102-
3 KING PIN SET 1-87831-296-3 01 1 1102-
7 SEAL; OIL,KING PIN 1-09625-005-1 02 1 1102-
8 BEARING; NEEDLE,KING PIN
NSK 		1-09811-339-0 08 1 1102-
9 PLUG; KNUCKLE
M14X14 		8-97329-621-0 01 1 1102-
11 RING; SNAP,KNUCKLE PLUG 1-09589-017-1 02 1 1102-
17 BOLT; STOPPER KNUCKLE
(A) M14X47 		1-09009-191-0 01 1 1102-
17 BOLT; STOPPER KNUCKLE
(B) M14X53 		8-98065-261-0 02 1 1102-
18 NUT; STOPPER BOLT,KNUCKLE
M14 		0-91112-814-0 03 1 1102-
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1102-
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1102-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-031-0 01 1 1102-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-033-1 01 1 1102-
30 WASHER; THRUST,KING PIN
T=3.900 		1-43171-261-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=3.912 		1-43171-262-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=3.925 		1-43171-263-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=3.937 		1-43171-264-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=3.950 		1-43171-265-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=3.962 		1-43171-266-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=3.975 		1-43171-267-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=3.987 		1-43171-268-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.000 		1-43171-269-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.012 		1-43171-270-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.025 		1-43171-271-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.037 		1-43171-272-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.050 		1-43171-273-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.062 		1-43171-274-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.075 		1-43171-275-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.087 		1-43171-276-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.100 		1-43171-277-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.112 		1-43171-278-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.125 		1-43171-279-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.137 		1-43171-280-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.150 		1-43171-281-1 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.162 		1-43171-311-0 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.175 		1-43171-312-0 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.187 		1-43171-313-0 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.200 		1-43171-314-0 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.212 		1-43171-315-0 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.225 		1-43171-316-0 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.237 		1-43171-317-0 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.250 		1-43171-318-0 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.262 		1-43171-319-0 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.275 		1-43171-320-0 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.287 		1-43171-321-0 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.300 		1-43171-322-0 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.312 		1-43171-323-0 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.325 		1-43171-324-0 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.337 		1-43171-325-0 AR 1 1102-
30 WASHER; THRUST,KING PIN
T=4.350 		1-43171-326-0 AR 1 1102-
32 BOLT; KEY,KING PIN 1-43116-013-1 02 1 1102-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1102-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1102-
36 ARM; KNUCKLE 8-98057-563-0 01 1 1102-
44 COVER; KING PIN 1-43175-031-0 02 1 1102-
46 WASHER; LK,COVER
ID=12.2 		0-91510-812-0 02 1 1102-
47 WASHER; PL,COVER,KING PIN
ID=12.5 OD=32 		0-91614-712-0 02 1 1102-
48 BOLT; COVER
M12X25 		1-09009-081-0 02 1 1102-
58 ARM; TIE ROD 8-98057-564-2 01 1 1102-
59 NUT; TIE ROD ARM
M27 FLANGE 		1-09449-082-0 02 1 1102-
61 ROD END; TIE ROD 1-43150-748-1 01 1 1102-
61 ROD END; TIE ROD 1-43150-749-1 01 1 1102-
66 NUT; TIE ROD END
M16 SLOTTED 		1-09442-031-0 02 1 1102-
68 BOLT; TIE ROD END
M12X45 FLANGE 		0-28061-245-0 02 1 1102-
74 NUT; TIE ROD END
M12 		0-91110-512-0 02 1 1102-
80 PIN; SPLIT,ROD END
OD=3.7 L=22 		0-81124-022-0 02 1 1102-
81 ROD; TIE 8-98038-703-1 01 1 1102-
221 BOLT; BRKT,SENSOR
M8X16 FLANGE 		0-28050-816-0 04 1 1102-
267 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1102-
267 CLIP; HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 02 1 1102-
272 NUT; CLIP
(A) M14 		0-91110-514-0 02 1 1102-
272 NUT; CLIP
(B) M8 FLANGE 		0-91180-108-0 02 1 1102-
274 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1102-
275 BOOT; ROD END,TIE 1-85574-046-0 02 1 1102-
304 WASHER; PL
ID=12.5 		0-91614-512-0 02 1 1102-
305 COVER; KNUCKLE 1-43175-030-0 02 1 1102-
348 BRACKET; CLIP 8-98055-138-1 01 1 1102-
348 BRACKET; CLIP 8-98055-137-1 01 1 1102-
360 COVER; SENSOR 8-98018-401-0 01 1 1102-
360 COVER; SENSOR 8-98018-400-0 01 1 1102-

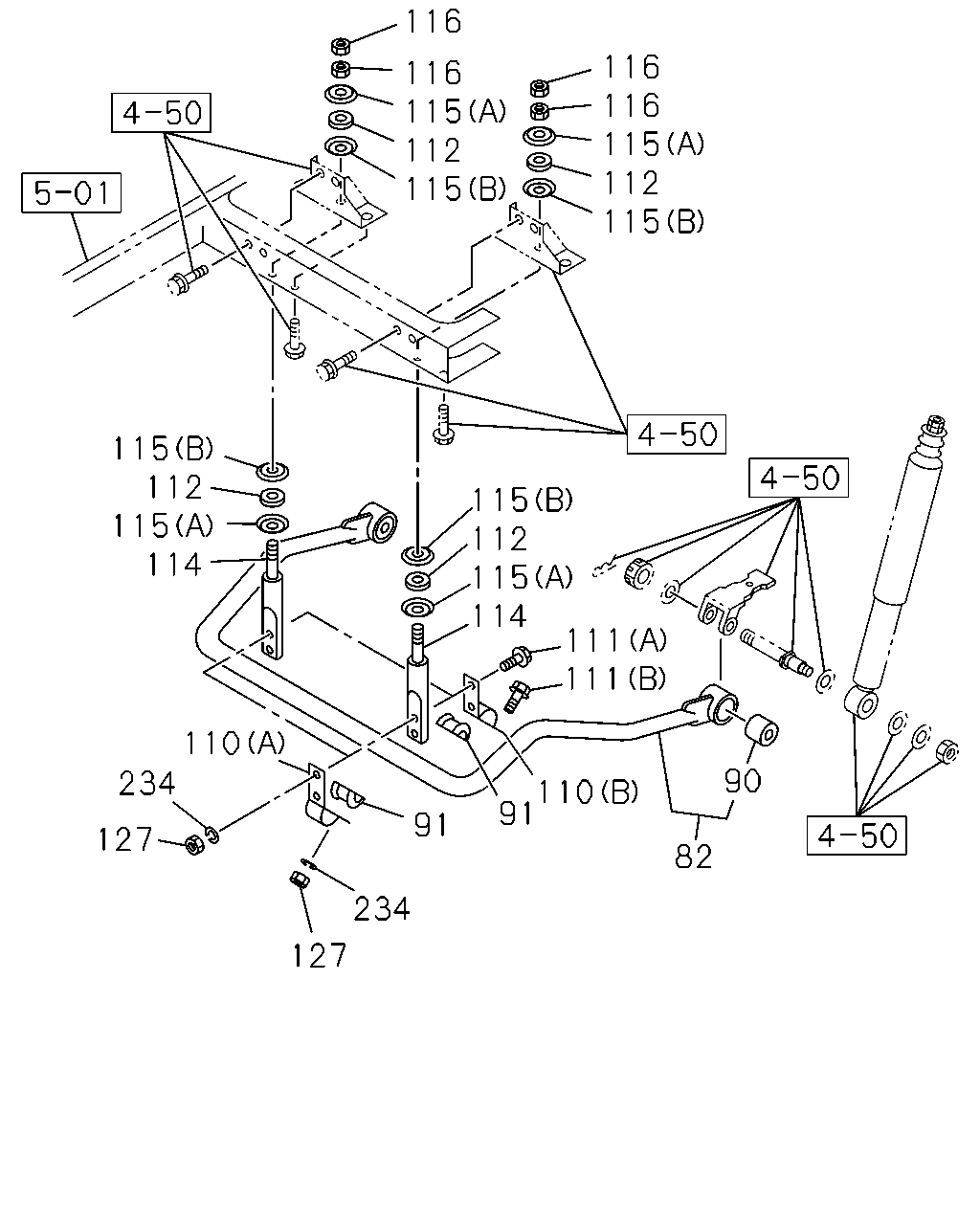

çizim 174125
116 116 115 112 115 116 116 115 112 115 115 112 115 114 111 111 82 90 110 91 91 234 127 127 234 110 114 115 112 115
BalonParca AdiParca NoAdetTipApplied Date
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51770-114-0 01 1 1102-1310
82 BAR; STAB,FRT SUSP 1-51770-114-0 01 1 1311-
90 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-066-0 02 1 1102-1310
90 BUSHING; RUBBER,STAB BAR 1-51779-066-0 02 1 1311-
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-079-1 04 1 1102-1310
91 BUSHING; RUBBER,STAB BAR 1-51779-079-1 04 1 1311-
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 1102-1310
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1311-
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 1102-1310
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1311-
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE 		0-28051-230-0 02 1 1102-1310
111 BOLT; CLAMP TO ROD
(B) M12X30 FLANGE 		0-28051-230-0 02 1 1311-
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X50 FLANGE 		0-28051-250-0 04 1 1102-1310
111 BOLT; CLAMP TO ROD
(A) M12X50 FLANGE 		0-28051-250-0 04 1 1311-
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-050-0 04 1 1102-1310
112 BUSHING; ROD 9-51631-050-0 04 1 1311-
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-082-0 02 1 1102-1310
114 ROD; STAB BAR 1-51773-082-0 02 1 1311-
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=16.8 		1-51631-022-0 04 1 1102-1310
115 WASHER; CENTER,STAB TO FRAME
(B) ID=16.8 		1-51631-022-0 04 1 1311-
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=14.5 		9-51631-051-0 04 1 1102-1310
115 WASHER; CENTER,STAB TO FRAME
(A) ID=14.5 		9-51631-051-0 04 1 1311-
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		0-91111-514-0 04 1 1102-1310
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1311-
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		0-91110-512-0 06 1 1102-1310
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1311-
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-812-0 06 1 1102-1310
234 WASHER; STAB
ID=12.2 		0-91510-812-0 06 1 1311-
