Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11363 - FORWARD800 MEXICO
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#60673) — 19 parça
◀

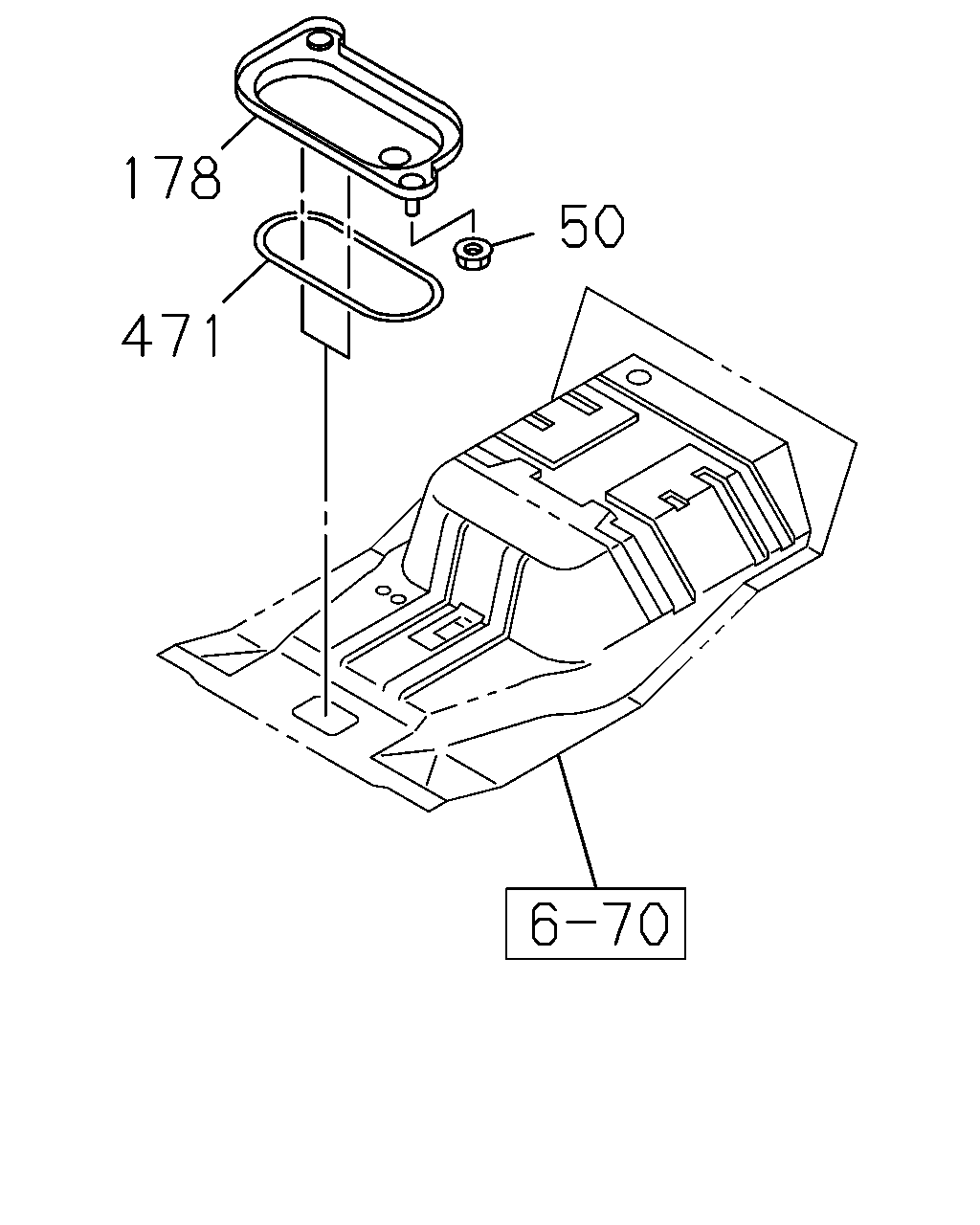

[377A] CAB SIDE (3 parça)
[377A] TANK SIDE;EXC.H.S.A SYSTEM (6 parça)
[377A] TANK SIDE;H.S.A SYSTEM (10 parça)
▶
178
50
471
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
NUT; UNION BRKT
M8 FLANGE
0-91180-108-0
02
1
1102-
178
BRACKET; UNION
8-98017-052-1
01
1
1102-
471
SEAL; BRKT
1-79738-832-0
01
1
1102-
37
37
91
91
87
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
02
1
1102-
87
PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700
1-47428-870-0
01
1
1102-1310
87
PIPE; AIR,AIR TANK TO UNION
L=670 SERVICED BY L=700
1-47428-870-0
01
1
1311-
91
NUT; PIPE UNION
M16
0-91111-516-0
02
1
1102-
118
PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=692 SERVICED BY L=700
1-47428-870-0
01
1
1102-1310
118
PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=745 SERVICED BY L=800
1-47428-872-0
01
1
1311-
37
37
91
91
110
322
87
323
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
02
1
1102-
87
PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700
1-47428-870-0
01
1
1102-1310
87
PIPE; AIR,AIR TANK TO UNION
L=670 SERVICED BY L=700
1-47428-870-0
01
1
1311-
91
NUT; PIPE UNION
M16
0-91111-516-0
02
1
1102-
110
PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473
8-98067-756-0
01
1
1102-
111
PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=554 SERVICED BY L=600
1-47428-868-0
01
1
1102-1310
111
PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=586 SERVICED BY L=600
1-47428-868-0
01
1
1311-
322
PIPE; AIR,HSA VLV TO DBL CHK VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700
1-47428-870-0
01
1
1102-
323
PIPE; AIR,DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=574 SERVICED BY L=600
1-47428-868-0
01
1
1102-1310
323
PIPE; AIR,DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=614 SERVICED BY L=660
1-47428-869-0
01
1
1311-
