◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11363 - FORWARD800 MEXICO ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#60671) — 79 parça

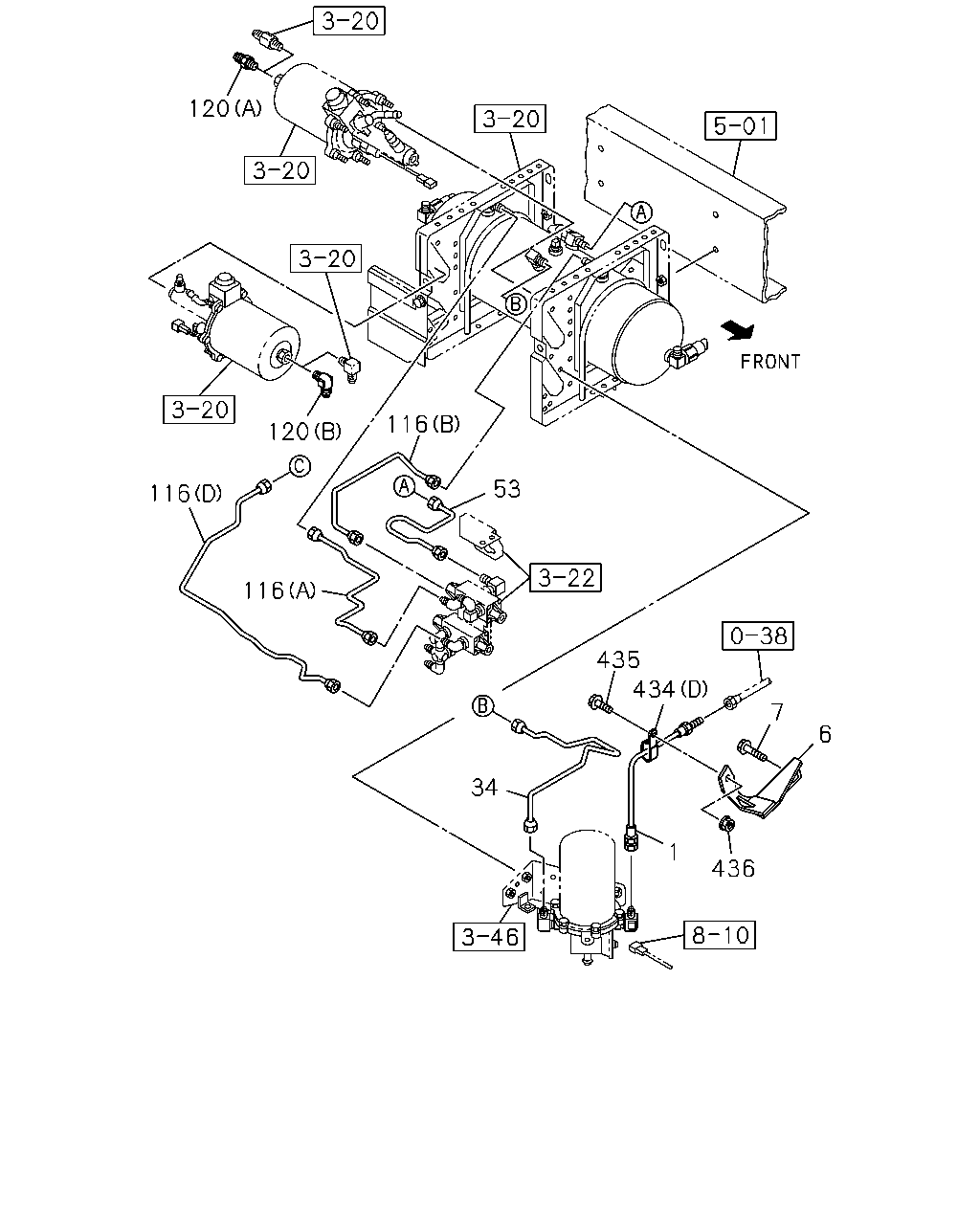

çizim 174074
120 120 116 116 116 53 434 435 7 6 1 436 34
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 8-98066-976-1 01 1 1102-
6 BRACKET; FLEX HOSE,AIR TANK 8-98066-733-1 01 1 1102-1205
6 BRACKET; FLEX HOSE,AIR TANK 8-98214-081-1 01 1 1206-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1102-
34 PIPE; AIR
L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1102-1310
34 PIPE; AIR
L=615 SERVICED BY L=660 		1-49115-480-0 01 1 1311-
53 PIPE; AIR,AIR TANK TO VALVE 8-98061-086-0 01 1 1102-1310
53 PIPE; AIR,AIR TANK TO VALVE 8-98213-331-0 01 1 1311-
116 PIPE; AIR,PROTECTION VLV
(D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 1102-1310
116 PIPE; AIR,PROTECTION VLV
(D) L=1423 SERVICED BY L=1500 		1-47428-819-0 01 1 1311-
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 1102-1310
116 PIPE; AIR,PROTECTION VLV
(A) L=480 		8-98213-332-0 01 1 1311-
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1102-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 1102-1310
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=666 SERVICED BY L=700 		1-47428-811-0 01 1 1311-
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1311-
120 CONNECTOR; AIR PIPE
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1311-
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 1102-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 1102-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 08 1 1102-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1102-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1102-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1102-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1102-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1102-

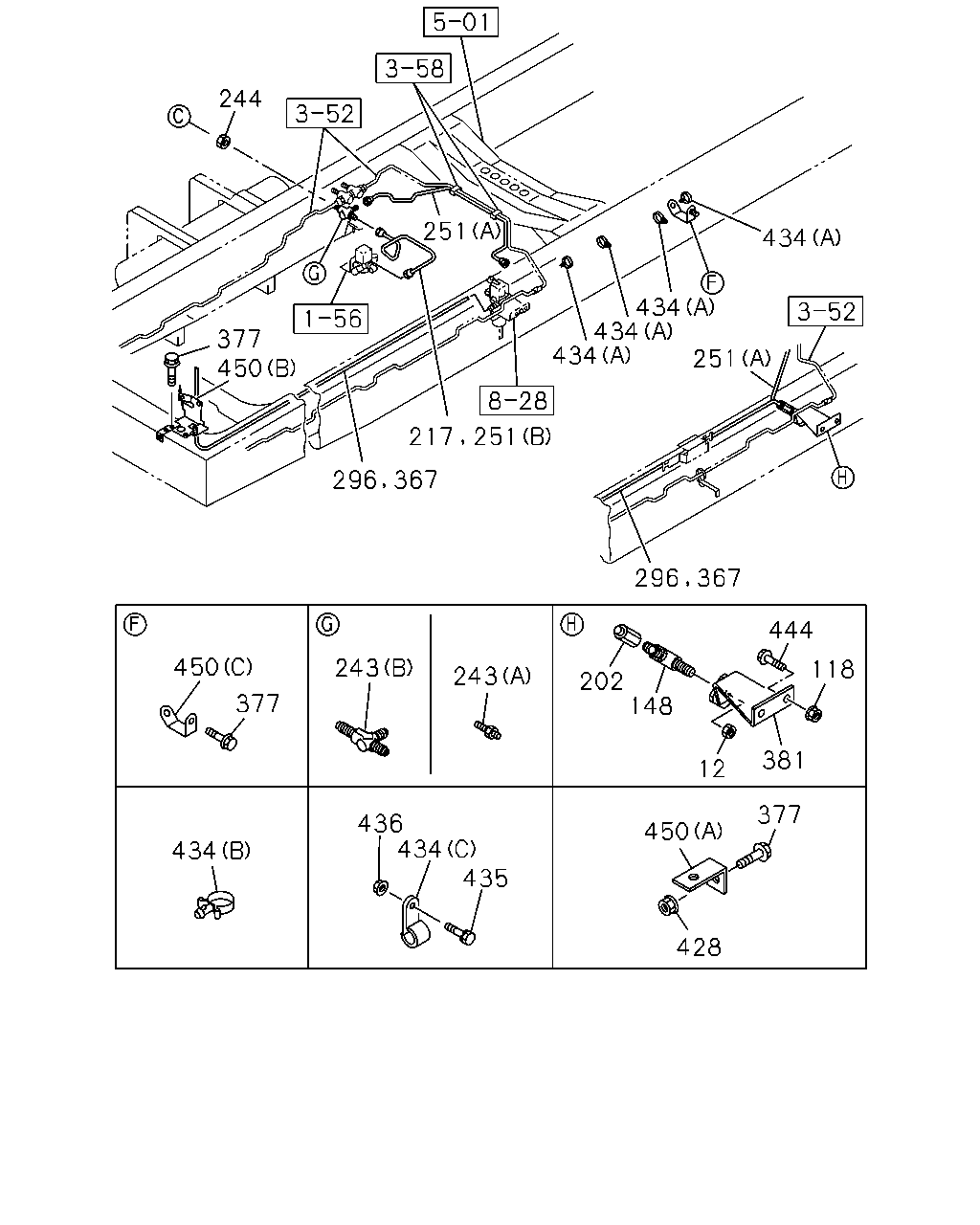

çizim 174079
244 251 434 434 434 251 434 296 367 251 217 296 367 243 243 450 377 436 434 435 434 450 148 202 444 118 381 12 377 428 377 450
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 		0-91111-512-0 01 1 1102-
118 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE 		0-91180-210-0 02 1 1102-
148 CONNECTOR; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 2WAY 		1-09654-059-2 01 1 1102-
202 ADAPTER
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1102-
217 PIPE; VAC,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=265 		8-98067-433-0 01 1 1102-1310
217 PIPE; VAC,UNION TO MAG VLV
PTO CONTROL<SV6> L=265 		8-98067-433-0 01 1 1102-1310
217 PIPE; VAC,UNION TO MAG VLV
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> L=289 		8-98120-102-0 01 1 1102-1310
243 UNION; AIR PIPE
PTO CONTROL<SV6> (B) M12 3WAY 		0-92138-906-0 01 1 1102-
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 3WAY 		0-92138-906-0 01 1 1102-
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 L=66.5 		0-92113-306-0 01 1 1102-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1102-
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 2800MM(28W) (B) L=280 		8-98284-702-0 01 1 1408-
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) L=265 		8-98067-433-0 01 1 1311-
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> (B) L=265 		8-98067-433-0 01 1 1311-
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (B) L=289 		8-98120-102-0 01 1 1311-
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) L=941 SERVICED BY L=1000 		1-47428-814-0 01 1 1102-1310
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> (A) L=941 SERVICED BY L=1000 		1-47428-814-0 01 1 1102-1310
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) L=941 SERVICED BY L=1000 		1-47428-814-0 01 1 1311-
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> (A) L=941 SERVICED BY L=1000 		1-47428-814-0 01 1 1311-
296 TUBE; NYLON
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1102-1310
296 TUBE; NYLON
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1311-
367 TUBE; CORRUGATE
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1102-1310
367 TUBE; CORRUGATE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1311-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 01 1 1102-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 1102-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 02 1 1102-
381 BRACKET
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> 		8-98119-700-0 01 1 1102-
428 NUT; BRKT
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1102-
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 1102-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 1102-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 08 1 1102-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1102-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1102-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1102-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1102-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1102-
444 BOLT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 02 1 1102-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) 		1-47477-694-0 01 1 1102-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 1102-1107
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98180-947-0 01 1 1108-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) 		8-98117-686-0 02 1 1102-

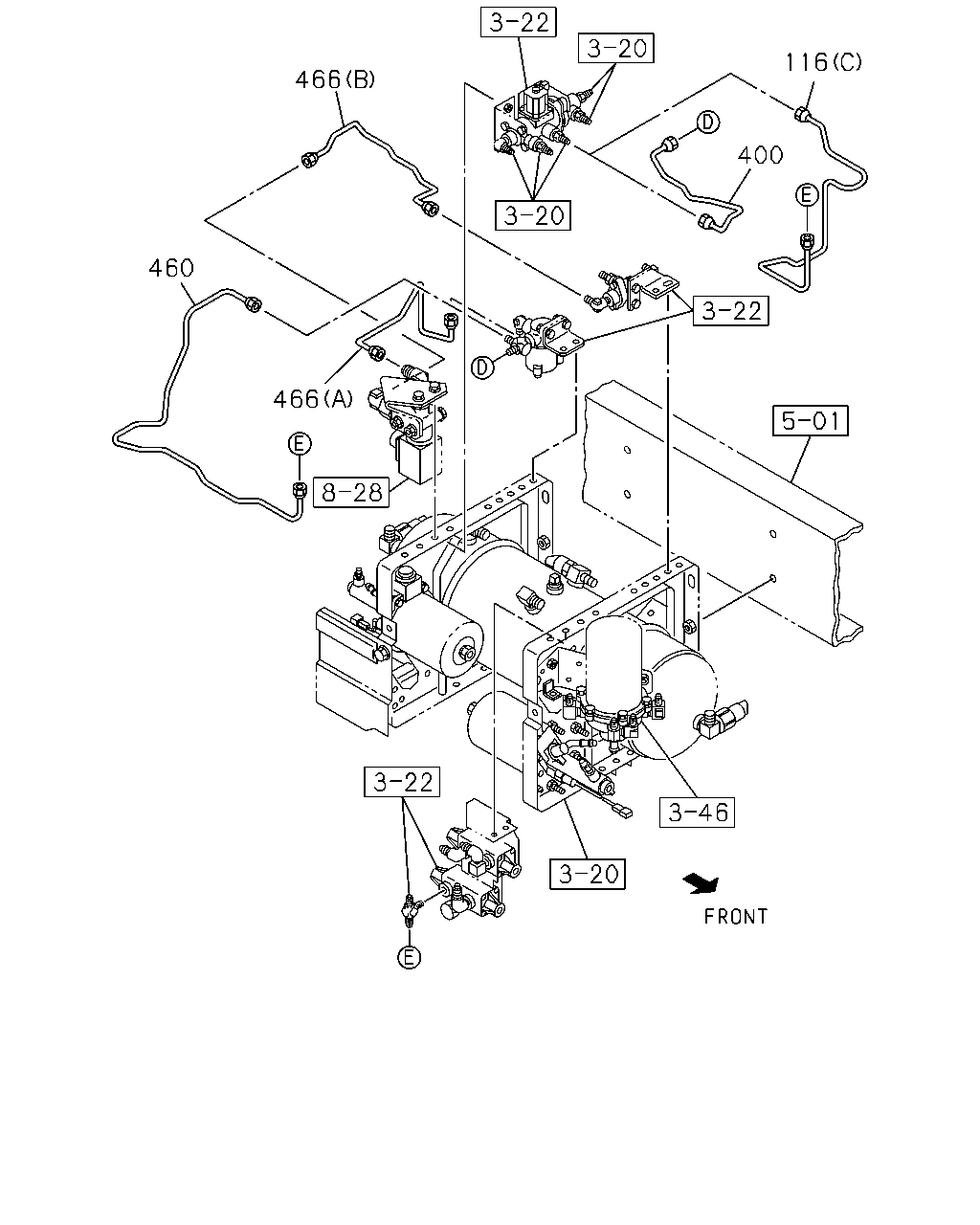

çizim 174081
466 460 466 400 116
BalonParca AdiParca NoAdetTipApplied Date
116 PIPE; AIR,PROTECTION VLV
(D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 1102-1310
116 PIPE; AIR,PROTECTION VLV
(D) L=1423 SERVICED BY L=1500 		1-47428-819-0 01 1 1311-
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 1102-1310
116 PIPE; AIR,PROTECTION VLV
(A) L=480 		8-98213-332-0 01 1 1311-
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1102-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 1102-1310
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=666 SERVICED BY L=700 		1-47428-811-0 01 1 1311-
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 1102-
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) 		8-98066-847-0 01 1 1102-1310
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) 		8-98225-792-0 01 1 1311-
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800 		1-47428-872-0 01 1 1102-1310
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (B) L=682 SERVICED BY L=700 		1-47428-870-0 01 1 1311-
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 1102-
