◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11363 - FORWARD800 MEXICO ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#60669) — 52 parça

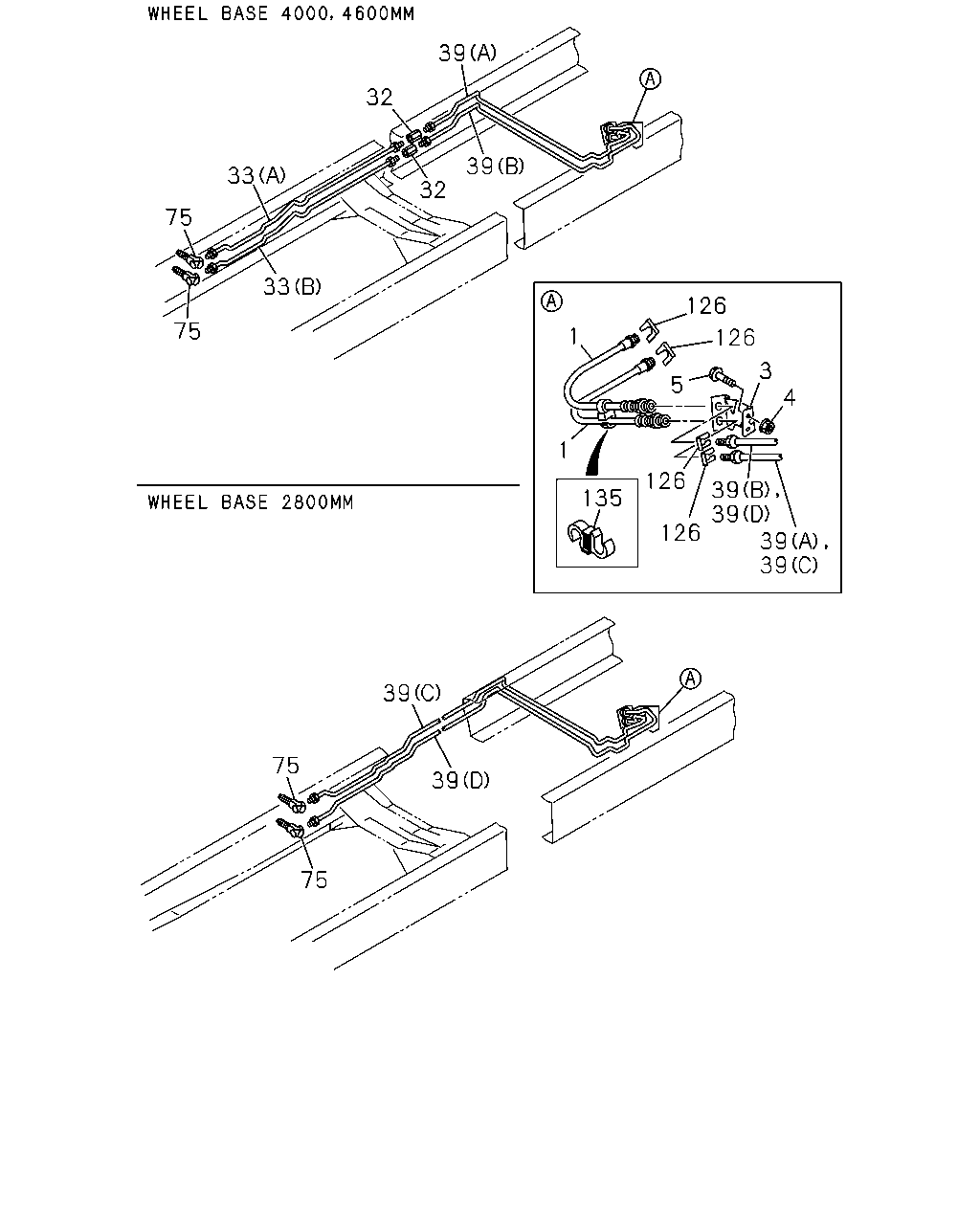

çizim 174062
32 39 39 32 33 75 33 75 1 126 3 126 5 126 135 1 126 39 39 39 39 4 39 39 75 75
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
WHEEL BASE 2800MM(28W) L=320 		8-98067-397-0 02 1 1408-
1 HOSE; FLEX,RR BRK
L=350 		8-97138-885-0 02 1 1102-1310
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) L=350 		8-97138-885-0 02 1 1311-
3 BRACKET; FLEX HOSE,RR BRK 8-98065-999-2 01 1 1102-
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 1102-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 1102-
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 1102-1310
32 UNION; OIL PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) M10 STRAIGHT 		0-92107-005-0 02 1 1311-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 1102-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1665 		8-98183-296-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1608 		8-98071-243-0 01 1 1102-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1605 		8-98183-297-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 1102-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2263 		8-98183-300-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2206 		8-98071-247-0 01 1 1102-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2203 		8-98183-301-0 01 1 1108-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 2800MM(28W) (C) RH LINE L=2138 		8-98276-974-0 01 1 1408-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 2800MM(28W) (D) LH LINE L=2182 		8-98276-975-0 01 1 1408-
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710 		8-98106-485-0 01 1 1102-1310
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (A) LH LINE L=1710 		8-98106-485-0 01 1 1311-
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1772 		8-98106-486-0 01 1 1102-1310
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) RH LINE L=1772 		8-98106-486-0 01 1 1311-
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1102-
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1102-
135 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 1102-

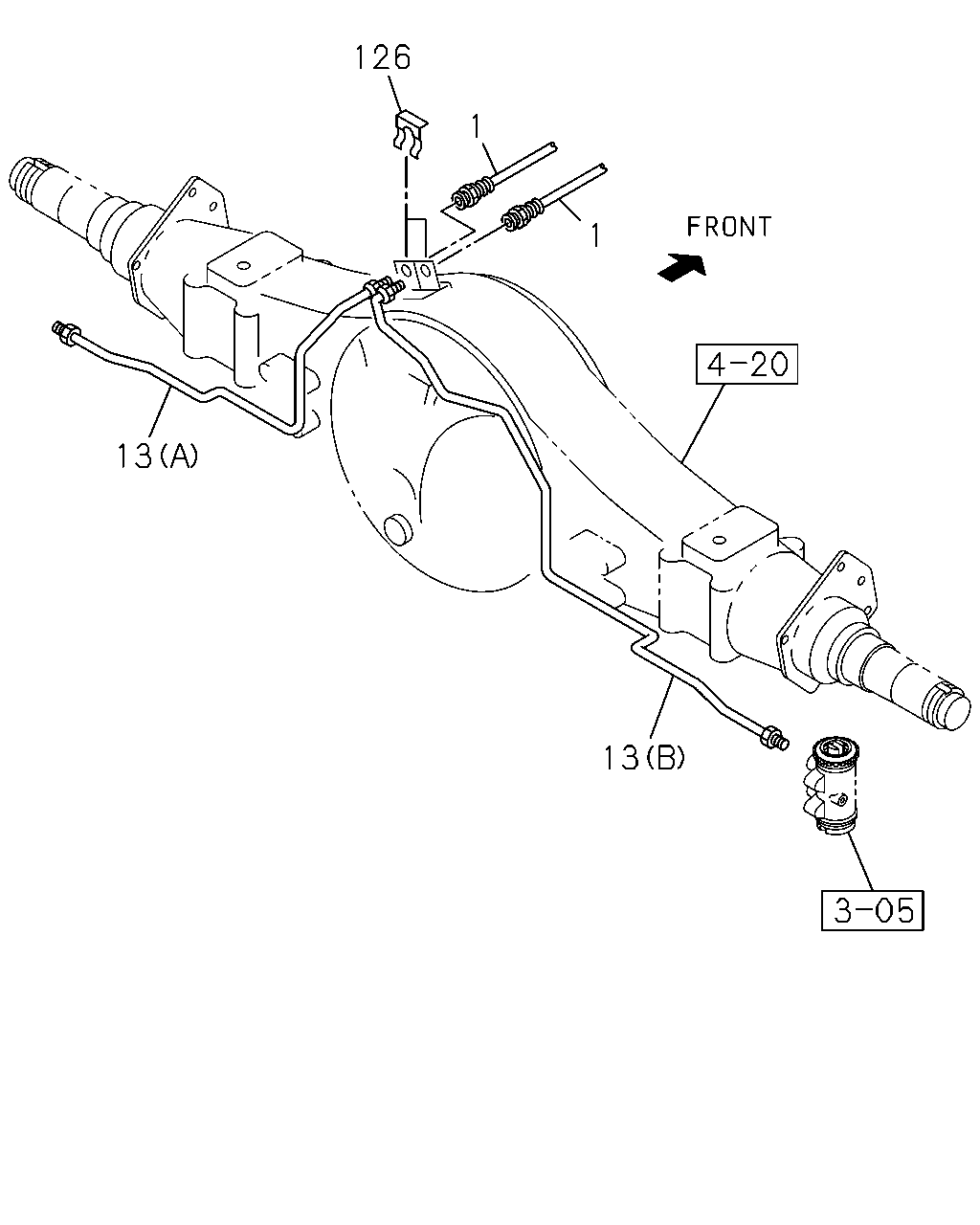

çizim 174065
126 1 1 13 13
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
WHEEL BASE 2800MM(28W) L=320 		8-98067-397-0 02 1 1408-
1 HOSE; FLEX,RR BRK
L=350 		8-97138-885-0 02 1 1102-1310
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) L=350 		8-97138-885-0 02 1 1311-
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98073-530-0 01 1 1410-1410
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98073-531-0 01 1 1410-1410
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98059-741-0 01 1 1102-
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98059-742-0 01 1 1102-
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1102-
çizim 174067
46 33 39 75 33 75 46 39 138 138 138
BalonParca AdiParca NoAdetTipApplied Date
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 1102-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1665 		8-98183-296-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1608 		8-98071-243-0 01 1 1102-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1605 		8-98183-297-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 1102-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2263 		8-98183-300-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2206 		8-98071-247-0 01 1 1102-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2203 		8-98183-301-0 01 1 1108-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 2800MM(28W) (C) RH LINE L=2138 		8-98276-974-0 01 1 1408-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 2800MM(28W) (D) LH LINE L=2182 		8-98276-975-0 01 1 1408-
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710 		8-98106-485-0 01 1 1102-1310
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (A) LH LINE L=1710 		8-98106-485-0 01 1 1311-
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1772 		8-98106-486-0 01 1 1102-1310
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) RH LINE L=1772 		8-98106-486-0 01 1 1311-
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 1102-
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1102-
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 1102-
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 1102-
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 1102-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
