3-22 — AIR CONTROL PARTS (#60664) — 87 parça
çizim 174049
259
BalonParca AdiParca NoAdetTipApplied Date
259 REPAIR KIT; VALVE
THROTTLE CONTROL SYSTEM(6XH) W/GREASE 		1-85576-381-0 01 1 1102-

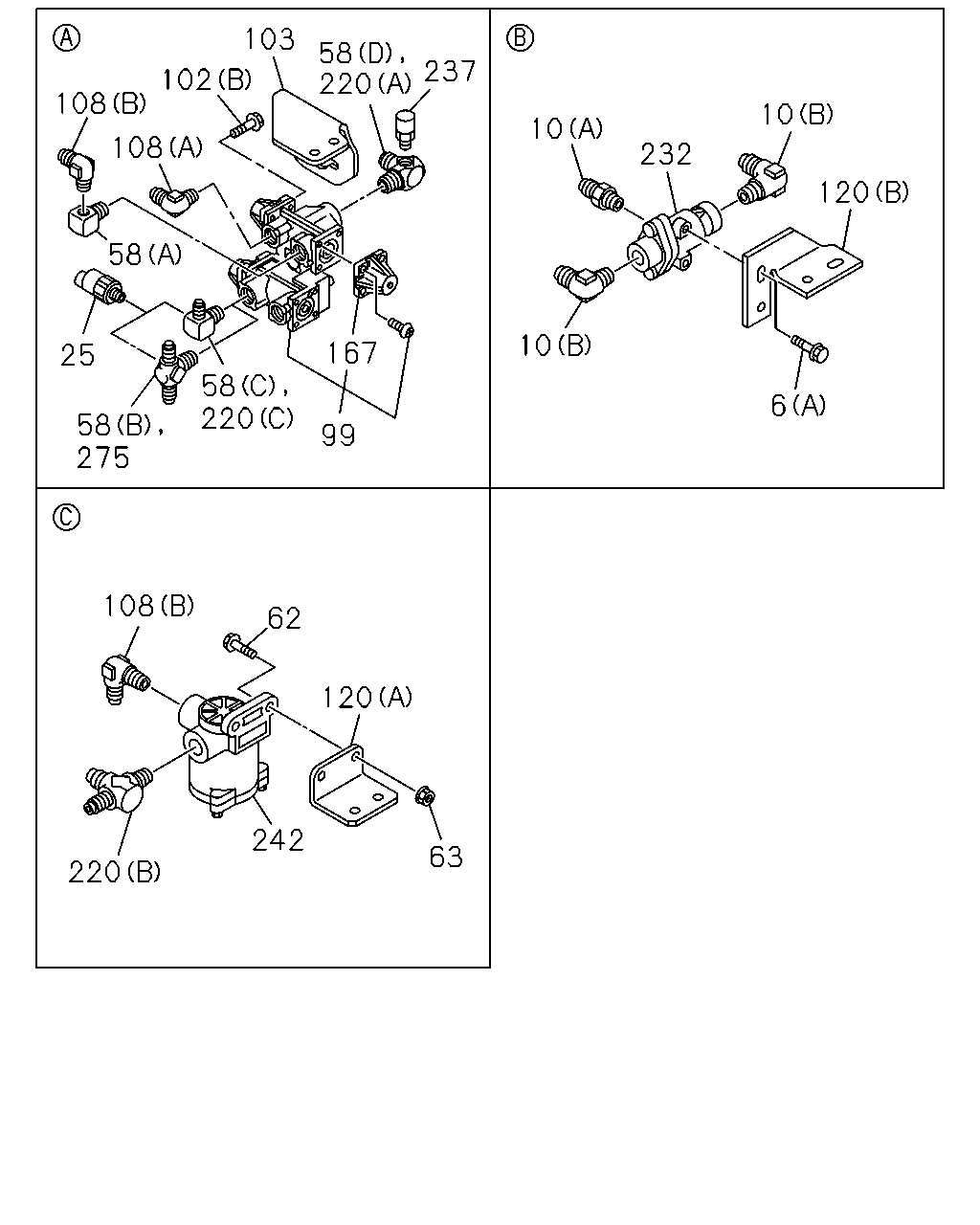

çizim 174050
103 58 220 237 102 108 108 58 25 58 275 58 220 99 167 10 10 232 10 120 6 120 63 242 220 108 62
BalonParca AdiParca NoAdetTipApplied Date
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1102-
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1102-
10 CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1102-
10 CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1102-
25 SWITCH; PRESSURE
STAMP 5.5 		8-97609-249-0 01 1 1102-1310
25 SWITCH; PRESSURE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 1311-
25 SWITCH; PRESSURE
H.S.A SYSTEM<6EP> STAMP 5.5 		8-97609-249-0 01 1 1311-
58 ADAPTER
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) 		8-98050-414-0 01 1 1311-1311
58 ADAPTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (B) 		1-09656-704-0 01 1 1204-
58 ADAPTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1204-
58 ADAPTER
EXC. THROTTLE CONTROL SYSTEM(6XH) (D) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204-1310
58 ADAPTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (D) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1311-1311
58 ADAPTER
H.S.A SYSTEM<6EP> (D) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1311-1311
58 ADAPTER
EXC. THROTTLE CONTROL SYSTEM(6XH) (D) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1312-
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1102-1310
58 ADAPTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
58 ADAPTER
H.S.A SYSTEM<6EP> (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1311-
62 BOLT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE 		0-28650-830-0 02 1 1102-
63 NUT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 1102-
99 VALVE; PROTECTION 1-48110-287-1 01 1 1102-1310
99 VALVE; PROTECTION
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		1-48110-287-3 01 1 1311-
99 VALVE; PROTECTION
H.S.A SYSTEM<6EP> 		1-48110-287-3 01 1 1311-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1102-1310
102 BOLT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1311-
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1311-
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1102-
103 BRACKET; PROTECTION VALVE 8-98034-985-1 01 1 1102-1310
103 BRACKET; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98162-113-1 01 1 1311-1311
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> 		8-98162-113-1 01 1 1311-1311
103 BRACKET; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98221-293-0 01 1 1312-
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> 		8-98221-293-0 01 1 1312-
108 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1102-1310
108 CONNECTOR; ELBOW
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1311-
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1311-
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1102-1310
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1102-1310
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1311-
108 CONNECTOR; ELBOW
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1311-
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1311-
120 BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) 		1-48316-012-0 01 1 1102-
120 BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) 		8-98050-131-0 01 1 1102-
167 COVER; VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		1-48119-625-0 03 1 1311-
167 COVER; VALVE
H.S.A SYSTEM<6EP> 		1-48119-625-0 03 1 1311-
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1312-
220 CONNECTOR; 3WAY
(A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1102-1203
220 CONNECTOR; 3WAY
THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204-1310
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1102-1203
220 CONNECTOR; 3WAY
THROTTLE CONTROL SYSTEM(6XH) (B) PT1/4 & M12 & M16 3WAY 		1-09656-331-1 01 1 1102-
232 VALVE; CHECK
THROTTLE CONTROL SYSTEM(6XH) 		1-48410-531-1 01 1 1102-
237 VALVE; SAFETY 1-48320-012-2 01 1 1102-
242 VALVE; REGULATION
THROTTLE CONTROL SYSTEM(6XH) 		1-48410-723-0 01 1 1102-
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) 		8-98050-414-0 01 1 1312-
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) 		1-09656-704-0 01 1 1102-1203
275 CONNECTOR; 4WAY
THROTTLE CONTROL SYSTEM(6XH) 		8-98050-414-0 01 1 1102-1310
çizim 174052
106 201 195 189 192 202 203 190 204 198 200 199 196 198 197 201 196 199 203 205 200 197 201 205
BalonParca AdiParca NoAdetTipApplied Date
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1102-
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 1102-
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 1102-
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 1102-
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 1102-
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 1102-
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 1102-
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 1102-
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 1102-
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 1102-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 1102-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 1102-
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 1102-
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 1102-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1102-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 1102-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 1102-

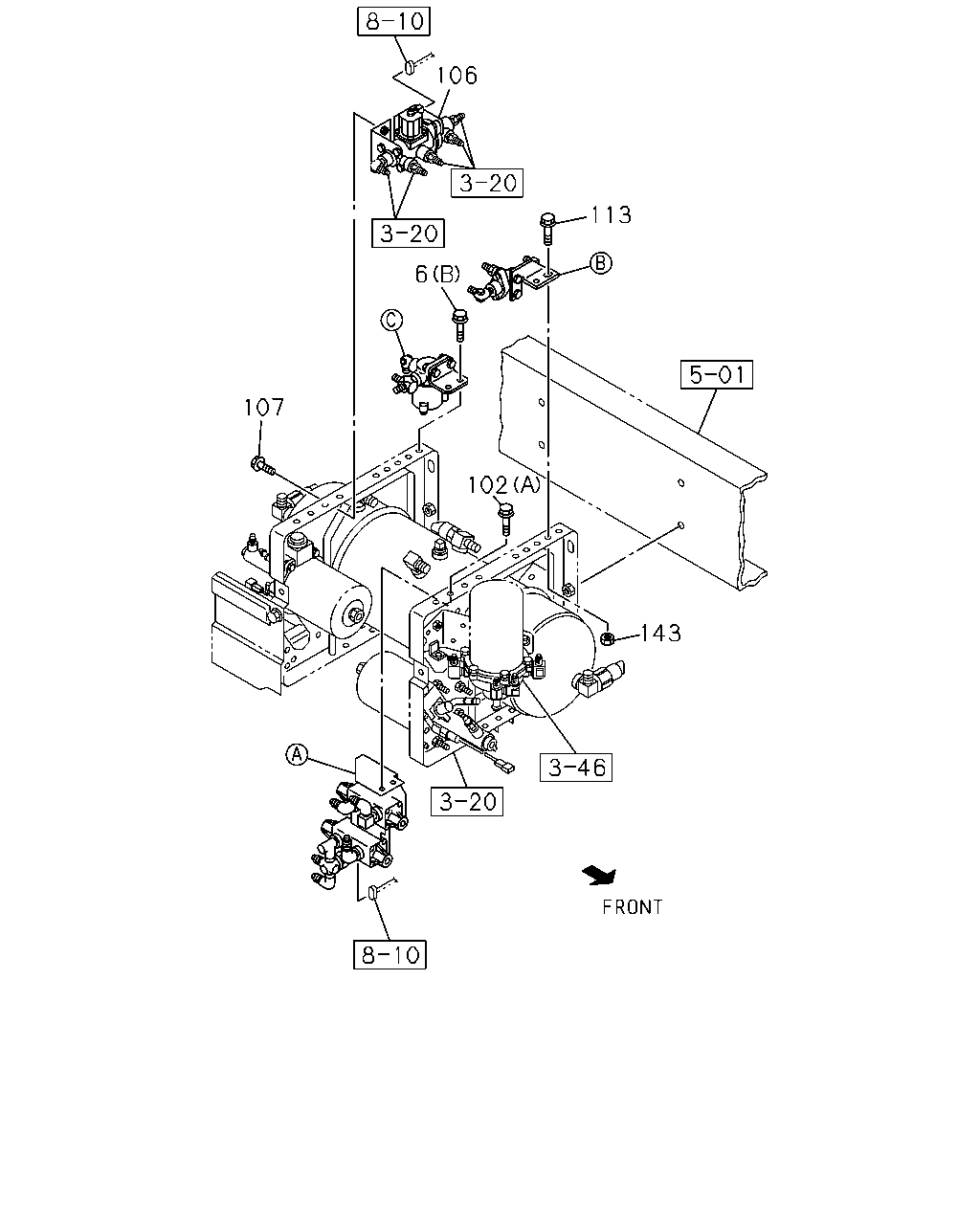

çizim 174056
106 113 102 107 143 6
BalonParca AdiParca NoAdetTipApplied Date
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1102-
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1102-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1102-1310
102 BOLT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1311-
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1311-
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1102-
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1102-
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 03 1 1102-
113 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) M8X20 FLANGE 		0-28650-820-0 02 1 1102-1310
113 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE 		0-28650-825-0 02 1 1311-
143 NUT; VLV
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 1102-1310
çizim 174057
188 204
BalonParca AdiParca NoAdetTipApplied Date
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 1102-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1102-
çizim 464444
241
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		1-85576-452-2 01 1 1311-
241 REPAIR KIT; PROTECTION VALVE
H.S.A SYSTEM<6EP> 		1-85576-452-2 01 1 1311-
