Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11363 - FORWARD800 MEXICO
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶
3-08 — PARKING BRAKE
(#60660) — 21 parça
◀
[308A] BRACKET (2 parça)

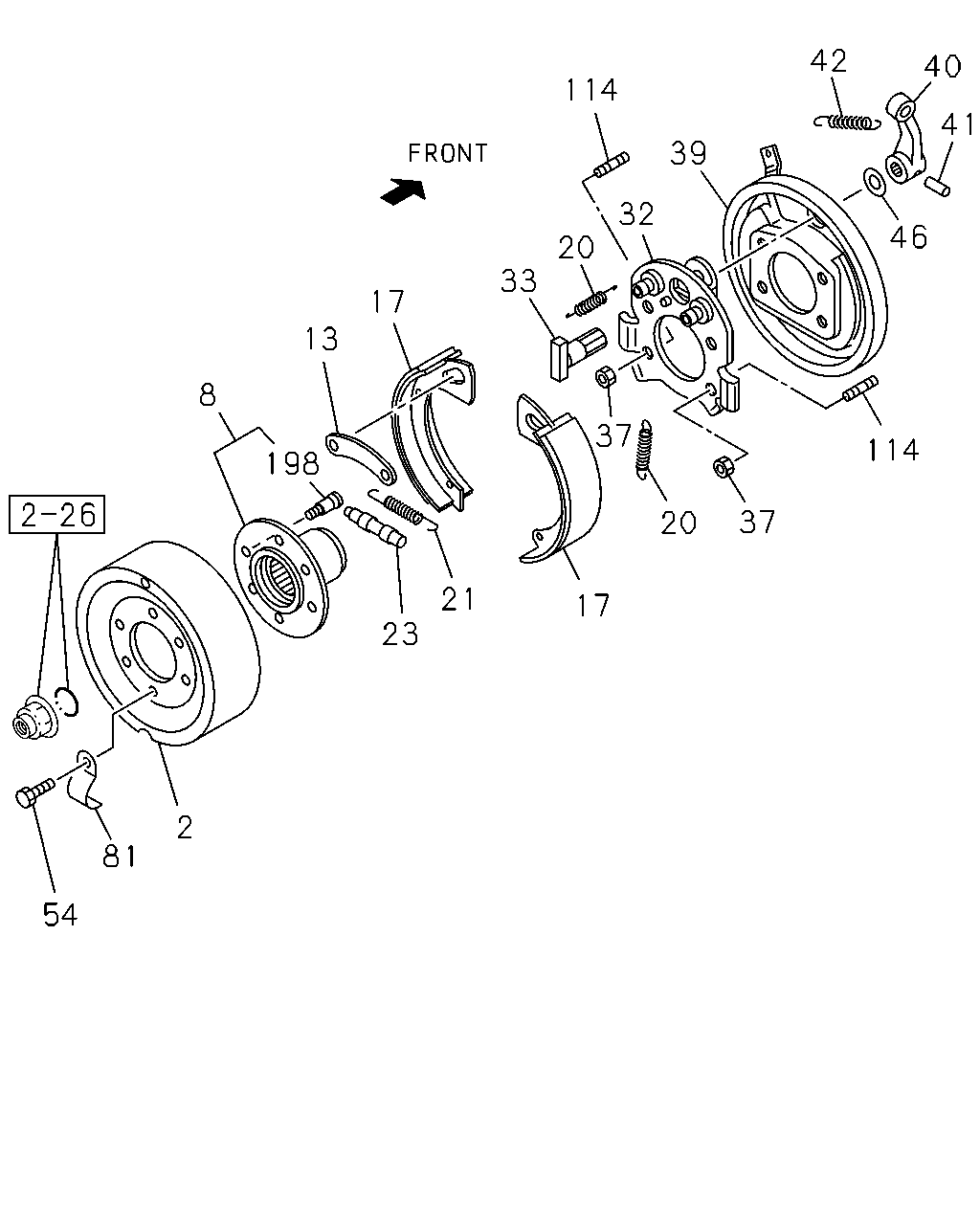

[308A] PARKING BRAKE (19 parça)
▶
130
197
130
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
130
BOLT; BRKT
M10X25 FLANGE
0-28151-025-0
03
1
1102-
197
BRACKET; CENTER BRAKE CABLE
8-98170-963-2
01
1
1102-
17
20
37
114
46
41
40
42
39
114
32
20
33
37
21
23
13
17
8
198
2
81
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
1-46211-020-1
01
1
1102-
8
FLANGE; PARKING BRK
8-98171-007-0
01
1
1102-
13
BRACE; PARKING BRK
9-46239-003-0
01
1
1102-
17
SHOE; PARKING BRK
1-46220-029-0
02
1
1102-
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-567-1
02
1
1102-
21
SPRING; RETURN,PARKING BRK SHOE
1-09583-268-0
01
1
1102-
23
SCREW; ADJ,PARKING BRK SHOE
9-46240-008-0
01
1
1102-
32
PLATE; SUPPORT,PARKING BRK
1-46213-023-0
01
1
1102-
33
SHAFT; CAM,PARKING BRK
1-46251-070-0
01
1
1102-
37
NUT; SUPPORT PLATE
M14 FLANGE
8-97365-444-0
04
1
1102-
39
COVER; DUST,PARKING BRK
1-46213-115-0
01
1
1102-
40
LEVER; CM/SHF,PARKING BRK
1-46252-057-0
01
1
1102-
41
PIN; KNOCK,LEVER
9-09878-594-0
01
1
1102-
42
SPRING; RETURN,LEVER
9-09942-592-0
01
1
1102-
46
WASHER; LEVER
9-09855-367-0
01
1
1102-
54
BOLT; COVER
M8X20 W/LK WASHER
0-50740-820-0
02
1
1102-
81
COVER; CHECK HOLE,PARKING BRK
1-46219-018-0
02
1
1102-
114
STUD; SUPPORT PLATE
M14X22.5 L=42.5
8-97365-445-0
04
1
1102-
198
BOLT; KNURL
M14X43 KNURL
8-98014-003-0
04
1
1102-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
