Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11363 - FORWARD800 MEXICO
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶

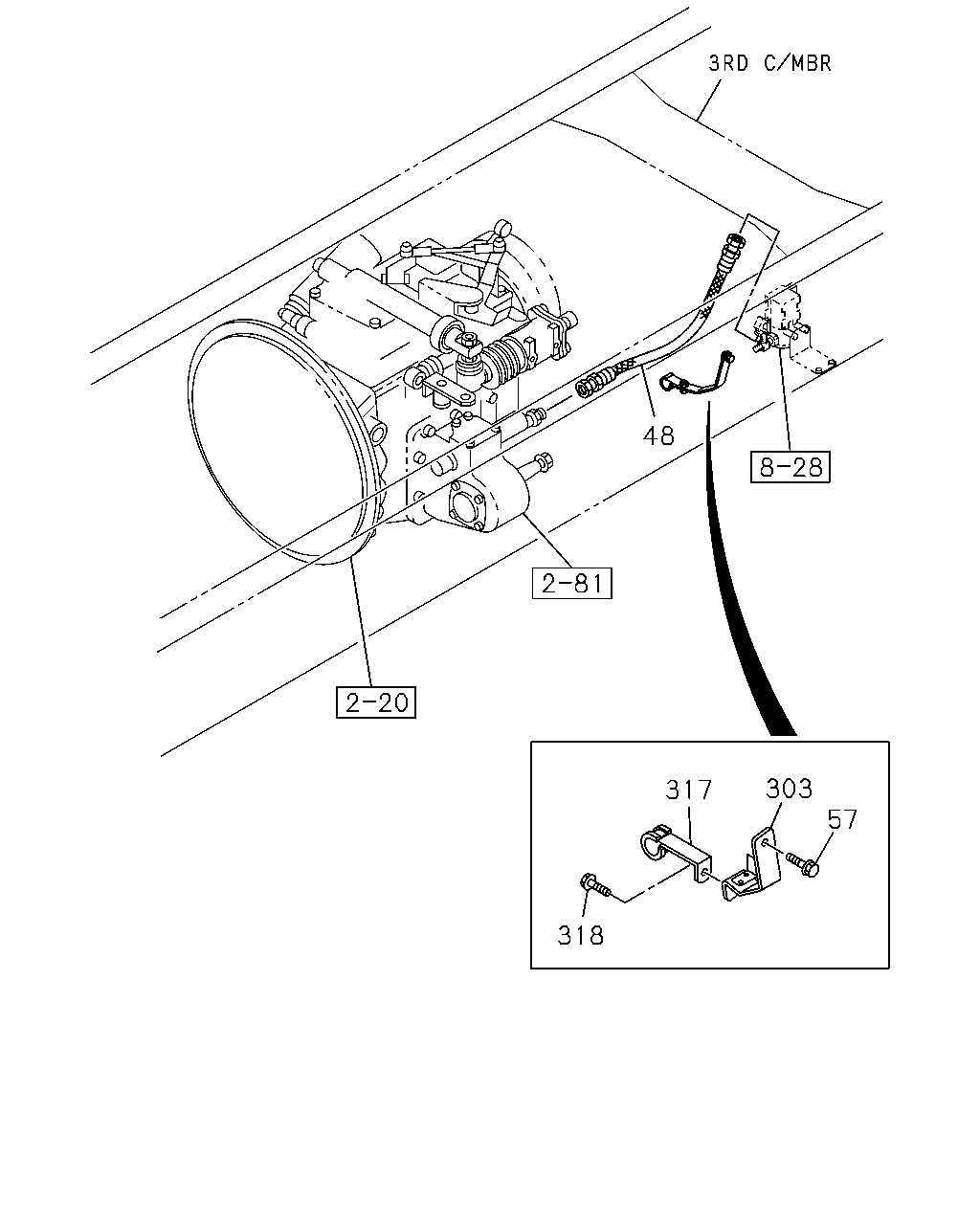

2-85 — POWER TAKE OFF CONTROL
(#60657) — 12 parça
◀
[285A] PTO LEVER (2 parça)
[285A] HOSE (10 parça)
▶
15
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1102-
15
LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79996-092-0
01
1
1102-
48
57
303
317
318
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=580
1-09363-613-1
01
1
1102-1310
48
HOSE; FLEX,PTO
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=580
1-09363-613-1
01
1
1311-
57
BOLT; BRKT
PTO CONTROL<SV6> M10X25 FLANGE
0-28651-025-0
01
1
1102-1310
57
BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> M10X25 FLANGE
0-28651-025-0
01
1
1311-
303
BRACKET; CLIP
PTO CONTROL<SV6>
8-98136-975-0
01
1
1102-1310
303
BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6>
8-98136-975-0
01
1
1311-
317
CLIP; NYLON TUBE
PTO CONTROL<SV6> ID=15 L=22 H=30
1-09701-215-1
01
1
1102-1310
317
CLIP; NYLON TUBE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> ID=15 L=22 H=30
1-09701-215-1
01
1
1311-
318
BOLT; CLIP
PTO CONTROL<SV6> M8X20 FLANGE
0-28650-820-0
01
1
1102-1310
318
BOLT; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> M8X20 FLANGE
0-28650-820-0
01
1
1311-
