11363 - FORWARD800 MEXICO
▶
2 - Clutch, Transmission, Trans Axle
▶

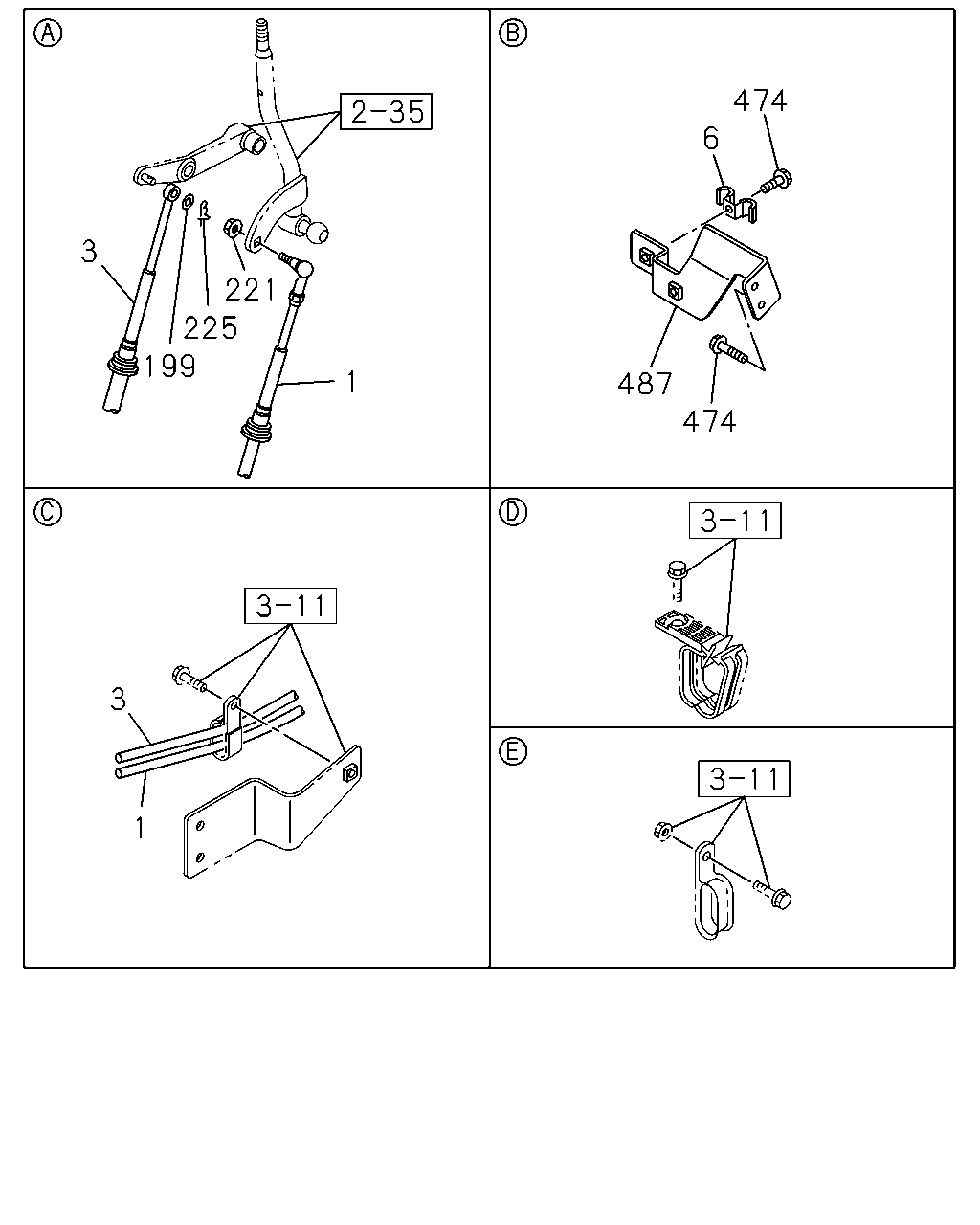

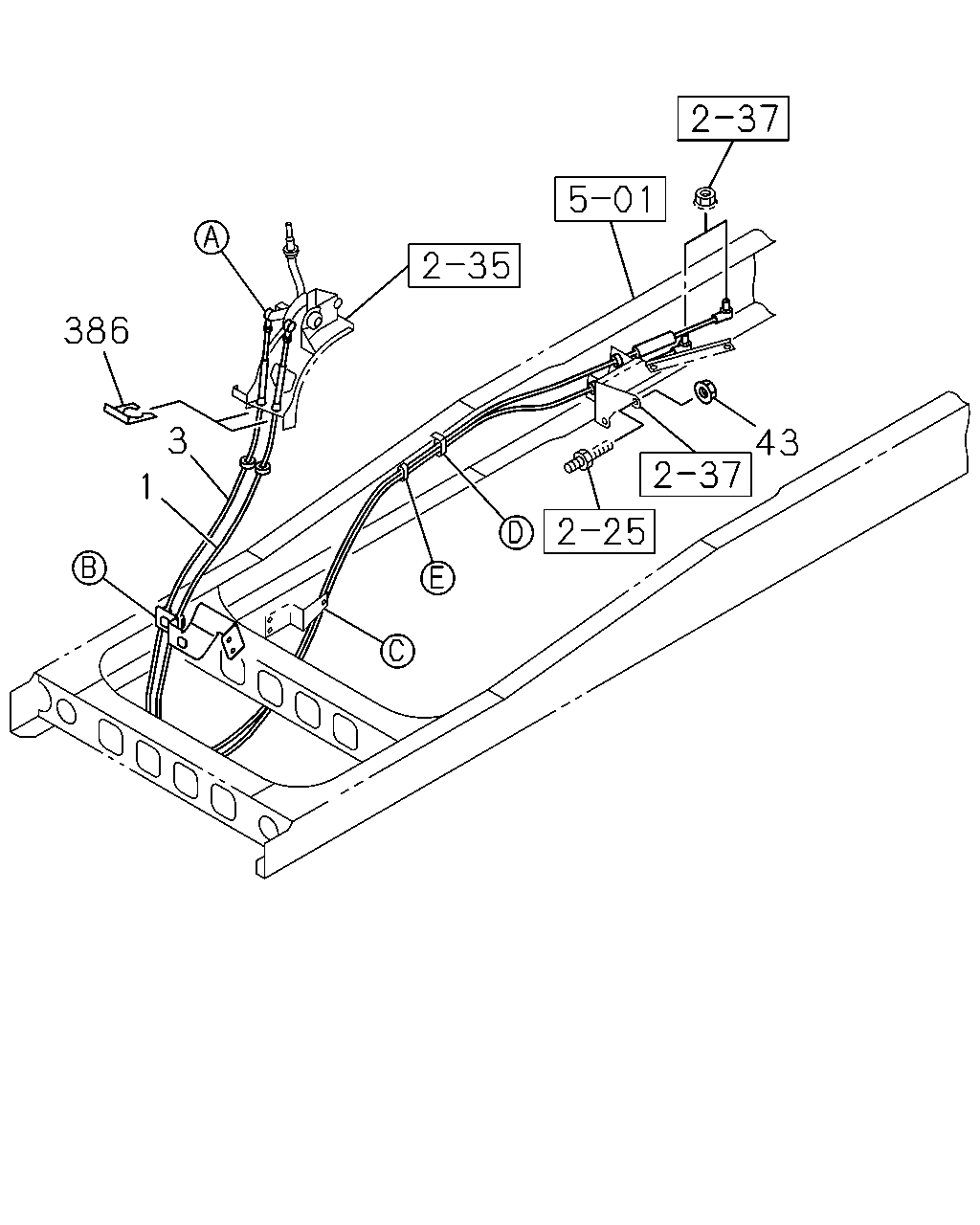

2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#60653) — 21 parça
◀
[236A] BRACKET AND CLIP (13 parça)
[236A] CABLE;TRANS CONT (8 parça)
▶
3
199
225
221
1
3
1
474
487
6
474
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. GENERATOR 24V90A(K44) L=3020
8-98169-838-1
01
1
1102-
1
CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> L=3130
8-98173-525-1
01
1
1102-
1
CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3130
8-98173-527-2
01
1
1102-
1
CABLE; SHIFT,TRANS CONT
EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3020
8-98167-237-2
01
1
1102-
3
CABLE; SELECT,TRANS CONT
GENERATOR 24V90A(K44) L=3245
8-98173-528-1
01
1
1102-
3
CABLE; SELECT,TRANS CONT
EXC. GENERATOR 24V90A(K44) L=3120
8-98167-238-1
01
1
1102-
6
CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
1102-
199
WASHER; PL,SELECT
ID=8.4 OD=16
0-91614-508-0
01
1
1102-
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-062-1
01
1
1102-
225
PIN; SELECT CABLE
L=27.7
8-94111-137-0
01
1
1102-
474
BOLT; BRKT
M8X25 W/WASHER
0-51640-825-0
01
1
1102-
474
BOLT; BRKT
M8X25 W/WASHER
0-51640-825-0
02
1
1102-
487
BRACKET; CONT CABLE
8-98080-013-2
01
1
1102-
386
3
1
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. GENERATOR 24V90A(K44) L=3020
8-98169-838-1
01
1
1102-
1
CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> L=3130
8-98173-525-1
01
1
1102-
1
CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3130
8-98173-527-2
01
1
1102-
1
CABLE; SHIFT,TRANS CONT
EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3020
8-98167-237-2
01
1
1102-
3
CABLE; SELECT,TRANS CONT
GENERATOR 24V90A(K44) L=3245
8-98173-528-1
01
1
1102-
3
CABLE; SELECT,TRANS CONT
EXC. GENERATOR 24V90A(K44) L=3120
8-98167-238-1
01
1
1102-
43
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1102-
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
1102-
