2-20 — MANUAL TRANSMISSION ASM AND CASE (#60648) — 42 parça

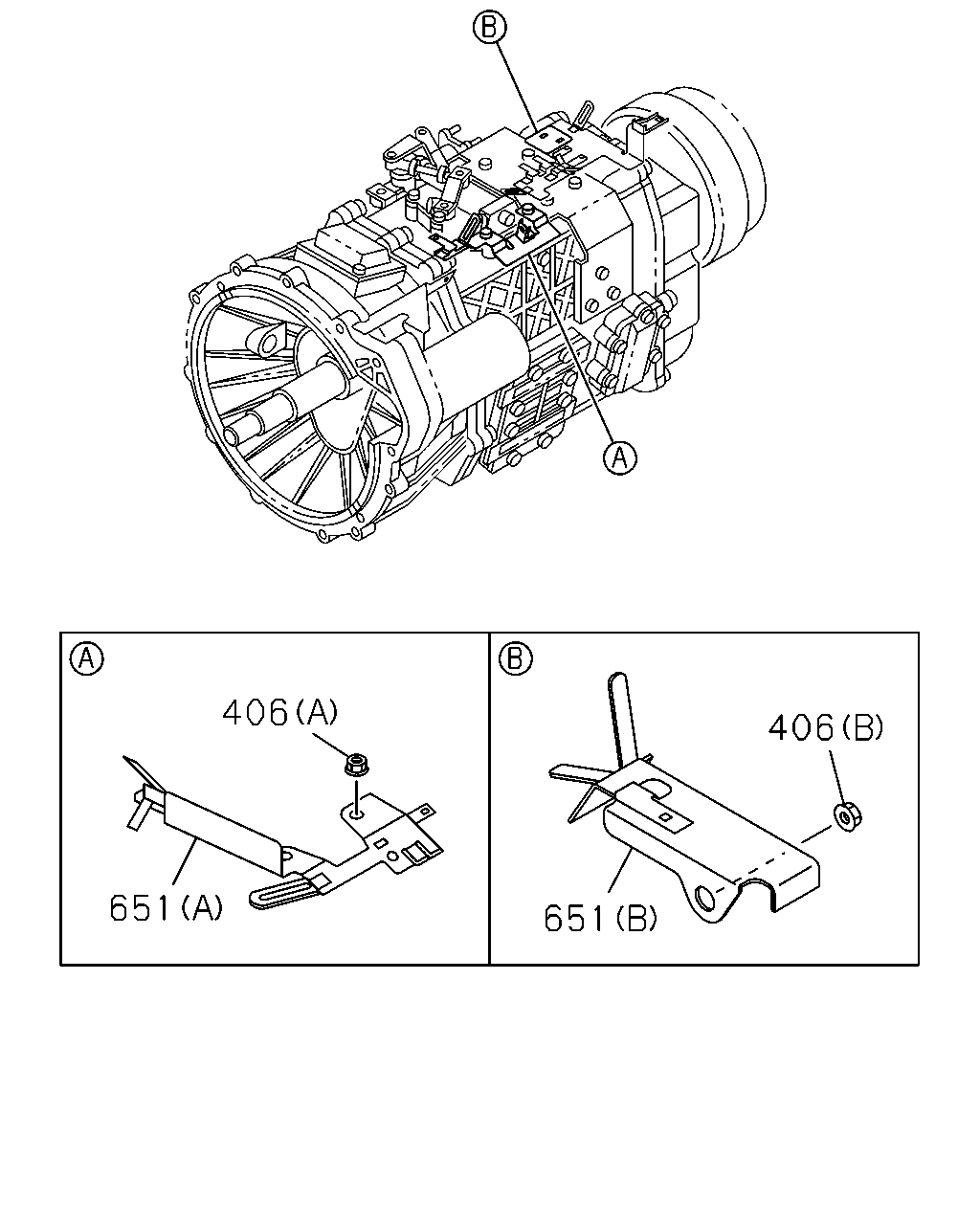

406 651 406 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
406	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1102-
406	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1102-
651	BRACKET; T/M HARNESS (A)	8-97609-800-3	01	1	1102-
651	BRACKET; T/M HARNESS (B)	8-98044-568-1	01	1	1102-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

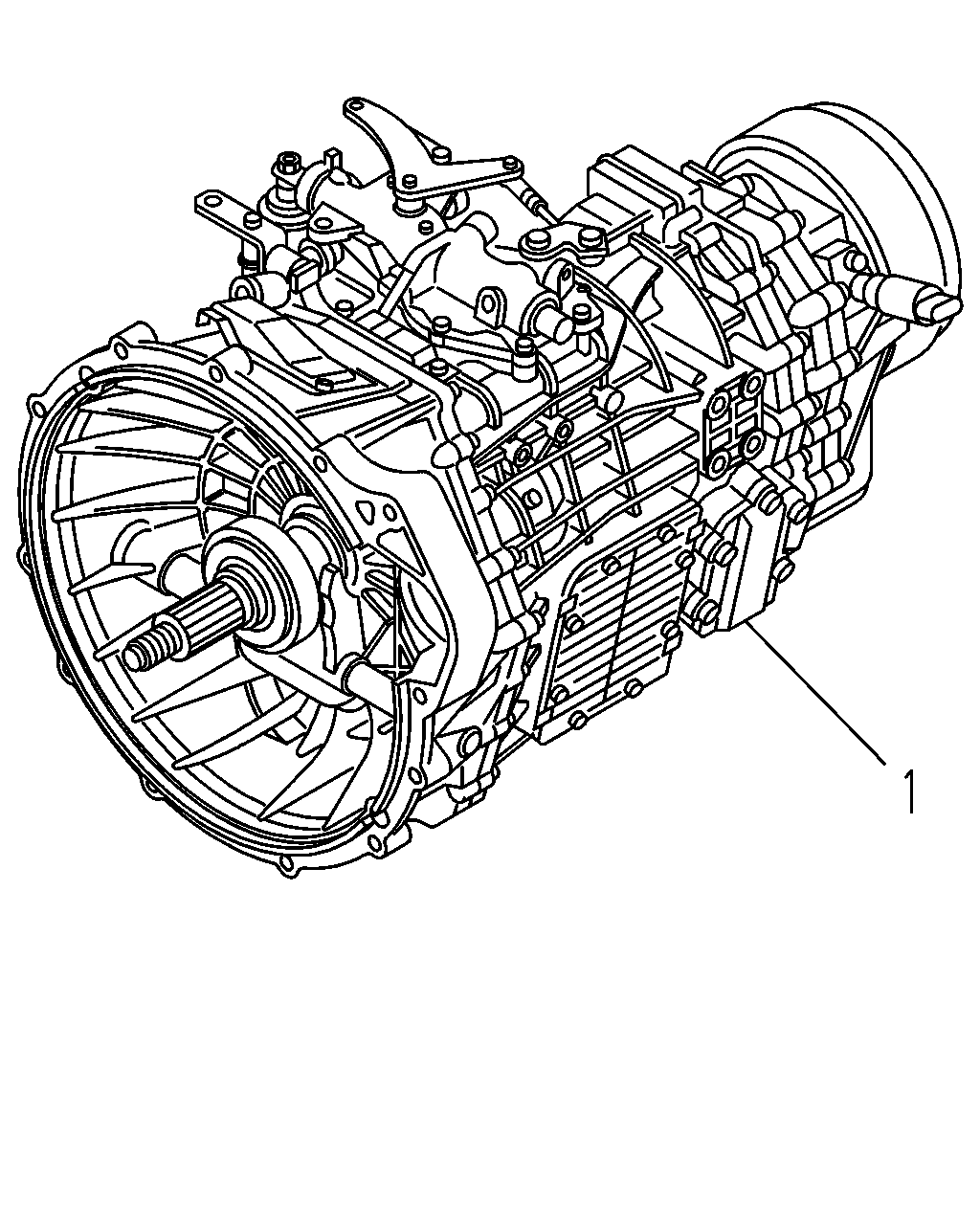

1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98171-392-0	01	1	1102-
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98171-392-0	01	1	1102-
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98171-396-0	01	1	1102-
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98171-396-0	01	1	1102-

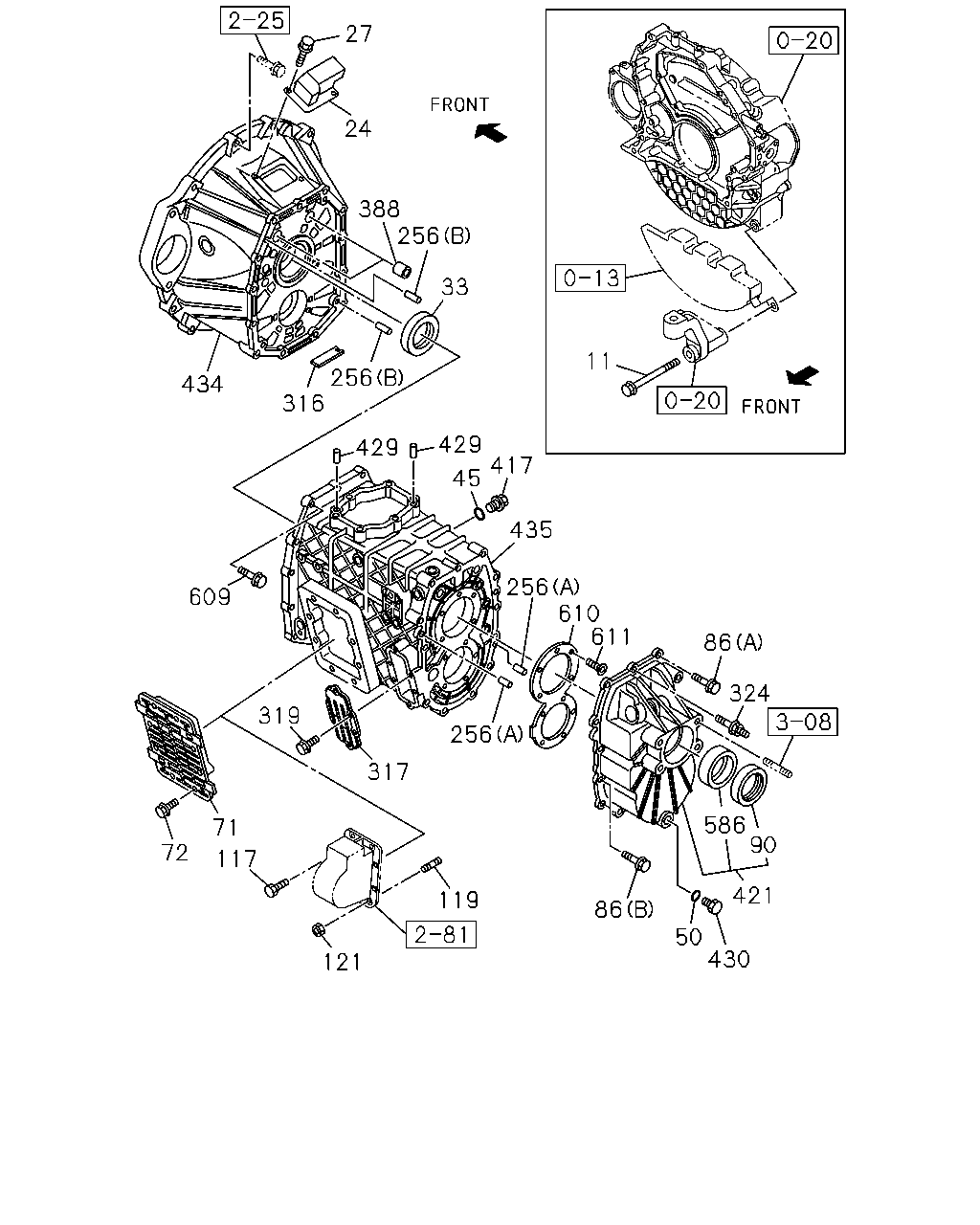

27 24 388 33 256 256 316 434 429 429 11 45 417 435 256 610 611 86 324 586 90 421 430 50 86 256 319 609 72 71 117 121 119 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT M12X25 FLANGE	0-28151-225-0	02	1	1309-1310
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1102-1410
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1102-1410
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1102-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1102-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1102-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97252-624-2	01	1	1102-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	1102-
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	10	1	1102-
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	1102-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1102-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	1102-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	1102-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	1102-
256	PIN; KNOCK (B) OD=10 L=20	8-97135-423-0	02	1	1102-
256	PIN; KNOCK (A) ID=6 L=12	9-08160-612-0	02	1	1102-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1102-
317	COVER; CASE	8-97252-626-0	01	1	1102-
319	BOLT; COVER M8X20 FLANGE	0-28050-820-0	06	1	1102-
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	1102-
388	BUSHING; CLU HSG	8-97241-326-2	02	1	1102-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1102-
421	COVER; RR,TRANS	8-98186-773-0	01	1	1102-1109
421	COVER; RR,TRANS	8-97238-934-5	01	1	1110-
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	1102-
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1102-
434	HOUSING; CLU	8-97382-931-1	01	1	1102-
435	CASE; TRANS	8-97382-868-1	01	1	1102-
586	BEARING; NEEDLE	8-97253-108-0	01	1	1102-
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	1102-
610	RETAINER; BRG	8-97241-314-2	01	1	1102-
611	SCREW M10X27 TORQUES	8-97365-354-0	10	1	1102-
