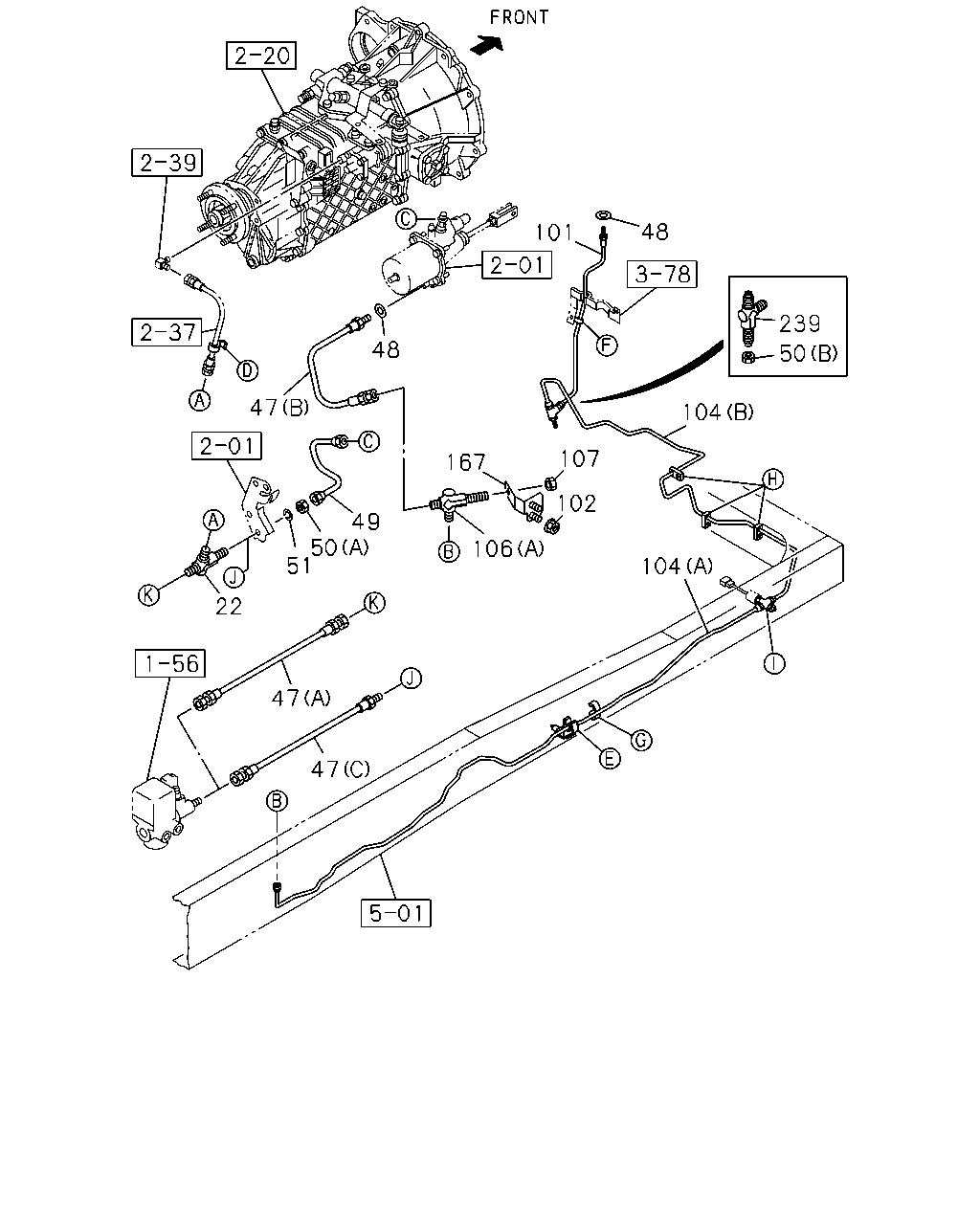

2-05 — CLUTCH PIPING (#60644) — 47 parça

16 28 16 207 104 106 184 50 28 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	1102-
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	1102-
28	CLIP; OIL PIPE (B) ID=6.35	1-09701-247-1	01	1	1102-
28	CLIP; OIL PIPE (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1102-
28	CLIP; OIL PIPE (C)	8-98012-254-1	04	1	1102-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1102-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1102-
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1102-1310
50	NUT; UNION EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1311-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR WHEEL BASE 2800MM(28W) (A) L=2370	8-98284-703-0	01	1	1408-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=1684 SERVICED BY L=1700	1-47428-737-0	01	1	1102-1310
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=1519	8-98217-131-0	01	1	1311-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (A) L=2683	8-98162-742-1	01	1	1102-1310
104	PIPE; OIL,FLEX HOSE TO CONNECTOR WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (A) L=2683	8-98162-742-1	01	1	1311-
106	UNION; OIL PIPE (A) M12 2WAY	1-09654-059-2	01	1	1102-
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> (B) M12 3WAY	8-98051-113-0	01	1	1102-
184	UNION; FLEX HOSE EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1102-
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1102-

47 48 167 107 102 106 104 104 239 50 48 101 49 50 51 22 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	1102-1310
47	HOSE; FLEX,CLU CONT WHEEL BASE 2800MM(28W) (B) L=390	8-98080-980-0	01	1	1408-
47	HOSE; FLEX,CLU CONT WHEEL BASE 2800MM(28W) (C) L=540	1-09363-736-0	01	1	1408-
47	HOSE; FLEX,CLU CONT (B) L=440	8-98072-346-0	01	1	1102-1405
47	HOSE; FLEX,CLU CONT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) L=440	8-98072-346-0	01	1	1406-
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (A) L=720	1-09363-970-0	01	1	1102-1310
47	HOSE; FLEX,CLU CONT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) ASSISTOR SHIFT CONTROL<WX8> (A) L=720	1-09363-970-0	01	1	1311-
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=720	1-09363-801-0	01	1	1102-1310
47	HOSE; FLEX,CLU CONT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=720	1-09363-801-0	01	1	1311-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1102-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. ASSISTOR SHIFT CONTROL<WX8> L=207	1-49124-782-0	01	1	1102-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1102-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1102-
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1102-1310
50	NUT; UNION EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1311-
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	1102-1310
51	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	1311-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=510	8-98059-811-0	01	1	1102-
102	NUT; FLEX HOSE,CLU CONT M10 FLANGE	0-91180-210-0	02	1	1102-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR WHEEL BASE 2800MM(28W) (A) L=2370	8-98284-703-0	01	1	1408-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=1684 SERVICED BY L=1700	1-47428-737-0	01	1	1102-1310
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=1519	8-98217-131-0	01	1	1311-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (A) L=2683	8-98162-742-1	01	1	1102-1310
104	PIPE; OIL,FLEX HOSE TO CONNECTOR WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (A) L=2683	8-98162-742-1	01	1	1311-
106	UNION; OIL PIPE (A) M12 2WAY	1-09654-059-2	01	1	1102-
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> (B) M12 3WAY	8-98051-113-0	01	1	1102-
107	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	1102-
167	BRACKET; UNION	8-98086-811-1	01	1	1102-
239	UNION; CLU HOSE M12 2WAY	1-09654-059-2	01	1	1102-
