Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#60639) — 234 parça

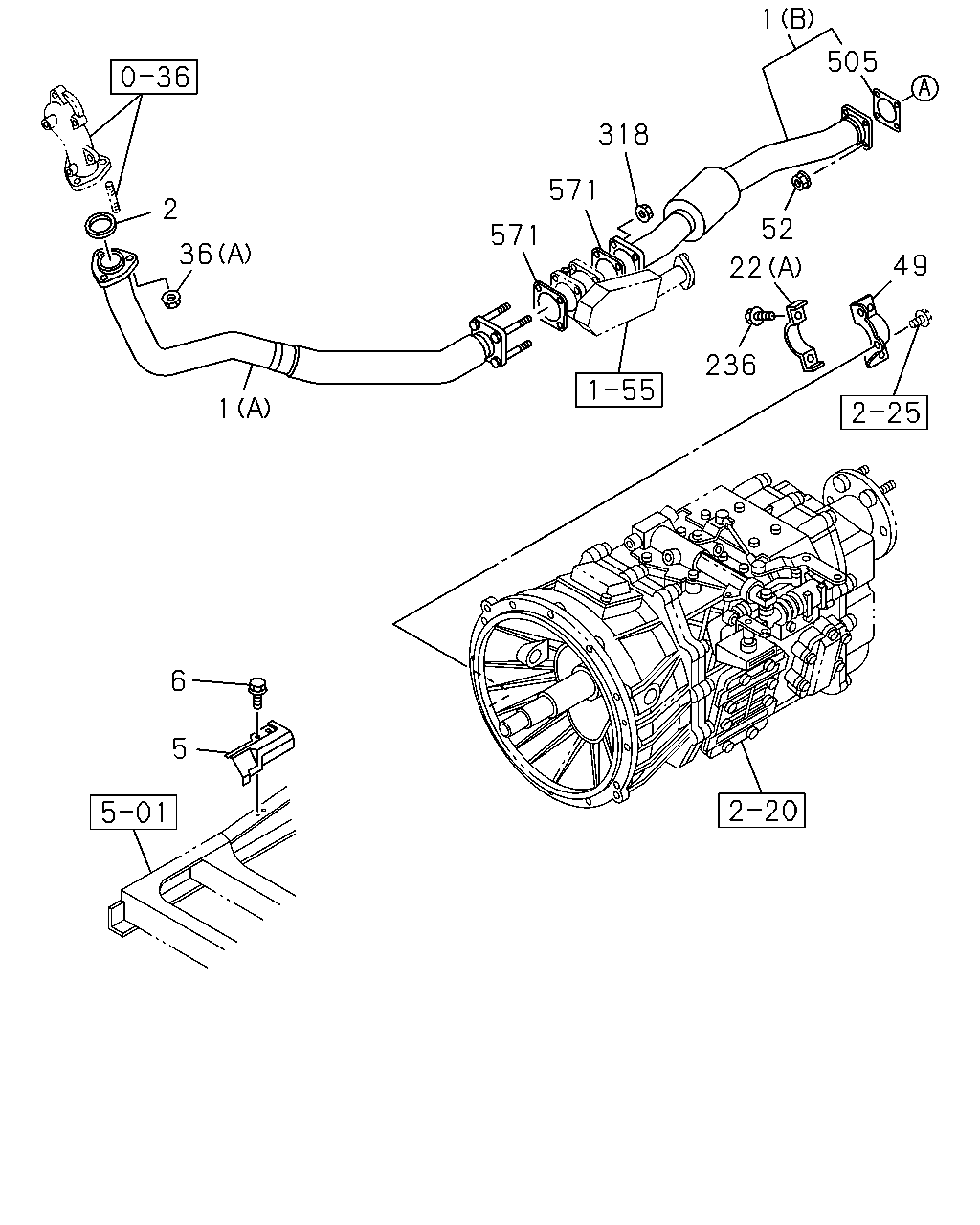

2 1 36 6 5 571 571 318 1 505 49 52 22 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (B)	8-98096-347-0	01	1	1102-
1	PIPE; EXH (A)	8-98161-196-0	01	1	1102-1202
1	PIPE; EXH (A)	8-98208-160-0	01	1	1203-1303
1	PIPE; EXH (A)	8-98243-546-0	01	1	1304-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-97381-455-0	01	1	1102-
5	PROTECTOR; HEAT	8-98044-122-0	01	1	1102-
6	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	1102-
22	CLAMP; EXH PIPE WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=80-84	1-22133-233-0	02	1	1408-1408
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1408-1408
22	CLAMP; EXH PIPE WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=80-84	1-22133-233-0	02	1	1409-
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=80-84	1-22133-233-0	02	1	1409-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1409-
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	04	1	1102-1107
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1108-1310
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1108-1310
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1311-1405
22	CLAMP; EXH PIPE (A)	1-22133-295-0	01	1	1102-1309
22	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1310-
36	NUT; EXH PIPE (B) M10 FLANGE	0-91180-210-0	02	1	1102-
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1102-
49	BRACKET; EXH PIPE TO TRANS	8-98042-786-0	01	1	1102-1301
49	BRACKET; EXH PIPE TO TRANS	8-98234-530-0	01	1	1302-
52	NUT; BRKT M12 FLANGE	0-91180-212-0	04	1	1102-
236	BOLT; PIPE CLAMP TO BRKT M10X30 FLANGE	0-28051-030-0	02	1	1102-1310
236	BOLT; PIPE CLAMP TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	1311-
318	NUT; EXH PIPE,FRT M8 W/LK WASHER	8-97581-234-0	04	1	1102-
505	GASKET; CONV TO EXH PIPE	8-98096-305-0	01	1	1102-
571	GASKET ID=64	8-97373-108-0	02	1	1102-

12 17 506 17 56 226 81 81 60 107 36 62 226 121 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH	8-98175-970-3	01	1	1102-
17	BOLT; EXH PIPE (B) M12X35 FLANGE	0-28051-235-0	04	1	1204-
17	BOLT; EXH PIPE (A) M10X35 FLANGE	0-28651-035-0	02	1	1102-
36	NUT; EXH PIPE (B) M10 FLANGE	0-91180-210-0	02	1	1102-
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1102-
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	8-98086-352-0	01	1	1409-
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	8-98085-168-0	01	1	1408-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	8-98059-755-0	01	1	1408-
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98245-522-0	01	1	1408-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-584-0	01	1	1102-1309
56	BRACKET; CLAMP,EXH PIPE (B)	8-98245-522-0	01	1	1310-1310
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-824-1	01	1	1102-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98086-352-0	01	1	1102-1405
60	BRACKET; FRAME TO BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-98245-530-0	01	1	1409-
60	BRACKET; FRAME TO BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	8-98276-926-0	01	1	1408-
60	BRACKET; FRAME TO BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98090-167-0	01	1	1408-
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	1102-
60	BRACKET; FRAME TO BRKT (B)	8-98059-753-1	01	1	1102-1309
60	BRACKET; FRAME TO BRKT (B)	8-98245-530-0	01	1	1310-1405
60	BRACKET; FRAME TO BRKT (C)	8-98090-167-0	01	1	1102-1310
62	TUBE; DIST,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1408-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1102-1405
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1406-1407
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1408-1408
62	TUBE; DIST,BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) L=39	8-98060-852-0	01	1	1408-1408
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1409-
62	TUBE; DIST,BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) L=39	8-98060-852-0	01	1	1409-
62	TUBE; DIST,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) L=39	8-98060-852-0	01	1	1409-
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1102-1310
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1408-1408
70	BOLT; BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X70 FLANGE	0-28051-070-0	01	1	1408-1408
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1409-
70	BOLT; BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X70 FLANGE	0-28051-070-0	01	1	1409-
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X70 FLANGE	0-28051-070-0	01	1	1409-
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1408-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1102-1310
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1102-1405
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1406-1407
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M10X35 FLANGE	0-28651-035-0	01	1	1408-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1406-1407
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1408-1408
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91180-210-0	01	1	1408-1408
81	NUT; BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91180-210-0	01	1	1408-1408
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1409-
81	NUT; BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91180-210-0	01	1	1409-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91180-108-0	02	1	1408-
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	03	1	1408-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1102-1107
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1108-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1311-1405
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1311-1405
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1406-1407
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1408-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1102-1107
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1102-1107
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1108-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1108-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1108-1310
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28650-830-0	02	1	1408-
107	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1408-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1102-1310
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1102-1310
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1102-1310
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1311-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1102-1405
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1406-1407
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1408-1408
121	WASHER; PL,BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> ID=11 OD=54	1-09503-154-2	01	1	1408-1408
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1409-
121	WASHER; PL,BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> ID=11 OD=54	1-09503-154-2	01	1	1409-
121	WASHER; PL,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=11 OD=54	1-09503-154-2	01	1	1409-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1102-1405
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1406-1407
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1408-1408
226	RUBBER; CUSHION WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	8-94457-277-1	01	1	1408-1408
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1409-
226	RUBBER; CUSHION WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	8-94457-277-1	01	1	1409-
226	RUBBER; CUSHION EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	8-94457-277-1	01	1	1409-
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1102-1405
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1406-1407
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1408-1408
226	RUBBER; CUSHION WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-94457-278-1	01	1	1408-1408
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1409-
226	RUBBER; CUSHION WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-94457-278-1	01	1	1409-
226	RUBBER; CUSHION EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-94457-278-1	01	1	1409-
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1102-1203

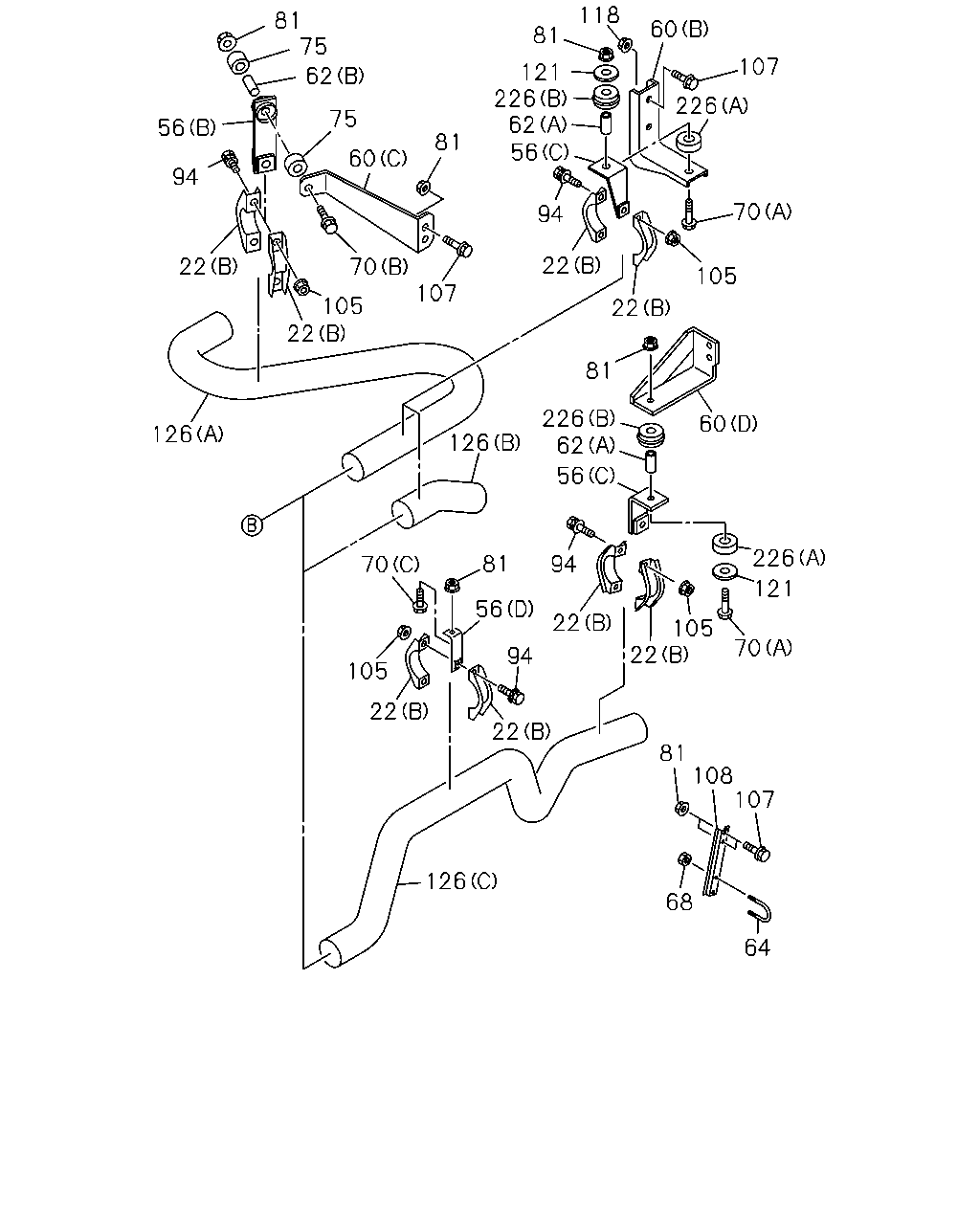

81 62 75 75 60 81 70 105 107 22 22 94 56 126 126 226 81 62 56 94 22 56 81 70 105 22 22 94 22 70 105 226 121 126 68 107 108 81 60 105 22 70 22 94 226 107 60 118 81 121 226 56 62 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=80-84	1-22133-233-0	02	1	1408-1408
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1408-1408
22	CLAMP; EXH PIPE WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=80-84	1-22133-233-0	02	1	1409-
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=80-84	1-22133-233-0	02	1	1409-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1409-
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	04	1	1102-1107
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1108-1310
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1108-1310
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1311-1405
22	CLAMP; EXH PIPE (A)	1-22133-295-0	01	1	1102-1309
22	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	8-98086-352-0	01	1	1409-
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	8-98085-168-0	01	1	1408-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	8-98059-755-0	01	1	1408-
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98245-522-0	01	1	1408-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-584-0	01	1	1102-1309
56	BRACKET; CLAMP,EXH PIPE (B)	8-98245-522-0	01	1	1310-1310
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-824-1	01	1	1102-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98086-352-0	01	1	1102-1405
60	BRACKET; FRAME TO BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-98245-530-0	01	1	1409-
60	BRACKET; FRAME TO BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	8-98276-926-0	01	1	1408-
60	BRACKET; FRAME TO BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98090-167-0	01	1	1408-
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	1102-
60	BRACKET; FRAME TO BRKT (B)	8-98059-753-1	01	1	1102-1309
60	BRACKET; FRAME TO BRKT (B)	8-98245-530-0	01	1	1310-1405
60	BRACKET; FRAME TO BRKT (C)	8-98090-167-0	01	1	1102-1310
62	TUBE; DIST,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1408-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1102-1405
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1406-1407
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1408-1408
62	TUBE; DIST,BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) L=39	8-98060-852-0	01	1	1408-1408
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1409-
62	TUBE; DIST,BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) L=39	8-98060-852-0	01	1	1409-
62	TUBE; DIST,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) L=39	8-98060-852-0	01	1	1409-
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1102-1310
64	U-BOLT; EXH PIPE,RR WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-101-0	01	1	1408-
68	NUT; U BOLT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91180-108-0	02	1	1408-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1408-1408
70	BOLT; BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X70 FLANGE	0-28051-070-0	01	1	1408-1408
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1409-
70	BOLT; BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X70 FLANGE	0-28051-070-0	01	1	1409-
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X70 FLANGE	0-28051-070-0	01	1	1409-
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1408-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1102-1310
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1102-1405
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1406-1407
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M10X35 FLANGE	0-28651-035-0	01	1	1408-
75	RUBBER; SUPPORT,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> OD=40	1-22159-193-0	02	1	1408-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	1102-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1406-1407
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1408-1408
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91180-210-0	01	1	1408-1408
81	NUT; BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91180-210-0	01	1	1408-1408
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1409-
81	NUT; BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91180-210-0	01	1	1409-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91180-108-0	02	1	1408-
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	03	1	1408-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1102-1107
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1108-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1311-1405
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1311-1405
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1406-1407
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1408-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1102-1107
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1102-1107
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1108-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1108-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1108-1310
94	BOLT; CLAMP WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 FLANGE	0-28651-040-0	02	1	1408-1408
94	BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X40 FLANGE	0-28651-040-0	02	1	1408-1408
94	BOLT; CLAMP WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 FLANGE	0-28651-040-0	02	1	1409-
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 FLANGE	0-28651-040-0	02	1	1409-
94	BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X40 FLANGE	0-28651-040-0	02	1	1409-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	04	1	1102-1107
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1108-1310
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1108-1310
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1311-1405
105	NUT; CLAMP WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91180-210-0	02	1	1408-1408
105	NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1408-1408
105	NUT; CLAMP WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91180-210-0	02	1	1409-
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91180-210-0	02	1	1409-
105	NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1409-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	04	1	1102-1107
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1108-1310
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1108-1310
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1311-1405
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28650-830-0	02	1	1408-
107	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1408-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1102-1310
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1102-1310
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1102-1310
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1311-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22131-419-1	01	1	1408-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1102-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1102-1405
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1406-1407
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1408-1408
121	WASHER; PL,BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> ID=11 OD=54	1-09503-154-2	01	1	1408-1408
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1409-
121	WASHER; PL,BRKT WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> ID=11 OD=54	1-09503-154-2	01	1	1409-
121	WASHER; PL,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=11 OD=54	1-09503-154-2	01	1	1409-
126	PIPE; EXH,RR WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	8-98276-924-0	01	1	1408-
126	PIPE; EXH,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98073-427-0	01	1	1408-
126	PIPE; EXH,RR (A)	8-98073-427-0	01	1	1102-1310
126	PIPE; EXH,RR (B)	8-98210-836-0	01	1	1311-1407
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1408-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1102-1405
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1406-1407
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1408-1408
226	RUBBER; CUSHION WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	8-94457-277-1	01	1	1408-1408
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1409-
226	RUBBER; CUSHION WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	8-94457-277-1	01	1	1409-
226	RUBBER; CUSHION EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	8-94457-277-1	01	1	1409-
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1102-1405
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1406-1407
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1408-1408
226	RUBBER; CUSHION WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-94457-278-1	01	1	1408-1408
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1409-
226	RUBBER; CUSHION WHEEL BASE 2800MM(28W) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-94457-278-1	01	1	1409-
226	RUBBER; CUSHION EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-94457-278-1	01	1	1409-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
