Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#60637) — 219 parça

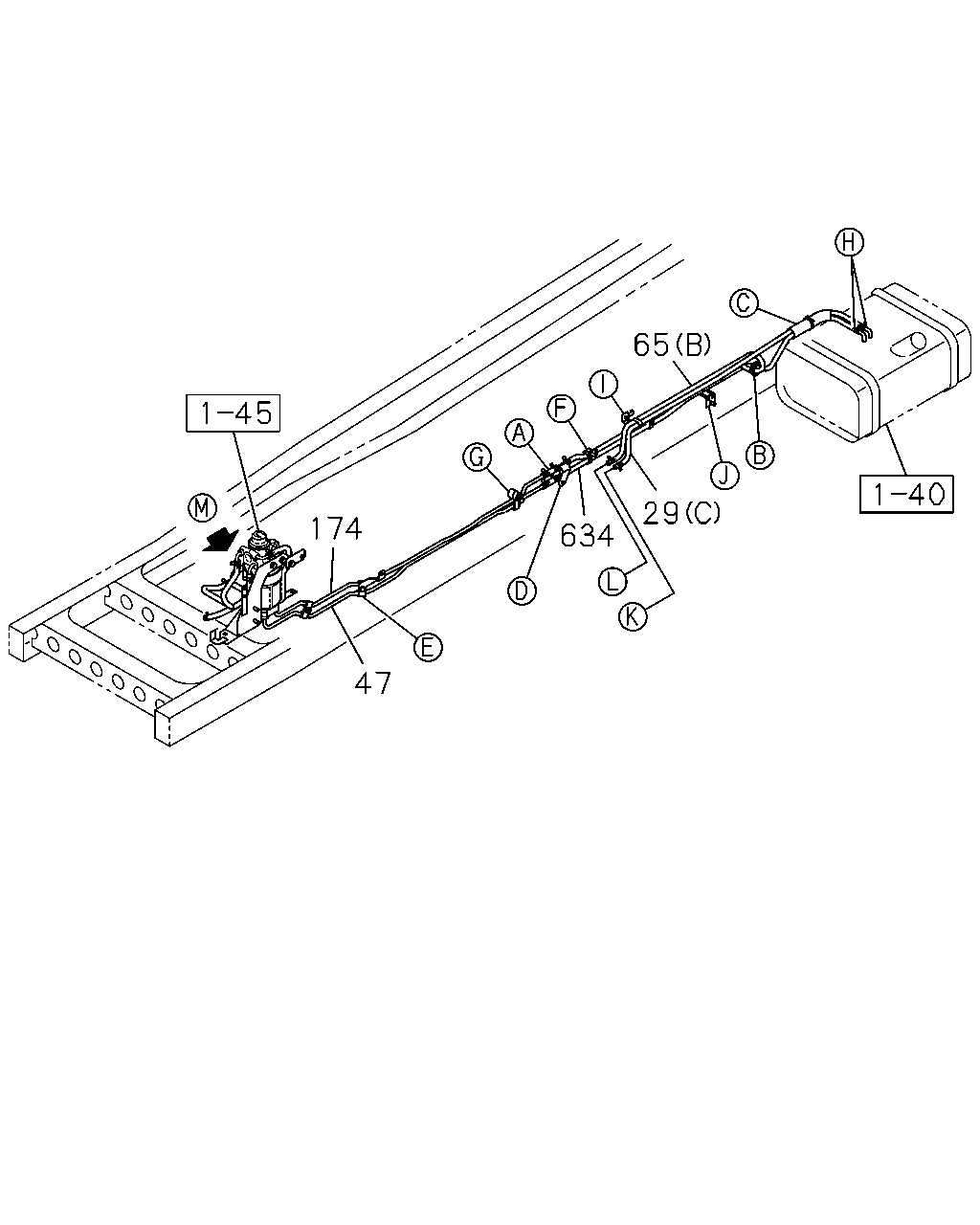

65 29 634 174 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 2800MM(28W) (C) L=970	8-98285-086-0	01	1	1408-
29	HOSE; FUEL WHEEL BASE 4000MM(40W) (C) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1102-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (C) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1102-
29	HOSE; FUEL (B)	8-98147-183-0	01	1	1102-
29	HOSE; FUEL (A)	8-98136-901-0	01	1	1102-
47	PIPE; FUEL,RETURN WHEEL BASE 2800MM(28W) L=1586	8-98283-977-0	01	1	1408-
47	PIPE; FUEL,RETURN L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1102-1310
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) L=2240	8-98220-907-0	01	1	1311-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W) (B) L=970	8-98285-085-0	01	1	1408-
65	HOSE; FUEL,DELIVERY PIPE (A) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	1102-1310
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W) (B) L=1950 SERVICED BY L=3000	0-01260-300-0	01	1	1102-1310
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W) (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1311-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) (B) L=2350 SERVICED BY L=3000	0-01260-300-0	01	1	1102-1310
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) (B) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	1311-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 2800MM(28W) L=1412	8-98283-976-0	01	1	1408-
174	PIPE; FUEL,FEED,FRT L=1322	8-98100-140-0	01	1	1102-1310
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) L=2080	8-98220-906-0	01	1	1311-
634	HOSE; RUBBER RETURN WHEEL BASE 2800MM(28W) L=650	8-98276-916-0	01	1	1408-
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W) L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	1102-1310
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W) L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1311-
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=2200 SERVICED BY L=3000	0-01558-300-0	01	1	1102-1310
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1311-

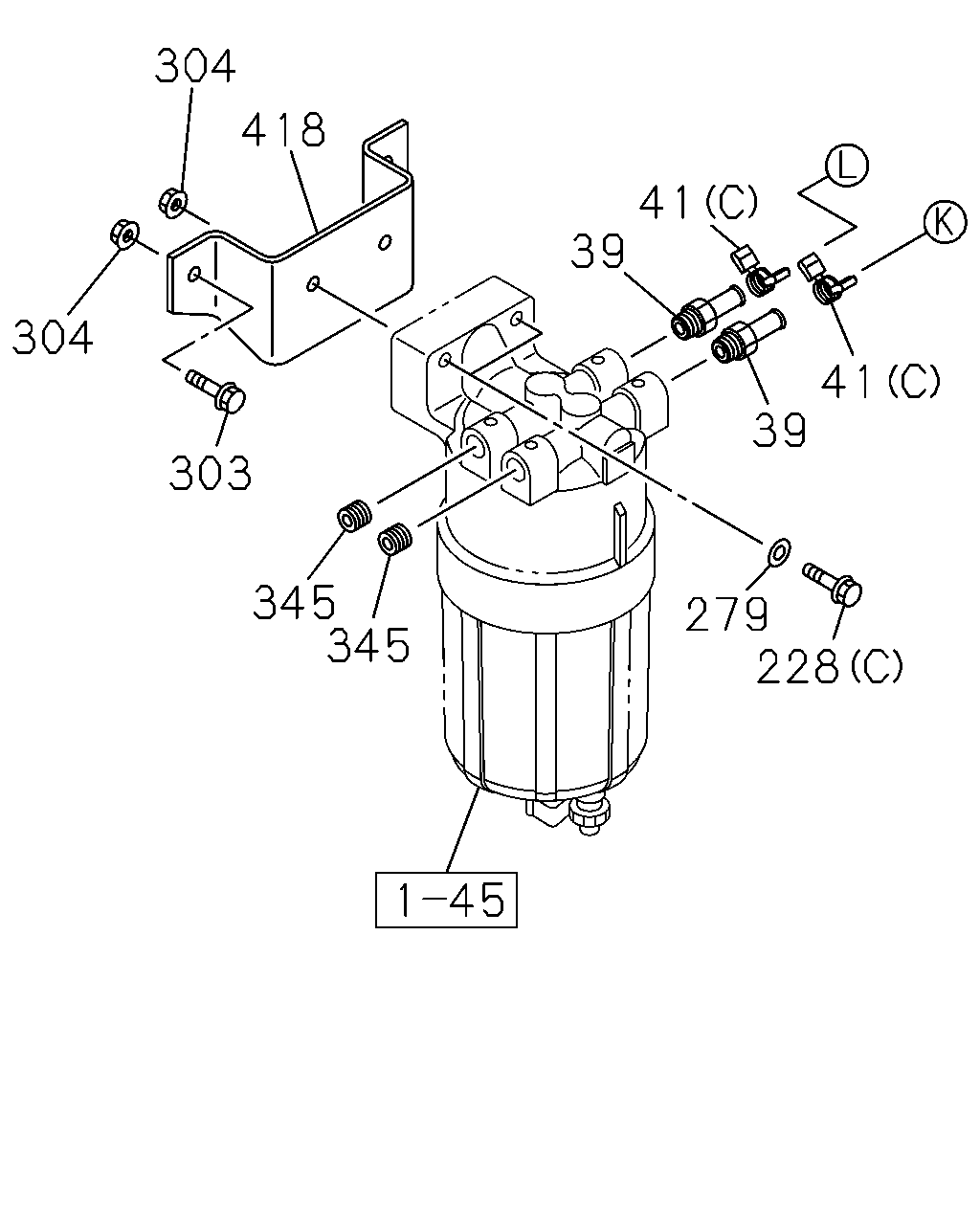

418 304 304 303 345 345 279 228 39 41 41 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL NPTF3/8-18 OD=10	8-98122-953-0	02	1	1102-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 2800MM(28W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1408-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 2800MM(28W) (E) L=250	5-09707-030-1	02	1	1408-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1102-1310
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1311-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1102-1310
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1102-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1102-1310
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1311-1405
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (E) L=250	5-09707-030-1	03	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1102-1310
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1102-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	1102-1310
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1311-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1102-
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1102-1310
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE	0-28051-060-0	02	1	1311-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1102-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1102-
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1102-
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1102-1310
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1102-1310
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1102-1310
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	1311-1407
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1408-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1102-1310
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1102-1310
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	1311-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1102-1310
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1102-1310
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1311-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1102-
418	BRACKET; PRE FUEL FILTER	8-98114-787-0	01	1	1102-1310

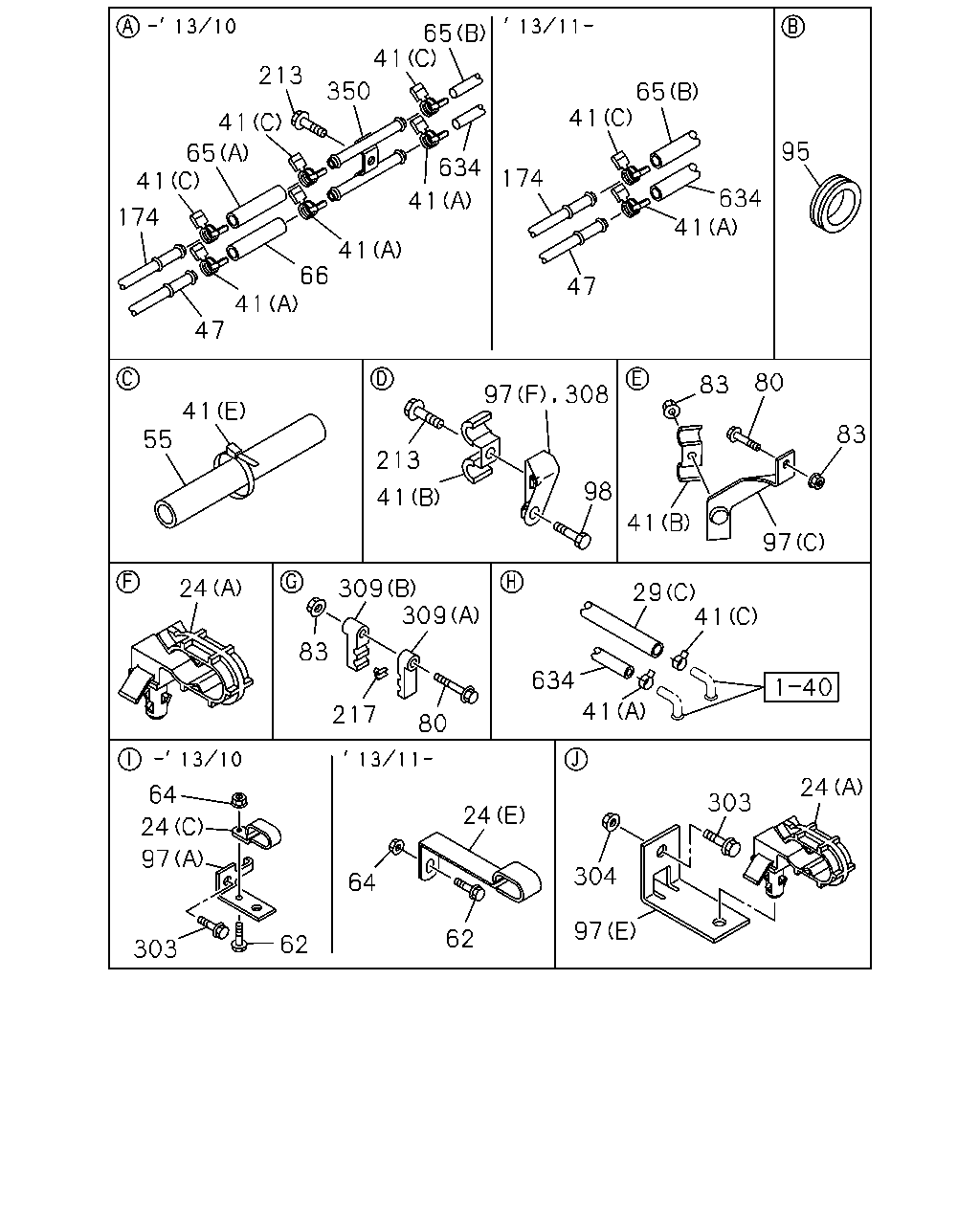

95 634 41 47 174 41 65 65 41 350 213 41 65 41 174 47 41 66 41 41 634 97 308 83 80 83 41 97 29 41 634 41 303 24 304 97 62 24 64 62 303 97 24 64 24 309 309 83 217 80 41 55 213 41 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1102-
24	CLIP; FUEL HOSE (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1102-1310
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W) (E) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1311-
24	CLIP; FUEL HOSE (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1102-
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1102-1310
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1311-1407
24	CLIP; FUEL HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 4000MM(40W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1408-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	1102-1310
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1311-
29	HOSE; FUEL WHEEL BASE 2800MM(28W) (C) L=970	8-98285-086-0	01	1	1408-
29	HOSE; FUEL WHEEL BASE 4000MM(40W) (C) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1102-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (C) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1102-
29	HOSE; FUEL (B)	8-98147-183-0	01	1	1102-
29	HOSE; FUEL (A)	8-98136-901-0	01	1	1102-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 2800MM(28W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1408-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 2800MM(28W) (E) L=250	5-09707-030-1	02	1	1408-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1102-1310
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1311-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1102-1310
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1102-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1102-1310
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1311-1405
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (E) L=250	5-09707-030-1	03	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1102-1310
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1102-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	1102-1310
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1311-
47	PIPE; FUEL,RETURN WHEEL BASE 2800MM(28W) L=1586	8-98283-977-0	01	1	1408-
47	PIPE; FUEL,RETURN L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1102-1310
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) L=2240	8-98220-907-0	01	1	1311-
55	COVER; PIPE,FUEL TANK L=800	1-09361-018-0	01	1	1102-1405
55	COVER; PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) L=800	1-09361-018-0	01	1	1406-
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1102-1310
62	BOLT; CLIP FIX WHEEL BASE 4000MM(40W) M8X30 FLANGE	0-28650-830-0	01	1	1311-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1102-1310
64	NUT; CLIP WHEEL BASE 4000MM(40W) M8 FLANGE	0-91180-108-0	01	1	1311-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W) (B) L=970	8-98285-085-0	01	1	1408-
65	HOSE; FUEL,DELIVERY PIPE (A) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	1102-1310
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W) (B) L=1950 SERVICED BY L=3000	0-01260-300-0	01	1	1102-1310
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W) (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1311-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) (B) L=2350 SERVICED BY L=3000	0-01260-300-0	01	1	1102-1310
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) (B) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	1311-
66	HOSE; FUEL,RETURN PIPE L=60 SERVICED BY L=3000	0-01558-300-0	01	1	1102-1310
80	BOLT; CLIP,FUEL TANK WHEEL BASE 2800MM(28W) M8X50 FLANGE	0-28050-850-0	01	1	1408-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 2800MM(28W) M8X20 FLANGE	0-28650-820-0	02	1	1408-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	01	1	1102-1310
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) M8X50 FLANGE	0-28050-850-0	03	1	1311-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1102-1310
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) M8X20 FLANGE	0-28650-820-0	01	1	1311-
83	NUT; CLIP,FUEL TANK WHEEL BASE 2800MM(28W) M8 FLANGE	0-91180-108-0	04	1	1408-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	1102-1310
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	06	1	1311-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1102-
97	BRACKET; CLIP WHEEL BASE 2800MM(28W) (F)	8-98117-691-0	01	1	1408-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1102-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1102-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1102-
97	BRACKET; CLIP (A)	8-98100-216-1	01	1	1102-1310
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	1102-1310
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (E)	8-98109-768-0	01	1	1311-
98	BOLT; BRKT,FUEL PIPE M10X30 FLANGE	0-28651-030-0	01	1	1102-1310
174	PIPE; FUEL,FEED,FRT WHEEL BASE 2800MM(28W) L=1412	8-98283-976-0	01	1	1408-
174	PIPE; FUEL,FEED,FRT L=1322	8-98100-140-0	01	1	1102-1310
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) L=2080	8-98220-906-0	01	1	1311-
213	BOLT; FUEL PIPE FIX M8X20 FLANGE	0-28650-820-0	01	1	1102-1310
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4000MM(40W) ID=8	1-47459-011-0	04	1	1506-1506
217	COLLAR; FUEL PIPE FIX WHEEL BASE 2800MM(28W) ID=8	1-47459-011-0	01	1	1408-
217	COLLAR; FUEL PIPE FIX ID=8	1-47459-011-0	01	1	1102-1310
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) ID=8	1-47459-011-0	03	1	1311-
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1102-
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1102-1310
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1102-1310
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1102-1310
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	1311-1407
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1408-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1102-1310
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1102-1310
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	1311-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1102-1310
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1102-1310
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1311-
308	BRACKET; FUEL PIPE	8-98117-691-0	01	1	1102-1310
309	CLIP; PIPE WHEEL BASE 4000MM(40W) (A) ID=10 & 10	1-09709-241-0	02	1	1506-1506
309	CLIP; PIPE WHEEL BASE 4000MM(40W) (B) ID=10 & 10	1-09709-243-0	02	1	1506-1506
309	CLIP; PIPE WHEEL BASE 2800MM(28W) (A) ID=10 & 10	1-09709-241-0	01	1	1408-
309	CLIP; PIPE WHEEL BASE 2800MM(28W) (B) ID=10 & 10	1-09709-243-0	01	1	1408-
309	CLIP; PIPE (A) ID=10 & 10	1-09709-241-0	01	1	1102-1310
309	CLIP; PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (A) ID=10 & 10	1-09709-241-0	03	1	1311-
309	CLIP; PIPE (B) ID=10 & 10	1-09709-243-0	01	1	1102-1310
309	CLIP; PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) ID=10 & 10	1-09709-243-0	03	1	1311-
350	PIPE; FUEL,DEL & RET	8-98084-131-0	01	1	1102-1310
634	HOSE; RUBBER RETURN WHEEL BASE 2800MM(28W) L=650	8-98276-916-0	01	1	1408-
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W) L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	1102-1310
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W) L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1311-
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=2200 SERVICED BY L=3000	0-01558-300-0	01	1	1102-1310
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1311-

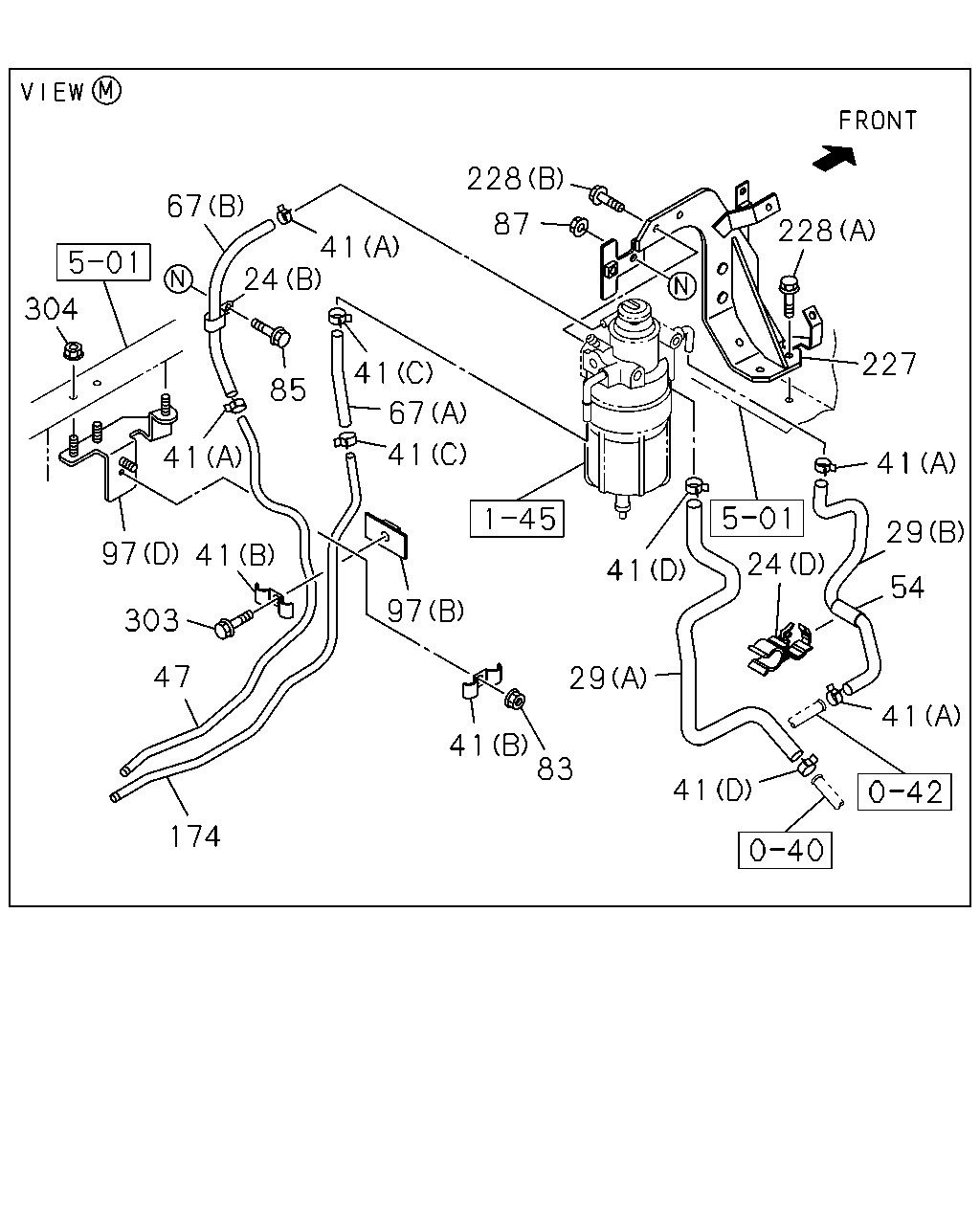

228 87 41 24 67 304 85 97 41 41 303 47 174 41 83 41 41 54 29 41 227 228 41 29 97 41 67 41 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1102-
24	CLIP; FUEL HOSE (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1102-1310
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W) (E) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1311-
24	CLIP; FUEL HOSE (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1102-
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1102-1310
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1311-1407
24	CLIP; FUEL HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 4000MM(40W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1408-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	1102-1310
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1311-
29	HOSE; FUEL WHEEL BASE 2800MM(28W) (C) L=970	8-98285-086-0	01	1	1408-
29	HOSE; FUEL WHEEL BASE 4000MM(40W) (C) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1102-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (C) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1102-
29	HOSE; FUEL (B)	8-98147-183-0	01	1	1102-
29	HOSE; FUEL (A)	8-98136-901-0	01	1	1102-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 2800MM(28W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1408-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 2800MM(28W) (E) L=250	5-09707-030-1	02	1	1408-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1102-1310
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1311-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1102-1310
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1102-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1102-1310
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1311-1405
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (E) L=250	5-09707-030-1	03	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1102-1310
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1102-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	1102-1310
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1311-
47	PIPE; FUEL,RETURN WHEEL BASE 2800MM(28W) L=1586	8-98283-977-0	01	1	1408-
47	PIPE; FUEL,RETURN L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1102-1310
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) L=2240	8-98220-907-0	01	1	1311-
54	SPACER; CLIP,FUEL PIPE	8-98148-172-0	01	1	1102-
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	1102-
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1102-
83	NUT; CLIP,FUEL TANK WHEEL BASE 2800MM(28W) M8 FLANGE	0-91180-108-0	04	1	1408-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	1102-1310
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	06	1	1311-
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	1102-
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	1102-
97	BRACKET; CLIP WHEEL BASE 2800MM(28W) (F)	8-98117-691-0	01	1	1408-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1102-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1102-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1102-
97	BRACKET; CLIP (A)	8-98100-216-1	01	1	1102-1310
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	1102-1310
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (E)	8-98109-768-0	01	1	1311-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 2800MM(28W) L=1412	8-98283-976-0	01	1	1408-
174	PIPE; FUEL,FEED,FRT L=1322	8-98100-140-0	01	1	1102-1310
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) L=2080	8-98220-906-0	01	1	1311-
227	BRACKET; FUEL SEDIMENTER	8-98133-172-0	01	1	1102-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1102-
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1102-1310
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE	0-28051-060-0	02	1	1311-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1102-
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1102-
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1102-1310
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1102-1310
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1102-1310
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	1311-1407
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1408-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1102-1310
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1102-1310
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	1311-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1102-1310
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1102-1310
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1311-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
