0-60 — ENGINE ELECTRICAL CONTROL PARTS (#60624) — 50 parça

16 23 2 16 17 17 23 24 19 23 17 1 4 4 293 737 129 460 21 26 26 26 21 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

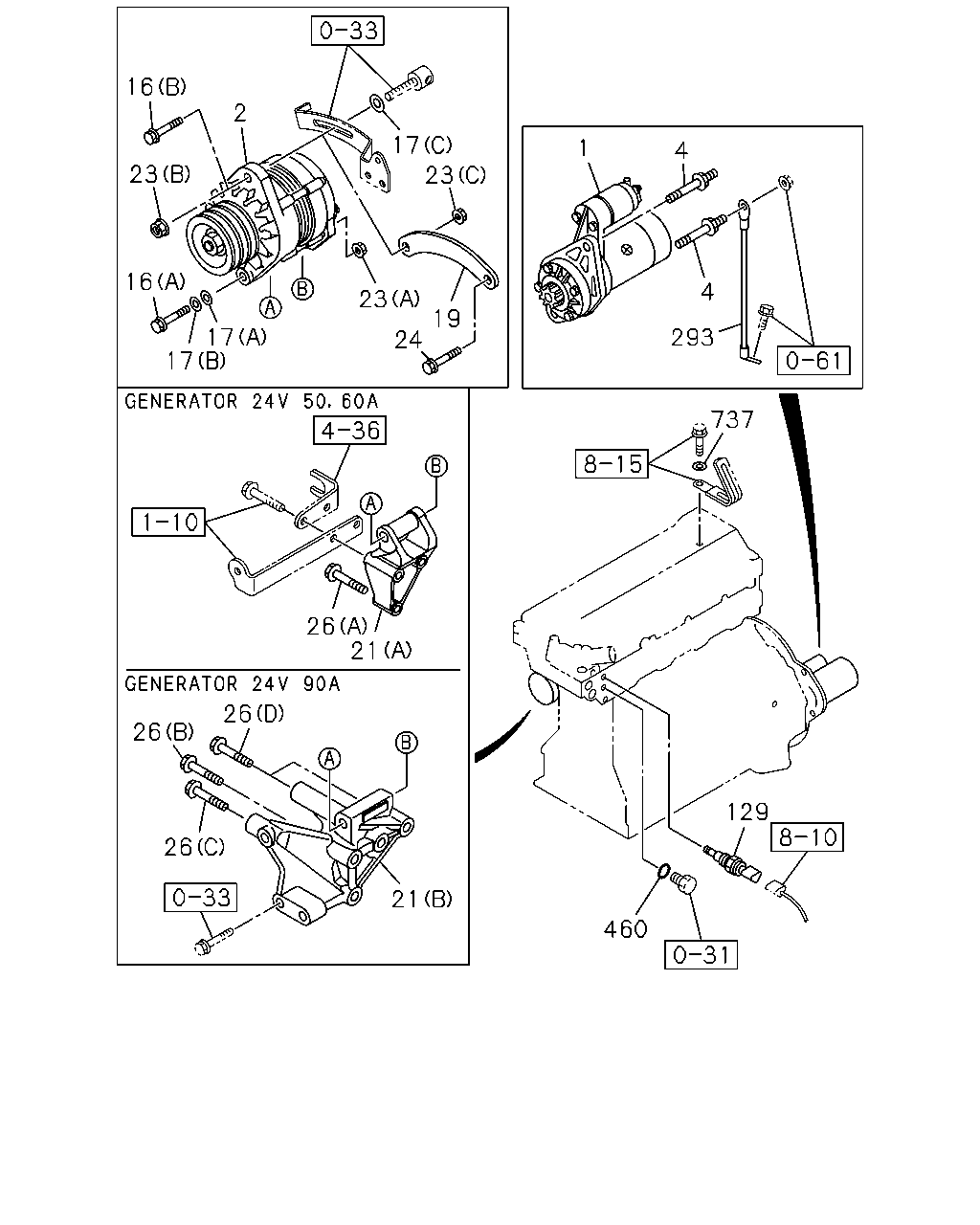

1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98009-043-2	01	1	1102-1207
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98222-023-0	01	1	1208-1311
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98245-260-1	01	1	1312-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-455-4	01	1	1102-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-456-4	01	1	1102-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98013-459-3	01	1	1102-1508
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98330-085-0	01	1	1509-
4	BOLT; STARTER M10X15,M14X82 L=110	8-98029-095-0	02	1	1102-
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	1102-
16	BOLT; GEN GENERATOR 24V90A(K44) (B) M10X45 FLANGE	0-28051-045-0	01	1	1102-
17	WASHER; PL,GEN (A) ID=14.2	0-91510-514-0	01	1	1102-
17	WASHER; PL,GEN (B) ID=15	0-91610-514-0	01	1	1102-
17	WASHER; PL,GEN EXC. GENERATOR 24V90A(K44) (C) ID=12.5 OD=32	9-09160-712-0	01	1	1102-
19	BRACKET; GEN GENERATOR 24V90A(K44)	8-98032-273-0	01	1	1102-
21	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-97381-404-0	01	1	1102-
21	BRACKET; GEN GENERATOR 24V90A(K44) (B)	8-98075-340-0	01	1	1102-
23	NUT; GEN (A) M14	0-91110-514-0	01	1	1102-
23	NUT; GEN GENERATOR 24V90A(K44) (C) M10 FLANGE	8-97065-439-0	01	1	1102-
23	NUT; GEN EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE	0-91180-112-0	01	1	1102-
24	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X20 FLANGE	0-28151-020-0	01	1	1102-
26	BOLT; GEN BRKT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X50 FLANGE	0-28151-050-0	01	1	1102-
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (C) M8X70 FLANGE	0-28050-870-0	01	1	1102-
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (D) M10X60 FLANGE	0-28151-060-0	02	1	1102-
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (B) M10X70 FLANGE	0-28151-070-0	01	1	1102-
129	SENSOR; GLOW PLUG,THERMO MITSUBISHI	8-98023-883-0	01	1	1102-1503
129	SENSOR; GLOW PLUG,THERMO NISHIDA	8-98260-257-0	01	1	1504-
293	CABLE; STARTER EARTH L=410	8-97620-375-0	01	1	1102-
460	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	01	1	1102-
737	WASHER; PL ID=9 OD=18 T=5	9-14149-173-0	01	1	1311-
737	WASHER; PL ID=6.4 OD=18	0-91610-706-0	02	1	1102-1310
737	WASHER; PL ID=6.4 OD=18	0-91610-706-0	01	1	1311-

10 46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

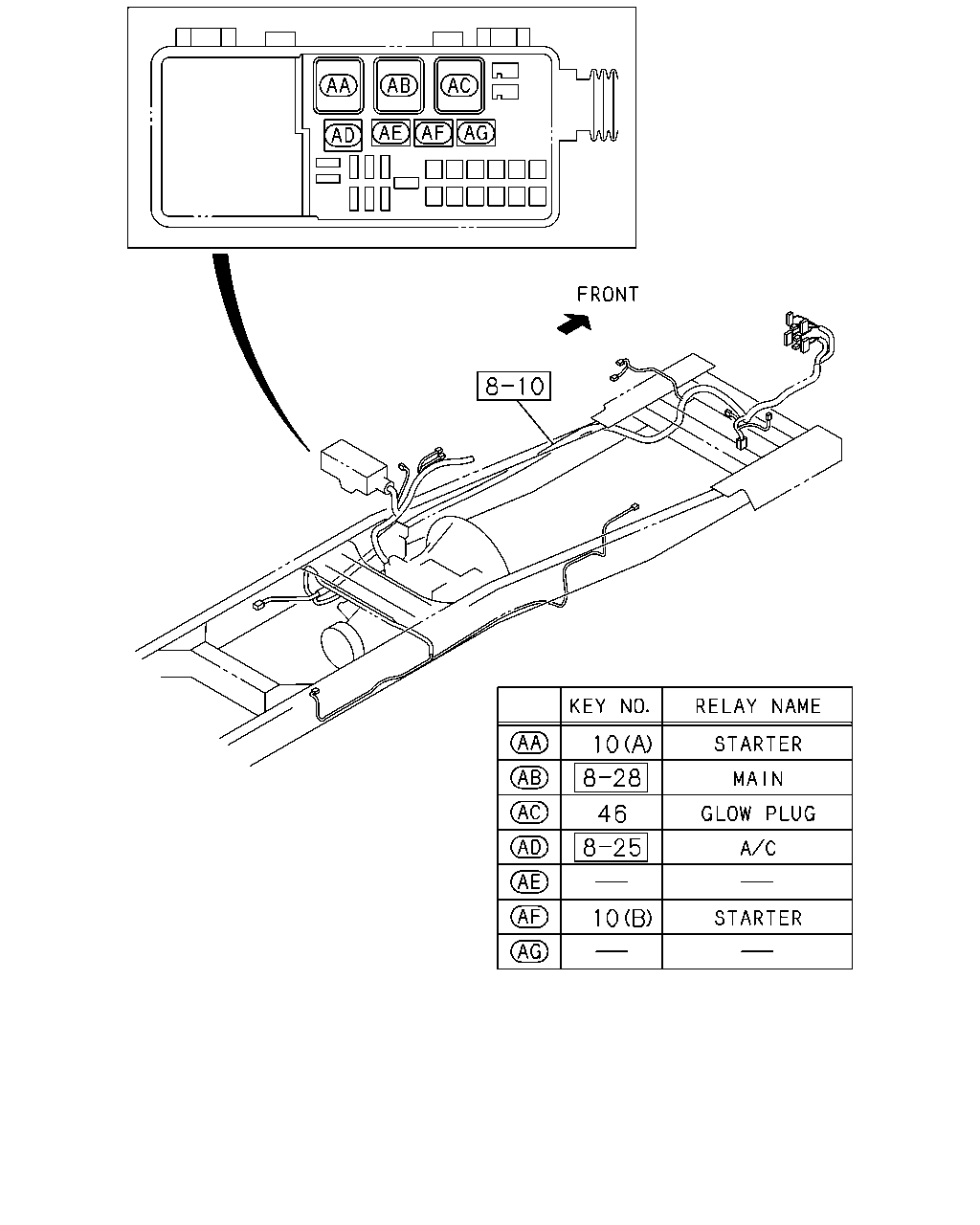

10	RELAY; STARTER (A) 24V 50A	8-97264-947-0	01	1	1102-
10	RELAY; STARTER (B) 24V 10A PANASONIC	8-98167-173-0	01	1	1102-
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	1102-

301 587 613 593 732 606 748 749 593

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

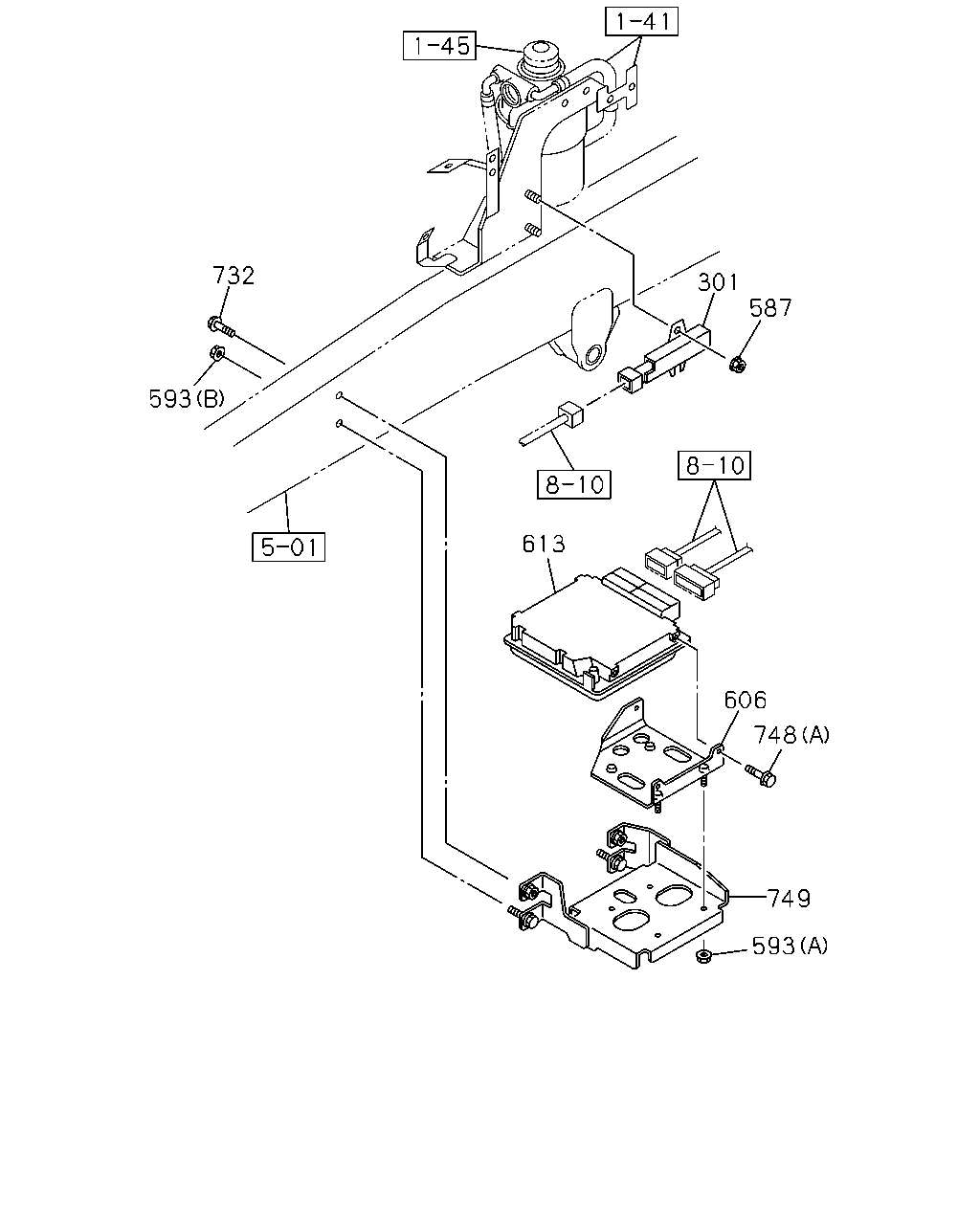

301	RESISTOR; DROPPING	8-97357-613-0	01	1	1102-
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	1102-
593	NUT; BRKT (A) M6 FLANGE	0-91180-106-0	04	1	1102-
593	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1102-
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	1102-
613	CONTROL UNIT; ENG SPEED LIMITER 90KM(NMJ)	8-98200-350-0	01	1	1508-
613	CONTROL UNIT; ENG	8-98171-895-2	01	1	1102-1310
613	CONTROL UNIT; ENG	8-98181-827-0	01	1	1311-1408
613	CONTROL UNIT; ENG	8-98288-048-0	01	1	1409-1507
613	CONTROL UNIT; ENG EXC. SPEED LIMITER 90KM(NMJ)	8-98288-048-0	01	1	1508-
732	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1102-
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1102-
748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	1102-
749	STAY; CONT UNIT	8-98056-967-0	01	1	1102-

748

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

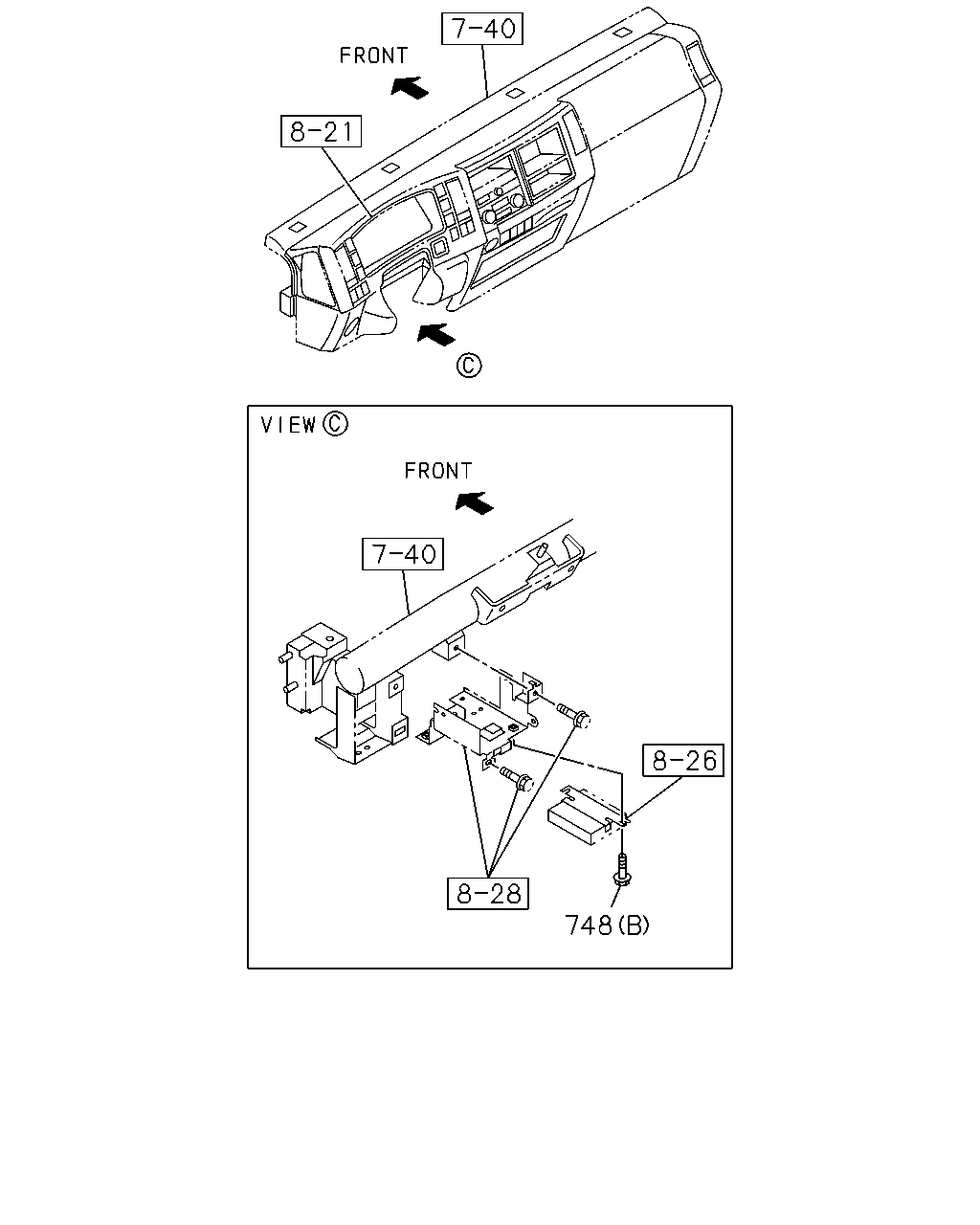

	748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1102-
	748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	1102-
