0-40 — FUEL INJECTION SYSTEM (#60618) — 97 parça

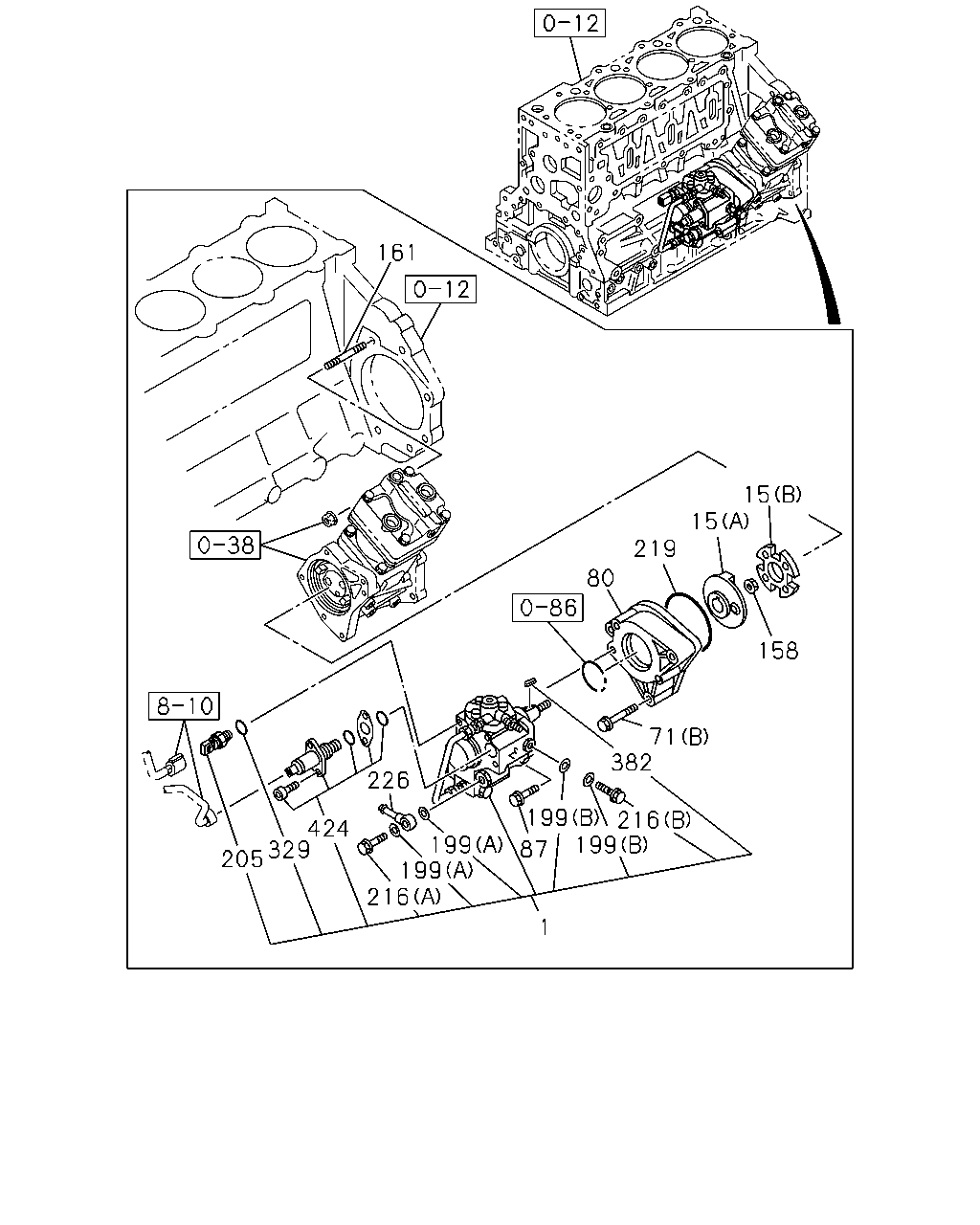

çizim 173976
161 15 15 219 80 158 71 382 205 329 424 226 216 199 199 87 199 199 216 1
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-97386-557-5 01 1 1102-
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1102-
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1102-
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1102-
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1102-
71 BOLT; BRKT
(D) M8X60 FLANGE 		0-28050-860-0 01 1 1102-
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 1102-
80 BRACKET; PUMP 8-98061-699-0 01 1 1102-
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 1102-
158 NUT; INJ PUMP
M14 FLANGE 		0-91180-114-0 01 1 1102-
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1102-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1102-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1102-
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1102-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1102-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1102-
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1102-
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6 		1-09623-593-0 01 1 1102-
226 PIPE; FUEL 8-98126-332-0 01 1 1102-
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 1102-1201
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1102-1201
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202-
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1102-

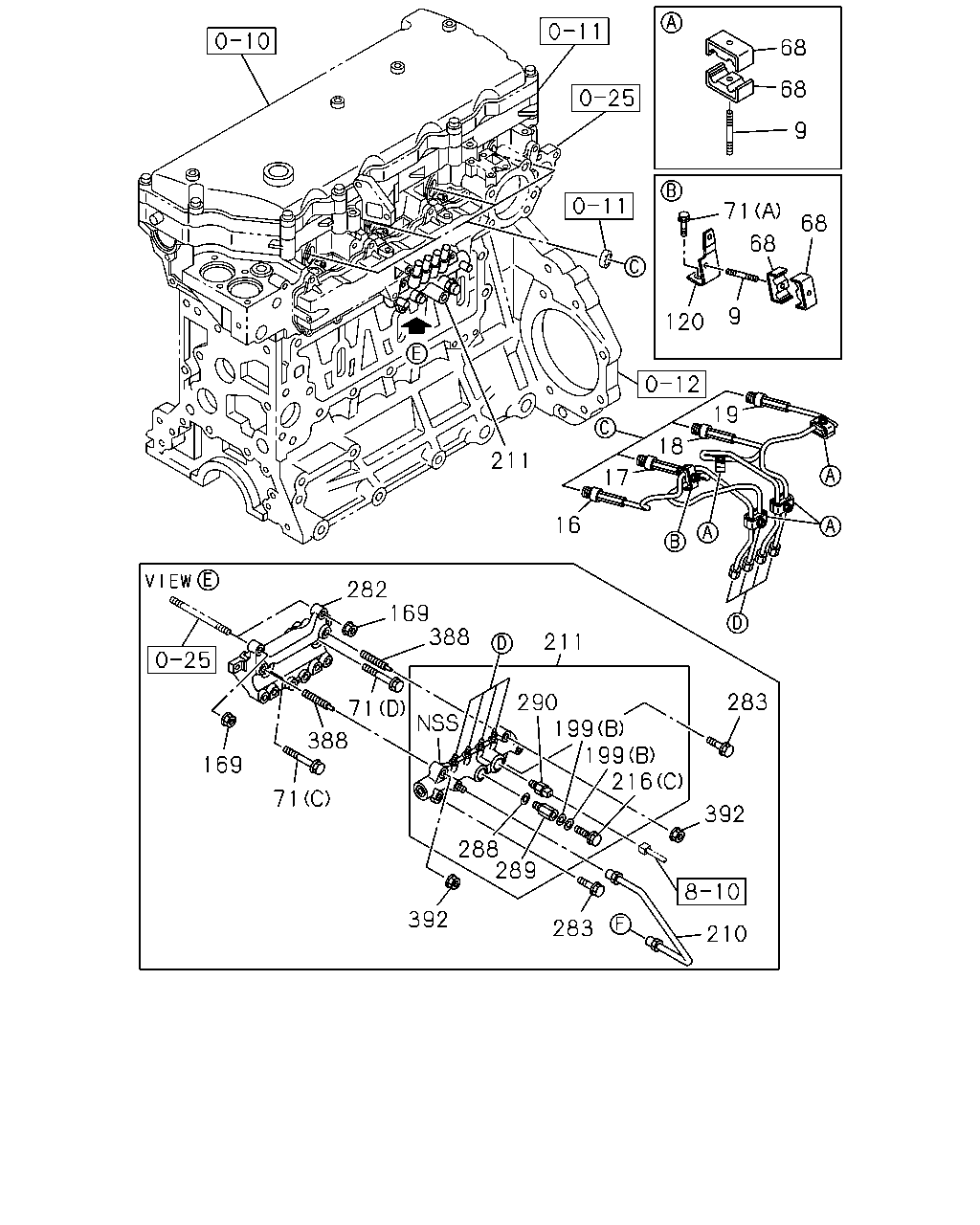

çizim 173977
211 16 17 18 19 9 120 68 68 71 9 68 68 211 283 392 210 283 392 289 288 282 169 388 71 388 71 169 290 199 199 216
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
M6X30 L=38 		0-41010-630-0 04 1 1102-
9 STUD; CLIP
M6X35 L=43 		8-97203-278-0 01 1 1102-
16 PIPE; INJ NO.1 8-98086-354-0 01 1 1102-1102
16 PIPE; INJ NO.1 8-98185-352-0 01 1 1103-1404
16 PIPE; INJ NO.1 8-98271-218-0 01 1 1405-1502
16 PIPE; INJ NO.1 8-98298-628-0 01 1 1503-
17 PIPE; INJ NO.2 8-98086-355-0 01 1 1102-1102
17 PIPE; INJ NO.2 8-98185-353-0 01 1 1103-1404
17 PIPE; INJ NO.2 8-98271-219-0 01 1 1405-1502
17 PIPE; INJ NO.2 8-98298-629-0 01 1 1503-
18 PIPE; INJ NO.3 8-98086-356-0 01 1 1102-1102
18 PIPE; INJ NO.3 8-98185-354-0 01 1 1103-1404
18 PIPE; INJ NO.3 8-98271-220-0 01 1 1405-1502
18 PIPE; INJ NO.3 8-98298-630-0 01 1 1503-
19 PIPE; INJ NO.4 8-98086-357-0 01 1 1102-1102
19 PIPE; INJ NO.4 8-98185-355-0 01 1 1103-1404
19 PIPE; INJ NO.4 8-98271-221-0 01 1 1405-1502
19 PIPE; INJ NO.4 8-98298-631-0 01 1 1503-
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98039-293-0 10 1 1102-1405
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 10 1 1406-
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1102-
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1102-
71 BOLT; BRKT
(D) M8X60 FLANGE 		0-28050-860-0 01 1 1102-
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 1102-
120 BRACKET; INJ PIPE 8-98001-041-0 01 1 1102-
169 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1102-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1102-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1102-
210 PIPE; INJ,C/R 8-98172-184-0 01 1 1102-
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1102-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1102-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1102-
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1102-
282 BRACKET; COMMON RAIL 8-98106-661-1 01 1 1102-
283 BOLT; COMMON RAIL
M8X20 FLANGE 		0-28050-820-0 02 1 1102-
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1102-
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1102-
290 SENSOR; PRESS 8-98119-790-0 01 1 1102-
388 STUD; RAIL
M8X35 L=53 		0-49140-835-0 02 1 1102-
392 NUT; RAIL ASM
M8 FLANGE 		0-91180-108-0 02 1 1102-

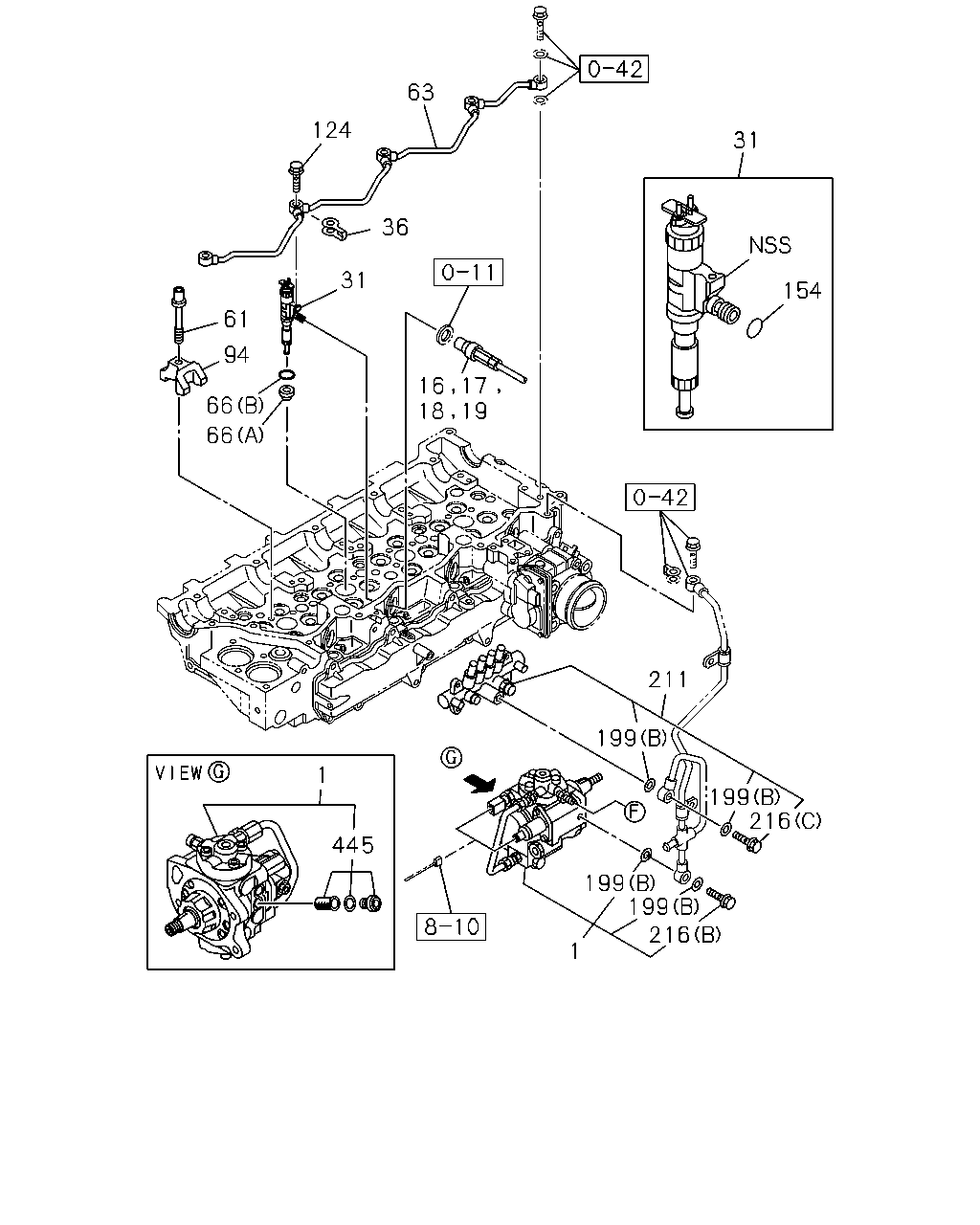

çizim 173978
1 216 199 199 216 199 199 211 445 1 154 31 63 124 36 31 61 94 66 66 19 17 16 18
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-97386-557-5 01 1 1102-
16 PIPE; INJ NO.1 8-98086-354-0 01 1 1102-1102
16 PIPE; INJ NO.1 8-98185-352-0 01 1 1103-1404
16 PIPE; INJ NO.1 8-98271-218-0 01 1 1405-1502
16 PIPE; INJ NO.1 8-98298-628-0 01 1 1503-
17 PIPE; INJ NO.2 8-98086-355-0 01 1 1102-1102
17 PIPE; INJ NO.2 8-98185-353-0 01 1 1103-1404
17 PIPE; INJ NO.2 8-98271-219-0 01 1 1405-1502
17 PIPE; INJ NO.2 8-98298-629-0 01 1 1503-
18 PIPE; INJ NO.3 8-98086-356-0 01 1 1102-1102
18 PIPE; INJ NO.3 8-98185-354-0 01 1 1103-1404
18 PIPE; INJ NO.3 8-98271-220-0 01 1 1405-1502
18 PIPE; INJ NO.3 8-98298-630-0 01 1 1503-
19 PIPE; INJ NO.4 8-98086-357-0 01 1 1102-1102
19 PIPE; INJ NO.4 8-98185-355-0 01 1 1103-1404
19 PIPE; INJ NO.4 8-98271-221-0 01 1 1405-1502
19 PIPE; INJ NO.4 8-98298-631-0 01 1 1503-
31 NOZZLE ASM; INJ 8-98160-061-3 04 1 1102-
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1102-
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1102-
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1102-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1102-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1102-
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1102-
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1102-
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 04 1 1102-1106
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 04 1 1107-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1102-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1102-
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1102-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1102-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1102-
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1102-
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1102-
