0-33 — FAN AND FAN BELT (#60613) — 22 parça

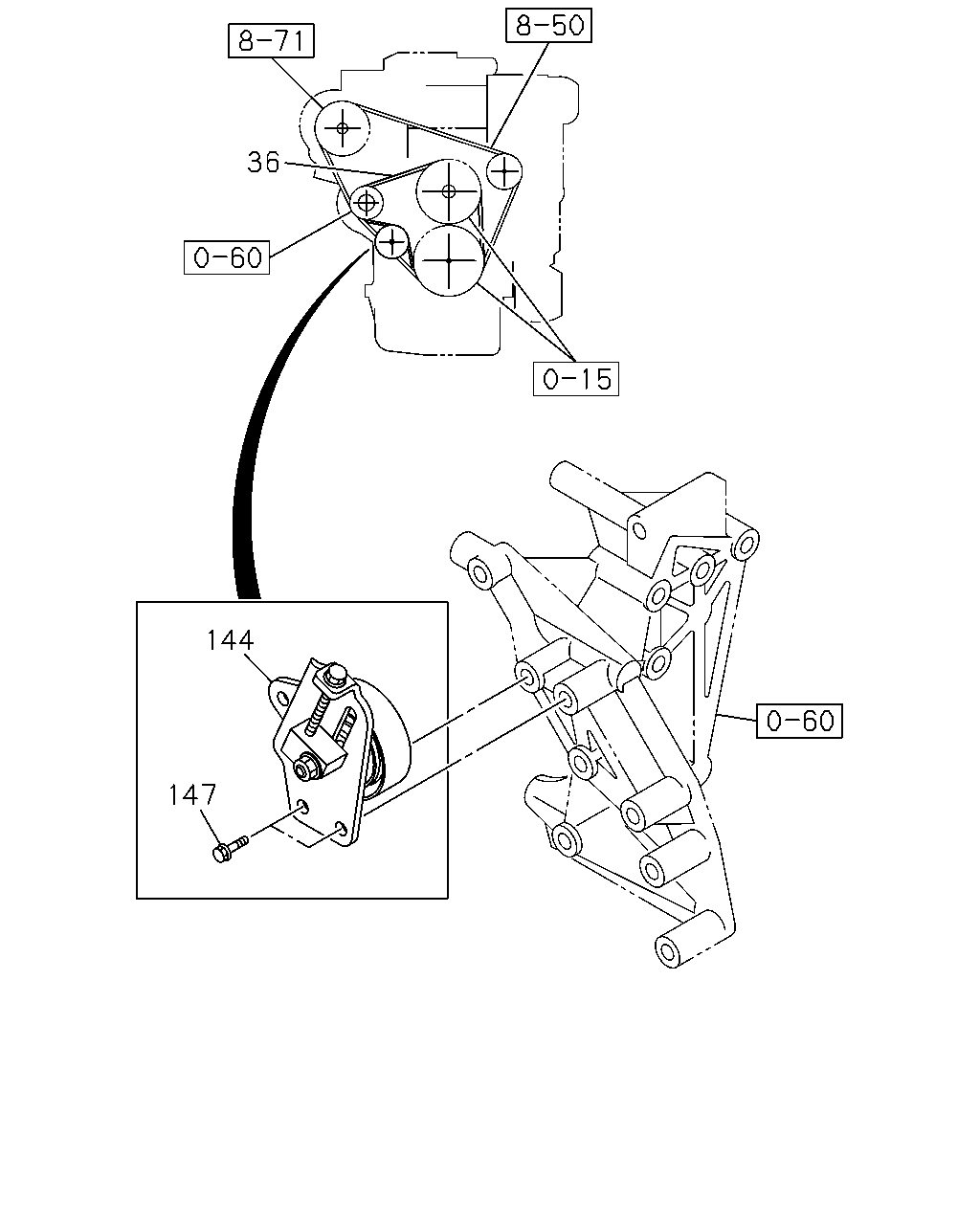

36 144 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	BELT; COOLING FAN GENERATOR 24V90A(K44) L=1131	8-98031-667-0	01	1	1102-
36	BELT; COOLING FAN EXC. GENERATOR 24V90A(K44) L=1086 MITSUBOSHI	8-98020-247-0	01	1	1102-
36	BELT; COOLING FAN EXC. GENERATOR 24V90A(K44) BEST VALUE PARTS	1-87610-107-0	01	1	1102-
144	TENSIONER; DRIVE BELT GENERATOR 24V90A(K44) 1-GROOVE	8-98031-811-1	01	1	1102-
147	BOLT; BELT TENSIONER GENERATOR 24V90A(K44) M10X20 FLANGE	0-28151-020-0	03	1	1102-

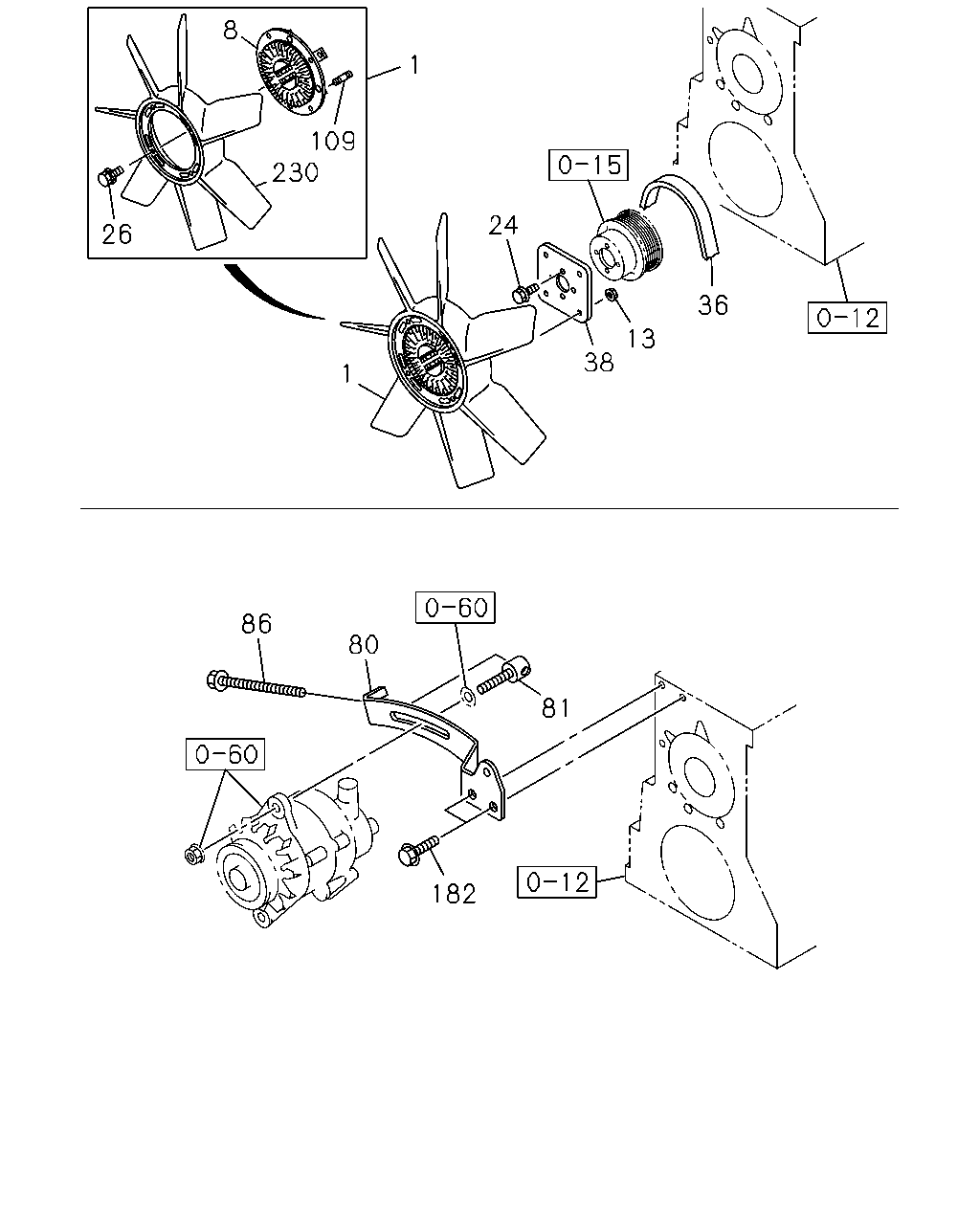

26 230 109 8 1 24 1 38 13 36 86 80 81 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FAN; COOLING OD=510	8-98003-191-0	01	1	1102-1108
1	FAN; COOLING OD=510	8-98190-148-1	01	1	1109-
8	CLUTCH; COOLING FAN	8-98019-743-0	01	1	1102-
13	NUT; COOLING FAN M8 FLANGE	0-91180-108-0	04	1	1102-
24	BOLT; FAN M8X18 FLANGE	0-28080-818-0	04	1	1102-
26	BOLT; FAN TO CLU	8-94389-764-0	04	1	1102-
36	BELT; COOLING FAN GENERATOR 24V90A(K44) L=1131	8-98031-667-0	01	1	1102-
36	BELT; COOLING FAN EXC. GENERATOR 24V90A(K44) L=1086 MITSUBOSHI	8-98020-247-0	01	1	1102-
36	BELT; COOLING FAN EXC. GENERATOR 24V90A(K44) BEST VALUE PARTS	1-87610-107-0	01	1	1102-
38	SPACER; FAN	8-97108-643-0	01	1	1102-
80	PLATE; ADJ GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)	8-98054-181-0	01	1	1102-
81	PIECE; SLIDING EXC. GENERATOR 24V90A(K44) M12X45	1-13674-160-0	01	1	1102-
86	BOLT; ADJ EXC. GENERATOR 24V90A(K44) M10X135	1-09009-113-1	01	1	1102-
109	STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	1102-
182	BOLT; BRKT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M8X35 FLANGE	0-28650-835-0	02	1	1102-
230	FAN; COOLING	8-97367-381-0	01	1	1102-1108
230	FAN; COOLING	8-98190-058-0	01	1	1109-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
