Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11363 - FORWARD800 MEXICO
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

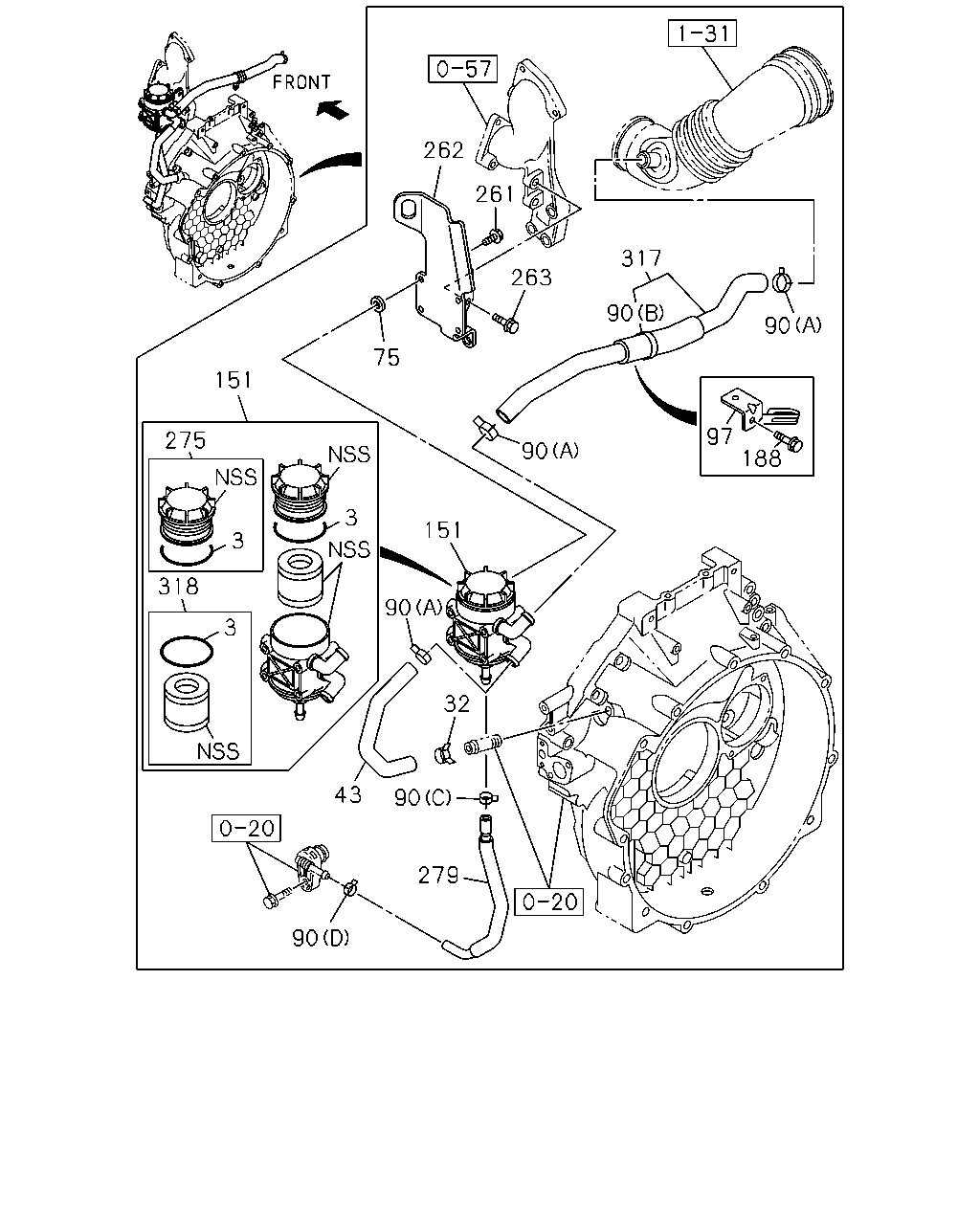

0-28 — VENTILATION SYSTEM
(#60609) — 19 parça
97
90
188
317
263
90
261
262
75
151
275
3
3
318
3
43
90
279
32
90
90
151
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
1102-
32
CLIP; VENT HOSE
ID=21
8-94242-034-0
01
1
1102-
43
HOSE; PCV
8-98057-033-0
01
1
1102-
75
WASHER
ID=9 OD=18 T=5
9-14149-173-0
04
1
1102-
90
CLIP; RUBBER HOSE
(A) ID=28
1-09707-124-0
03
1
1102-
90
CLIP; RUBBER HOSE
(B) L=212
8-94107-652-0
01
1
1102-
90
CLIP; RUBBER HOSE
(C) ID=13
8-94238-571-0
01
1
1102-
90
CLIP; RUBBER HOSE
(D) ID=11.5
8-97138-011-0
01
1
1102-
97
BRACKET; HOSE
8-98093-946-3
01
1
1102-
151
SEPARATOR; OIL,PCV
8-97324-682-1
01
1
1102-
188
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
01
1
1102-
261
BOLT; SEPARETOR
M8X30 FLANGE
0-28650-830-0
04
1
1102-
262
BRACKET; OIL SEPARETOR
8-98036-498-0
01
1
1102-1501
262
BRACKET; OIL SEPARETOR
8-98296-130-0
01
1
1502-
263
BOLT; BRKT,OIL SEPARETOR
M12X30 FLANGE
0-28151-230-0
03
1
1102-
275
CAP; PCV
8-97389-360-0
01
1
1102-
279
HOSE; RUBBER,OIL DRAIN
8-97386-653-1
01
1
1102-
317
HOSE; RUBBER,OIL SEPARATOR
8-98095-931-1
01
1
1102-
318
ELEMENT KIT; PCV
8-98002-346-0
01
1
1102-
