Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11363 - FORWARD800 MEXICO
▶
0 - Engine, Emission, Engine Electrical
▶
0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#60605) — 41 parça
◀

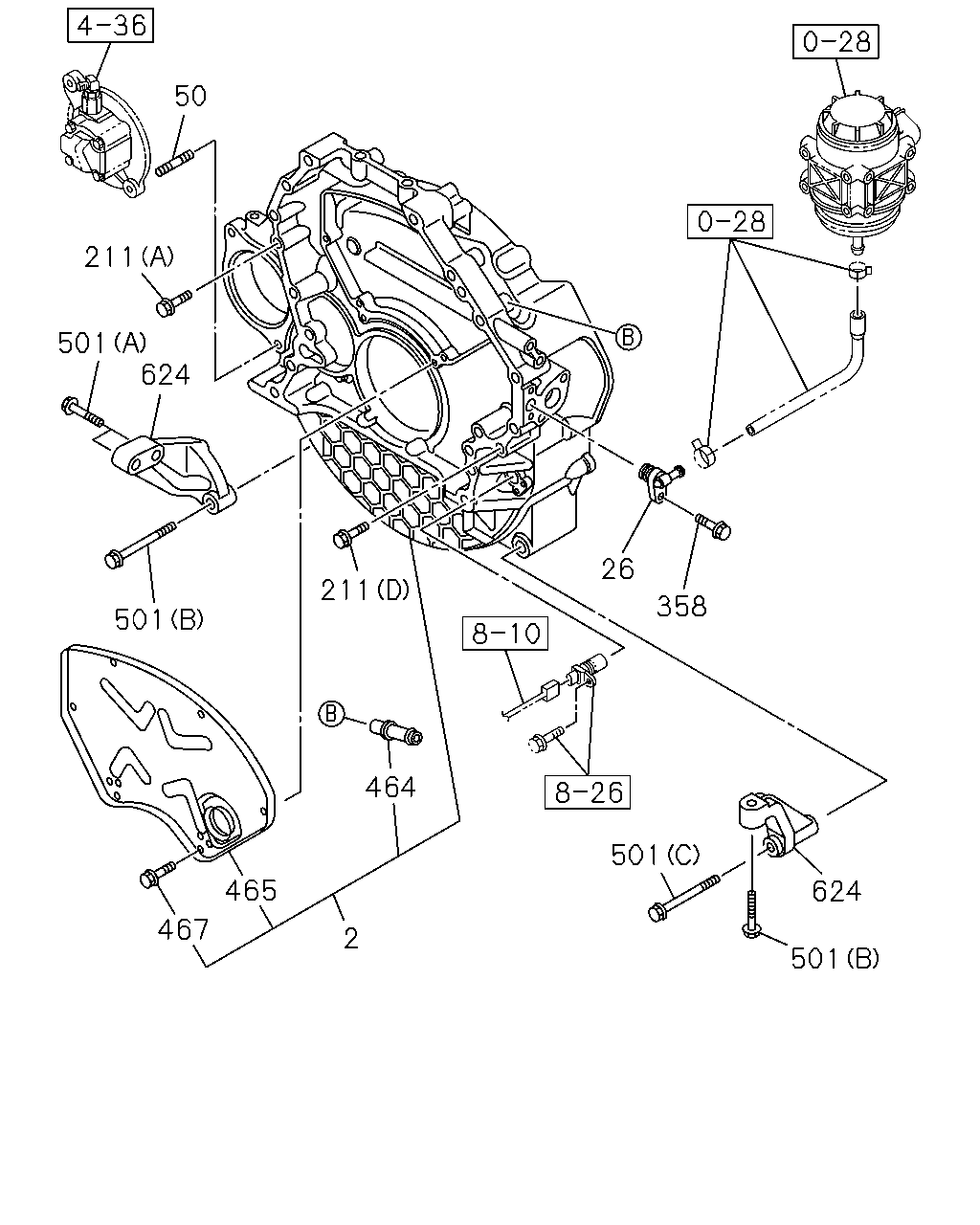

[020A] FLYWHEEL HOUSING NO.1 (18 parça)
[020A] FRT COVER (16 parça)

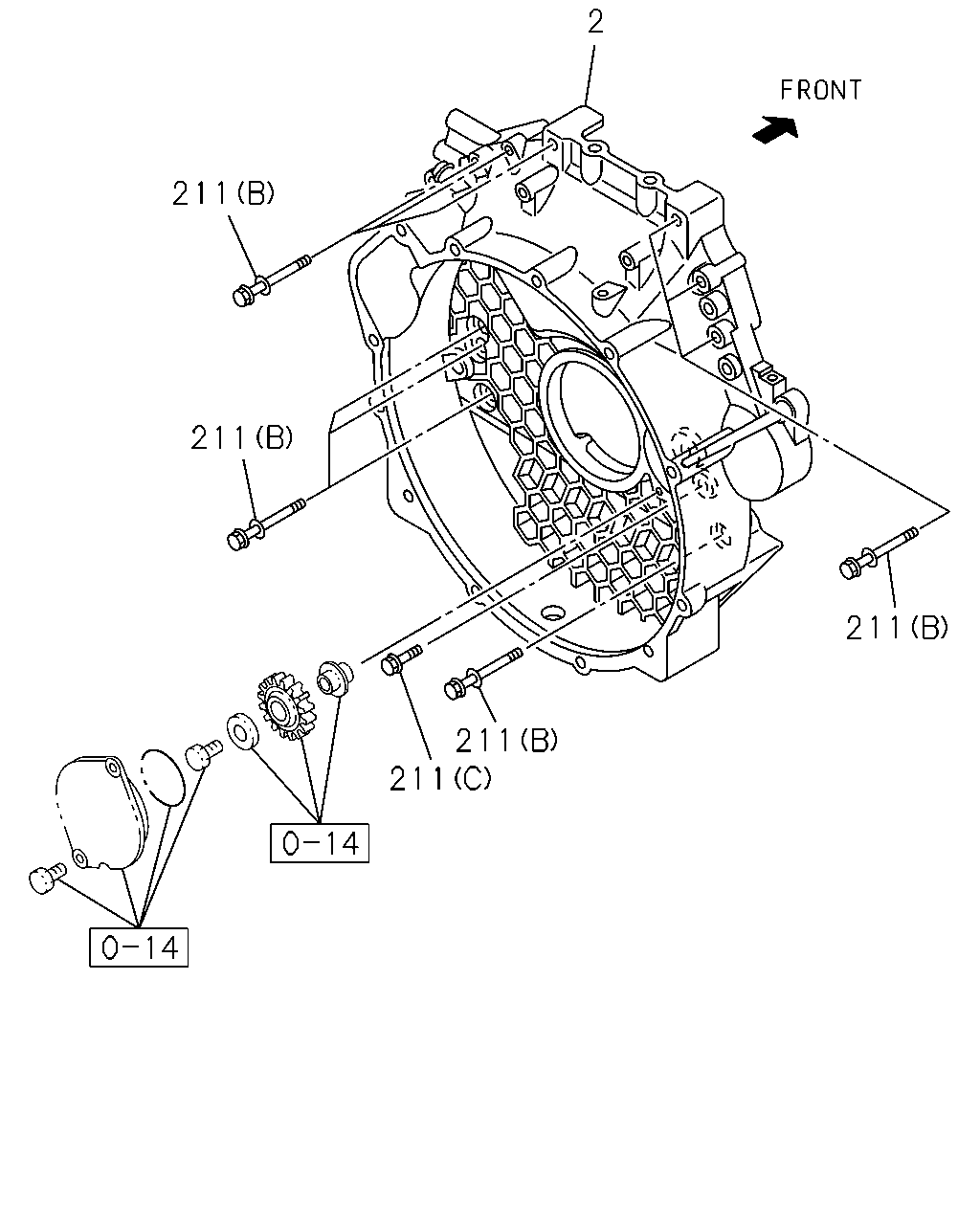

[020A] FLYWHEEL HOUSING NO.2 (7 parça)
▶
358
26
501
624
501
464
211
2
465
467
501
50
211
624
501
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; FLYWHEEL
8-98032-562-4
01
1
1102-1509
2
HOUSING; FLYWHEEL
8-98328-140-0
01
1
1510-
26
ADAPTER
8-97354-819-0
01
1
1102-
50
STUD
M10X25 L=48.5
0-49241-025-0
01
1
1102-
211
BOLT; HSG
(D) M10X50 FLANGE
0-28151-050-0
01
1
1102-
211
BOLT; HSG
(A) M10X40 FLANGE
0-28751-040-0
01
1
1102-
211
BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER
8-97114-779-0
11
1
1102-1102
211
BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER
8-98179-087-1
11
1
1103-
211
BOLT; HSG
(C) M12X30 FLANGE
8-97135-419-0
01
1
1102-
358
BOLT; ADAPTER
M6X16 FLANGE
0-28050-616-0
01
1
1102-
464
PIPE; PCV,FLYWHEEL HSG
8-94373-246-3
01
1
1102-
465
PLATE; FLYWHEEL HSG
8-97388-568-1
01
1
1102-
467
BOLT; PLATE
M6X10
8-98030-649-0
06
1
1102-
501
BOLT; STIFFENER
(A) M10X40 FLANGE
0-28151-040-0
02
1
1102-1308
501
BOLT; STIFFENER
(C) M12X90 FLANGE
0-28151-290-0
01
1
1102-1308
501
BOLT; STIFFENER
(B) M12X50 FLANGE
0-28151-250-0
02
1
1102-1308
624
STIFFENER
8-97380-613-1
01
1
1102-1308
624
STIFFENER
8-97380-614-1
01
1
1102-1308
62
268
100
100
102
101
62
62
62
62
103
62
101
62
225
225
175
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
BOLT; COVER
(A) M8X25 FLANGE
0-28650-825-0
06
1
1102-
62
BOLT; COVER
(C) M8X30 FLANGE
0-28650-830-0
01
1
1102-
62
BOLT; COVER
(B) M8X35 FLANGE
0-28650-835-0
06
1
1102-
62
BOLT; COVER
(D) M8X65 FLANGE
1-09044-072-1
02
1
1102-
62
BOLT; COVER
GENERATOR 24V90A(K44) (C) M8X30 FLANGE
0-28650-830-0
02
1
1102-
100
GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1
8-97028-748-1
01
1
1102-
100
GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8
9-09561-318-0
01
1
1102-
101
STUD; WATER PUMP
(B) M8X18 L=30
0-41010-818-0
01
1
1102-
101
STUD; WATER PUMP
(A) M8X18 L=29
8-97028-541-0
01
1
1102-
102
RETAINER; FRT
8-98039-932-2
01
1
1102-
103
SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137
8-97329-780-0
01
1
1102-
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139
8-97602-379-0
01
1
1102-
225
STUD; OIL PAN
(A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
8-97190-392-0
03
1
1102-1310
225
STUD; OIL PAN
(B) M8X20 L=32
9-04110-820-0
04
1
1311-
268
COVER; FRT
8-98039-931-2
01
1
1102-1310
268
COVER; FRT
8-97148-937-3
01
1
1311-
211
2
211
211
211
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; FLYWHEEL
8-98032-562-4
01
1
1102-1509
2
HOUSING; FLYWHEEL
8-98328-140-0
01
1
1510-
211
BOLT; HSG
(D) M10X50 FLANGE
0-28151-050-0
01
1
1102-
211
BOLT; HSG
(A) M10X40 FLANGE
0-28751-040-0
01
1
1102-
211
BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER
8-97114-779-0
11
1
1102-1102
211
BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER
8-98179-087-1
11
1
1103-
211
BOLT; HSG
(C) M12X30 FLANGE
8-97135-419-0
01
1
1102-
