0-14 — CAMSHAFT AND VALVE (#6060) — 67 parça

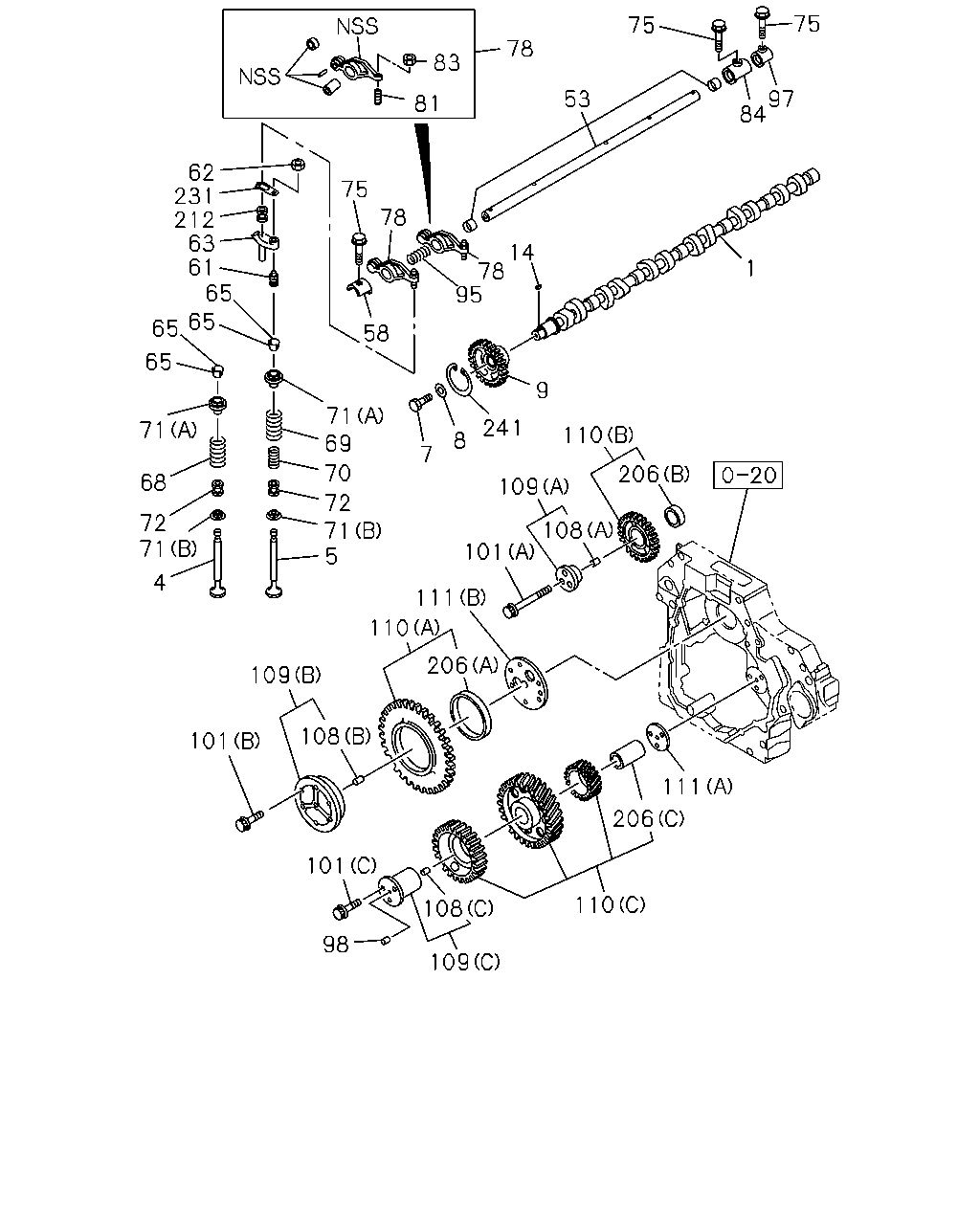

çizim 100424
75 75 78 83 53 97 84 81 62 231 212 63 61 65 75 78 14 78 95 1 65 65 58 65 9 71 69 241 71 110 8 7 70 206 68 109 72 71 5 72 71 108 101 4 111 110 206 109 108 101 111 206 101 110 108 98 109
BalonParca AdiParca NoAdetTipApplied Date
1 CAMSHAFT 1-12511-255-2 01 1 9905-
4 VALVE; INL 1-12551-151-1 12 1 9905-0301
4 VALVE; INL 1-12551-162-4 12 1 0302-
5 VALVE; EXH 1-12552-109-1 12 1 9905-0301
5 VALVE; EXH 1-12552-100-3 12 1 0302-
7 BOLT; CM/SHF GEAR
M14X28 		9-92061-428-0 01 1 9905-
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9905-
9 GEAR; CM/SHF
Z=54 		1-12522-043-1 01 1 9905-9910
9 GEAR; CM/SHF
Z=54 		1-12522-055-2 01 1 9911-0202
9 GEAR; CM/SHF
Z=54 		1-12522-060-1 01 1 0203-
14 KEY; CM/SHF 9-08055-516-0 01 1 9905-
53 SHAFT; ROCKER ARM 8-98191-745-2 01 1 9905-
58 BRACKET; ROCKER SHAFT,FRT 1-12628-070-3 01 1 9905-
61 SCREW; ADJ,BRIDGE 9-12616-053-0 12 1 9905-0012
61 SCREW; ADJ,BRIDGE 1-12616-042-0 12 1 0101-
62 NUT; ADJ SCREW LK BRIDGE
M10 		9-09840-310-0 12 1 9905-
63 BRIDGE 1-12611-277-3 12 1 9905-
65 COLLAR; SPLIT 1-12565-007-0 48 1 9905-
68 SPRING; VLV 1-12561-092-0 12 1 9905-0505
68 SPRING; VLV 8-97603-305-0 12 1 0506-
69 SPRING; VLV,OUTER 1-12561-093-0 12 1 9905-
70 SPRING; VLV,INNER 1-12562-060-0 12 1 9905-
71 SEAT; SPR
(A) UPPER 		1-12563-055-0 24 1 9905-0109
71 SEAT; SPR
(A) UPPER 		1-12563-060-0 24 1 0110-
71 SEAT; SPR
(B) LOWER 		1-12563-056-2 24 1 9905-
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-12569-019-1 24 1 9905-0005
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-12569-020-0 24 1 0006-
75 BOLT; BRKT
M12X97 FLANGE 		1-09044-087-1 07 1 9905-
78 ARM; ROCKER 1-12610-061-1 12 1 9905-0107
78 ARM; ROCKER 1-12610-079-2 12 1 0108-0201
78 ARM; ROCKER 1-12610-080-2 12 1 0202-
81 SCREW; ADJ,ROCKER ARM 1-12616-034-1 12 1 9905-
83 NUT; ADJ SCREW,LK
M12 		9-99110-512-0 12 1 9905-0512
83 NUT; ADJ SCREW,LK
M12 		0-91110-512-0 12 1 0601-
84 BRACKET; ROCKER SHAFT,INTER 1-12628-068-2 05 1 9905-
95 SPRING; ROCKER SHAFT 1-09580-472-1 06 1 9905-
97 BRACKET; ROCKER SHAFT,RR 1-12628-072-3 01 1 9905-
98 PIN; SHAFT SET
OD=8 L=14 		9-08160-814-0 01 1 9905-0103
101 BOLT; THRUST COLLAR
(A) M10X40 FLANGE 		0-28181-040-0 03 1 9905-0512
101 BOLT; THRUST COLLAR
(A) M10X40 FLANGE 		0-28151-040-0 03 1 0601-
101 BOLT; THRUST COLLAR
(B) M10X60 FLANGE 		0-28181-060-0 06 1 9905-0512
101 BOLT; THRUST COLLAR
(B) M10X60 FLANGE 		0-28151-060-0 06 1 0601-
101 BOLT; THRUST COLLAR
(C) M12X114 		1-09070-087-3 03 1 9905-
108 DOWEL; SHAFT
(C) 		1-12539-024-0 01 1 9905-0103
108 DOWEL; SHAFT
(A) 		8-94108-075-1 01 1 9905-0103
108 DOWEL; SHAFT
(B) OD=12 L=32 		9-08161-232-0 01 1 9905-
109 SHAFT; IDLE GEAR
(C) 		1-12531-048-4 01 1 9905-0103
109 SHAFT; IDLE GEAR
(C) 		1-12531-092-2 01 1 0104-
109 SHAFT; IDLE GEAR
(A) 		1-12531-050-4 01 1 9905-0103
109 SHAFT; IDLE GEAR
(A) 		1-12531-093-1 01 1 0104-
109 SHAFT; IDLE GEAR
(B) 		1-12531-076-2 01 1 9905-
110 GEAR ASM; IDLE
(B) 		1-12523-215-3 01 1 9905-0202
110 GEAR ASM; IDLE
(B) 		1-12523-371-1 01 1 0203-
110 GEAR ASM; IDLE
(C) 		1-12523-232-7 01 1 9905-
110 GEAR ASM; IDLE
(A) 		1-12523-270-0 01 1 9905-9910
110 GEAR ASM; IDLE
(A) 		1-12523-313-0 01 1 9911-0202
110 GEAR ASM; IDLE
(A) 		1-12523-369-1 01 1 0203-
111 COLLAR; THRUST,IDLE GEAR
(A) 		1-12535-008-1 01 1 9905-
111 COLLAR; THRUST,IDLE GEAR
(B) 		1-12535-019-0 01 1 9905-
206 BUSHING; IDLE GEAR
(B) AFTER PRESS FITTING, MACHINE IT. 		1-09330-108-0 01 1 9905-0705
206 BUSHING; IDLE GEAR
(B) AFTER PRESS FITTING, MACHINE IT. 		8-98081-168-0 01 1 0706-
206 BUSHING; IDLE GEAR
(C) AFTER PRESS FITTING, MACHINE IT. 		1-09330-113-0 01 1 9905-0706
206 BUSHING; IDLE GEAR
(C) AFTER PRESS FITTING, MACHINE IT. 		8-98081-167-0 01 1 0707-
206 BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT. 		1-09330-124-1 01 1 9905-
212 CAP; ADJ SCREW 1-12616-040-0 12 1 9905-
231 PLATE; CAP 1-12619-011-2 12 1 9905-
241 RING; FRICTION 1-12529-003-0 01 1 9905-0205
