◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10585 - CXH RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#606) — 152 parça

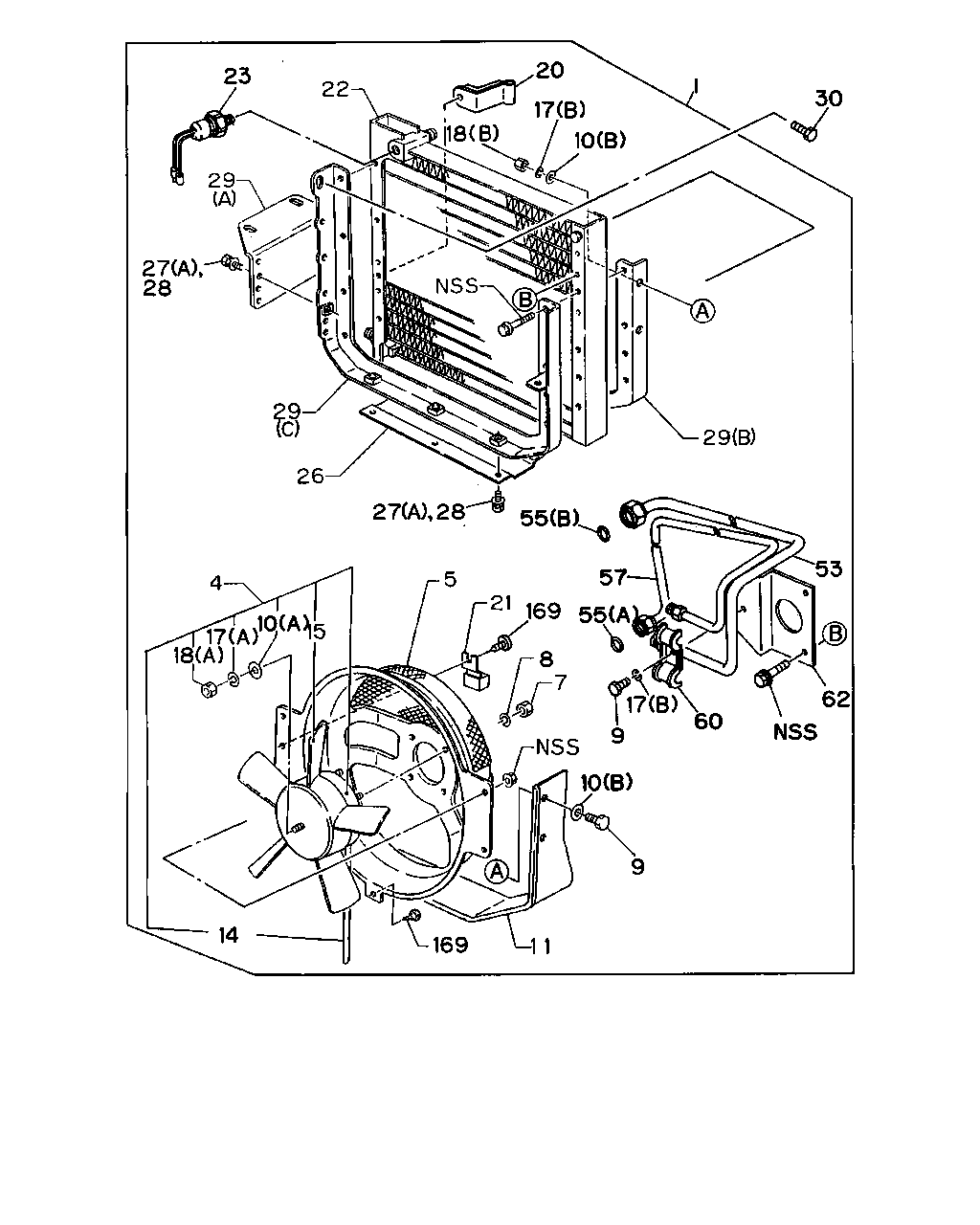

çizim 28830
23 22 29 18 20 17 10 1 30 29 55 28 27 26 29 27 28 4 18 17 10 15 5 21 169 57 55 8 7 17 9 60 53 62 10 9 11 169 14
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-064-1 01 1 8712-9306
1 CONDENSER; A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-055-2 01 1 8712-9306
1 CONDENSER; A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-166-0 01 1 9307-
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-033-0 01 1 8712-9306
4 MOTOR ASM; FAN
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-175-0 01 1 9307-
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-034-0 01 1 8712-9106
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-185-0 01 1 9107-9306
5 SHROUD; FAN MOTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-185-0 01 1 9307-
7 NUT; FAN
AIR CONDITIONER MANUAL CONTROL(C60) M4 		1-83539-065-0 04 1 8712-9306
7 NUT; FAN
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M4 		1-83539-065-0 04 1 9307-
8 WASHER; LK,FAN
AIR CONDITIONER MANUAL CONTROL(C60) ID=4.1 		9-09150-504-0 04 1 8712-9306
8 WASHER; LK,FAN
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) ID=4.1 		9-09150-504-0 04 1 9307-
9 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8X18 		1-83539-067-0 02 1 8712-9106
9 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8X18 		9-02040-818-0 02 1 9107-9306
9 BOLT; BRKT
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M8X22 		1-83579-198-0 06 1 8712-
10 WASHER; PL,FAN
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=8 		1-14319-034-0 04 1 8712-9001
10 WASHER; PL,FAN
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=5.3 		9-09160-505-0 01 1 8712-9106
10 WASHER; PL,FAN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-045-0 01 1 9107-9306
10 WASHER; PL,FAN
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=8 		1-14319-034-0 02 1 9002-9106
10 WASHER; PL,FAN
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=8 		1-14319-034-0 05 1 9107-9306
10 WASHER; PL,FAN
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=5.3 OD=12 		9-09160-605-0 01 1 9002-9106
10 WASHER; PL,FAN
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-045-0 01 1 9307-
11 COVER; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-035-0 01 1 8712-9306
11 COVER; SHROUD
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-035-0 01 1 9307-
14 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-258-0 01 1 8712-9306
14 HOSE; DRAIN
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-258-0 01 1 9307-
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-064-0 01 1 8712-9306
15 FAN; MOTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-064-0 01 1 9307-
17 WASHER; LK,FAN
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=5.1 		9-09150-505-0 01 1 8712-9106
17 WASHER; LK,FAN
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=5 		1-83539-044-0 01 1 9107-9306
17 WASHER; LK,FAN
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=8.2 		9-09150-608-0 03 1 8712-9106
17 WASHER; LK,FAN
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-492-0 03 1 9107-9306
17 WASHER; LK,FAN
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=5 		1-83539-044-0 01 1 9307-
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) (A) M5 		9-99110-505-0 01 1 8712-9306
18 NUT; FAN,CENTER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8 FLANGE 		1-83539-068-0 03 1 8712-9306
18 NUT; FAN,CENTER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M5 		9-99110-505-0 01 1 9307-
20 CLIP; CONDENSER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-081-0 01 1 8712-9306
21 CONDENSER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-84132-007-0 02 1 8712-9106
21 CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-84132-007-0 01 1 9107-9306
21 CONDENSER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-046-0 01 1 9002-9106
21 CONDENSER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		8-94150-133-0 01 1 9307-
22 CONDENSER ASM; A/C
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-083-1 01 1 8712-9306
22 CONDENSER ASM; A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-076-0 01 1 8712-9106
22 CONDENSER ASM; A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-140-0 01 1 9107-9307
22 CONDENSER ASM; A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-170-0 01 1 9307-
23 SWITCH; PRESSURE,CONDENSER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-82410-085-0 01 1 8712-9106
23 SWITCH; PRESSURE,CONDENSER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-82510-085-0 01 1 8712-9306
23 SWITCH; PRESSURE,CONDENSER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-82380-127-0 01 1 9307-
26 BRACKET; LOW
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-071-0 01 1 8712-9106
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-071-0 01 1 9107-9306
26 BRACKET; LOW
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-505-0 01 1 8712-9106
26 BRACKET; LOW
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-071-0 01 1 9307-
27 BOLT; BRKT,LOW SIDE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X22 		1-83579-198-0 09 1 9002-9106
27 BOLT; BRKT,LOW SIDE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X22 		1-83579-198-0 10 1 9107-9306
27 BOLT; BRKT,LOW SIDE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X18 		1-83539-067-0 02 1 8712-9106
27 BOLT; BRKT,LOW SIDE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X18 		9-02040-818-0 02 1 9107-
27 BOLT; BRKT,LOW SIDE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X22 		1-83579-198-0 03 1 8712-
28 SCREW; BRKT,LOW SIDE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8X22 W/LK&PL WASHER 		9-01960-822-0 10 1 8712-9106
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-503-0 01 1 8712-9306
29 BRACKET; SIDE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-070-0 01 1 8712-9106
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-070-0 01 1 9107-9306
29 BRACKET; SIDE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-084-0 01 1 8712-9306
29 BRACKET; SIDE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-504-0 01 1 8712-9106
29 BRACKET; SIDE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-506-0 01 1 8712-9106
29 BRACKET; SIDE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-072-0 01 1 9107-
29 BRACKET; SIDE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-070-0 01 1 9307-
29 BRACKET; SIDE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-503-0 01 1 9307-
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		9-01971-035-0 05 1 8712-9002
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		0-50141-035-0 05 1 9003-
53 PIPE; CONDENSER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-088-0 01 1 8712-9306
55 GASKET; PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) D=10.77 		8-94243-998-0 01 1 8712-9106
55 GASKET; PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-517-0 01 1 9107-9306
55 GASKET; PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=6.5 OD=7.65 		8-94244-315-0 01 1 8712-9106
55 GASKET; PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=7.65 		8-94113-332-0 01 1 9107-9306
57 PIPE; CONDENSER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-085-0 01 1 8712-9306
60 CLIP; PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-080-0 01 1 8712-9306
62 BRACKET; PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-89964-445-3 01 1 8712-9306
169 SCREW; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-066-0 02 1 8712-

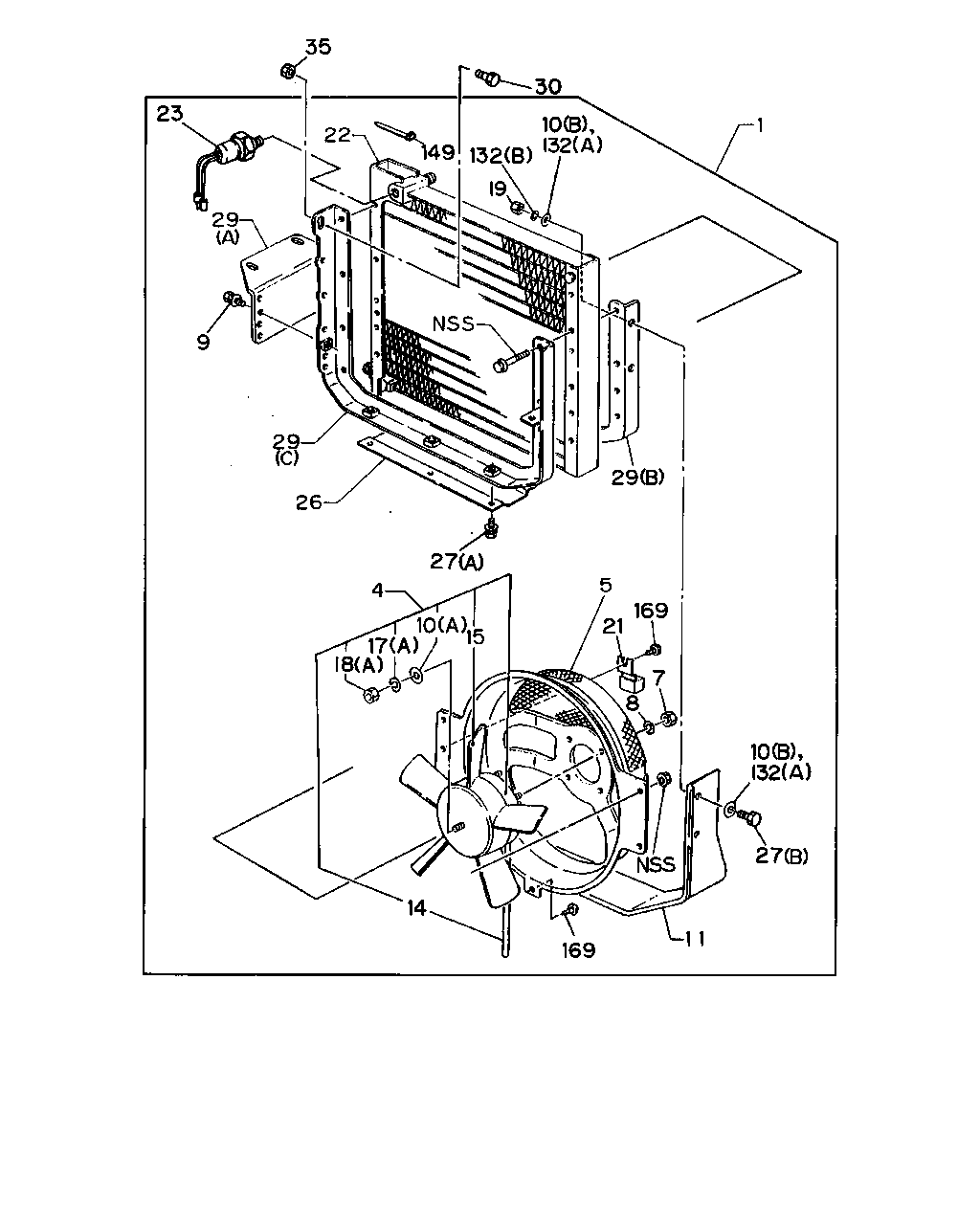

çizim 95685
35 23 29 22 149 132 30 10 132 19 1 29 5 21 169 7 8 10 132 27 11 169 14 18 17 10 15 4 27 26 29 9
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-064-1 01 1 8712-9306
1 CONDENSER; A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-055-2 01 1 8712-9306
1 CONDENSER; A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-166-0 01 1 9307-
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-033-0 01 1 8712-9306
4 MOTOR ASM; FAN
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-175-0 01 1 9307-
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-034-0 01 1 8712-9106
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-185-0 01 1 9107-9306
5 SHROUD; FAN MOTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-185-0 01 1 9307-
7 NUT; FAN
AIR CONDITIONER MANUAL CONTROL(C60) M4 		1-83539-065-0 04 1 8712-9306
7 NUT; FAN
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M4 		1-83539-065-0 04 1 9307-
8 WASHER; LK,FAN
AIR CONDITIONER MANUAL CONTROL(C60) ID=4.1 		9-09150-504-0 04 1 8712-9306
8 WASHER; LK,FAN
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) ID=4.1 		9-09150-504-0 04 1 9307-
9 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8X18 		1-83539-067-0 02 1 8712-9106
9 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8X18 		9-02040-818-0 02 1 9107-9306
9 BOLT; BRKT
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M8X22 		1-83579-198-0 06 1 8712-
10 WASHER; PL,FAN
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=8 		1-14319-034-0 04 1 8712-9001
10 WASHER; PL,FAN
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=5.3 		9-09160-505-0 01 1 8712-9106
10 WASHER; PL,FAN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-045-0 01 1 9107-9306
10 WASHER; PL,FAN
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=8 		1-14319-034-0 02 1 9002-9106
10 WASHER; PL,FAN
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=8 		1-14319-034-0 05 1 9107-9306
10 WASHER; PL,FAN
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=5.3 OD=12 		9-09160-605-0 01 1 9002-9106
10 WASHER; PL,FAN
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-045-0 01 1 9307-
11 COVER; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-035-0 01 1 8712-9306
11 COVER; SHROUD
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-035-0 01 1 9307-
14 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-258-0 01 1 8712-9306
14 HOSE; DRAIN
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-258-0 01 1 9307-
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-064-0 01 1 8712-9306
15 FAN; MOTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-064-0 01 1 9307-
17 WASHER; LK,FAN
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=5.1 		9-09150-505-0 01 1 8712-9106
17 WASHER; LK,FAN
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=5 		1-83539-044-0 01 1 9107-9306
17 WASHER; LK,FAN
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=8.2 		9-09150-608-0 03 1 8712-9106
17 WASHER; LK,FAN
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-492-0 03 1 9107-9306
17 WASHER; LK,FAN
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=5 		1-83539-044-0 01 1 9307-
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) (A) M5 		9-99110-505-0 01 1 8712-9306
18 NUT; FAN,CENTER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8 FLANGE 		1-83539-068-0 03 1 8712-9306
18 NUT; FAN,CENTER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M5 		9-99110-505-0 01 1 9307-
19 NUT; BRKT
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		1-83539-068-0 02 1 9002-
21 CONDENSER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-84132-007-0 02 1 8712-9106
21 CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-84132-007-0 01 1 9107-9306
21 CONDENSER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-046-0 01 1 9002-9106
21 CONDENSER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		8-94150-133-0 01 1 9307-
22 CONDENSER ASM; A/C
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-083-1 01 1 8712-9306
22 CONDENSER ASM; A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-076-0 01 1 8712-9106
22 CONDENSER ASM; A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-140-0 01 1 9107-9307
22 CONDENSER ASM; A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-170-0 01 1 9307-
23 SWITCH; PRESSURE,CONDENSER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-82410-085-0 01 1 8712-9106
23 SWITCH; PRESSURE,CONDENSER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-82510-085-0 01 1 8712-9306
23 SWITCH; PRESSURE,CONDENSER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-82380-127-0 01 1 9307-
26 BRACKET; LOW
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-071-0 01 1 8712-9106
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-071-0 01 1 9107-9306
26 BRACKET; LOW
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-505-0 01 1 8712-9106
26 BRACKET; LOW
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-071-0 01 1 9307-
27 BOLT; BRKT,LOW SIDE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X22 		1-83579-198-0 09 1 9002-9106
27 BOLT; BRKT,LOW SIDE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X22 		1-83579-198-0 10 1 9107-9306
27 BOLT; BRKT,LOW SIDE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X18 		1-83539-067-0 02 1 8712-9106
27 BOLT; BRKT,LOW SIDE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X18 		9-02040-818-0 02 1 9107-
27 BOLT; BRKT,LOW SIDE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X22 		1-83579-198-0 03 1 8712-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-503-0 01 1 8712-9306
29 BRACKET; SIDE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-070-0 01 1 8712-9106
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-070-0 01 1 9107-9306
29 BRACKET; SIDE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-084-0 01 1 8712-9306
29 BRACKET; SIDE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-504-0 01 1 8712-9106
29 BRACKET; SIDE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-506-0 01 1 8712-9106
29 BRACKET; SIDE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-072-0 01 1 9107-
29 BRACKET; SIDE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-070-0 01 1 9307-
29 BRACKET; SIDE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-503-0 01 1 9307-
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		9-01971-035-0 05 1 8712-9002
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		0-50141-035-0 05 1 9003-
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M10 		9-09110-510-0 05 1 9307-
132 WASHER; BRKT
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=8 		1-14319-034-0 04 1 9002-
132 WASHER; BRKT
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=8.2 		9-09150-608-0 02 1 9002-9106
132 WASHER; BRKT
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-492-0 02 1 9107-
149 CLIP; HARNESS
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-008-0 01 1 9307-
169 SCREW; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-066-0 02 1 8712-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
