1 |

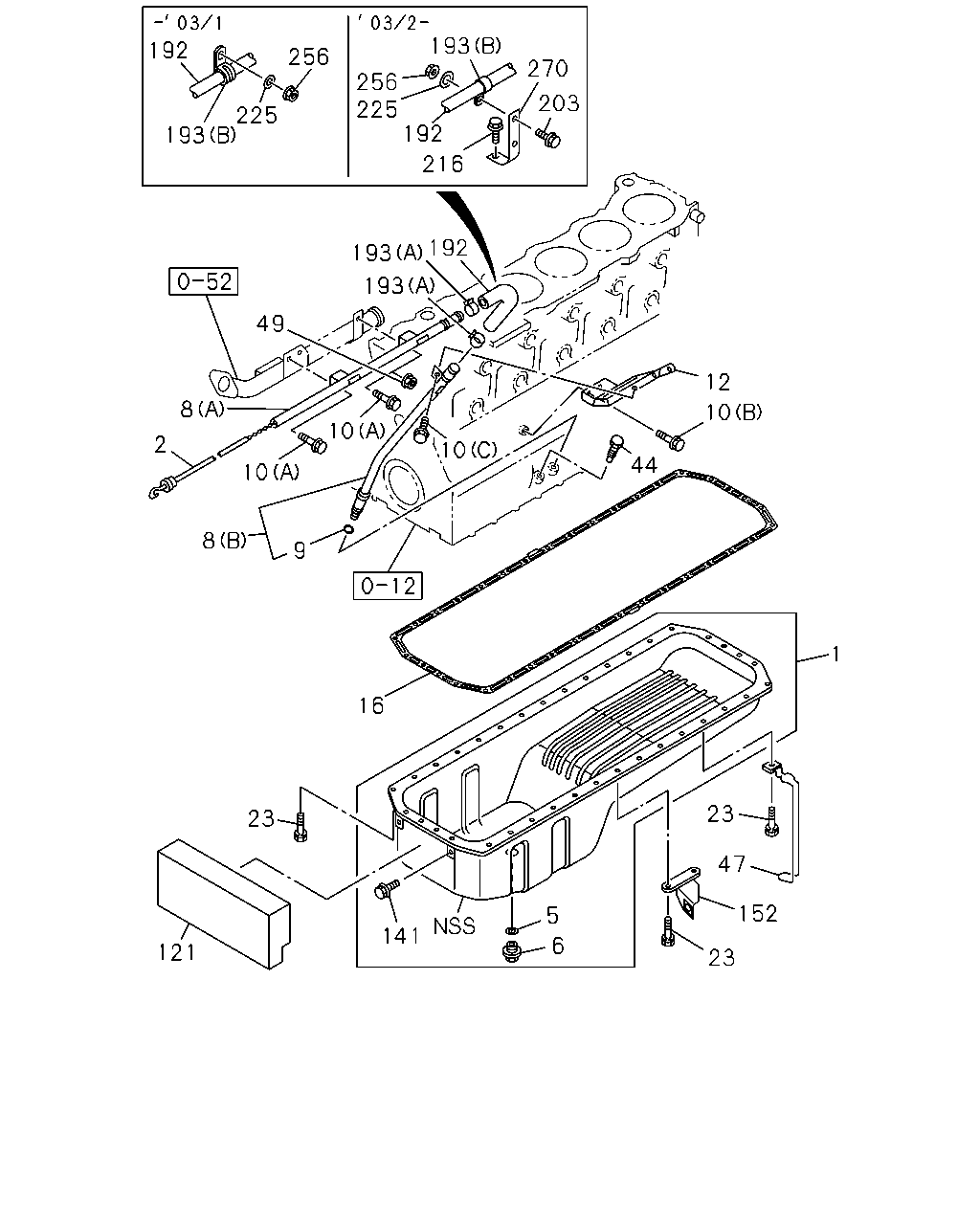

PAN ASM; OIL
|
1-11360-862-0 |
01 |
1 |
9905-0309 |
| |
1 |
PAN ASM; OIL
|
1-11360-912-0 |
01 |
1 |
0310- |
| |
2 |
GAUGE; OIL LEVEL
|
1-11760-405-0 |
01 |
1 |
9905-0302 |
| |
2 |
GAUGE; OIL LEVEL
|
1-11760-427-0 |
01 |
1 |
0303- |
| |
5 |
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.5
|
8-94399-398-0 |
01 |
1 |
9905-0309 |
| |
5 |
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.4
|
1-09623-057-0 |
01 |
1 |
0310- |
| |
6 |
PLUG; OIL DRAIN
M20X16.5
|
9-09662-012-0 |
01 |
1 |
9905- |
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
|
1-11766-470-0 |
01 |
1 |
9905- |
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
|
1-11766-488-0 |
01 |
1 |
9905-0107 |
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
|
1-11766-601-0 |
01 |
1 |
0108-0301 |
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
|
1-11766-604-2 |
01 |
1 |
0302- |
| |
9 |
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-496-0 |
01 |
1 |
9905- |
| |
10 |
BOLT; GUIDE TUBE
(C)
M10X20 FLANGE
|
0-28081-020-0 |
01 |
1 |
9905-0512 |
| |
10 |
BOLT; GUIDE TUBE
(C)
M10X20 FLANGE
|
0-28051-020-0 |
01 |
1 |
0601- |
| |
10 |
BOLT; GUIDE TUBE
(B)
M10X20 FLANGE
|
0-28181-020-0 |
02 |
1 |
9905-0512 |
| |
10 |
BOLT; GUIDE TUBE
(B)
M10X20 FLANGE
|
0-28151-020-0 |
02 |
1 |
0601- |
| |
10 |
BOLT; GUIDE TUBE
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9905-0309 |
| |
10 |
BOLT; GUIDE TUBE
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0310-0512 |
| |
10 |
BOLT; GUIDE TUBE
(A)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0601- |
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
|
1-11769-170-0 |
01 |
1 |
9905- |
| |
16 |
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-11367-111-0 |
01 |
1 |
9905-0011 |
| |
16 |
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-11367-130-0 |
01 |
1 |
0012- |
| |
23 |
BOLT; OIL PAN
M10X30 FLANGE
|
0-28151-030-0 |
02 |
1 |
1001- |
| |
23 |
BOLT; OIL PAN
M10X28 W/LK&PL WASHER
|
0-50151-028-0 |
36 |
1 |
9905-0906 |
| |
23 |
BOLT; OIL PAN
M10X28 W/LK&PL WASHER
|
0-50651-028-0 |
36 |
1 |
0907-0909 |
| |
23 |
BOLT; OIL PAN
M10X20 FLANGE
|
0-28151-020-0 |
36 |
1 |
0910-0912 |
| |
23 |
BOLT; OIL PAN
M10X20 FLANGE
|
0-28151-020-0 |
34 |
1 |
1001- |
| |
44 |
PLUG
M22X41
|
1-09604-098-0 |
01 |
1 |
9905- |
| |
47 |
CLIP; HOSE,AIR BREATHER
|
1-11369-147-1 |
01 |
1 |
9905- |
| |
49 |
NUT; GUIDE TUBE
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0310-0602 |
| |
49 |
NUT; GUIDE TUBE
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
121 |
COVER; OIL PAN
|
1-19389-209-0 |
01 |
1 |
9905-0301 |
| |
141 |
BOLT; BRKT TO OIL PAN FIX
M10X20 FLANGE
|
0-28081-020-0 |
02 |
1 |
9905-0309 |
| |
152 |
BRACKET; CLIP POWER STRG PIPE
|
1-21119-130-1 |
01 |
1 |
9905- |
| |
192 |
HOSE; GUIDE TUBE
L=600
L=430
|
0-02361-300-0 |
01 |
1 |
9905- |
| |
193 |
CLIP; HOSE,GUIDE TUBE
(B)
ID=20 L=24
|
1-09700-730-1 |
01 |
1 |
9905-0107 |
| |
193 |
CLIP; HOSE,GUIDE TUBE
(B)
ID=20 L=24
|
1-09700-730-1 |
02 |
1 |
0108-0301 |
| |
193 |
CLIP; HOSE,GUIDE TUBE
(B)
ID=20 L=24
|
1-09700-730-1 |
01 |
1 |
0302-0307 |
| |
193 |
CLIP; HOSE,GUIDE TUBE
(B)
ID=20 L=24
|
1-09700-730-1 |
02 |
1 |
0308- |
| |
193 |
CLIP; HOSE,GUIDE TUBE
(A)
ID=17
|
1-09707-158-0 |
02 |
1 |
9905- |
| |
203 |
BOLT; CLIP
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0302-0512 |
| |
203 |
BOLT; CLIP
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0601- |
| |
216 |
BOLT; BRKT
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0302-0512 |
| |
216 |
BOLT; BRKT
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601- |
| |
225 |
WASHER; PL
ID=10.5 OD=26
|
9-09160-710-0 |
01 |
1 |
9905- |
| |
256 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0308-0602 |
| |
256 |
NUT; CLIP
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
256 |
NUT; CLIP
M10 FLANGE
|
0-91150-210-0 |
01 |
1 |
9905-0602 |
| |
256 |
NUT; CLIP
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0603- |
| |
270 |
BRACKET ASM; TUBE,OIL LEVEL GAUGE
|
1-47478-769-0 |
01 |
1 |
0302-0305 |
| |
270 |
BRACKET ASM; TUBE,OIL LEVEL GAUGE
|
1-47479-855-0 |
01 |
1 |
0306- |
