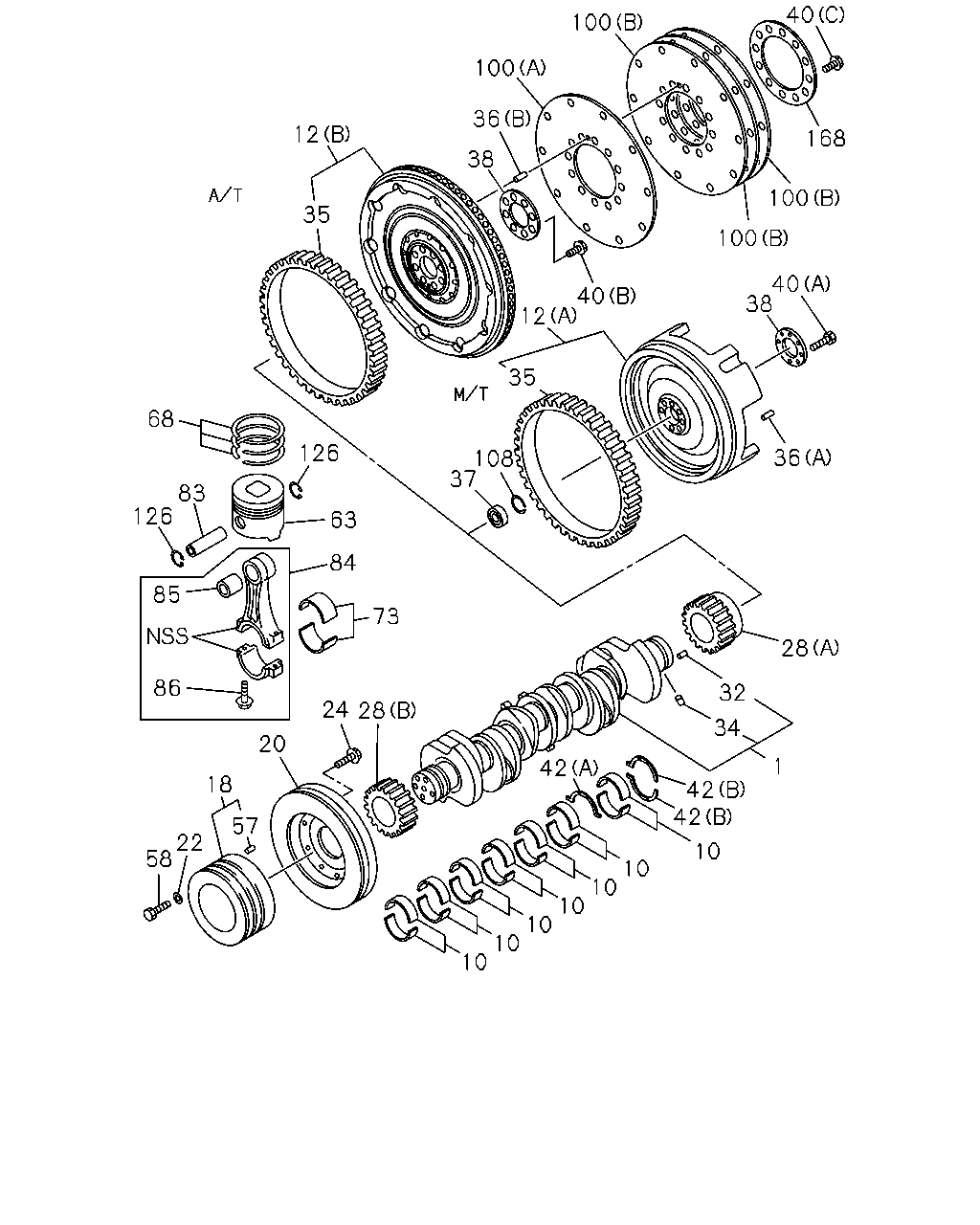

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#60583) — 40 parça

100 40 168 100 100 40 38 36 40 12 100 36 38 12 35 35 108 37 68 126 63 84 73 83 126 85 86 28 24 20 18 22 58 57 28 32 34 42 1 42 42 10 10 10 10 10 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CRANKSHAFT	8-97603-004-0	01	1	1010-
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1010-
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1010-
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1010-
12	FLYWHEEL ALLISON MD3060P A/T(Y4G) (B)	8-97610-682-1	01	1	1010-
12	FLYWHEEL ZF9S1110 M/T(Y5E) (A)	8-97602-463-2	01	1	1010-
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	1010-
20	DAMPER; CR/SHF	8-97613-696-1	01	1	1010-
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	1010-
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1010-
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	1010-
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1010-
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	1010-
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1010-
35	GEAR; RING Z=140	8-94396-784-1	01	1	1010-
36	PIN; FLYWHEEL ALLISON MD3060P A/T(Y4G) (B) OD=6 L=16	9-08160-616-0	01	1	1010-
36	PIN; FLYWHEEL ZF9S1110 M/T(Y5E) (A) OD=10 L=22	9-08151-022-0	02	1	1010-
37	BEARING; PILOT,TOP GEAR SHAFT ZF9S1110 M/T(Y5E)	8-94392-288-0	01	1	1010-
37	BEARING; PILOT,TOP GEAR SHAFT ZF9S1110 M/T(Y5E) BEST VALUE PARTS	1-87610-157-0	01	1	1307-
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1010-
40	BOLT; FLYWHEEL ALLISON MD3060P A/T(Y4G) (C) M12X30	8-11505-501-0	12	1	1010-
40	BOLT; FLYWHEEL ALLISON MD3060P A/T(Y4G) (B) M16X79	8-97606-638-0	08	1	1010-
40	BOLT; FLYWHEEL ZF9S1110 M/T(Y5E) (A) M16X62	8-94393-070-2	08	1	1010-
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1010-
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1010-
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1010-
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	1010-
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	1010-
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1010-
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1010-
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1010-
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1010-
84	ROD ASM; CONN	8-98018-425-3	06	1	1010-
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1010-
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1010-
100	PLATE; FLEX ALLISON MD3060P A/T(Y4G) (A)	8-29538-154-0	01	1	1010-
100	PLATE; FLEX ALLISON MD3060P A/T(Y4G) (B)	8-29538-155-0	03	1	1010-
108	RING; SNAP,BRG SET ZF9S1110 M/T(Y5E) OD=59.2	9-09180-155-0	01	1	1010-
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1010-
168	PLATE; WEAR ALLISON MD3060P A/T(Y4G) ID=119 OD=177	8-29538-157-0	01	1	1010-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
