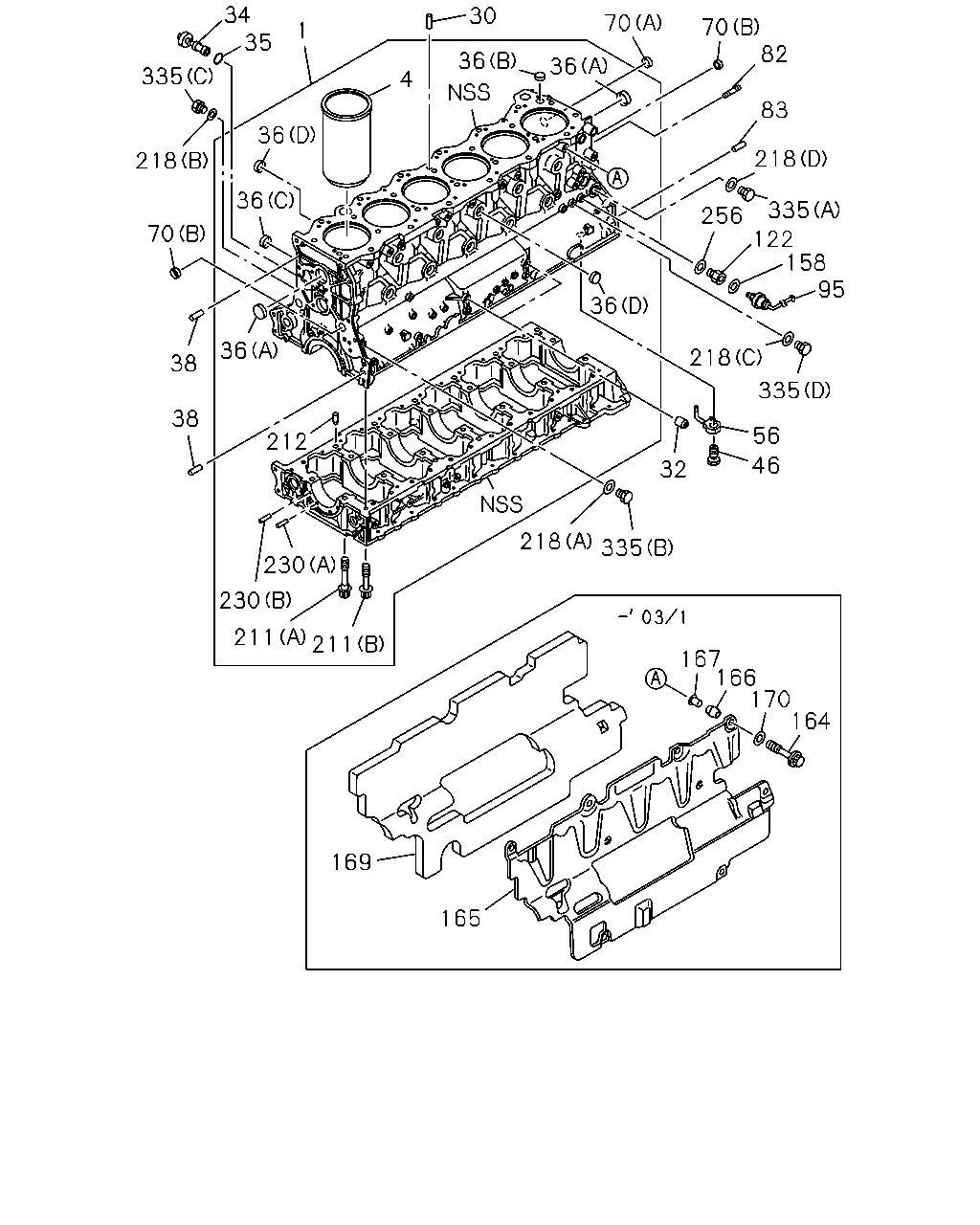

0-12 — CYLINDER BLOCK (#6058) — 62 parça

34 35 30 70 70 82 1 36 36 335 4 83 36 218 218 36 335 256 70 122 158 95 36 212 36 218 38 335 38 56 46 32 218 335 230 230 211 211 167 166 170 164 169 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	8-98180-449-1	01	1	9905-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-333-2	06	1	9905-0301
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-379-2	06	1	0302-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-334-2	06	1	9905-0301
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-380-2	06	1	0302-
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	03	1	9905-0807
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	02	1	0808-
32	PIN; INJ PUMP BRKT	8-94325-506-1	02	1	9905-
34	VALVE; OIL RELIEF	1-13160-030-3	01	1	9905-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	1-09623-297-0	01	1	0712-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	1-09623-297-0	01	1	9905-0508
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	9905-
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	9905-
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-065-1	02	1	9905-
36	CUP; SEALING,WATER JACKET (D) OD=40	8-94241-637-0	13	1	9905-
38	PIN; TIMING GEAR CASE OD=10 L=18	9-08151-018-0	02	1	9905-
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-014-0	06	1	9905-
56	JET; OIL,PISTON COOLING	1-13342-139-2	06	1	9905-
70	CUP; SEALING,FRT & RR (A) OD=32	1-09600-012-2	01	1	9905-
70	CUP; SEALING,FRT & RR (B) OD=25	1-09600-016-0	04	1	9905-
82	STUD; FLYWHEEL HSG M14X35 L=56	9-04411-435-0	01	1	9905-0604
82	STUD; FLYWHEEL HSG M14X35 L=56	0-44011-435-0	01	1	0605-
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	9905-
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9905-0508
122	ADAPTER; OIL PRESSURE SWITCH	8-94390-391-0	01	1	9905-0508
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-0508
164	BOLT; COVER BLOCK SKIRT M10X35 FLANGE	0-28181-035-0	08	1	9905-0301
165	COVER; C/BL SKIRT	1-19381-376-0	01	1	9905-0301
166	MOUNT; COVER BLOCK SKIRT	1-09337-020-0	08	1	9905-0301
167	TUBE; DIST,SIDE COVER	1-19389-134-1	08	1	9905-0207
167	TUBE; DIST,SIDE COVER	1-19389-329-0	08	1	0208-0301
169	INSULATOR; SIDE COVER	1-19389-191-1	01	1	9905-0301
170	WASHER; COVER ID=10.5 OD=26	9-09160-710-0	08	1	9905-0301
211	BOLT; CRANKCASE (A) M18X150	1-09070-086-3	14	1	9905-9905
211	BOLT; CRANKCASE (A) M18X150	1-09070-151-0	14	1	9906-
211	BOLT; CRANKCASE (B) M12X114	1-09070-087-3	28	1	9905-
212	PIN; CRANKCASE	1-09740-068-1	02	1	9905-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (A) LH SIDE ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) RH SIDE ID=12.2	1-09630-084-0	01	1	9905-1312
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) RH SIDE ID=12.2	8-98251-344-0	01	1	1401-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (C) LH SIDE ID=14.2 OD=19.2	1-09630-085-0	01	1	9905-0301
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (C) LH SIDE ID=14.2 OD=25	1-09630-141-0	01	1	0302-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (D) LH SIDE ID=22	1-09630-089-0	01	1	9905-
230	PIN; THRUST METAL,CR/SHF (A) L=25	1-09749-025-1	02	1	9905-
230	PIN; THRUST METAL,CR/SHF (B) OD=5 L=10	9-08160-510-0	02	1	9905-
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9905-0508
335	PLUG; C/BL,SIDE (A) LH SIDE M22X12	1-09604-035-0	01	1	9905-
335	PLUG; C/BL,SIDE (B) LH SIDE M10X7	1-09604-094-0	01	1	9905-
335	PLUG; C/BL,SIDE (C) RH SIDE M12X9	1-09604-095-0	01	1	9905-0805
335	PLUG; C/BL,SIDE (C) RH SIDE M12X9	8-98047-054-0	01	1	0806-
335	PLUG; C/BL,SIDE (D) LH SIDE M14X9	9-99202-314-0	01	1	9905-0805
335	PLUG; C/BL,SIDE (D) LH SIDE M14X9	8-98042-944-0	01	1	0806-

2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87811-667-5	06	1	9905-0301
2	LINER SET; ENG CYL GRADE=1X	1-87812-003-3	06	1	0302-0311
2	LINER SET; ENG CYL GRADE=1X	1-87812-861-5	06	1	0312-
2	LINER SET; ENG CYL GRADE=3X	1-87811-668-5	06	1	9905-0301
2	LINER SET; ENG CYL GRADE=3X	1-87812-004-3	06	1	0302-0311
2	LINER SET; ENG CYL GRADE=3X	1-87812-862-5	06	1	0312-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-333-2	06	1	9905-0301
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-379-2	06	1	0302-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-334-2	06	1	9905-0301
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-380-2	06	1	0302-
