8-28 — CHASSIS ELECTRICAL (#60563) — 77 parça

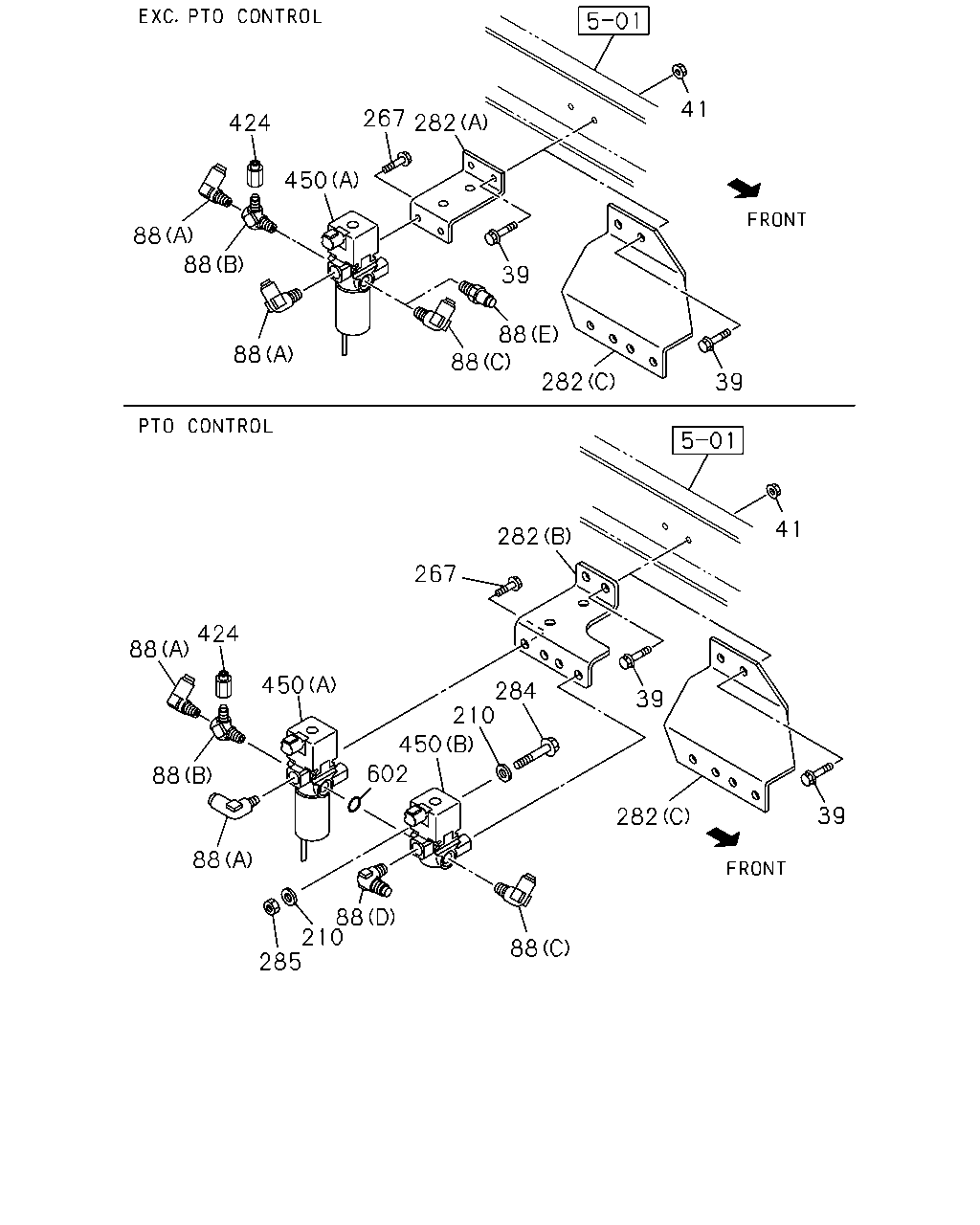

çizim 171810
88 424 267 41 282 450 88 88 39 88 88 282 39 41 282 267 39 39 282 88 88 88 450 88 88 210 285 602 210 450 424 284
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
M8X35 FLANGE 		0-28650-835-0 02 1 1010- ● ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
88 CONNECTOR; MAG VLV
(C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1010-1111 ● ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1010-1111 ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1010-1111 ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (E) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 1010-1111 ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 1010-1111 ● ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1010-1111 ● ●
282 BRACKET; MAG VLV
PTO CONTROL<SV6> (B) 		8-98101-296-0 01 1 1010-1111 ●
282 BRACKET; MAG VLV
EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1010-1111 ●
282 BRACKET; MAG VLV
(C) 		8-98114-298-0 01 1 1010-1111 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> M6X50 FLANGE 		0-28050-650-0 01 1 1010-1111 ● ●
285 NUT; MAG VLV
PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 1010-1111 ● ●
424 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1010-1111 ● ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 1010-1111 ● ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1010-1111 ● ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1010-1111 ● ●

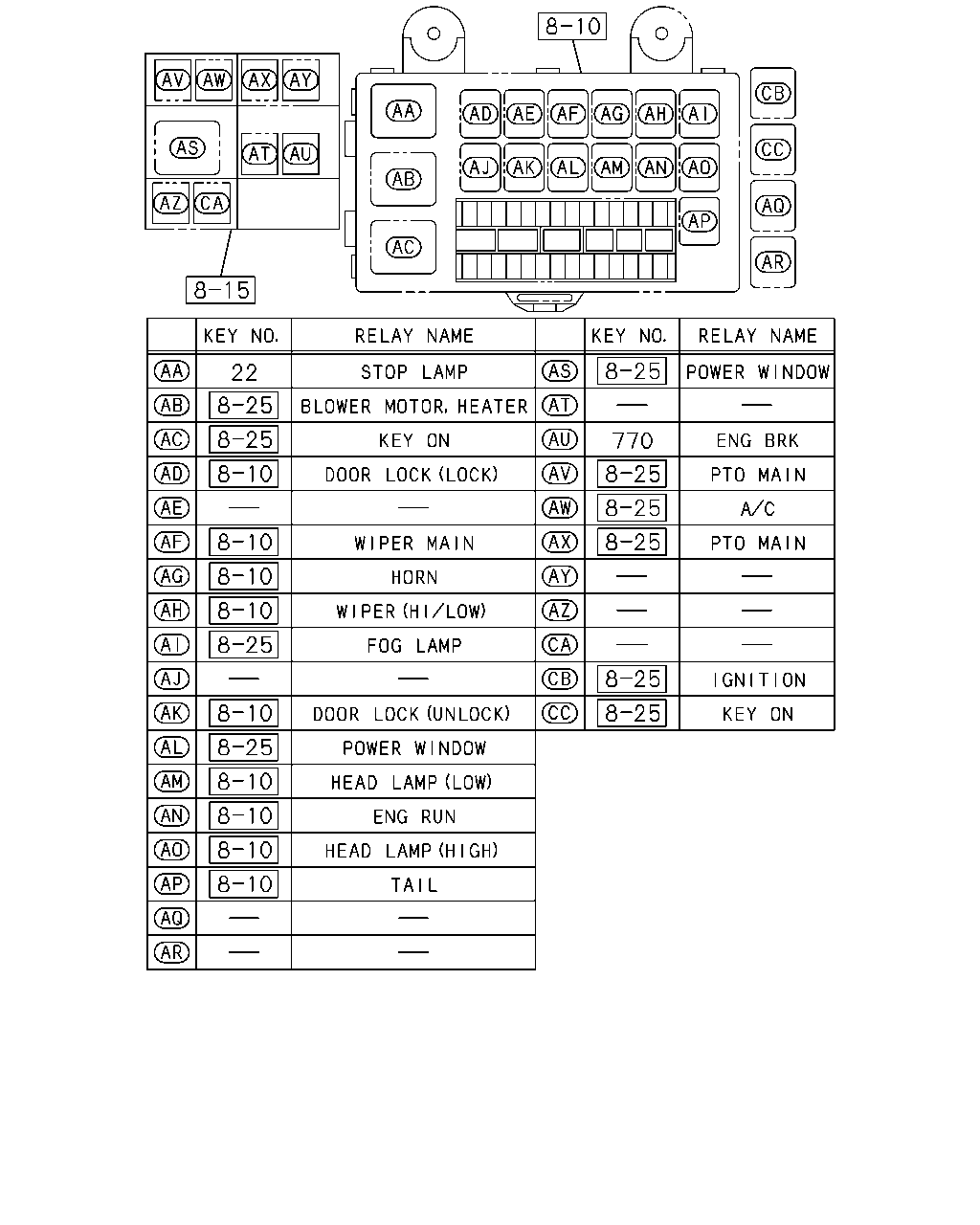

çizim 171817
22 770
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1010- ● ●
770 RELAY; ENG BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 1010-1010 ●
770 RELAY; ENG BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 1010- ● ●

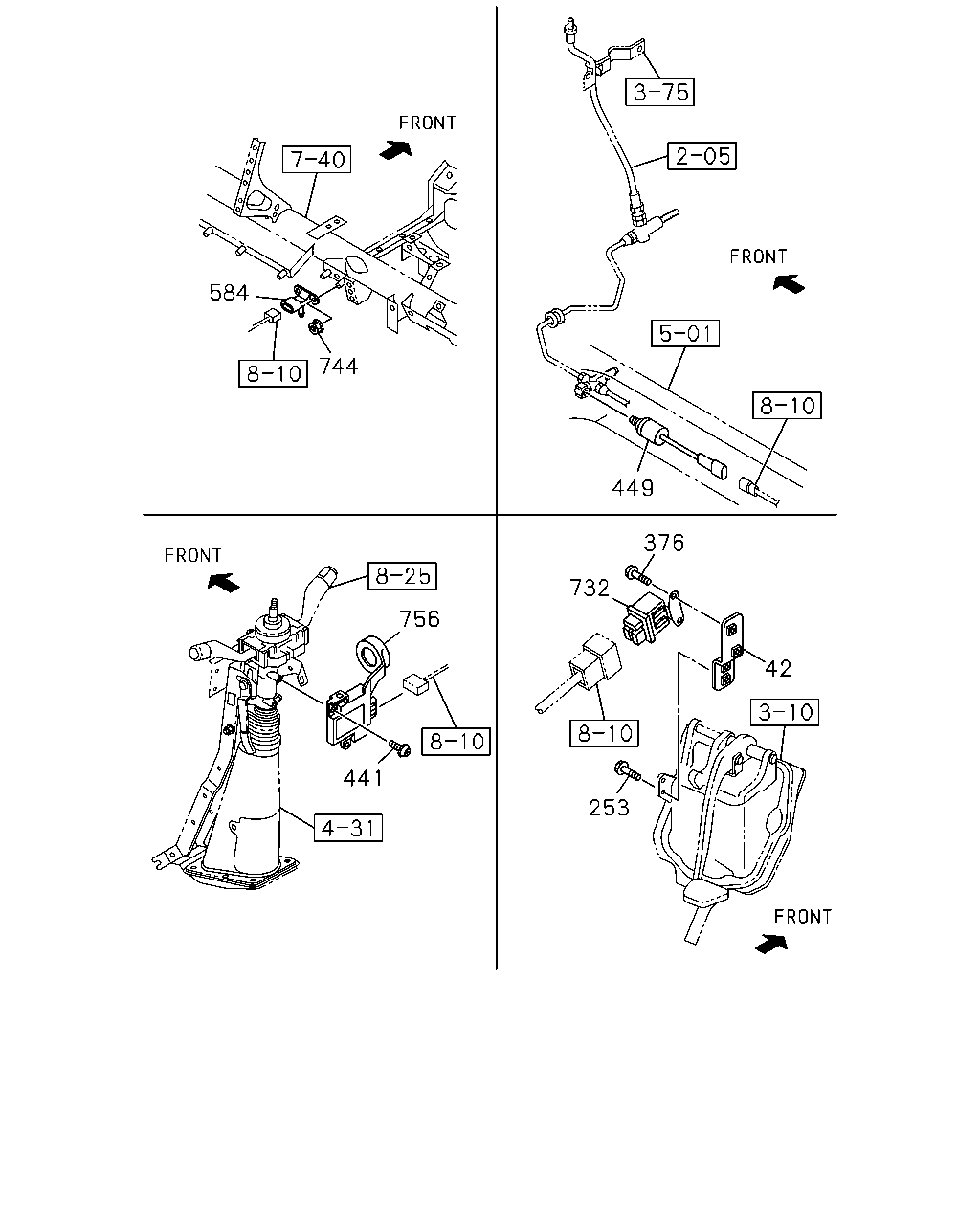

çizim 171822
584 744 756 441 732 376 42 253 449
BalonParca AdiParca NoAdetTipApplied Date A B
42 BRACKET; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-051-2 01 1 1010-1010 ●
42 BRACKET; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-051-2 01 1 1010- ● ●
253 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 1010-1010 ●
253 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 1010- ● ●
376 BOLT; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1010-1010 ●
376 BOLT; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1010- ● ●
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1010- ● ●
449 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82410-143-1 01 1 1010-1306 ● ●
449 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-82410-143-1 01 1 1307- ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1010-1306 ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1307- ● ●
732 RELAY; EDS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82550-337-1 01 1 1010-1010 ●
732 RELAY; EDS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82550-337-1 01 1 1010- ● ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1010-1306 ● ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1307- ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1010- ● ●

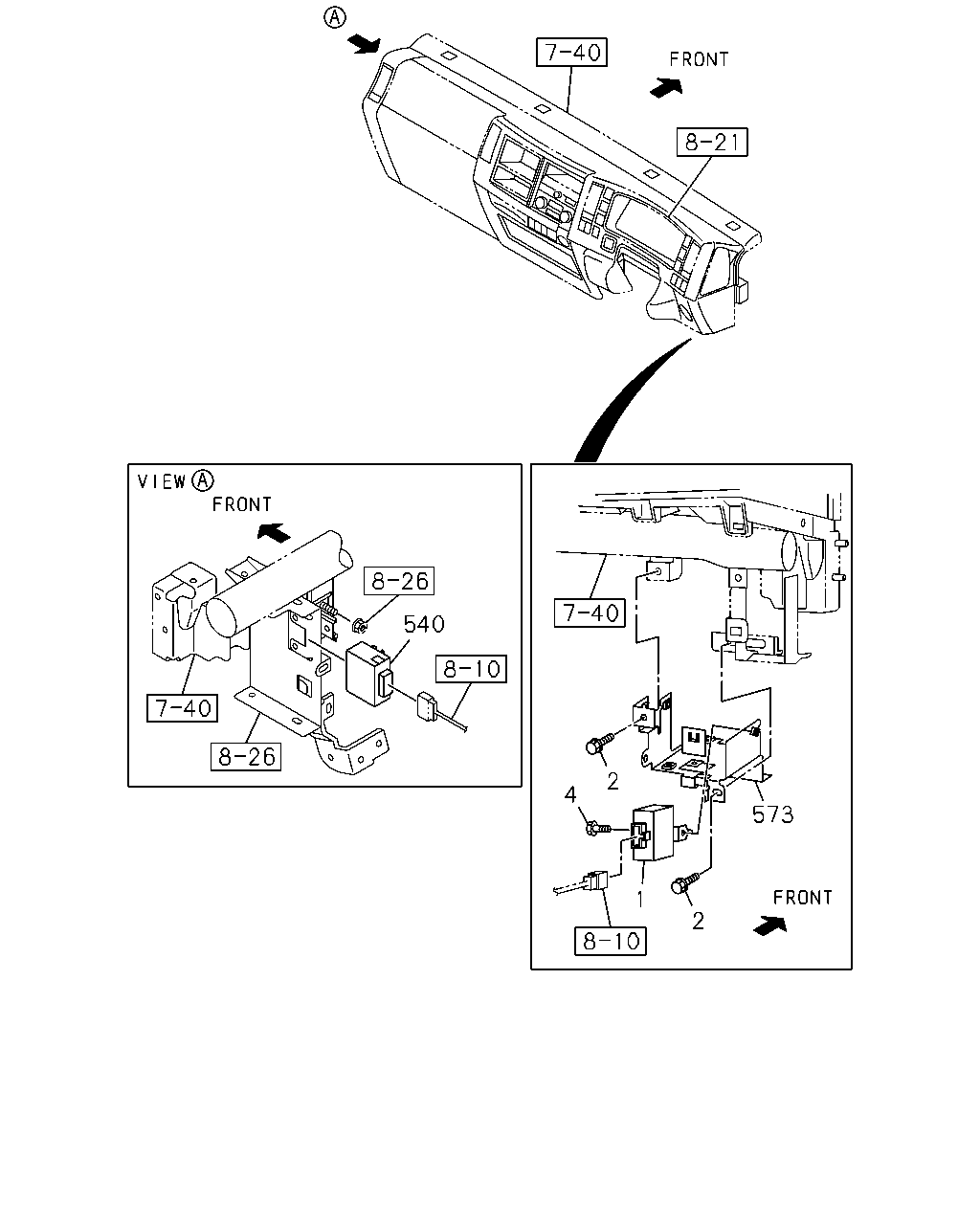

çizim 172001
540 4 573 2 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98025-533-1 01 1 1010- ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1010- ● ●
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 1010- ● ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 1010-1308 ● ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309- ● ●
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 1010- ● ●

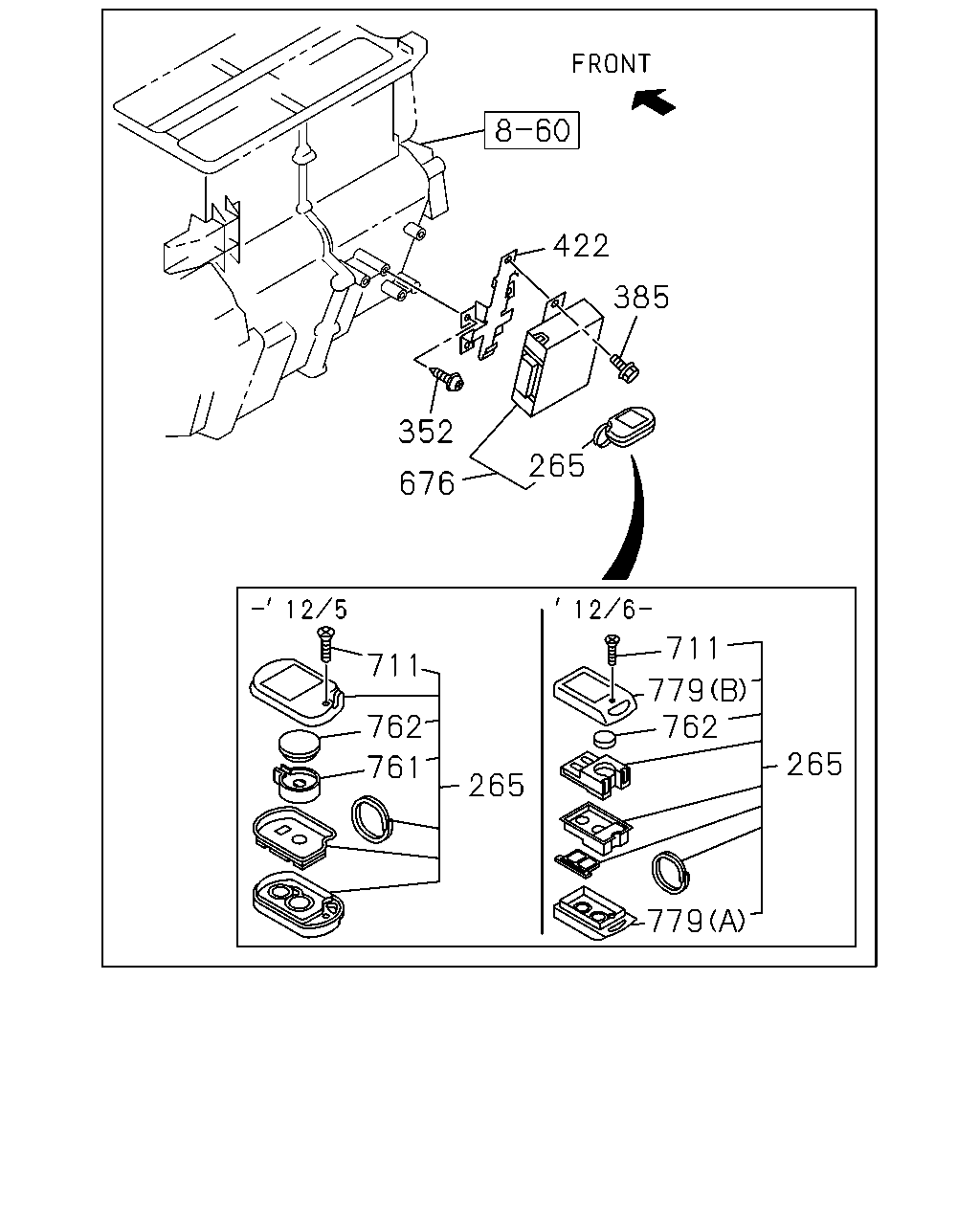

çizim 172010
352 422 385 265 676 711 762 761 265 711 779 762 265 779
BalonParca AdiParca NoAdetTipApplied Date A B
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 1010-1012 ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1101-1205 ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1206- ● ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1010- ● ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1010- ● ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 1010- ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98017-258-1 01 1 1010-1012 ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98181-809-0 01 1 1101-1205 ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98218-231-0 01 1 1206- ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 1010-1205 ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1206- ● ●
761 HOLDER; BATTERY 8-98078-063-0 02 1 1010-1012 ● ●
762 BATTERY 8-98078-061-0 02 1 1010- ● ●
779 COVER; TRANSMITTER
(A) 		8-98218-240-0 02 1 1206- ● ●
779 COVER; TRANSMITTER
(B) 		8-98218-243-0 02 1 1206- ● ●

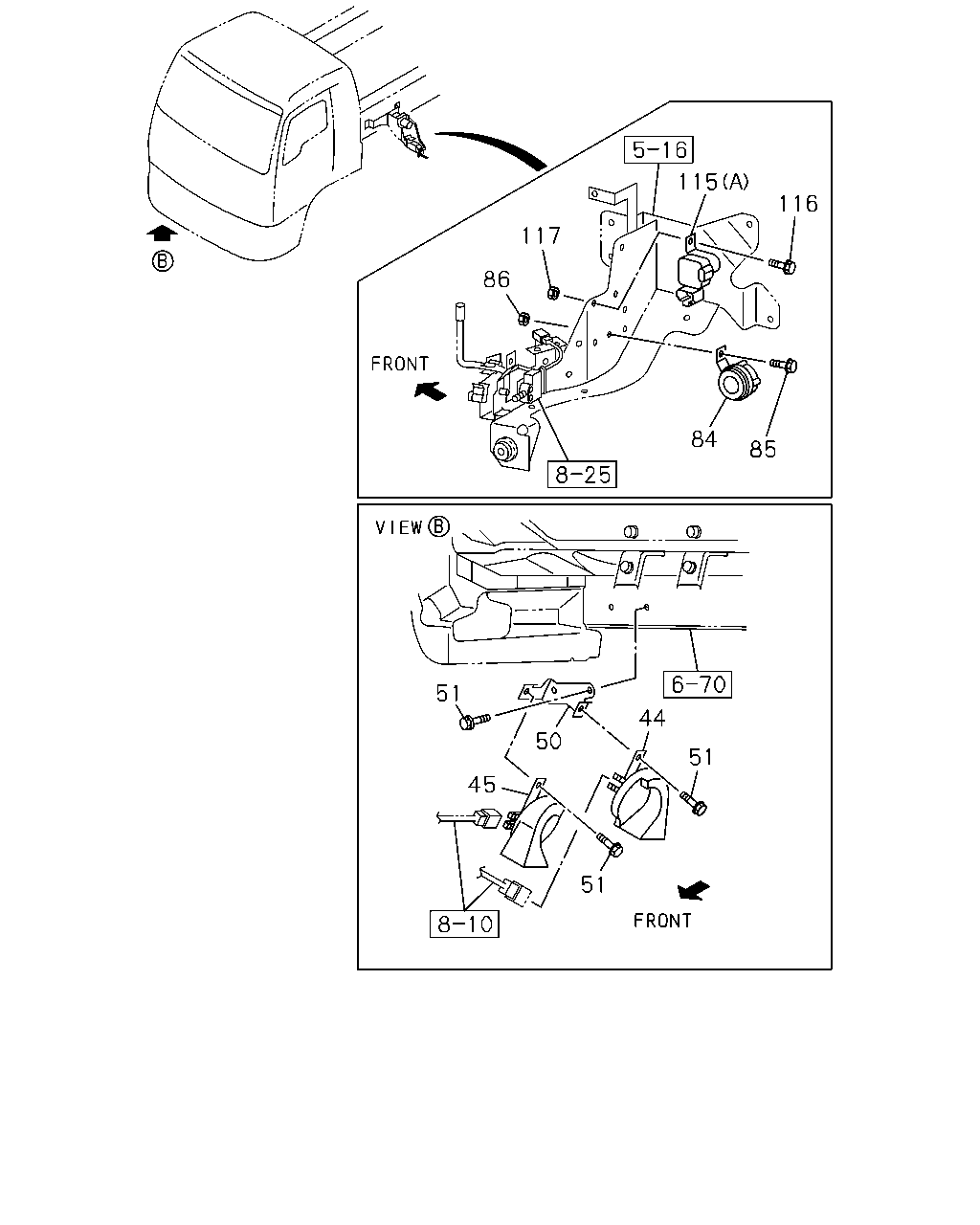

çizim 172012
115 117 86 116 84 44 51 50 51 51 45 85
BalonParca AdiParca NoAdetTipApplied Date A B
44 HORN; HIGH NOTE 8-97611-677-2 01 1 1010- ● ●
45 HORN; LOW NOTE 8-97611-676-2 01 1 1010- ● ●
50 BRACKET; HORN 8-97613-300-2 01 1 1010- ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1010-1306 ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1010-1306 ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 1307- ● ●
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 1010- ● ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1010- ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 1010- ● ●
116 BOLT; RELAY FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
çizim 479881
531 115
BalonParca AdiParca NoAdetTipApplied Date A B
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1010- ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 1010- ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1010-1010 ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1010-1402 ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
