◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#60561) — 134 parça

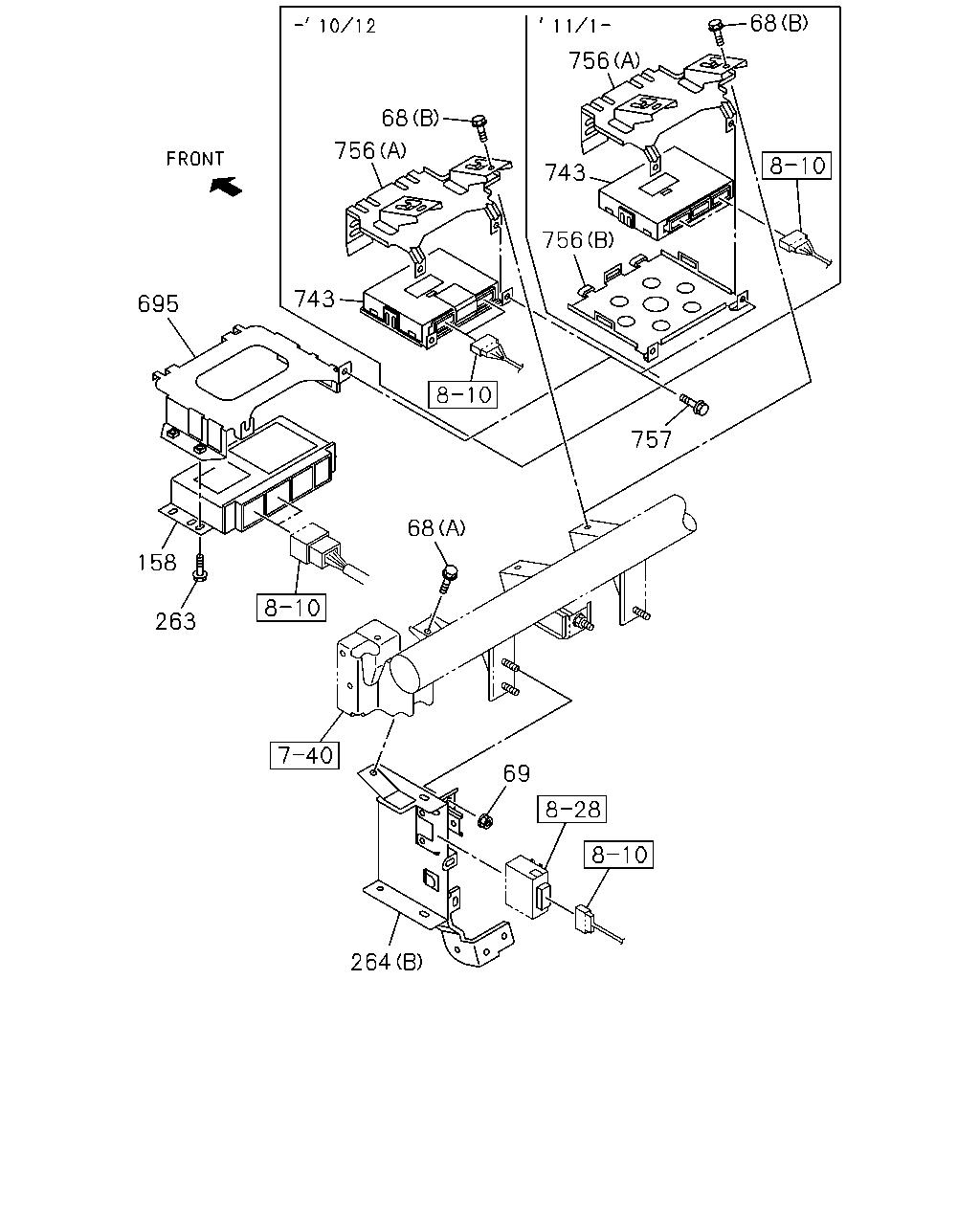

çizim 171812
68 756 743 756 743 756 68 757 68 158 695 69 264 263
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1010- ● ●
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1010-1306 ● ●
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1307- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1010-1306 ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1307- ● ●
158 CONTROLLER; ABS
EXC. VIN MODEL YEAR 2011<VZB> 		8-98170-647-0 01 1 1207-1209 ● ●
158 CONTROLLER; ABS
EXC. VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> 		8-98170-647-0 01 1 1210-1306 ● ●
158 CONTROLLER; ABS 8-98170-647-0 01 1 1010-1205 ● ●
158 CONTROLLER; ABS
VIN MODEL YEAR 2011<VZB> 		8-98220-158-0 01 1 1206-1209 ● ●
158 CONTROLLER; ABS
VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> 		8-98220-158-0 01 1 1210-1306 ● ●
158 CONTROLLER; ABS 8-98222-313-0 01 1 1307- ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 1010- ● ●
264 BRACKET; CONT UNIT
(B) 		8-98180-453-0 01 1 1010- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1010-1306 ● ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1010-1306 ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98064-901-0 01 1 1307- ● ●
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 1010- ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1010-1012 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1101- ● ●
756 BRACKET; ECU,BCM
CAN INTERFACE FMS STD<8PG> (C) 		8-98222-208-0 01 1 1210-1306 ● ●
756 BRACKET; ECU,BCM
(C) 		8-98222-208-0 01 1 1307-1507 ● ●
756 BRACKET; ECU,BCM
(D) 		8-98203-991-0 01 1 1508- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1010- ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1210-1210 ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1211-1306 ● ●
757 BOLT; BRKT,BCM
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1307- ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1010- ● ●

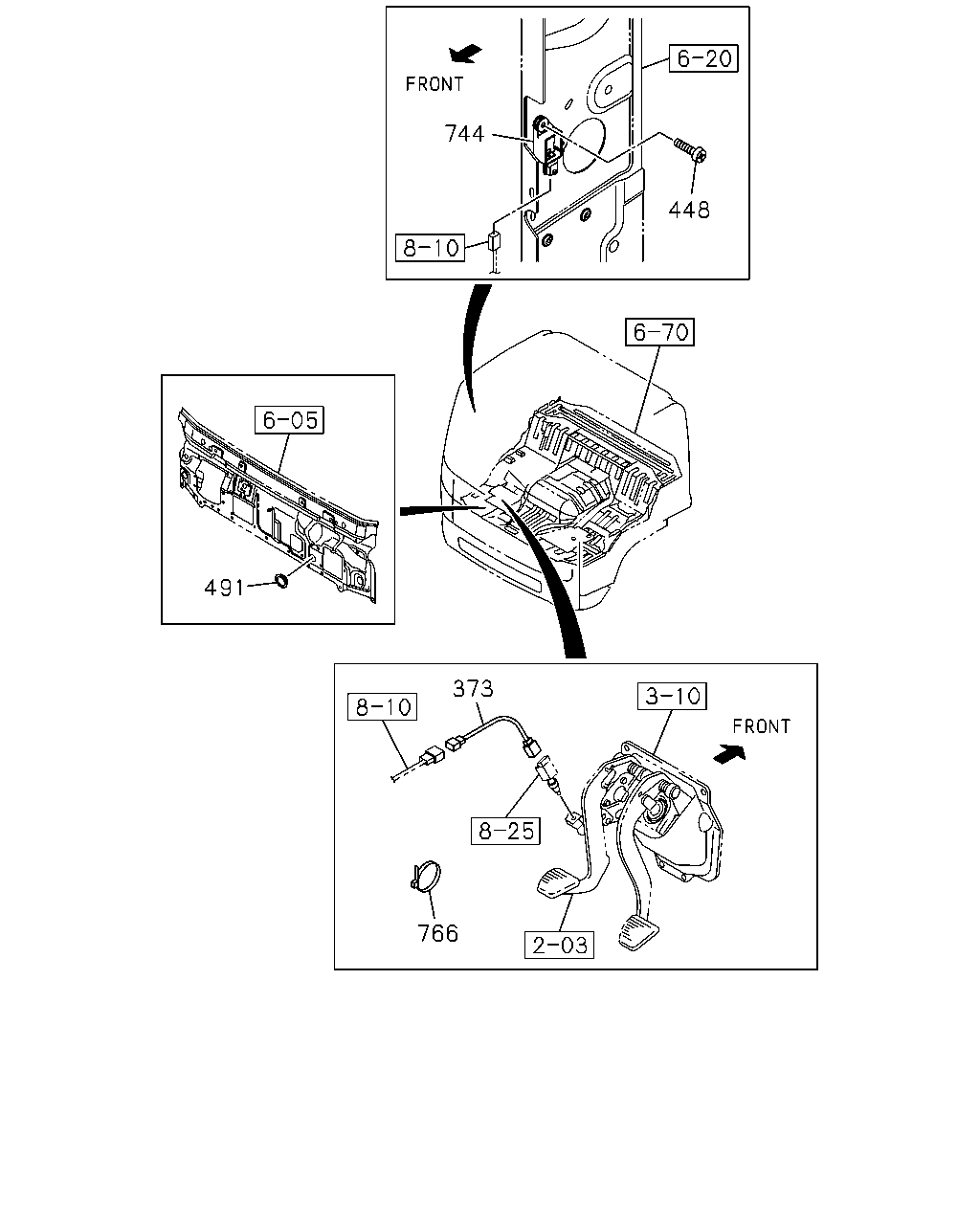

çizim 171820
744 448 491 373 766
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98059-419-1 01 1 1010-1010 ● ●
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98059-419-1 01 1 1011-1306 ● ●
373 HARNESS; CLU SWITCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98059-419-2 01 1 1307- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1010- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1010- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 1010- ● ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 1010-1306 ● ●
766 BAND; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 1307- ● ●

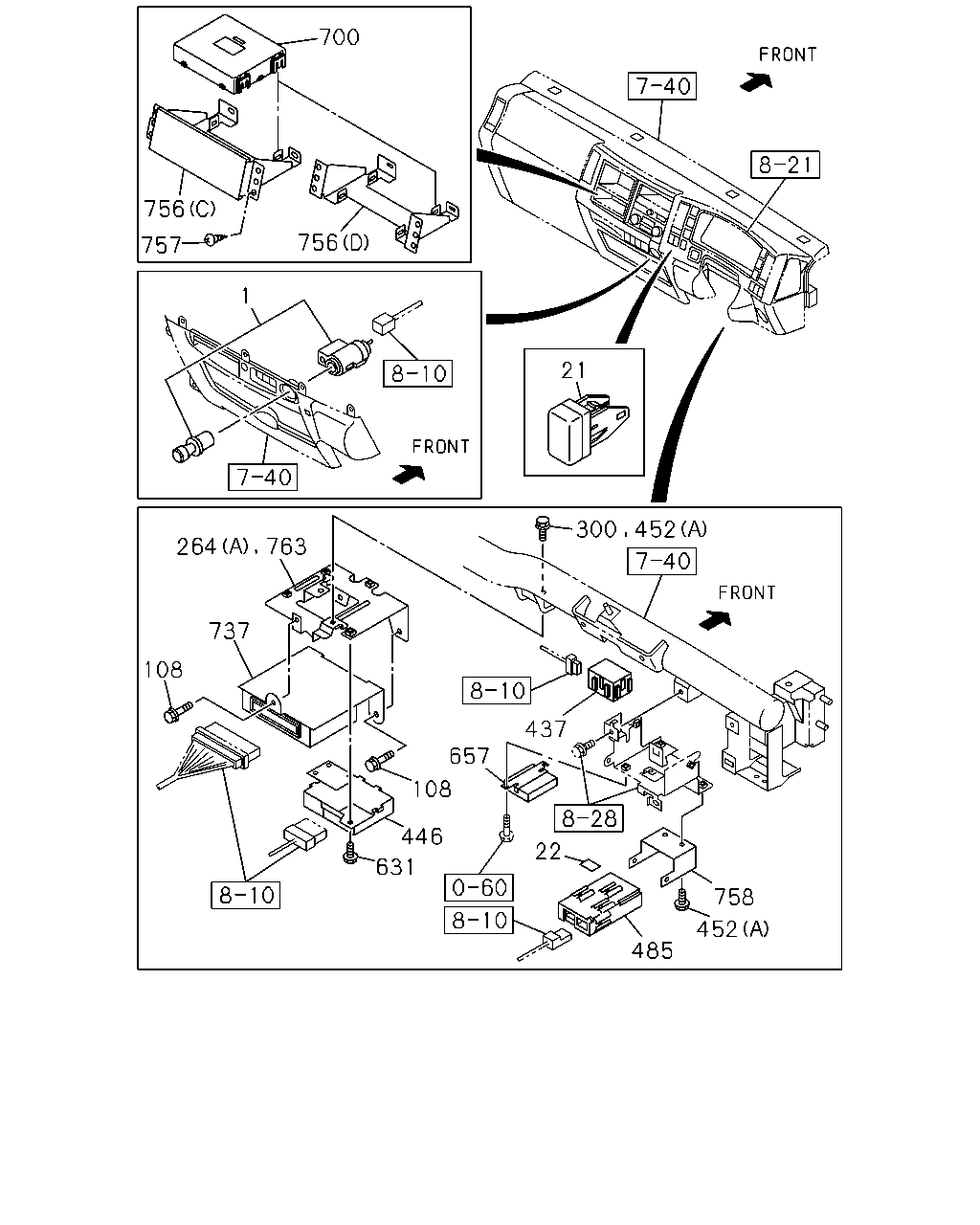

çizim 171830
700 756 756 757 763 264 737 108 631 108 446 657 22 437 300 452 758 452 485 1 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1010-1306 ● ●
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1307- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1010- ● ●
22 SEAL; TAPE 1-80199-006-0 01 1 1010-1212 ● ●
22 SEAL; TAPE 8-98166-639-0 01 1 1301-1404 ● ●
22 SEAL; TAPE
SPEED LIMITER 100KM(NMU) 		8-98166-639-0 01 1 1405-1405 ●
22 SEAL; TAPE 8-98166-639-0 01 1 1405-1405 ●
22 SEAL; TAPE
SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) 		8-98166-639-0 01 1 1406- ● ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 03 1 1010- ● ●
264 BRACKET; CONT UNIT
(B) 		8-98180-453-0 01 1 1010- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1010-1306 ● ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1010-1306 ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98064-901-0 01 1 1307- ● ●
300 BOLT; CONT UNIT BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1307- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1010- ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98136-318-1 01 1 1010-1306 ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98136-318-1 01 1 1307- ● ●
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1010-1306 ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1010-1306 ● ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1010-1306 ● ●
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1404 ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1404 ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1405-1405 ● ●
452 BOLT; BRKT
SPEED LIMITER 100KM(NMU) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1405-1405 ●
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1405-1405 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1406- ● ●
452 BOLT; BRKT
SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1406- ● ●
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1010- ●
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1010-1109 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110-1404 ● ●
485 CONTROL UNIT; SPEED SENSOR
SPEED LIMITER 100KM(NMU) 		1-80190-059-1 01 1 1405-1405 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1405-1405 ●
485 CONTROL UNIT; SPEED SENSOR
SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) 		1-80190-059-1 01 1 1406- ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1010-1306 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1307- ● ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98013-144-8 01 1 1307-1401 ● ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98260-912-1 01 1 1402- ● ●
700 CONTROL UNIT; CAN CONVERTER
VIN MODEL YEAR 2013<VZD> CAN INTERFACE FMS STD<8PG> 		8-98219-812-0 01 1 1210-1306 ● ●
700 CONTROL UNIT; CAN CONVERTER 8-98219-812-1 01 1 1307- ● ●
737 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98170-214-2 01 1 1010-1306 ● ●
737 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-634-0 01 1 1307-1404 ● ●
737 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98272-173-0 01 1 1405-1411 ● ●
737 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98282-914-0 01 1 1412- ● ●
756 BRACKET; ECU,BCM
CAN INTERFACE FMS STD<8PG> (C) 		8-98222-208-0 01 1 1210-1306 ● ●
756 BRACKET; ECU,BCM
(C) 		8-98222-208-0 01 1 1307-1507 ● ●
756 BRACKET; ECU,BCM
(D) 		8-98203-991-0 01 1 1508- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1010- ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1210-1210 ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1211-1306 ● ●
757 BOLT; BRKT,BCM
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1307- ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1010- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1010-1404 ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
SPEED LIMITER 100KM(NMU) 		8-98048-743-1 01 1 1405-1405 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1405-1405 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) 		8-98048-743-1 01 1 1406- ● ●
763 BRACKET; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-901-0 01 1 1307- ● ●

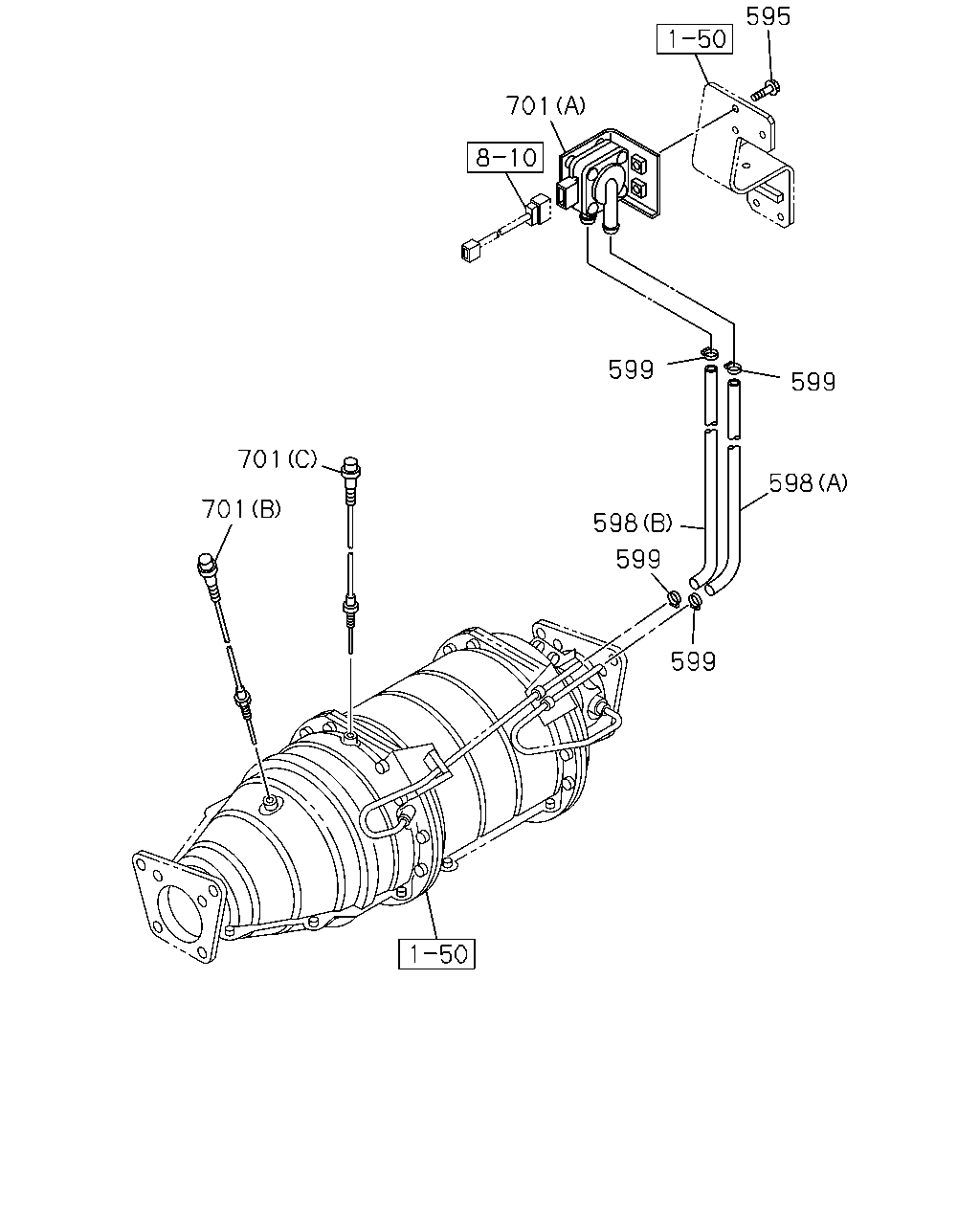

çizim 171832
701 599 599 598 598 599 701 701 595 599
BalonParca AdiParca NoAdetTipApplied Date A B
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (B) 		8-98072-087-1 01 1 1010- ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98072-087-1 01 1 1010- ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) 		8-98072-088-0 01 1 1010- ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98072-088-0 01 1 1010- ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 6500MM(65W) (A) 		8-98075-388-0 01 1 1010-1109 ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-98075-388-0 01 1 1110- ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 6500MM(65W) (B) 		8-98075-389-0 01 1 1010-1109 ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98075-389-0 01 1 1110- ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1010- ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 1010-1306 ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 1307- ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 1010-1306 ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 1307- ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1010-1306 ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1307- ● ●

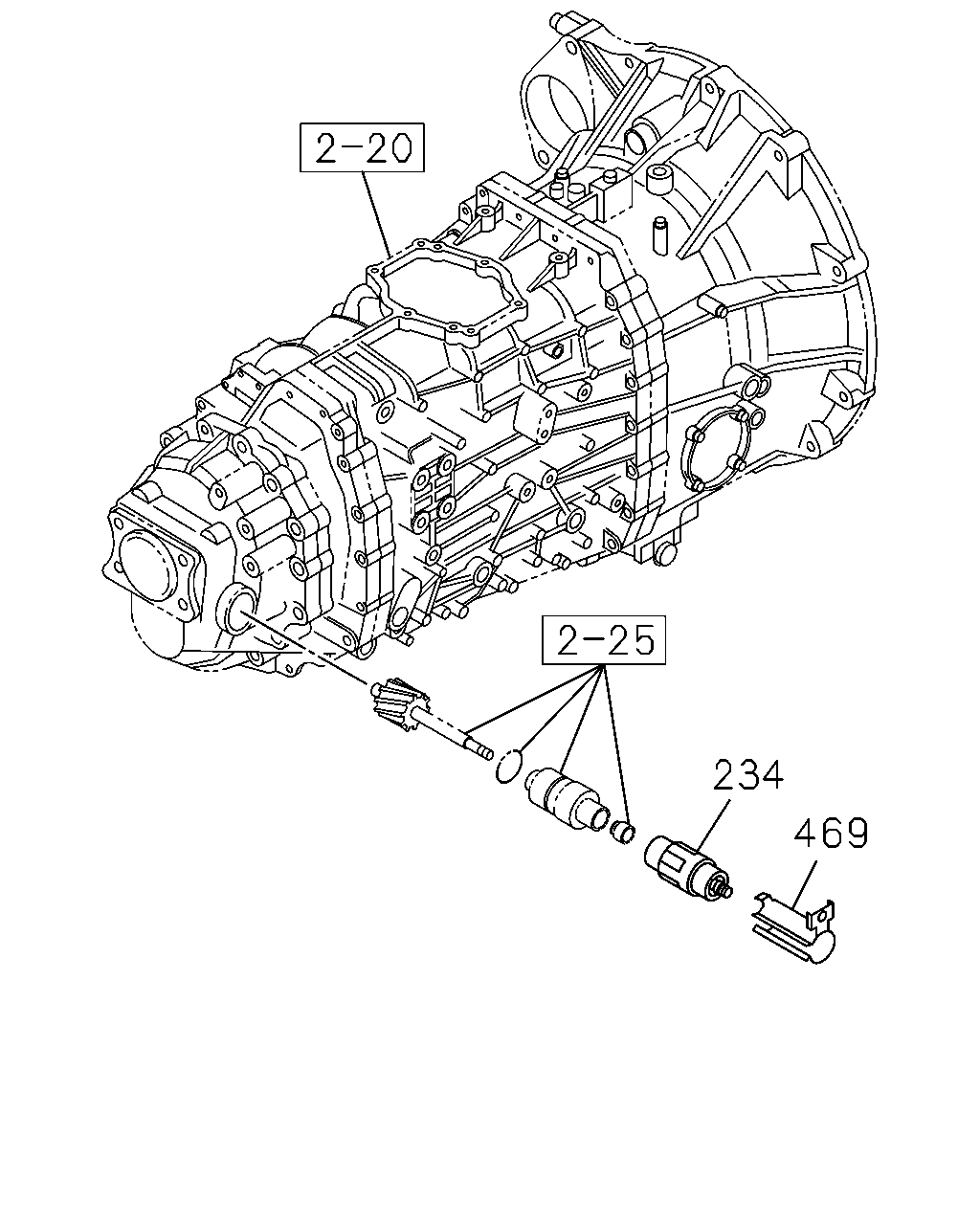

çizim 171837
234 469
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1010- ● ●
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 1010- ● ●

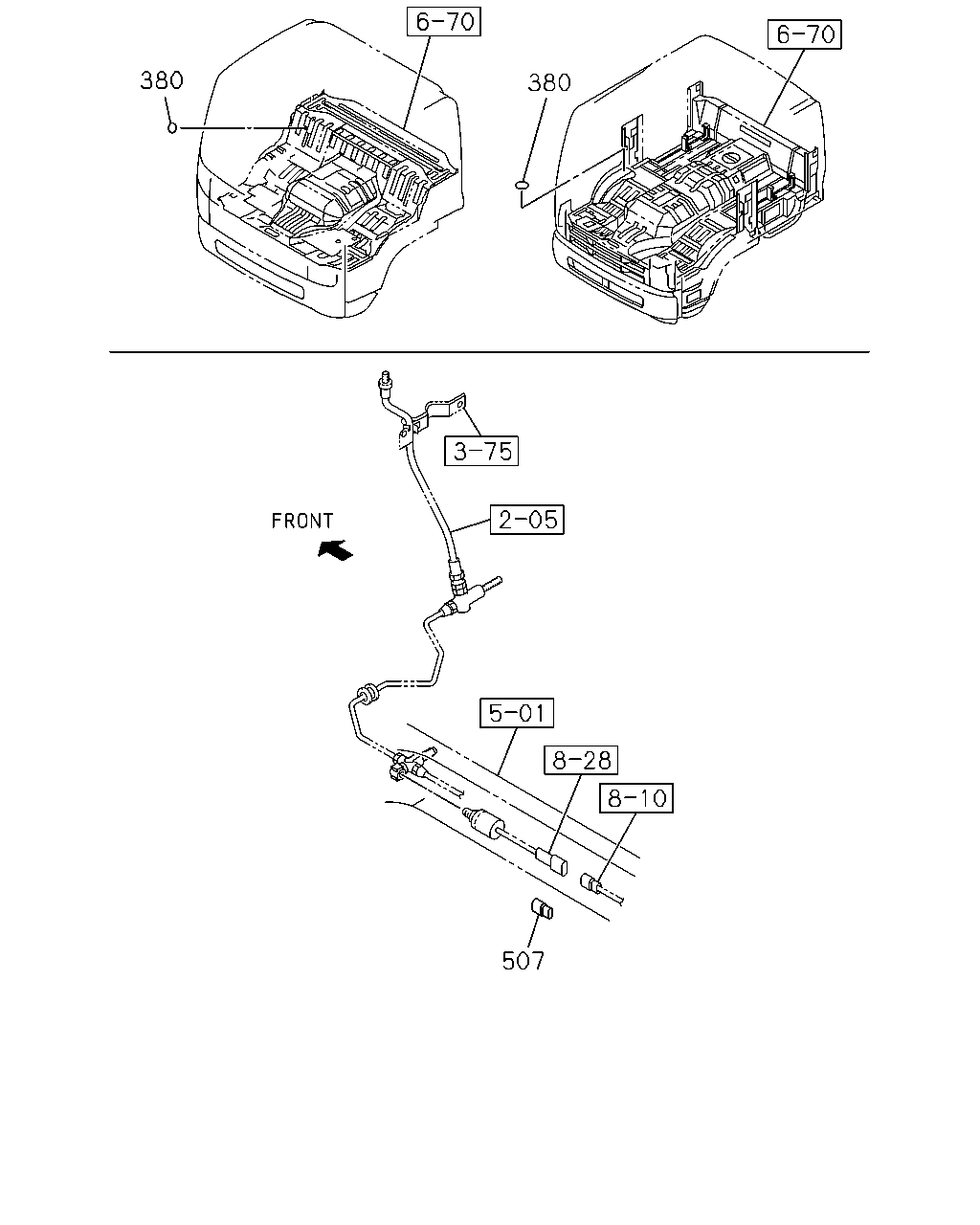

çizim 171855
380 380 507
BalonParca AdiParca NoAdetTipApplied Date A B
380 SEAL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1307-1404 ●
380 SEAL
BODY COLOR AL GRAY(517),BODY COLOR RMS ORANGE(550) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BO DY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1405- ●
380 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1307- ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1010-1306 ●
380 SEAL
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=25 BLACK 		1-76798-019-0 01 1 1307-1312 ●
380 SEAL
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=25 BLACK 		1-76798-019-0 01 1 1401-1404 ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1405- ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1011- ● ●

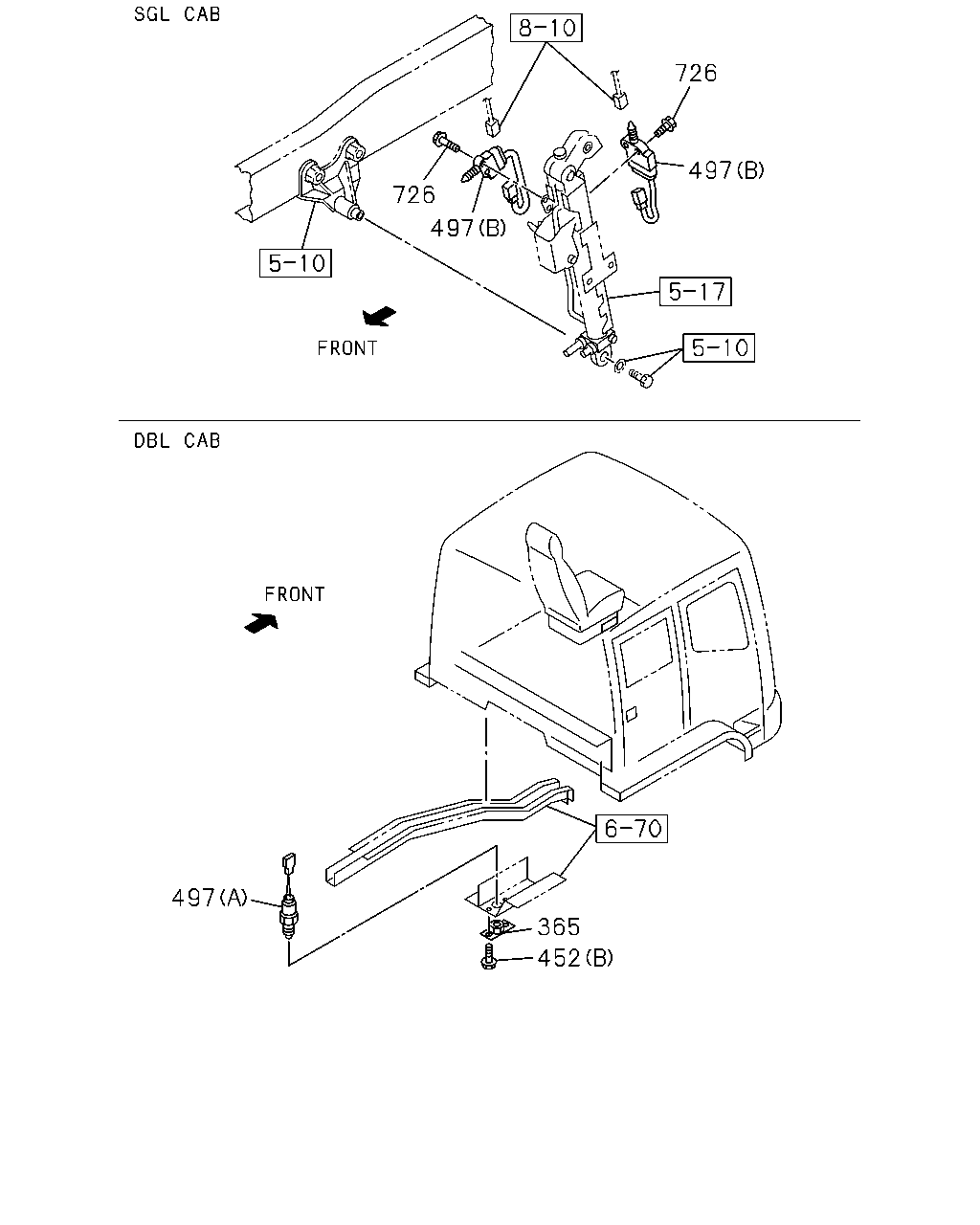

çizim 172017
726 726 497 497 365 452 497
BalonParca AdiParca NoAdetTipApplied Date A B
365 PLATE ASM; SW,CAB TILT 1-71998-393-1 01 1 1010- ●
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1010-1306 ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1010-1306 ● ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1010-1306 ● ●
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1404 ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1404 ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1405-1405 ● ●
452 BOLT; BRKT
SPEED LIMITER 100KM(NMU) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1405-1405 ●
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1405-1405 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1406- ● ●
452 BOLT; BRKT
SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1406- ● ●
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1010- ●
497 SWITCH; CAB TILT
(B) STAMP NO 		1-82380-172-1 02 1 1010- ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 1010- ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1010- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
