Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#60557) — 378 parça

16 48 14 16 37 81 183 194 206 208 217 225 612 14 612 14 14 16 48 1 1 178 178 596 530 538 503

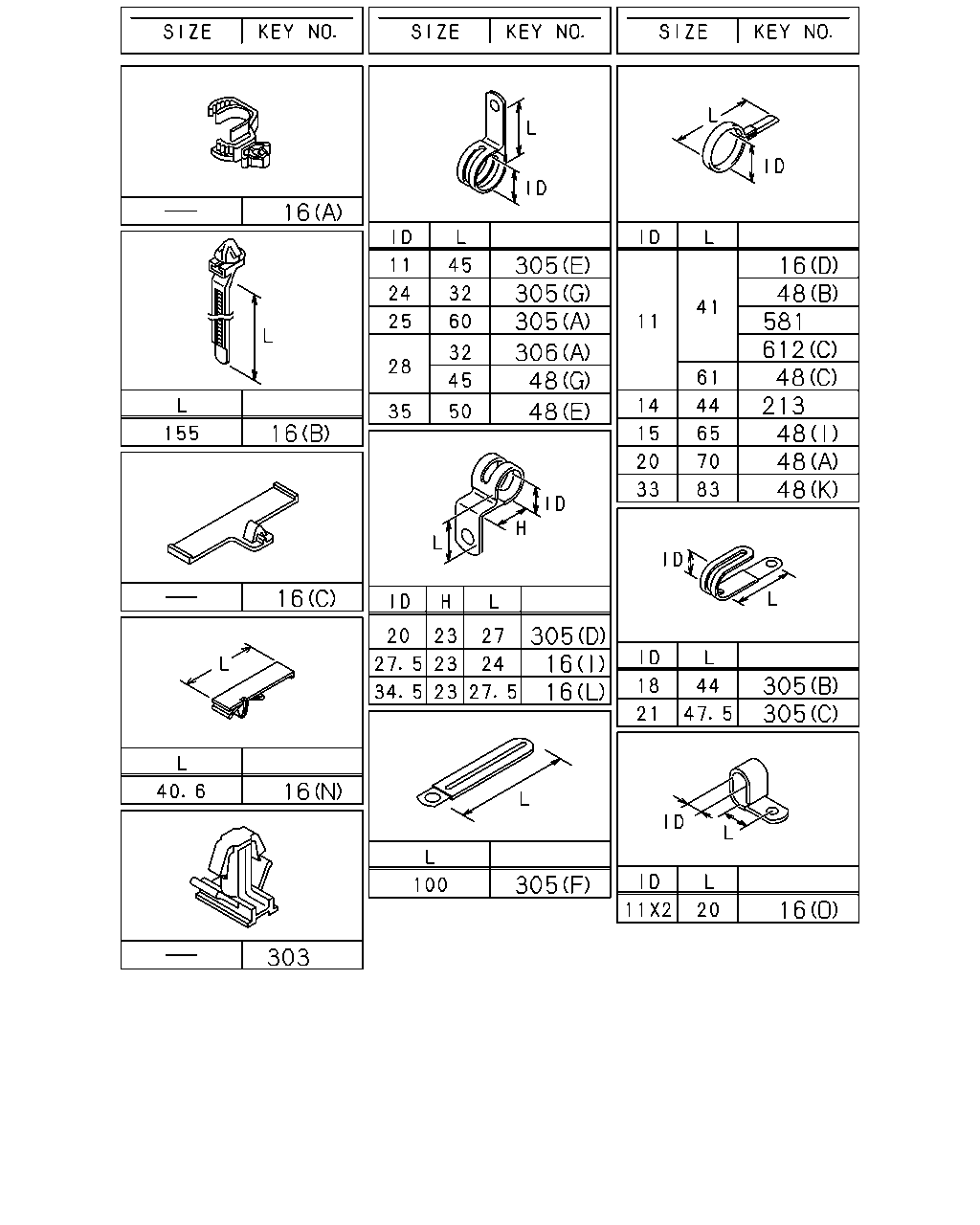

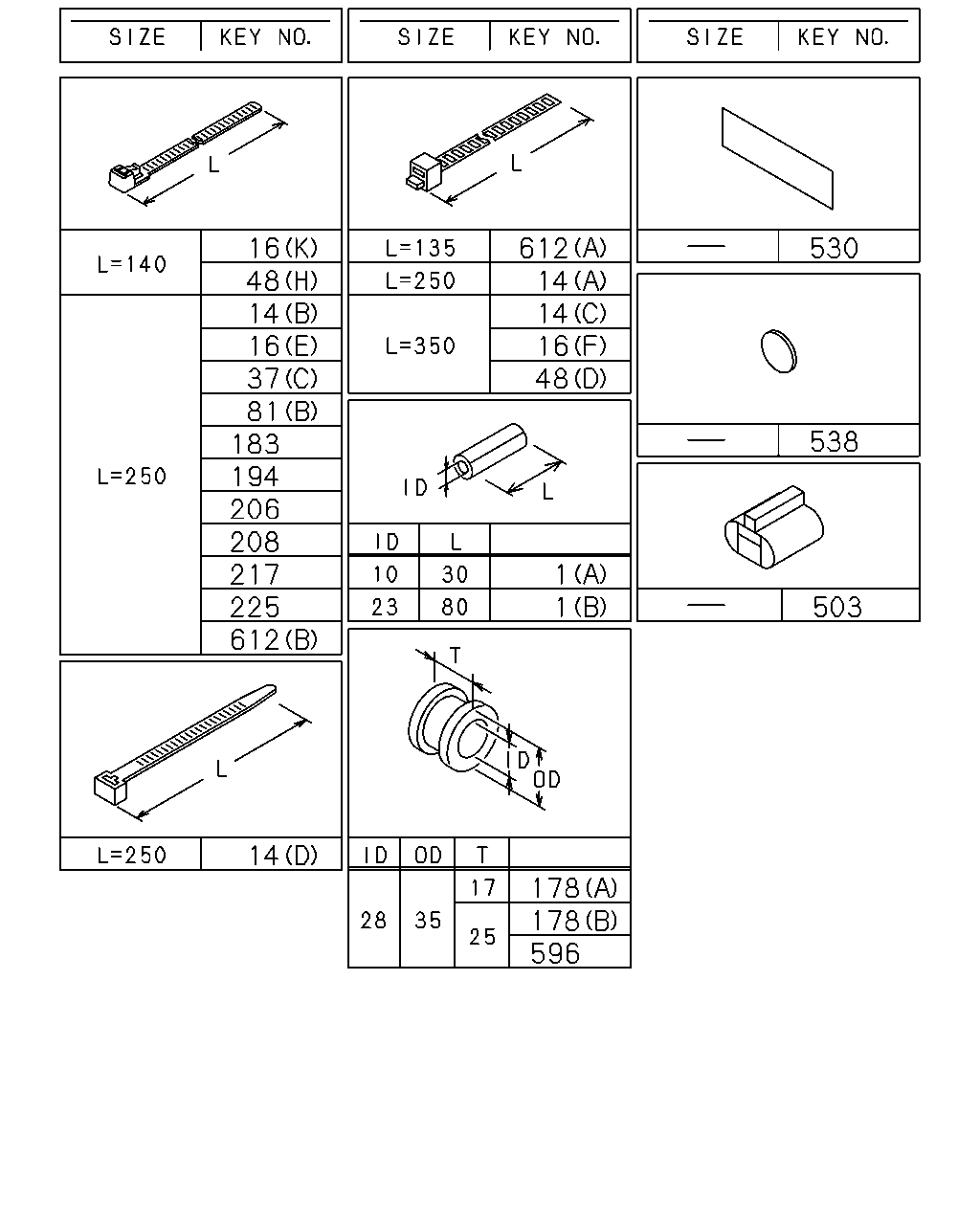

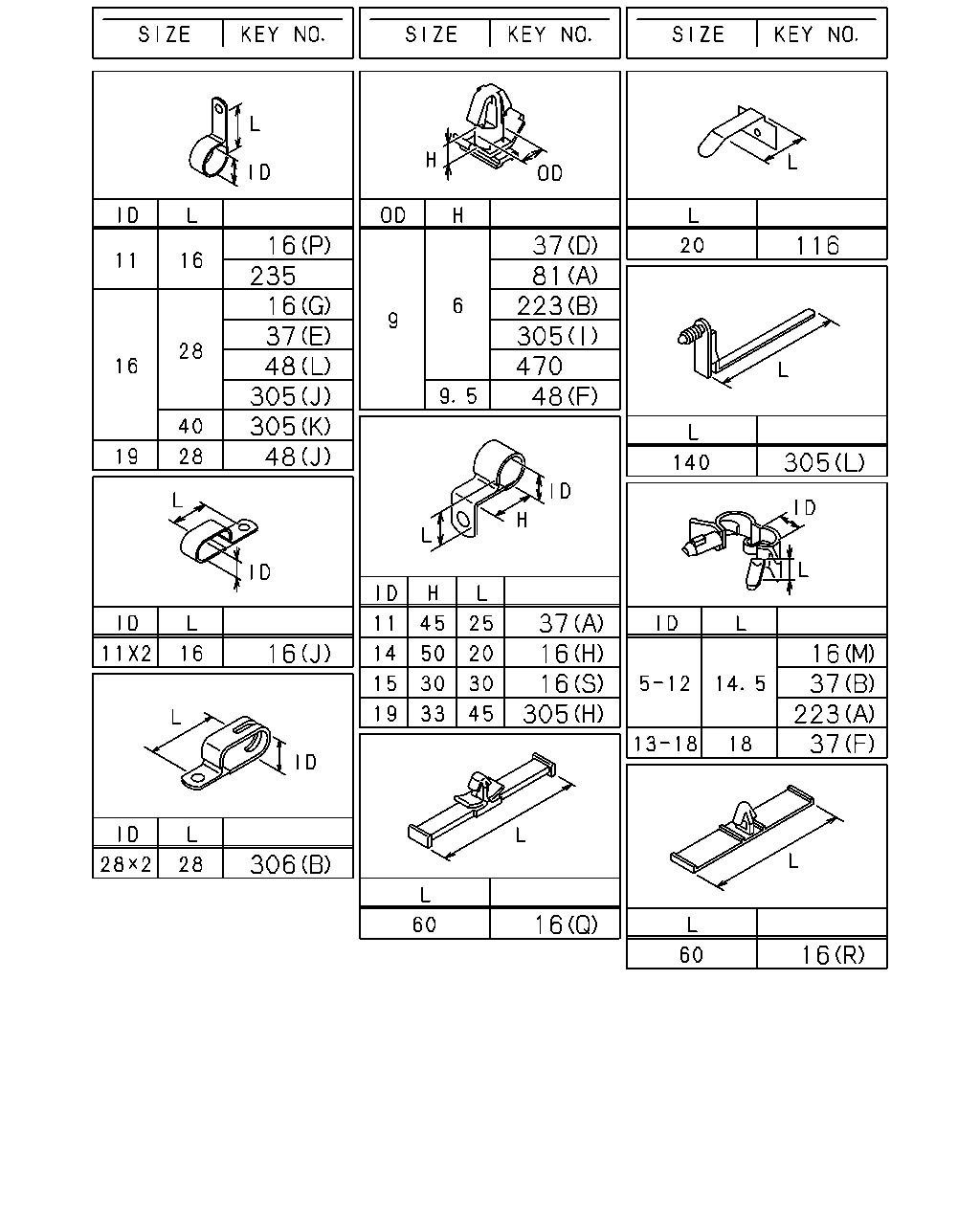

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1010-	●	●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1010-	●	●
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1010-	●	●
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	1010-	●	●
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	13	1	1010-1205	●	●
14	CLIP; BAND,HARNESS (D) L=250	8-98216-430-0	13	1	1206-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2013<VZD> (S) ID=15 H=30 L=30	1-09700-832-0	02	1	1210-1306	●	●
16	CLIP; HARNESS (Q) L=60	8-94449-165-0	02	1	1010-		●
16	CLIP; HARNESS (R) L=60	8-97063-335-0	02	1	1010-		●
16	CLIP; HARNESS (F) L=350	1-09707-183-0	02	1	1010-1306		●
16	CLIP; HARNESS (H) ID=14 H=50 L=20	1-09700-843-0	02	1	1010-1010	●
16	CLIP; HARNESS (N) L=40.6	8-97229-357-0	02	1	1010-	●	●
16	CLIP; HARNESS (N) L=40.6	8-97229-357-0	02	1	1010-		●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1010-	●	●
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	1010-	●	●
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	1010-1306	●	●
16	CLIP; HARNESS (S) ID=15 H=30 L=30	1-09700-832-0	02	1	1307-	●	●
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	01	1	1010-	●	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	03	1	1010-1306	●	●
16	CLIP; HARNESS (O) ID=11X2 L=20	1-09700-871-0	01	1	1010-	●	●
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1010-1306	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-	●	●
16	CLIP; HARNESS (E) L=250	5-09707-030-1	03	1	1010-1306	●	●
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	1307-	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1010-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1010-	●	●
16	CLIP; HARNESS (N) L=40.6	8-97229-357-0	02	1	1010-1010	●	●
16	CLIP; HARNESS (H) ID=14 H=50 L=20	1-09700-843-0	02	1	1010-1209	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2013<VZD> (H) ID=14 H=50 L=20	1-09700-843-0	02	1	1210-1306	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1010-	●	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1010-1306	●	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1010-1306	●	●
37	CLIP; HARNESS,POWER TILT (A) ID=11 H=45 L=25	1-09700-866-0	01	1	1010-1306	●
37	CLIP; HARNESS,POWER TILT (B) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-1306	●
37	CLIP; HARNESS,POWER TILT (D) OD=9 H=6	8-97368-793-0	02	1	1010-1306	●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	1010-1306	●	●
37	CLIP; HARNESS,POWER TILT (E) ID=16 L=28	0-95235-556-0	01	1	1010-1306		●
37	CLIP; HARNESS,POWER TILT (F) ID=13-18 L=18	1-09709-291-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS (K) ID=33 L=83	1-09701-291-0	01	1	1307-	●
48	CLIP; FRAME HARNESS (K) ID=33 L=83	1-09701-291-0	01	1	1306-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=20 L=70	1-09700-485-0	12	1	1108-1306	●
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	1307-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	16	1	1110-1306	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-1	02	1	1307-	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=28 L=45	1-09700-825-1	01	1	1010-1306	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50	1-09701-214-0	01	1	1010-1306	●
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (I) ID=15 L=65	1-09700-466-0	03	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (I) ID=15 L=65	1-09700-466-0	06	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (A) ID=20 L=70	1-09700-485-0	19	1	1010-1306	●
48	CLIP; FRAME HARNESS (C) ID=11 L=61	1-09700-484-0	06	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-1	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	02	1	1010-1201	●	●
48	CLIP; FRAME HARNESS (I) ID=15 L=65	1-09700-466-0	02	1	1202-1306	●	●
48	CLIP; FRAME HARNESS (F) OD=9 H=9.5	1-09709-179-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (I) ID=15 L=65	1-09700-466-0	05	1	1010-1109	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (I) ID=15 L=65	1-09700-466-0	05	1	1110-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (I) ID=15 L=65	1-09700-466-0	05	1	1110-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	18	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (J) ID=19 L=28	0-95235-856-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS (L) ID=16 L=28	0-95235-556-0	01	1	1307-		●
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	01	1	1010-1306		●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (B) L=250	5-09707-030-1	01	1	1307-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1010-1306	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1307-	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1307-	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1010-1306	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1010-1306	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1010-1306	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1307-		●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1010-1306	●	●
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	1010-1306	●	●
194	CLIP; BAND L=250	5-09707-030-1	02	1	1010-1306	●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1010-1306	●	●
208	CLIP; HARNESS,MAG VLV L=250	5-09707-030-1	01	1	1010-1306	●
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1010-1306	●	●
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	01	1	1010-1306	●	●
503	CONNECTOR HEATER & DEFROSTER(C41)	1-82690-668-0	01	1	1010-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	1306-		●
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1010-1305	●	●
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40	1-72498-019-1	01	1	1306-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-	●	●
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1010-1305	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-	●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1010-	●	●
596	GROMMET WHEEL BASE 6500MM(65W) ID=28 OD=35 T=25	1-09332-011-1	01	1	1010-1109	●
596	GROMMET WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=28 OD=35 T=25	1-09332-011-1	01	1	1110-1306	●
612	CLIP; HARNESS DPD WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) L=135	1-09987-143-1	01	1	1010-1306	●
612	CLIP; HARNESS DPD WHEEL BASE 6000MM(60W) (A) L=135	1-09987-143-1	01	1	1010-1306		●
612	CLIP; HARNESS DPD WHEEL BASE 6500MM(65W) (A) L=135	1-09987-143-1	02	1	1010-1109	●
612	CLIP; HARNESS DPD WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=135	1-09987-143-1	02	1	1110-1309	●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	01	1	1010-	●	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	1010-1306	●	●

184 47 386 377 38 358 516 139 313 139 242 139 313 38 313 150 139 38 313 242 150 139 38 524 294 219 525 294 313 139 304 139 304 304 139 304 304 139 38 386

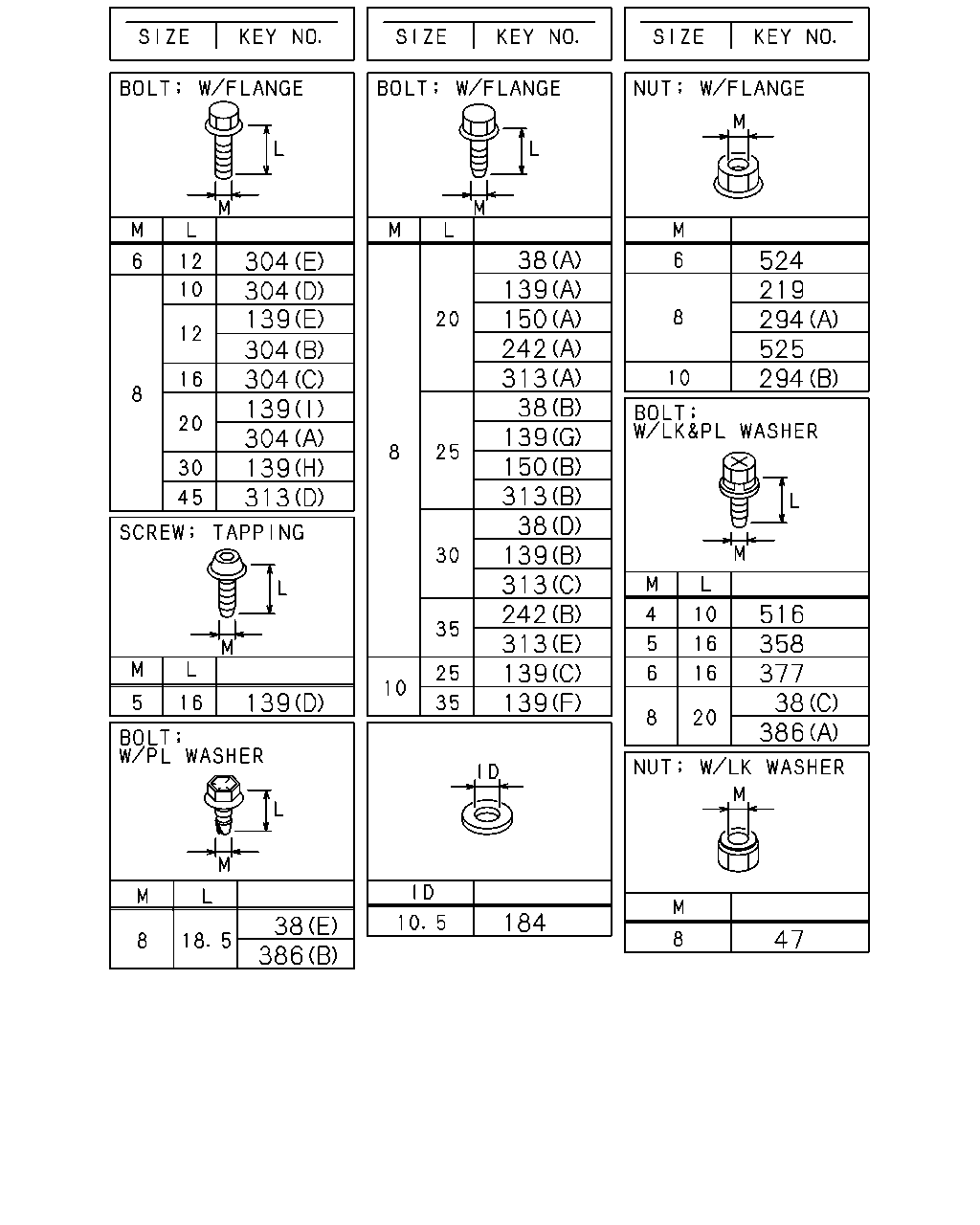

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1010-1306	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1307-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1307-	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1307-	●	●
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1010-1201	●	●
38	BOLT; CLIP,HARNESS (E) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1010-		●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1010-1306		●
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-	●	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1010-1010	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1010-	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1010-1306	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1010-1306		●
139	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
139	BOLT; BRKT (G) M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
139	BOLT; BRKT (G) M8X25 FLANGE	0-28650-825-0	01	1	1010-		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1010-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1010-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1010-1306	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1307-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1010-	●	●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1010-1306	●	●
139	BOLT; BRKT (G) M8X25 FLANGE	0-28650-825-0	02	1	1307-	●	●
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	02	1	1010-1306	●	●
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1307-	●	●
139	BOLT; BRKT (I) M8X20 FLANGE	0-28050-820-0	01	1	1010-1306		●
139	BOLT; BRKT (H) M8X30 FLANGE	0-28050-830-0	01	1	1010-1306		●
150	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1010-1010	●
150	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1010-1306	●	●
150	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1307-	●	●
150	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1010-1306	●	●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1010-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1307-	●
219	NUT M8 FLANGE	0-91180-108-0	04	1	1010-1306	●	●
242	BOLT; BRKT,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1010-1306		●
242	BOLT; BRKT,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●
242	BOLT; BRKT,HARNESS WHEEL BASE 6500MM(65W) (B) M8X35 FLANGE	0-28650-835-0	01	1	1010-1109	●
242	BOLT; BRKT,HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M8X35 FLANGE	0-28650-835-0	01	1	1110-	●
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1307-		●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1010-1306	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1010-1306		●
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1307-	●	●
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE	0-28050-612-0	01	1	1010-	●	●
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE	0-28050-810-0	01	1	1010-1010	●	●
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1010-	●	●
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1010-	●	●
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1010-	●	●
313	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1010-1306	●
313	BOLT; BRKT (D) M8X45 FLANGE	0-28050-845-0	01	1	1010-1306	●	●
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1010-1306	●	●
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	04	1	1010-1306	●	●
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1010-1306	●	●
313	BOLT; BRKT (E) M8X35 FLANGE	0-28650-835-0	01	1	1010-1306	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1010-1306	●	●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1010-1010	●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1010-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1010-1202	●	●
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-	●	●
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1010-	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1010-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	1010-1306	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	1010-1306	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	1010-	●	●

16 16 235 48 48 305 37 305 37 223 81 16 37 470 305 48 16 16 305 306 16 116 305 16 37 223 37 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS VIN MODEL YEAR 2013<VZD> (S) ID=15 H=30 L=30	1-09700-832-0	02	1	1210-1306	●	●
16	CLIP; HARNESS (Q) L=60	8-94449-165-0	02	1	1010-		●
16	CLIP; HARNESS (R) L=60	8-97063-335-0	02	1	1010-		●
16	CLIP; HARNESS (F) L=350	1-09707-183-0	02	1	1010-1306		●
16	CLIP; HARNESS (H) ID=14 H=50 L=20	1-09700-843-0	02	1	1010-1010	●
16	CLIP; HARNESS (N) L=40.6	8-97229-357-0	02	1	1010-	●	●
16	CLIP; HARNESS (N) L=40.6	8-97229-357-0	02	1	1010-		●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1010-	●	●
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	1010-	●	●
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	1010-1306	●	●
16	CLIP; HARNESS (S) ID=15 H=30 L=30	1-09700-832-0	02	1	1307-	●	●
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	01	1	1010-	●	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	03	1	1010-1306	●	●
16	CLIP; HARNESS (O) ID=11X2 L=20	1-09700-871-0	01	1	1010-	●	●
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1010-1306	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-	●	●
16	CLIP; HARNESS (E) L=250	5-09707-030-1	03	1	1010-1306	●	●
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	1307-	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1010-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1010-	●	●
16	CLIP; HARNESS (N) L=40.6	8-97229-357-0	02	1	1010-1010	●	●
16	CLIP; HARNESS (H) ID=14 H=50 L=20	1-09700-843-0	02	1	1010-1209	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2013<VZD> (H) ID=14 H=50 L=20	1-09700-843-0	02	1	1210-1306	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1010-	●	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1010-1306	●	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1010-1306	●	●
37	CLIP; HARNESS,POWER TILT (A) ID=11 H=45 L=25	1-09700-866-0	01	1	1010-1306	●
37	CLIP; HARNESS,POWER TILT (B) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-1306	●
37	CLIP; HARNESS,POWER TILT (D) OD=9 H=6	8-97368-793-0	02	1	1010-1306	●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	1010-1306	●	●
37	CLIP; HARNESS,POWER TILT (E) ID=16 L=28	0-95235-556-0	01	1	1010-1306		●
37	CLIP; HARNESS,POWER TILT (F) ID=13-18 L=18	1-09709-291-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS (K) ID=33 L=83	1-09701-291-0	01	1	1307-	●
48	CLIP; FRAME HARNESS (K) ID=33 L=83	1-09701-291-0	01	1	1306-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=20 L=70	1-09700-485-0	12	1	1108-1306	●
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	1307-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	16	1	1110-1306	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-1	02	1	1307-	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=28 L=45	1-09700-825-1	01	1	1010-1306	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50	1-09701-214-0	01	1	1010-1306	●
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (I) ID=15 L=65	1-09700-466-0	03	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (I) ID=15 L=65	1-09700-466-0	06	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (A) ID=20 L=70	1-09700-485-0	19	1	1010-1306	●
48	CLIP; FRAME HARNESS (C) ID=11 L=61	1-09700-484-0	06	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-1	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	02	1	1010-1201	●	●
48	CLIP; FRAME HARNESS (I) ID=15 L=65	1-09700-466-0	02	1	1202-1306	●	●
48	CLIP; FRAME HARNESS (F) OD=9 H=9.5	1-09709-179-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (I) ID=15 L=65	1-09700-466-0	05	1	1010-1109	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (I) ID=15 L=65	1-09700-466-0	05	1	1110-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (I) ID=15 L=65	1-09700-466-0	05	1	1110-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	18	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (J) ID=19 L=28	0-95235-856-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS (L) ID=16 L=28	0-95235-556-0	01	1	1307-		●
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	01	1	1010-1306		●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (B) L=250	5-09707-030-1	01	1	1307-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	02	1	1202-		●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1010-1010	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1010-	●	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1010-1306	●	●
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-1306	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=11 L=16	0-95235-025-0	02	1	1010-	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1010-	●	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (G) ID=24 L=32	1-09700-766-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (H) ID=19 H=33 L=45	1-09701-045-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (E) ID=11 L=45	8-94296-897-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (F) L=100	8-94443-021-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5	8-94178-108-0	01	1	1010-	●	●
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1010-	●	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1010-	●	●
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1010-1205	●	●
470	CLIP; HARNESS,LICENSE LAMP COUNTRY NEW ZEALAND(CX6) OD=9 H=6	1-09709-178-0	01	1	1206-	●

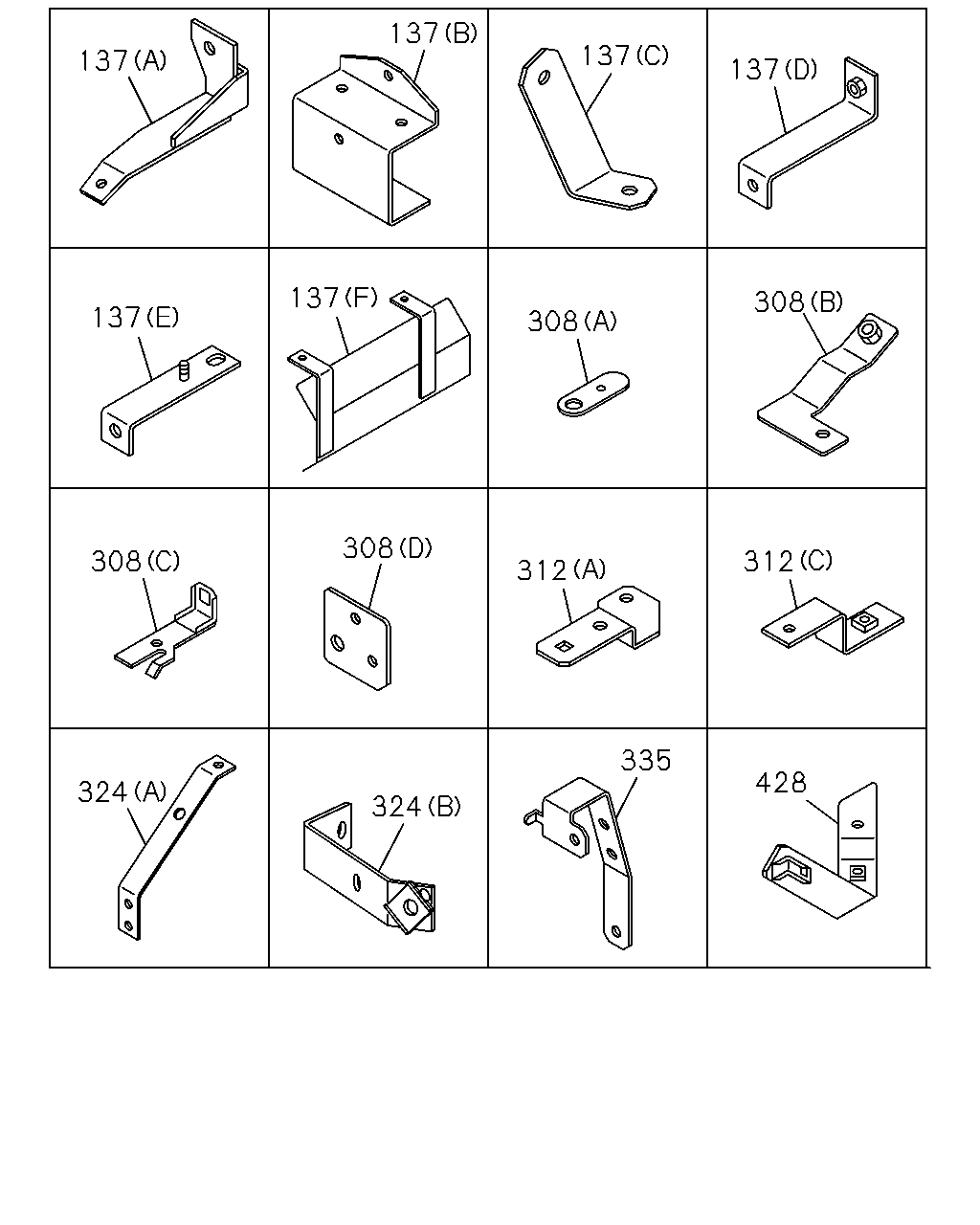

137 137 137 137 308 308 137 137 308 308 312 312 428 335 324 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
137	BRACKET; HARNESS CLAMP (D) L=110	1-82699-589-0	01	1	1010-	●	●
137	BRACKET; HARNESS CLAMP (B)	8-97609-797-1	02	1	1010-1306	●	●
137	BRACKET; HARNESS CLAMP (F)	8-98073-436-0	01	1	1307-1406	●	●
137	BRACKET; HARNESS CLAMP (F)	8-98255-001-0	01	1	1407-	●	●
137	BRACKET; HARNESS CLAMP (B)	8-97609-797-1	02	1	1307-	●	●
137	BRACKET; HARNESS CLAMP (C)	8-97614-728-1	01	1	1010-	●	●
137	BRACKET; HARNESS CLAMP (E)	8-97624-013-0	01	1	1010-	●	●
137	BRACKET; HARNESS CLAMP (A)	8-98097-528-0	01	1	1010-	●	●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	1010-1010	●	●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-	●	●
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	1010-	●	●
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	1010-	●	●
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1010-	●	●
312	BRACKET; CLIP HARNESS (A)	8-97620-519-0	01	1	1010-1306	●
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1010-1306	●	●
312	BRACKET; CLIP HARNESS (C)	8-97609-110-1	01	1	1010-1306	●	●
324	BRACKET; CLIP (A)	1-47479-430-0	02	1	1010-1306	●	●
324	BRACKET; CLIP (B)	8-98210-921-1	01	1	1307-	●	●
324	BRACKET; CLIP (B)	8-98210-922-1	01	1	1307-	●	●
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1010-1306	●	●
428	BRACKET	8-97620-514-0	01	1	1010-1306	●	●

16 16 16 16 303 305 305 305 306 48 48 305 16 16 305 16 48 581 612 48 213 48 48 48 305 305 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS VIN MODEL YEAR 2013<VZD> (S) ID=15 H=30 L=30	1-09700-832-0	02	1	1210-1306	●	●
16	CLIP; HARNESS (Q) L=60	8-94449-165-0	02	1	1010-		●
16	CLIP; HARNESS (R) L=60	8-97063-335-0	02	1	1010-		●
16	CLIP; HARNESS (F) L=350	1-09707-183-0	02	1	1010-1306		●
16	CLIP; HARNESS (H) ID=14 H=50 L=20	1-09700-843-0	02	1	1010-1010	●
16	CLIP; HARNESS (N) L=40.6	8-97229-357-0	02	1	1010-	●	●
16	CLIP; HARNESS (N) L=40.6	8-97229-357-0	02	1	1010-		●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1010-	●	●
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	1010-	●	●
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	1010-1306	●	●
16	CLIP; HARNESS (S) ID=15 H=30 L=30	1-09700-832-0	02	1	1307-	●	●
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	01	1	1010-	●	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	03	1	1010-1306	●	●
16	CLIP; HARNESS (O) ID=11X2 L=20	1-09700-871-0	01	1	1010-	●	●
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1010-1306	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-	●	●
16	CLIP; HARNESS (E) L=250	5-09707-030-1	03	1	1010-1306	●	●
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	1307-	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1010-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1010-	●	●
16	CLIP; HARNESS (N) L=40.6	8-97229-357-0	02	1	1010-1010	●	●
16	CLIP; HARNESS (H) ID=14 H=50 L=20	1-09700-843-0	02	1	1010-1209	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2013<VZD> (H) ID=14 H=50 L=20	1-09700-843-0	02	1	1210-1306	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1010-	●	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1010-1306	●	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (K) ID=33 L=83	1-09701-291-0	01	1	1307-	●
48	CLIP; FRAME HARNESS (K) ID=33 L=83	1-09701-291-0	01	1	1306-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=20 L=70	1-09700-485-0	12	1	1108-1306	●
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	1307-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	16	1	1110-1306	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-1	02	1	1307-	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=28 L=45	1-09700-825-1	01	1	1010-1306	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50	1-09701-214-0	01	1	1010-1306	●
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (I) ID=15 L=65	1-09700-466-0	03	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (I) ID=15 L=65	1-09700-466-0	06	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (A) ID=20 L=70	1-09700-485-0	19	1	1010-1306	●
48	CLIP; FRAME HARNESS (C) ID=11 L=61	1-09700-484-0	06	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-1	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	02	1	1010-1201	●	●
48	CLIP; FRAME HARNESS (I) ID=15 L=65	1-09700-466-0	02	1	1202-1306	●	●
48	CLIP; FRAME HARNESS (F) OD=9 H=9.5	1-09709-179-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (I) ID=15 L=65	1-09700-466-0	05	1	1010-1109	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (I) ID=15 L=65	1-09700-466-0	05	1	1110-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (I) ID=15 L=65	1-09700-466-0	05	1	1110-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	18	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (J) ID=19 L=28	0-95235-856-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS (L) ID=16 L=28	0-95235-556-0	01	1	1307-		●
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	01	1	1010-1306		●
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1010-1306	●	●
303	CLIP; HARNESS POWER TILT RELAY OD=8.95 H=6.25	8-97375-754-0	01	1	1010-		●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1010-	●	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (G) ID=24 L=32	1-09700-766-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (H) ID=19 H=33 L=45	1-09701-045-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (E) ID=11 L=45	8-94296-897-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (F) L=100	8-94443-021-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5	8-94178-108-0	01	1	1010-	●	●
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1010-	●	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1010-	●	●
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	04	1	1010-1109	●	●
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	04	1	1110-1306	●	●
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	04	1	1110-1306	●	●
612	CLIP; HARNESS DPD WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) L=135	1-09987-143-1	01	1	1010-1306	●
612	CLIP; HARNESS DPD WHEEL BASE 6000MM(60W) (A) L=135	1-09987-143-1	01	1	1010-1306		●
612	CLIP; HARNESS DPD WHEEL BASE 6500MM(65W) (A) L=135	1-09987-143-1	02	1	1010-1109	●
612	CLIP; HARNESS DPD WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=135	1-09987-143-1	02	1	1110-1309	●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	01	1	1010-	●	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	1010-1306	●	●

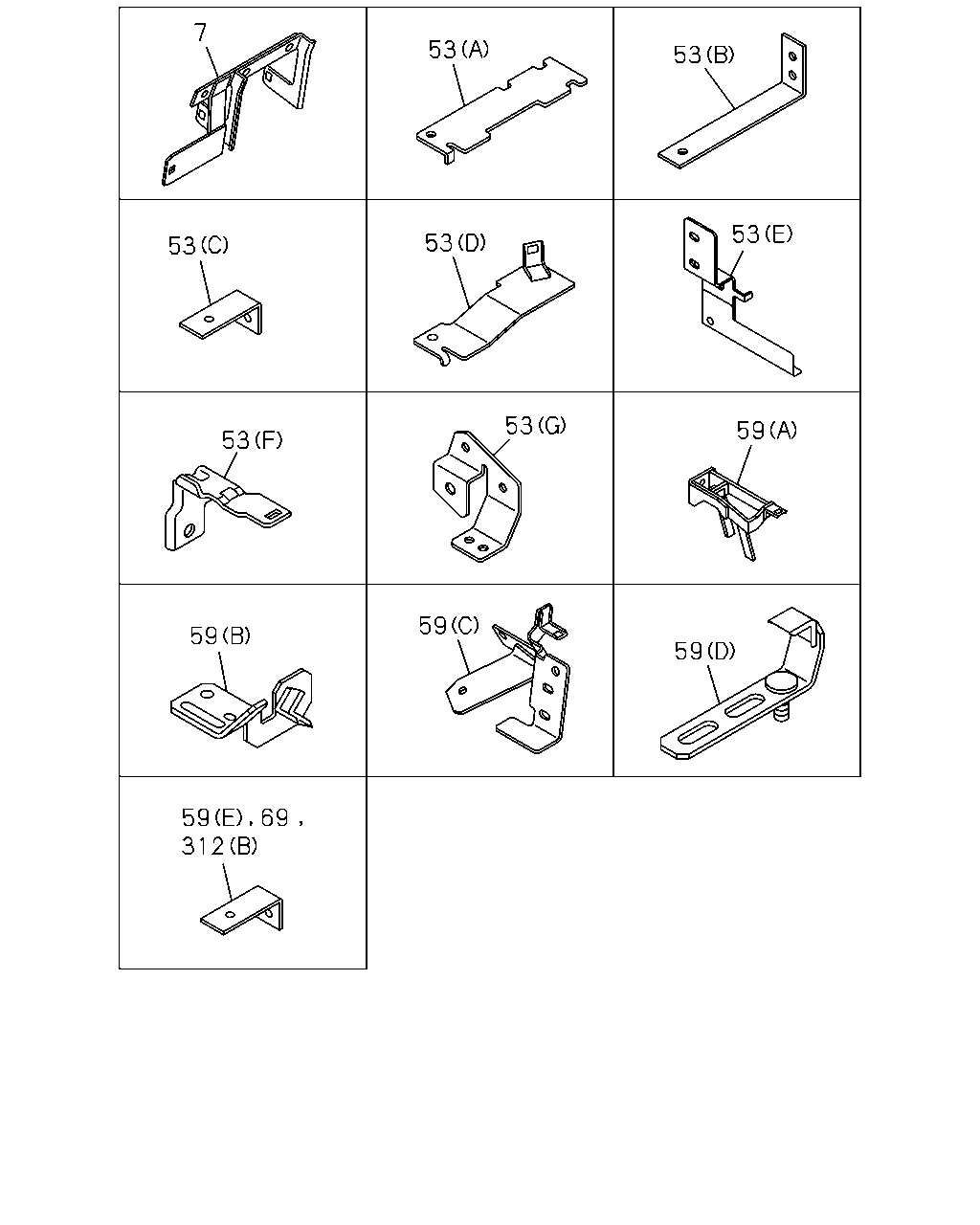

53 53 7 53 53 53 59 59 59 59 59 69 312 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1010-1010	●
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1010-	●	●
53	BRACKET; HARNESS (A)	8-98127-093-0	01	1	1010-1306		●
53	BRACKET; HARNESS (B)	1-47479-674-0	01	1	1010-1306	●
53	BRACKET; HARNESS (F)	8-98052-458-0	01	1	1010-	●	●
53	BRACKET; HARNESS (D)	8-98107-610-1	01	1	1010-1306	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G)	8-98084-590-0	01	1	1010-1306	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (G)	8-98084-590-0	01	1	1010-1306		●
53	BRACKET; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E)	8-97620-485-0	01	1	1110-	●
53	BRACKET; HARNESS (C) L=95	1-82699-085-0	04	1	1110-1306	●	●
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1010-1306	●	●
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1307-	●	●
59	BRACKET; FRAME HARNESS (B)	8-97616-305-0	01	1	1010-1306	●	●
59	BRACKET; FRAME HARNESS (D)	8-98047-730-0	02	1	1010-1306	●	●
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1010-1306	●	●
59	BRACKET; FRAME HARNESS (E) L=75	1-47478-323-0	01	1	1010-		●
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=55	1-47475-304-0	01	1	1010-	●	●
312	BRACKET; CLIP HARNESS (A)	8-97620-519-0	01	1	1010-1306	●
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1010-1306	●	●
312	BRACKET; CLIP HARNESS (C)	8-97609-110-1	01	1	1010-1306	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
