8-90 — RADIO AND TV (#60550) — 29 parça

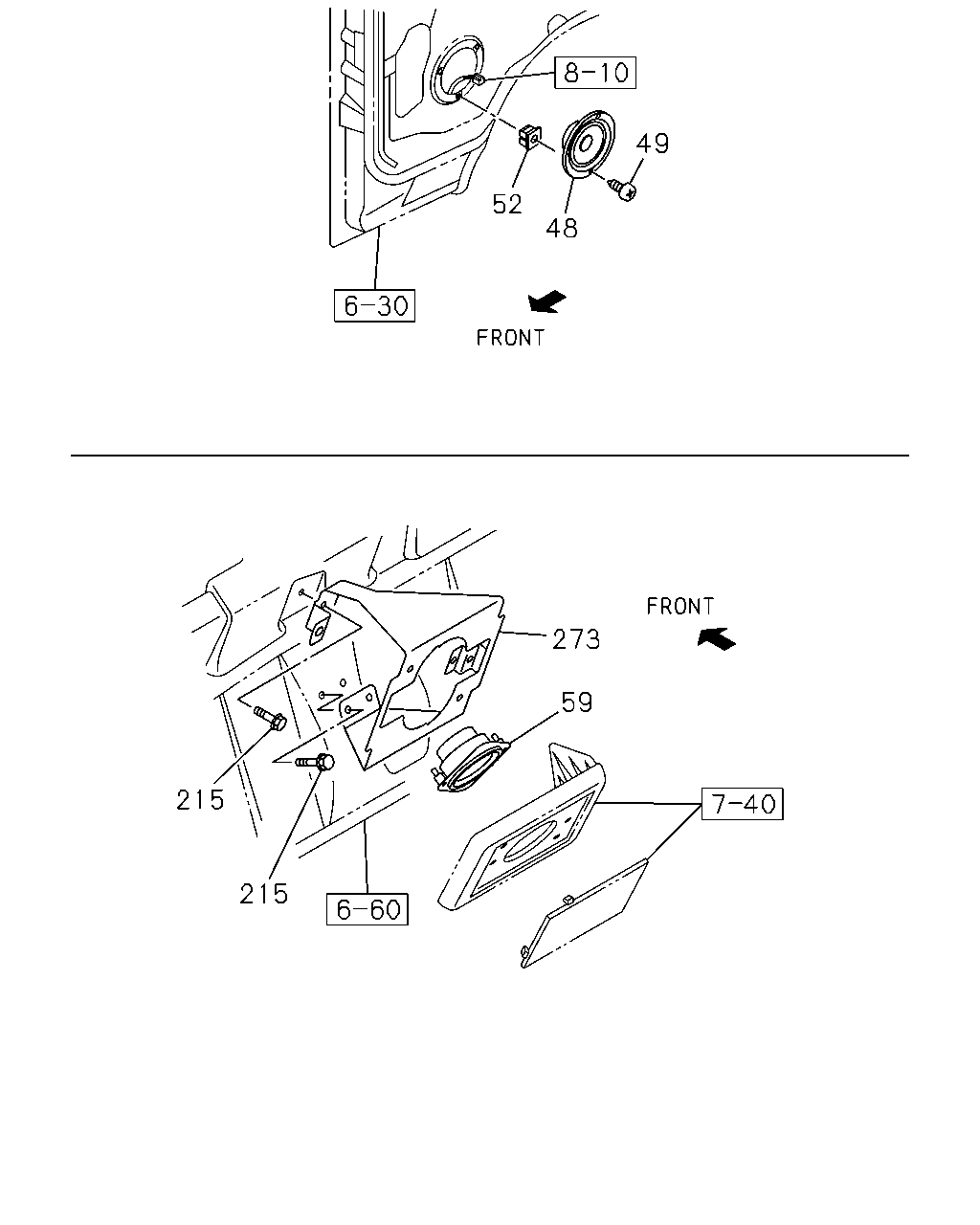

çizim 169374
49 48 52 273 59 215 215
BalonParca AdiParca NoAdetTipApplied Date A B
48 SPEAKER; AUDIO
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-97317-001-1 02 1 1010-1308 ● ●
48 SPEAKER; AUDIO 8-97317-001-1 02 1 1309- ● ●
49 SCREW; SPEAKER
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1010-1308 ● ●
49 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1309- ● ●
52 GROMMET; SCREW,SPEAKER
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1010-1308 ● ●
52 GROMMET; SCREW,SPEAKER
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1309- ● ●
59 SPEAKER; AUDIO
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-980-0 01 1 1010-1308 ● ●
215 SCREW; BRKT,SPEAKER
3-SPEAKER SYSTEM FRT<NNR> M6X12 FLANGE 		8-97108-669-0 03 1 1010-1308 ● ●
273 BRACKET; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-98022-847-3 01 1 1010-1308 ● ●

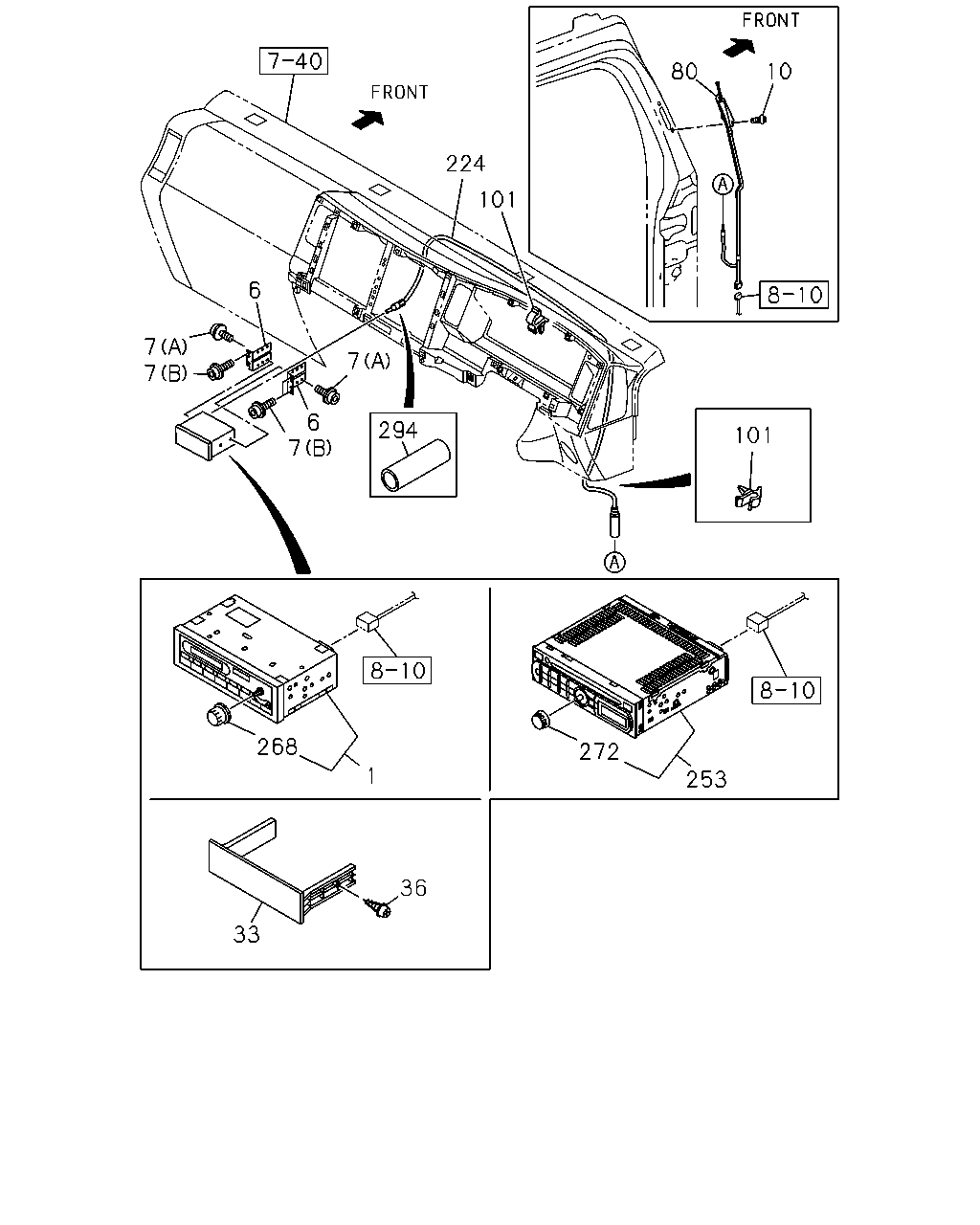

çizim 169380
224 80 10 101 253 272 36 33 268 1 7 7 6 7 7 6 101 294
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIO
RADIO AM/FM<U69> 		8-98032-643-0 01 1 1010- ● ●
6 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 1010- ● ●
7 SCREW; RADIO
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1010- ● ●
7 SCREW; RADIO
RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> (A) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1010- ● ●
10 SCREW; ANTENNA CABLE
M5X11 		1-09981-536-1 02 1 1010-1306 ● ●
10 SCREW; ANTENNA CABLE
M5X11 		1-09981-536-1 02 1 1307- ● ●
33 COVER; RADIO
EXC. TACHOGRAPH 140KM/H<WC7> BLACK 		8-97407-896-2 01 1 1010- ● ●
36 SCREW; COVER
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1010-1104 ● ●
80 ANTENNA 8-98139-014-0 01 1 1010-1306 ● ●
80 ANTENNA 8-98139-014-0 01 1 1307- ● ●
101 CLIP; FEEDER TO BRKT
ID=4.8 		8-94128-483-0 03 1 1010-1306 ● ●
101 CLIP; FEEDER TO BRKT
ID=4.8 		8-94128-483-0 03 1 1307- ● ●
224 CABLE; EXT,FEEDER 8-98063-002-1 01 1 1010-1306 ● ●
224 CABLE; EXT,FEEDER 8-98063-002-1 01 1 1307- ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD<UT3> TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 1010- ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD<UT3> EXC. TUNER BAND LATIN AMERICA<7DM> 		8-98017-752-0 01 1 1010-1306 ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD<UT3> TUNER BAND ASIA<7DN> 		8-98017-752-0 01 1 1307- ● ●
268 KNOB; VOL
RADIO AM/FM<U69> CLARION 		8-97375-820-0 01 1 1010- ● ●
272 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO CD<UT3> CLARION 		8-98048-329-0 01 1 1010- ● ●
294 CAP; ANTENNA CABLE
EXC. RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> 		8-98095-617-1 01 1 1010- ● ●
