◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11304 - FVM AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#60539) — 130 parça

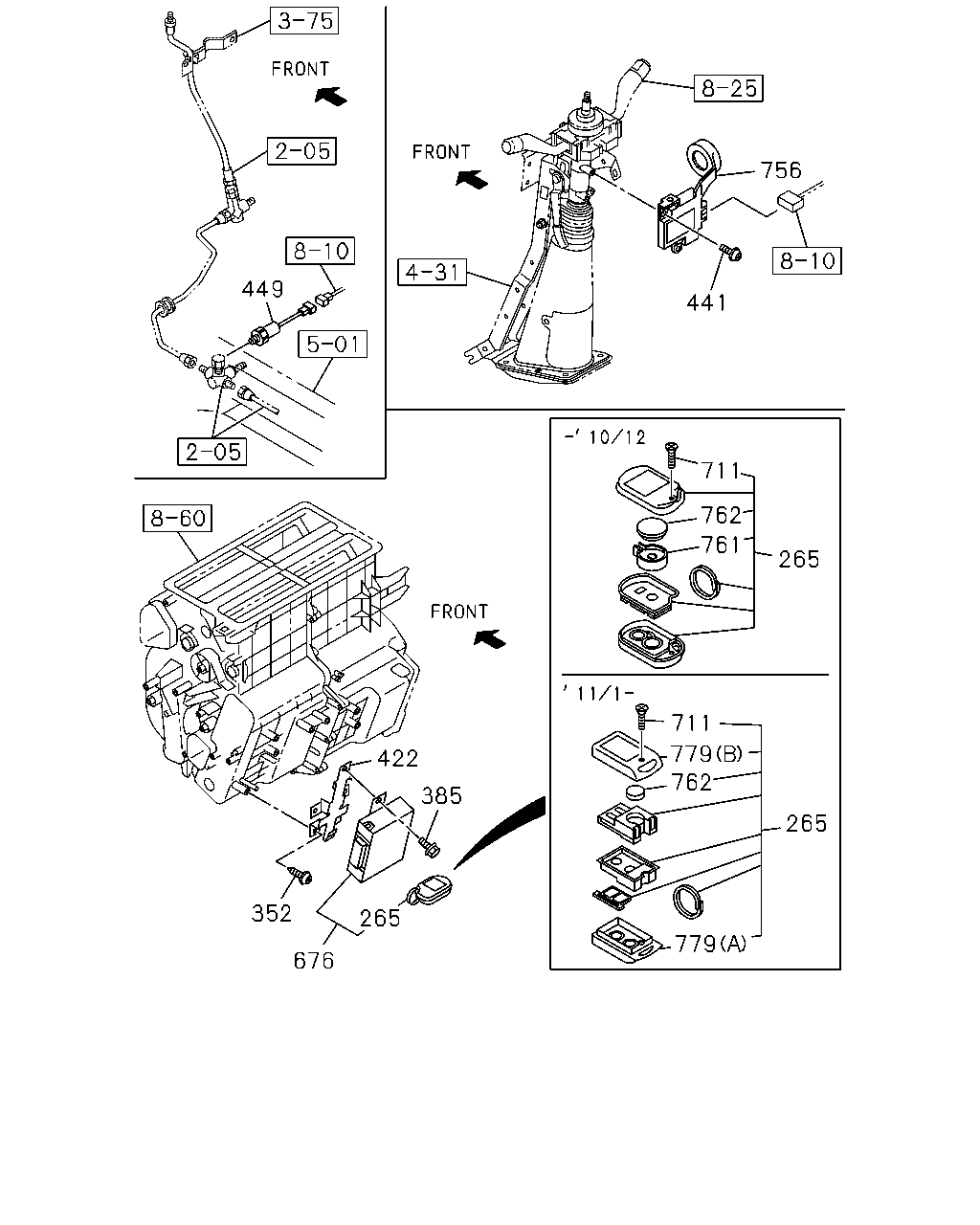

çizim 169319
449 422 385 265 365 676 441 756 265 711 762 761 711 779 762 265 779
BalonParca AdiParca NoAdetTipApplied Date A B
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 1010-1012 ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1101-1205 ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1206- ● ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1010- ● ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1010- ● ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 1010- ● ●
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1010- ● ●
449 SWITCH; OIL PRESS,CLUTCH
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> 		1-82410-143-1 01 1 1010- ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98017-258-1 01 1 1010-1012 ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98181-809-0 01 1 1101-1205 ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98218-231-0 01 1 1206- ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 1010-1205 ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1206- ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1010- ● ●
761 HOLDER; BATTERY 8-98078-063-0 02 1 1010-1012 ● ●
762 BATTERY 8-98078-061-0 02 1 1010- ● ●
779 COVER; TRANSMITTER
(A) 		8-98218-240-0 02 1 1307- ● ●
779 COVER; TRANSMITTER
(B) 		8-98218-243-0 02 1 1307- ● ●

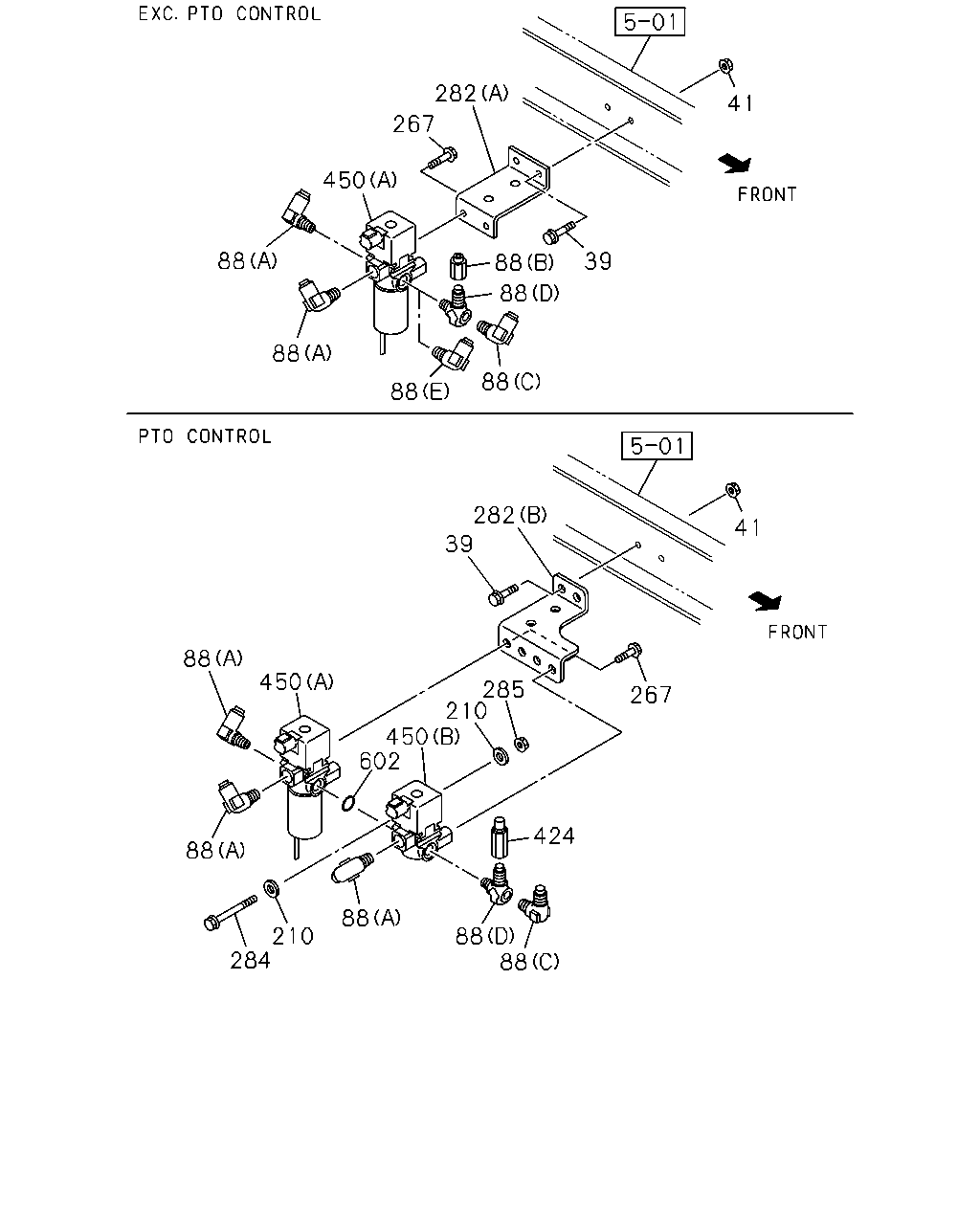

çizim 169321
41 282 267 450 88 88 39 88 88 88 88 41 282 39 285 210 424 88 88 88 210 88 450 88 267 450 602 284
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
M8X35 FLANGE 		0-28650-835-0 02 1 1010-1306 ● ●
39 BOLT; BRKT,MAG VLV
EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> M8X35 FLANGE 		0-28650-835-0 02 1 1307- ●
39 BOLT; BRKT,MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> M8X35 FLANGE 		0-28650-835-0 02 1 1307- ●
39 BOLT; BRKT,MAG VLV
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. H.S.A SYSTEM<6EP> M8X35 FLANGE 		0-28650-835-0 02 1 1307- ●
39 BOLT; BRKT,MAG VLV
ZF9S1110 M/T(Y5E) M8X35 FLANGE 		0-28650-835-0 02 1 1307- ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ● ●
41 NUT; BRKT,MAG VLV
EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1307- ●
41 NUT; BRKT,MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1307- ●
41 NUT; BRKT,MAG VLV
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1307- ●
41 NUT; BRKT,MAG VLV
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 02 1 1307- ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1307- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1010- ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1010- ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1010-1306 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1010-1306 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1307- ● ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1307- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1010-1306 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1307- ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1307- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1307- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1010-1306 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1307- ● ●
210 WASHER; PL,BRKT
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> 		1-82569-266-0 02 1 1010-1306 ● ●
210 WASHER; PL,BRKT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) 		1-82569-266-0 02 1 1307- ● ●
267 BOLT; VLV TO BRKT
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 02 1 1010-1306 ● ●
267 BOLT; VLV TO BRKT
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 02 1 1307- ● ●
267 BOLT; VLV TO BRKT
ALLISON MD3560P A/T(Y3B) EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 1307- ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		8-98101-296-0 01 1 1010-1306 ● ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (B) 		8-98101-296-0 01 1 1307- ● ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1010-1306 ● ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (A) 		8-98154-633-0 01 1 1307- ● ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> (A) 		8-98154-633-0 01 1 1307- ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6X50 FLANGE 		0-28050-650-0 01 1 1010-1306 ● ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M6X50 FLANGE 		0-28050-650-0 01 1 1307- ● ●
285 NUT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 1010-1306 ● ●
285 NUT; MAG VLV
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M6 FLANGE 		0-91180-106-0 01 1 1307- ● ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1010- ● ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1010-1306 ● ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1307- ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 1010-1306 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1010-1306 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (B) 		1-82563-871-2 01 1 1307- ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1307- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 1307- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (A) 		8-97633-075-0 01 1 1010-1306 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (A) 		8-97633-075-0 01 1 1307- ● ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> (A) 		8-97633-075-0 01 1 1307- ●
602 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1010-1306 ● ●
602 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=16.8 		9-09565-117-0 01 1 1307- ● ●

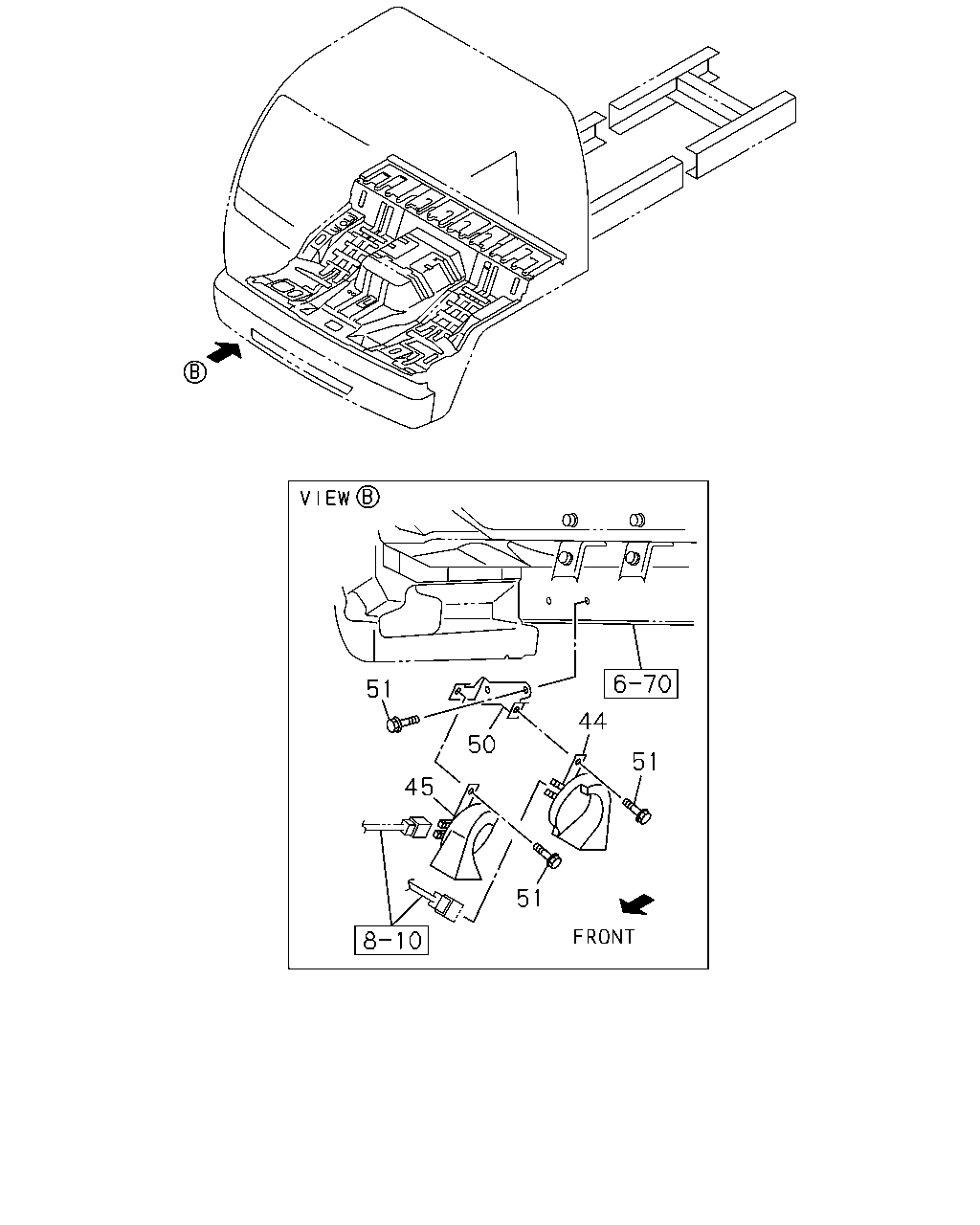

çizim 169322
51 51 44 45 51 50
BalonParca AdiParca NoAdetTipApplied Date A B
44 HORN; HIGH NOTE 8-97611-677-2 01 1 1010- ● ●
45 HORN; LOW NOTE 8-97611-676-2 01 1 1010- ● ●
50 BRACKET; HORN 8-97613-300-2 01 1 1010- ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1010-1306 ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1010-1306 ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 1307- ● ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1010- ● ●

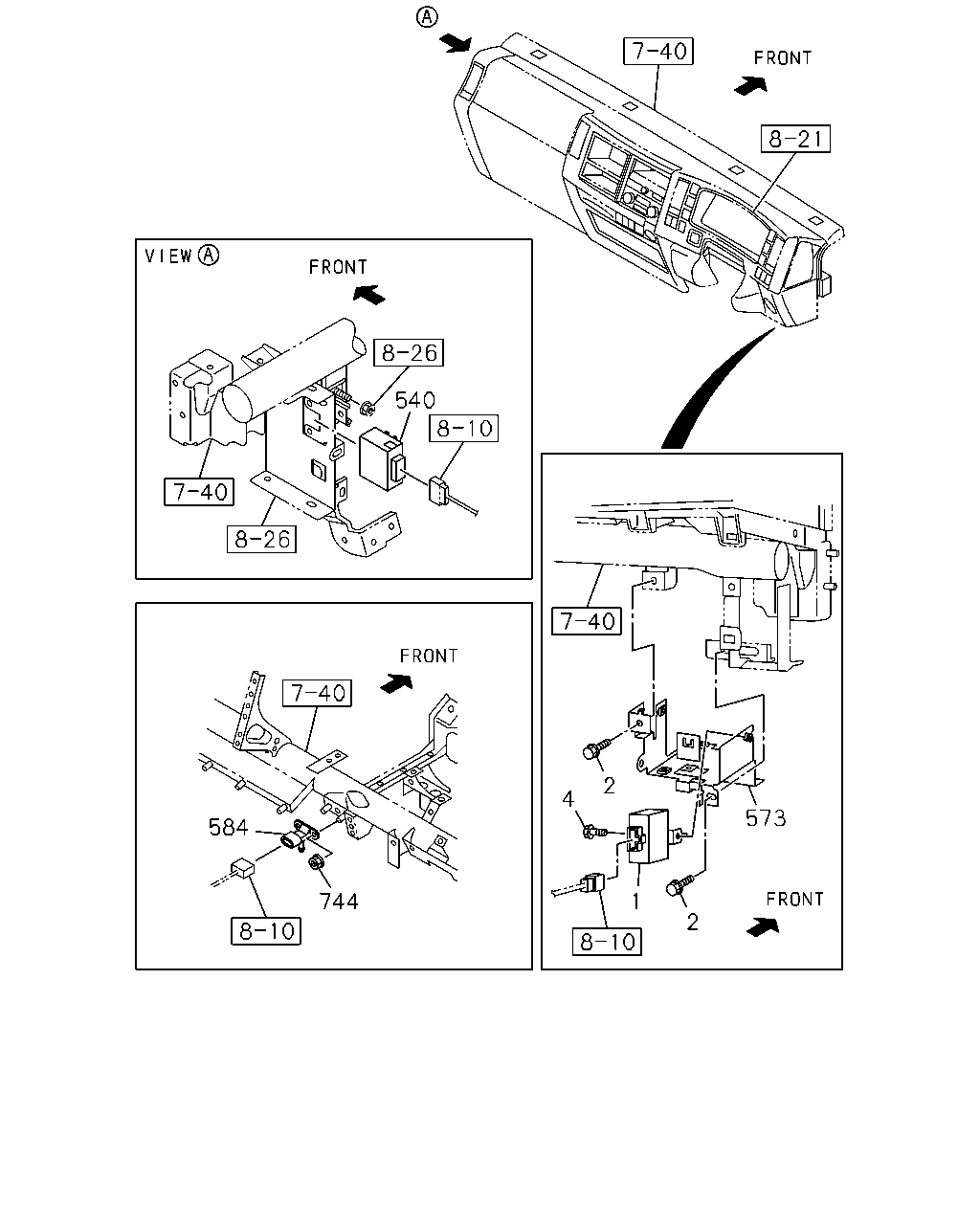

çizim 169323
540 584 744 2 4 573 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98025-533-1 01 1 1010- ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1010- ● ●
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 1010- ● ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1010- ● ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 1010-1308 ● ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309- ● ●
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 1010- ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1010- ● ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1010- ● ●

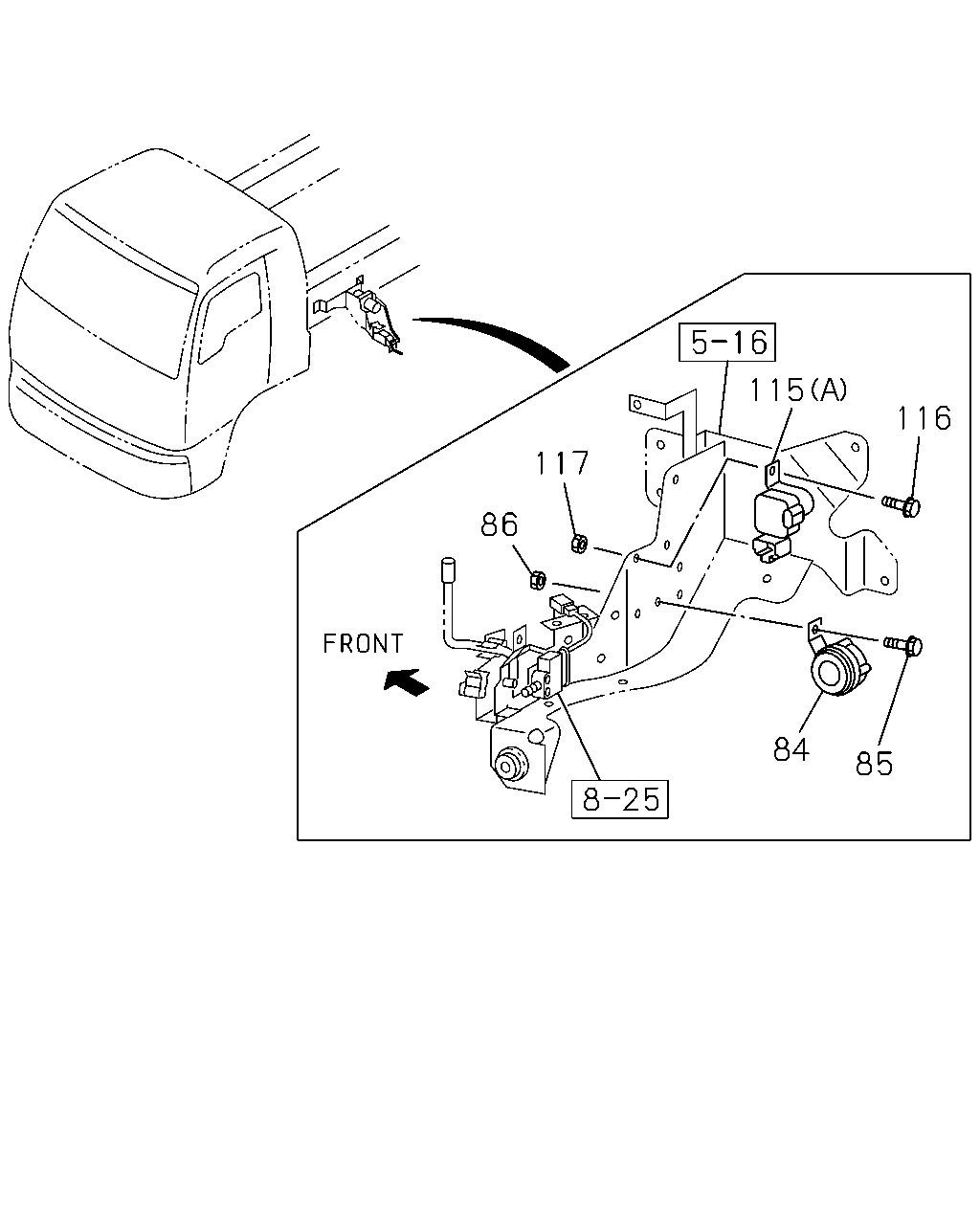

çizim 169324
116 115 117 86 85 84
BalonParca AdiParca NoAdetTipApplied Date A B
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 1010- ● ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1010- ● ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 1010- ● ●
116 BOLT; RELAY FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1010- ● ●
çizim 169325
450 88 88 88 40 79
BalonParca AdiParca NoAdetTipApplied Date A B
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) 		8-98057-863-0 01 1 1010-1306 ● ●
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98057-863-0 01 1 1307- ●
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) 		8-98057-863-0 01 1 1307- ●
79 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 02 1 1010-1306 ● ●
79 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 02 1 1307- ●
79 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 02 1 1307- ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1307- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1010- ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1010- ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1010-1306 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1010-1306 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1307- ● ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1307- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1010-1306 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1307- ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1307- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1307- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1010-1306 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1307- ● ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1010- ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 1010-1306 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1010-1306 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (B) 		1-82563-871-2 01 1 1307- ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1307- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 1307- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (A) 		8-97633-075-0 01 1 1010-1306 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (A) 		8-97633-075-0 01 1 1307- ● ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> (A) 		8-97633-075-0 01 1 1307- ●
çizim 169328
531 115
BalonParca AdiParca NoAdetTipApplied Date A B
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1010- ● ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 1010- ● ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1010- ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1010-1402 ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●

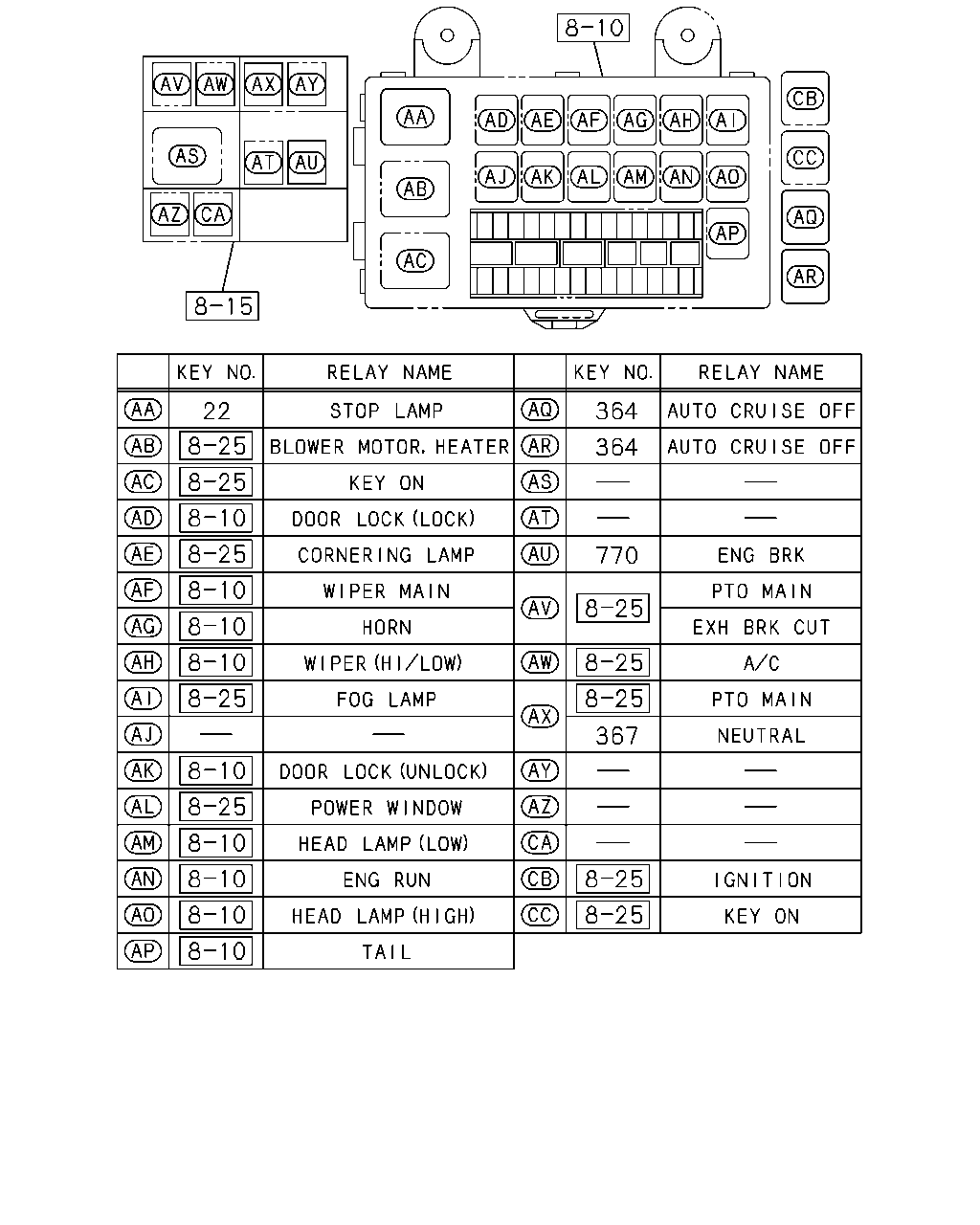

çizim 169335
22 364 770 364 367
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1010- ● ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1010- ● ●
364 RELAY; AUTO CRUISE OFF
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 03 1 1307- ●
367 RELAY; NEUTRAL
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 01 1 1307- ●
770 RELAY; ENG BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
