◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11304 - FVM AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#60537) — 158 parça
çizim 169312
726 497 497 726 507
BalonParca AdiParca NoAdetTipApplied Date A B
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 1010- ● ●
507 CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1011-1306 ● ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1307- ●
507 CONNECTOR
ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1307- ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1010- ● ●

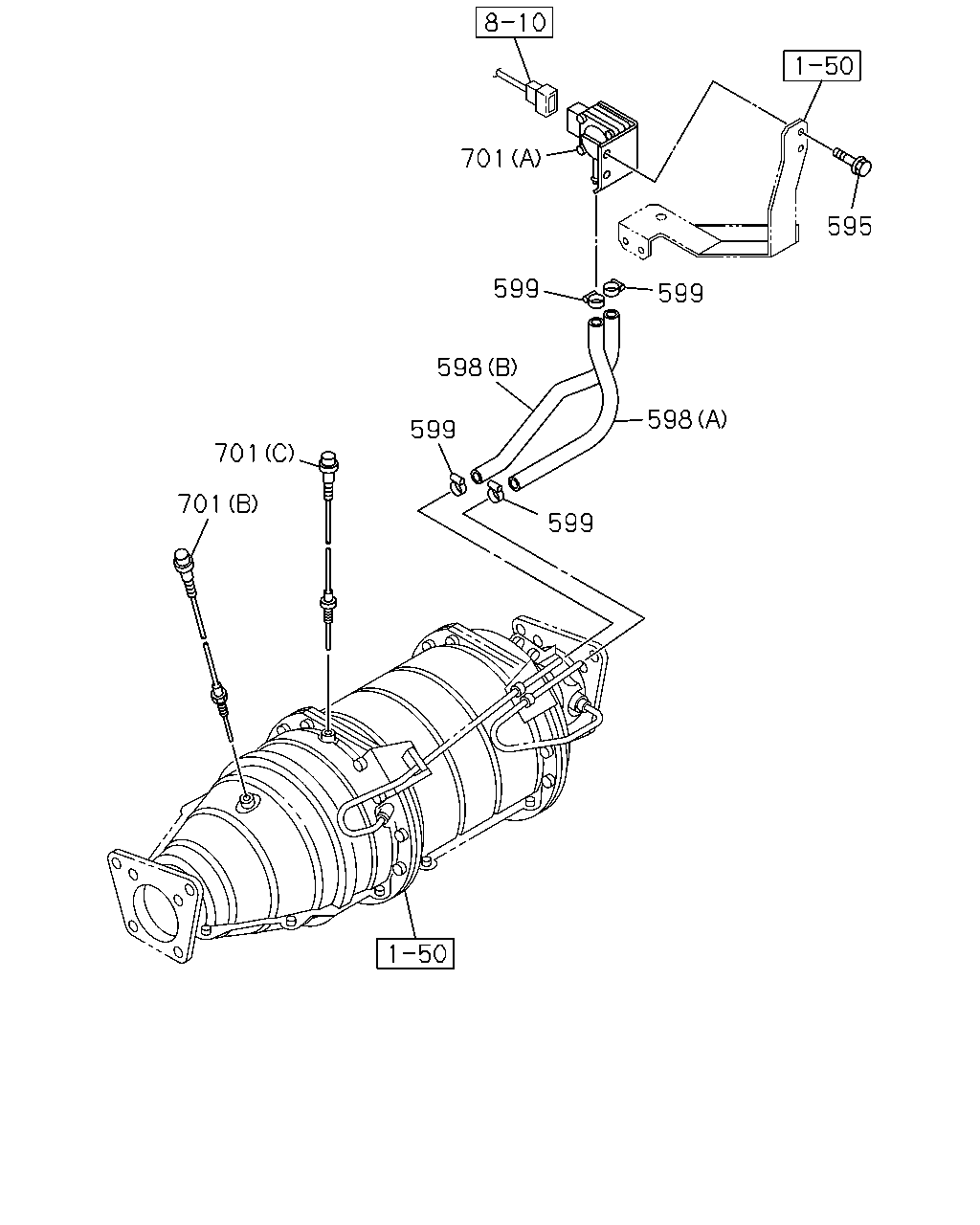

çizim 169313
701 599 598 599 598 599 599 701 701 595
BalonParca AdiParca NoAdetTipApplied Date A B
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98088-940-0 01 1 1010- ● ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98088-941-0 01 1 1010- ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1010- ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 1010-1405 ● ●
701 SENSOR; DPD
SPEED LIMITER 100KM(NMU) (B) 		8-97359-987-5 01 1 1406-1406 ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 1407- ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 1010-1405 ● ●
701 SENSOR; DPD
SPEED LIMITER 100KM(NMU) (C) 		8-97359-989-5 01 1 1406-1406 ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 1407- ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1010-1405 ● ●
701 SENSOR; DPD
SPEED LIMITER 100KM(NMU) (A) 		8-97360-368-2 01 1 1406-1406 ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1407- ● ●

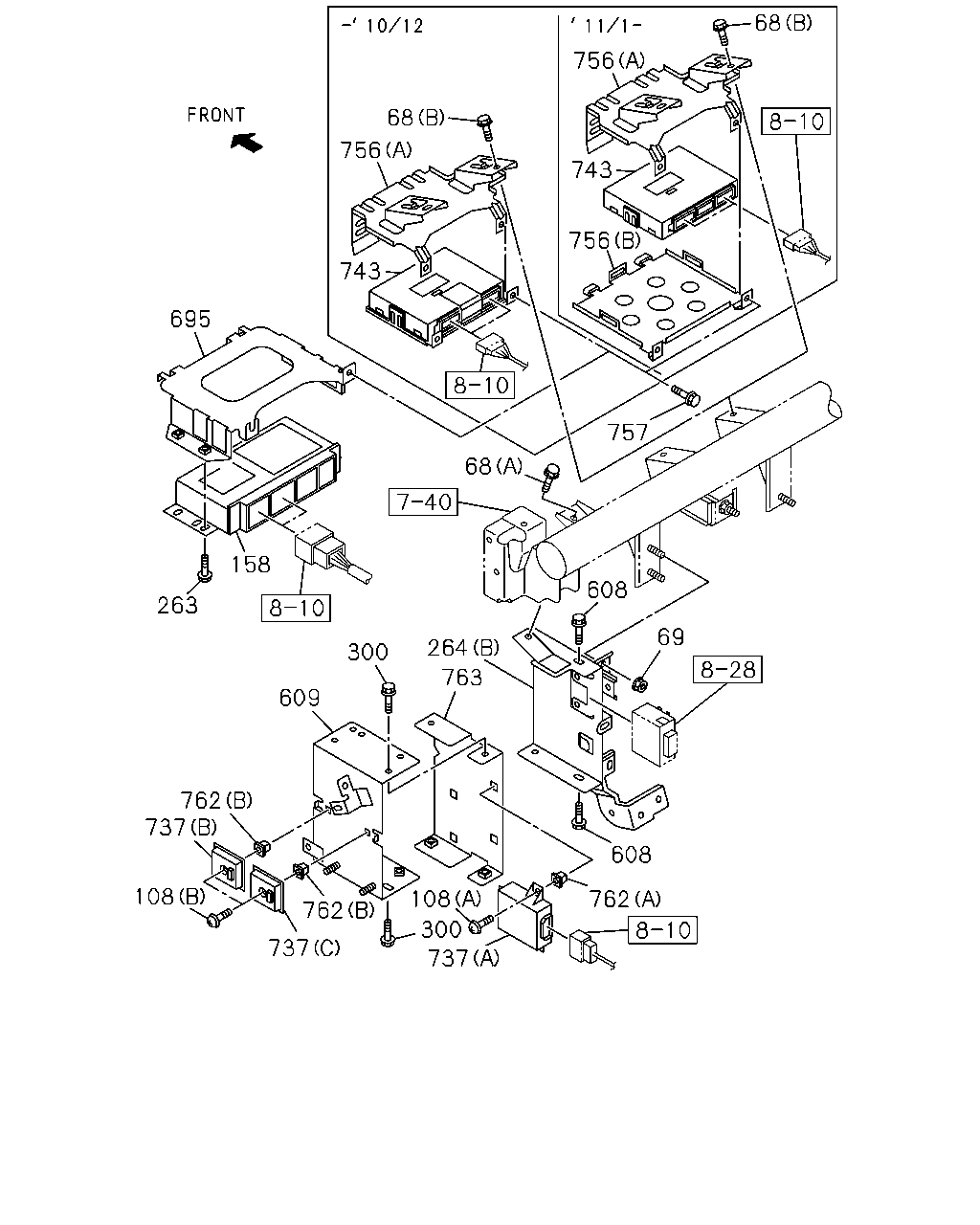

çizim 169314
68 756 743 756 743 756 68 757 68 158 263 695 609 300 264 763 762 737 108 762 108 300 762 608 69 608 737 737
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1010- ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1010- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1010- ● ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3560P A/T(Y3B) (C) M6X20 TAPPING 		0-72180-620-0 03 1 1307- ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1010-1306 ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1307- ●
108 BOLT; TRANS CONT MODULE
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1307- ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) M4X25 TAPPING 		0-74160-425-0 02 1 1010-1306 ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) M4X25 TAPPING 		0-74160-425-0 02 1 1307- ●
108 BOLT; TRANS CONT MODULE
(B) M4X25 TAPPING 		0-74160-425-0 02 1 1307- ●
158 CONTROLLER; ABS 8-98170-648-0 01 1 1207-1209 ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1) EXC. VIN MODEL YEAR 2011<VZB> 		8-98170-648-0 01 1 1207-1209 ●
158 CONTROLLER; ABS
EXC. VIN MODEL YEAR 2013<VZD> 		8-98170-648-0 01 1 1210-1306 ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1) EXC. VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> 		8-98170-648-0 01 1 1210-1306 ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) ,TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1) 		8-98170-648-0 01 1 1010-1109 ● ●
158 CONTROLLER; ABS 8-98170-648-0 01 1 1110-1205 ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1) 		8-98170-648-0 01 1 1110-1205 ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) ,TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1) VIN MODEL YEAR 2011<VZB> 		8-98220-159-0 01 1 1206-1209 ●
158 CONTROLLER; ABS
VIN MODEL YEAR 2013<VZD> 		8-98220-159-0 01 1 1210-1306 ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1) VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> 		8-98220-159-0 01 1 1210-1306 ●
158 CONTROLLER; ABS 8-98222-314-0 01 1 1307- ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1) 		8-98222-314-0 01 1 1307- ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 1010- ● ●
264 BRACKET; CONT UNIT
ALLISON MD3560P A/T(Y3B) (C) 		8-98246-552-0 01 1 1307-1405 ●
264 BRACKET; CONT UNIT
ALLISON MD3560P A/T(Y3B) (D) 		8-98252-197-0 01 1 1406- ●
264 BRACKET; CONT UNIT
(B) 		8-98180-453-0 01 1 1010- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 1010-1306 ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98064-901-0 01 1 1307- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 1307- ●
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 04 1 1010-1306 ● ●
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 04 1 1307- ●
300 BOLT; CONT UNIT BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1307- ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 05 1 1010-1306 ● ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 05 1 1307- ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 05 1 1307- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) 		8-98095-337-0 01 1 1010-1306 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98169-737-1 01 1 1307- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) 		8-98169-737-1 01 1 1307- ●
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 1010- ● ●
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3560P A/T(Y3B) (D) 		8-98221-524-0 01 1 1307- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (A) 		1-80111-271-0 01 1 1010-1306 ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (A) 		1-80111-271-0 01 1 1307- ●
737 CONTROL UNIT; TRANSMISSION
(A) 		1-80111-271-0 01 1 1307- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (B) 		8-98095-040-0 01 1 1010-1306 ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (B) 		8-98095-040-0 01 1 1307- ●
737 CONTROL UNIT; TRANSMISSION
(B) 		8-98095-040-0 01 1 1307- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (C) 		8-98095-041-0 01 1 1010-1306 ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (C) 		8-98095-041-0 01 1 1307- ●
737 CONTROL UNIT; TRANSMISSION
(C) 		8-98095-041-0 01 1 1307- ●
743 CONTROL UNIT; BCM 8-98176-213-0 01 1 1010-1012 ● ●
743 CONTROL UNIT; BCM 8-98182-026-3 01 1 1101- ● ●
756 BRACKET; ECU,BCM
CAN INTERFACE FMS STD<8PG> (C) 		8-98222-208-0 01 1 1210-1306 ● ●
756 BRACKET; ECU,BCM
(C) 		8-98222-208-0 01 1 1307-1507 ● ●
756 BRACKET; ECU,BCM
(D) 		8-98203-991-0 01 1 1508- ● ●
756 BRACKET; ECU,BCM
(B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1010- ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1210-1210 ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1211-1306 ● ●
757 BOLT; BRKT,BCM
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1307- ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1010- ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 1010-1306 ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 1307- ●
762 GROMMET; TRANS CONT MODULE
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 1307- ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1010-1306 ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1307- ●
762 GROMMET; TRANS CONT MODULE
(B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1307- ●
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) 		8-98085-587-0 01 1 1010-1306 ● ●
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) 		8-98085-587-0 01 1 1307- ●
763 BRACKET; TRANS CONT MODULE 8-98085-587-0 01 1 1307- ●

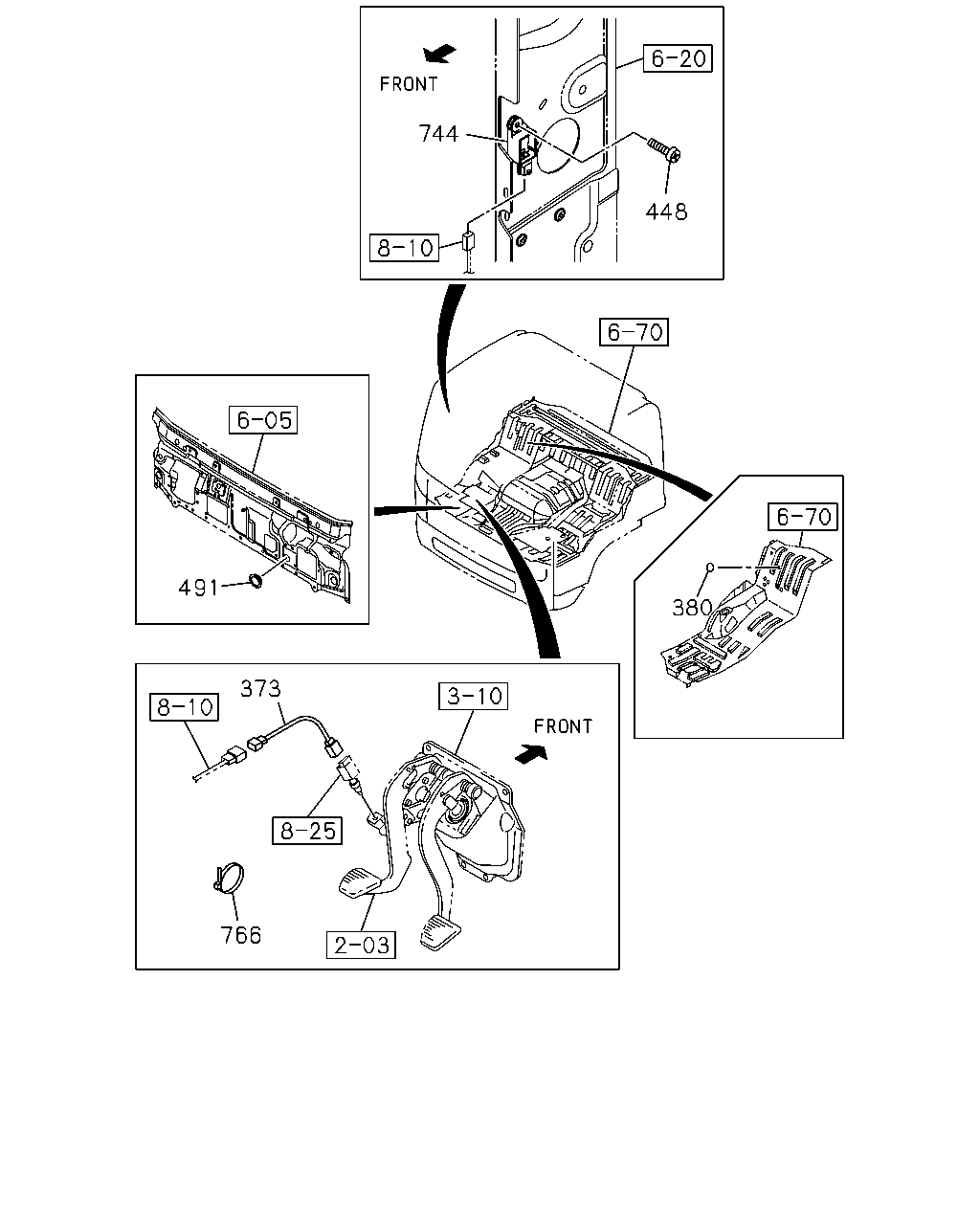

çizim 169316
744 448 491 766 380 373
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) 		8-98053-829-2 01 1 1010-1306 ● ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98053-829-3 01 1 1307- ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) 		8-98053-829-3 01 1 1307- ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1010-1306 ● ●
380 SEAL
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=25 BLACK 		1-76798-019-0 01 1 1307-1312 ● ●
380 SEAL
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=25 BLACK 		1-76798-019-0 01 1 1401-1404 ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1405- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1010- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1010- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 1010- ● ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 1010-1306 ● ●
766 BAND; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 1307- ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 1307- ●

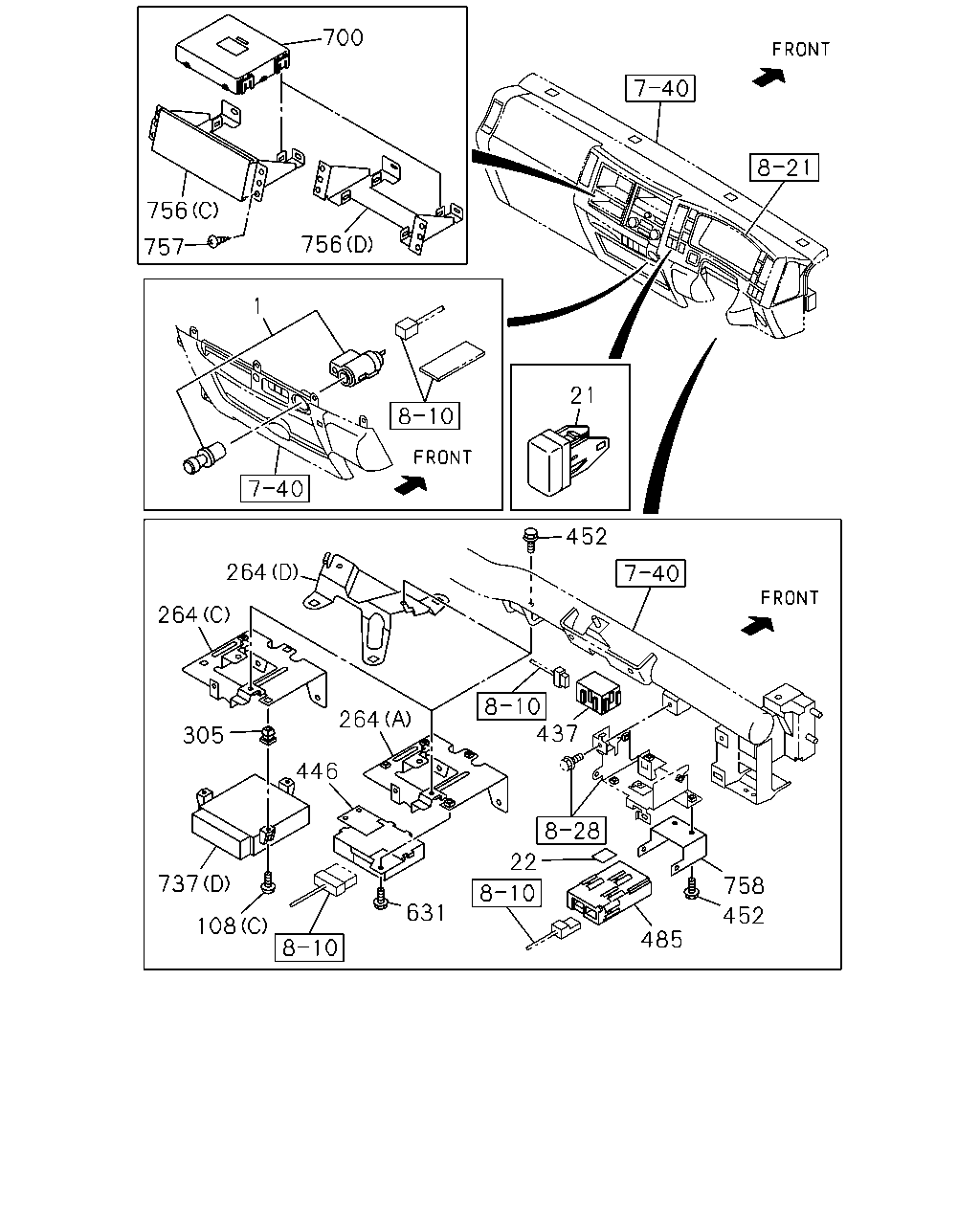

çizim 169317
700 756 756 757 21 452 758 452 485 264 264 305 264 446 631 22 737 108 437 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1010-1306 ● ●
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1307- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1010- ● ●
22 SEAL; TAPE 1-80199-006-0 01 1 1010-1212 ● ●
22 SEAL; TAPE 8-98166-639-0 01 1 1301-1405 ● ●
22 SEAL; TAPE
SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) 		8-98166-639-0 01 1 1406- ● ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3560P A/T(Y3B) (C) M6X20 TAPPING 		0-72180-620-0 03 1 1307- ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1010-1306 ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1307- ●
108 BOLT; TRANS CONT MODULE
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1307- ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) M4X25 TAPPING 		0-74160-425-0 02 1 1010-1306 ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) M4X25 TAPPING 		0-74160-425-0 02 1 1307- ●
108 BOLT; TRANS CONT MODULE
(B) M4X25 TAPPING 		0-74160-425-0 02 1 1307- ●
264 BRACKET; CONT UNIT
ALLISON MD3560P A/T(Y3B) (C) 		8-98246-552-0 01 1 1307-1405 ●
264 BRACKET; CONT UNIT
ALLISON MD3560P A/T(Y3B) (D) 		8-98252-197-0 01 1 1406- ●
264 BRACKET; CONT UNIT
(B) 		8-98180-453-0 01 1 1010- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 1010-1306 ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98064-901-0 01 1 1307- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 1307- ●
305 NUT; CONT UNIT
ALLISON MD3560P A/T(Y3B) D=9.7X9.7 L=8 		8-94222-314-0 03 1 1307- ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1010- ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-98136-318-1 01 1 1010-1306 ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98136-318-1 01 1 1307- ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-98136-318-1 01 1 1307- ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 1010-1306 ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1010-1306 ● ●
452 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) M6X16 FLANGE 		0-28650-616-0 02 1 1307- ●
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1307- ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1307- ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 1307- ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1307- ●
485 CONTROL UNIT; SPEED SENSOR
ALLISON MD3560P A/T(Y3B) 		1-80190-061-0 01 1 1307- ●
485 CONTROL UNIT; SPEED SENSOR
ZF9S1110 M/T(Y5E) 		1-80190-063-0 01 1 1010- ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1010-1306 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1307- ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1307- ●
700 CONTROL UNIT; CAN CONVERTER
VIN MODEL YEAR 2013<VZD> CAN INTERFACE FMS STD<8PG> 		8-98219-812-0 01 1 1210-1306 ● ●
700 CONTROL UNIT; CAN CONVERTER 8-98219-812-1 01 1 1307- ● ●
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3560P A/T(Y3B) (D) 		8-98221-524-0 01 1 1307- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (A) 		1-80111-271-0 01 1 1010-1306 ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (A) 		1-80111-271-0 01 1 1307- ●
737 CONTROL UNIT; TRANSMISSION
(A) 		1-80111-271-0 01 1 1307- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (B) 		8-98095-040-0 01 1 1010-1306 ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (B) 		8-98095-040-0 01 1 1307- ●
737 CONTROL UNIT; TRANSMISSION
(B) 		8-98095-040-0 01 1 1307- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (C) 		8-98095-041-0 01 1 1010-1306 ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (C) 		8-98095-041-0 01 1 1307- ●
737 CONTROL UNIT; TRANSMISSION
(C) 		8-98095-041-0 01 1 1307- ●
756 BRACKET; ECU,BCM
CAN INTERFACE FMS STD<8PG> (C) 		8-98222-208-0 01 1 1210-1306 ● ●
756 BRACKET; ECU,BCM
(C) 		8-98222-208-0 01 1 1307-1507 ● ●
756 BRACKET; ECU,BCM
(D) 		8-98203-991-0 01 1 1508- ● ●
756 BRACKET; ECU,BCM
(B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1010- ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1210-1210 ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1211-1306 ● ●
757 BOLT; BRKT,BCM
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1307- ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1010- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
