◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11304 - FVM AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#60535) — 32 parça

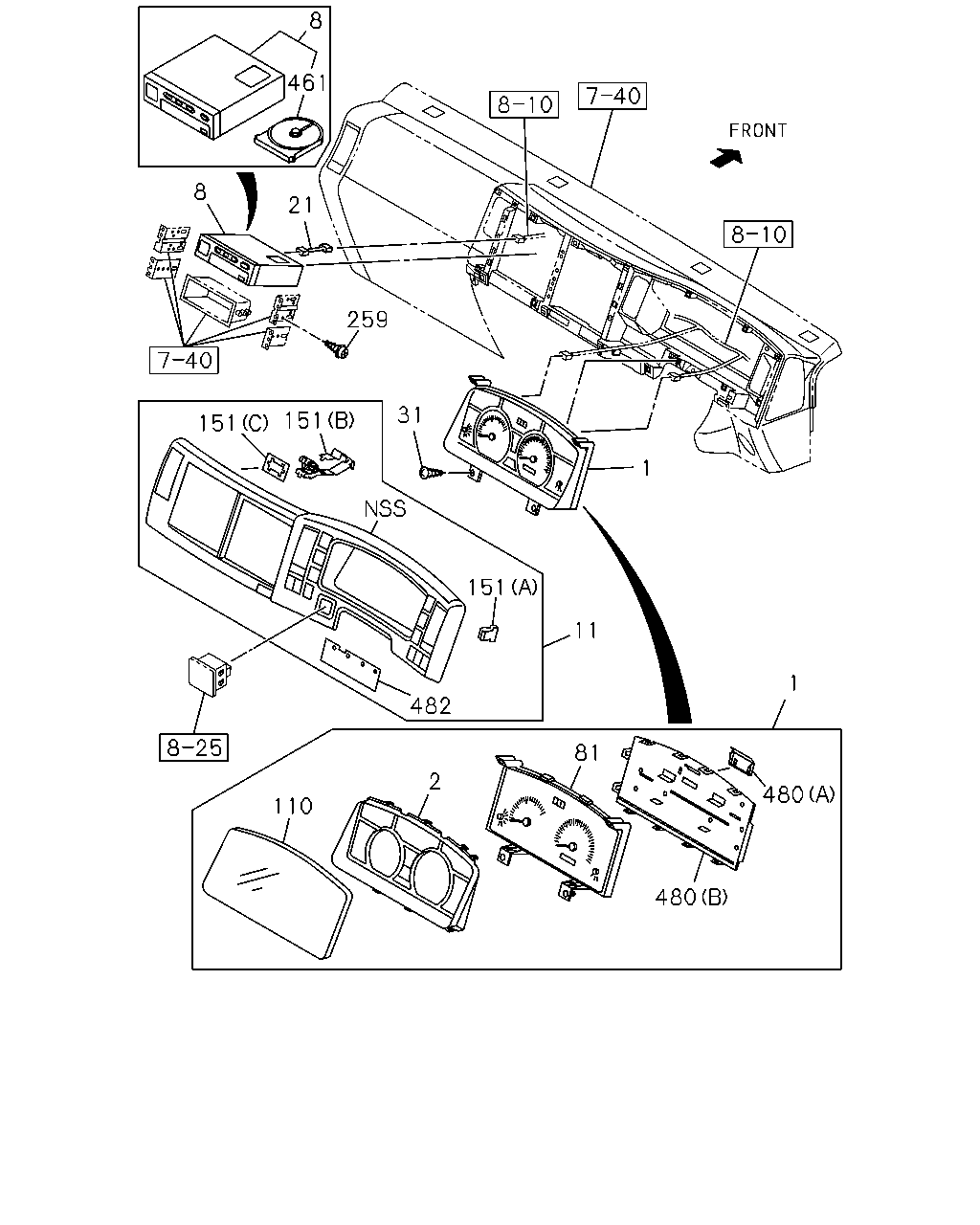

çizim 169304
110 2 81 480 480 1 11 151 482 1 31 151 151 259 21 8 8 461
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-394-0 01 1 1502- ●
1 METER COMPL; CLUSTER 8-98064-930-5 01 1 1010-1306 ● ●
1 METER COMPL; CLUSTER 8-98226-347-1 01 1 1307-1501 ● ●
1 METER COMPL; CLUSTER
VIN MODEL YEAR 2015<VZF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98226-347-1 01 1 1502- ●
1 METER COMPL; CLUSTER
EXC. VIN MODEL YEAR 2015<VZF> 		8-98226-347-1 01 1 1502- ●
1 METER COMPL; CLUSTER 8-98226-347-1 01 1 1502- ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 1010-1306 ● ●
2 PANEL; CLUSTER 8-98054-638-0 01 1 1307- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 1010- ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97418-532-1 01 1 1010- ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> CAN INTERFACE FMS STD<8PG> 		8-98225-657-0 01 1 1210-1306 ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98225-657-0 01 1 1307- ● ●
21 HARNESS; TACHOGRAPH
CAN INTERFACE FMS STD<8PG> EXC. TACHOGRAPH 140KM/H<WC7> 		8-98204-881-1 01 1 1210-1306 ● ●
21 HARNESS; TACHOGRAPH
EXC. TACHOGRAPH 140KM/H<WC7> 		8-98204-881-1 01 1 1307- ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98074-077-0 01 1 1010-1209 ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> EXC. CAN INTERFACE FMS STD<8PG> 		8-98074-077-0 01 1 1210-1306 ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1010- ● ●
81 METER SUB ASM
VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-397-0 01 1 1502- ●
81 METER SUB ASM 8-98079-689-0 01 1 1010-1306 ● ●
81 METER SUB ASM 8-98231-803-0 01 1 1307-1501 ● ●
81 METER SUB ASM
VIN MODEL YEAR 2015<VZF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98231-803-0 01 1 1502- ●
81 METER SUB ASM
EXC. VIN MODEL YEAR 2015<VZF> 		8-98231-803-0 01 1 1502- ●
81 METER SUB ASM 8-98231-803-0 01 1 1502- ●
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 1010- ● ●
151 CLIP; METER CLUSTER
(A) 		8-98021-271-0 12 1 1010- ● ●
151 CLIP; METER CLUSTER
(B) 		8-98152-030-0 01 1 1010- ● ●
151 CLIP; METER CLUSTER
(C) 		8-98152-031-0 01 1 1010- ● ●
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1010- ● ●
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 1010- ● ●
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 1010- ● ●
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1010- ● ●
482 SEAL; CLUSTER METER 8-98116-842-0 01 1 1010- ● ●
