◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11304 - FVM AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#60533) — 356 parça

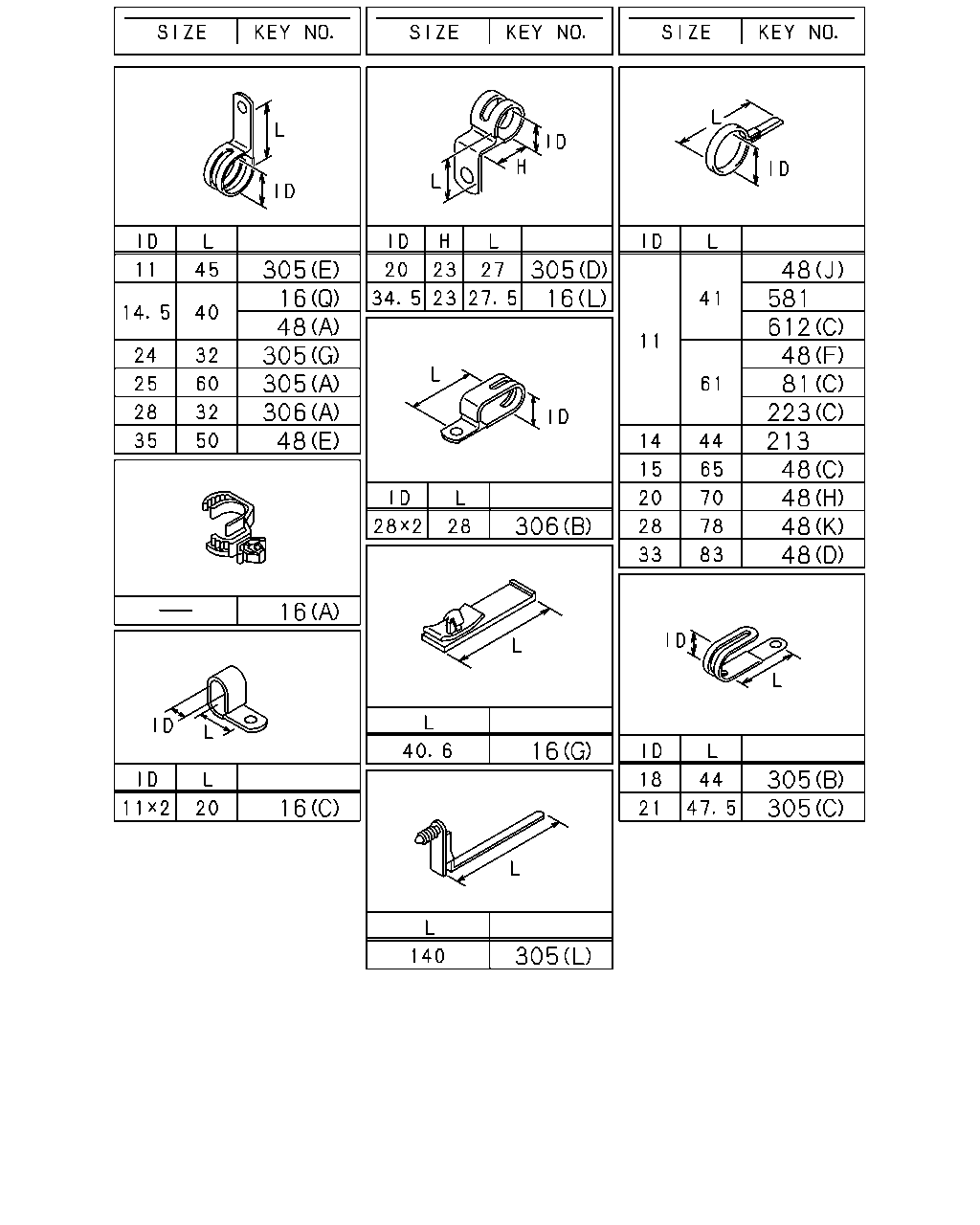

çizim 169292
305 48 16 305 306 305 48 16 16 305 306 16 16 305 48 612 581 48 223 81 213 48 48 48 305 48 305
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
VIN MODEL YEAR 2013<VZD> (N) ID=15 H=30 L=30 		1-09700-832-0 02 1 1210-1306 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (O) ID=16X2 L=50 		0-95325-586-0 01 1 1307- ● ●
16 CLIP; HARNESS
(F) ID=11X2 L=16 		0-95325-025-0 01 1 1010- ●
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 1010- ●
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 1010- ● ●
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1010-1306 ● ●
16 CLIP; HARNESS
(N) ID=15 H=30 L=30 		1-09700-832-0 02 1 1307- ● ●
16 CLIP; HARNESS
(I) ID=14 H=50 L=20 		1-09700-843-0 02 1 1010-1209 ● ●
16 CLIP; HARNESS
EXC. VIN MODEL YEAR 2013<VZD> (I) ID=14 H=50 L=20 		1-09700-843-0 02 1 1210-1306 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1010-1306 ● ●
16 CLIP; HARNESS
ALLISON MD3560P A/T(Y3B) (P) ID=19 L=32 		0-95235-866-0 02 1 1307- ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1010-1306 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (Q) ID=14.5 L=40 		1-09701-014-0 01 1 1307- ● ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1010- ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 1010-1306 ● ●
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1307- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1010- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1010- ● ●
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 1010- ● ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 1010- ● ●
16 CLIP; HARNESS
(C) ID=11X2 L=20 		1-09700-871-0 03 1 1010- ●
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 02 1 1010-1306 ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 28 1 1010-1306 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (B) ID=16X2 L=50 		0-95325-586-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (L) ID=9 H=20 L=25 		1-09701-073-0 01 1 1307- ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 1010-1306 ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 1307- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(K) ID=28 L=78 		1-09700-858-0 02 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (A) ID=14.5 L=40 		1-09701-014-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 03 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(G) L=140 		5-09707-031-1 02 1 1010- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 02 1 1010-1201 ● ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 1202-1306 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (M) ID=9 L=20 		0-95234-835-0 01 1 1307- ●
48 CLIP; FRAME HARNESS
(I) OD=9 H=13.5 		1-09709-180-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 29 1 1010-1306 ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 1307- ● ●
81 CLIP; HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1307- ● ●
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1010-1306 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1307- ●
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1307- ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1010-1306 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1010-1306 ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 1010-1306 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1010-1306 ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1010- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 1010- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1010- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1010- ● ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 02 1 1010-1306 ●
612 CLIP; HARNESS DPD
ZF9S1110 M/T(Y5E) (B) L=135 		1-09987-143-1 02 1 1010-1306 ● ●
612 CLIP; HARNESS DPD
(B) L=135 		1-09987-143-1 02 1 1307-1309 ● ●
612 CLIP; HARNESS DPD
(A) L=250 		5-09707-030-1 01 1 1010-1306 ● ●
612 CLIP; HARNESS DPD
(C) ID=11 L=41 		1-09700-403-0 01 1 1307-1309 ● ●
612 CLIP; HARNESS DPD
(C) ID=11 L=41 		1-09700-403-0 01 1 1307-1309 ● ●
612 CLIP; HARNESS DPD
(C) ID=11 L=41 		1-09700-403-0 01 1 1307-1309 ● ●
612 CLIP; HARNESS DPD
(C) ID=11 L=41 		1-09700-403-0 01 1 1310-1404 ● ●

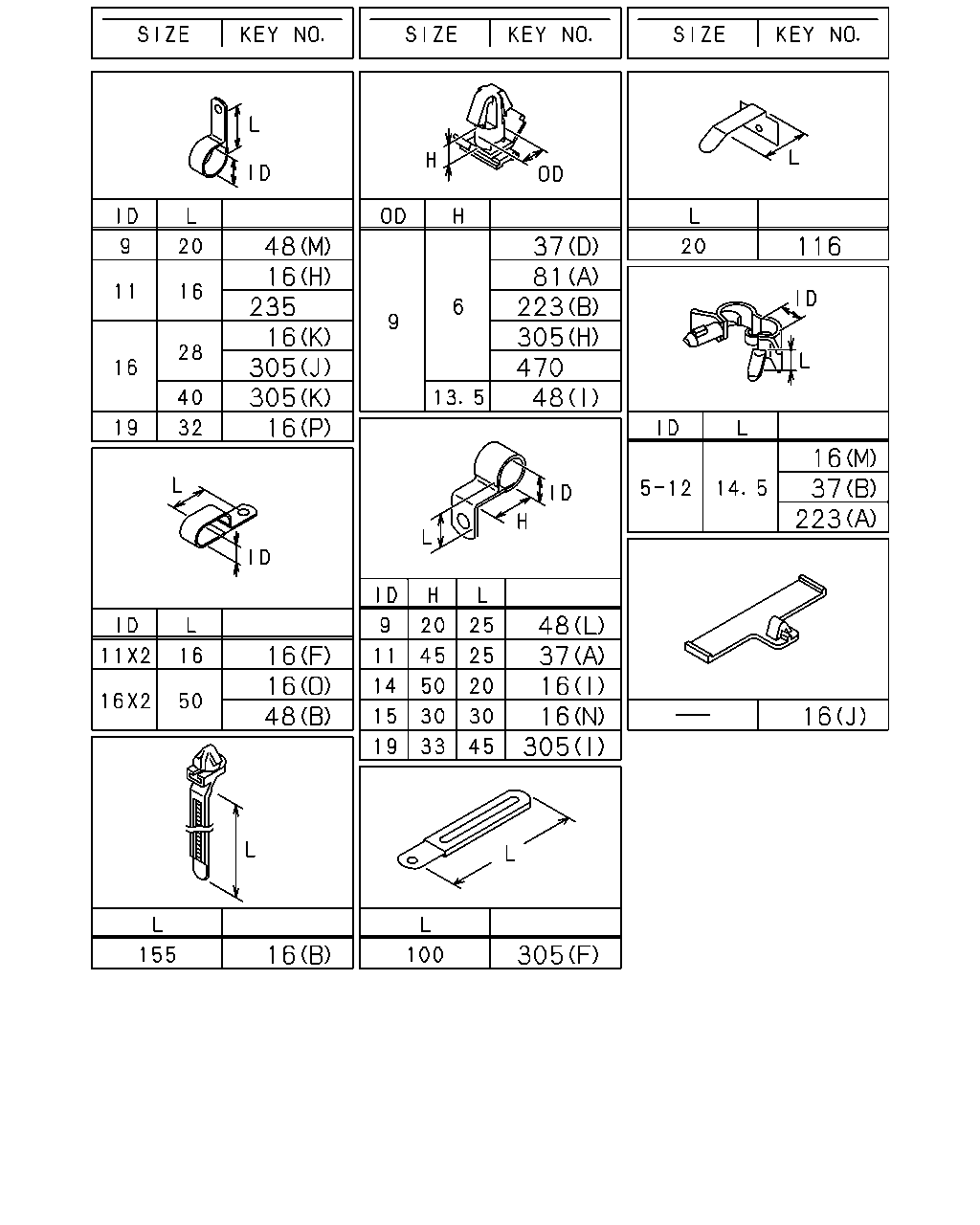

çizim 169294
48 235 16 16 305 305 16 16 16 48 16 305 305 16 48 37 48 470 305 223 81 37 116 16 223 37 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
VIN MODEL YEAR 2013<VZD> (N) ID=15 H=30 L=30 		1-09700-832-0 02 1 1210-1306 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (O) ID=16X2 L=50 		0-95325-586-0 01 1 1307- ● ●
16 CLIP; HARNESS
(F) ID=11X2 L=16 		0-95325-025-0 01 1 1010- ●
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 1010- ●
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 1010- ● ●
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1010-1306 ● ●
16 CLIP; HARNESS
(N) ID=15 H=30 L=30 		1-09700-832-0 02 1 1307- ● ●
16 CLIP; HARNESS
(I) ID=14 H=50 L=20 		1-09700-843-0 02 1 1010-1209 ● ●
16 CLIP; HARNESS
EXC. VIN MODEL YEAR 2013<VZD> (I) ID=14 H=50 L=20 		1-09700-843-0 02 1 1210-1306 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1010-1306 ● ●
16 CLIP; HARNESS
ALLISON MD3560P A/T(Y3B) (P) ID=19 L=32 		0-95235-866-0 02 1 1307- ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1010-1306 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (Q) ID=14.5 L=40 		1-09701-014-0 01 1 1307- ● ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1010- ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 1010-1306 ● ●
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1307- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1010- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1010- ● ●
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 1010- ● ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 1010- ● ●
16 CLIP; HARNESS
(C) ID=11X2 L=20 		1-09700-871-0 03 1 1010- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=45 L=25 		1-09700-866-0 01 1 1010-1306 ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1010-1306 ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 1010-1306 ● ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 02 1 1010-1306 ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 28 1 1010-1306 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (B) ID=16X2 L=50 		0-95325-586-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (L) ID=9 H=20 L=25 		1-09701-073-0 01 1 1307- ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 1010-1306 ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 1307- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(K) ID=28 L=78 		1-09700-858-0 02 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (A) ID=14.5 L=40 		1-09701-014-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 03 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(G) L=140 		5-09707-031-1 02 1 1010- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 02 1 1010-1201 ● ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 1202-1306 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (M) ID=9 L=20 		0-95234-835-0 01 1 1307- ●
48 CLIP; FRAME HARNESS
(I) OD=9 H=13.5 		1-09709-180-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 29 1 1010-1306 ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 1307- ● ●
81 CLIP; HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1307- ● ●
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1010-1306 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1307- ●
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1307- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1010- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1010-1306 ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 1010-1306 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1010-1306 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=11 L=16 		0-95235-025-0 02 1 1010- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1010- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 1010- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1010-1205 ● ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1206- ●

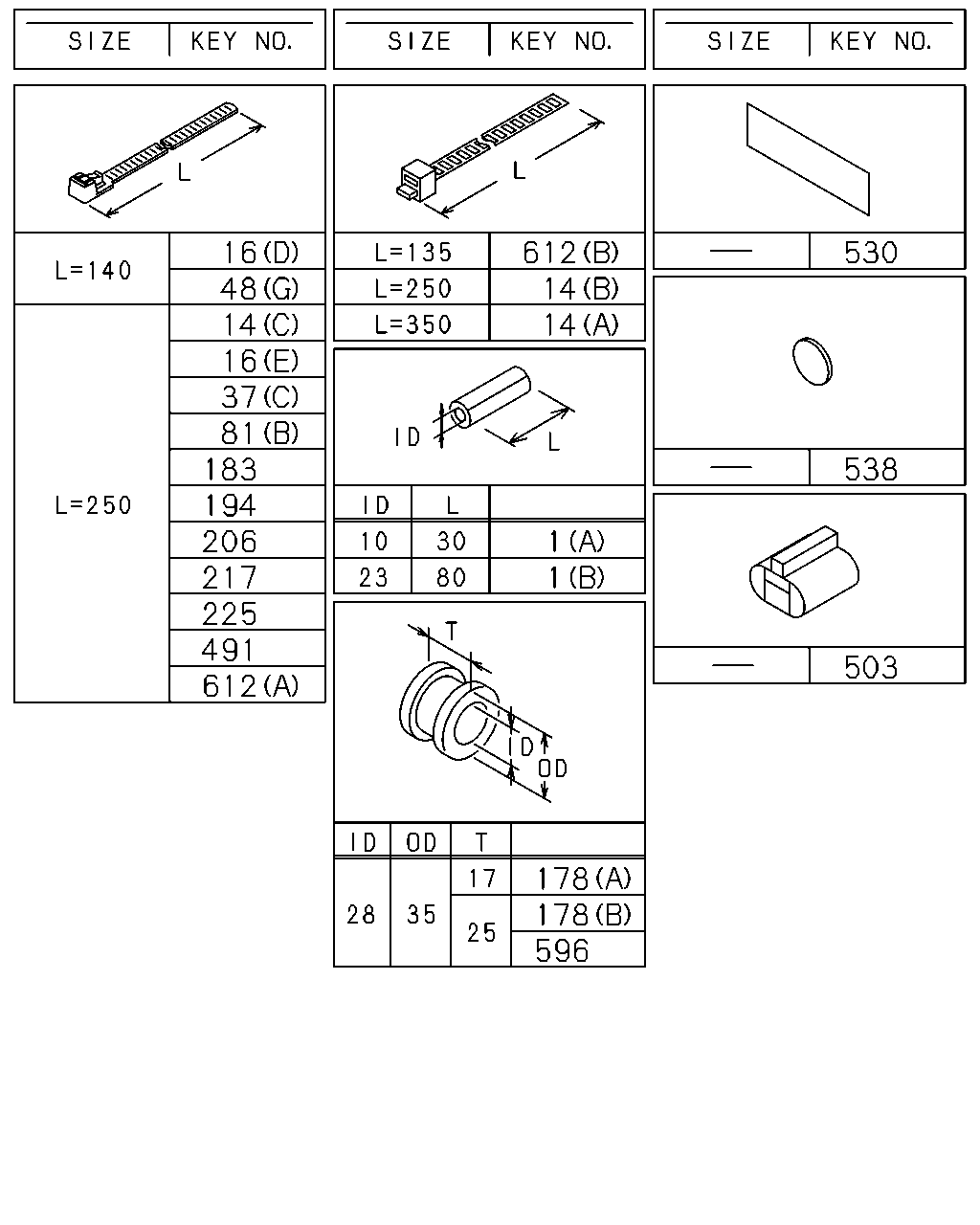

çizim 169296
16 48 14 16 37 81 183 194 206 217 225 491 612 612 14 14 1 1 178 178 596 530 538 503
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1010- ● ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1010- ● ●
14 CLIP; BAND,HARNESS
(A) L=350 		1-09707-183-0 01 1 1010- ● ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) (C) L=250 		8-98216-430-0 14 1 1307- ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 13 1 1010-1205 ● ●
14 CLIP; BAND,HARNESS
(C) L=250 		8-98216-430-0 13 1 1206-1306 ● ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) (C) L=250 		8-98216-430-0 13 1 1307- ● ●
14 CLIP; BAND,HARNESS
(B) L=250 		1-09707-126-0 02 1 1010- ●
16 CLIP; HARNESS
VIN MODEL YEAR 2013<VZD> (N) ID=15 H=30 L=30 		1-09700-832-0 02 1 1210-1306 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (O) ID=16X2 L=50 		0-95325-586-0 01 1 1307- ● ●
16 CLIP; HARNESS
(F) ID=11X2 L=16 		0-95325-025-0 01 1 1010- ●
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 1010- ●
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 1010- ● ●
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1010-1306 ● ●
16 CLIP; HARNESS
(N) ID=15 H=30 L=30 		1-09700-832-0 02 1 1307- ● ●
16 CLIP; HARNESS
(I) ID=14 H=50 L=20 		1-09700-843-0 02 1 1010-1209 ● ●
16 CLIP; HARNESS
EXC. VIN MODEL YEAR 2013<VZD> (I) ID=14 H=50 L=20 		1-09700-843-0 02 1 1210-1306 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1010-1306 ● ●
16 CLIP; HARNESS
ALLISON MD3560P A/T(Y3B) (P) ID=19 L=32 		0-95235-866-0 02 1 1307- ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1010-1306 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (Q) ID=14.5 L=40 		1-09701-014-0 01 1 1307- ● ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1010- ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 1010-1306 ● ●
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1307- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1010- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1010- ● ●
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 1010- ● ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 1010- ● ●
16 CLIP; HARNESS
(C) ID=11X2 L=20 		1-09700-871-0 03 1 1010- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=45 L=25 		1-09700-866-0 01 1 1010-1306 ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1010-1306 ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 1010-1306 ● ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 02 1 1010-1306 ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 28 1 1010-1306 ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (B) ID=16X2 L=50 		0-95325-586-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (L) ID=9 H=20 L=25 		1-09701-073-0 01 1 1307- ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 1010-1306 ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 1307- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(K) ID=28 L=78 		1-09700-858-0 02 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (A) ID=14.5 L=40 		1-09701-014-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 03 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(G) L=140 		5-09707-031-1 02 1 1010- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 02 1 1010-1201 ● ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 1202-1306 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (M) ID=9 L=20 		0-95234-835-0 01 1 1307- ●
48 CLIP; FRAME HARNESS
(I) OD=9 H=13.5 		1-09709-180-0 01 1 1010-1306 ● ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 29 1 1010-1306 ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 1307- ● ●
81 CLIP; HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1307- ● ●
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1010-1306 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1307- ●
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1307- ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 02 1 1010-1306 ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1010- ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1010- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1010-1306 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1010-1306 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1010-1306 ● ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> L=250 		5-09707-030-1 01 1 1010-1306 ● ●
194 CLIP; BAND
L=250 		5-09707-030-1 02 1 1010-1306 ● ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1010-1306 ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1010-1306 ● ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 03 1 1010-1306 ● ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 04 1 1010-1306 ● ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 07 1 1307- ●
503 CONNECTOR
HEATER & DEFROSTER(C41) 		1-82690-668-0 01 1 1010- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 1010-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306-1306 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1307- ● ●
530 SEAL; HARNESS
A/T<X9D> 180X40 		1-72498-019-1 01 1 1307- ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 1010-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306- ● ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1010- ● ●
596 GROMMET
ZF9S1110 M/T(Y5E) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1010-1306 ● ●
612 CLIP; HARNESS DPD
ZF9S1110 M/T(Y5E) (B) L=135 		1-09987-143-1 02 1 1010-1306 ● ●
612 CLIP; HARNESS DPD
(B) L=135 		1-09987-143-1 02 1 1307-1309 ● ●
612 CLIP; HARNESS DPD
(A) L=250 		5-09707-030-1 01 1 1010-1306 ● ●
612 CLIP; HARNESS DPD
(C) ID=11 L=41 		1-09700-403-0 01 1 1307-1309 ● ●
612 CLIP; HARNESS DPD
(C) ID=11 L=41 		1-09700-403-0 01 1 1307-1309 ● ●
612 CLIP; HARNESS DPD
(C) ID=11 L=41 		1-09700-403-0 01 1 1307-1309 ● ●
612 CLIP; HARNESS DPD
(C) ID=11 L=41 		1-09700-403-0 01 1 1310-1404 ● ●

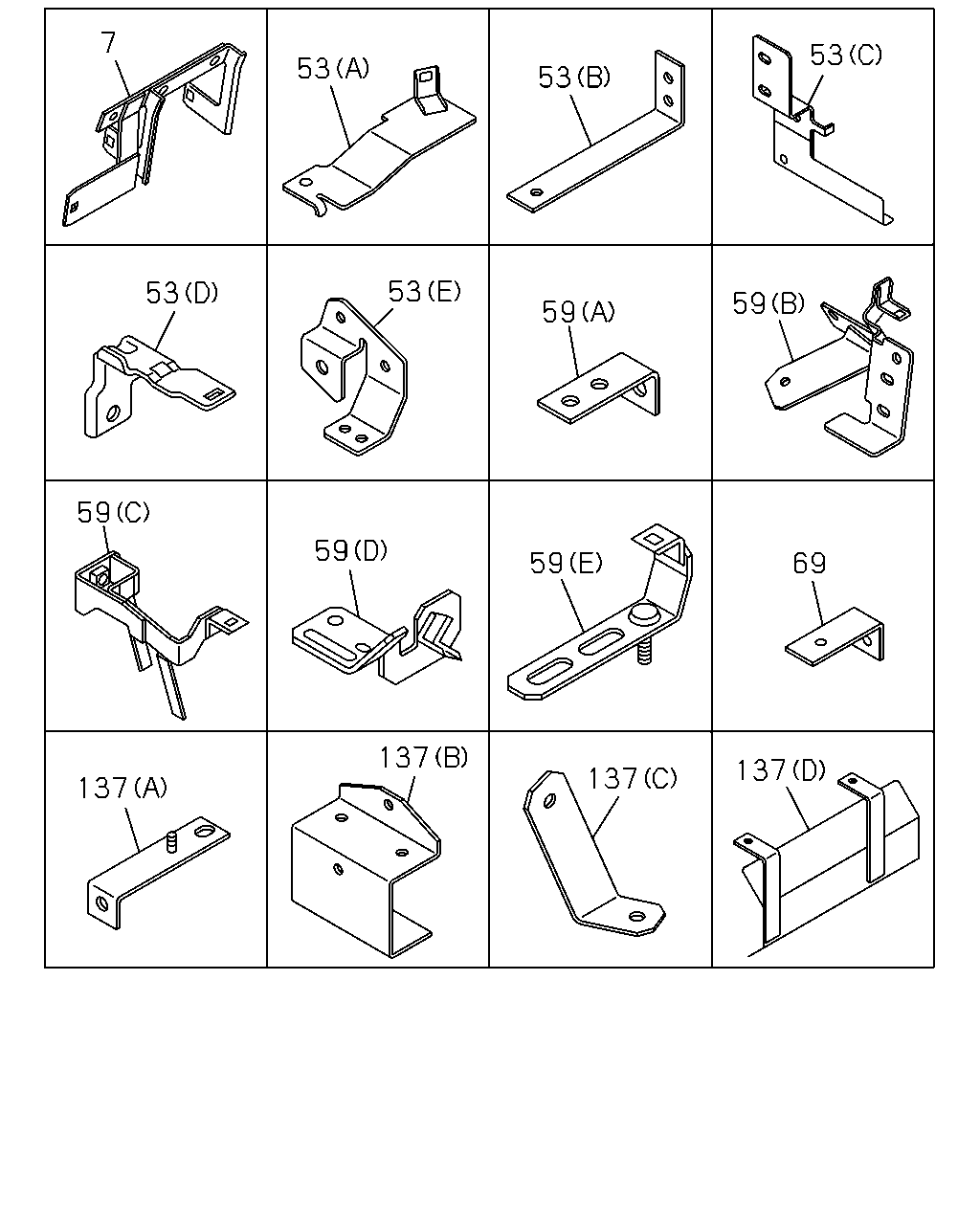

çizim 169298
53 59 69 137 137 137 137 59 59 59 59 53 53 53 7 53
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1010- ● ●
53 BRACKET; HARNESS
(B) 		1-47479-674-0 01 1 1010-1306 ● ●
53 BRACKET; HARNESS
ZF9S1110 M/T(Y5E) (C) 		8-97620-485-0 01 1 1010-1306 ● ●
53 BRACKET; HARNESS
(C) 		8-97620-485-0 01 1 1307- ● ●
53 BRACKET; HARNESS
(D) 		8-98052-458-0 01 1 1010- ● ●
53 BRACKET; HARNESS
(A) 		8-98107-610-1 01 1 1010-1306 ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (E) 		8-98084-590-0 01 1 1010-1306 ● ●
59 BRACKET; FRAME HARNESS
(A) L=62 		1-21464-170-2 01 1 1010- ● ●
59 BRACKET; FRAME HARNESS
ZF9S1110 M/T(Y5E) (C) 		8-97609-264-2 01 1 1010-1306 ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97609-264-2 01 1 1307- ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1010-1306 ● ●
59 BRACKET; FRAME HARNESS
(E) 		8-98047-730-0 02 1 1010-1306 ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-98107-611-0 01 1 1010-1306 ● ●
69 BRACKET; CLIP
L=55 		1-47475-304-0 01 1 1010- ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97609-797-1 02 1 1010- ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97614-728-1 01 1 1010- ● ●
137 BRACKET; HARNESS CLAMP
(A) 		8-97624-013-0 01 1 1010- ● ●
137 BRACKET; HARNESS CLAMP
(D) 		8-98073-436-0 01 1 1307-1406 ● ●
137 BRACKET; HARNESS CLAMP
(D) 		8-98255-001-0 01 1 1407- ● ●

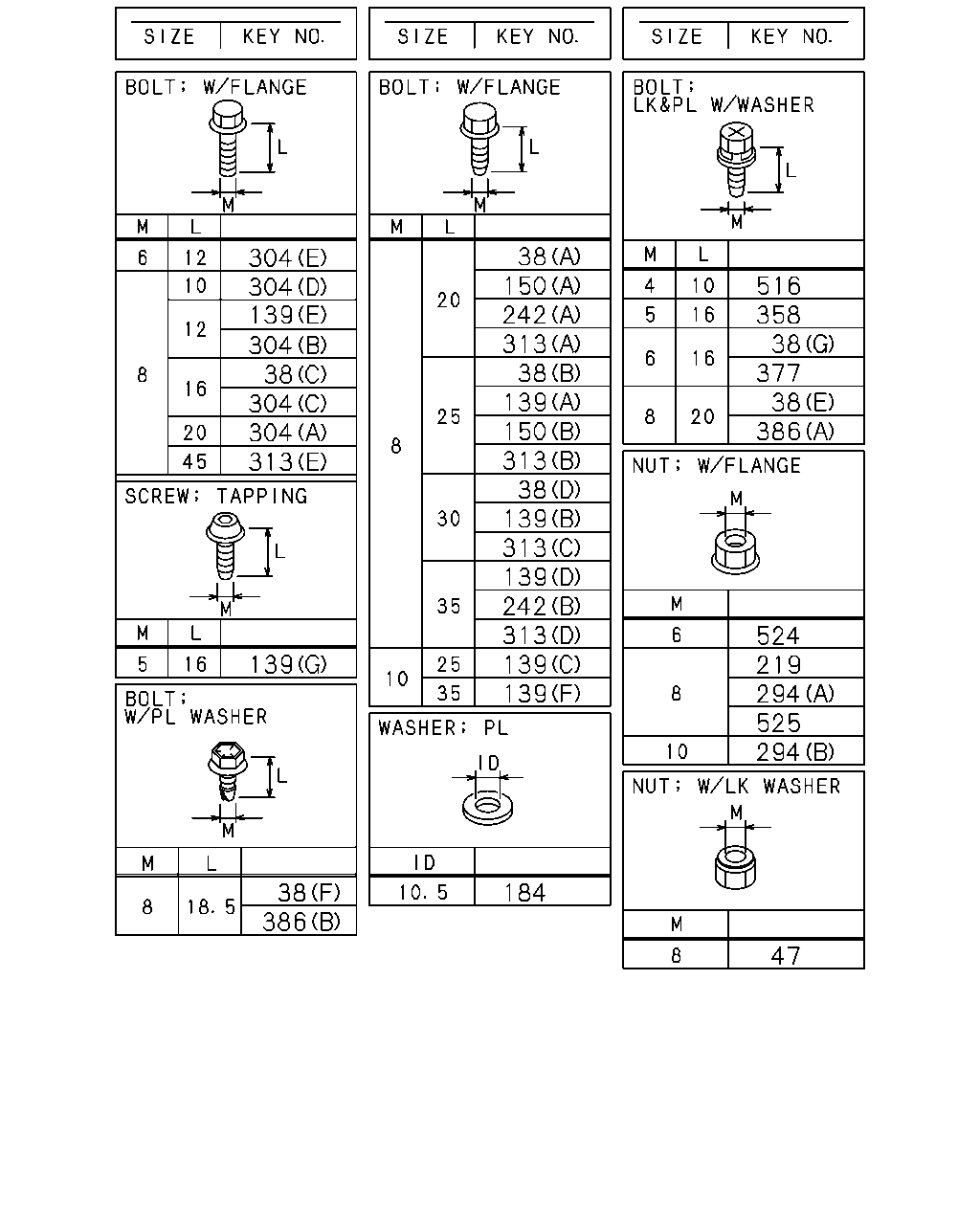

çizim 169300
304 139 304 38 304 304 313 304 139 358 377 38 386 184 139 313 139 242 313 139 38 313 150 139 38 313 242 150 38 38 386 516 38 524 219 294 525 294 47 139
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1010-1306 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
38 BOLT; CLIP,HARNESS
ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1010-1306 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1307- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010-1306 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010-1306 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010-1306 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1307- ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3560P A/T(Y3B) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1307- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 04 1 1010-1306 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1307- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1010-1306 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1010-1306 ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3560P A/T(Y3B) (G) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1307- ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1010-1306 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1307- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1307- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1010-1201 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-1306 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1307- ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3560P A/T(Y3B) (F) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1307- ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1010- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1010-1306 ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1010-1306 ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ● ●
139 BOLT; BRKT
ZF9S1110 M/T(Y5E) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1010- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1010- ● ●
139 BOLT; BRKT
(D) M8X35 FLANGE 		0-28650-835-0 01 1 1010- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1010-1306 ● ●
139 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 02 1 1307- ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 02 1 1010-1306 ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 1307- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1010-1306 ● ●
150 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1010-1306 ● ●
150 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1010- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1010- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1010- ●
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 1010-1306 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1307- ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010-1306 ● ●
242 BOLT; BRKT,HARNESS
ZF9S1110 M/T(Y5E) (B) M8X35 FLANGE 		0-28650-835-0 01 1 1010-1306 ● ●
242 BOLT; BRKT,HARNESS
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1307- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1010-1306 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1010-1306 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1010-1306 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 1010-1306 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 1010-1306 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 1307- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1010-1306 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 1010- ● ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 1010-1010 ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1010- ● ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1010- ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1010- ● ●
313 BOLT; BRKT
(E) M8X45 FLANGE 		0-28050-845-0 01 1 1010-1306 ● ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1010-1306 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1010-1306 ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1010-1306 ● ●
313 BOLT; BRKT
(D) M8X35 FLANGE 		0-28650-835-0 01 1 1010-1306 ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1010-1306 ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1010- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1010-1202 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ●
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1010- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1010- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 1010-1306 ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 1010-1306 ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 1010- ● ●
çizim 169302
324 308 308 308 312 312 324 335 428 308 312
BalonParca AdiParca NoAdetTipApplied Date A B
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 1010-1010 ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011- ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 1010- ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 1010- ● ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1010- ● ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 1010-1306 ● ●
312 BRACKET; CLIP HARNESS
(C) 		8-97609-110-1 01 1 1010-1306 ● ●
312 BRACKET; CLIP HARNESS
(A) 		8-97620-519-0 01 1 1010-1306 ● ●
324 BRACKET; CLIP
(A) 		1-47479-430-0 02 1 1010-1306 ● ●
324 BRACKET; CLIP
(B) 		8-98210-921-1 01 1 1307- ● ●
324 BRACKET; CLIP
(B) 		8-98210-922-1 01 1 1307- ● ●
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1010-1306 ● ●
428 BRACKET 8-97620-514-0 01 1 1010-1306 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
