Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#60532) — 661 parça

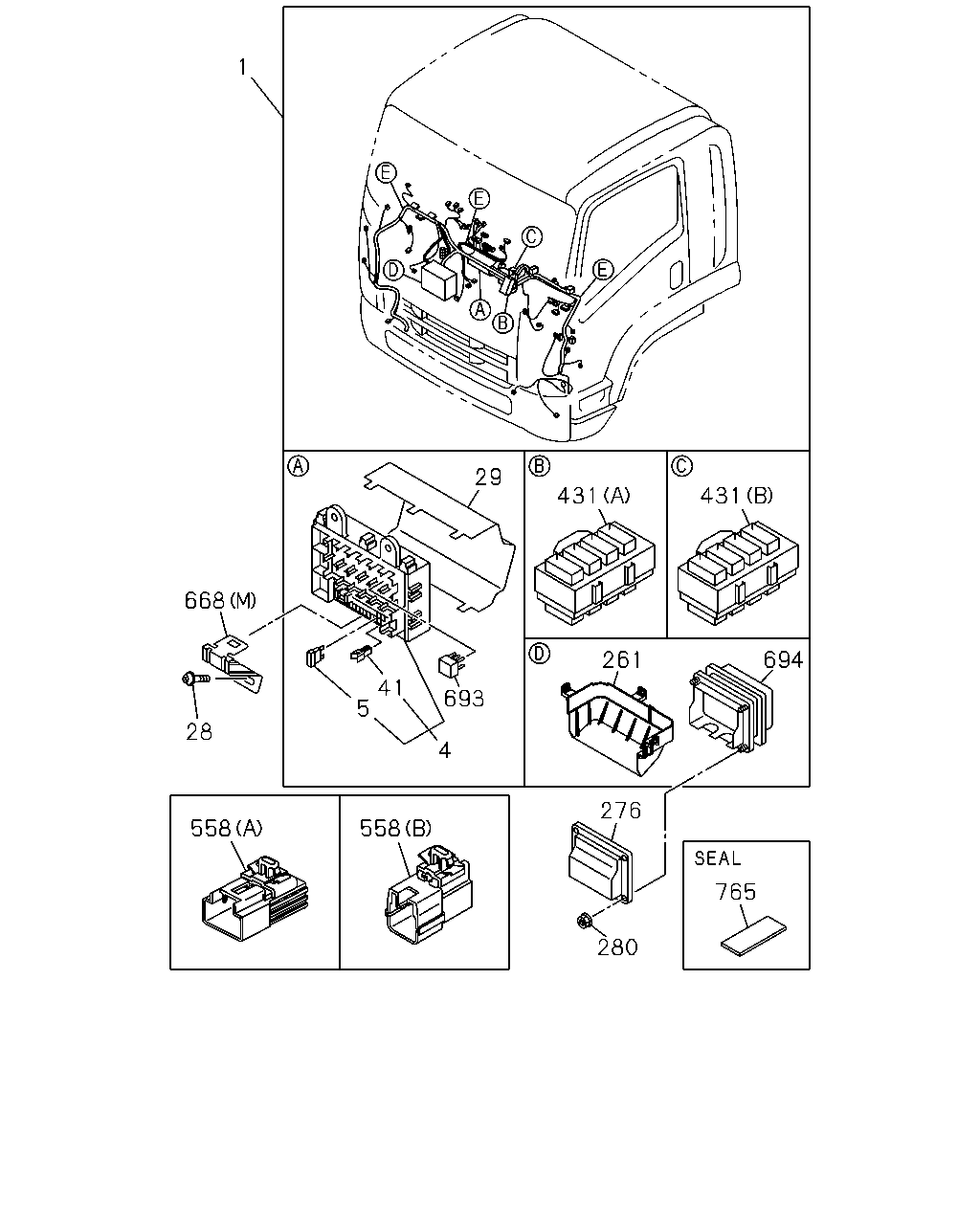

1 29 668 28 5 41 4 693 558 558 276 280 431 261 431 694 765

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-766-0	01	1	1502-	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-765-0	01	1	1502-	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-768-0	01	1	1502-	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-767-0	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98224-979-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8>	8-98224-977-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-843-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98232-843-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-841-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-841-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-999-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-999-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98207-986-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD>	8-98207-986-0	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-844-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-844-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98207-984-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD>	8-98207-984-0	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-854-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-854-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98188-002-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98188-002-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98207-987-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD>	8-98207-987-0	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98224-978-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98207-985-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD>	8-98207-985-0	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8>	8-98224-976-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD>	8-98224-982-1	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-845-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-845-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-980-1	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-855-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-855-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD>	8-98224-983-1	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-842-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98232-842-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-981-1	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-840-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-840-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98085-030-2	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-030-2	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-008-2	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98085-026-3	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-026-3	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-004-2	01	1	1110-1203	●	●

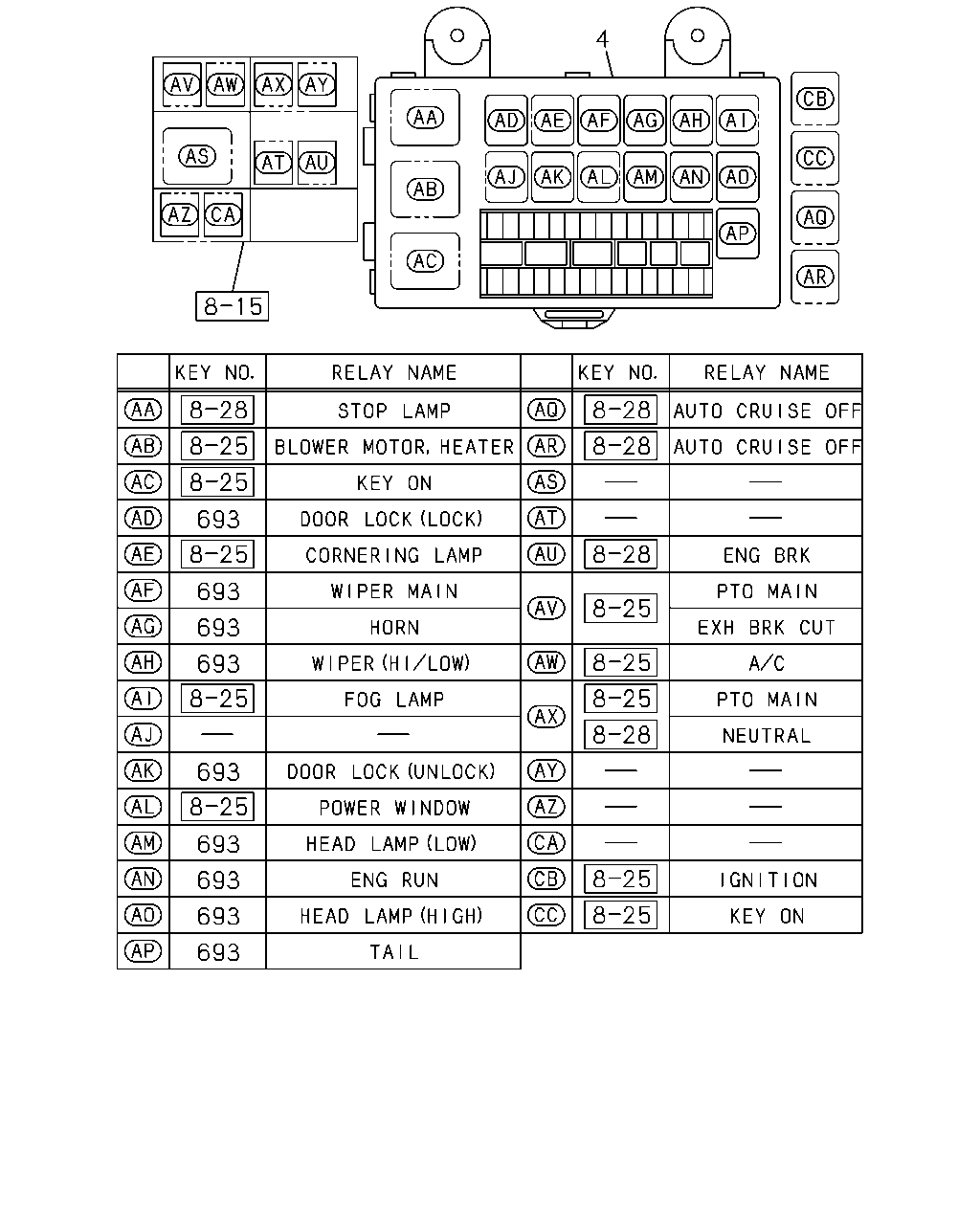

4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1010-	●	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1010-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1010-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1010-	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1010-	●	●
28	SCREW; FUSE BOX M6X16 FLANGE	0-28650-616-0	01	1	1010-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1010-	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	1010-	●	●
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1207-	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1010-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1010-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1010-1306	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	05	1	1010-1306	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1010-1306	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	1010-1306	●	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	01	1	1010-1306	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1010-1206	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	02	1	1010-1206	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1010-1206	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	1010-1206	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1010-1206	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1010-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1010-	●	●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98108-678-0	01	1	1010-	●	●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98108-679-0	01	1	1010-	●	●

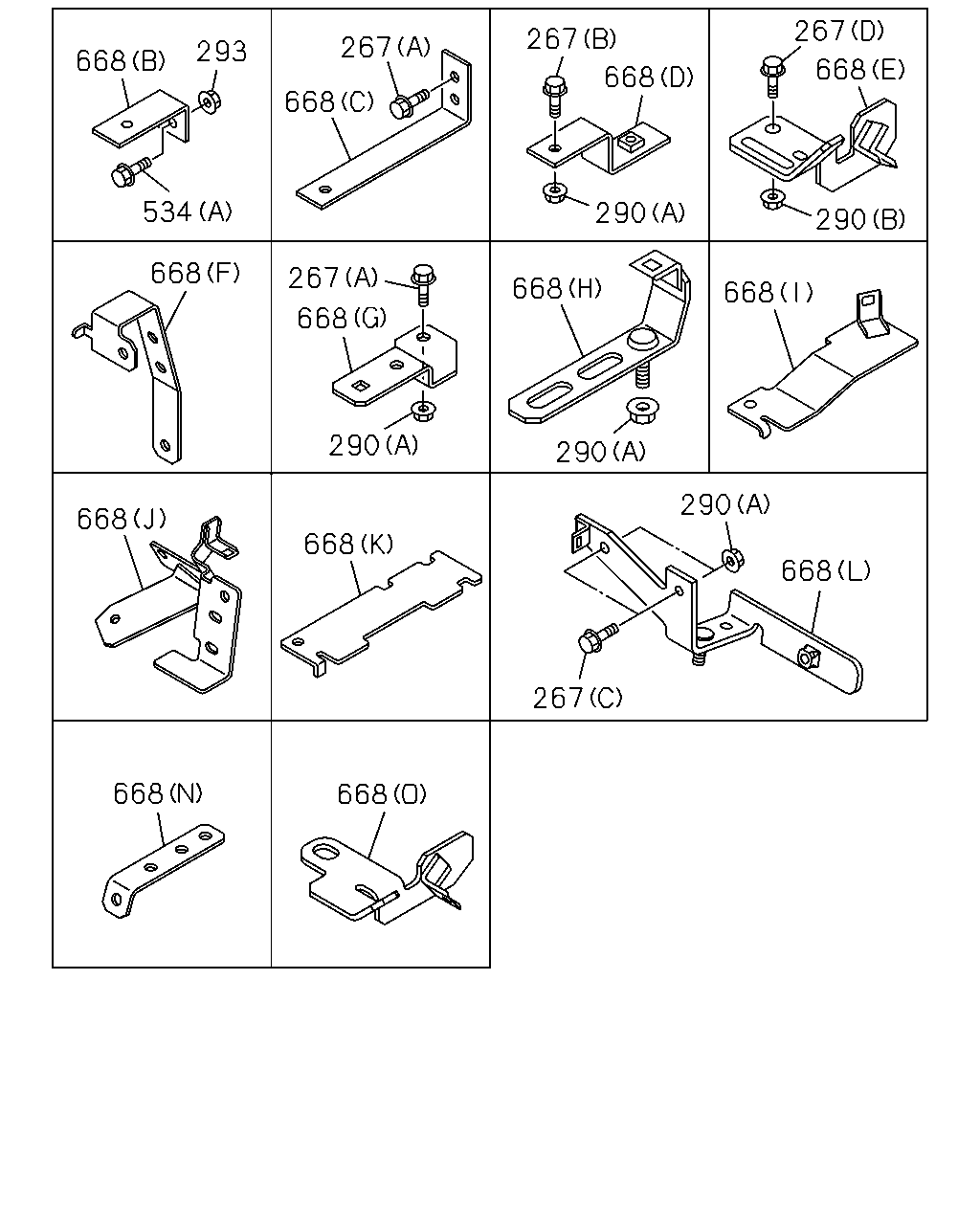

668	BRACKET; HARNESS (N)	1-82698-167-0	01	1	1307-	●	●

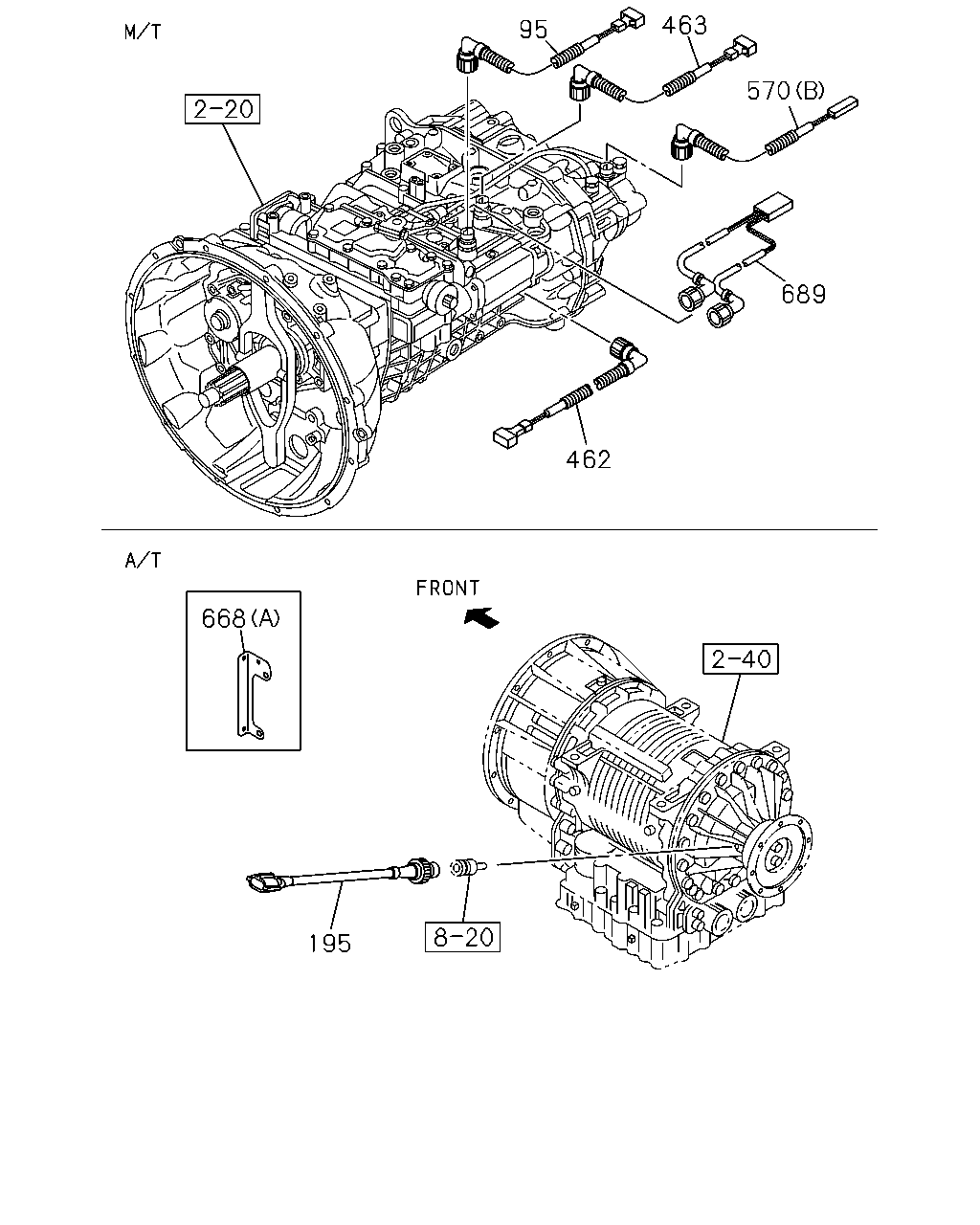

668	BRACKET; HARNESS ALLISON MD3560P A/T(Y3B) (A)	8-98032-360-0	01	1	1307-1501	●
668	BRACKET; HARNESS ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (A)	8-98032-360-0	01	1	1502-1503	●
668	BRACKET; HARNESS ALLISON MD3560P A/T(Y3B) (A)	8-98032-360-0	01	1	1504-	●
668	BRACKET; HARNESS (B) L=55	1-47475-304-0	01	1	1307-	●	●
668	BRACKET; HARNESS (C)	1-47479-674-0	01	1	1307-	●	●
668	BRACKET; HARNESS (D)	8-97609-110-1	01	1	1307-	●	●
668	BRACKET; HARNESS (E)	8-97616-305-0	01	1	1307-1308	●	●
668	BRACKET; HARNESS (E)	8-97616-305-0	01	1	1307-1308	●	●
668	BRACKET; HARNESS (F)	8-97619-097-1	01	1	1307-	●	●
668	BRACKET; HARNESS (G)	8-97620-519-0	01	1	1307-	●	●
668	BRACKET; HARNESS (H)	8-98047-730-0	02	1	1307-1308	●	●
668	BRACKET; HARNESS (H)	8-98047-730-0	02	1	1307-1308	●	●
668	BRACKET; HARNESS (H)	8-98047-730-0	02	1	1309-	●	●
668	BRACKET; HARNESS (I)	8-98107-610-1	01	1	1307-	●	●
668	BRACKET; HARNESS (J)	8-98107-611-0	01	1	1307-1308	●	●
668	BRACKET; HARNESS (J)	8-98107-611-0	01	1	1307-1308	●	●
668	BRACKET; HARNESS (J)	8-98107-611-0	01	1	1309-	●	●
668	BRACKET; HARNESS (K)	8-98127-093-0	01	1	1307-1308	●	●
668	BRACKET; HARNESS (E)	8-97616-305-0	01	1	1309-1502	●	●
668	BRACKET; HARNESS (O)	8-98254-592-0	01	1	1503-	●	●
668	BRACKET; HARNESS (L)	8-98212-082-1	01	1	1307-	●	●
668	BRACKET; HARNESS (M)	8-98095-653-2	01	1	1010-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1010-	●	●
694	BOX ASM; CONNECTOR	8-98063-269-1	01	1	1010-1206	●	●
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1207-	●	●
765	TAPE 100X40	1-72498-022-1	01	1	1409-	●	●

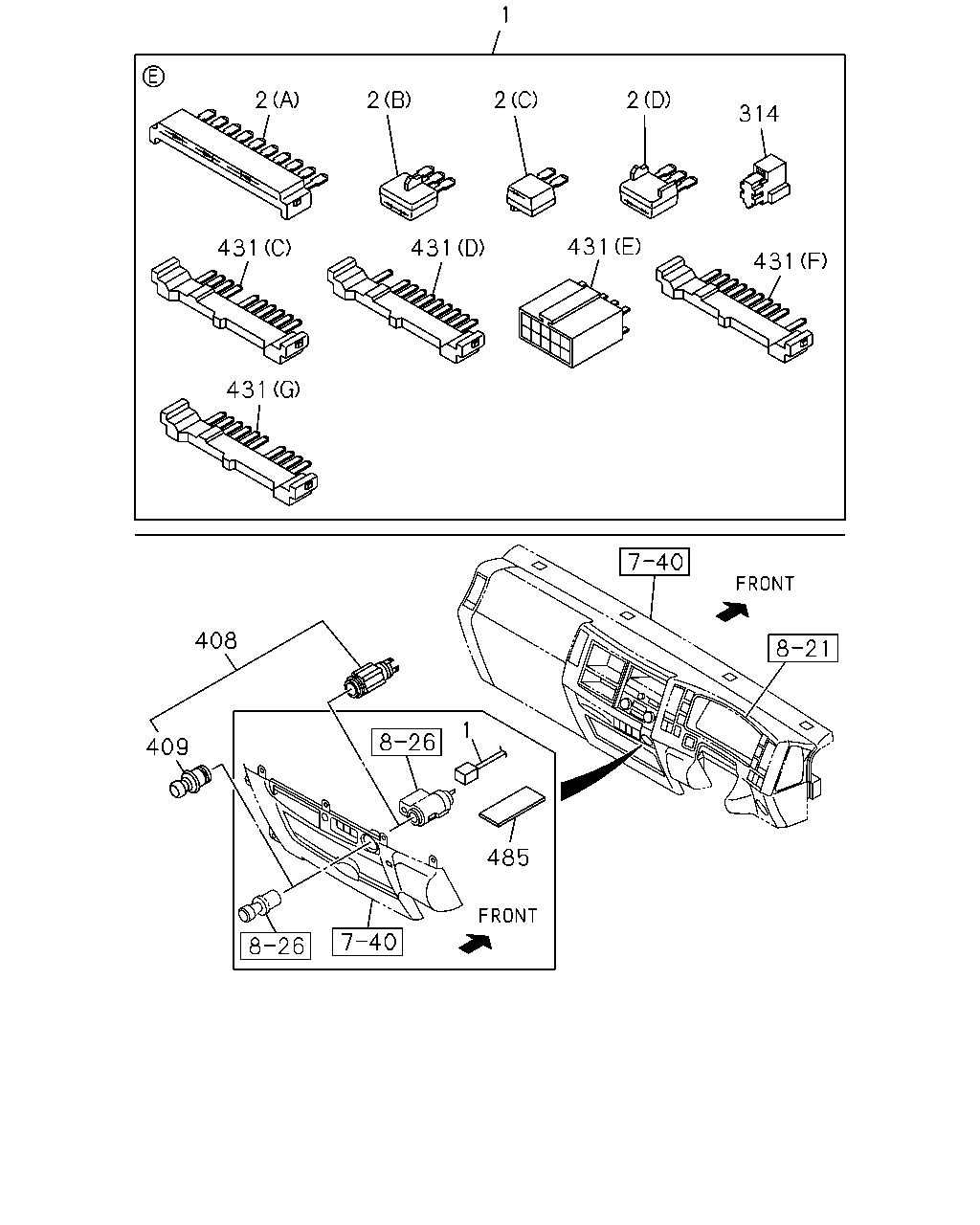

314 2 2 2 2 1 431 431 431 431 431 408 1 485 409

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-766-0	01	1	1502-	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-765-0	01	1	1502-	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-768-0	01	1	1502-	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-767-0	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98224-979-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8>	8-98224-977-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-843-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98232-843-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-841-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-841-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-999-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-999-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98207-986-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD>	8-98207-986-0	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-844-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-844-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98207-984-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD>	8-98207-984-0	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-854-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-854-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98188-002-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98188-002-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98207-987-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD>	8-98207-987-0	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98224-978-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98207-985-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD>	8-98207-985-0	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8>	8-98224-976-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD>	8-98224-982-1	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-845-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-845-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-980-1	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-855-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-855-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD>	8-98224-983-1	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-842-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98232-842-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-981-1	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-840-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-840-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98085-030-2	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-030-2	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-008-2	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98085-026-3	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-026-3	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-004-2	01	1	1110-1203	●	●
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	01	1	1010-1206	●	●
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	AR	1	1207-	●	●
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A	8-94416-438-1	01	1	1010-1206	●	●
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A	8-94416-438-1	AR	1	1207-1306	●	●
2	DIODE; CABLE HARNESS ZF9S1110 M/T(Y5E) (D) BLACK 3P-1.5A	8-94416-438-1	AR	1	1307-1501	●	●
2	DIODE; CABLE HARNESS ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF> (D) BLACK 3P-1.5A	8-94416-438-1	AR	1	1502-	●
2	DIODE; CABLE HARNESS ZF9S1110 M/T(Y5E) (D) BLACK 3P-1.5A	8-94416-438-1	AR	1	1502-	●
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A	8-94416-438-1	AR	1	1502-		●
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A	8-94422-639-1	03	1	1010-1206	●	●
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A	8-94422-639-1	AR	1	1207-1306	●	●
2	DIODE; CABLE HARNESS ZF9S1110 M/T(Y5E) (C) BLACK 2P-1.5A	8-94422-639-1	AR	1	1307-1501	●	●
2	DIODE; CABLE HARNESS ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF> (C) BLACK 2P-1.5A	8-94422-639-1	AR	1	1502-	●
2	DIODE; CABLE HARNESS ZF9S1110 M/T(Y5E) (C) BLACK 2P-1.5A	8-94422-639-1	AR	1	1502-	●
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A	8-94422-639-1	AR	1	1502-		●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	01	1	1010-1206	●	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1207-1306	●	●
2	DIODE; CABLE HARNESS ZF9S1110 M/T(Y5E) (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1307-1501	●	●
2	DIODE; CABLE HARNESS ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF> (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1502-	●
2	DIODE; CABLE HARNESS ZF9S1110 M/T(Y5E) (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1502-	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1502-		●
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	1010-1206	●	●
408	SOCKET ASM; ACCESSORY EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98169-757-0	01	1	1307-	●	●
409	CAP; ACCESSORY SOCKET EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98183-771-0	01	1	1307-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1010-1306	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	05	1	1010-1306	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1010-1306	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	1010-1306	●	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	01	1	1010-1306	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1010-1206	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	02	1	1010-1206	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1010-1206	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	1010-1206	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1010-1206	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1010-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1010-	●	●
485	SEAL; CONNECTOR 180X40	1-72498-019-1	01	1	1010-1306	●	●

453 431 174 388 10 184 27 184 431 431 431 431 720 389 698 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF>	8-98303-286-0	01	1	1502-	●
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98232-753-1	01	1	1307-1501	●
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF>	8-98232-753-1	01	1	1502-	●
6	HARNESS; FRAME	8-98174-334-0	01	1	1010-1306	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E)	8-98232-751-0	01	1	1307-1501	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF>	8-98232-751-0	01	1	1502-	●
6	HARNESS; FRAME	8-98232-751-0	01	1	1502-		●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1010-1501	●	●
10	BOX; FUSE,HARNESS ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF>	8-98030-762-0	01	1	1502-	●
10	BOX; FUSE,HARNESS ALLISON MD3560P A/T(Y3B)	8-98030-762-0	01	1	1502-		●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1502-		●
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1010-1501	●	●
27	FUSE UNIT ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF> 10A RED	8-98054-257-0	01	1	1502-	●
27	FUSE UNIT ALLISON MD3560P A/T(Y3B) 10A RED	8-98054-257-0	01	1	1502-		●
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1502-		●
27	FUSE UNIT 15A BLUE	8-98054-258-0	03	1	1010-1306	●	●
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	1307-1501	●	●
27	FUSE UNIT ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF> 15A BLUE	8-98054-258-0	02	1	1502-	●
27	FUSE UNIT ALLISON MD3560P A/T(Y3B) 15A BLUE	8-98054-258-0	02	1	1502-		●
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	1502-		●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1107-1501	●	●
174	FUSE; SLOW BLOW ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF> 60A YELLOW	8-97219-407-0	01	1	1502-	●
174	FUSE; SLOW BLOW ALLISON MD3560P A/T(Y3B) 60A YELLOW	8-97219-407-0	01	1	1502-		●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1502-		●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	01	1	1010-1501	●	●
174	FUSE; SLOW BLOW ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF> 30A PINK	8-98079-191-0	01	1	1502-	●
174	FUSE; SLOW BLOW ALLISON MD3560P A/T(Y3B) 30A PINK	8-98079-191-0	01	1	1502-		●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	01	1	1502-		●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	01	1	1010-1501	●	●
174	FUSE; SLOW BLOW ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF> 40A GREEN	8-98079-192-0	01	1	1502-	●
174	FUSE; SLOW BLOW ALLISON MD3560P A/T(Y3B) 40A GREEN	8-98079-192-0	01	1	1502-		●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	01	1	1502-		●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1010-1501	●	●
174	FUSE; SLOW BLOW ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF> 50A RED	8-98079-193-0	03	1	1502-	●
174	FUSE; SLOW BLOW ALLISON MD3560P A/T(Y3B) 50A RED	8-98079-193-0	03	1	1502-		●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1502-		●
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW	8-97219-407-0	03	1	1010-1106	●	●
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW	8-97219-407-0	02	1	1107-1501	●	●
174	FUSE; SLOW BLOW ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF> 60A YELLOW 60A YELLOW	8-97219-407-0	02	1	1502-	●
174	FUSE; SLOW BLOW ALLISON MD3560P A/T(Y3B) 60A YELLOW 60A YELLOW	8-97219-407-0	02	1	1502-		●
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW	8-97219-407-0	02	1	1502-		●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1010-1501	●	●
184	COVER; RELAY & FUSE BOX ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF> (A)	8-98030-766-0	01	1	1502-	●
184	COVER; RELAY & FUSE BOX ALLISON MD3560P A/T(Y3B) (A)	8-98030-766-0	01	1	1502-		●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1502-		●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1010-1501	●	●
184	COVER; RELAY & FUSE BOX ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF> (B)	8-98030-767-1	01	1	1502-	●
184	COVER; RELAY & FUSE BOX ALLISON MD3560P A/T(Y3B) (B)	8-98030-767-1	01	1	1502-		●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1502-		●
388	DIODE; RELAY BOX BLACK 4P-1.5A	8-94381-730-0	02	1	1010-1306	●	●
388	DIODE; RELAY BOX BLACK 4P-1.5A	8-94381-730-0	01	1	1307-1501	●	●
388	DIODE; RELAY BOX ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF> BLACK 4P-1.5A	8-94381-730-0	01	1	1502-	●
388	DIODE; RELAY BOX ALLISON MD3560P A/T(Y3B) BLACK 4P-1.5A	8-94381-730-0	01	1	1502-		●
388	DIODE; RELAY BOX BLACK 4P-1.5A	8-94381-730-0	01	1	1502-		●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	02	1	1010-1501	●	●
388	DIODE; RELAY BOX ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF> BLACK 2P-1.5A	8-94422-639-1	02	1	1502-	●
388	DIODE; RELAY BOX ALLISON MD3560P A/T(Y3B) BLACK 2P-1.5A	8-94422-639-1	02	1	1502-		●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	02	1	1502-		●
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1010-1306	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1010-1306	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	05	1	1010-1306	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1010-1306	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	1010-1306	●	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	01	1	1010-1306	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1010-1206	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	02	1	1010-1206	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1010-1206	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	1010-1206	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1010-1206	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1010-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1010-	●	●
453	PROTECTOR; HARNESS	1-82699-709-0	01	1	1010-1501	●	●
453	PROTECTOR; HARNESS ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF>	1-82699-709-0	01	1	1502-	●
453	PROTECTOR; HARNESS ALLISON MD3560P A/T(Y3B)	1-82699-709-0	01	1	1502-		●
453	PROTECTOR; HARNESS	1-82699-709-0	01	1	1502-		●
698	NUT; COVER,RELAY BOX M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1010-1501	●	●
720	ATTACHMENT; CONNECTOR ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF>	1-82699-688-0	03	1	1502-	●
720	ATTACHMENT; CONNECTOR ALLISON MD3560P A/T(Y3B)	1-82699-688-0	03	1	1502-		●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1502-		●

9 6 9 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

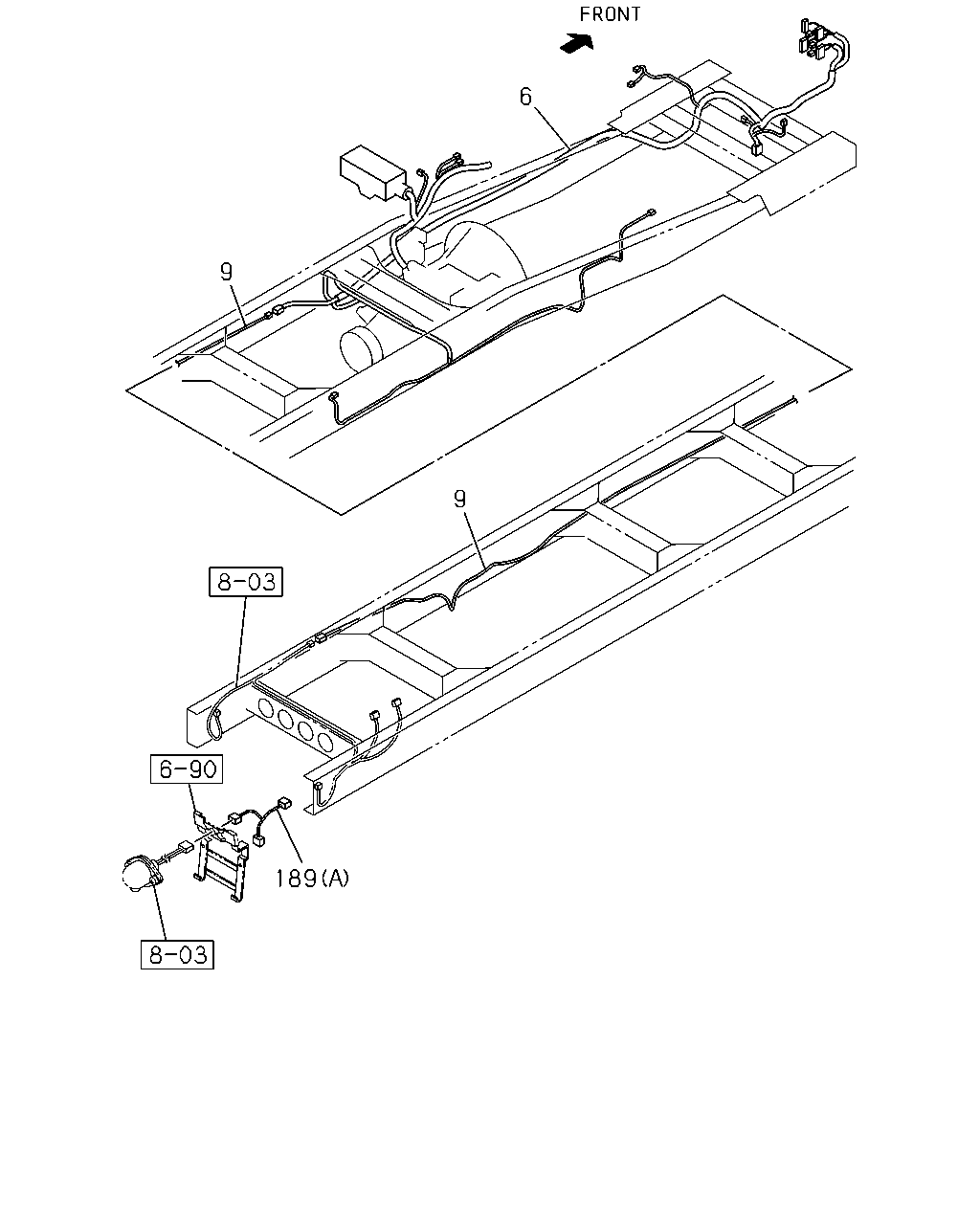

6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF>	8-98303-286-0	01	1	1502-	●
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98232-753-1	01	1	1307-1501	●
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF>	8-98232-753-1	01	1	1502-	●
6	HARNESS; FRAME	8-98174-334-0	01	1	1010-1306	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E)	8-98232-751-0	01	1	1307-1501	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF>	8-98232-751-0	01	1	1502-	●
6	HARNESS; FRAME	8-98232-751-0	01	1	1502-		●
9	HARNESS; FRAME,RR	8-98168-675-0	01	1	1010-1306	●
9	HARNESS; FRAME,RR	8-98246-420-0	01	1	1307-	●
9	HARNESS; FRAME,RR	8-98168-628-0	01	1	1010-1306		●
9	HARNESS; FRAME,RR	8-98246-419-0	01	1	1307-		●
189	HARNESS; EXT (B)	8-98098-510-0	01	1	1307-	●	●
189	HARNESS; EXT EXC. COUNTRY NEW ZEALAND(CX6) (A)	8-98131-066-0	01	1	1206-	●
189	HARNESS; EXT (A)	8-98131-066-0	01	1	1206-		●

12 204 18 14 18 378 14 443 1 691 1 186 6

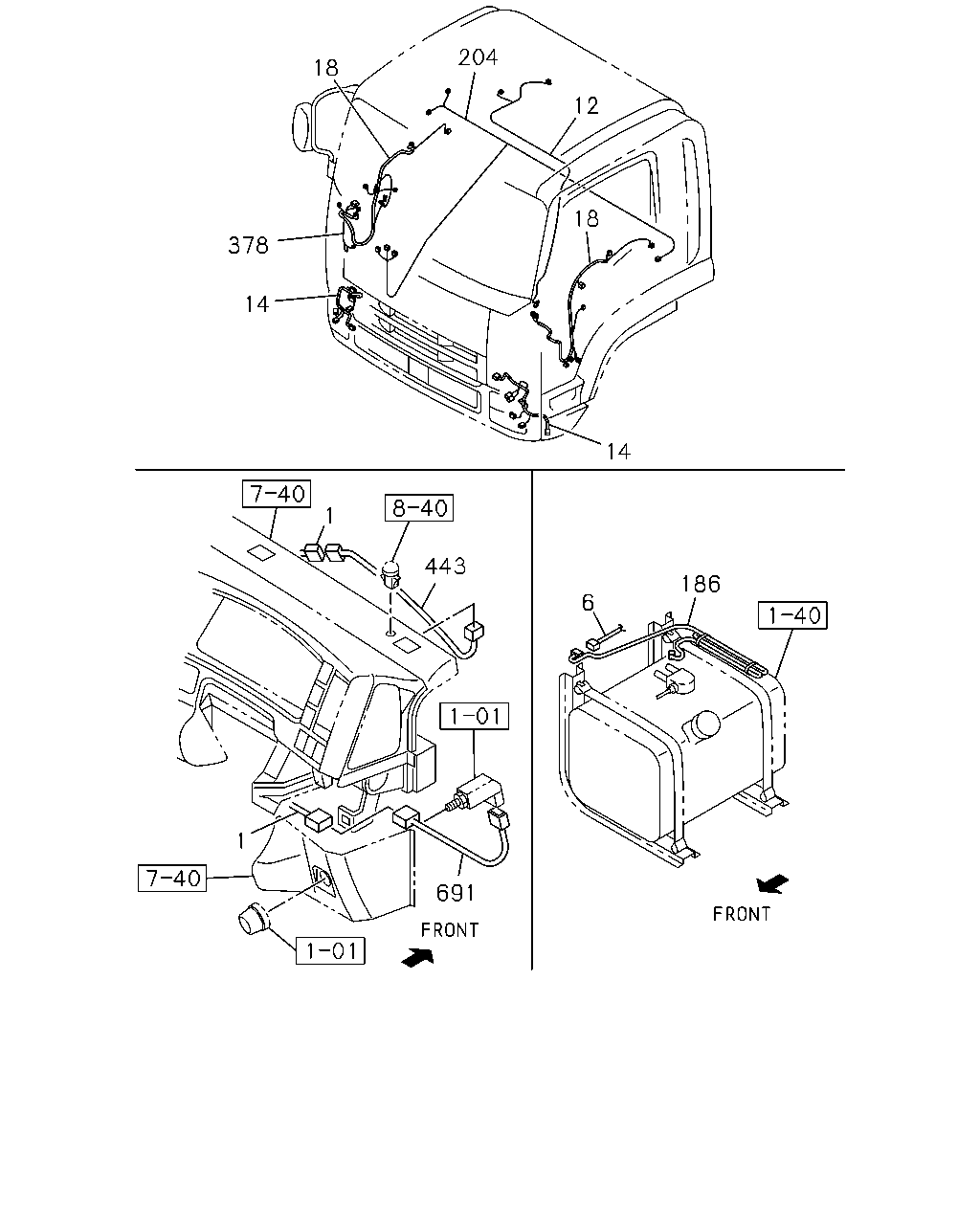

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-766-0	01	1	1502-	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-765-0	01	1	1502-	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-768-0	01	1	1502-	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-767-0	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98224-979-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8>	8-98224-977-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-843-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98232-843-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-841-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-841-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-999-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-999-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98207-986-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD>	8-98207-986-0	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-844-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-844-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98207-984-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD>	8-98207-984-0	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-854-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-854-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98188-002-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98188-002-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98207-987-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD>	8-98207-987-0	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98224-978-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98207-985-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD>	8-98207-985-0	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8>	8-98224-976-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD>	8-98224-982-1	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-845-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-845-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-980-1	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-855-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-855-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD>	8-98224-983-1	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-842-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98232-842-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-981-1	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-840-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-840-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98085-030-2	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-030-2	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-008-2	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98085-026-3	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-026-3	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-004-2	01	1	1110-1203	●	●
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF>	8-98303-286-0	01	1	1502-	●
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98232-753-1	01	1	1307-1501	●
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF>	8-98232-753-1	01	1	1502-	●
6	HARNESS; FRAME	8-98174-334-0	01	1	1010-1306	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E)	8-98232-751-0	01	1	1307-1501	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF>	8-98232-751-0	01	1	1502-	●
6	HARNESS; FRAME	8-98232-751-0	01	1	1502-		●
12	HARNESS; ROOF	8-98079-072-1	01	1	1010-	●	●
14	HARNESS; HEADLAMP CORNERING LAMP<T87>	8-98077-292-0	02	1	1210-1306	●	●
14	HARNESS; HEADLAMP CORNERING LAMP<T87>	8-98077-292-1	02	1	1307-	●
14	HARNESS; HEADLAMP	8-98077-292-1	02	1	1307-		●
14	HARNESS; HEADLAMP	8-98069-166-0	02	1	1010-1209	●	●
14	HARNESS; HEADLAMP EXC. CORNERING LAMP<T87>	8-98069-166-0	02	1	1210-1306	●	●
14	HARNESS; HEADLAMP EXC. CORNERING LAMP<T87>	8-94270-986-0	02	1	1307-	●
18	HARNESS; DOOR	8-98079-076-5	01	1	1010-	●	●
18	HARNESS; DOOR	8-98079-079-5	01	1	1010-	●	●
186	HARNESS; FUEL TANK	8-98099-650-0	01	1	1010-	●	●
204	HARNESS; CABLE,FLOOR ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3)	8-98085-299-2	01	1	1307-	●
204	HARNESS; CABLE,FLOOR ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5)	8-98085-300-1	01	1	1307-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5)	8-98085-286-1	01	1	1010-1306	●	●
204	HARNESS; CABLE,FLOOR ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5)	8-98085-286-1	01	1	1307-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3)	8-98085-281-2	01	1	1010-1306	●	●
204	HARNESS; CABLE,FLOOR ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3)	8-98085-281-2	01	1	1307-	●	●
378	HARNESS; EXT,MIRROR	8-98056-541-0	02	1	1010-1010	●	●
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	1010-	●	●
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1010-	●	●

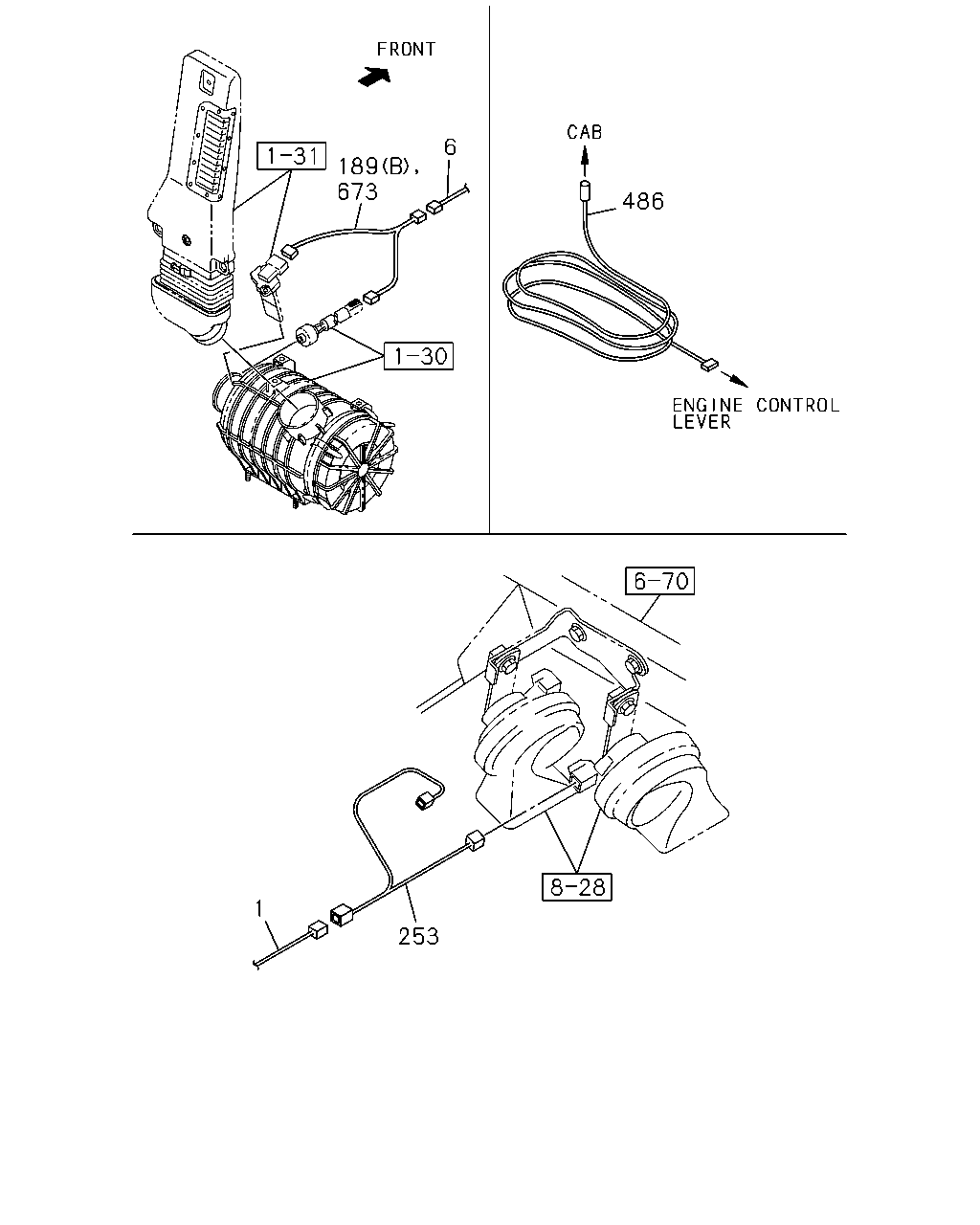

6 189 673 486 253 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-766-0	01	1	1502-	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-765-0	01	1	1502-	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-768-0	01	1	1502-	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-767-0	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98224-979-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8>	8-98224-977-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-843-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98232-843-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-841-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-841-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-999-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-999-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98207-986-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD>	8-98207-986-0	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-844-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-844-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98207-984-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD>	8-98207-984-0	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-854-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-854-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98188-002-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98188-002-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98207-987-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD>	8-98207-987-0	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98224-978-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98207-985-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD>	8-98207-985-0	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8>	8-98224-976-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD>	8-98224-982-1	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-845-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-845-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-980-1	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-855-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-855-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD>	8-98224-983-1	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-842-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98232-842-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-981-1	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-840-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-840-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98085-030-2	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-030-2	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-008-2	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98085-026-3	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-026-3	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-004-2	01	1	1110-1203	●	●
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF>	8-98303-286-0	01	1	1502-	●
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98232-753-1	01	1	1307-1501	●
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF>	8-98232-753-1	01	1	1502-	●
6	HARNESS; FRAME	8-98174-334-0	01	1	1010-1306	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E)	8-98232-751-0	01	1	1307-1501	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF>	8-98232-751-0	01	1	1502-	●
6	HARNESS; FRAME	8-98232-751-0	01	1	1502-		●
189	HARNESS; EXT (B)	8-98098-510-0	01	1	1307-	●	●
189	HARNESS; EXT EXC. COUNTRY NEW ZEALAND(CX6) (A)	8-98131-066-0	01	1	1206-	●
189	HARNESS; EXT (A)	8-98131-066-0	01	1	1206-		●
253	HARNESS; EXT,HORN	8-98074-081-2	01	1	1010-	●	●
486	HARNESS; ALL SPEED ACCEL PTO ZF TRANS RR(BDM)	1-82675-898-0	01	1	1010-	●	●
673	HARNESS; EXT,SENSOR	8-98098-510-0	01	1	1010-1306	●	●

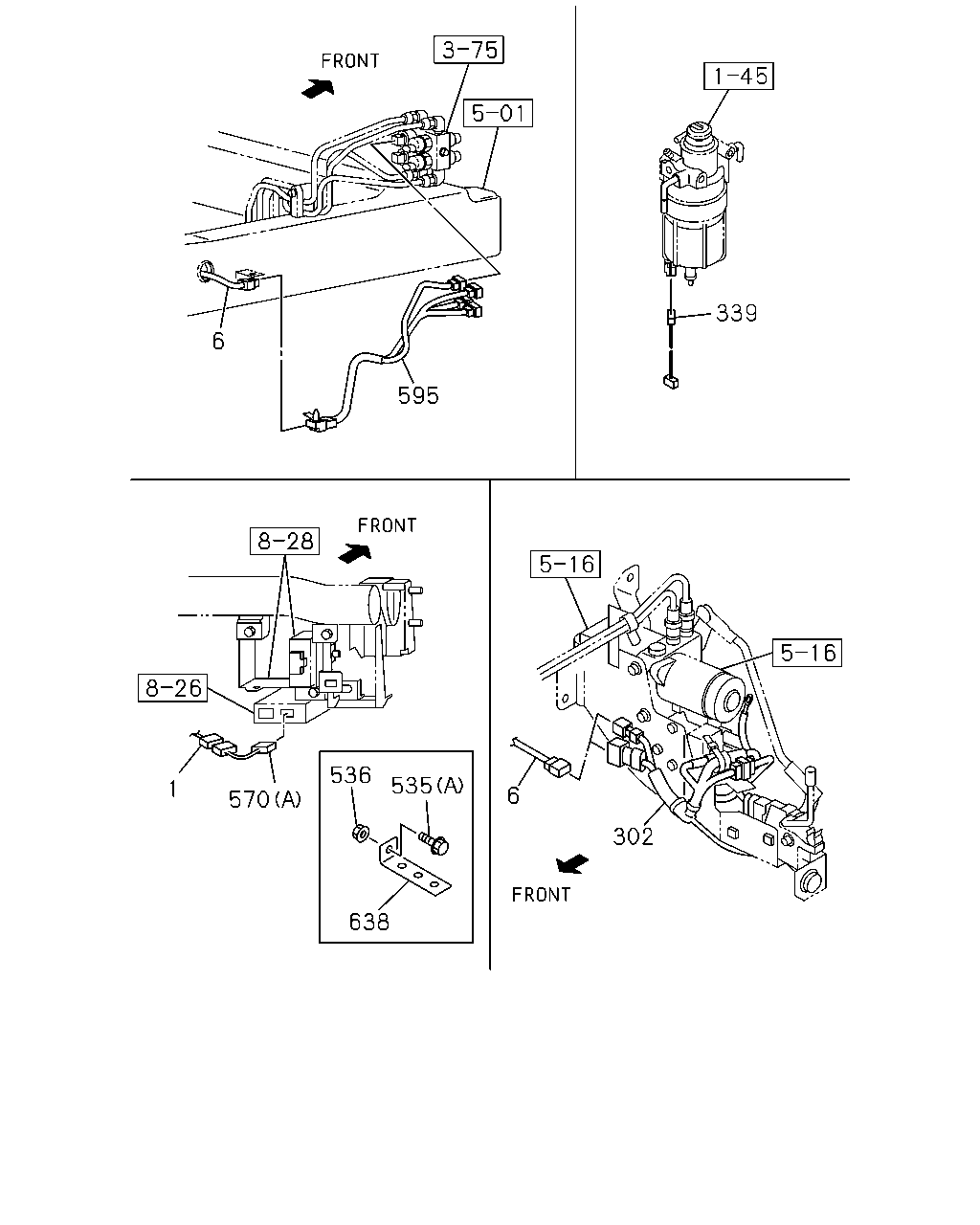

302 6 536 535 638 570 1 339 595 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-766-0	01	1	1502-	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-765-0	01	1	1502-	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-768-0	01	1	1502-	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-767-0	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98224-979-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8>	8-98224-977-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-843-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98232-843-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-841-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-841-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-999-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-999-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98207-986-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD>	8-98207-986-0	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-844-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-844-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98207-984-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD>	8-98207-984-0	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-854-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-854-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98188-002-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98188-002-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98207-987-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD>	8-98207-987-0	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98224-978-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1204-1206	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98207-985-0	01	1	1207-1209	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD>	8-98207-985-0	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8>	8-98224-976-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD>	8-98224-982-1	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-845-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-845-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-980-1	01	1	1210-1306	●	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-855-1	01	1	1307-1501	●
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-855-1	01	1	1502-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD>	8-98224-983-1	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98232-842-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98232-842-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-981-1	01	1	1210-1306	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-840-1	01	1	1307-	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98232-840-1	01	1	1307-		●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98085-030-2	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-030-2	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-008-2	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98085-026-3	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-026-3	01	1	1110-1203	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	1010-1109	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-004-2	01	1	1110-1203	●	●
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF>	8-98303-286-0	01	1	1502-	●
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98232-753-1	01	1	1307-1501	●
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF>	8-98232-753-1	01	1	1502-	●
6	HARNESS; FRAME	8-98174-334-0	01	1	1010-1306	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E)	8-98232-751-0	01	1	1307-1501	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF>	8-98232-751-0	01	1	1502-	●
6	HARNESS; FRAME	8-98232-751-0	01	1	1502-		●
302	HARNESS; POWER CAB TILT	8-97620-490-1	01	1	1010-	●	●
339	HARNESS; EXT,FUEL	8-98227-393-0	01	1	1307-	●	●
535	BOLT; BRKT FIX (A) M8X35 FLANGE	0-28650-835-0	01	1	1010-1306	●	●
535	BOLT; BRKT FIX (B) M10X35 FLANGE	0-28651-035-0	01	1	1307-	●	●
536	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1010-1306	●	●
570	HARNESS; SPEED SENSOR ALLISON MD3560P A/T(Y3B) (A)	8-98091-562-0	01	1	1307-1405	●
570	HARNESS; SPEED SENSOR ALLISON MD3560P A/T(Y3B) SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) (A)	8-98091-562-0	01	1	1406-	●
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (A)	8-98058-327-1	01	1	1010-1109	●	●
570	HARNESS; SPEED SENSOR (A)	8-98058-327-1	01	1	1110-1306	●	●
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (A)	8-98058-327-1	01	1	1307-	●	●
570	HARNESS; SPEED SENSOR (B)	8-98148-602-0	01	1	1010-	●	●
595	HARNESS; WARNING,BRK	8-97620-487-1	01	1	1010-	●	●
638	BRACKET; SPD SENSOR	1-82698-167-0	01	1	1010-1306	●	●

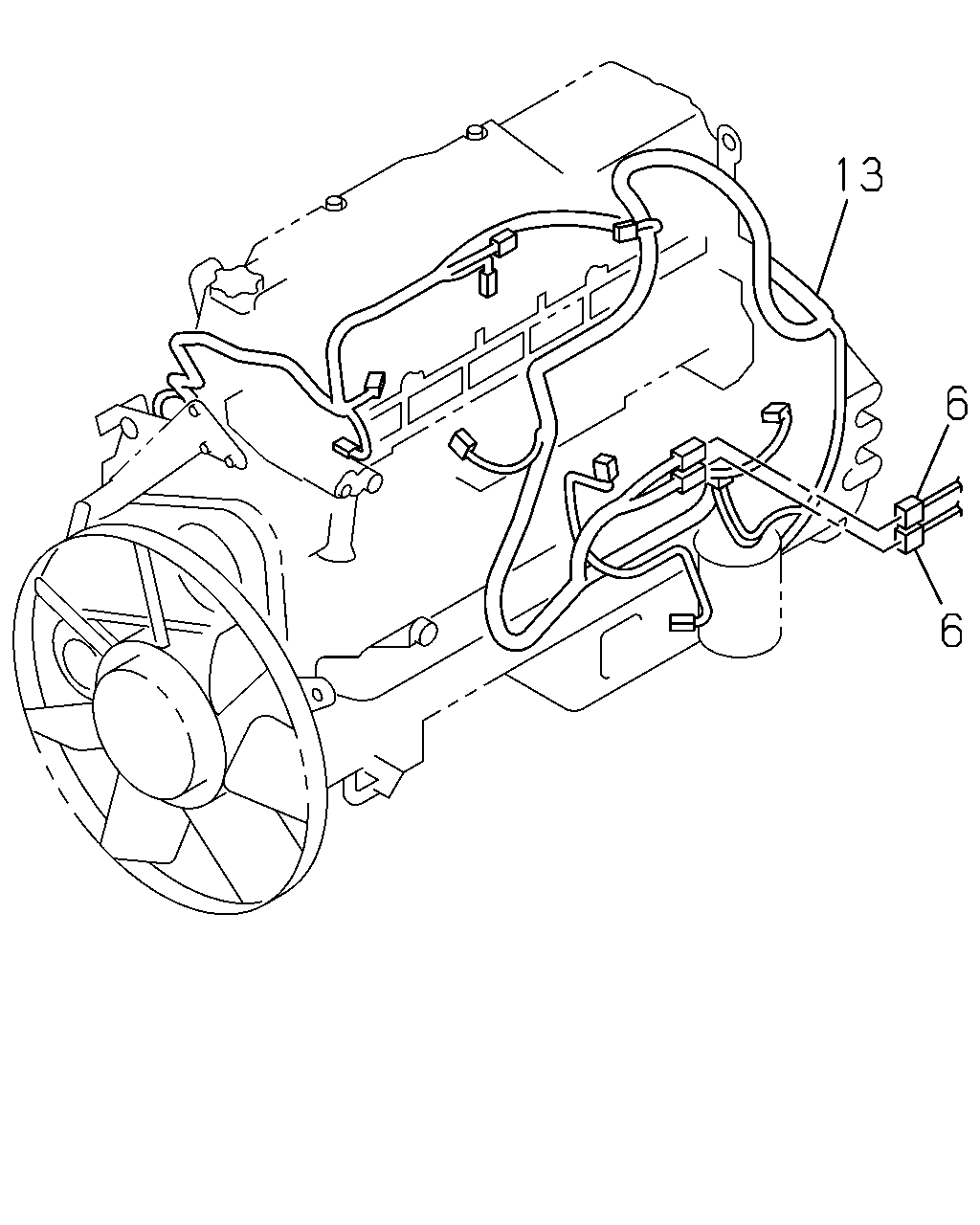

13 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF>	8-98303-286-0	01	1	1502-	●
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98232-753-1	01	1	1307-1501	●
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF>	8-98232-753-1	01	1	1502-	●
6	HARNESS; FRAME	8-98174-334-0	01	1	1010-1306	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E)	8-98232-751-0	01	1	1307-1501	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF>	8-98232-751-0	01	1	1502-	●
6	HARNESS; FRAME	8-98232-751-0	01	1	1502-		●
13	HARNESS; ENG ALLISON MD3560P A/T(Y3B) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98177-216-1	01	1	1307-	●
13	HARNESS; ENG ALLISON MD3560P A/T(Y3B) GENERATOR 24V50A(K89)	8-98177-215-1	01	1	1307-	●
13	HARNESS; ENG GENERATOR 24V50A(K89)	8-98088-068-1	01	1	1010-1010	●	●
13	HARNESS; ENG GENERATOR 24V50A(K89)	8-98177-208-1	01	1	1011-1306	●	●
13	HARNESS; ENG ZF9S1110 M/T(Y5E) GENERATOR 24V50A(K89)	8-98177-208-1	01	1	1307-	●	●
13	HARNESS; ENG ZF9S1110 M/T(Y5E) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98088-069-1	01	1	1010-1010	●	●
13	HARNESS; ENG ZF9S1110 M/T(Y5E) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98177-209-1	01	1	1011-	●	●

95 463 570 689 462 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	HARNESS; NEUTRAL SW RED	8-98145-854-0	01	1	1010-	●	●
195	HARNESS; EXT ALLISON MD3560P A/T(Y3B)	1-82671-045-1	01	1	1307-1501	●
195	HARNESS; EXT ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF>	1-82671-045-1	01	1	1502-1503	●
195	HARNESS; EXT ALLISON MD3560P A/T(Y3B)	1-82671-045-1	01	1	1504-	●
462	HARNESS; SW,RANGE BLUE	8-98145-857-0	01	1	1010-	●	●
463	HARNESS; SW,BACK UP BLACK	8-98145-856-0	01	1	1010-	●	●
570	HARNESS; SPEED SENSOR ALLISON MD3560P A/T(Y3B) (A)	8-98091-562-0	01	1	1307-1405	●
570	HARNESS; SPEED SENSOR ALLISON MD3560P A/T(Y3B) SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) (A)	8-98091-562-0	01	1	1406-	●
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (A)	8-98058-327-1	01	1	1010-1109	●	●
570	HARNESS; SPEED SENSOR (A)	8-98058-327-1	01	1	1110-1306	●	●
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (A)	8-98058-327-1	01	1	1307-	●	●
570	HARNESS; SPEED SENSOR (B)	8-98148-602-0	01	1	1010-	●	●
689	HARNESS; PRESSURE & ECU SWITCH	1-82659-229-1	01	1	1010-1101	●	●
689	HARNESS; PRESSURE & ECU SWITCH	8-98148-603-0	01	1	1102-	●	●

4 693 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1010-	●	●
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1010-	●	●

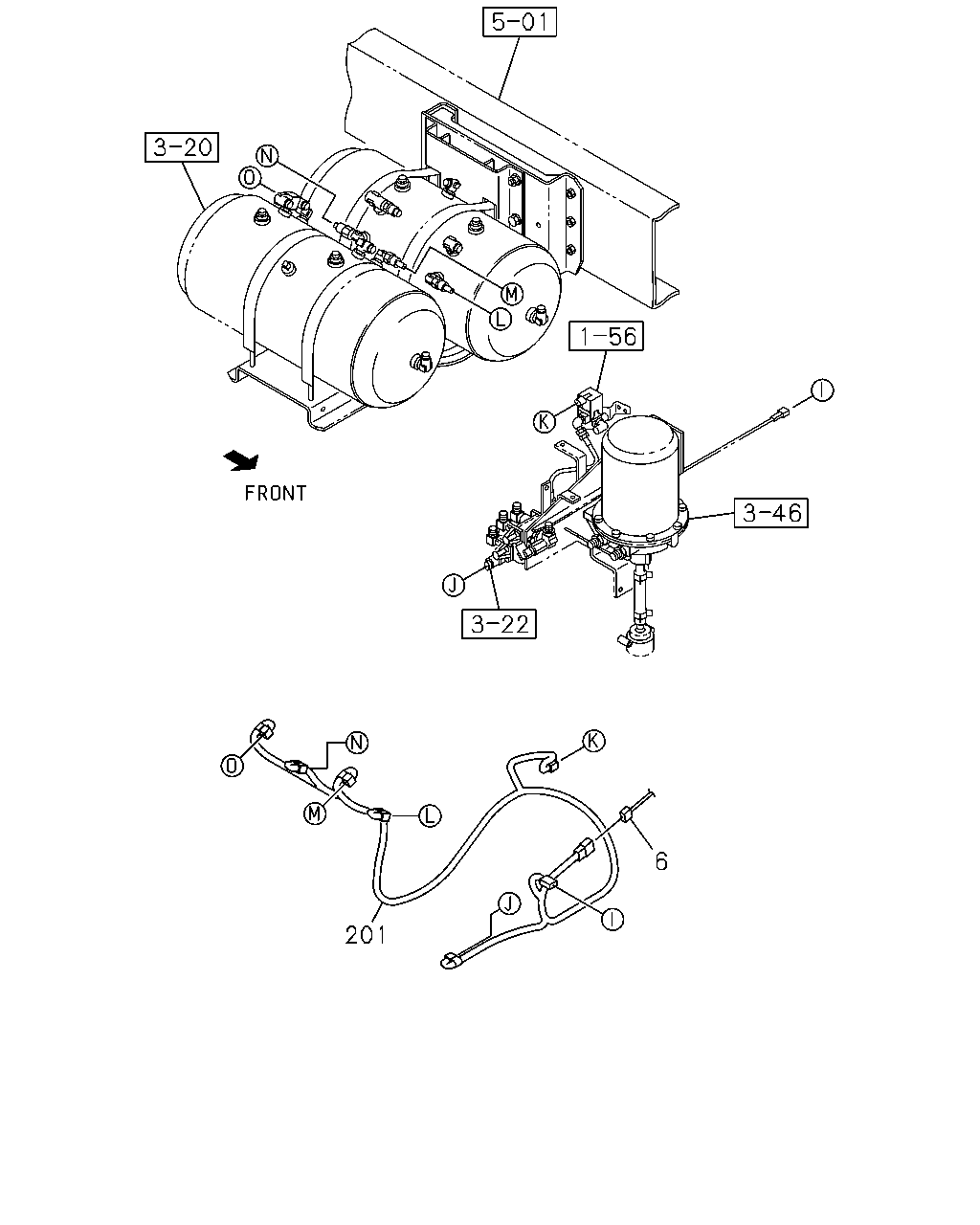

201 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF>	8-98303-286-0	01	1	1502-	●
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98232-753-1	01	1	1307-1501	●
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF>	8-98232-753-1	01	1	1502-	●
6	HARNESS; FRAME	8-98174-334-0	01	1	1010-1306	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E)	8-98232-751-0	01	1	1307-1501	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2015<VZF>	8-98232-751-0	01	1	1502-	●
6	HARNESS; FRAME	8-98232-751-0	01	1	1502-		●
201	HARNESS; AIR TANK	8-98097-914-1	01	1	1010-	●	●

668 293 534 267 668 267 290 668 267 290 668 668 267 668 290 668 290 668 290 668 267 668 668 668 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
267	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1307-	●	●
267	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
267	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-	●	●
267	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1307-	●	●
267	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	02	1	1307-	●	●
267	BOLT; BRKT (D) M10X25 FLANGE	0-28651-025-0	02	1	1307-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	06	1	1307-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
293	NUT M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
534	BOLT (A) M8X30 FLANGE	0-28650-830-0	01	1	1307-	●	●
534	BOLT (C) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1307-	●	●
534	BOLT (B) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1307-	●	●
668	BRACKET; HARNESS (N)	1-82698-167-0	01	1	1307-	●	●
668	BRACKET; HARNESS ALLISON MD3560P A/T(Y3B) (A)	8-98032-360-0	01	1	1307-1501	●
668	BRACKET; HARNESS ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (A)	8-98032-360-0	01	1	1502-1503	●
668	BRACKET; HARNESS ALLISON MD3560P A/T(Y3B) (A)	8-98032-360-0	01	1	1504-	●
668	BRACKET; HARNESS (B) L=55	1-47475-304-0	01	1	1307-	●	●
668	BRACKET; HARNESS (C)	1-47479-674-0	01	1	1307-	●	●
668	BRACKET; HARNESS (D)	8-97609-110-1	01	1	1307-	●	●
668	BRACKET; HARNESS (E)	8-97616-305-0	01	1	1307-1308	●	●
668	BRACKET; HARNESS (E)	8-97616-305-0	01	1	1307-1308	●	●
668	BRACKET; HARNESS (F)	8-97619-097-1	01	1	1307-	●	●
668	BRACKET; HARNESS (G)	8-97620-519-0	01	1	1307-	●	●
668	BRACKET; HARNESS (H)	8-98047-730-0	02	1	1307-1308	●	●
668	BRACKET; HARNESS (H)	8-98047-730-0	02	1	1307-1308	●	●
668	BRACKET; HARNESS (H)	8-98047-730-0	02	1	1309-	●	●
668	BRACKET; HARNESS (I)	8-98107-610-1	01	1	1307-	●	●
668	BRACKET; HARNESS (J)	8-98107-611-0	01	1	1307-1308	●	●
668	BRACKET; HARNESS (J)	8-98107-611-0	01	1	1307-1308	●	●
668	BRACKET; HARNESS (J)	8-98107-611-0	01	1	1309-	●	●
668	BRACKET; HARNESS (K)	8-98127-093-0	01	1	1307-1308	●	●
668	BRACKET; HARNESS (E)	8-97616-305-0	01	1	1309-1502	●	●
668	BRACKET; HARNESS (O)	8-98254-592-0	01	1	1503-	●	●
668	BRACKET; HARNESS (L)	8-98212-082-1	01	1	1307-	●	●
668	BRACKET; HARNESS (M)	8-98095-653-2	01	1	1010-	●	●

533 533 541 541 533 541 533 533 542 548 542 548 533 541 533 533 533 541 533 533 533

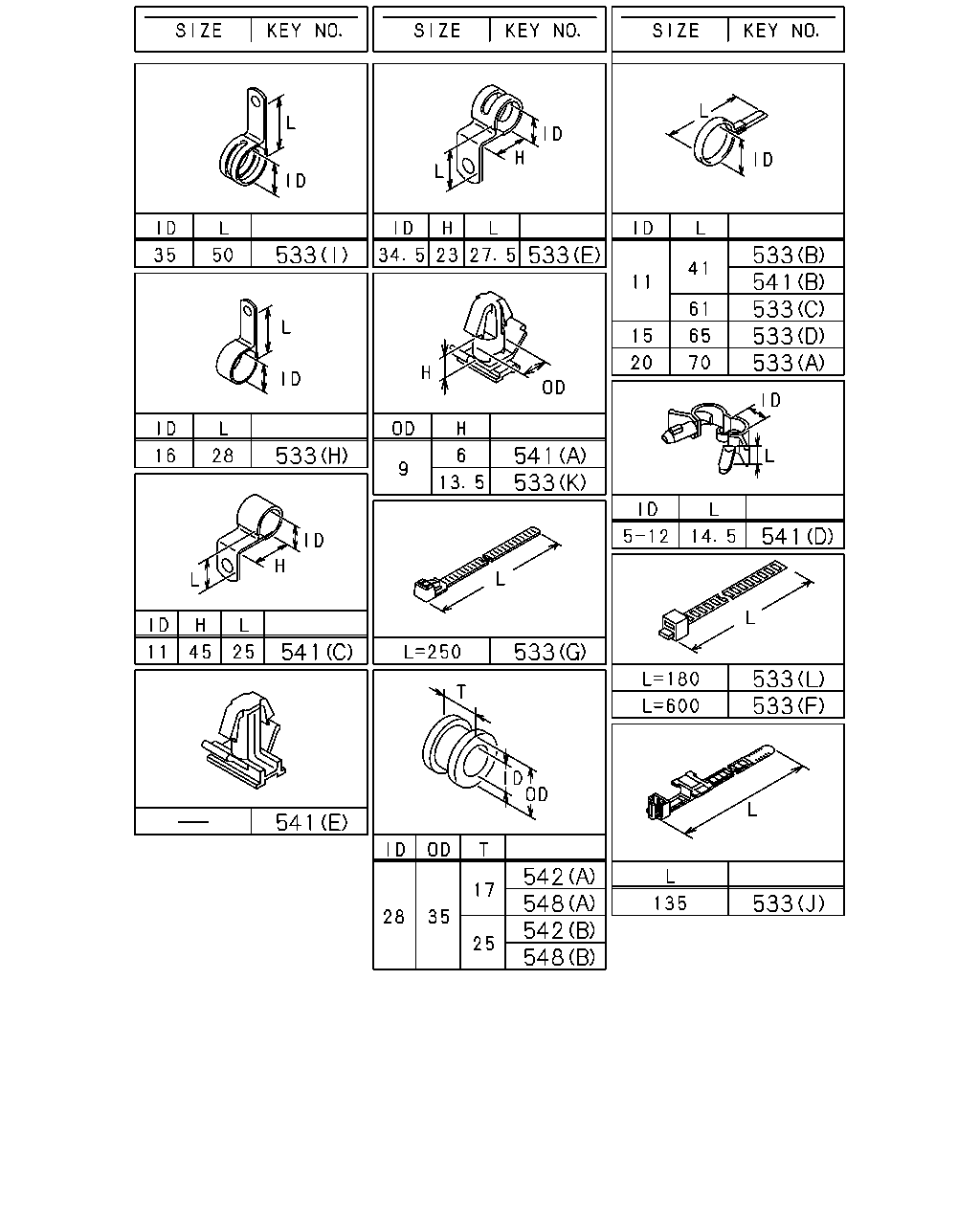

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
533	CLIP (D) ID=15 L=65	1-09700-466-0	29	1	1307-	●
533	CLIP (B) ID=11 L=41	1-09700-403-0	01	1	1307-1404	●	●
533	CLIP (B) ID=11 L=41	1-09700-403-0	02	1	1405-	●	●
533	CLIP (D) ID=15 L=65	1-09700-466-0	01	1	1307-	●	●
533	CLIP (D) ID=15 L=65	1-09700-466-0	02	1	1307-	●	●
533	CLIP (E) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1307-	●	●
533	CLIP (K) OD=9 H=13.5	1-09709-180-0	01	1	1307-	●	●
533	CLIP (J) L=135	1-09987-143-1	02	1	1307-	●	●
533	CLIP (G) L=250	5-09707-030-1	04	1	1307-	●	●
533	CLIP (D) ID=15 L=65	1-09700-466-0	18	1	1307-		●
533	CLIP (C) ID=11 L=61	1-09700-484-0	02	1	1307-		●
533	CLIP (A) ID=20 L=70	1-09700-485-0	04	1	1307-		●
533	CLIP (B) ID=11 L=41	1-09700-403-0	02	1	1307-1404		●
533	CLIP (C) ID=11 L=61	1-09700-484-0	01	1	1307-	●
533	CLIP (F) L=600	1-09707-107-1	01	1	1307-	●	●
533	CLIP (F) L=600	1-09707-107-1	01	1	1307-	●	●
533	CLIP (G) L=250	5-09707-030-1	02	1	1307-	●	●
533	CLIP (G) L=250	5-09707-030-1	02	1	1307-	●	●
533	CLIP (G) L=250	5-09707-030-1	03	1	1307-	●	●
533	CLIP (H) ID=16 L=28	0-95235-556-0	02	1	1307-1309	●	●
533	CLIP (I) ID=35 L=50	1-09701-214-0	01	1	1307-	●	●
533	CLIP (E) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1307-	●	●
533	CLIP (E) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1307-	●	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (G) L=250	5-09707-030-1	01	1	1206-1306	●
533	CLIP (G) L=250	5-09707-030-1	01	1	1206-1306		●
533	CLIP (G) L=250	5-09707-030-1	01	1	1307-1309	●	●
533	CLIP H.S.A SYSTEM<6EP> (G) L=250	5-09707-030-1	01	1	1307-1309	●	●
533	CLIP (G) L=250	5-09707-030-1	01	1	1307-1309	●	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (G) L=250	5-09707-030-1	01	1	1307-1309	●
533	CLIP (G) L=250	5-09707-030-1	01	1	1307-1309		●
533	CLIP (G) L=250	5-09707-030-1	01	1	1310-	●	●
533	CLIP (G) L=250	5-09707-030-1	01	1	1310-	●	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (G) L=250	5-09707-030-1	01	1	1310-	●
533	CLIP (G) L=250	5-09707-030-1	01	1	1310-		●
533	CLIP (L) L=180	1-09707-162-1	01	1	1010-1205	●	●
533	CLIP (L) L=180	1-09707-162-1	01	1	1206-1206	●	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (L) L=180	1-09707-162-1	01	1	1206-1206	●
533	CLIP (L) L=180	1-09707-162-1	01	1	1206-1206		●
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (L) L=180	1-09707-162-1	01	1	1207-	●	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (L) L=180	1-09707-162-1	01	1	1207-	●
533	CLIP (L) L=180	1-09707-162-1	01	1	1207-		●
541	CLIP (C) ID=11 H=45 L=25	1-09700-866-0	02	1	1307-1404	●	●
541	CLIP (C) ID=11 H=45 L=25	1-09700-866-0	01	1	1405-	●	●
541	CLIP ALLISON MD3560P A/T(Y3B) (A) OD=9 H=6	1-09709-178-0	01	1	1307-1501	●
541	CLIP ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (A) OD=9 H=6	1-09709-178-0	01	1	1502-1503	●
541	CLIP ALLISON MD3560P A/T(Y3B) (A) OD=9 H=6	1-09709-178-0	01	1	1504-	●
541	CLIP (B) ID=11 L=41	1-09700-403-0	01	1	1307-	●	●
541	CLIP (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1307-	●	●
541	CLIP (E) OD=9 H=6	8-97368-793-0	02	1	1307-	●	●
542	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1307-	●	●
542	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1307-	●	●
542	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1307-	●	●
548	GROMMET (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1307-1308	●	●
548	GROMMET (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1307-1308	●	●
548	GROMMET (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1309-	●	●
548	GROMMET (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1307-	●	●

267 639 267 639 534 639 267 535 267 535 534 534 280 290 293 295 525 536 640 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
267	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1307-	●	●
267	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
267	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-	●	●
267	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1307-	●	●
267	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	02	1	1307-	●	●
267	BOLT; BRKT (D) M10X25 FLANGE	0-28651-025-0	02	1	1307-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1010-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	06	1	1307-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
293	NUT M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
295	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
534	BOLT (A) M8X30 FLANGE	0-28650-830-0	01	1	1307-	●	●
534	BOLT (C) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1307-	●	●
534	BOLT (B) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1307-	●	●
535	BOLT; BRKT FIX (A) M8X35 FLANGE	0-28650-835-0	01	1	1010-1306	●	●
535	BOLT; BRKT FIX (B) M10X35 FLANGE	0-28651-035-0	01	1	1307-	●	●
536	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1010-1306	●	●
639	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
639	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
639	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1307-	●	●
639	BOLT; CLIP (C) M8X30 FLANGE	0-28650-830-0	01	1	1307-	●	●
640	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
