9-01 — TOOLS (#6053) — 156 parça

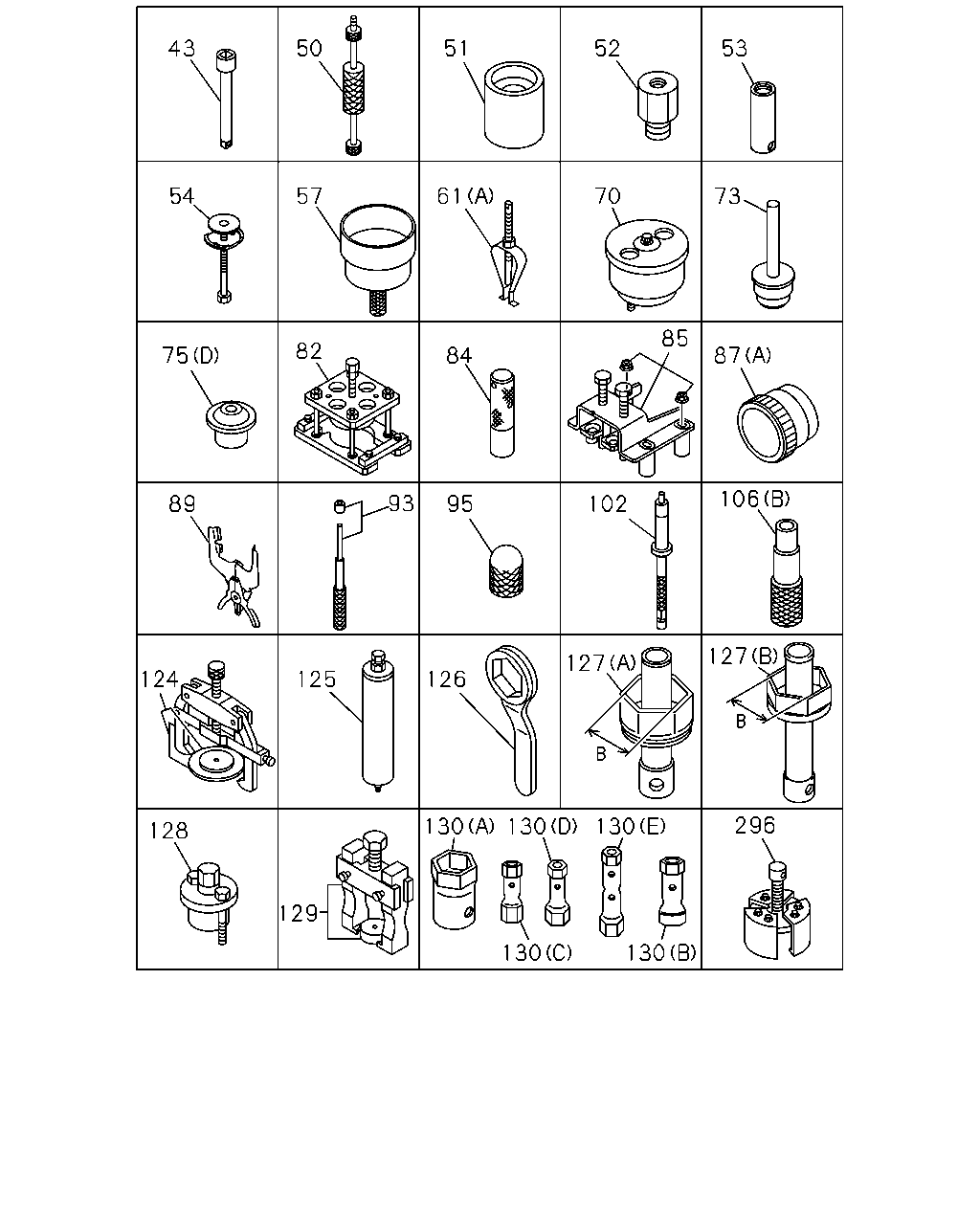

43 50 51 52 53 54 57 61 70 73 85 82 75 84 87 106 93 89 95 102 127 127 124 126 125 296 130 130 130 128 129 130 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
43	BAR; EXTENSION,SOCKET WRENCH	9-09590-812-0	01	1	9812-
50	REPLACER; NOZZLE HOLDER L=300	1-85230-013-0	01	1	9812-
51	PULLER ASM; WATER PUMP	1-85220-047-0	01	1	9812-
52	REMOVER; WATER PUMP	1-85210-062-0	01	1	9812-
53	PULLER; TAPER BUSHING	1-85210-063-0	01	1	9812-
54	PULLER; THERMOSTAT SEAL	1-85210-067-0	01	1	9812-
57	TOOL; SETTING CRANK GEAR OD=162	1-85220-045-0	01	1	9812-
61	PULLER ASM; PILOT BRG (A)	9-85210-157-0	01	1	9812-
61	PULLER ASM; PILOT BRG ISUZU M/T<X9A> (B)	1-85210-050-0	01	1	9905-
70	TOOL; SETTING,OIL SEAL	1-85220-043-0	01	1	9812-
73	TOOL; SETTING,THERMOSTAT SEAL	1-85221-034-0	01	1	9812-
75	TOOL; SETTING,OIL SEAL (D)	1-85220-049-0	01	1	9812-
75	TOOL; SETTING,OIL SEAL ISUZU M/T<X9A> (C)	1-85221-096-0	01	1	9905-
75	TOOL; SETTING,OIL SEAL ISUZU M/T<X9A> (A)	1-85221-168-0	01	1	9905-
75	TOOL; SETTING,OIL SEAL ISUZU M/T<X9A> (B)	1-85221-169-0	01	1	9905-
82	PULLER ASM; CR/SHF GEAR	1-85210-064-0	01	1	9812-
84	REPLACER; VALVE SEAL EXHAUST	1-85221-184-0	01	1	9812-
84	REPLACER; VALVE SEAL INLET	1-85221-187-0	01	1	9812-
85	REPLACER ASM; VALVE SPR	1-85235-013-0	01	1	9812-
87	TOOL; PISTON (A)	1-85220-059-0	01	1	9812-9901
87	TOOL; PISTON 6WG1 TC-N(71L),6WG1 TC-C(72L) (A)	1-85220-059-0	01	1	9902-
87	TOOL; PISTON 6WA1 TC-C(55L) (B)	1-85220-046-0	01	1	9902-9904
87	TOOL; PISTON 6WA1 TC-C(55L),6WA1 TC-S(56L) (B)	1-85220-046-0	01	1	9905-9906
87	TOOL; PISTON 6WA1 TC-C(55L) (B)	1-85220-046-0	01	1	9907-
89	TOOL; PISTON RING	1-85221-025-0	01	1	9812-9901
89	TOOL; PISTON RING 6WG1 TC-N(71L),6WG1 TC-C(72L)	1-85221-025-0	01	1	9902-
89	TOOL; PISTON RING 6WA1 TC-C(55L)	1-85221-029-0	01	1	9902-9904
89	TOOL; PISTON RING 6WA1 TC-C(55L),6WA1 TC-S(56L)	1-85221-029-0	01	1	9905-9906
89	TOOL; PISTON RING 6WA1 TC-C(55L)	1-85221-029-0	01	1	9907-
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	9812-
95	SETTING TOOL; BRIDGE GUIDE	9-85221-324-0	01	1	9812-
102	ADAPTER; COMP GAGE	1-85317-019-0	01	1	9812-
106	TOOL; SETTING PILOT BRG (B)	1-85221-057-0	01	1	9812-
106	TOOL; SETTING PILOT BRG ISUZU M/T<X9A> (C)	9-85221-247-0	01	1	9905-
106	TOOL; SETTING PILOT BRG ISUZU M/T<X9A> (A)	9-85221-249-0	01	1	9905-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	9812-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	9812-
126	WRENCH; FRT HUB BRG NUT L=257 B=63	9-85111-373-0	01	1	9812-
127	WRENCH ASM; HUB BRG NUT (A) L=400 B=105	9-85113-509-0	01	1	9812-
127	WRENCH ASM; HUB BRG NUT (B) L=400 B=116	9-85113-524-0	01	1	9812-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	9812-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	9812-
130	WRENCH; BOX (A) B=63	9-85111-368-0	01	1	9812-
130	WRENCH; BOX (B) B=46 & 54 L=165	9-85112-320-0	01	1	9812-
130	WRENCH; BOX (C) B=32 & 41 L=150	9-85112-322-0	01	1	9812-
130	WRENCH; BOX (D) B=36 & 41 L=200	9-85112-330-0	01	1	9812-
130	WRENCH; BOX (E) B=41 & 46 L=165	9-85113-401-0	01	1	9812-
296	REPLACER; SLINGER	1-85210-027-0	01	1	9812-

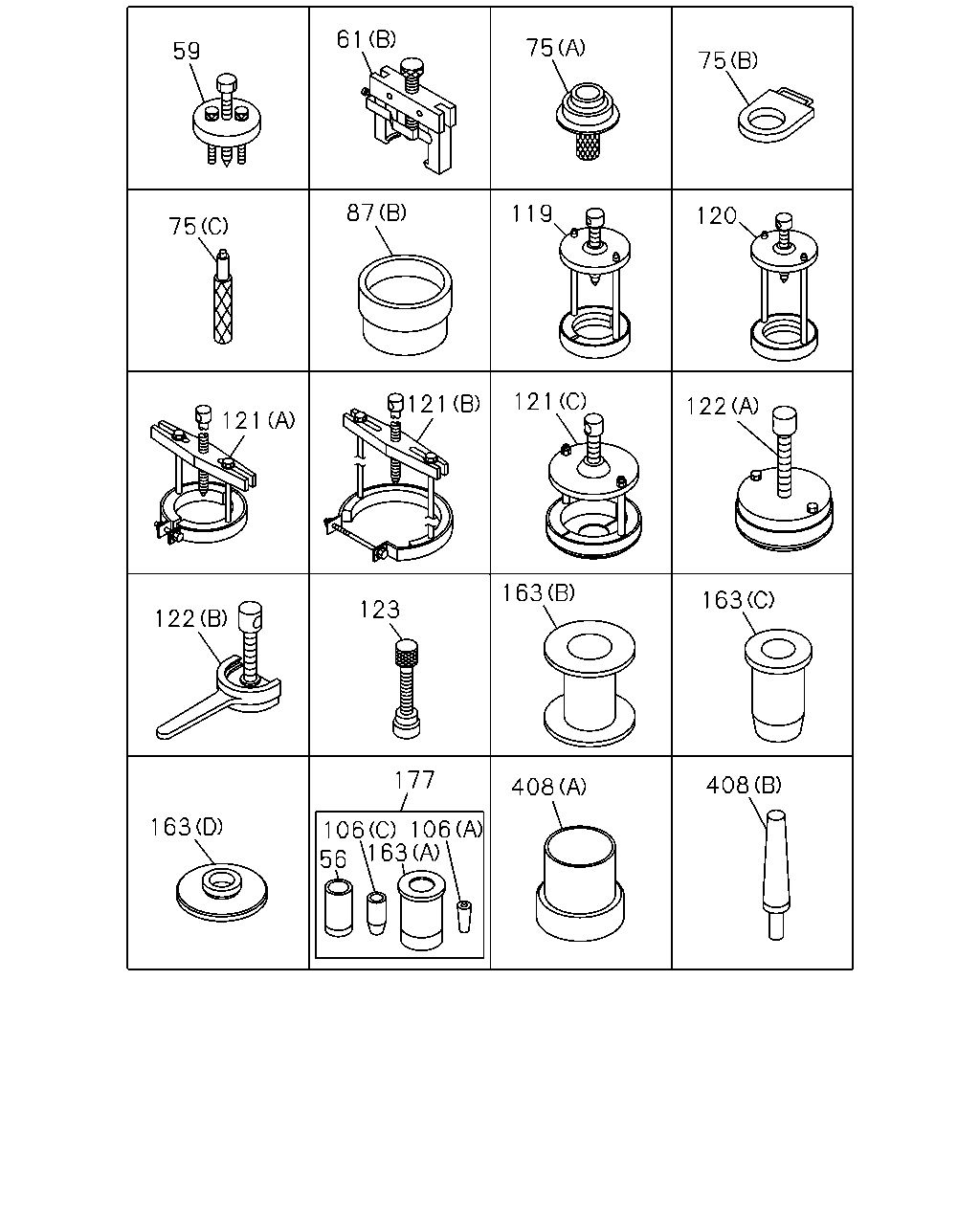

61 75 59 75 87 119 120 75 121 121 122 121 163 163 123 122 177 408 408 163 106 106 163 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
56	TOOL; SETTING TOP GEAR MAIN ISUZU M/T<X9A> L=350	9-85221-310-0	01	1	9905-
59	PULLER ASM; TIMING GEAR 6WA1 TC-C(55L)	1-85210-065-0	01	1	9902-9904
59	PULLER ASM; TIMING GEAR 6WA1 TC-C(55L),6WA1 TC-S(56L)	1-85210-065-0	01	1	9905-9906
59	PULLER ASM; TIMING GEAR 6WA1 TC-C(55L)	1-85210-065-0	01	1	9907-
61	PULLER ASM; PILOT BRG (A)	9-85210-157-0	01	1	9812-
61	PULLER ASM; PILOT BRG ISUZU M/T<X9A> (B)	1-85210-050-0	01	1	9905-
75	TOOL; SETTING,OIL SEAL (D)	1-85220-049-0	01	1	9812-
75	TOOL; SETTING,OIL SEAL ISUZU M/T<X9A> (C)	1-85221-096-0	01	1	9905-
75	TOOL; SETTING,OIL SEAL ISUZU M/T<X9A> (A)	1-85221-168-0	01	1	9905-
75	TOOL; SETTING,OIL SEAL ISUZU M/T<X9A> (B)	1-85221-169-0	01	1	9905-
87	TOOL; PISTON (A)	1-85220-059-0	01	1	9812-9901
87	TOOL; PISTON 6WG1 TC-N(71L),6WG1 TC-C(72L) (A)	1-85220-059-0	01	1	9902-
87	TOOL; PISTON 6WA1 TC-C(55L) (B)	1-85220-046-0	01	1	9902-9904
87	TOOL; PISTON 6WA1 TC-C(55L),6WA1 TC-S(56L) (B)	1-85220-046-0	01	1	9905-9906
87	TOOL; PISTON 6WA1 TC-C(55L) (B)	1-85220-046-0	01	1	9907-
106	TOOL; SETTING PILOT BRG (B)	1-85221-057-0	01	1	9812-
106	TOOL; SETTING PILOT BRG ISUZU M/T<X9A> (C)	9-85221-247-0	01	1	9905-
106	TOOL; SETTING PILOT BRG ISUZU M/T<X9A> (A)	9-85221-249-0	01	1	9905-
119	PULLER ASM; TOP GEAR BRG ISUZU M/T<X9A> L=235	9-85210-190-0	01	1	9905-
120	PULLER ASM; MAIN REAR BRG ISUZU M/T<X9A> L=285	9-85210-184-0	01	1	9905-
121	PULLER ASM; COUNTER REAR ISUZU M/T<X9A> (B)	1-85210-069-0	01	1	9905-
121	PULLER ASM; COUNTER REAR ISUZU M/T<X9A> (A) OD=146	1-85210-074-0	01	1	9905-
121	PULLER ASM; COUNTER REAR ISUZU M/T<X9A> (C)	9-85210-185-0	01	1	9905-
122	PULLER ASM; COUNTER FRT ISUZU M/T<X9A> (A)	1-85210-010-0	01	1	9905-
122	PULLER ASM; COUNTER FRT ISUZU M/T<X9A> (B)	9-85210-129-1	01	1	9905-
123	PULLER; SPEEDOMETER BUSHING ISUZU M/T<X9A>	9-85210-091-0	01	1	9905-
163	TOOL; SETTING ISUZU M/T<X9A> (C) L=195	1-85221-162-1	01	1	9905-
163	TOOL; SETTING ISUZU M/T<X9A> (B) L=150	1-85221-163-0	01	1	9905-
163	TOOL; SETTING ISUZU M/T<X9A> (D) OD=150	1-85221-167-0	01	1	9905-
163	TOOL; SETTING ISUZU M/T<X9A> (A) L=150	9-85221-248-0	01	1	9905-
177	SETTING TOOL KIT ISUZU M/T<X9A>	1-85220-004-0	01	1	9905-
408	TOOL; SETTING,SHIFT ASSISTER ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A)	1-85221-268-0	01	1	0006-
408	TOOL; SETTING,SHIFT ASSISTER ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (B)	1-85221-269-0	01	1	0006-

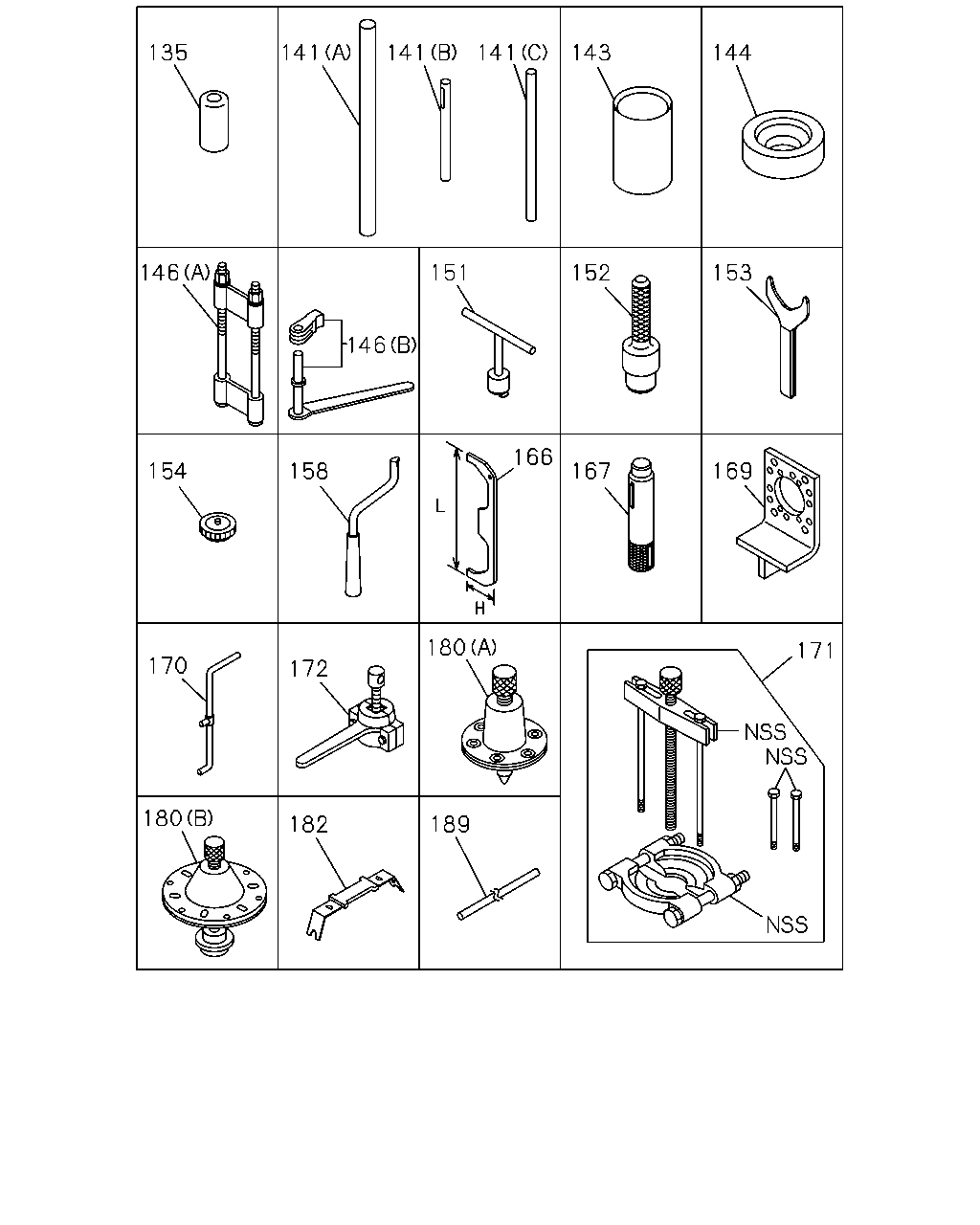

135 141 141 143 141 144 146 151 152 153 146 166 158 169 154 167 180 171 170 172 180 182 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	9812-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	9812-
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	9812-
141	HANDLE; WRENCH (C) OD=19 L=400	9-85114-306-0	01	1	9812-
141	HANDLE; WRENCH (C) OD=16 L=300	9-85114-307-0	01	1	9812-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	9812-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	9812-
146	REPLACER KIT; LEAF SPR (B)	1-85237-017-0	01	1	9812-
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	9812-
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	9812-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	9812-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	9812-
154	SLEEPER; KING PIN	1-85238-003-0	01	1	9812-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9812-
166	ALIGNER; CLU RELEASE LEVER L=550 H=57.5	1-85253-015-0	01	1	9812-9901
166	ALIGNER; CLU RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=57.5	1-85253-015-0	01	1	9902-
167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	9812-
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9812-
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9812-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	9812-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	9812-
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	9812-
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	9812-
182	REMOVER ASM	1-85239-008-0	01	1	9812-
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	9812-

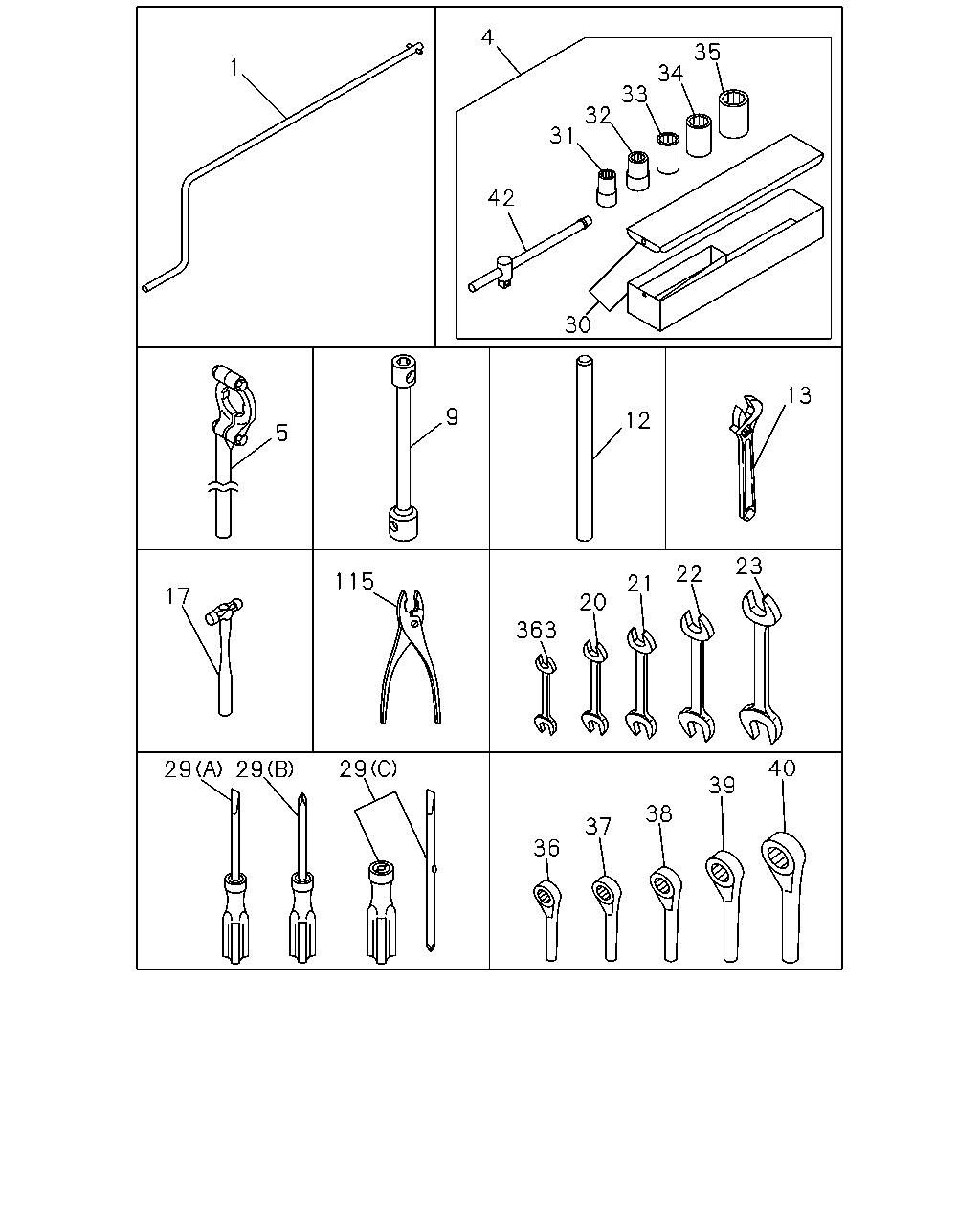

4 35 34 33 32 1 31 42 30 13 9 12 5 23 22 115 21 17 20 363 40 29 29 29 39 38 37 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER	9-23110-018-0	01	1	9812-
4	WRENCH KIT; SOCKET	9-85110-012-0	01	1	9812-
5	WRENCH ASM; NUT,MAINSHAFT ISUZU M/T<X9A>	1-85110-010-0	01	1	9905-
9	WRENCH; WHEEL PIN WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) B=41X21 L=440	1-85113-015-1	01	1	9812-
9	WRENCH; WHEEL PIN EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) B=33X30 L=450	1-85111-033-1	01	1	9812-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9812-
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9812-
17	HAMMER	9-85121-406-0	01	1	9812-
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9812-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9812-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9812-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9812-
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	9812-
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	9812-
29	DRIVER; SCREW (B) <+> L=275	9-09595-023-0	01	1	9812-
30	BOX; SOCKET WRENCH	9-85581-260-0	01	1	9812-
31	WRENCH; 12	9-09590-012-0	01	1	9812-
32	WRENCH; 14	9-09590-014-0	01	1	9812-
33	WRENCH; 17	9-09590-017-0	01	1	9812-
34	WRENCH; 19	9-09590-019-0	01	1	9812-
35	WRENCH; 22	9-09590-022-0	01	1	9812-
36	WRENCH; 24	9-85111-377-0	01	1	9812-
37	WRENCH; 27	9-85111-375-0	01	1	9812-
38	WRENCH; 32	9-85111-358-0	01	1	9812-
39	WRENCH; 36	9-85111-374-0	01	1	9812-
40	WRENCH; 41	9-85111-356-0	01	1	9812-
42	HANDLE; SLIDING	9-09590-512-0	01	1	9812-
115	PLIER	5-85171-001-0	01	1	9812-
363	WRENCH; OPEN END 8X10 8X10	9-99592-108-0	01	1	9812-

227 192 193 208 237 232 230 250 245 246 246 248 249 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9812-9908
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-001-0	01	1	9812-9908
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9812-9908
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9909-9912
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-001-0	01	1	9909-9912
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0001-
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-002-0	01	1	0001-
193	JACK ASM 15TON	1-85510-019-1	01	1	9812-
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9812-0105
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	9812-
230	PUMP; GREASE	1-85556-007-2	01	1	9812-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	9812-
237	BAG; TOOL	8-97130-902-0	01	1	9812-
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	01	1	9812-
246	CHAIN; TIRE,1000-20,SINGLE (A) 10.00-20 SINGLE TYPE	9-85591-239-0	01	1	9812-
246	CHAIN; TIRE,1000-20,SINGLE (B) 11.00-20 SINGLE TYPE	9-85591-259-0	01	1	9812-
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	01	1	9812-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	01	1	9812-
250	CHAIN; TIRE,1000-20,TRIPLE (A) 10.00-20 TRIPLE TYPE	9-85591-241-0	01	1	9812-
250	CHAIN; TIRE,1000-20,TRIPLE (B) 11.00-20 TRIPLE TYPE	9-85591-261-0	01	1	9812-
