◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11304 - FVM AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#60529) — 153 parça

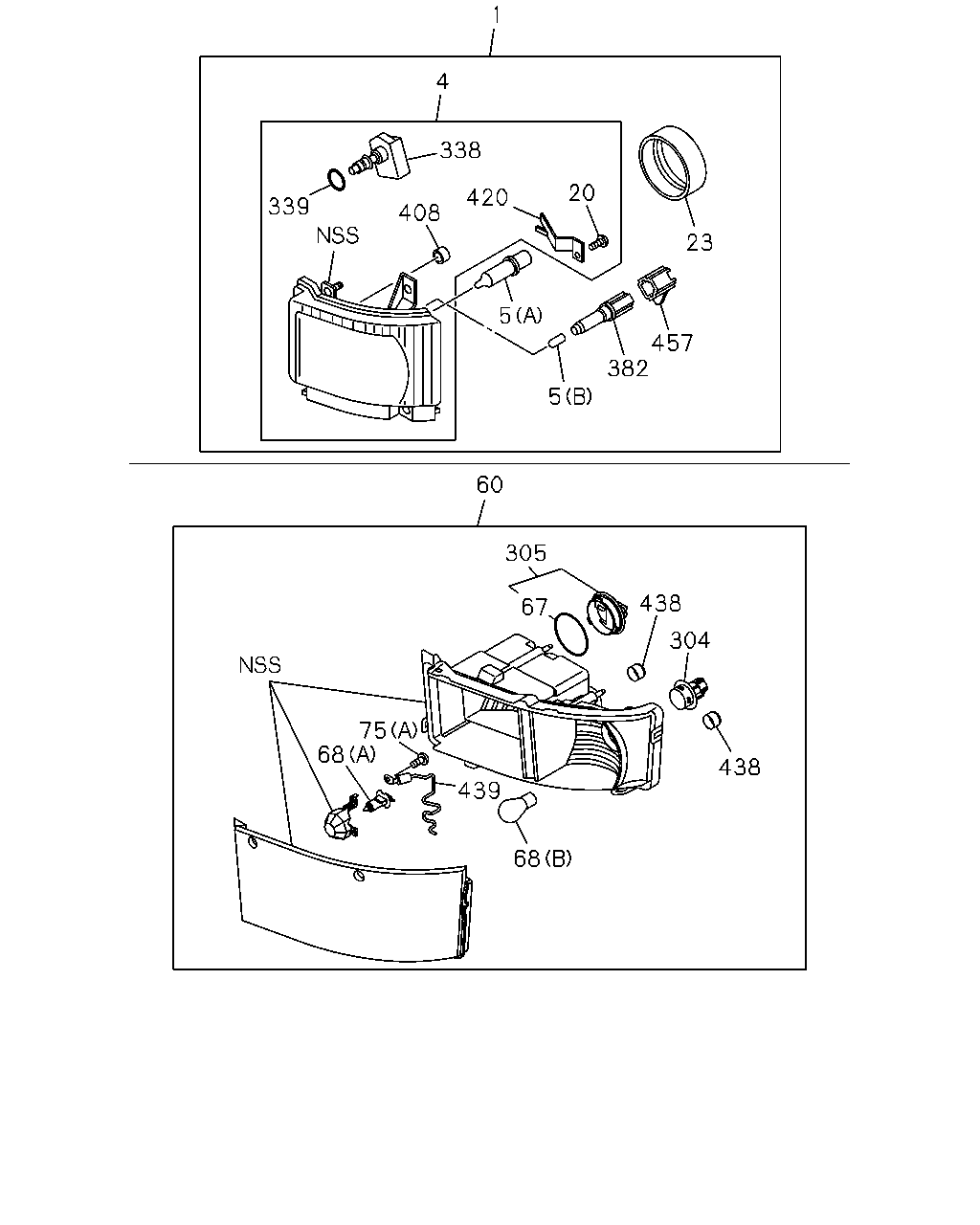

çizim 169277
1 4 338 420 408 339 5 5 382 457 23 20 60 305 67 438 304 438 68 439 75 68
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98098-480-1 01 1 1010-1108 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-480-1 01 1 1010-1108 ●
1 LAMP ASM; HEAD 8-98193-582-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-582-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD 8-98225-619-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-619-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD 8-98241-311-0 01 1 1306- ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-311-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-479-1 01 1 1010-1108 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-479-1 01 1 1010-1108 ●
1 LAMP ASM; HEAD 8-98193-581-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-581-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD 8-98225-618-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-618-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD 8-98241-310-0 01 1 1306- ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-310-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-478-1 01 1 1010-1108 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-580-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-621-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-313-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-477-1 01 1 1010-1108 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-579-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-620-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-312-0 01 1 1306- ●
4 HEADLAMP UNIT 8-98051-401-0 01 1 1010-1108 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-401-0 01 1 1010-1108 ●
4 HEADLAMP UNIT 8-98199-565-0 01 1 1109- ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-565-0 01 1 1109- ●
4 HEADLAMP UNIT 8-98051-400-0 01 1 1010-1108 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-400-0 01 1 1010-1108 ●
4 HEADLAMP UNIT 8-98199-564-0 01 1 1109- ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-564-0 01 1 1109- ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-399-0 01 1 1010-1108 ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-567-0 01 1 1109- ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-398-0 01 1 1010-1108 ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-566-0 01 1 1109- ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1010- ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1010- ● ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 1010- ● ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1010- ● ●
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-632-0 01 1 1307- ● ●
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-633-0 01 1 1307- ● ●
60 LAMP ASM; FRT COMB 8-98047-053-2 01 1 1010-1302 ● ●
60 LAMP ASM; FRT COMB 8-98238-631-0 01 1 1303-1306 ● ●
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-631-0 01 1 1307- ● ●
60 LAMP ASM; FRT COMB 8-98047-052-2 01 1 1010-1302 ● ●
60 LAMP ASM; FRT COMB 8-98238-630-0 01 1 1303-1306 ● ●
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-630-0 01 1 1307- ● ●
67 GASKET; FRT COMB LAMP 8-98238-656-0 02 1 1303- ● ●
68 BULB; FRT COMB LAMP
(A) 24V 70W 		1-82194-106-0 02 1 1010-1306 ● ●
68 BULB; FRT COMB LAMP
FOG LAMP<T96> (A) 24V 70W 		1-82194-106-0 02 1 1307- ● ●
68 BULB; FRT COMB LAMP
(B) 24V 21W 		8-98051-495-0 02 1 1010- ● ●
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1010- ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1010- ● ●
75 SCREW; FRT COMB LAMP
(A) 		8-98074-439-0 02 1 1010-1306 ● ●
75 SCREW; FRT COMB LAMP
FOG LAMP<T96> (A) 		8-98074-439-0 02 1 1307- ● ●
304 PLUG; SOCKET,FRT COMB LAMP 8-98051-390-0 02 1 1010- ● ●
305 COVER; FRT COMB LAMP
EXC. FOG LAMP<T96> 		8-98240-560-0 02 1 1307- ● ●
305 COVER; FRT COMB LAMP 8-98074-440-0 02 1 1010-1302 ● ●
305 COVER; FRT COMB LAMP 8-98240-559-0 02 1 1303-1306 ● ●
305 COVER; FRT COMB LAMP
FOG LAMP<T96> 		8-98240-559-0 02 1 1307- ● ●
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98010-256-0 02 1 1109- ●
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-86830-158-0 02 1 1109- ●
382 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 1010-1208 ● ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209- ● ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1010- ● ●
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 1010-1208 ● ●
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1209- ● ●
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 04 1 1010-1302 ● ●
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 02 1 1303- ● ●
439 SPRING SET; COMB LAMP 8-98075-644-0 02 1 1010-1306 ● ●
439 SPRING SET; COMB LAMP
FOG LAMP<T96> 		8-98075-644-0 02 1 1307- ● ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1307- ● ●

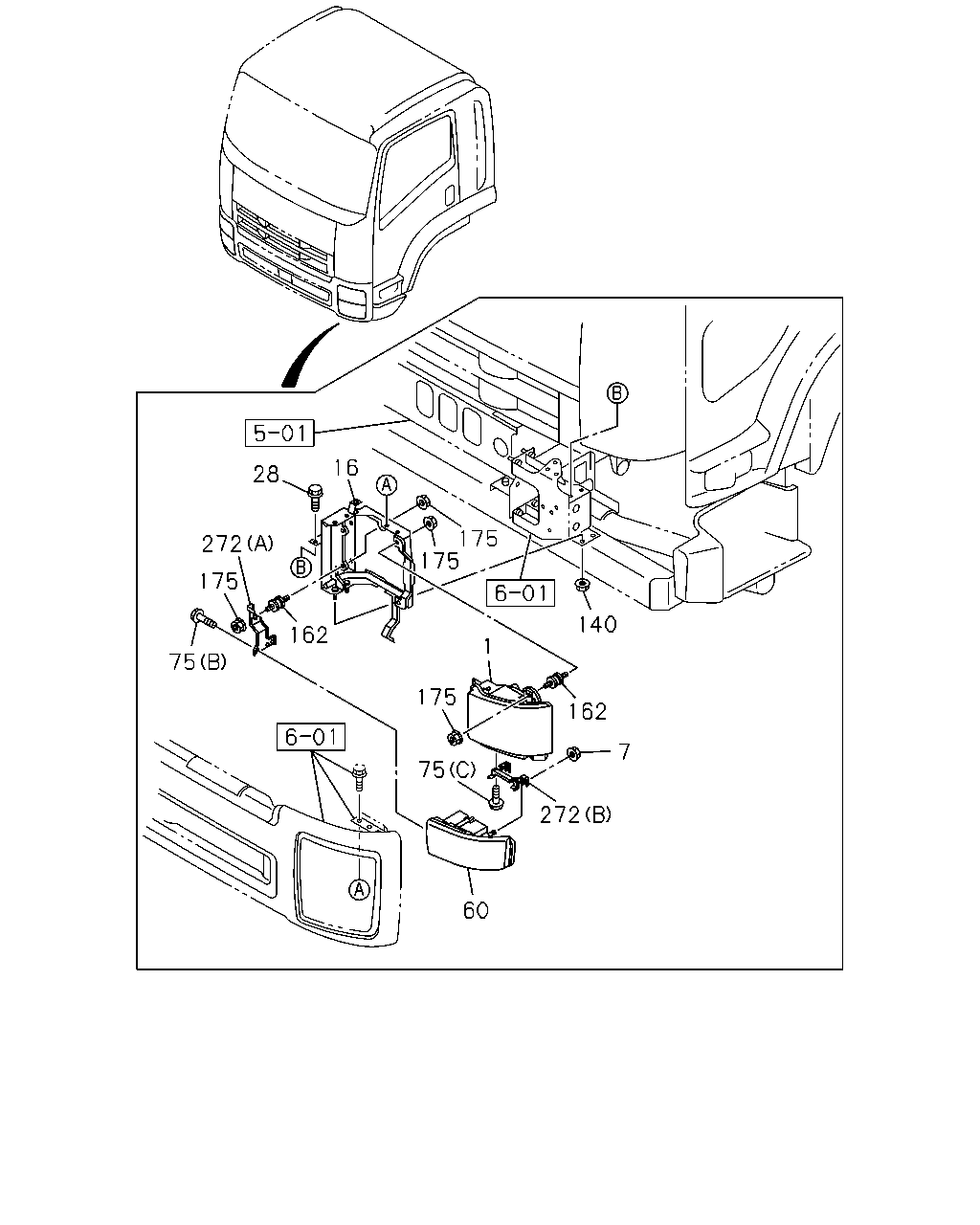

çizim 169278
28 272 175 75 162 16 175 175 140 162 175 75 60 272 7 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98098-480-1 01 1 1010-1108 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-480-1 01 1 1010-1108 ●
1 LAMP ASM; HEAD 8-98193-582-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-582-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD 8-98225-619-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-619-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD 8-98241-311-0 01 1 1306- ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-311-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-479-1 01 1 1010-1108 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-479-1 01 1 1010-1108 ●
1 LAMP ASM; HEAD 8-98193-581-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-581-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD 8-98225-618-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-618-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD 8-98241-310-0 01 1 1306- ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-310-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-478-1 01 1 1010-1108 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-580-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-621-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-313-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-477-1 01 1 1010-1108 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-579-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-620-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-312-0 01 1 1306- ●
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 04 1 1010- ● ●
16 BRACKET; HEADLAMP 8-98013-015-2 01 1 1010- ● ●
16 BRACKET; HEADLAMP 8-98013-016-2 01 1 1010- ● ●
28 BOLT; HEADLAMP
M10X25 FLANGE 		0-28651-025-0 04 1 1010- ● ●
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-632-0 01 1 1307- ● ●
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-633-0 01 1 1307- ● ●
60 LAMP ASM; FRT COMB 8-98047-053-2 01 1 1010-1302 ● ●
60 LAMP ASM; FRT COMB 8-98238-631-0 01 1 1303-1306 ● ●
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-631-0 01 1 1307- ● ●
60 LAMP ASM; FRT COMB 8-98047-052-2 01 1 1010-1302 ● ●
60 LAMP ASM; FRT COMB 8-98238-630-0 01 1 1303-1306 ● ●
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-630-0 01 1 1307- ● ●
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1010- ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1010- ● ●
75 SCREW; FRT COMB LAMP
(A) 		8-98074-439-0 02 1 1010-1306 ● ●
75 SCREW; FRT COMB LAMP
FOG LAMP<T96> (A) 		8-98074-439-0 02 1 1307- ● ●
140 NUT
M10 FLANGE 		0-91180-210-0 04 1 1010- ● ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 1010- ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 1010- ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-935-0 01 1 1010- ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-938-0 01 1 1010- ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-934-0 01 1 1010- ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-937-0 01 1 1010- ● ●

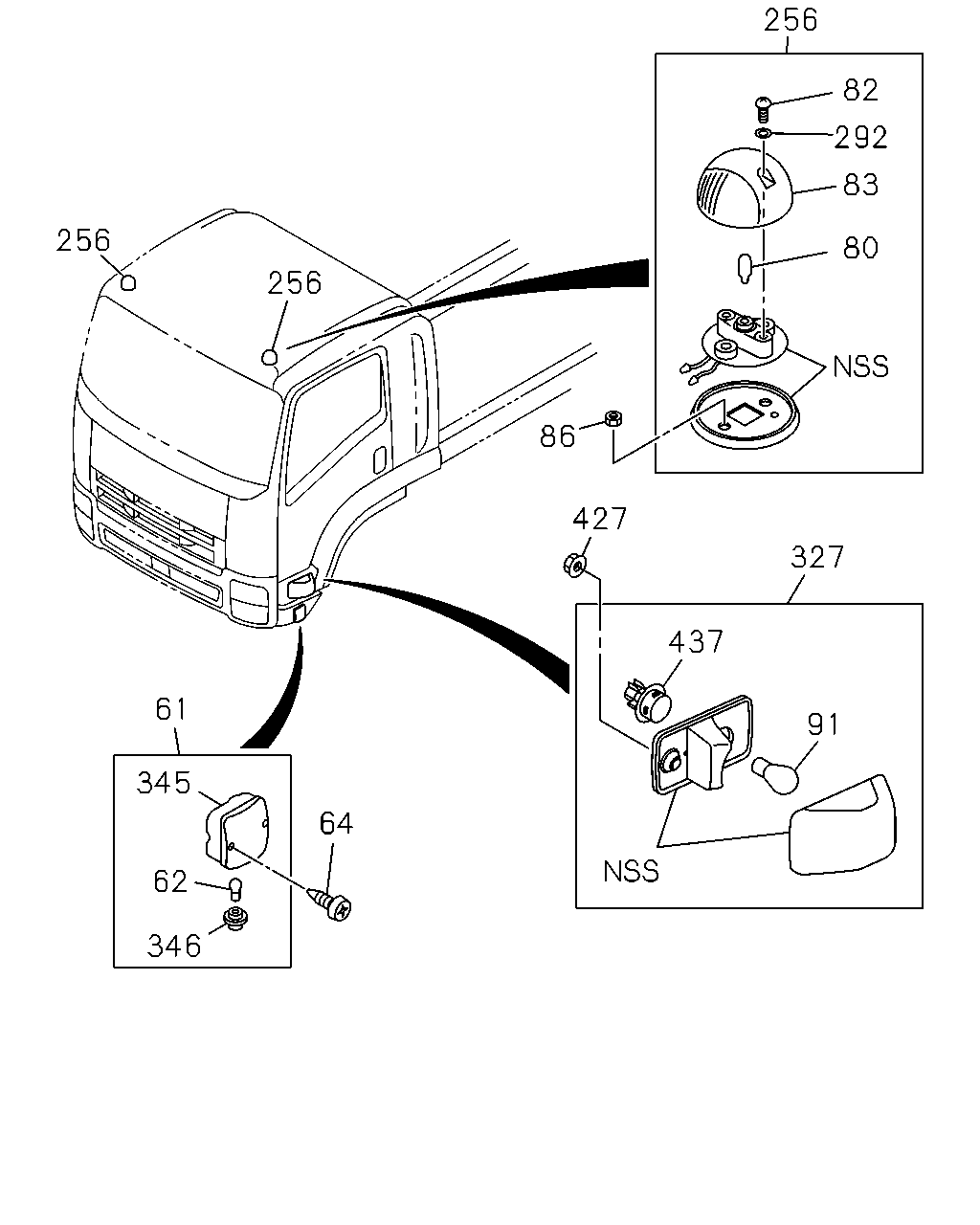

çizim 169283
91 327 437 427 86 64 61 345 62 346 256 256 256 82 292 83 80
BalonParca AdiParca NoAdetTipApplied Date A B
61 LAMP ASM; CORNERING
CORNERING LAMP<T87> 		8-97585-182-0 01 1 1210-1306 ● ●
61 LAMP ASM; CORNERING
CORNERING LAMP<T87> 		8-97585-182-0 01 1 1307- ●
61 LAMP ASM; CORNERING 8-97585-182-0 01 1 1307- ●
61 LAMP ASM; CORNERING
CORNERING LAMP<T87> 		8-97585-183-0 01 1 1210-1306 ● ●
61 LAMP ASM; CORNERING
CORNERING LAMP<T87> 		8-97585-183-0 01 1 1307- ●
61 LAMP ASM; CORNERING 8-97585-183-0 01 1 1307- ●
62 BULB; CORNERING LAMP
CORNERING LAMP<T87> 24V 21W 		1-82194-099-0 02 1 1210-1306 ● ●
62 BULB; CORNERING LAMP
CORNERING LAMP<T87> 24V 21W 		1-82194-099-0 02 1 1307- ●
62 BULB; CORNERING LAMP
24V 21W 		1-82194-099-0 02 1 1307- ●
64 SCREW; CORNERING LAMP
CORNERING LAMP<T87> M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 1210-1306 ● ●
64 SCREW; CORNERING LAMP
CORNERING LAMP<T87> M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 1307- ●
64 SCREW; CORNERING LAMP
M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 1307- ●
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 1010- ● ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 1010- ● ●
83 LENS; MARKER LAMP 8-98057-958-0 02 1 1010- ● ●
86 NUT; MARKER LAMP
M6 FLANGE 		0-91180-106-0 04 1 1010- ● ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1010- ● ●
256 LAMP; MARKER 8-98097-467-3 01 1 1010- ● ●
256 LAMP; MARKER 8-98097-466-3 01 1 1010- ● ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 1010- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1010- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1010- ● ●
345 LAMP UNIT; CORNERING
CORNERING LAMP<T87> 		8-98074-443-0 01 1 1210-1306 ● ●
345 LAMP UNIT; CORNERING
CORNERING LAMP<T87> 		8-98074-443-0 01 1 1307- ●
345 LAMP UNIT; CORNERING 8-98074-443-0 01 1 1307- ●
345 LAMP UNIT; CORNERING
CORNERING LAMP<T87> 		8-98074-444-0 01 1 1210-1306 ● ●
345 LAMP UNIT; CORNERING
CORNERING LAMP<T87> 		8-98074-444-0 01 1 1307- ●
345 LAMP UNIT; CORNERING 8-98074-444-0 01 1 1307- ●
346 SOCKET; CORNERING LAMP
CORNERING LAMP<T87> 		1-86830-256-0 02 1 1210-1306 ● ●
346 SOCKET; CORNERING LAMP
CORNERING LAMP<T87> 		1-86830-256-0 02 1 1307- ●
346 SOCKET; CORNERING LAMP 1-86830-256-0 02 1 1307- ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1010- ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1010- ● ●
