◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11304 - FVM AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#60512) — 15 parça
çizim 169359
370 370 370
BalonParca AdiParca NoAdetTipApplied Date A B
370 SEAL; LOCATION HOLE
OD=30 T=1.0 		8-98051-161-0 08 1 1010-1211 ● ●
370 SEAL; LOCATION HOLE
OD=30 T=0.8 		8-98230-420-0 08 1 1212- ● ●

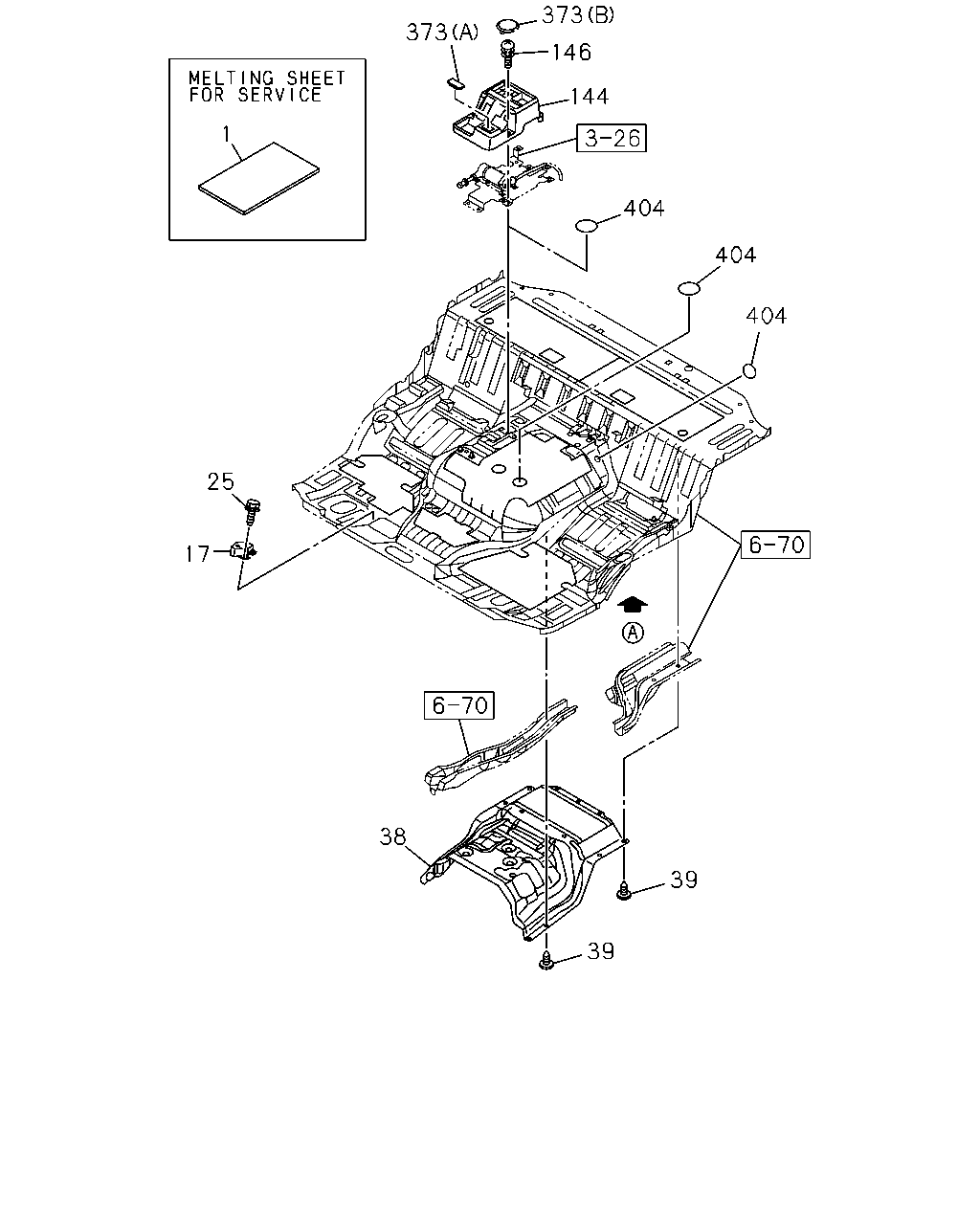

çizim 169360
373 373 146 144 404 404 404 39 39 38 17 25 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 1010- ● ●
17 REST; FOOT,DRIVER 8-98076-322-1 01 1 1010- ● ●
25 SCREW; FOOT REST
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1010- ● ●
38 INSULATOR; ENG COVER 8-97586-180-6 01 1 1010-1310 ● ●
38 INSULATOR; ENG COVER 8-98240-137-1 01 1 1311- ● ●
39 CLIP; INSULATOR,COVER
ID=6.2 L=11.4 		8-97808-623-0 24 1 1010- ● ●
144 COVER; HAND BRK VLV
GRAY 		8-97409-812-0 01 1 1307- ● ●
144 COVER; HAND BRK VLV
GRAY 		8-97414-753-0 01 1 1010-1306 ● ●
146 BOLT; COVER BRKT
M6X16 		0-38050-616-0 04 1 1010- ● ●
373 COVER; HOLE
(B) GRAY 		8-97407-951-0 04 1 1010- ● ●
373 COVER; HOLE
(A) GRAY 		8-97409-339-0 01 1 1010- ● ●
404 SEAL; FLOOR,HOLE
OD=25 BLACK 		1-76798-019-0 12 1 1010- ● ●
404 SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK 		1-76798-019-0 02 1 1010- ● ●
