6-47 — MUD GUARD AND INSULATOR (#60507) — 82 parça

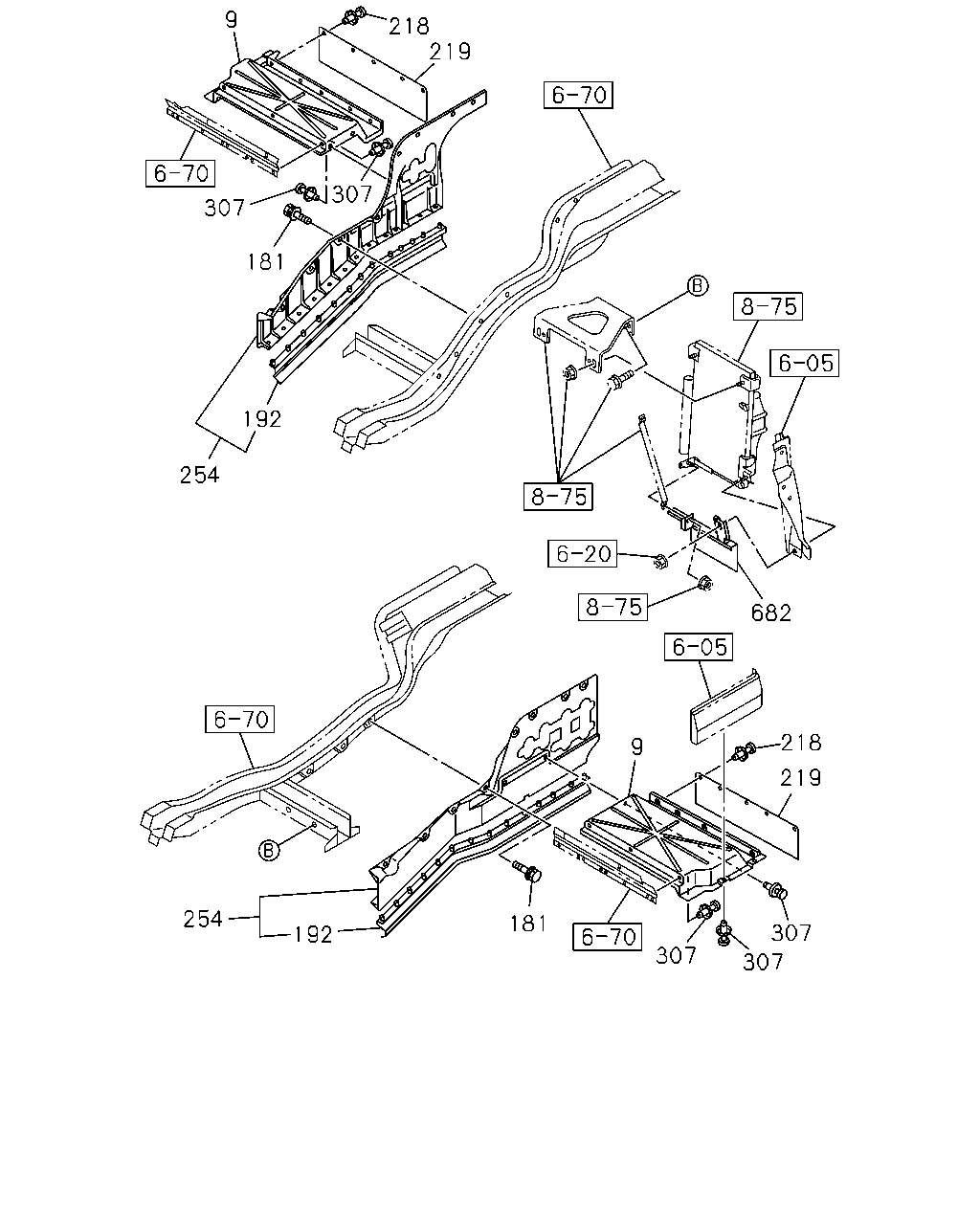

307 307 181 192 254 9 218 219 307 682 219 218 9 307 181 307 192 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-120-2	01	1	1010-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-119-2	01	1	1010-	●	●
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	1010-	●	●
192	SEAL; MUD COVER	8-98069-361-0	01	1	1010-	●	●
192	SEAL; MUD COVER	8-98069-360-0	01	1	1010-	●	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	10	1	1010-	●	●
219	FLAP; MUD GUARD	8-98041-151-1	02	1	1010-	●	●
254	COVER; MUD,VALANCE	8-98039-928-1	01	1	1010-	●	●
254	COVER; MUD,VALANCE	8-98039-927-3	01	1	1010-	●	●
307	RETAINER D8X13.5	1-09987-248-1	14	1	1010-	●	●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	1010-	●	●
682	FLAP; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) FRONT UNDER RUN PROTECTOR<EBE>	8-98059-228-2	01	1	1010-1101	●	●

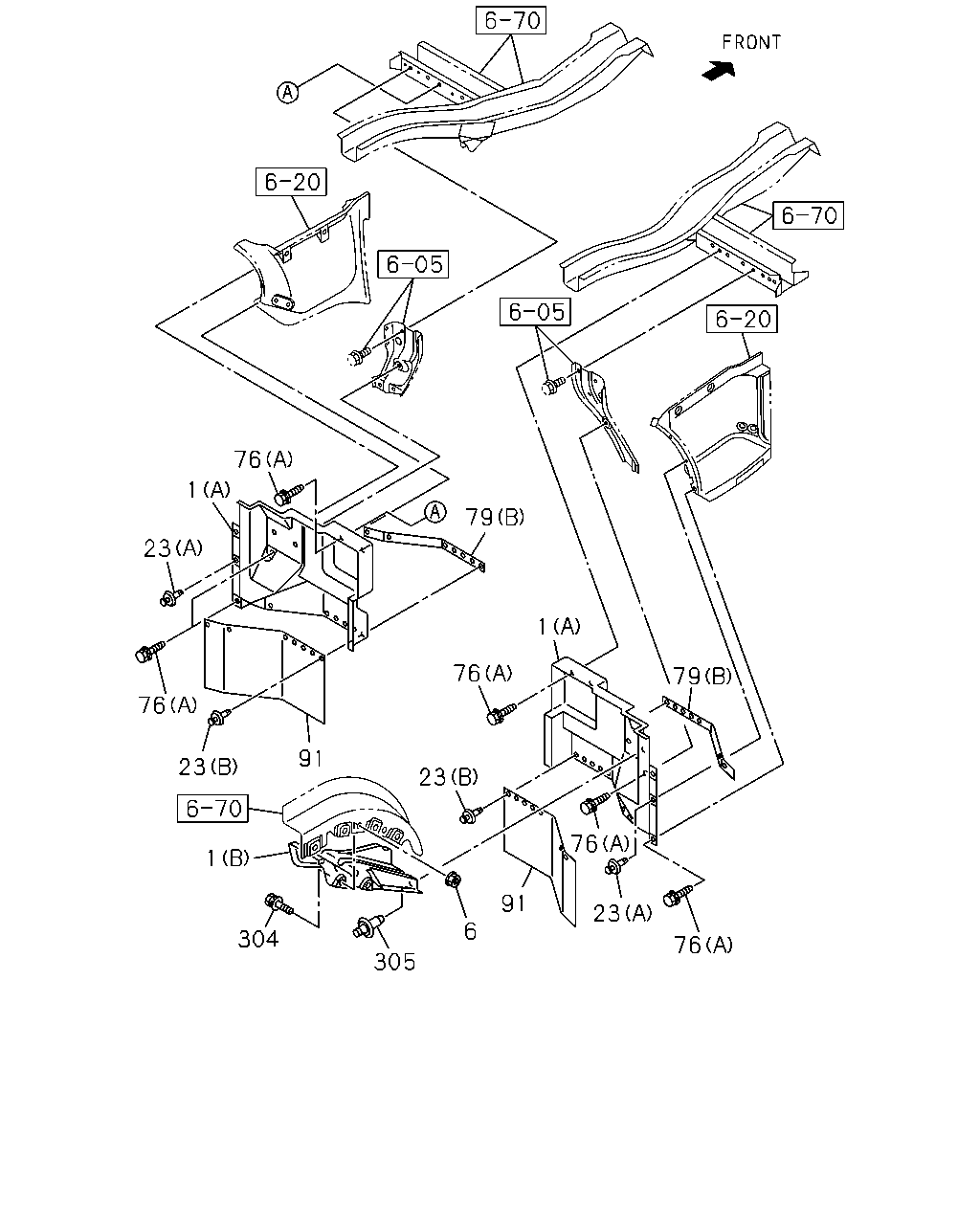

76 23 76 91 23 76 79 1 6 305 304 1 23 91 76 23 1 76 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98076-271-0	01	1	1010-	●	●
1	GUARD; MUD,FRT (A)	8-98039-851-1	01	1	1010-	●	●
1	GUARD; MUD,FRT (A)	8-98039-850-1	01	1	1010-	●	●
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	1010-	●	●
23	FASTENER; MUD COVER (B)	1-09470-001-0	10	1	1010-	●	●
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	1010-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1010-1211	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1010-	●	●
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	1010-	●	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	1010-	●	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	1010-	●	●
91	COVER; MUD,FRT	8-98060-067-1	02	1	1010-	●	●
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	1010-	●	●
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	1010-	●	●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	1010-	●	●

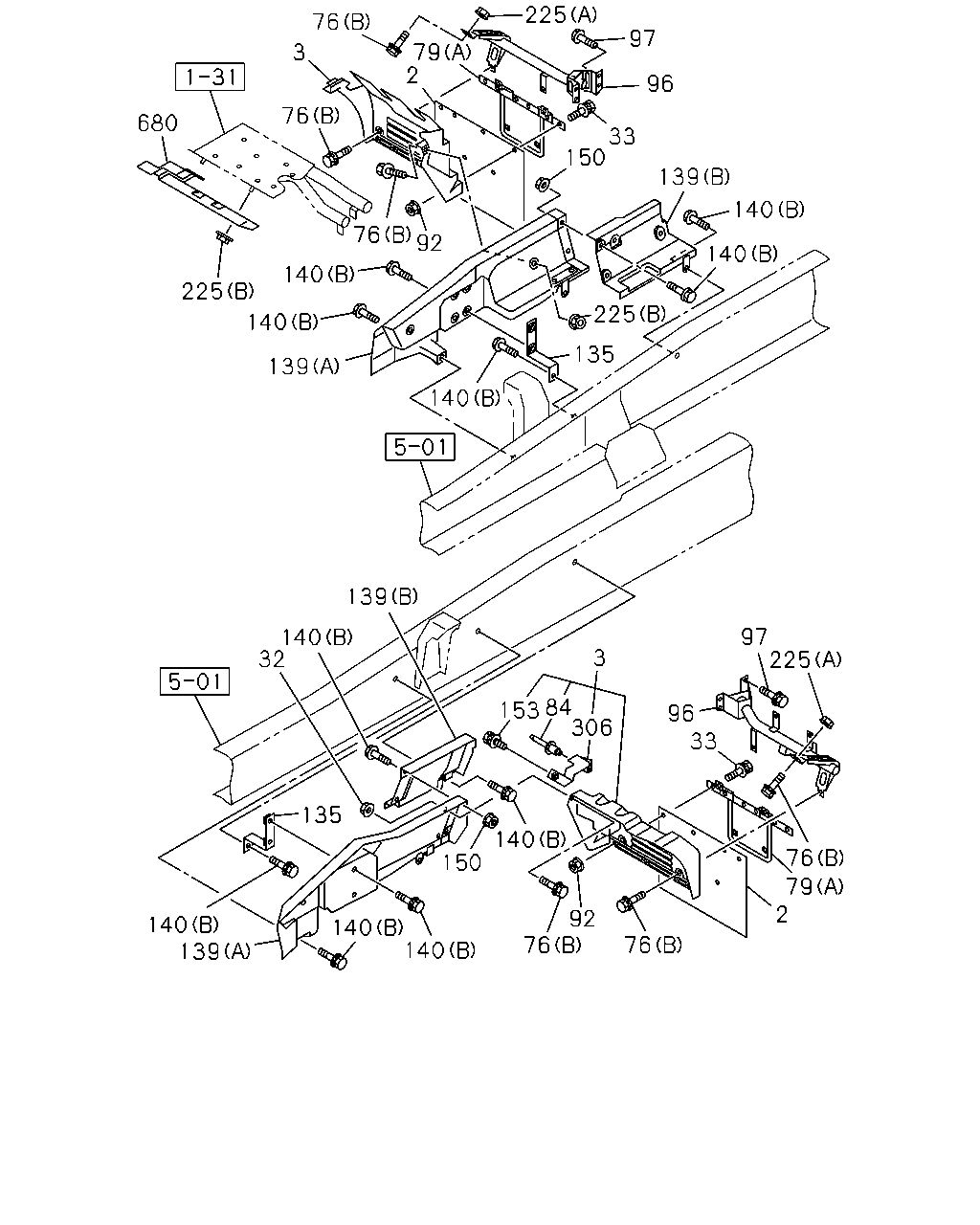

140 225 135 140 140 139 33 150 97 96 225 79 2 76 3 76 76 92 140 140 139 225 140 139 32 135 140 139 140 150 153 84 3 306 140 76 140 92 76 96 97 33 225 76 79 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; MUD,TIRE RR	1-79931-512-1	02	1	1010-	●	●
3	GUARD; MUD,RR	1-79931-473-1	01	1	1010-1211	●	●
3	GUARD; MUD,RR	8-98196-109-0	01	1	1212-	●	●
3	GUARD; MUD,RR	8-98076-257-0	01	1	1010-1302	●	●
3	GUARD; MUD,RR	8-98219-767-0	01	1	1303-	●	●
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	1010-	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	1010-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1010-1211	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1010-	●	●
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	1010-	●	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	1010-	●	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	1010-	●	●
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1212-	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	08	1	1010-	●	●
96	STAY; MUD GUARD	1-79931-519-4	01	1	1010-	●	●
96	STAY; MUD GUARD	1-79931-540-3	01	1	1010-	●	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	1010-	●	●
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	1010-	●	●
139	PANEL; SIDE (B)	1-53194-591-0	01	1	1010-	●	●
139	PANEL; SIDE (A)	1-53194-620-5	01	1	1010-	●	●
139	PANEL; SIDE (B)	1-53194-590-1	01	1	1010-	●	●
139	PANEL; SIDE (A)	1-53194-619-4	01	1	1010-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (C) M8X12 FLANGE	0-28050-812-0	02	1	1010-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	02	1	1010-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	04	1	1010-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	08	1	1010-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X40 FLANGE	0-28050-840-0	03	1	1010-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	1010-	●	●
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	1010-	●	●
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	1010-	●	●
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1212-	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1010-	●	●
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1212-	●	●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	1010-	●	●

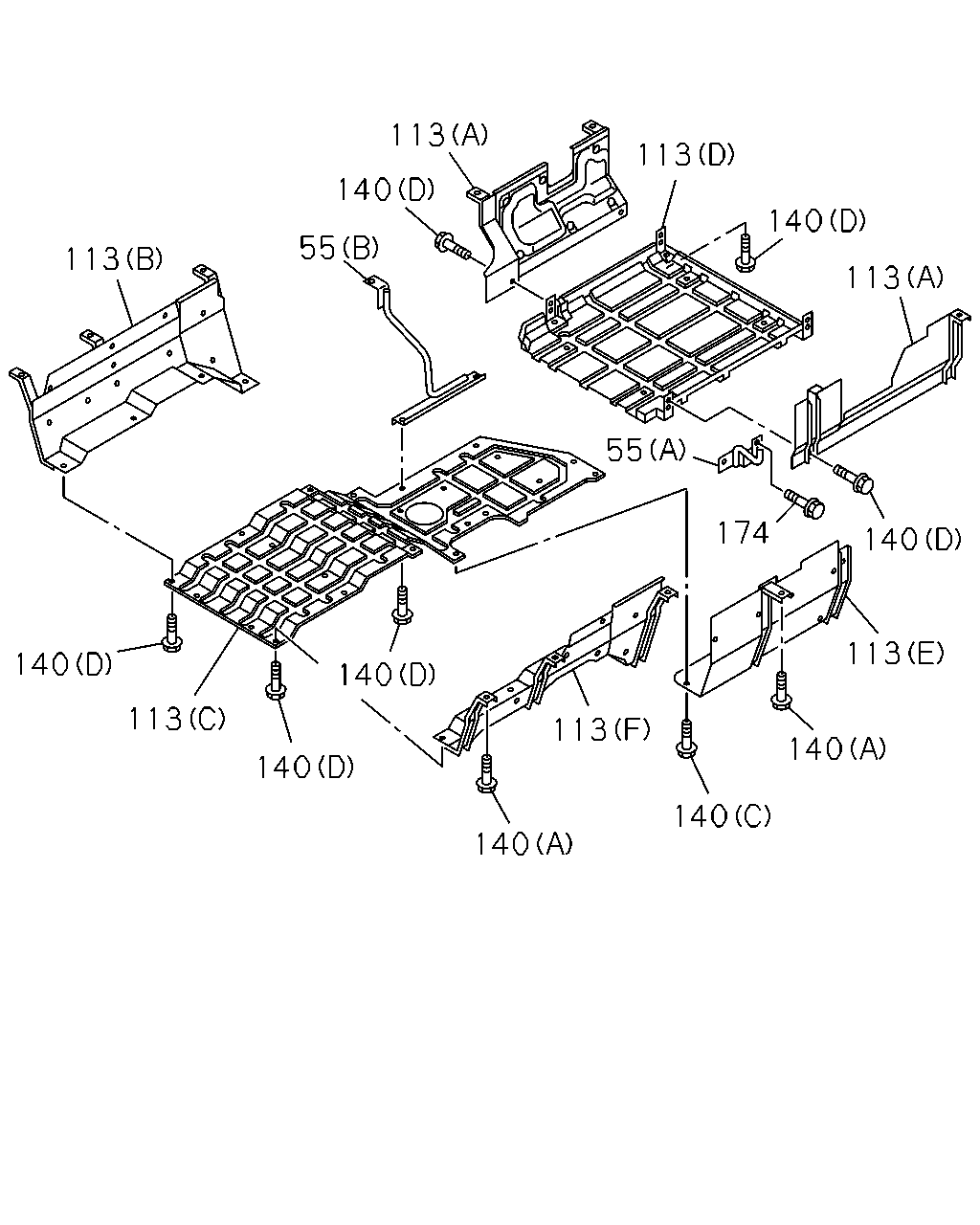

140 140 140 140 113 140 140 113 113 140 174 55 113 140 113 55 140 113 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	STAY; UNDER COVER,RR ZF9S1110 M/T(Y5E) (B)	8-98064-086-2	01	1	1010-	●	●
55	STAY; UNDER COVER,RR ZF9S1110 M/T(Y5E) (A)	8-98078-177-2	01	1	1010-	●	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (C)	8-98017-762-1	01	1	1010-	●	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (D)	8-98017-772-1	01	1	1010-	●	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (E)	8-98078-182-0	01	1	1010-	●	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (A)	8-98078-185-3	01	1	1010-	●	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (F)	8-98114-851-0	01	1	1010-	●	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (B)	8-98017-756-2	01	1	1010-	●	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (A)	8-98078-188-3	01	1	1010-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (C) M8X12 FLANGE	0-28050-812-0	02	1	1010-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	02	1	1010-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	04	1	1010-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	08	1	1010-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X40 FLANGE	0-28050-840-0	03	1	1010-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	1010-	●	●
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	1010-	●	●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28050-830-0	01	1	1010-	●	●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	1010-	●	●
