◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11304 - FVM AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#60506) — 16 parça

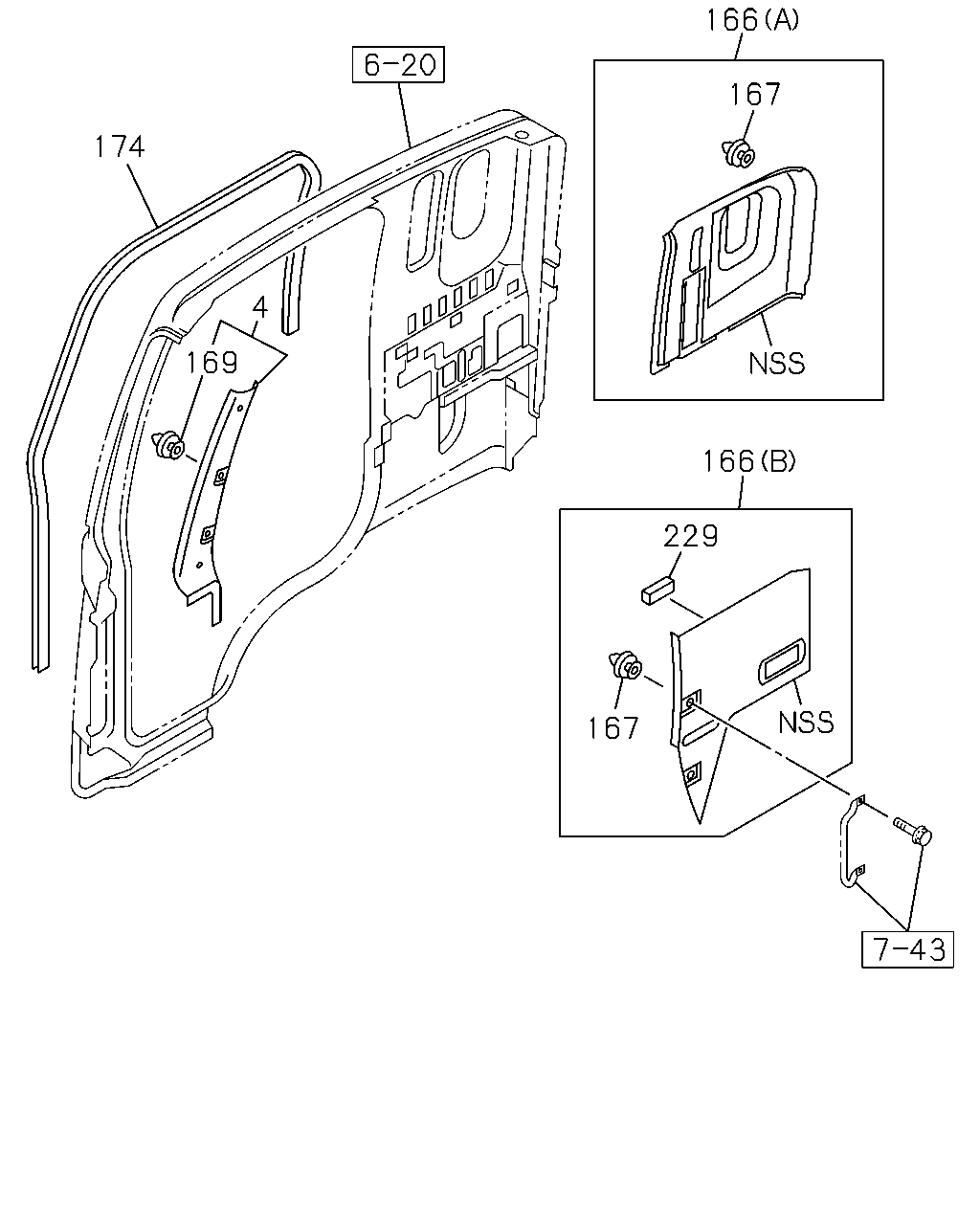

çizim 169363
174 4 169 166 167 166 229 167
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1010- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1010- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-460-1 01 1 1010- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 1010- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97414-300-0 01 1 1010- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 1010- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1010- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1010- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 08 1 1010- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1010- ● ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1010-1509 ● ●
174 FINISHER; BODY SIDE 8-98249-514-0 01 1 1510- ● ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1010-1509 ● ●
174 FINISHER; BODY SIDE 8-98249-513-0 01 1 1510- ● ●
229 SEAL 8-98080-972-0 02 1 1010- ● ●
229 SEAL 8-98092-662-0 01 1 1010- ● ●
