Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10796 - EXZ LHD FUEL TANK 400L
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-75 - CONDENSER
▶
8-75 — CONDENSER
(#6050) — 31 parça
◀

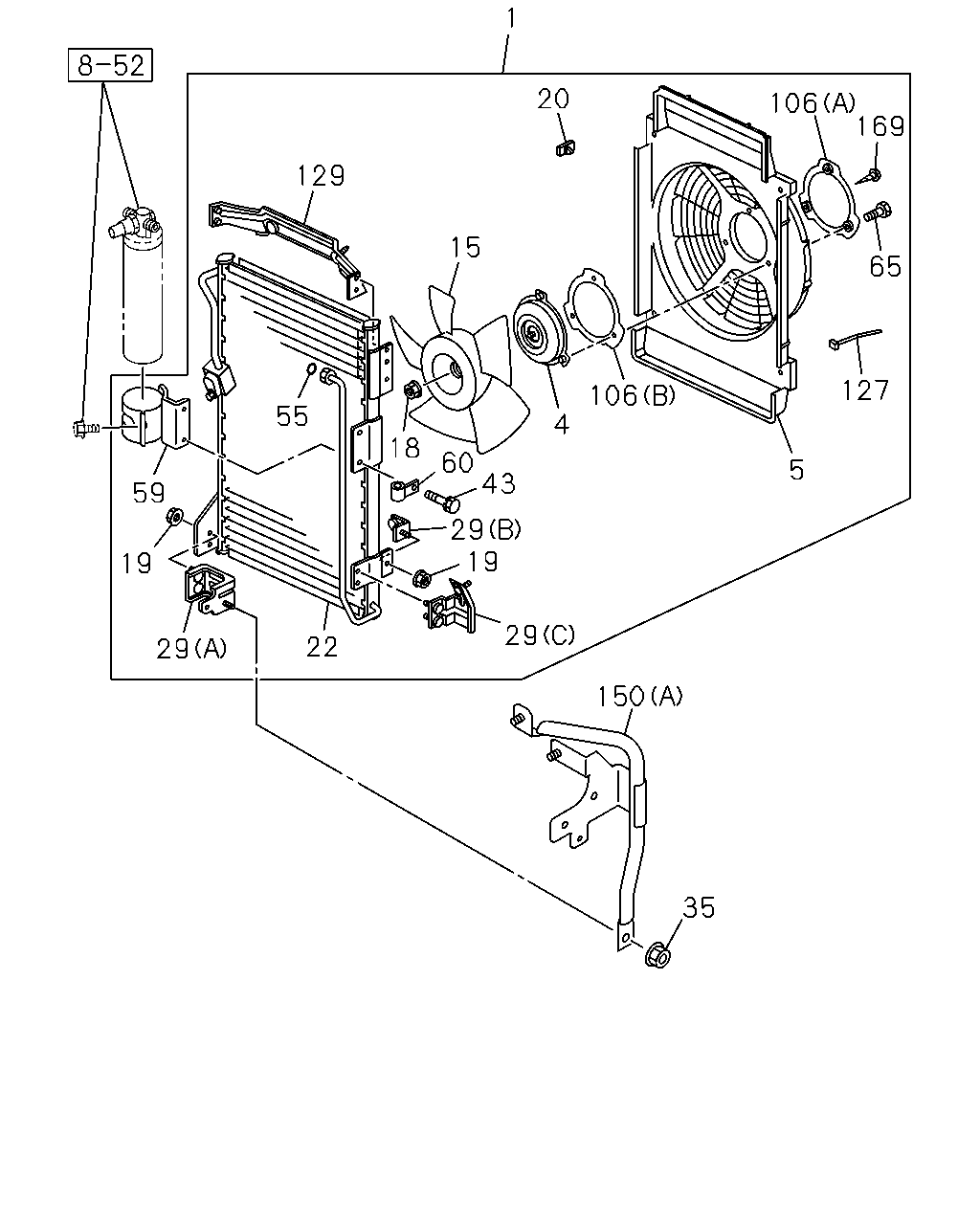

[875A] CONDENSER ASM (25 parça)

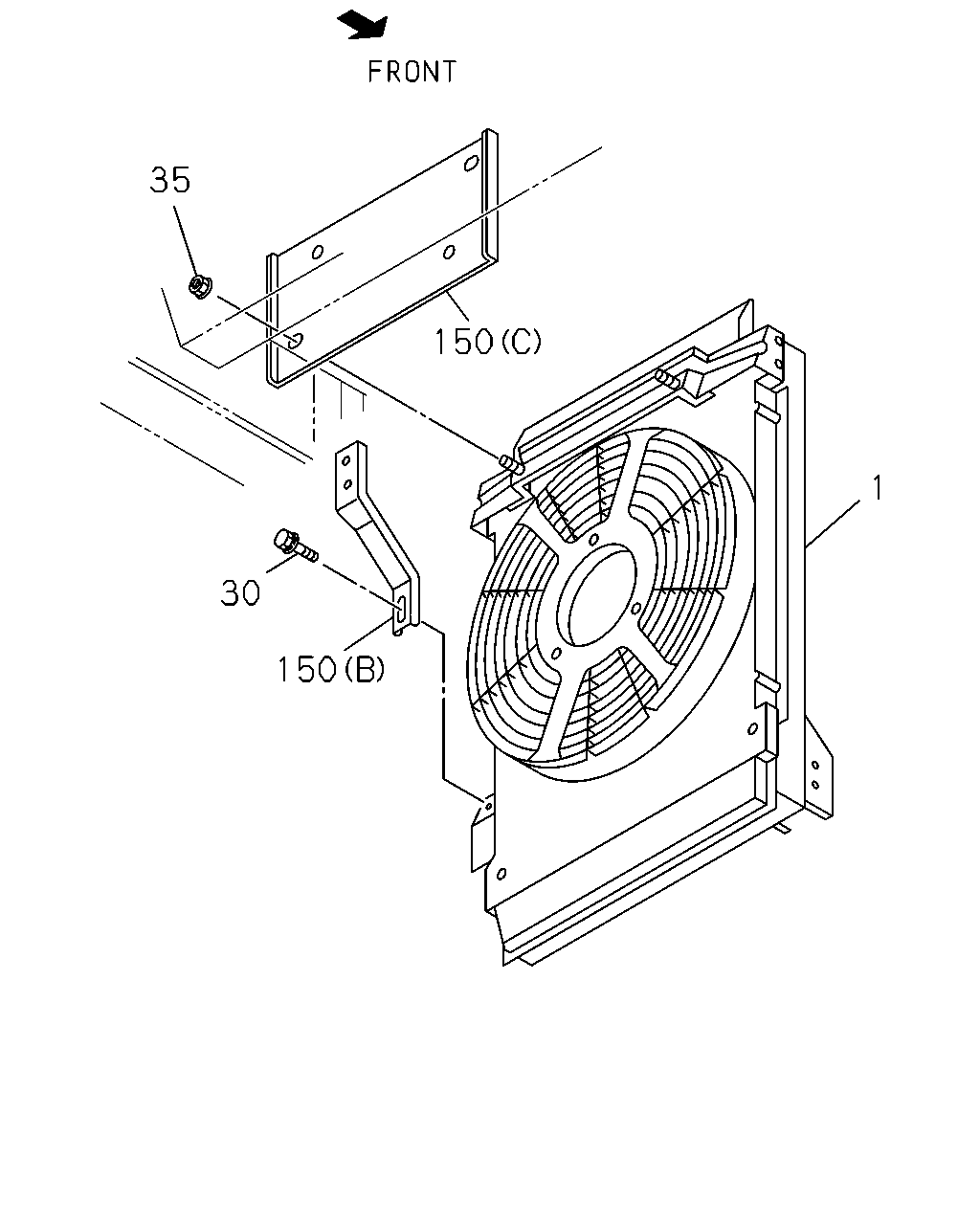

[875A] CONDENSER FIXING (6 parça)
▶
1
20
106
169
129
15
65
127
106
55
4
18
60
43
5
59
29
19
19
29
22
29
150
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83534-223-2
01
1
9812-
4
MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-231-0
01
1
9812-
5
SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-230-2
01
1
9812-
15
FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-232-0
01
1
9812-
18
NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60)
8-97018-672-0
01
1
9812-
19
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-235-0
12
1
9812-
20
CLIP; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
8-94364-751-0
01
1
9812-
22
CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83534-226-1
01
1
9812-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83539-227-1
01
1
9812-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83539-236-0
04
1
9812-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-83539-262-1
01
1
9812-
35
NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91150-108-0
05
1
9812-
43
BOLT; BRKT,CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/FLANGE
1-83539-260-0
06
1
9812-
55
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97161-776-0
01
1
9812-
59
BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-228-2
01
1
9812-
60
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-234-0
01
1
9812-
65
BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-242-0
03
1
9812-
106
BRACKET; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83539-243-0
01
1
9812-
106
BRACKET; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83539-244-0
01
1
9812-
127
CLIP; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) L=140
5-09707-008-0
01
1
9812-
129
BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-237-1
01
1
9812-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83571-914-0
01
1
9812-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83571-915-0
01
1
9812-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-83571-918-0
01
1
9812-
169
SCREW; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60)
8-94248-807-0
01
1
9812-
35
150
1
30
150
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83534-223-2
01
1
9812-
30
BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
9812-
35
NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91150-108-0
05
1
9812-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83571-914-0
01
1
9812-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83571-915-0
01
1
9812-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-83571-918-0
01
1
9812-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
