6-01 — FRONT BUMPER (#60496) — 151 parça

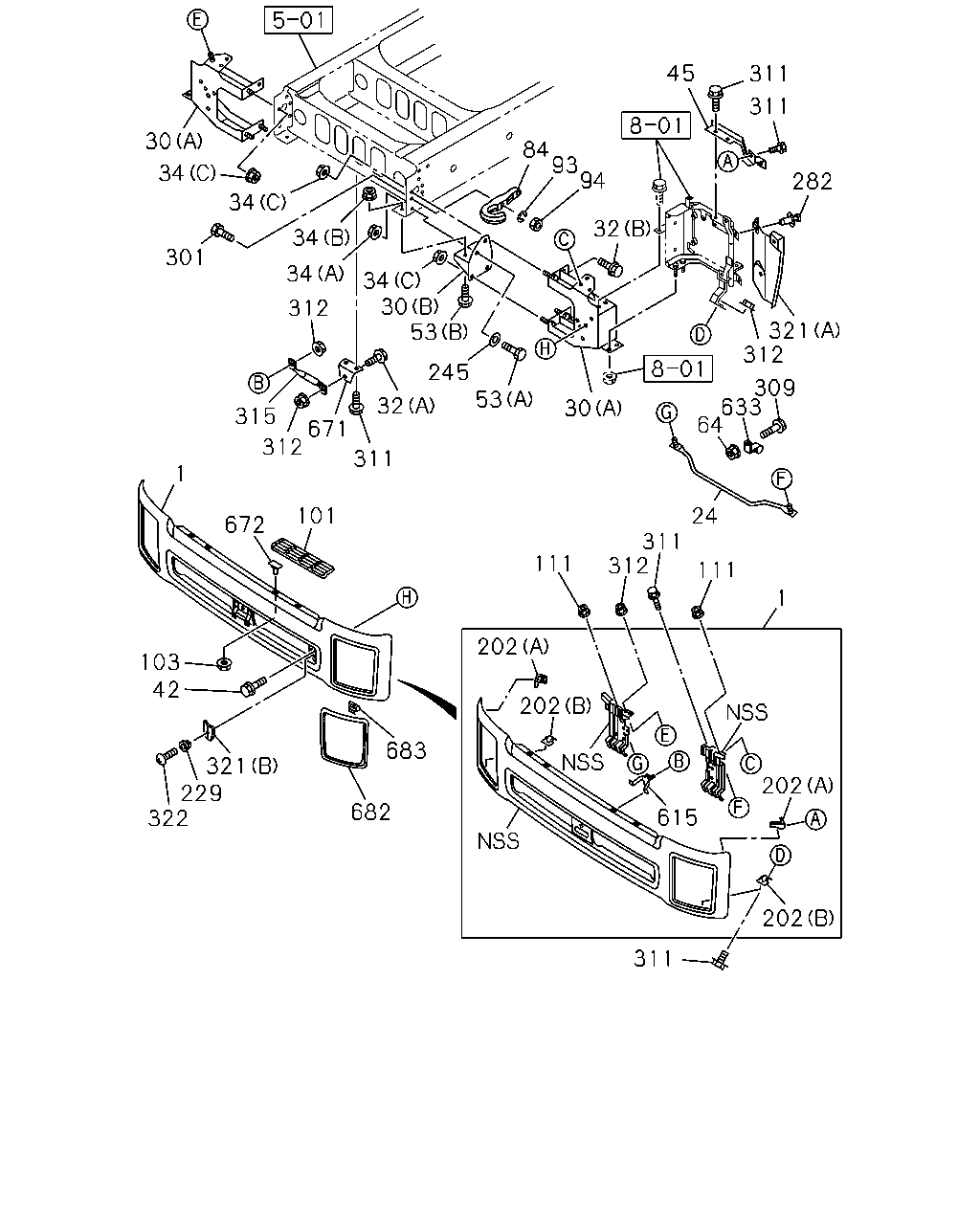

30 301 34 34 34 34 312 315 311 312 671 32 34 53 30 245 30 53 84 32 93 64 94 45 311 311 282 321 312 309 633 1 103 42 321 229 322 672 683 682 101 111 202 202 312 111 24 615 202 202 311 311 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT WHITE	8-97409-903-1	01	1	1010-	●	●
24	BAR; FRT BUMPER	8-97625-359-0	01	1	1010-	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-434-2	01	1	1010-	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-435-2	01	1	1010-	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-546-1	01	1	1010-1306	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-546-1	01	1	1307-	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-547-1	01	1	1010-1306	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-547-1	01	1	1307-	●
32	BOLT; BRKT,BUMPER (B) M12X35 FLANGE	0-28051-235-0	02	1	1010-	●	●
32	BOLT; BRKT,BUMPER (A) M10X30	8-94324-205-0	01	1	1010-	●	●
34	NUT; BRKT,BUMPER (C) M12 FLANGE	0-91180-212-0	06	1	1010-	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1010-1306	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1307-	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1010-1306	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1307-	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1010-	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-648-2	01	1	1010-	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-647-2	01	1	1010-	●	●
53	BOLT; BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16X40	0-20851-640-0	02	1	1010-1306	●	●
53	BOLT; BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16X40	0-20851-640-0	02	1	1307-	●
53	BOLT; BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X45 FLANGE	0-28851-445-0	04	1	1010-1306	●	●
53	BOLT; BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X45 FLANGE	0-28851-445-0	04	1	1307-	●
64	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	1010-	●	●
84	HOOK	1-57181-027-1	01	1	1010-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1010-	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	1010-	●	●
101	STEP; BUMPER	8-97611-543-0	01	1	1010-	●	●
101	STEP; BUMPER	8-97611-542-0	01	1	1010-	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1010-	●	●
111	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-636-0	01	1	1010-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-637-0	01	1	1010-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-640-1	01	1	1010-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-641-1	01	1	1010-	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1010-	●	●
245	WASHER; PL,BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> ID=17 OD=30	0-91610-516-0	02	1	1010-1306	●	●
245	WASHER; PL,BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> ID=17 OD=30	0-91610-516-0	02	1	1307-	●
282	FASTENER; BUMPER FILLER D8X13.5	1-09987-248-1	08	1	1010-	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1010-	●	●
309	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	1010-	●	●
311	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	06	1	1010-	●	●
311	BOLT; BRKT M10X30	8-94324-205-0	07	1	1010-	●	●
312	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1010-	●	●
315	STAY; BUMPER	8-97613-645-1	01	1	1010-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-297-1	01	1	1010-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-120-0	01	1	1010-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-296-1	01	1	1010-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-119-0	01	1	1010-	●	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1010-	●	●
615	BRACKET; BUMPER CENTER	8-97613-643-1	01	1	1010-	●	●
633	CLIP; BUMPER ID=16 H=24 L=20	0-95207-315-0	01	1	1010-	●	●
671	BRACKET; STAY	8-97620-889-0	01	1	1010-	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1010-	●	●
682	BEZEL; BUMPER	8-97611-531-2	01	1	1010-	●	●
682	BEZEL; BUMPER	8-97611-530-2	01	1	1010-	●	●
683	CLIP; BEZEL,BUMPER	8-98084-293-0	08	1	1010-	●	●

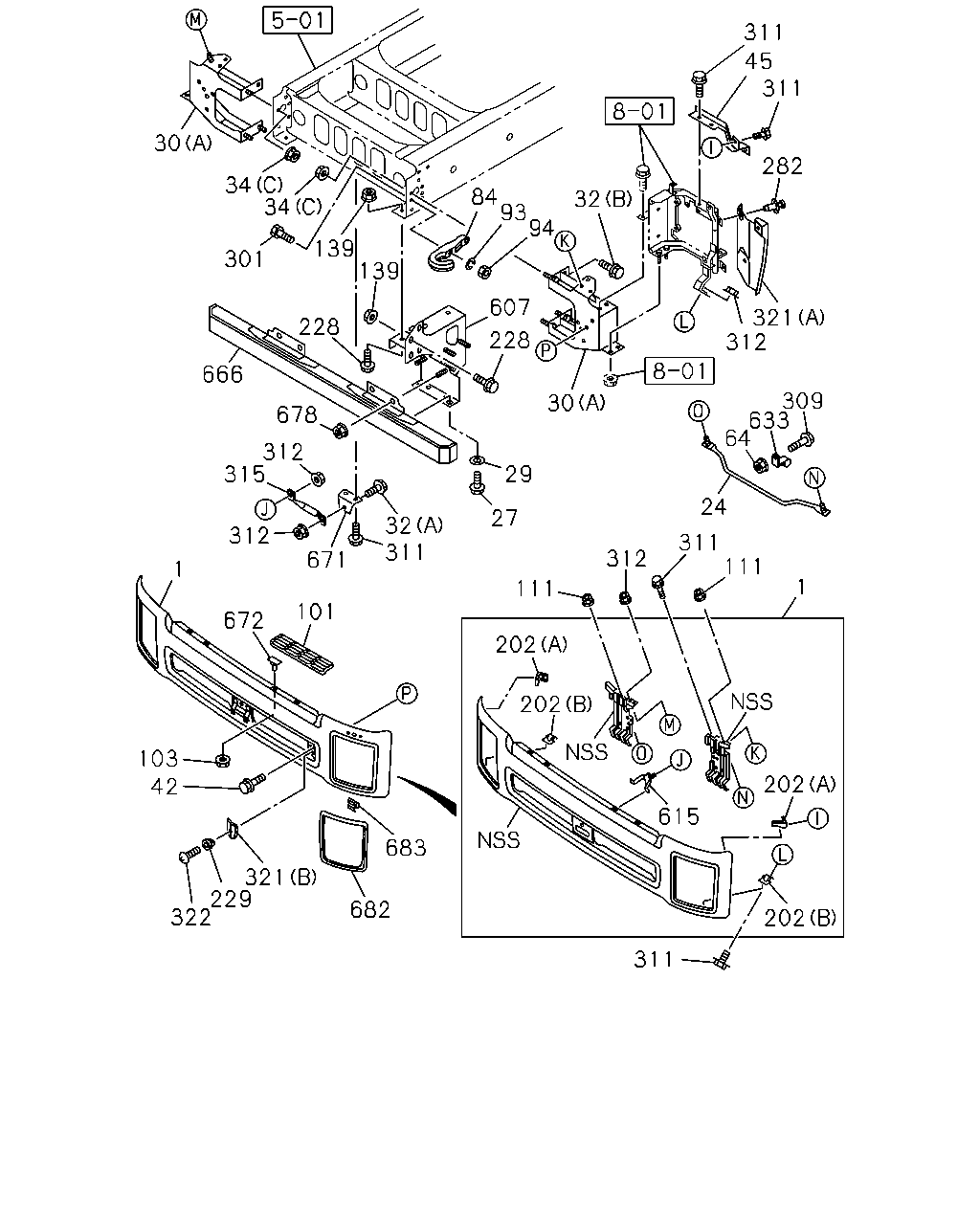

607 94 93 84 139 228 666 301 34 34 30 139 32 228 30 312 321 282 311 45 311 64 24 311 633 309 111 1 111 202 202 202 202 311 615 312 682 321 229 322 683 101 672 103 42 312 311 671 315 312 678 29 27 32 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT WHITE	8-97409-903-1	01	1	1010-	●	●
24	BAR; FRT BUMPER	8-97625-359-0	01	1	1010-	●	●
27	BOLT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12X35 FLANGE	0-28651-235-0	04	1	1010-1306	●	●
27	BOLT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12X35 FLANGE	0-28651-235-0	04	1	1307-	●
27	BOLT; BUMPER TO BACK BAR M12X35 FLANGE	0-28651-235-0	04	1	1307-		●
29	WASHER; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> ID=12.5 OD=32	0-91614-712-0	04	1	1010-1306	●	●
29	WASHER; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> ID=12.5 OD=32	0-91614-712-0	04	1	1307-1409	●
29	WASHER; FRT BUMPER ID=12.5 OD=32	0-91614-712-0	04	1	1307-1409		●
29	WASHER; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> ID=12.5 OD=32	0-91614-712-0	08	1	1410-	●
29	WASHER; FRT BUMPER ID=12.5 OD=32	0-91614-712-0	08	1	1410-		●
30	BRACKET; FRT BUMPER (A)	8-98034-434-2	01	1	1010-	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-435-2	01	1	1010-	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-546-1	01	1	1010-1306	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-546-1	01	1	1307-	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-547-1	01	1	1010-1306	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-547-1	01	1	1307-	●
32	BOLT; BRKT,BUMPER (B) M12X35 FLANGE	0-28051-235-0	02	1	1010-	●	●
32	BOLT; BRKT,BUMPER (A) M10X30	8-94324-205-0	01	1	1010-	●	●
34	NUT; BRKT,BUMPER (C) M12 FLANGE	0-91180-212-0	06	1	1010-	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1010-1306	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1307-	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1010-1306	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1307-	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1010-	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-648-2	01	1	1010-	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-647-2	01	1	1010-	●	●
64	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	1010-	●	●
84	HOOK	1-57181-027-1	01	1	1010-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1010-	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	1010-	●	●
101	STEP; BUMPER	8-97611-543-0	01	1	1010-	●	●
101	STEP; BUMPER	8-97611-542-0	01	1	1010-	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1010-	●	●
111	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M16	0-91110-516-0	02	1	1010-1306	●	●
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M16	0-91110-516-0	02	1	1307-	●
139	NUT; BRKT FIX M16	0-91110-516-0	02	1	1307-		●
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE	0-91180-214-0	06	1	1010-1306	●	●
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE	0-91180-214-0	06	1	1307-	●
139	NUT; BRKT FIX M14 FLANGE	0-91180-214-0	06	1	1307-		●
202	BRACKET; BUMPER SIDE (A)	8-97613-636-0	01	1	1010-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-637-0	01	1	1010-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-640-1	01	1	1010-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-641-1	01	1	1010-	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M16X40	0-20851-640-0	02	1	1010-1306	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M16X40	0-20851-640-0	02	1	1307-	●
228	BOLT; BRKT M16X40	0-20851-640-0	02	1	1307-		●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	06	1	1010-1306	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	06	1	1307-	●
228	BOLT; BRKT M14X45 FLANGE	0-28851-445-0	06	1	1307-		●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1010-	●	●
282	FASTENER; BUMPER FILLER D8X13.5	1-09987-248-1	08	1	1010-	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1010-	●	●
309	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	1010-	●	●
311	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	06	1	1010-	●	●
311	BOLT; BRKT M10X30	8-94324-205-0	07	1	1010-	●	●
312	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1010-	●	●
315	STAY; BUMPER	8-97613-645-1	01	1	1010-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-297-1	01	1	1010-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-120-0	01	1	1010-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-296-1	01	1	1010-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-119-0	01	1	1010-	●	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1010-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98233-079-0	01	1	1307-1409	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98279-071-0	01	1	1410-	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98233-080-0	01	1	1307-1409	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98279-072-0	01	1	1410-	●
607	BRACKET TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) ,TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1) FRONT UNDER RUN PROTECTOR<EBE>	8-98045-843-2	01	1	1108-1306		●
607	BRACKET	8-98045-843-2	01	1	1307-1409		●
607	BRACKET	8-98279-073-0	01	1	1410-		●
607	BRACKET TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) ,TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1) FRONT UNDER RUN PROTECTOR<EBE>	8-98045-844-2	01	1	1108-1306		●
607	BRACKET	8-98045-844-2	01	1	1307-1409		●
607	BRACKET	8-98279-074-0	01	1	1410-		●
607	BRACKET TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) ,TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1) FRONT UNDER RUN PROTECTOR<EBE>	8-98045-754-1	01	1	1010-1107	●	●
607	BRACKET TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) ,TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1) FRONT UNDER RUN PROTECTOR<EBE>	8-98045-754-1	01	1	1108-1306	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98233-078-0	01	1	1307-1409	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98279-070-0	01	1	1410-	●
607	BRACKET TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) ,TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1) FRONT UNDER RUN PROTECTOR<EBE>	8-98045-753-1	01	1	1010-1107	●	●
607	BRACKET TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) ,TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1) FRONT UNDER RUN PROTECTOR<EBE>	8-98045-753-1	01	1	1108-1306	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98233-077-0	01	1	1307-1409	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98279-069-0	01	1	1410-	●
615	BRACKET; BUMPER CENTER	8-97613-643-1	01	1	1010-	●	●
633	CLIP; BUMPER ID=16 H=24 L=20	0-95207-315-0	01	1	1010-	●	●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE>	8-98045-820-2	01	1	1010-1105	●	●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE>	8-98196-475-0	01	1	1106-1306	●	●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE>	8-98196-475-0	01	1	1307-	●
666	PROTECTOR; UNDER	8-98196-475-0	01	1	1307-		●
671	BRACKET; STAY	8-97620-889-0	01	1	1010-	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1010-	●	●
678	NUT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12 FLANGE	0-91180-212-0	04	1	1010-1306	●	●
678	NUT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12 FLANGE	0-91180-212-0	04	1	1307-	●
678	NUT; BUMPER TO BACK BAR M12 FLANGE	0-91180-212-0	04	1	1307-		●
682	BEZEL; BUMPER	8-97611-531-2	01	1	1010-	●	●
682	BEZEL; BUMPER	8-97611-530-2	01	1	1010-	●	●
683	CLIP; BEZEL,BUMPER	8-98084-293-0	08	1	1010-	●	●
