Isuzu WW
▶
TRUCKS
▶
FVM
▶
11304 - FVM AUST/NZ EURO5
▶
5 - Frame, Cab Mounting
▶

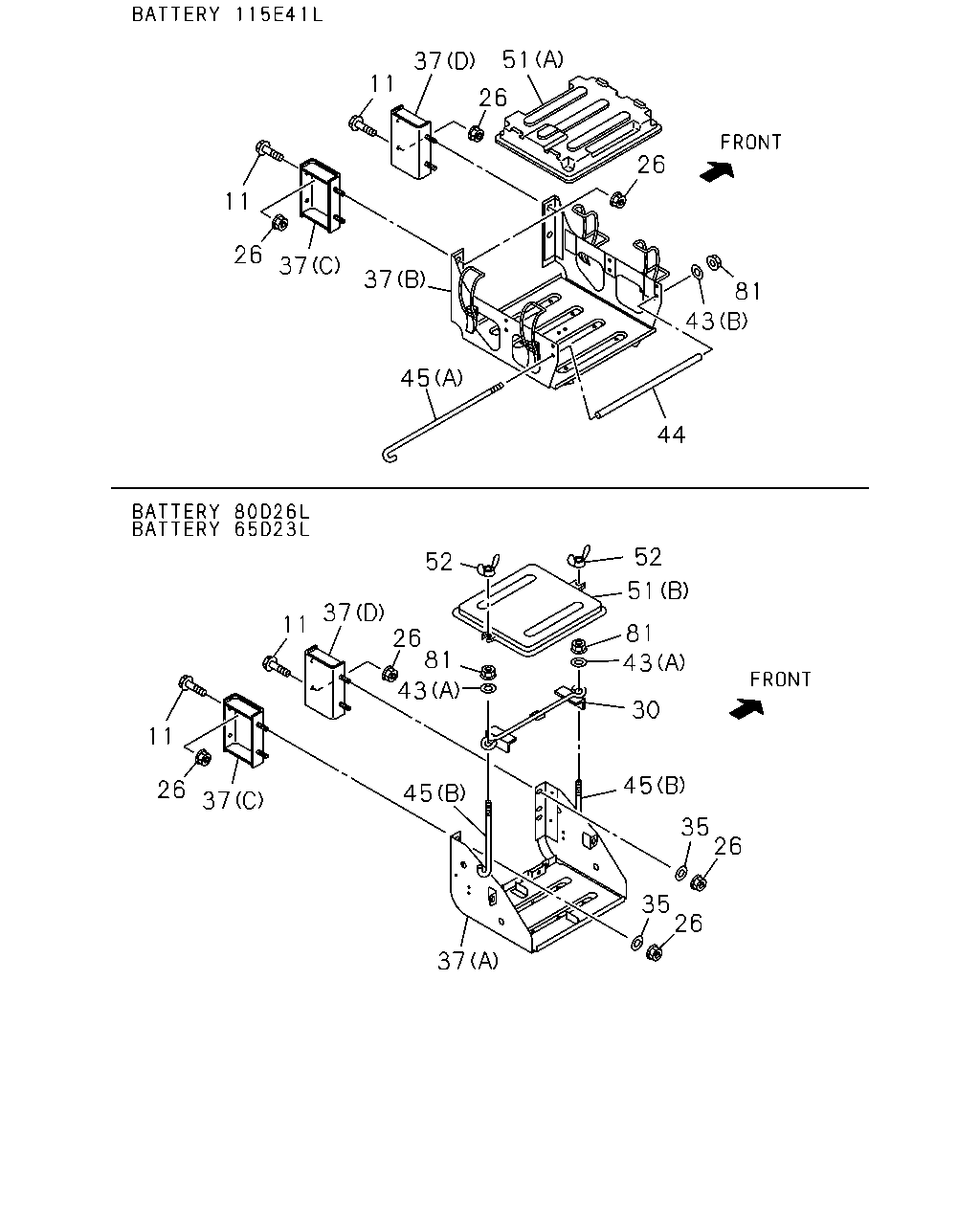

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#60494) — 21 parça
Tümü
A - FGL5MV
B - FGM5MV
51
37
11
26
11
26
37
37
45
26
81
43
44
52
37
11
11
26
37
26
81
43
45
37
52
51
81
43
30
45
35
26
35
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
11
BOLT; BRKT FIX
M10X35 FLANGE
0-28651-035-0
04
1
1010-
●
●
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1010-1306
●
●
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1010-1306
●
●
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
08
1
1307-
●
●
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
1010-
●
●
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1010-
●
●
37
BRACKET; BATTERY
(D)
8-98088-828-0
01
1
1010-
●
●
37
BRACKET; BATTERY
(C)
8-98162-291-0
01
1
1010-
●
●
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98174-413-0
01
1
1010-1405
●
●
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-641-1
01
1
1406-
●
●
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
1010-
●
●
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1010-
●
●
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
1010-
●
●
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22
0-91614-708-0
02
1
1010-
●
●
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1406-
●
●
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1010-
●
●
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120
9-53616-615-0
02
1
1010-
●
●
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1010-
●
●
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
1010-
●
●
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1010-
●
●
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1010-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
