◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11304 - FVM AUST/NZ EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#60491) — 39 parça

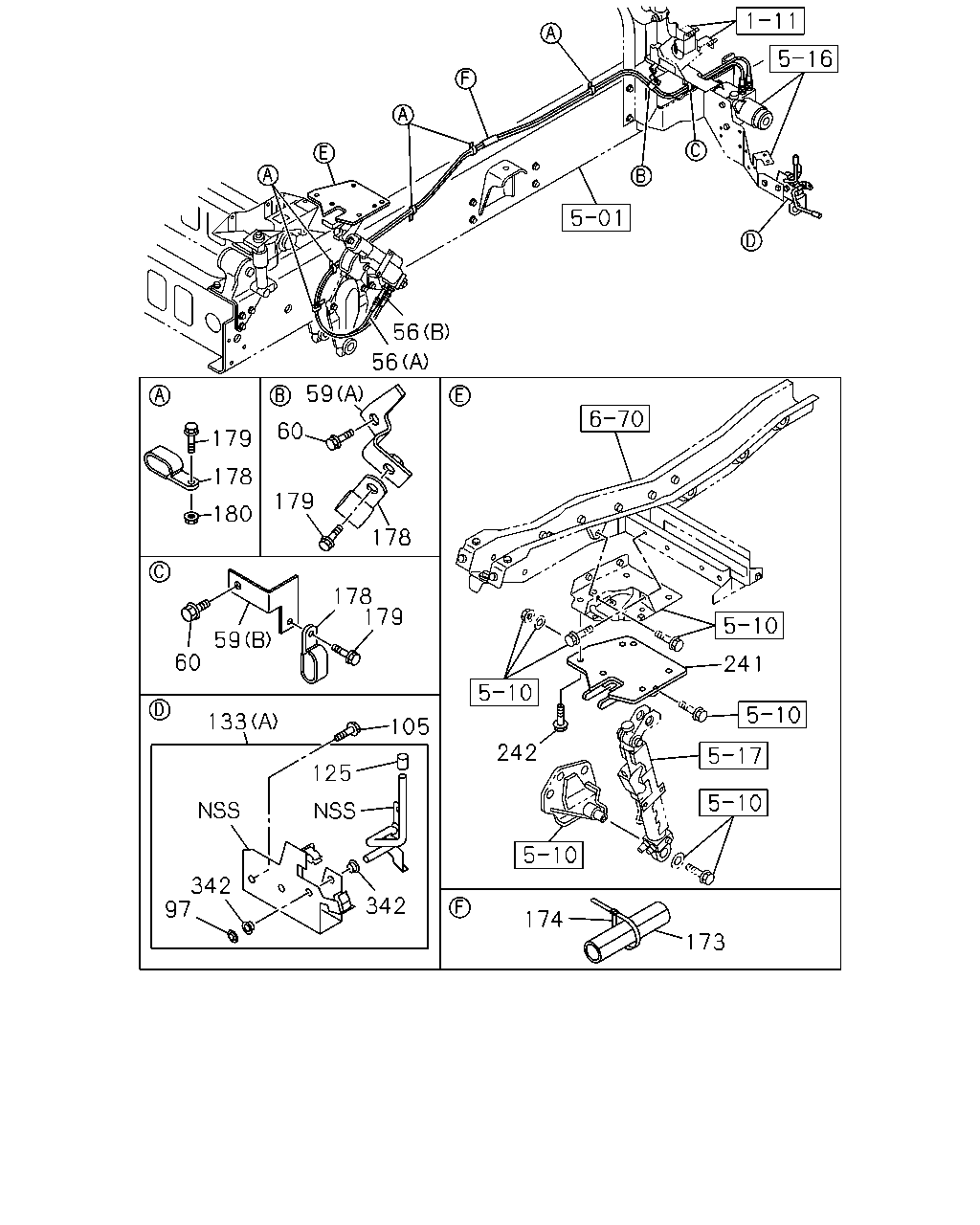

çizim 169233
56 56 59 60 179 178 180 179 178 178 179 59 60 133 342 97 125 105 174 173 241 242 342
BalonParca AdiParca NoAdetTipApplied Date A B
56 HOSE; FLEX,OIL PIPE
(A) 		8-98022-487-2 01 1 1010- ● ●
56 HOSE; FLEX,OIL PIPE
(B) 		8-98087-331-1 01 1 1010- ● ●
59 BRACKET; CLIP
(A) 		8-98083-608-1 01 1 1010- ● ●
59 BRACKET; CLIP
(B) 		8-98083-609-0 01 1 1010- ● ●
60 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
97 NUT; CAB STAY PIN
ID=9.9 PUSH NUT 		8-97022-566-0 01 1 1010- ● ●
105 BOLT; CAB STAY
M8X16 FLANGE 		0-28050-816-0 02 1 1010- ● ●
125 GRIP; HAND LEVER,CAB LOCK
ID=9.0 		8-94207-303-0 01 1 1010- ● ●
133 LOCK ASM; CAB
(A) 		8-97608-198-0 01 1 1010- ● ●
133 LOCK ASM; CAB
(C) 		8-98094-285-2 01 1 1010- ● ●
133 LOCK ASM; CAB
(B) 		8-98061-489-1 01 1 1010- ● ●
173 SLEEVE; RUBBER,FLEX HOSE
ID=17 OD=21 L=40 		1-09337-012-0 01 1 1010- ● ●
174 CLIP; BAND,FLEX HOSE
L=140 		5-09707-031-1 01 1 1010- ● ●
178 CLIP; FLEX HOSE
ID=11X2 L=20 		0-95325-035-0 07 1 1010- ● ●
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 06 1 1010- ● ●
179 BOLT; CLIP,FLEX HOSE
M8X30 FLANGE 		0-28650-830-0 03 1 1010- ● ●
180 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
180 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1010- ● ●
241 BRACKET; POWER CYL UPR,CAB TILT 8-98022-417-1 01 1 1010- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
M10X30 FLANGE 		0-28661-030-0 05 1 1010- ● ●
342 BUSHING; LEVER,CAB LOCK
T=6 OD=17.5 		9-33659-249-0 02 1 1010- ● ●

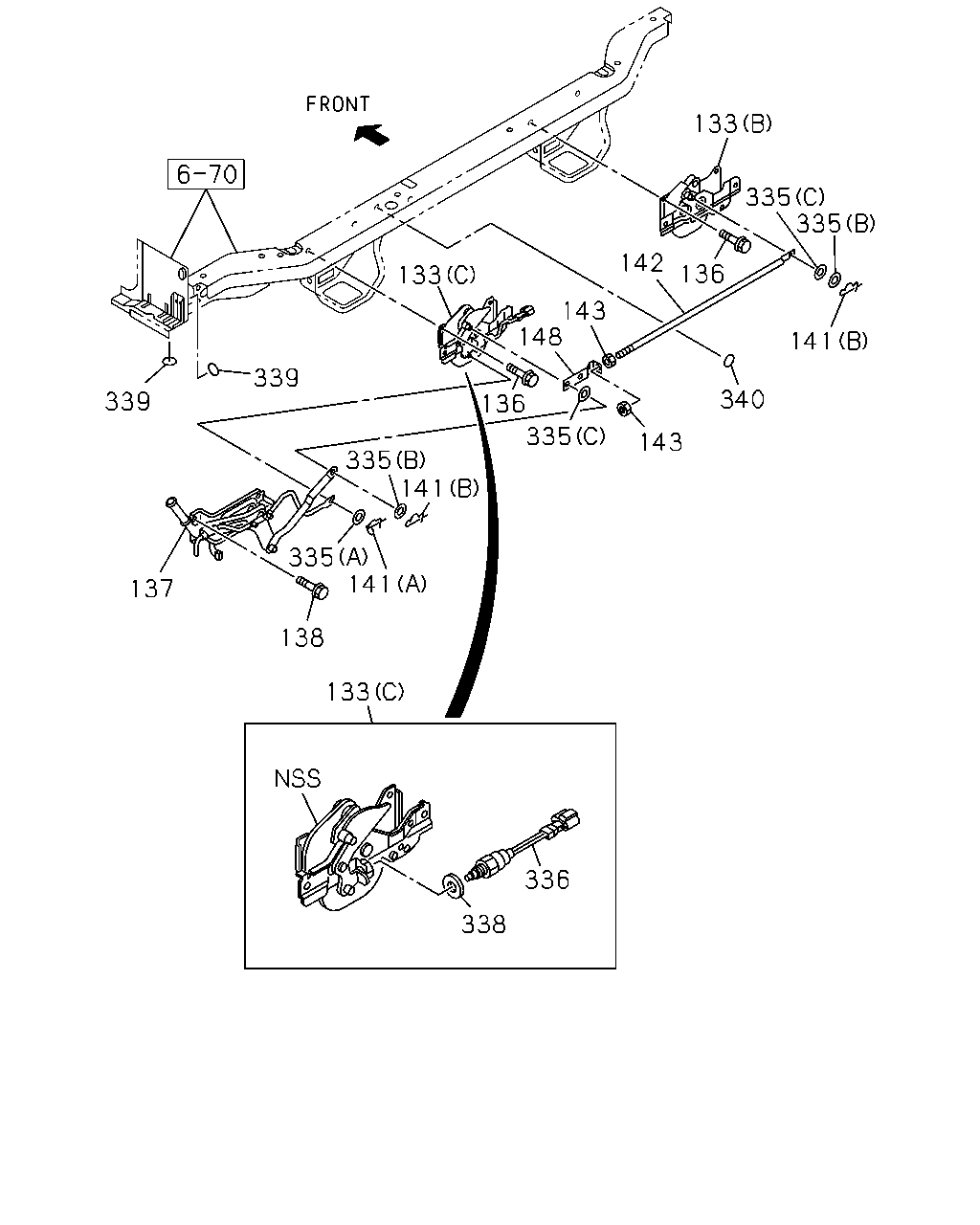

çizim 169315
338 336 133 138 137 141 335 141 335 335 143 136 340 141 136 142 335 335 133 148 143 133 339 339
BalonParca AdiParca NoAdetTipApplied Date A B
133 LOCK ASM; CAB
(A) 		8-97608-198-0 01 1 1010- ● ●
133 LOCK ASM; CAB
(C) 		8-98094-285-2 01 1 1010- ● ●
133 LOCK ASM; CAB
(B) 		8-98061-489-1 01 1 1010- ● ●
136 BOLT; CAB LK
M8X20 FLANGE 		0-28650-820-0 08 1 1010- ● ●
137 CONTROL UNIT; CAB LOCK 8-97587-592-5 01 1 1010- ● ●
138 BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE 		0-28650-820-0 04 1 1010- ● ●
141 PIN; SNAP,CAB LOCK ROD
(A) L=25.3 		8-98039-045-1 01 1 1010- ● ●
141 PIN; SNAP,CAB LOCK ROD
(B) L=32.6 		8-98062-280-0 02 1 1010- ● ●
142 ROD; HOOK TO HOOK 8-97587-990-0 01 1 1010- ● ●
143 NUT; JAW JOINT,HOOK TO HOOK
M10 		0-91110-510-0 02 1 1010- ● ●
148 JOINT; JAW,HOOK TO HOOK 8-97410-736-0 01 1 1010- ● ●
335 WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16 		0-91610-508-0 01 1 1010- ● ●
335 WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26 		0-91610-612-0 02 1 1010- ● ●
335 WASHER; CAB LOCK ROD
(C) ID=13 OD=22 		8-98060-839-0 02 1 1010- ● ●
336 SWITCH; CAB LOCK 8-98091-155-1 01 1 1010- ● ●
338 WASHER; CAB LOCK
ID=17 OD=30 		0-91610-516-0 01 1 1010- ● ●
339 SEAL; TILT HANDLE
OD=25 BLACK 		1-76798-019-0 04 1 1010- ● ●
340 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1010- ● ●
