5-01 — FRAME AND OTHER PARTS (#60489) — 98 parça

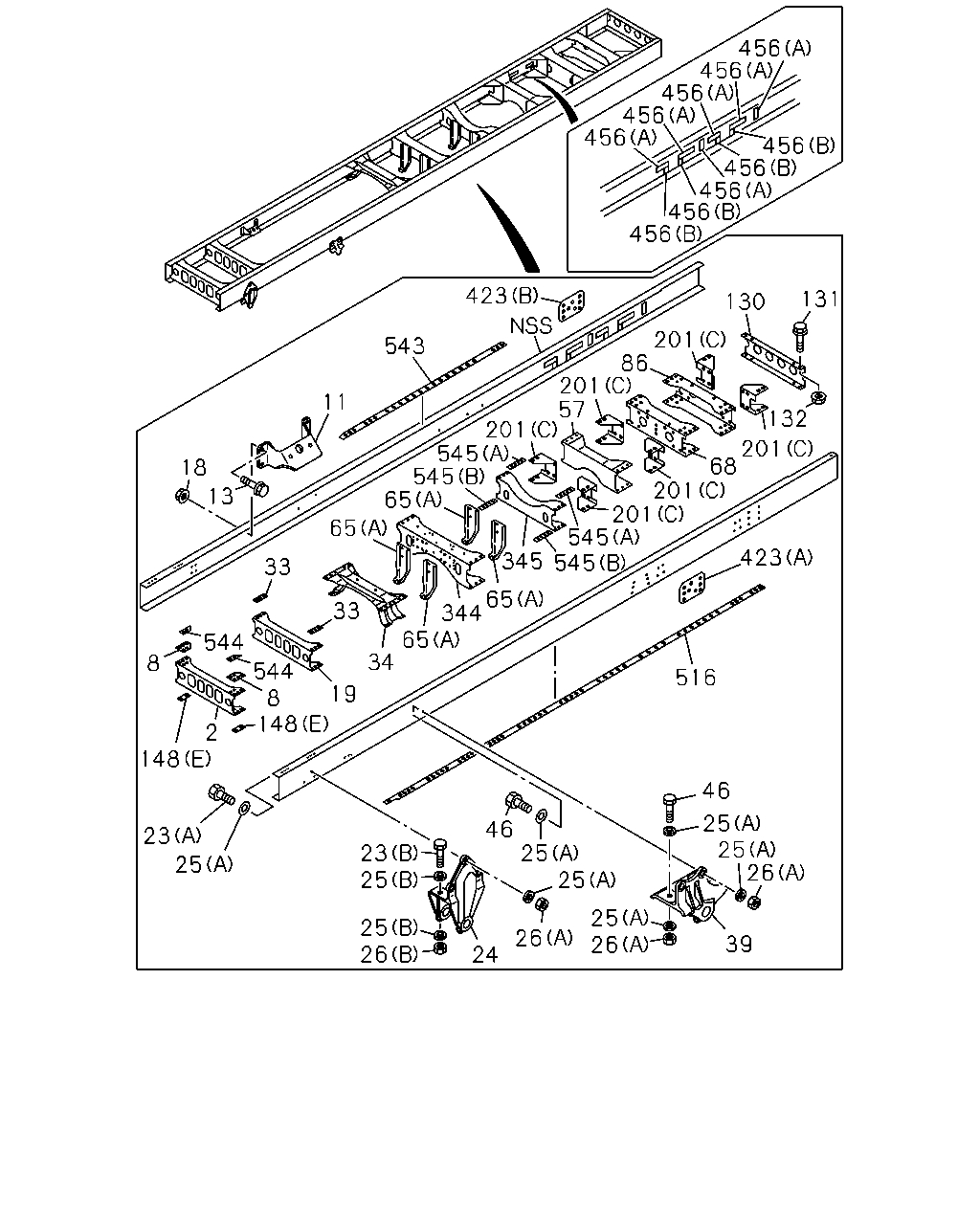

39 26 25 25 46 26 25 25 25 46 26 24 26 25 25 23 25 23 148 148 544 8 544 8 19 65 34 344 65 345 545 545 201 201 68 201 132 131 130 201 86 201 57 201 545 545 65 65 33 33 2 516 423 456 456 456 456 456 456 456 456 456 456 423 543 11 18 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1010-
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1010-
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1010-
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1010-
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1010-
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1010-
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1010-
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1010-
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1010-
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1010-
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1010-
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1010-
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1010-
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1010-
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1010-
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1010-
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1010-
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1010-
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1010-
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	1010-
65	BRACKET; CENTER BRG AIR SUS(FGL***) (A)	8-97614-132-0	04	1	1010-
65	BRACKET; CENTER BRG LEAF SUS(FGM***) (B)	8-97614-134-0	02	1	1010-
65	BRACKET; CENTER BRG LEAF SUS(FGM***) (C)	8-97623-393-0	02	1	1010-
68	MEMBER; CROSS,RR SUSP CTR AIR SUS(FGL***)	8-97612-105-4	01	1	1010-
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	1010-
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1010-
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1010-
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1010-
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1010-
148	SPACER; C/MBR LEAF SUS(FGM***) (D)	8-97612-109-0	04	1	1010-
148	SPACER; C/MBR LEAF SUS(FGM***) (F)	8-97612-111-0	04	1	1010-
148	SPACER; C/MBR LEAF SUS(FGM***) (A)	8-97612-112-0	02	1	1010-
148	SPACER; C/MBR LEAF SUS(FGM***) (B)	8-97612-113-0	02	1	1010-
148	SPACER; C/MBR LEAF SUS(FGM***) (C)	8-97612-115-0	02	1	1010-
201	GUSSET; C/MBR AIR SUS(FGL***) (C)	8-97619-807-3	06	1	1010-
201	GUSSET; C/MBR LEAF SUS(FGM***) (B)	8-97612-108-2	02	1	1010-
201	GUSSET; C/MBR LEAF SUS(FGM***) (A)	8-97620-295-2	02	1	1010-
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1010-
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	1010-
423	PATCH AIR SUS(FGL***) (A)	8-97619-809-0	01	1	1010-
423	PATCH AIR SUS(FGL***) (B)	8-97619-810-0	01	1	1010-
456	PATCH; STOPPER AIR SUS(FGL***) (A)	8-97611-248-0	12	1	1010-1201
456	PATCH; STOPPER AIR SUS(FGL***) (A)	8-97642-212-0	12	1	1202-
456	PATCH; STOPPER AIR SUS(FGL***) (B)	8-97611-249-0	08	1	1010-1201
456	PATCH; STOPPER AIR SUS(FGL***) (B)	8-97642-213-0	08	1	1202-
516	GUSSET; LWR AIR SUS(FGL***)	8-97620-293-3	02	1	1010-
543	GUSSET; UPR AIR SUS(FGL***)	8-97620-007-0	02	1	1010-
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1010-
545	SPACER; 5TH C/MBR (B) 0.25KG	8-97611-244-0	02	1	1307-
545	SPACER; 5TH C/MBR (A) 0.24KG	8-97611-245-0	02	1	1010-

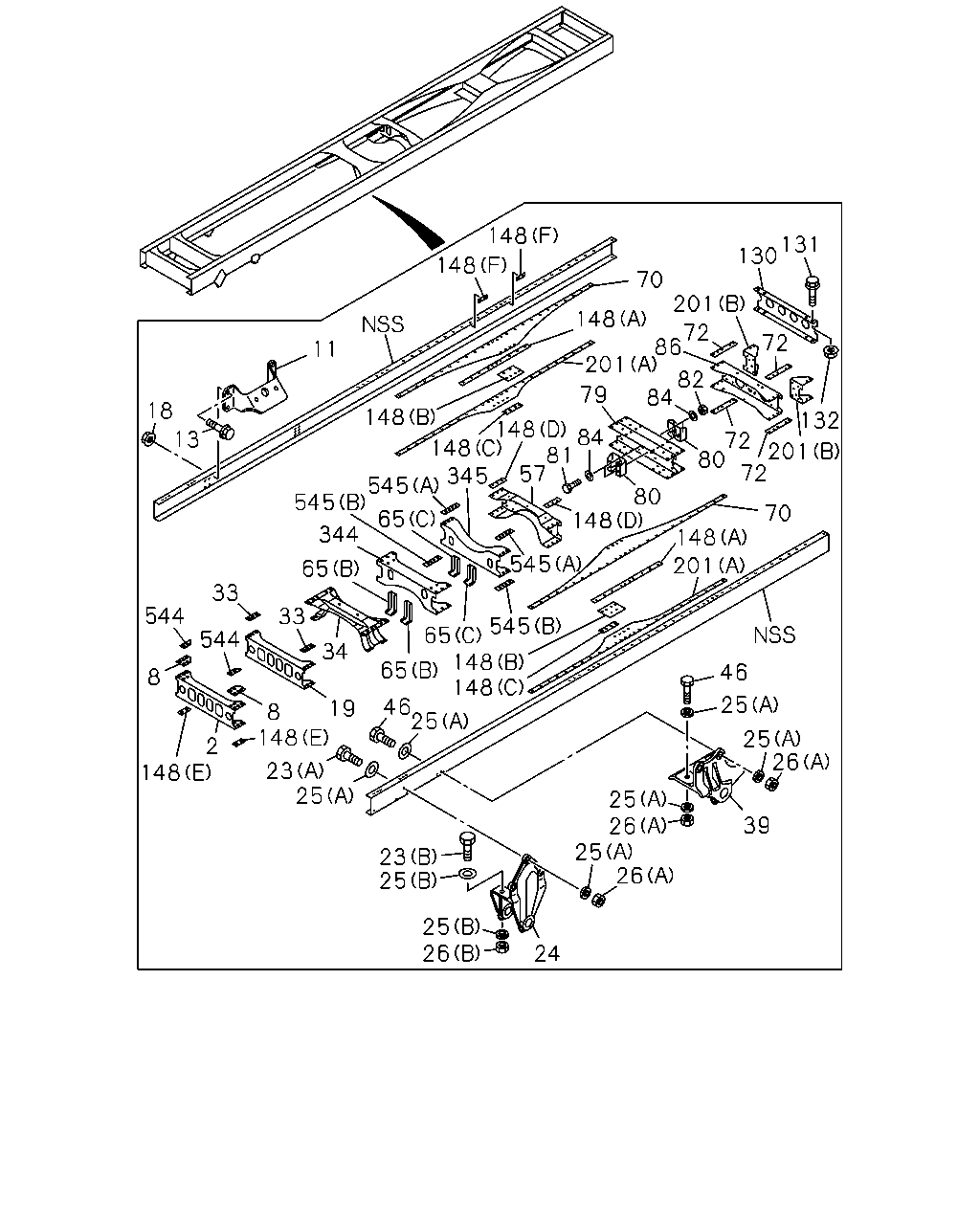

24 26 25 23 25 26 25 39 26 25 26 25 25 46 201 148 70 25 23 148 2 8 8 148 19 25 46 148 148 65 65 545 34 33 33 544 544 65 344 65 545 545 345 545 148 57 81 84 80 80 72 201 132 72 84 82 79 148 148 148 201 86 72 72 131 130 201 70 148 148 148 11 13 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1010-
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1010-
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1010-
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1010-
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1010-
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1010-
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1010-
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1010-
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1010-
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1010-
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1010-
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1010-
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1010-
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1010-
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1010-
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1010-
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1010-
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1010-
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1010-
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	1010-
65	BRACKET; CENTER BRG AIR SUS(FGL***) (A)	8-97614-132-0	04	1	1010-
65	BRACKET; CENTER BRG LEAF SUS(FGM***) (B)	8-97614-134-0	02	1	1010-
65	BRACKET; CENTER BRG LEAF SUS(FGM***) (C)	8-97623-393-0	02	1	1010-
70	GUSSET; TRUNNION,UPR LEAF SUS(FGM***)	8-97612-106-0	02	1	1010-
72	SPACER; TRUNNION LEAF SUS(FGM***)	8-97612-110-0	04	1	1010-
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGM***)	8-97612-484-1	01	1	1010-
80	BRACKET; C/MBR LEAF SUS(FGM***)	1-53363-068-0	02	1	1010-
81	BOLT; BRKT LEAF SUS(FGM***) M14X50	0-10956-450-0	02	1	1010-
82	NUT; BRKT LEAF SUS(FGM***) M14	0-91110-514-0	02	1	1010-
84	WASHER; PL,BRKT LEAF SUS(FGM***) ID=15	8-98010-627-1	04	1	1010-
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	1010-
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1010-
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1010-
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1010-
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1010-
148	SPACER; C/MBR LEAF SUS(FGM***) (D)	8-97612-109-0	04	1	1010-
148	SPACER; C/MBR LEAF SUS(FGM***) (F)	8-97612-111-0	04	1	1010-
148	SPACER; C/MBR LEAF SUS(FGM***) (A)	8-97612-112-0	02	1	1010-
148	SPACER; C/MBR LEAF SUS(FGM***) (B)	8-97612-113-0	02	1	1010-
148	SPACER; C/MBR LEAF SUS(FGM***) (C)	8-97612-115-0	02	1	1010-
201	GUSSET; C/MBR AIR SUS(FGL***) (C)	8-97619-807-3	06	1	1010-
201	GUSSET; C/MBR LEAF SUS(FGM***) (B)	8-97612-108-2	02	1	1010-
201	GUSSET; C/MBR LEAF SUS(FGM***) (A)	8-97620-295-2	02	1	1010-
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1010-
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	1010-
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1010-
545	SPACER; 5TH C/MBR (B) 0.25KG	8-97611-244-0	02	1	1307-
545	SPACER; 5TH C/MBR (A) 0.24KG	8-97611-245-0	02	1	1010-
