Sayfa 4-60 - Isuzu EPC

4-60 — REAR SUSPENSION (#60481) — 94 parça

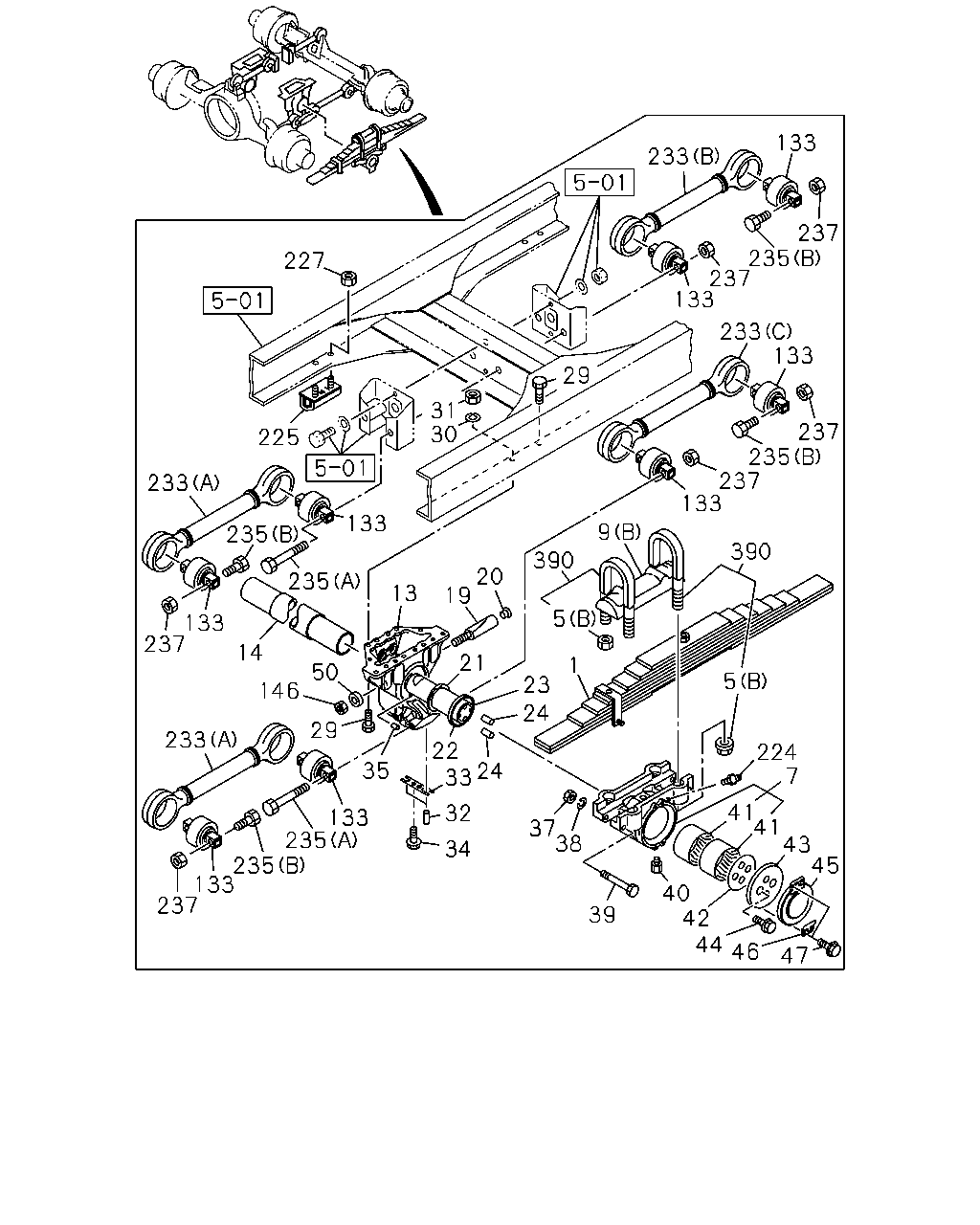

233 133 237 235 237 133 133 233 237 235 237 133 9 390 390 5 5 224 7 41 41 43 45 47 46 44 42 40 39 38 37 24 24 1 23 21 20 19 29 31 225 30 133 233 133 235 235 237 13 50 14 146 29 233 22 33 35 32 34 133 235 235 133 237 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	1-51310-880-0	02	1	1010-	●
5	NUT; U-BOLT,RR SPR (A)	1-52179-039-0	02	1	1010-		●
5	NUT; U-BOLT,RR SPR (B) M27 FLANGE	1-09440-058-0	08	1	1010-	●
7	SEAT; SPR,LWR	8-97614-049-2	02	1	1010-	●
9	PAD; U BOLT,RR SPR (A)	1-51372-073-0	04	1	1010-		●
9	PAD; U BOLT,RR SPR (B)	1-51372-019-1	02	1	1010-1010	●
9	PAD; U BOLT,RR SPR (B)	8-98177-265-0	02	1	1011-	●
13	BRACKET; TRUNNION SHAFT	1-53361-079-0	02	1	1010-	●
14	PIPE; TRUNNION BRKT	1-51389-032-1	01	1	1010-	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	1010-	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	1010-	●
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	1010-	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-3	02	1	1010-	●
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	1010-	●
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	1010-	●
29	BOLT; BRKT TO FRAME M18X75	8-98012-872-0	24	1	1010-	●
29	BOLT; BRKT TO FRAME M18X55	9-92061-855-0	04	1	1010-	●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	28	1	1010-	●
31	NUT; TRUNNION BRKT M18	0-91110-518-0	28	1	1010-	●
32	PIN; STRAIGHT	1-09740-027-0	04	1	1010-	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	1010-	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28051-016-0	02	1	1010-	●
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	1010-	●
37	NUT; SPR SETTING M22	0-91110-522-0	04	1	1010-	●
38	WASHER; LK,SPR SETTING ID=22.5	0-91510-622-0	04	1	1010-	●
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	1010-	●
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	1010-	●
41	BUSHING; TRUNNION SHAFT	8-98081-832-0	04	1	1010-	●
42	SHIM; SIDE PLATE TO SHAFT	1-51389-033-1	12	1	1010-	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	1010-	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	1010-	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	1010-	●
46	BRACKET; COVER	1-51387-015-2	02	1	1010-	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28050-812-0	08	1	1010-	●
50	WASHER; PL,TRUNNION SHAFT ID=25	8-98012-871-0	02	1	1010-	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	12	1	1010-	●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-2	12	1	1010-	●
146	NUT; KEY BOLT M24	0-91110-524-0	02	1	1010-	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	0-90301-410-0	02	1	1010-	●
225	RUBBER; CUSHION,RR SPR FORWARD RH,REARWARD	1-53366-072-2	03	1	1010-	●
225	RUBBER; CUSHION,RR SPR FORWARD	1-53366-143-1	01	1	1010-	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	08	1	1010-	●
233	ROD ASM; TORQUE,RR SUSP (D) L=366	1-51510-855-0	04	1	1010-		●
233	ROD ASM; TORQUE,RR SUSP (B) L=525	1-51511-656-0	01	1	1010-	●
233	ROD ASM; TORQUE,RR SUSP (A) L=535	1-51511-657-0	03	1	1010-	●
233	ROD ASM; TORQUE,RR SUSP (C) L=510	1-51511-671-0	02	1	1010-	●
235	BOLT; TORQUE ROD (A) M18X265	8-98012-875-0	06	1	1010-	●
235	BOLT; TORQUE ROD (B) M18X102	8-98012-877-0	12	1	1010-	●
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	1010-	●
390	U-BOLT SET; RR SPRING L=310	1-87870-166-3	04	1	1010-	●

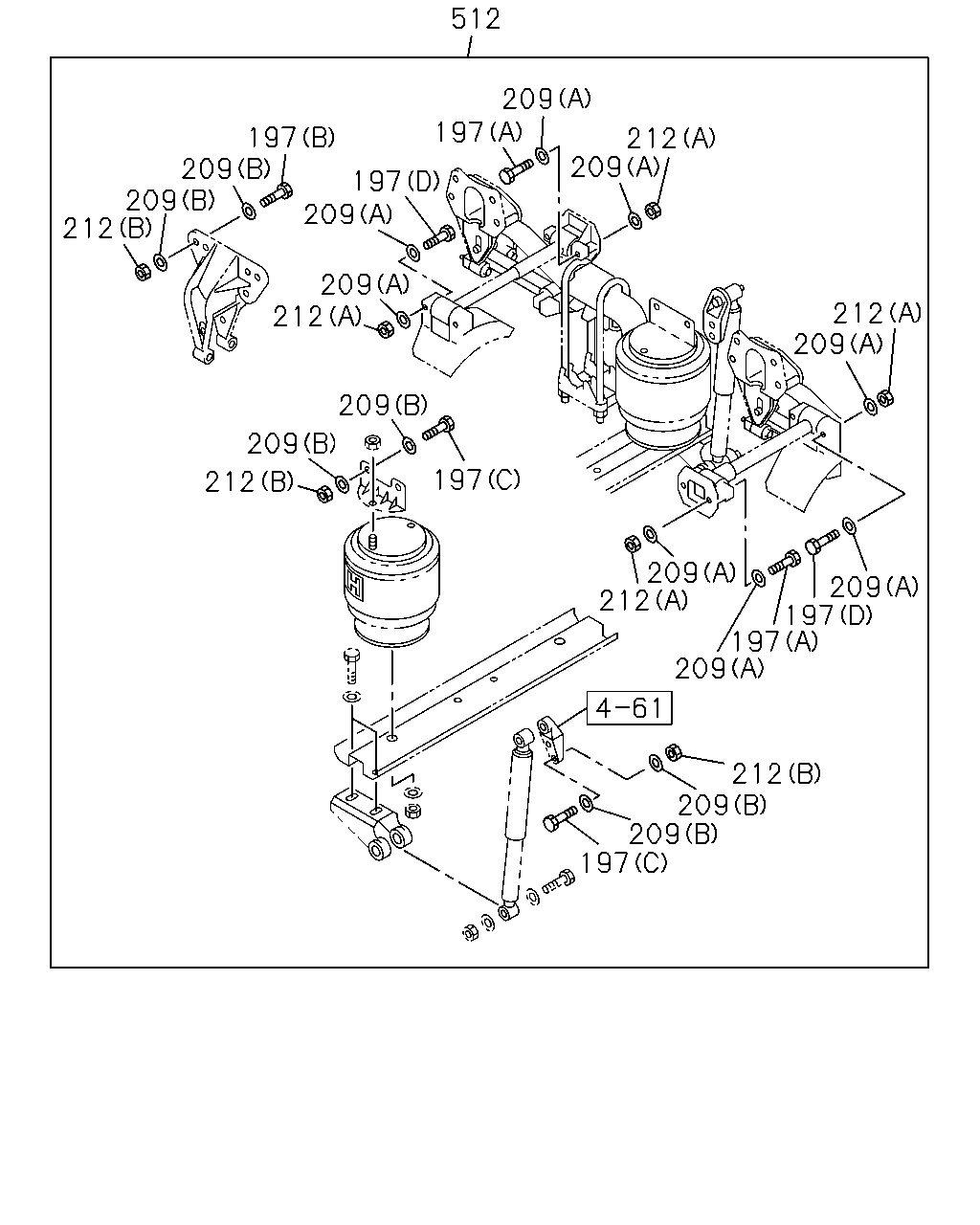

512 209 209 197 197 197 209 209 209 209 209 209 197 209 209 209 197 197 209 209 209 197 212 212 212 212 212 212 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
197	BOLT (D)	1-09000-767-0	04	1	1010-	●
197	BOLT (A)	1-09000-768-0	04	1	1010-	●
197	BOLT (B) M20X65	1-09000-769-0	24	1	1010-	●
197	BOLT (C)	1-09000-771-0	16	1	1010-	●
209	WASHER; PL (A) ID=16	1-09503-314-0	16	1	1010-	●
209	WASHER; PL (B) ID=20	1-09503-315-0	80	1	1010-	●
212	NUT (A) M16	1-09400-160-0	08	1	1010-	●
212	NUT (B) M20	1-09400-161-0	40	1	1010-	●
512	FIXING KIT; BRKT TO FRAME	8-98049-197-0	02	1	1010-	●

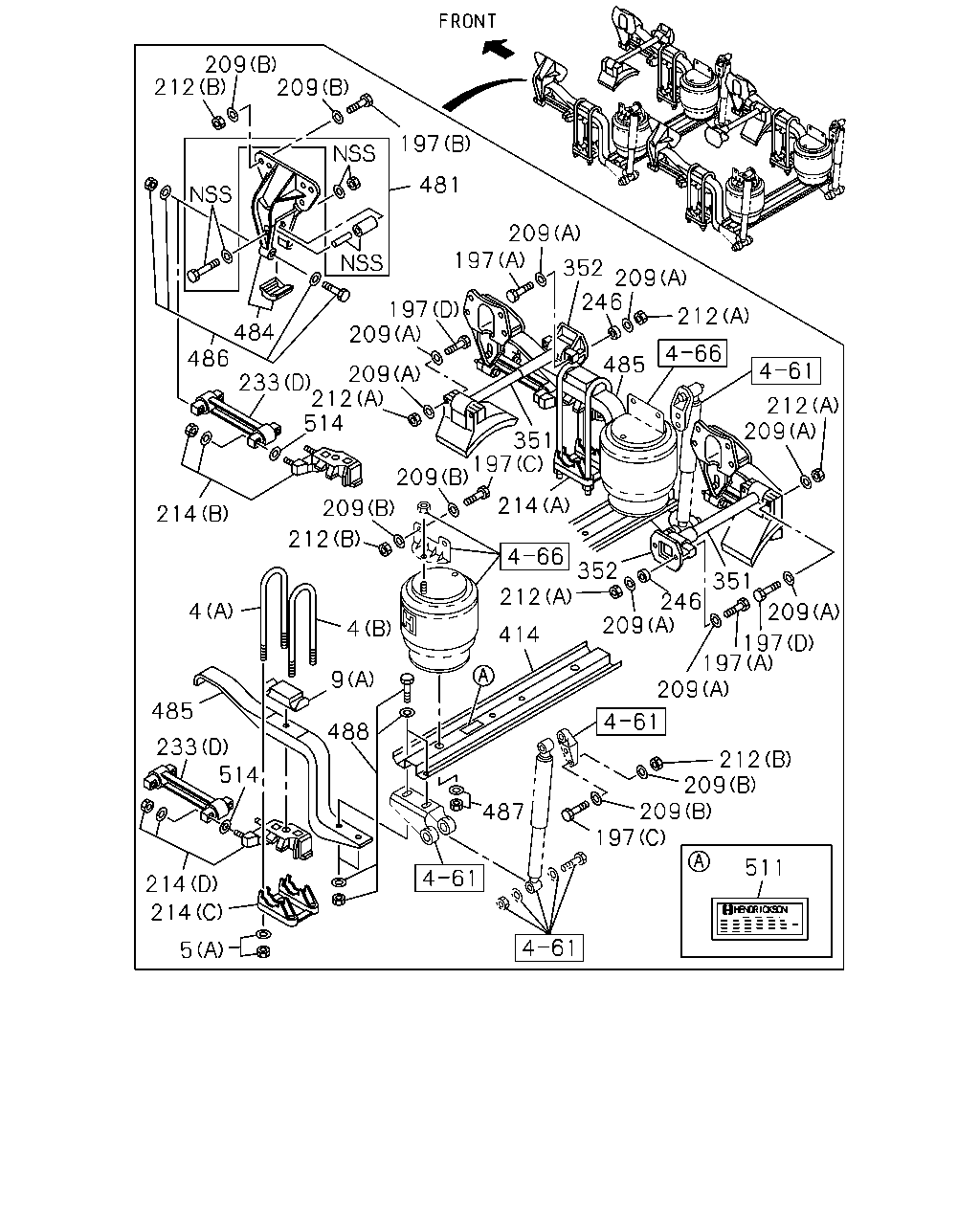

212 209 197 209 481 484 486 214 233 212 209 4 485 233 514 214 214 5 488 9 4 209 514 212 209 209 197 197 209 209 352 212 246 485 212 209 351 197 352 214 212 414 209 351 246 209 197 197 209 209 197 487 209 511 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	U-BOLT; RR SPR (A) L=356	1-51371-229-0	04	1	1010-		●
4	U-BOLT; RR SPR (B) L=381	1-51371-230-0	04	1	1010-		●
5	NUT; U-BOLT,RR SPR (A)	1-52179-039-0	02	1	1010-		●
5	NUT; U-BOLT,RR SPR (B) M27 FLANGE	1-09440-058-0	08	1	1010-	●
9	PAD; U BOLT,RR SPR (A)	1-51372-073-0	04	1	1010-		●
9	PAD; U BOLT,RR SPR (B)	1-51372-019-1	02	1	1010-1010	●
9	PAD; U BOLT,RR SPR (B)	8-98177-265-0	02	1	1011-	●
197	BOLT (D)	1-09000-767-0	04	1	1010-		●
197	BOLT (A)	1-09000-768-0	04	1	1010-		●
197	BOLT (B) M20X65	1-09000-769-0	24	1	1010-		●
197	BOLT (C)	1-09000-771-0	16	1	1010-		●
209	WASHER; PL (A) ID=16	1-09503-314-0	16	1	1010-		●
209	WASHER; PL (B) ID=20	1-09503-315-0	80	1	1010-		●
212	NUT (A) M16	1-09400-160-0	08	1	1010-		●
212	NUT (B) M20	1-09400-161-0	40	1	1010-		●
214	SEAT; SPR (A)	1-51385-103-0	02	1	1010-		●
214	SEAT; SPR (C)	1-51385-104-0	02	1	1010-		●
214	SEAT; SPR (B)	1-51385-105-0	02	1	1010-		●
214	SEAT; SPR (D)	1-51385-106-0	02	1	1010-		●
233	ROD ASM; TORQUE,RR SUSP (D) L=366	1-51510-855-0	04	1	1010-		●
233	ROD ASM; TORQUE,RR SUSP (B) L=525	1-51511-656-0	01	1	1010-	●
233	ROD ASM; TORQUE,RR SUSP (A) L=535	1-51511-657-0	03	1	1010-	●
233	ROD ASM; TORQUE,RR SUSP (C) L=510	1-51511-671-0	02	1	1010-	●
246	WASHER; TORQUE ROD	8-97372-224-0	02	1	1101-		●
351	ROD ASM; RADIUS	1-51510-867-0	02	1	1010-		●
352	BRACKET; RADIUS ROD,FRAME	1-53353-132-0	02	1	1010-		●
414	BEAM; AIR SPR	1-52172-036-0	02	1	1010-		●
481	ROLLER; REBOUND	1-53357-043-0	02	1	1010-		●
484	BRACKET; REAR SPRING	1-53353-131-0	04	1	1010-		●
485	SPRING; LEAF	1-51410-240-0	04	1	1010-		●
486	FIXING KIT; TORQUE ROD	1-52000-165-0	02	1	1010-		●
487	FIXING KIT; AIR SPRING	1-52000-163-0	02	1	1010-		●
488	FIXING KIT; BEAM	1-52000-164-0	02	1	1010-		●
511	LABEL	1-51399-034-0	02	1	1010-		●
514	SPACER; TORQUE ROD	1-09503-299-0	08	1	1010-		●
