4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#60475) — 56 parça

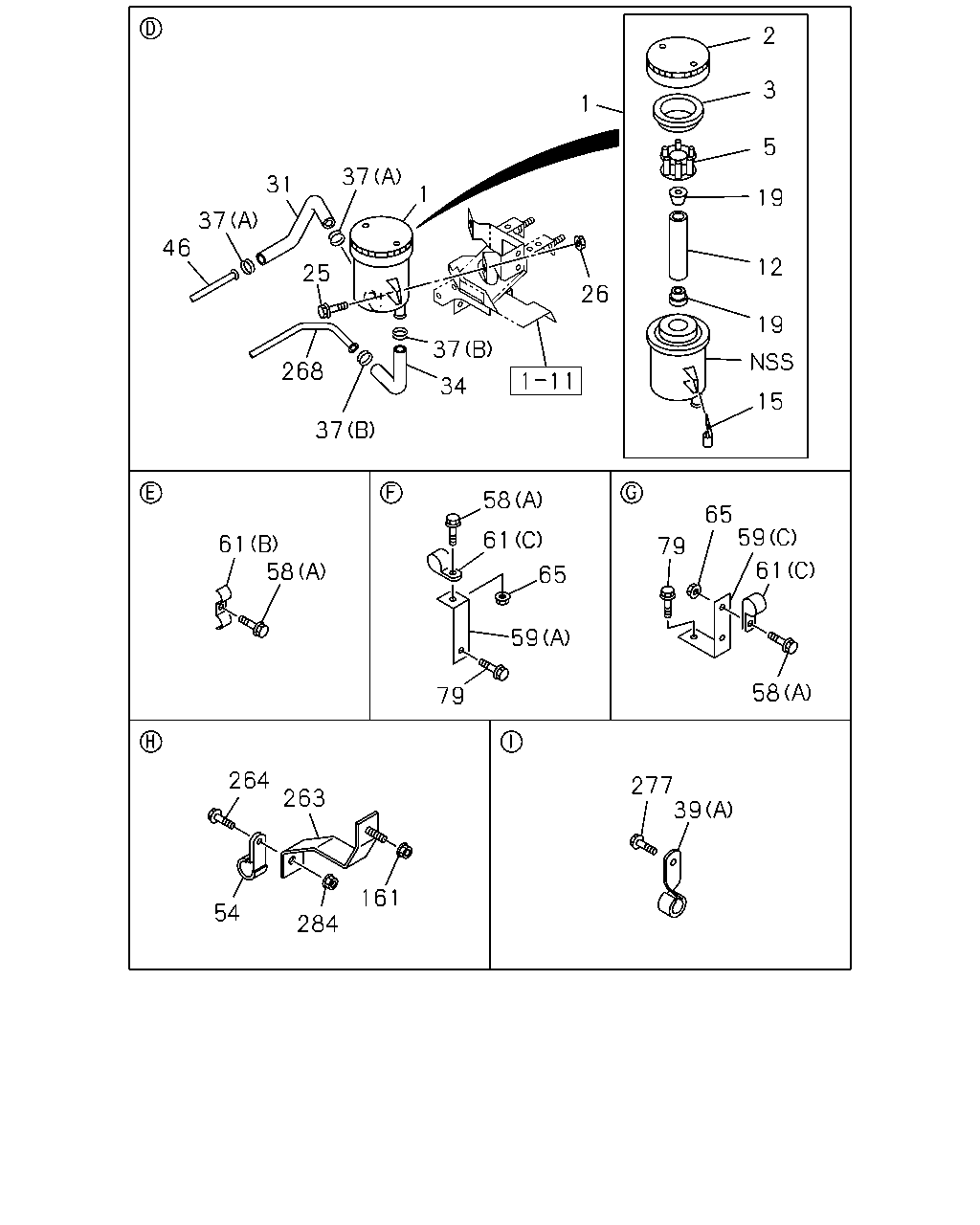

2 3 1 5 19 12 19 15 26 1 37 31 37 46 25 268 34 37 37 61 58 58 61 65 59 79 58 61 59 65 79 39 277 161 284 263 264 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1010-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1010-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1010-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1010-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1010-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1010-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1010-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1010-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1010-	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1010-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1010-	●	●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1010-	●	●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1010-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2696	8-98096-303-0	01	1	1010-	●	●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1010-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1010-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1010-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1010-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1010-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1010-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1010-	●	●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
263	BRACKET; P/S PIPE	8-98096-820-1	01	1	1010-	●	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-047-0	01	1	1010-	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1010-	●	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1010-	●	●

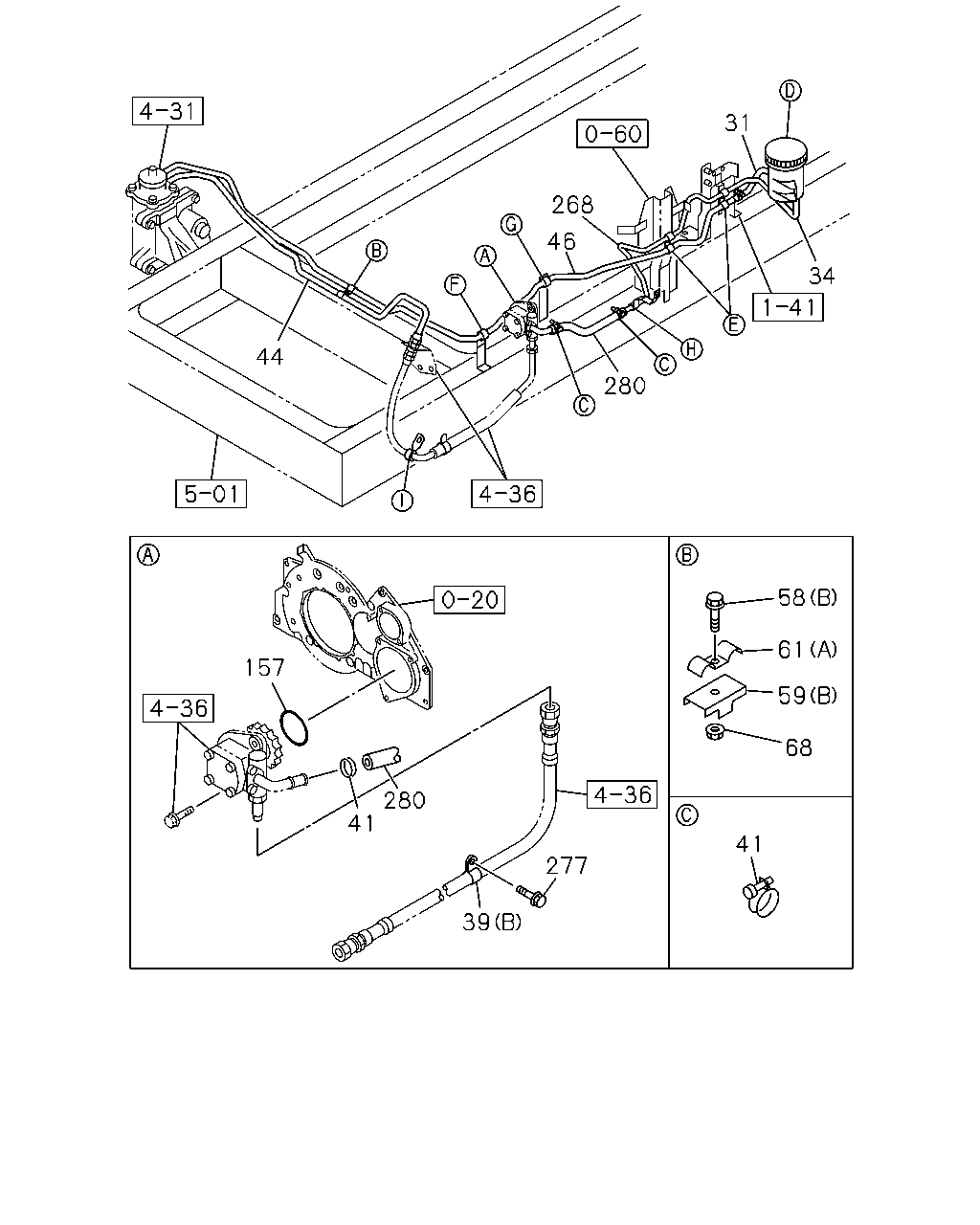

268 46 31 34 280 157 41 39 277 41 68 59 61 58 44 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1010-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1010-	●	●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1010-	●	●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1010-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1010-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98075-632-1	01	1	1010-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2696	8-98096-303-0	01	1	1010-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1010-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1010-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1010-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1010-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1010-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1010-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-047-0	01	1	1010-	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1010-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98090-818-0	01	1	1010-	●	●
