◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11304 - FVM AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#60467) — 246 parça

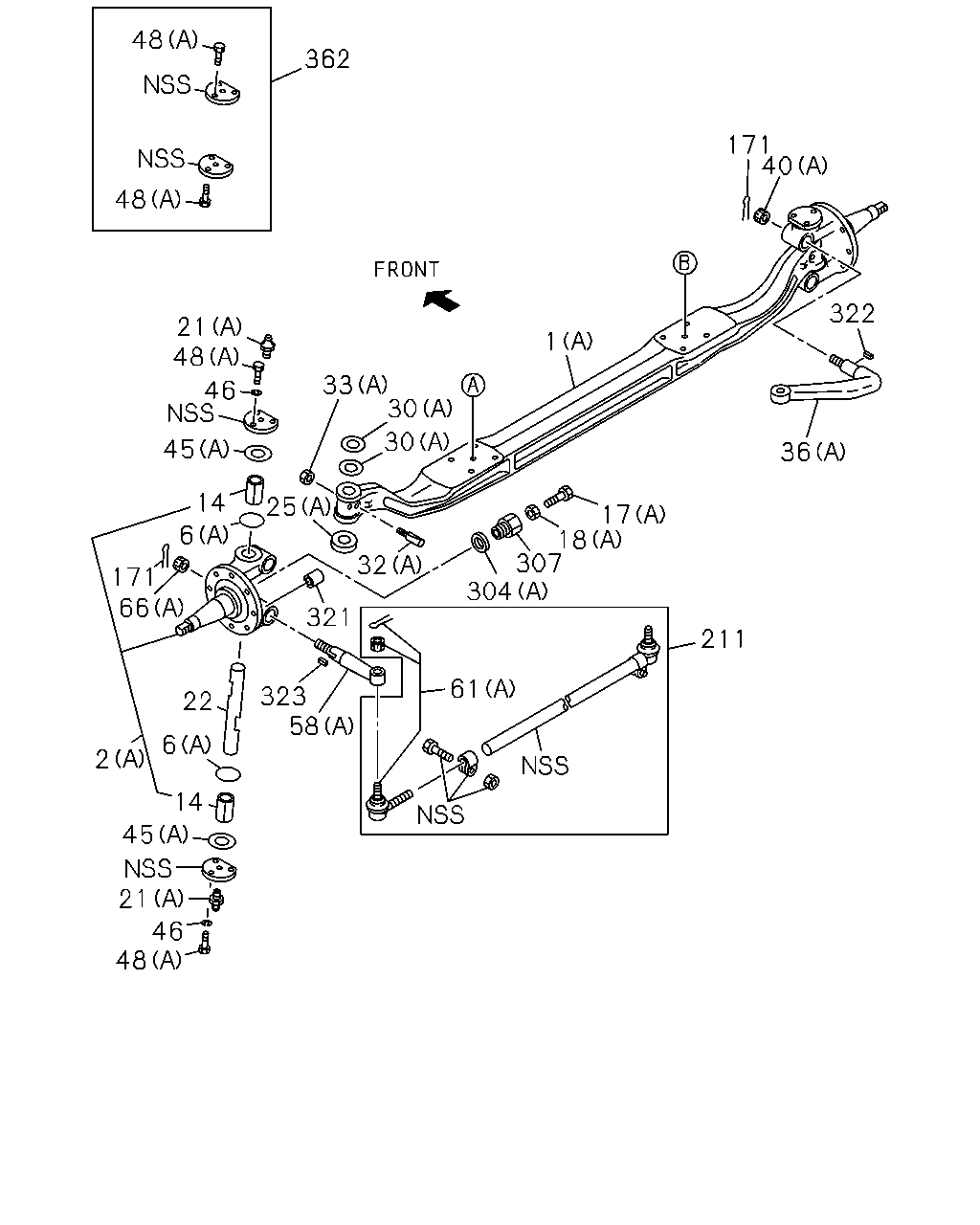

çizim 169194
48 362 48 171 40 322 36 211 61 304 307 17 18 58 323 321 32 25 30 30 1 33 21 48 46 45 14 6 171 66 22 2 6 14 45 21 46 48
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT
VIN MODEL YEAR 2011<VZB> (B) 		8-98170-180-2 01 1 1012-1209 ●
1 AXLE; FRT
VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> (B) 		8-98170-180-2 01 1 1210-1306 ●
1 AXLE; FRT
(B) 		8-98170-180-2 01 1 1307- ●
1 AXLE; FRT
(A) 		1-43111-161-0 01 1 1010- ●
1 AXLE; FRT
(B) 		8-98061-842-2 01 1 1010-1011 ●
1 AXLE; FRT
EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98061-842-3 01 1 1012-1209 ●
1 AXLE; FRT
EXC. VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> (B) 		8-98061-842-3 01 1 1210-1306 ●
2 KNUCKLE; FRT AXLE
(A) 		1-43131-108-0 01 1 1010- ●
2 KNUCKLE; FRT AXLE
(A) 		1-43132-107-0 01 1 1010- ●
2 KNUCKLE; FRT AXLE
(B) 		1-43131-118-1 01 1 1010- ●
2 KNUCKLE; FRT AXLE
(B) 		1-43132-101-1 01 1 1010- ●
6 SEAL; KING PIN
(A) 		1-09625-634-0 04 1 1010- ●
6 SEAL; KING PIN
(B) 		9-09926-024-0 04 1 1010- ●
14 BUSHING; KING PIN 1-43149-015-0 04 1 1010- ●
17 BOLT; STOPPER KNUCKLE
(A) 		1-43149-014-0 02 1 1010- ●
17 BOLT; STOPPER KNUCKLE
(C) M18X53 		1-09009-066-0 01 1 1010- ●
17 BOLT; STOPPER KNUCKLE
(B) M18X43 		1-09009-190-0 02 1 1010- ●
18 NUT; STOPPER BOLT,KNUCKLE
(A) 		1-43149-013-0 02 1 1010- ●
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 		0-91110-518-0 02 1 1010- ●
18 NUT; STOPPER BOLT,KNUCKLE
(C) OCTAGON M18 		1-09469-011-1 01 1 1010- ●
21 NIPPLE; GREASE,KING PIN
(A) 		1-48259-253-0 04 1 1010- ●
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1010- ●
22 PIN; KING,FRT AXLE 1-43161-016-0 02 1 1010- ●
25 BEARING; THRUST,KING PIN
(A) 		1-43173-004-0 02 1 1010- ●
25 BEARING; THRUST,KING PIN
(B) NSK 		1-09829-043-2 02 1 1010- ●
30 WASHER; THRUST,KING PIN
(A) T=0.015" 		1-43171-338-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(A) T=0.010" 		1-43171-339-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(A) T=0.005" 		1-43171-340-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=4.875 -4.900 		1-43171-185-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=4.900 -4.925 		1-43171-186-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=4.925 -4.950 		1-43171-187-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=4.950 -4.975 		1-43171-188-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=4.975 -5.000 		1-43171-189-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.000 -5.025 		1-43171-190-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.025 -5.050 		1-43171-191-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.050 -5.075 		1-43171-192-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.075 -5.100 		1-43171-193-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.100 -5.125 		1-43171-194-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.125 -5.150 		1-43171-195-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.150 -5.175 		1-43171-196-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.175 -5.200 		1-43171-197-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.200 -5.225 		1-43171-198-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.225 -5.250 		1-43171-199-0 AR 1 1010- ●
32 BOLT; KEY,KING PIN
(A) L=98.4 		1-43116-014-0 02 1 1010- ●
32 BOLT; KEY,KING PIN
(A) L=3.25" 		1-43116-006-0 02 1 1010- ●
32 BOLT; KEY,KING PIN
(B) 		1-43116-002-2 02 1 1010- ●
33 NUT; KEY BOLT
(A) 		1-43119-002-0 04 1 1010- ●
33 NUT; KEY BOLT
(B) M10 		0-91110-510-0 02 1 1010- ●
36 ARM; KNUCKLE
(A) 		1-43133-087-0 01 1 1010- ●
36 ARM; KNUCKLE
(B) 		1-43133-073-3 01 1 1010- ●
40 NUT; KNUCKLE ARM
(A) 		1-43139-059-0 01 1 1010- ●
40 NUT; KNUCKLE ARM
(B) M22 		1-09449-084-0 02 1 1010- ●
45 GASKET; KING PIN COVER
(A) 		1-43139-044-0 04 1 1010- ●
45 GASKET; KING PIN COVER
(B) 		8-98100-656-1 04 1 1010- ●
46 WASHER; LK,COVER 1-41519-055-0 12 1 1010- ●
48 BOLT; COVER
(A) 		1-43139-045-0 12 1 1010- ●
48 BOLT; COVER
(B) M10X25 FLANGE 		0-28751-025-0 12 1 1010- ●
58 ARM; TIE ROD
(A) 		1-43134-061-0 01 1 1010- ●
58 ARM; TIE ROD
(A) 		1-43135-066-0 01 1 1010- ●
58 ARM; TIE ROD
(B) 		1-43134-049-4 01 1 1010- ●
58 ARM; TIE ROD
(B) 		1-43135-049-4 01 1 1010- ●
61 ROD END; TIE ROD
(A) 		1-43155-058-0 01 1 1010- ●
61 ROD END; TIE ROD
(A) 		1-43156-058-0 01 1 1010- ●
61 ROD END; TIE ROD
(B) 		8-98096-753-0 01 1 1010-1306 ●
61 ROD END; TIE ROD
(B) 		8-98228-106-0 01 1 1307- ●
61 ROD END; TIE ROD
(B) 		8-98096-754-0 01 1 1010-1306 ●
61 ROD END; TIE ROD
(B) 		8-98228-107-0 01 1 1307- ●
66 NUT; TIE ROD END
(A) 		1-43139-052-0 02 1 1010- ●
66 NUT; TIE ROD END
(B) M24 		1-09442-032-0 02 1 1010- ●
171 PIN; SPLIT,STRG ARM 1-43139-048-0 03 1 1010- ●
211 ROD ASM; STEERING TIE ROD 1-43150-861-0 01 1 1010- ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 1010- ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-09164-520-0 02 1 1010-1306 ● ●
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 1307- ● ●
304 WASHER; PL
(C) ID=12.5 		0-91614-512-0 04 1 1010- ●
307 STOPPER; STEERING,RR 1-43149-012-0 02 1 1010- ●
321 BUSHING; KNUCKLE 1-42319-213-0 02 1 1010- ●
322 KEY; KNUCKLE ARM 1-43139-046-0 01 1 1010- ●
323 KEY; TIE ROD ARM 1-43139-046-0 02 1 1010- ●
362 COVER SET; KING PIN 1-43175-027-0 02 1 1010- ●

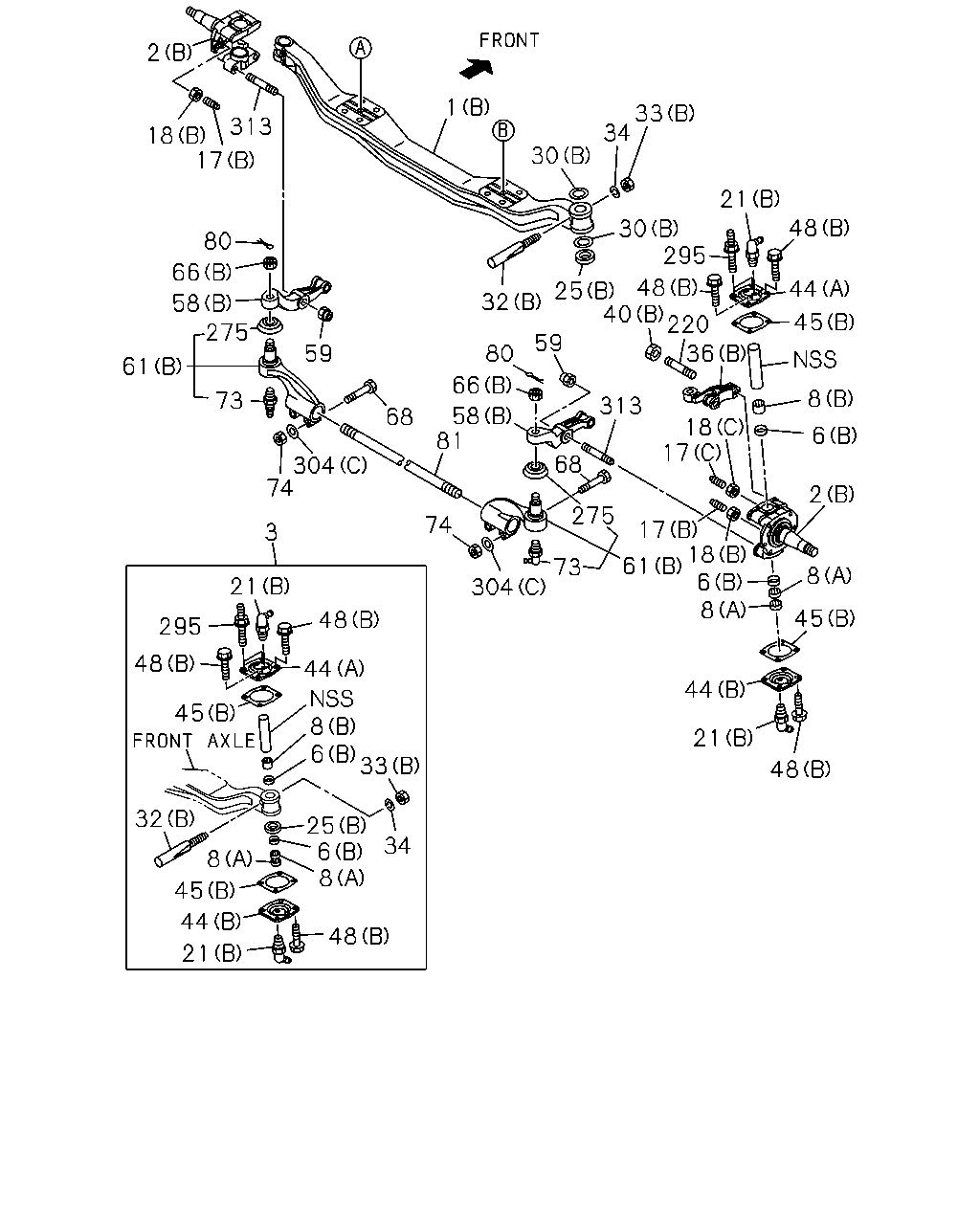

çizim 169202
48 8 6 25 33 34 6 8 44 48 21 295 48 45 32 8 45 44 21 44 21 48 45 8 2 6 8 45 44 48 21 33 34 30 1 30 295 48 220 36 18 17 40 313 17 18 6 8 61 68 275 73 304 74 81 58 66 80 59 25 32 2 18 313 17 80 66 58 61 275 73 59 68 304 74 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT
VIN MODEL YEAR 2011<VZB> (B) 		8-98170-180-2 01 1 1012-1209 ●
1 AXLE; FRT
VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> (B) 		8-98170-180-2 01 1 1210-1306 ●
1 AXLE; FRT
(B) 		8-98170-180-2 01 1 1307- ●
1 AXLE; FRT
(A) 		1-43111-161-0 01 1 1010- ●
1 AXLE; FRT
(B) 		8-98061-842-2 01 1 1010-1011 ●
1 AXLE; FRT
EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98061-842-3 01 1 1012-1209 ●
1 AXLE; FRT
EXC. VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> (B) 		8-98061-842-3 01 1 1210-1306 ●
2 KNUCKLE; FRT AXLE
(A) 		1-43131-108-0 01 1 1010- ●
2 KNUCKLE; FRT AXLE
(A) 		1-43132-107-0 01 1 1010- ●
2 KNUCKLE; FRT AXLE
(B) 		1-43131-118-1 01 1 1010- ●
2 KNUCKLE; FRT AXLE
(B) 		1-43132-101-1 01 1 1010- ●
3 KING PIN SET
VIN MODEL YEAR 2011<VZB> 		1-87831-410-1 02 1 1012-1209 ●
3 KING PIN SET
VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> 		1-87831-410-2 02 1 1210-1306 ●
3 KING PIN SET 1-87831-410-2 02 1 1307- ●
3 KING PIN SET 1-87831-349-1 02 1 1010-1011 ●
3 KING PIN SET
EXC. VIN MODEL YEAR 2011<VZB> 		1-87831-349-2 02 1 1012-1209 ●
3 KING PIN SET
EXC. VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> 		1-87831-349-2 02 1 1210-1306 ●
6 SEAL; KING PIN
(A) 		1-09625-634-0 04 1 1010- ●
6 SEAL; KING PIN
(B) 		9-09926-024-0 04 1 1010- ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1010- ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1010- ●
17 BOLT; STOPPER KNUCKLE
(A) 		1-43149-014-0 02 1 1010- ●
17 BOLT; STOPPER KNUCKLE
(C) M18X53 		1-09009-066-0 01 1 1010- ●
17 BOLT; STOPPER KNUCKLE
(B) M18X43 		1-09009-190-0 02 1 1010- ●
18 NUT; STOPPER BOLT,KNUCKLE
(A) 		1-43149-013-0 02 1 1010- ●
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 		0-91110-518-0 02 1 1010- ●
18 NUT; STOPPER BOLT,KNUCKLE
(C) OCTAGON M18 		1-09469-011-1 01 1 1010- ●
21 NIPPLE; GREASE,KING PIN
(A) 		1-48259-253-0 04 1 1010- ●
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1010- ●
25 BEARING; THRUST,KING PIN
(A) 		1-43173-004-0 02 1 1010- ●
25 BEARING; THRUST,KING PIN
(B) NSK 		1-09829-043-2 02 1 1010- ●
30 WASHER; THRUST,KING PIN
(A) T=0.015" 		1-43171-338-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(A) T=0.010" 		1-43171-339-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(A) T=0.005" 		1-43171-340-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=4.875 -4.900 		1-43171-185-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=4.900 -4.925 		1-43171-186-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=4.925 -4.950 		1-43171-187-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=4.950 -4.975 		1-43171-188-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=4.975 -5.000 		1-43171-189-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.000 -5.025 		1-43171-190-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.025 -5.050 		1-43171-191-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.050 -5.075 		1-43171-192-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.075 -5.100 		1-43171-193-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.100 -5.125 		1-43171-194-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.125 -5.150 		1-43171-195-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.150 -5.175 		1-43171-196-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.175 -5.200 		1-43171-197-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.200 -5.225 		1-43171-198-0 AR 1 1010- ●
30 WASHER; THRUST,KING PIN
(B) T=5.225 -5.250 		1-43171-199-0 AR 1 1010- ●
32 BOLT; KEY,KING PIN
(A) L=98.4 		1-43116-014-0 02 1 1010- ●
32 BOLT; KEY,KING PIN
(A) L=3.25" 		1-43116-006-0 02 1 1010- ●
32 BOLT; KEY,KING PIN
(B) 		1-43116-002-2 02 1 1010- ●
33 NUT; KEY BOLT
(A) 		1-43119-002-0 04 1 1010- ●
33 NUT; KEY BOLT
(B) M10 		0-91110-510-0 02 1 1010- ●
34 WASHER; LK,KEY BOLT
VIN MODEL YEAR 2011<VZB> ID=10.2 		0-91510-810-0 02 1 1012-1209 ●
34 WASHER; LK,KEY BOLT
VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> ID=10.2 		0-91510-810-0 02 1 1210-1302 ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1010-1011 ●
34 WASHER; LK,KEY BOLT
EXC. VIN MODEL YEAR 2011<VZB> ID=10.2 		0-91510-510-0 02 1 1012-1209 ●
34 WASHER; LK,KEY BOLT
EXC. VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> ID=10.2 		0-91510-510-0 02 1 1210-1302 ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1303- ●
36 ARM; KNUCKLE
(A) 		1-43133-087-0 01 1 1010- ●
36 ARM; KNUCKLE
(B) 		1-43133-073-3 01 1 1010- ●
40 NUT; KNUCKLE ARM
(A) 		1-43139-059-0 01 1 1010- ●
40 NUT; KNUCKLE ARM
(B) M22 		1-09449-084-0 02 1 1010- ●
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1010- ●
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1010- ●
45 GASKET; KING PIN COVER
(A) 		1-43139-044-0 04 1 1010- ●
45 GASKET; KING PIN COVER
(B) 		8-98100-656-1 04 1 1010- ●
48 BOLT; COVER
(A) 		1-43139-045-0 12 1 1010- ●
48 BOLT; COVER
(B) M10X25 FLANGE 		0-28751-025-0 12 1 1010- ●
58 ARM; TIE ROD
(A) 		1-43134-061-0 01 1 1010- ●
58 ARM; TIE ROD
(A) 		1-43135-066-0 01 1 1010- ●
58 ARM; TIE ROD
(B) 		1-43134-049-4 01 1 1010- ●
58 ARM; TIE ROD
(B) 		1-43135-049-4 01 1 1010- ●
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1010- ●
61 ROD END; TIE ROD
(A) 		1-43155-058-0 01 1 1010- ●
61 ROD END; TIE ROD
(A) 		1-43156-058-0 01 1 1010- ●
61 ROD END; TIE ROD
(B) 		8-98096-753-0 01 1 1010-1306 ●
61 ROD END; TIE ROD
(B) 		8-98228-106-0 01 1 1307- ●
61 ROD END; TIE ROD
(B) 		8-98096-754-0 01 1 1010-1306 ●
61 ROD END; TIE ROD
(B) 		8-98228-107-0 01 1 1307- ●
66 NUT; TIE ROD END
(A) 		1-43139-052-0 02 1 1010- ●
66 NUT; TIE ROD END
(B) M24 		1-09442-032-0 02 1 1010- ●
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1010- ●
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1010- ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1010- ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1010- ●
81 ROD; TIE 8-98171-947-0 01 1 1010- ●
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1010- ●
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1010-1306 ●
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307- ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1010- ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 1010- ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-09164-520-0 02 1 1010-1306 ● ●
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 1307- ● ●
304 WASHER; PL
(C) ID=12.5 		0-91614-512-0 04 1 1010- ●
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1010- ●

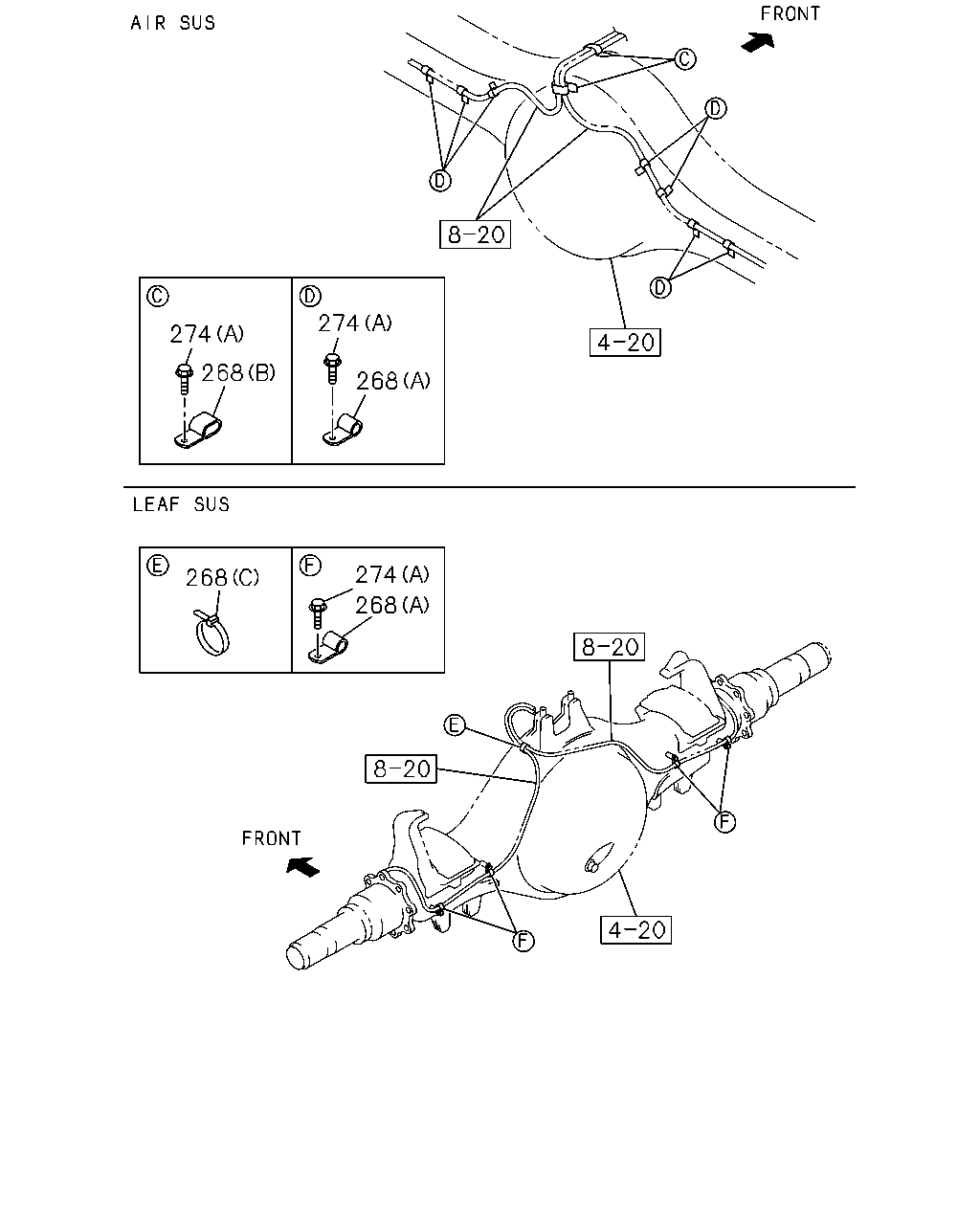

çizim 169205
274 274 268 268 268 274 268
BalonParca AdiParca NoAdetTipApplied Date A B
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 07 1 1010- ●
268 CLIP; HARNESS
(B) ID=11X2 L=16 		0-95325-025-0 02 1 1010- ●
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 04 1 1010- ●
268 CLIP; HARNESS
(C) L=140 		5-09707-031-1 01 1 1010- ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 09 1 1010- ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1010- ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 1010- ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1010- ●

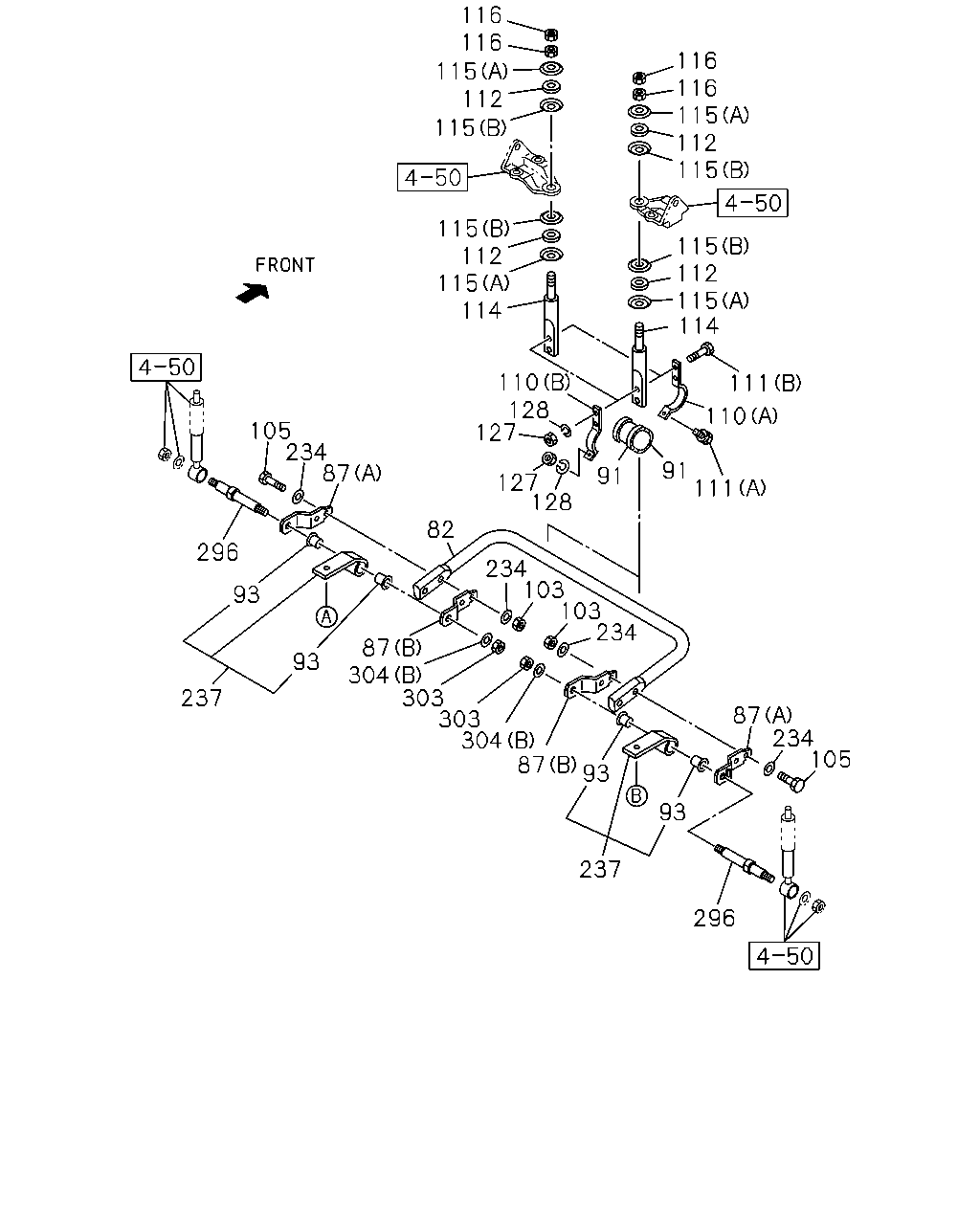

çizim 169208
116 116 115 112 115 115 112 115 114 116 116 115 112 115 115 112 115 114 111 128 127 91 127 128 91 111 82 87 234 105 234 103 103 234 87 234 105 296 237 93 93 87 304 303 303 304 93 93 296 237 87 110 110
BalonParca AdiParca NoAdetTipApplied Date A B
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-98012-961-1 01 1 1010-1306 ● ●
82 BAR; STAB,FRT SUSP 8-98012-961-1 01 1 1307- ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (A) 		8-98012-958-0 02 1 1010-1306 ● ●
87 BRACKET; STABILIZER
(A) 		8-98012-958-0 02 1 1307- ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (B) 		8-98012-959-0 02 1 1010-1306 ● ●
87 BRACKET; STABILIZER
(B) 		8-98012-959-0 02 1 1307- ● ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-079-1 04 1 1010-1306 ● ●
91 BUSHING; RUBBER,STAB BAR 1-51779-079-1 04 1 1307- ● ●
93 BUSHING; STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-51689-015-3 04 1 1010-1306 ● ●
93 BUSHING; STABILIZER 1-51689-015-3 04 1 1307- ● ●
103 NUT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 04 1 1010-1306 ● ●
103 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 1307- ● ●
105 BOLT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14X70 		0-10956-470-0 04 1 1010-1306 ● ●
105 BOLT; BRKT FIX
M14X70 		0-10956-470-0 04 1 1307- ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 1010-1306 ● ●
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1307- ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 1010-1306 ● ●
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1307- ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X30 		0-20851-230-0 02 1 1010-1306 ● ●
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20851-230-0 02 1 1307- ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X50 		0-20851-250-0 04 1 1010-1306 ● ●
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20851-250-0 04 1 1307- ● ●
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-050-0 04 1 1010-1306 ● ●
112 BUSHING; ROD 9-51631-050-0 04 1 1307- ● ●
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-065-0 02 1 1010-1306 ● ●
114 ROD; STAB BAR 1-51773-065-0 02 1 1307- ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=16.8 		1-51631-022-0 04 1 1010-1306 ● ●
115 WASHER; CENTER,STAB TO FRAME
(B) ID=16.8 		1-51631-022-0 04 1 1307- ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=14.5 		9-51631-051-0 04 1 1010-1306 ● ●
115 WASHER; CENTER,STAB TO FRAME
(A) ID=14.5 		9-51631-051-0 04 1 1307- ● ●
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		0-91111-514-0 04 1 1010-1306 ● ●
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1307- ● ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		0-91110-512-0 06 1 1010-1306 ● ●
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1307- ● ●
128 WASHER; LK,CLAMP
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-812-0 06 1 1010-1306 ● ●
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-812-0 06 1 1307- ● ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 08 1 1010-1306 ● ●
234 WASHER; STAB
ID=15 		8-98010-627-1 08 1 1307- ● ●
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51681-662-0 02 1 1010-1306 ● ●
237 SUPPORT; STAB BAR 1-51681-662-0 02 1 1307- ● ●
296 PIN; STAB
FRONT STABILIZER SHAFT<F59> 		8-98022-874-1 02 1 1010-1306 ● ●
296 PIN; STAB 8-98022-874-1 02 1 1307- ● ●
303 NUT; PIN
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1010-1306 ● ●
303 NUT; PIN
M20 		0-91110-520-0 02 1 1307- ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 1010- ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-09164-520-0 02 1 1010-1306 ● ●
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 1307- ● ●
304 WASHER; PL
(C) ID=12.5 		0-91614-512-0 04 1 1010- ●

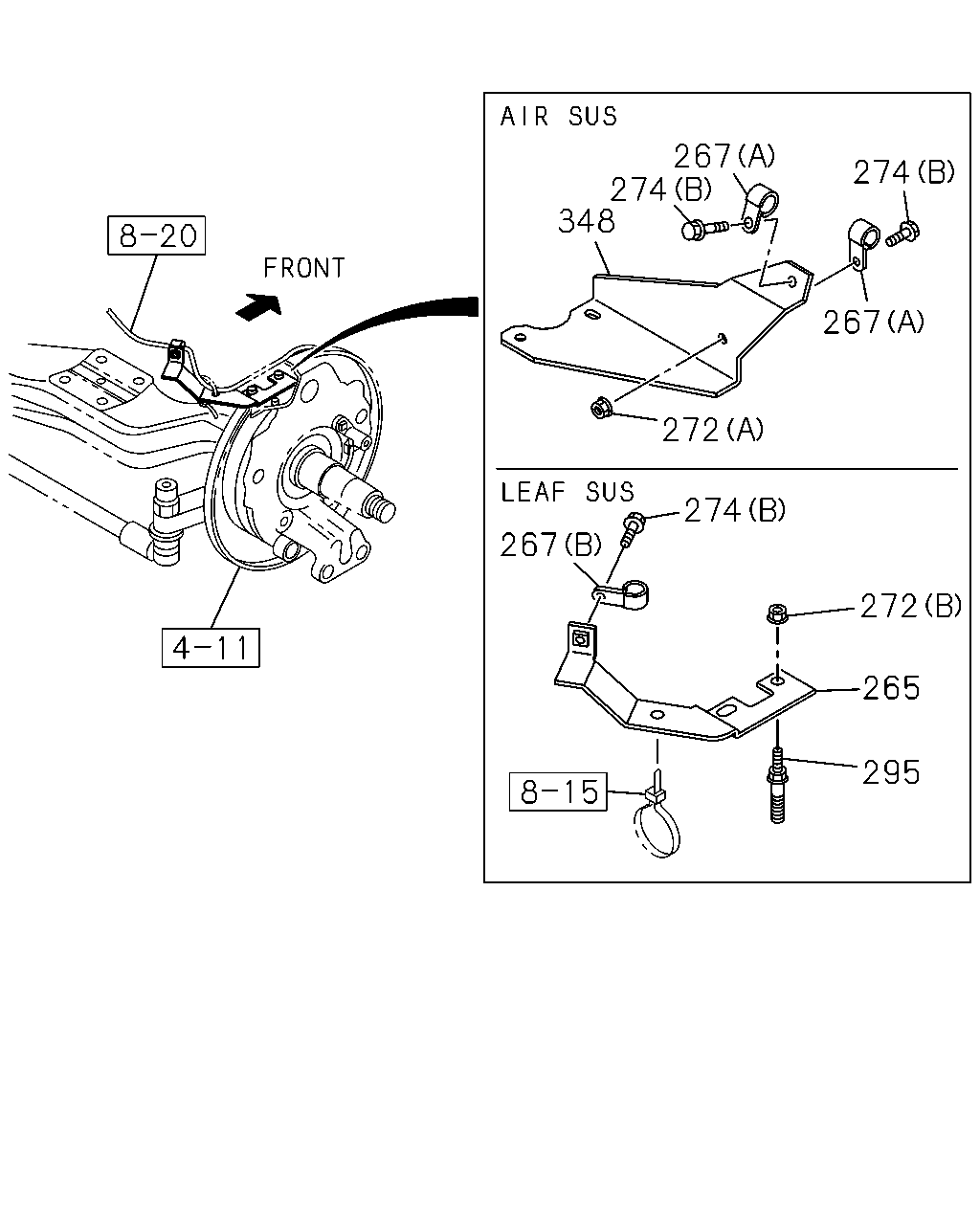

çizim 169219
267 274 274 348 267 272 267 274 272 265 295
BalonParca AdiParca NoAdetTipApplied Date A B
265 BRACKET; CLIP I BEAM 8-98073-525-0 01 1 1010- ●
265 BRACKET; CLIP I BEAM 8-98073-526-0 01 1 1010- ●
267 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 06 1 1010- ●
267 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 02 1 1010- ●
272 NUT; CLIP
(A) M8 FLANGE 		0-91180-108-0 02 1 1010- ●
272 NUT; CLIP
(B) M10 FLANGE 		0-91180-110-0 04 1 1010- ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 09 1 1010- ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1010- ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 1010- ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1010- ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1010- ●
348 BRACKET; CLIP 8-98034-794-0 01 1 1010- ●
348 BRACKET; CLIP 8-98034-793-0 01 1 1010- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
