Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#60466) — 437 parça

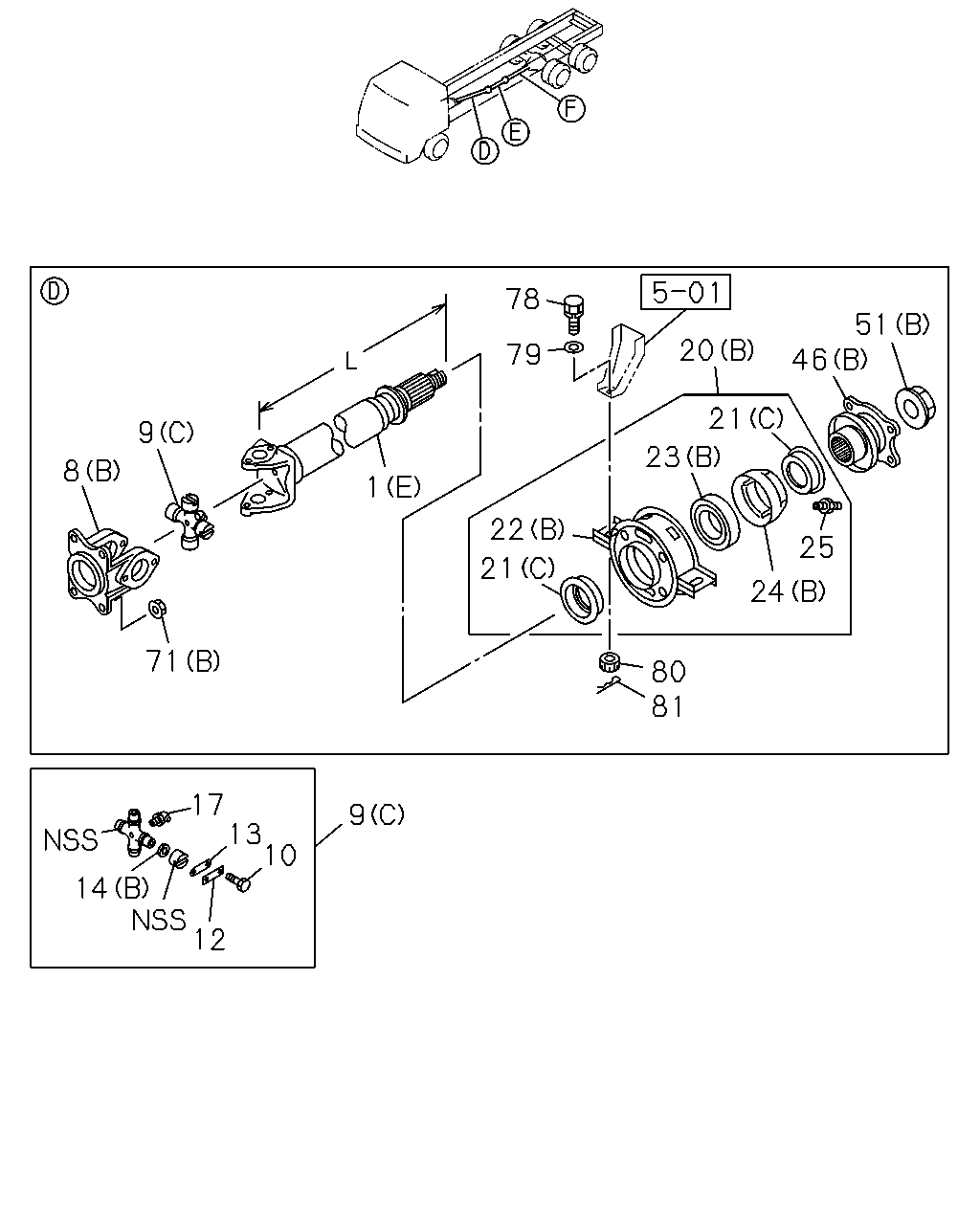

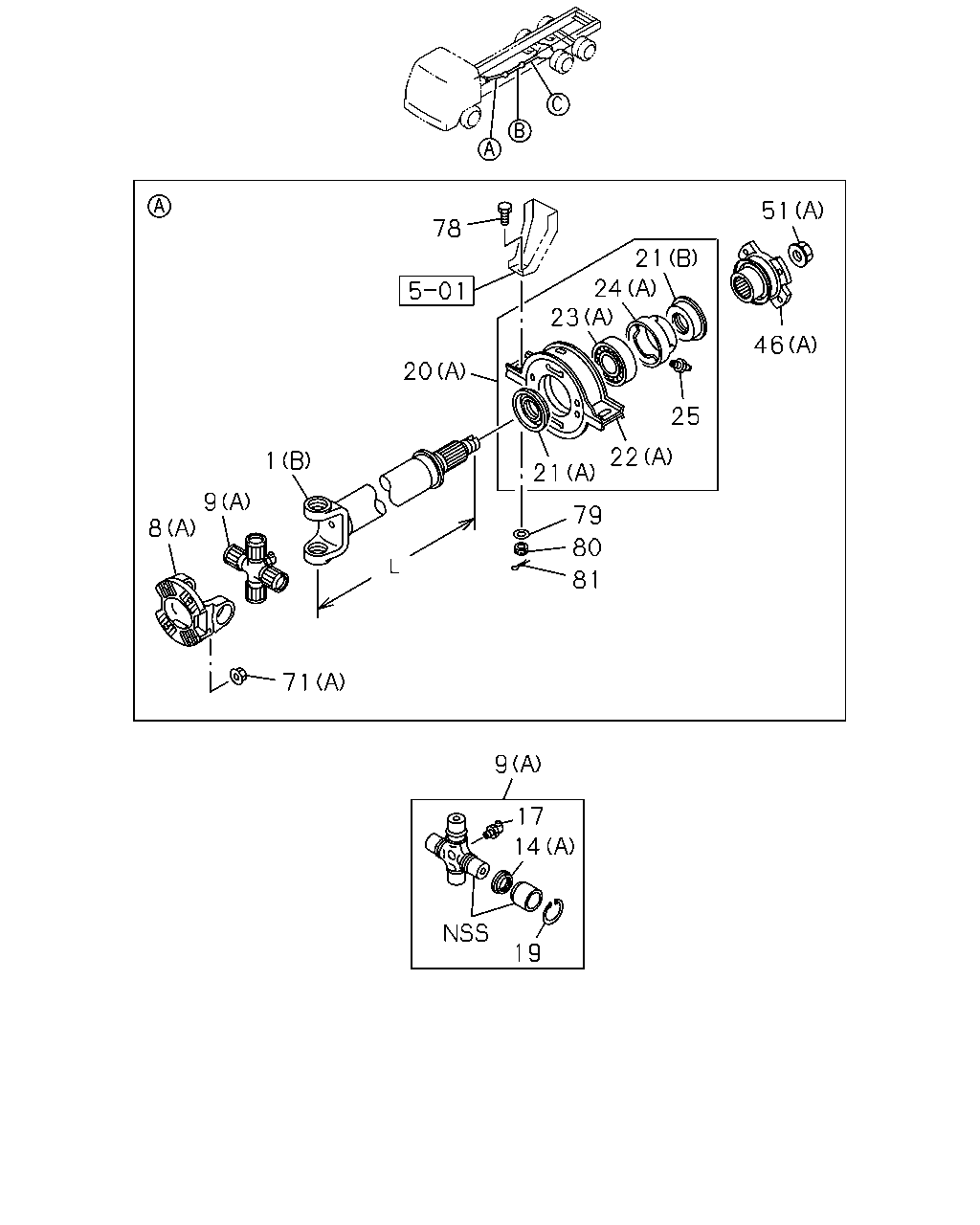

78 51 21 24 23 46 25 22 21 80 79 81 20 1 9 8 71 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP ALLISON MD3560P A/T(Y3B) (F) L=1295	8-98241-799-0	01	1	1307-
1	SHAFT; PROP ALLISON MD3560P A/T(Y3B) (E) L=1154	8-98241-800-0	01	1	1307-
1	SHAFT; PROP ALLISON MD3560P A/T(Y3B) (D) L=989	8-98241-801-0	01	1	1307-
1	SHAFT; PROP (C) L=1215	8-98092-404-0	01	1	1010-1306
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (C) L=1215	8-98092-404-1	01	1	1307-
1	SHAFT; PROP (B) L=1090	8-98092-523-0	01	1	1010-1306
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (B) L=1090	8-98092-523-1	01	1	1307-
1	SHAFT; PROP (A) L=1039	8-98092-527-0	01	1	1010-1306
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (A) L=1039	8-98092-527-1	01	1	1307-
8	YOKE; FLANGE,PROP SHAFT ALLISON MD3560P A/T(Y3B) (B)	1-37211-072-1	04	1	1307-
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-079-1	01	1	1010-1306
8	YOKE; FLANGE,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37211-079-1	01	1	1307-
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-079-1	03	1	1010-1306
8	YOKE; FLANGE,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37211-079-1	03	1	1307-
9	JOURNAL ASM; PROP SHAFT ALLISON MD3560P A/T(Y3B) (C) 1ST,END	1-37300-094-1	AR	1	1307-
9	JOURNAL ASM; PROP SHAFT ALLISON MD3560P A/T(Y3B) (C) 2ND	1-37300-095-1	AR	1	1307-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-110-0	01	1	1010-1306
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37300-110-0	01	1	1307-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-110-0	02	1	1010-1306
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37300-110-0	02	1	1307-1505
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E)	1-37300-110-0	03	1	1506-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-111-0	01	1	1010-1306
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (B)	1-37300-111-0	01	1	1307-1505
14	COVER; DUST,SPIDER ALLISON MD3560P A/T(Y3B) (B)	9-37352-023-0	16	1	1307-
14	COVER; DUST,SPIDER (A)	1-37249-131-0	04	1	1010-1306
14	COVER; DUST,SPIDER ZF9S1110 M/T(Y5E) (A)	1-37249-131-0	04	1	1307-
14	COVER; DUST,SPIDER (A)	1-37249-131-0	12	1	1010-1306
14	COVER; DUST,SPIDER ZF9S1110 M/T(Y5E) (A)	1-37249-131-0	12	1	1307-
17	NIPPLE; GREASE,PROP SHAFT ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1010-
17	NIPPLE; GREASE,PROP SHAFT 90 DEGREES PT1/8 ELBOW	0-90301-610-0	01	1	1010-1505
17	NIPPLE; GREASE,PROP SHAFT ALLISON MD3560P A/T(Y3B) PT1/8 ELBOW	0-90301-610-0	01	1	1506-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	04	1	1010-1306
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) T=2.2	1-09587-102-1	04	1	1307-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	12	1	1010-1306
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) T=2.2	1-09587-102-1	12	1	1307-
20	BEARING ASM; CTR,PROP SHAFT ALLISON MD3560P A/T(Y3B) (B)	1-37510-093-3	02	1	1307-
20	BEARING ASM; CTR,PROP SHAFT (A) ID=60	1-37510-115-0	01	1	1010-1306
20	BEARING ASM; CTR,PROP SHAFT (A) ID=60	1-37510-115-0	01	1	1010-1306
20	BEARING ASM; CTR,PROP SHAFT ZF9S1110 M/T(Y5E) (A) ID=60	1-37510-115-0	01	1	1307-
20	BEARING ASM; CTR,PROP SHAFT ZF9S1110 M/T(Y5E) (A) ID=60	1-37510-115-0	01	1	1307-
21	SEAL; OIL,CENTER BRG ALLISON MD3560P A/T(Y3B) (C) D=120	1-09625-126-0	04	1	1307-
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	1010-1306
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	1010-1306
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (A) D=120	1-09625-127-0	01	1	1307-
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (A) D=120	1-09625-127-0	01	1	1307-
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	1010-1306
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	1010-1306
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (B)	1-09625-621-0	01	1	1307-
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (B)	1-09625-621-0	01	1	1307-
22	RUBBER; CUSHION,CENTER BRG,1ST ALLISON MD3560P A/T(Y3B) (B)	1-37516-047-2	02	1	1307-
22	RUBBER; CUSHION,CENTER BRG,1ST (A)	1-37516-048-2	01	1	1010-1306
22	RUBBER; CUSHION,CENTER BRG,1ST (A)	1-37516-048-2	01	1	1010-1306
22	RUBBER; CUSHION,CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37516-048-2	01	1	1307-
22	RUBBER; CUSHION,CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37516-048-2	01	1	1307-
23	BEARING; CENTER,PROP SHAFT ALLISON MD3560P A/T(Y3B) (B)	9-00090-292-0	02	1	1307-
23	BEARING; CENTER,PROP SHAFT (A)	9-00090-256-0	01	1	1010-1306
23	BEARING; CENTER,PROP SHAFT (A)	9-00090-256-0	01	1	1010-1306
23	BEARING; CENTER,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	9-00090-256-0	01	1	1307-
23	BEARING; CENTER,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	9-00090-256-0	01	1	1307-
24	RETAINER; CENTER BRG,1ST ALLISON MD3560P A/T(Y3B) (B)	1-37529-039-0	02	1	1307-
24	RETAINER; CENTER BRG,1ST (A)	1-37529-109-0	01	1	1010-1306
24	RETAINER; CENTER BRG,1ST (A)	1-37529-109-0	01	1	1010-1306
24	RETAINER; CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37529-109-0	01	1	1307-
24	RETAINER; CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37529-109-0	01	1	1307-
25	NIPPLE; GREASE,CENTER BRG ZF9S1110 M/T(Y5E) MT6 STRAIGHT	1-09380-006-0	01	1	1307-
25	NIPPLE; GREASE,CENTER BRG ZF9S1110 M/T(Y5E) MT6 STRAIGHT	1-09380-006-0	01	1	1307-
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1010-1306
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1010-1306
25	NIPPLE; GREASE,CENTER BRG ALLISON MD3560P A/T(Y3B) MT6 STRAIGHT	1-09380-006-0	02	1	1307-
46	FLANGE; SPLINED,PROP SHAFT,1ST ALLISON MD3560P A/T(Y3B) (B)	1-37245-283-1	02	1	1307-
46	FLANGE; SPLINED,PROP SHAFT,1ST (A)	1-37245-348-0	01	1	1010-1306
46	FLANGE; SPLINED,PROP SHAFT,1ST (A)	1-37245-348-0	01	1	1010-1306
46	FLANGE; SPLINED,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) (A)	1-37245-348-0	01	1	1307-
46	FLANGE; SPLINED,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) (A)	1-37245-348-0	01	1	1307-
51	NUT; FLANGE,SPLINED ALLISON MD3560P A/T(Y3B) (B) M33 FLANGE	1-09449-051-0	02	1	1307-
51	NUT; FLANGE,SPLINED (A) M39 FLANGE	1-09440-046-0	01	1	1010-1306
51	NUT; FLANGE,SPLINED (A) M39 FLANGE	1-09440-046-0	01	1	1010-1306
51	NUT; FLANGE,SPLINED ZF9S1110 M/T(Y5E) (A) M39 FLANGE	1-09440-046-0	01	1	1307-
51	NUT; FLANGE,SPLINED ZF9S1110 M/T(Y5E) (A) M39 FLANGE	1-09440-046-0	01	1	1307-
71	NUT; YOKE ALLISON MD3560P A/T(Y3B) (B) M16 FLANGE	1-09449-065-0	04	1	1307-
71	NUT; YOKE (A) M14 FLANGE	8-97365-444-0	04	1	1010-1306
71	NUT; YOKE ZF9S1110 M/T(Y5E) (A) M14 FLANGE	8-97365-444-0	04	1	1307-
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	1010-
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	1010-
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	0-91116-516-0	02	1	1010-1204
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	8-98049-689-0	02	1	1205-
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	1010-

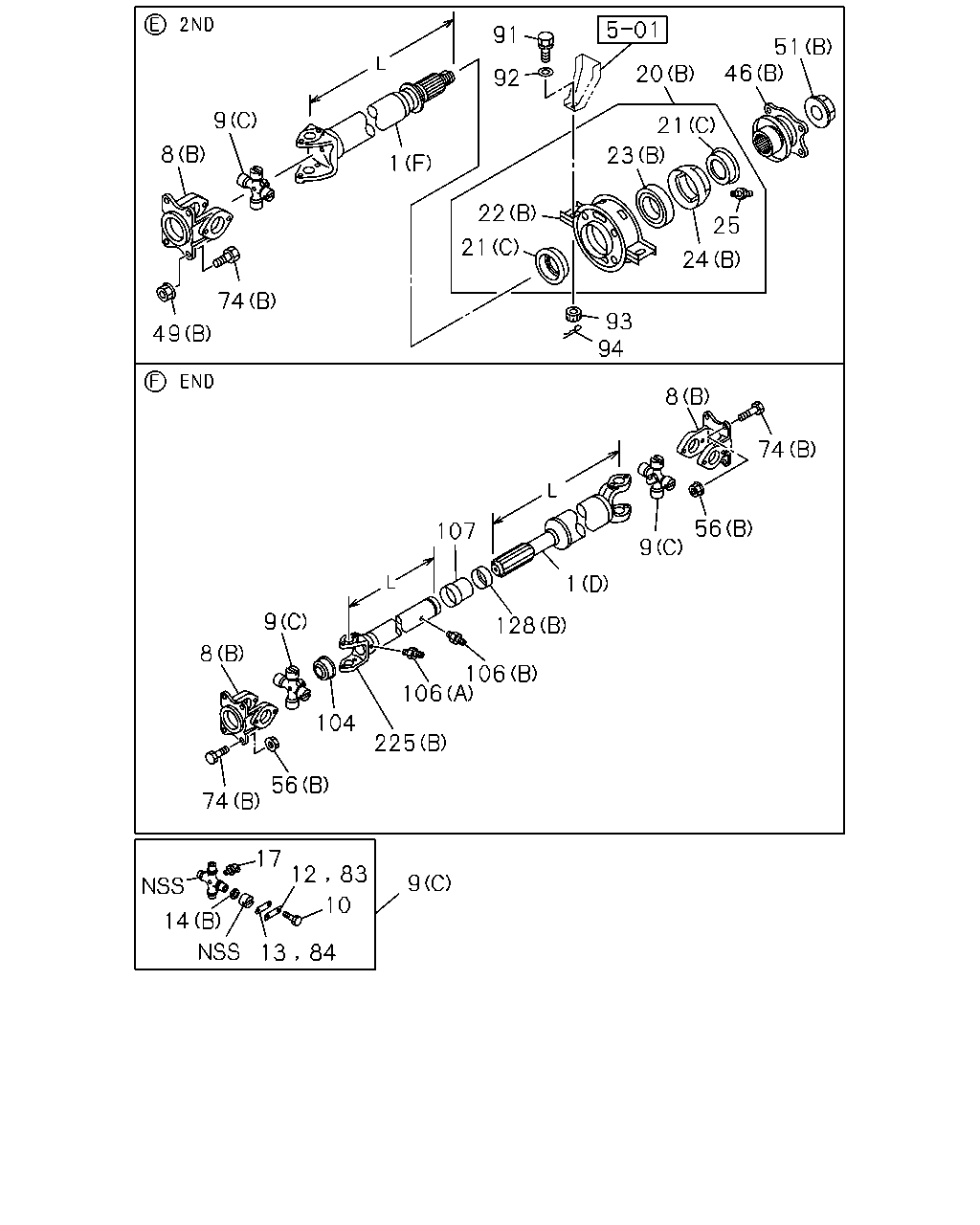

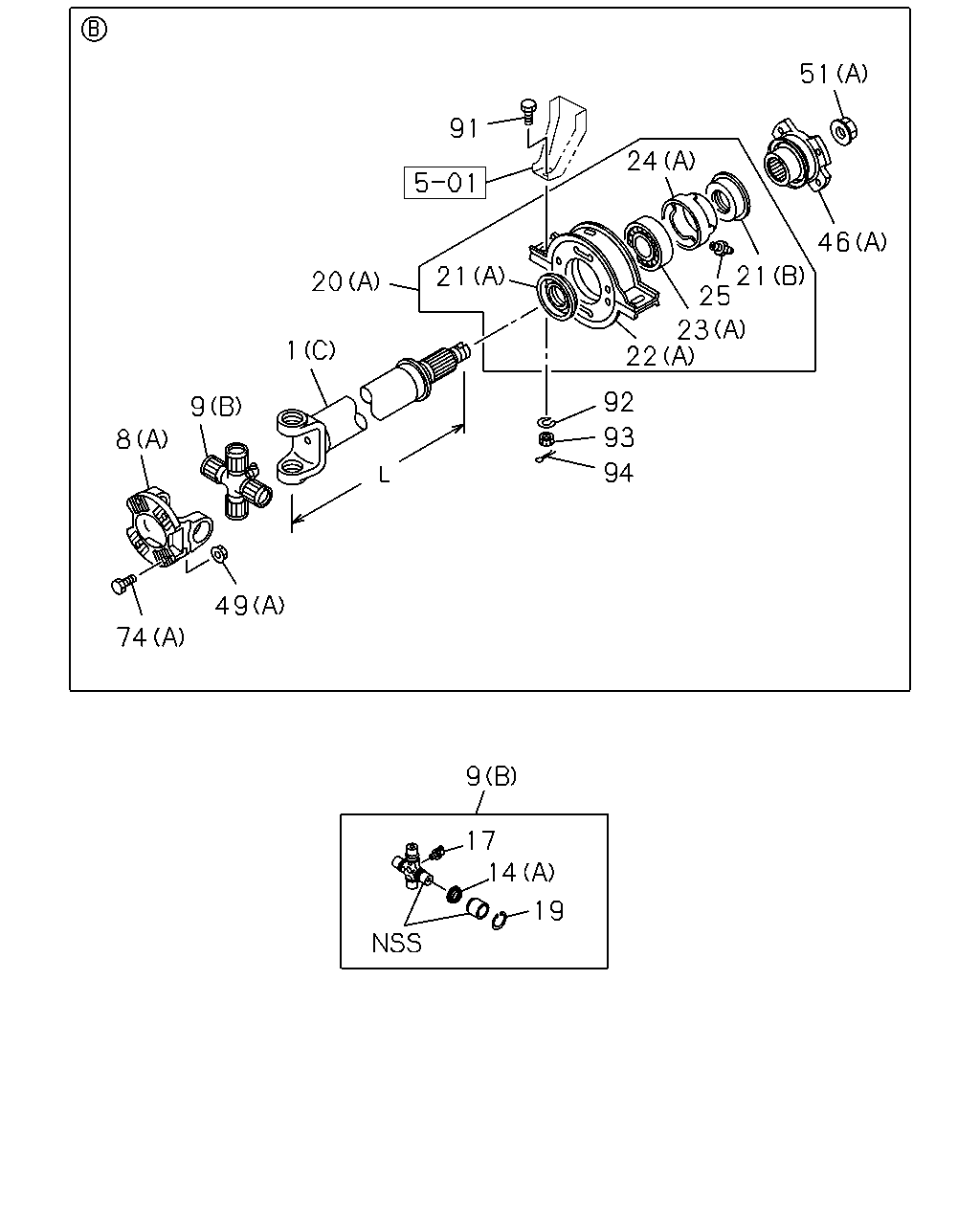

74 8 49 9 1 20 21 91 24 94 93 92 22 23 25 21 46 51 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP ALLISON MD3560P A/T(Y3B) (F) L=1295	8-98241-799-0	01	1	1307-
1	SHAFT; PROP ALLISON MD3560P A/T(Y3B) (E) L=1154	8-98241-800-0	01	1	1307-
1	SHAFT; PROP ALLISON MD3560P A/T(Y3B) (D) L=989	8-98241-801-0	01	1	1307-
1	SHAFT; PROP (C) L=1215	8-98092-404-0	01	1	1010-1306
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (C) L=1215	8-98092-404-1	01	1	1307-
1	SHAFT; PROP (B) L=1090	8-98092-523-0	01	1	1010-1306
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (B) L=1090	8-98092-523-1	01	1	1307-
1	SHAFT; PROP (A) L=1039	8-98092-527-0	01	1	1010-1306
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (A) L=1039	8-98092-527-1	01	1	1307-
8	YOKE; FLANGE,PROP SHAFT ALLISON MD3560P A/T(Y3B) (B)	1-37211-072-1	04	1	1307-
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-079-1	01	1	1010-1306
8	YOKE; FLANGE,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37211-079-1	01	1	1307-
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-079-1	03	1	1010-1306
8	YOKE; FLANGE,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37211-079-1	03	1	1307-
9	JOURNAL ASM; PROP SHAFT ALLISON MD3560P A/T(Y3B) (C) 1ST,END	1-37300-094-1	AR	1	1307-
9	JOURNAL ASM; PROP SHAFT ALLISON MD3560P A/T(Y3B) (C) 2ND	1-37300-095-1	AR	1	1307-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-110-0	01	1	1010-1306
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37300-110-0	01	1	1307-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-110-0	02	1	1010-1306
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37300-110-0	02	1	1307-1505
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E)	1-37300-110-0	03	1	1506-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-111-0	01	1	1010-1306
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (B)	1-37300-111-0	01	1	1307-1505
14	COVER; DUST,SPIDER ALLISON MD3560P A/T(Y3B) (B)	9-37352-023-0	16	1	1307-
14	COVER; DUST,SPIDER (A)	1-37249-131-0	04	1	1010-1306
14	COVER; DUST,SPIDER ZF9S1110 M/T(Y5E) (A)	1-37249-131-0	04	1	1307-
14	COVER; DUST,SPIDER (A)	1-37249-131-0	12	1	1010-1306
14	COVER; DUST,SPIDER ZF9S1110 M/T(Y5E) (A)	1-37249-131-0	12	1	1307-
17	NIPPLE; GREASE,PROP SHAFT ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1010-
17	NIPPLE; GREASE,PROP SHAFT 90 DEGREES PT1/8 ELBOW	0-90301-610-0	01	1	1010-1505
17	NIPPLE; GREASE,PROP SHAFT ALLISON MD3560P A/T(Y3B) PT1/8 ELBOW	0-90301-610-0	01	1	1506-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	04	1	1010-1306
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) T=2.2	1-09587-102-1	04	1	1307-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	12	1	1010-1306
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) T=2.2	1-09587-102-1	12	1	1307-
20	BEARING ASM; CTR,PROP SHAFT ALLISON MD3560P A/T(Y3B) (B)	1-37510-093-3	02	1	1307-
20	BEARING ASM; CTR,PROP SHAFT (A) ID=60	1-37510-115-0	01	1	1010-1306
20	BEARING ASM; CTR,PROP SHAFT (A) ID=60	1-37510-115-0	01	1	1010-1306
20	BEARING ASM; CTR,PROP SHAFT ZF9S1110 M/T(Y5E) (A) ID=60	1-37510-115-0	01	1	1307-
20	BEARING ASM; CTR,PROP SHAFT ZF9S1110 M/T(Y5E) (A) ID=60	1-37510-115-0	01	1	1307-
21	SEAL; OIL,CENTER BRG ALLISON MD3560P A/T(Y3B) (C) D=120	1-09625-126-0	04	1	1307-
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	1010-1306
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	1010-1306
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (A) D=120	1-09625-127-0	01	1	1307-
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (A) D=120	1-09625-127-0	01	1	1307-
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	1010-1306
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	1010-1306
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (B)	1-09625-621-0	01	1	1307-
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (B)	1-09625-621-0	01	1	1307-
22	RUBBER; CUSHION,CENTER BRG,1ST ALLISON MD3560P A/T(Y3B) (B)	1-37516-047-2	02	1	1307-
22	RUBBER; CUSHION,CENTER BRG,1ST (A)	1-37516-048-2	01	1	1010-1306
22	RUBBER; CUSHION,CENTER BRG,1ST (A)	1-37516-048-2	01	1	1010-1306
22	RUBBER; CUSHION,CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37516-048-2	01	1	1307-
22	RUBBER; CUSHION,CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37516-048-2	01	1	1307-
23	BEARING; CENTER,PROP SHAFT ALLISON MD3560P A/T(Y3B) (B)	9-00090-292-0	02	1	1307-
23	BEARING; CENTER,PROP SHAFT (A)	9-00090-256-0	01	1	1010-1306
23	BEARING; CENTER,PROP SHAFT (A)	9-00090-256-0	01	1	1010-1306
23	BEARING; CENTER,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	9-00090-256-0	01	1	1307-
23	BEARING; CENTER,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	9-00090-256-0	01	1	1307-
24	RETAINER; CENTER BRG,1ST ALLISON MD3560P A/T(Y3B) (B)	1-37529-039-0	02	1	1307-
24	RETAINER; CENTER BRG,1ST (A)	1-37529-109-0	01	1	1010-1306
24	RETAINER; CENTER BRG,1ST (A)	1-37529-109-0	01	1	1010-1306
24	RETAINER; CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37529-109-0	01	1	1307-
24	RETAINER; CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37529-109-0	01	1	1307-
25	NIPPLE; GREASE,CENTER BRG ZF9S1110 M/T(Y5E) MT6 STRAIGHT	1-09380-006-0	01	1	1307-
25	NIPPLE; GREASE,CENTER BRG ZF9S1110 M/T(Y5E) MT6 STRAIGHT	1-09380-006-0	01	1	1307-
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1010-1306
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1010-1306
25	NIPPLE; GREASE,CENTER BRG ALLISON MD3560P A/T(Y3B) MT6 STRAIGHT	1-09380-006-0	02	1	1307-
46	FLANGE; SPLINED,PROP SHAFT,1ST ALLISON MD3560P A/T(Y3B) (B)	1-37245-283-1	02	1	1307-
46	FLANGE; SPLINED,PROP SHAFT,1ST (A)	1-37245-348-0	01	1	1010-1306
46	FLANGE; SPLINED,PROP SHAFT,1ST (A)	1-37245-348-0	01	1	1010-1306
46	FLANGE; SPLINED,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) (A)	1-37245-348-0	01	1	1307-
46	FLANGE; SPLINED,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) (A)	1-37245-348-0	01	1	1307-
49	NUT; YOKE ALLISON MD3560P A/T(Y3B) (B) M16 FLANGE	1-09449-065-0	04	1	1307-
49	NUT; YOKE (A) M14 FLANGE	8-97365-444-0	04	1	1010-1306
49	NUT; YOKE ZF9S1110 M/T(Y5E) (A) M14 FLANGE	8-97365-444-0	04	1	1307-
51	NUT; FLANGE,SPLINED ALLISON MD3560P A/T(Y3B) (B) M33 FLANGE	1-09449-051-0	02	1	1307-
51	NUT; FLANGE,SPLINED (A) M39 FLANGE	1-09440-046-0	01	1	1010-1306
51	NUT; FLANGE,SPLINED (A) M39 FLANGE	1-09440-046-0	01	1	1010-1306
51	NUT; FLANGE,SPLINED ZF9S1110 M/T(Y5E) (A) M39 FLANGE	1-09440-046-0	01	1	1307-
51	NUT; FLANGE,SPLINED ZF9S1110 M/T(Y5E) (A) M39 FLANGE	1-09440-046-0	01	1	1307-
74	BOLT; YOKE,TRANS (A) M14X50	1-09000-645-0	04	1	1010-1306
74	BOLT; YOKE,TRANS AIR SUS(FGL***) (A) M14X50	1-09000-645-0	04	1	1010-1306
74	BOLT; YOKE,TRANS ZF9S1110 M/T(Y5E) (A) M14X50	1-09000-645-0	04	1	1307-
74	BOLT; YOKE,TRANS ZF9S1110 M/T(Y5E) (A) M14X50	1-09000-645-0	04	1	1307-
74	BOLT; YOKE,TRANS LEAF SUS(FGM***) (A) M14X50	1-09000-645-0	04	1	1307-
74	BOLT; YOKE,TRANS LEAF SUS(FGM***) (A) M14X50	1-09000-645-0	08	1	1010-1306
74	BOLT; YOKE,TRANS ALLISON MD3560P A/T(Y3B) (B) M16X48	1-09000-383-0	04	1	1307-
74	BOLT; YOKE,TRANS ALLISON MD3560P A/T(Y3B) (B) M16X48	1-09000-383-0	04	1	1307-
91	BOLT; HOLDER SET,CTR BRG M16X45	1-09042-030-0	02	1	1010-
92	WASHER; LK,HOLDER SET,CTR BRG ID=17	1-09503-241-1	02	1	1010-
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	0-91116-516-0	02	1	1010-1204
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	8-98049-689-0	02	1	1205-
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	0-81124-025-0	02	1	1010-

74 56 9 8 1 128 225 104 9 8 74 56 106 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP ALLISON MD3560P A/T(Y3B) (F) L=1295	8-98241-799-0	01	1	1307-
1	SHAFT; PROP ALLISON MD3560P A/T(Y3B) (E) L=1154	8-98241-800-0	01	1	1307-
1	SHAFT; PROP ALLISON MD3560P A/T(Y3B) (D) L=989	8-98241-801-0	01	1	1307-
1	SHAFT; PROP (C) L=1215	8-98092-404-0	01	1	1010-1306
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (C) L=1215	8-98092-404-1	01	1	1307-
1	SHAFT; PROP (B) L=1090	8-98092-523-0	01	1	1010-1306
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (B) L=1090	8-98092-523-1	01	1	1307-
1	SHAFT; PROP (A) L=1039	8-98092-527-0	01	1	1010-1306
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (A) L=1039	8-98092-527-1	01	1	1307-
8	YOKE; FLANGE,PROP SHAFT ALLISON MD3560P A/T(Y3B) (B)	1-37211-072-1	04	1	1307-
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-079-1	01	1	1010-1306
8	YOKE; FLANGE,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37211-079-1	01	1	1307-
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-079-1	03	1	1010-1306
8	YOKE; FLANGE,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37211-079-1	03	1	1307-
9	JOURNAL ASM; PROP SHAFT ALLISON MD3560P A/T(Y3B) (C) 1ST,END	1-37300-094-1	AR	1	1307-
9	JOURNAL ASM; PROP SHAFT ALLISON MD3560P A/T(Y3B) (C) 2ND	1-37300-095-1	AR	1	1307-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-110-0	01	1	1010-1306
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37300-110-0	01	1	1307-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-110-0	02	1	1010-1306
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37300-110-0	02	1	1307-1505
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E)	1-37300-110-0	03	1	1506-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-111-0	01	1	1010-1306
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (B)	1-37300-111-0	01	1	1307-1505
14	COVER; DUST,SPIDER ALLISON MD3560P A/T(Y3B) (B)	9-37352-023-0	16	1	1307-
14	COVER; DUST,SPIDER (A)	1-37249-131-0	04	1	1010-1306
14	COVER; DUST,SPIDER ZF9S1110 M/T(Y5E) (A)	1-37249-131-0	04	1	1307-
14	COVER; DUST,SPIDER (A)	1-37249-131-0	12	1	1010-1306
14	COVER; DUST,SPIDER ZF9S1110 M/T(Y5E) (A)	1-37249-131-0	12	1	1307-
17	NIPPLE; GREASE,PROP SHAFT ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1010-
17	NIPPLE; GREASE,PROP SHAFT 90 DEGREES PT1/8 ELBOW	0-90301-610-0	01	1	1010-1505
17	NIPPLE; GREASE,PROP SHAFT ALLISON MD3560P A/T(Y3B) PT1/8 ELBOW	0-90301-610-0	01	1	1506-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	04	1	1010-1306
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) T=2.2	1-09587-102-1	04	1	1307-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	12	1	1010-1306
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) T=2.2	1-09587-102-1	12	1	1307-
56	NUT; YOKE ALLISON MD3560P A/T(Y3B) (B) M16 FLANGE	1-09449-065-0	08	1	1307-
56	NUT; YOKE (A) M14 FLANGE	8-97365-444-0	08	1	1010-1306
56	NUT; YOKE ZF9S1110 M/T(Y5E) (A) M14 FLANGE	8-97365-444-0	08	1	1307-
74	BOLT; YOKE,TRANS (A) M14X50	1-09000-645-0	04	1	1010-1306
74	BOLT; YOKE,TRANS AIR SUS(FGL***) (A) M14X50	1-09000-645-0	04	1	1010-1306
74	BOLT; YOKE,TRANS ZF9S1110 M/T(Y5E) (A) M14X50	1-09000-645-0	04	1	1307-
74	BOLT; YOKE,TRANS ZF9S1110 M/T(Y5E) (A) M14X50	1-09000-645-0	04	1	1307-
74	BOLT; YOKE,TRANS LEAF SUS(FGM***) (A) M14X50	1-09000-645-0	04	1	1307-
74	BOLT; YOKE,TRANS LEAF SUS(FGM***) (A) M14X50	1-09000-645-0	08	1	1010-1306
74	BOLT; YOKE,TRANS ALLISON MD3560P A/T(Y3B) (B) M16X48	1-09000-383-0	04	1	1307-
74	BOLT; YOKE,TRANS ALLISON MD3560P A/T(Y3B) (B) M16X48	1-09000-383-0	04	1	1307-
104	PLUG; SLEEVE YOKE	1-09600-067-0	01	1	1010-
106	NIPPLE; GREASE,YOKE,PROP SHAFT ALLISON MD3560P A/T(Y3B) (B) MT6 STRAIGHT	1-09380-006-0	01	1	1307-
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	1010-
128	SEAL; SLEEVE ALLISON MD3560P A/T(Y3B) (B)	1-37247-021-0	01	1	1307-
128	SEAL; SLEEVE (A)	1-37247-019-0	01	1	1010-1306
128	SEAL; SLEEVE ZF9S1110 M/T(Y5E) (A)	1-37247-019-0	01	1	1307-
225	YOKE; SLEEVE,PROP SHAFT ALLISON MD3560P A/T(Y3B) (B) L=332	1-37241-109-1	01	1	1307-
225	YOKE; SLEEVE,PROP SHAFT (A) L=330	1-37241-124-0	01	1	1010-1306
225	YOKE; SLEEVE,PROP SHAFT ZF9S1110 M/T(Y5E) (A) L=330	1-37241-124-0	01	1	1307-

9 8 71 1 78 20 79 51 46 21 23 25 24 22 80 21 81 9 17 10 13 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP ALLISON MD3560P A/T(Y3B) (F) L=1295	8-98241-799-0	01	1	1307-
1	SHAFT; PROP ALLISON MD3560P A/T(Y3B) (E) L=1154	8-98241-800-0	01	1	1307-
1	SHAFT; PROP ALLISON MD3560P A/T(Y3B) (D) L=989	8-98241-801-0	01	1	1307-
1	SHAFT; PROP (C) L=1215	8-98092-404-0	01	1	1010-1306
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (C) L=1215	8-98092-404-1	01	1	1307-
1	SHAFT; PROP (B) L=1090	8-98092-523-0	01	1	1010-1306
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (B) L=1090	8-98092-523-1	01	1	1307-
1	SHAFT; PROP (A) L=1039	8-98092-527-0	01	1	1010-1306
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (A) L=1039	8-98092-527-1	01	1	1307-
8	YOKE; FLANGE,PROP SHAFT ALLISON MD3560P A/T(Y3B) (B)	1-37211-072-1	04	1	1307-
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-079-1	01	1	1010-1306
8	YOKE; FLANGE,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37211-079-1	01	1	1307-
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-079-1	03	1	1010-1306
8	YOKE; FLANGE,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37211-079-1	03	1	1307-
9	JOURNAL ASM; PROP SHAFT ALLISON MD3560P A/T(Y3B) (C) 1ST,END	1-37300-094-1	AR	1	1307-
9	JOURNAL ASM; PROP SHAFT ALLISON MD3560P A/T(Y3B) (C) 2ND	1-37300-095-1	AR	1	1307-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-110-0	01	1	1010-1306
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37300-110-0	01	1	1307-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-110-0	02	1	1010-1306
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37300-110-0	02	1	1307-1505
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E)	1-37300-110-0	03	1	1506-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-111-0	01	1	1010-1306
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (B)	1-37300-111-0	01	1	1307-1505
10	BOLT; UJT ALLISON MD3560P A/T(Y3B) M10X20	0-20951-020-0	32	1	1307-
12	PLATE; LK,FRT UJT,PROP SHAFT ALLISON MD3560P A/T(Y3B)	1-37356-010-0	12	1	1307-
13	COVER; FRT UJT,PROP SHAFT ALLISON MD3560P A/T(Y3B) T=6	1-37355-022-0	12	1	1307-
14	COVER; DUST,SPIDER ALLISON MD3560P A/T(Y3B) (B)	9-37352-023-0	16	1	1307-
14	COVER; DUST,SPIDER (A)	1-37249-131-0	04	1	1010-1306
14	COVER; DUST,SPIDER ZF9S1110 M/T(Y5E) (A)	1-37249-131-0	04	1	1307-
14	COVER; DUST,SPIDER (A)	1-37249-131-0	12	1	1010-1306
14	COVER; DUST,SPIDER ZF9S1110 M/T(Y5E) (A)	1-37249-131-0	12	1	1307-
17	NIPPLE; GREASE,PROP SHAFT ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1010-
17	NIPPLE; GREASE,PROP SHAFT 90 DEGREES PT1/8 ELBOW	0-90301-610-0	01	1	1010-1505
17	NIPPLE; GREASE,PROP SHAFT ALLISON MD3560P A/T(Y3B) PT1/8 ELBOW	0-90301-610-0	01	1	1506-
20	BEARING ASM; CTR,PROP SHAFT ALLISON MD3560P A/T(Y3B) (B)	1-37510-093-3	02	1	1307-
20	BEARING ASM; CTR,PROP SHAFT (A) ID=60	1-37510-115-0	01	1	1010-1306
20	BEARING ASM; CTR,PROP SHAFT (A) ID=60	1-37510-115-0	01	1	1010-1306
20	BEARING ASM; CTR,PROP SHAFT ZF9S1110 M/T(Y5E) (A) ID=60	1-37510-115-0	01	1	1307-
20	BEARING ASM; CTR,PROP SHAFT ZF9S1110 M/T(Y5E) (A) ID=60	1-37510-115-0	01	1	1307-
21	SEAL; OIL,CENTER BRG ALLISON MD3560P A/T(Y3B) (C) D=120	1-09625-126-0	04	1	1307-
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	1010-1306
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	1010-1306
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (A) D=120	1-09625-127-0	01	1	1307-
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (A) D=120	1-09625-127-0	01	1	1307-
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	1010-1306
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	1010-1306
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (B)	1-09625-621-0	01	1	1307-
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (B)	1-09625-621-0	01	1	1307-
22	RUBBER; CUSHION,CENTER BRG,1ST ALLISON MD3560P A/T(Y3B) (B)	1-37516-047-2	02	1	1307-
22	RUBBER; CUSHION,CENTER BRG,1ST (A)	1-37516-048-2	01	1	1010-1306
22	RUBBER; CUSHION,CENTER BRG,1ST (A)	1-37516-048-2	01	1	1010-1306
22	RUBBER; CUSHION,CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37516-048-2	01	1	1307-
22	RUBBER; CUSHION,CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37516-048-2	01	1	1307-
23	BEARING; CENTER,PROP SHAFT ALLISON MD3560P A/T(Y3B) (B)	9-00090-292-0	02	1	1307-
23	BEARING; CENTER,PROP SHAFT (A)	9-00090-256-0	01	1	1010-1306
23	BEARING; CENTER,PROP SHAFT (A)	9-00090-256-0	01	1	1010-1306
23	BEARING; CENTER,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	9-00090-256-0	01	1	1307-
23	BEARING; CENTER,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	9-00090-256-0	01	1	1307-
24	RETAINER; CENTER BRG,1ST ALLISON MD3560P A/T(Y3B) (B)	1-37529-039-0	02	1	1307-
24	RETAINER; CENTER BRG,1ST (A)	1-37529-109-0	01	1	1010-1306
24	RETAINER; CENTER BRG,1ST (A)	1-37529-109-0	01	1	1010-1306
24	RETAINER; CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37529-109-0	01	1	1307-
24	RETAINER; CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37529-109-0	01	1	1307-
25	NIPPLE; GREASE,CENTER BRG ZF9S1110 M/T(Y5E) MT6 STRAIGHT	1-09380-006-0	01	1	1307-
25	NIPPLE; GREASE,CENTER BRG ZF9S1110 M/T(Y5E) MT6 STRAIGHT	1-09380-006-0	01	1	1307-
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1010-1306
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1010-1306
25	NIPPLE; GREASE,CENTER BRG ALLISON MD3560P A/T(Y3B) MT6 STRAIGHT	1-09380-006-0	02	1	1307-
46	FLANGE; SPLINED,PROP SHAFT,1ST ALLISON MD3560P A/T(Y3B) (B)	1-37245-283-1	02	1	1307-
46	FLANGE; SPLINED,PROP SHAFT,1ST (A)	1-37245-348-0	01	1	1010-1306
46	FLANGE; SPLINED,PROP SHAFT,1ST (A)	1-37245-348-0	01	1	1010-1306
46	FLANGE; SPLINED,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) (A)	1-37245-348-0	01	1	1307-
46	FLANGE; SPLINED,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) (A)	1-37245-348-0	01	1	1307-
51	NUT; FLANGE,SPLINED ALLISON MD3560P A/T(Y3B) (B) M33 FLANGE	1-09449-051-0	02	1	1307-
51	NUT; FLANGE,SPLINED (A) M39 FLANGE	1-09440-046-0	01	1	1010-1306
51	NUT; FLANGE,SPLINED (A) M39 FLANGE	1-09440-046-0	01	1	1010-1306
51	NUT; FLANGE,SPLINED ZF9S1110 M/T(Y5E) (A) M39 FLANGE	1-09440-046-0	01	1	1307-
51	NUT; FLANGE,SPLINED ZF9S1110 M/T(Y5E) (A) M39 FLANGE	1-09440-046-0	01	1	1307-
71	NUT; YOKE ALLISON MD3560P A/T(Y3B) (B) M16 FLANGE	1-09449-065-0	04	1	1307-
71	NUT; YOKE (A) M14 FLANGE	8-97365-444-0	04	1	1010-1306
71	NUT; YOKE ZF9S1110 M/T(Y5E) (A) M14 FLANGE	8-97365-444-0	04	1	1307-
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	1010-
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	1010-
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	0-91116-516-0	02	1	1010-1204
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	8-98049-689-0	02	1	1205-
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	1010-

8 9 74 49 1 91 92 22 21 20 23 21 46 51 25 24 93 94 8 74 56 9 1 107 128 106 106 225 104 9 8 74 56 9 83 12 17 84 10 13 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP ALLISON MD3560P A/T(Y3B) (F) L=1295	8-98241-799-0	01	1	1307-
1	SHAFT; PROP ALLISON MD3560P A/T(Y3B) (E) L=1154	8-98241-800-0	01	1	1307-
1	SHAFT; PROP ALLISON MD3560P A/T(Y3B) (D) L=989	8-98241-801-0	01	1	1307-
1	SHAFT; PROP (C) L=1215	8-98092-404-0	01	1	1010-1306
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (C) L=1215	8-98092-404-1	01	1	1307-
1	SHAFT; PROP (B) L=1090	8-98092-523-0	01	1	1010-1306
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (B) L=1090	8-98092-523-1	01	1	1307-
1	SHAFT; PROP (A) L=1039	8-98092-527-0	01	1	1010-1306
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (A) L=1039	8-98092-527-1	01	1	1307-
8	YOKE; FLANGE,PROP SHAFT ALLISON MD3560P A/T(Y3B) (B)	1-37211-072-1	04	1	1307-
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-079-1	01	1	1010-1306
8	YOKE; FLANGE,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37211-079-1	01	1	1307-
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-079-1	03	1	1010-1306
8	YOKE; FLANGE,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37211-079-1	03	1	1307-
9	JOURNAL ASM; PROP SHAFT ALLISON MD3560P A/T(Y3B) (C) 1ST,END	1-37300-094-1	AR	1	1307-
9	JOURNAL ASM; PROP SHAFT ALLISON MD3560P A/T(Y3B) (C) 2ND	1-37300-095-1	AR	1	1307-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-110-0	01	1	1010-1306
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37300-110-0	01	1	1307-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-110-0	02	1	1010-1306
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (A)	1-37300-110-0	02	1	1307-1505
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E)	1-37300-110-0	03	1	1506-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-111-0	01	1	1010-1306
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (B)	1-37300-111-0	01	1	1307-1505
10	BOLT; UJT ALLISON MD3560P A/T(Y3B) M10X20	0-20951-020-0	32	1	1307-
12	PLATE; LK,FRT UJT,PROP SHAFT ALLISON MD3560P A/T(Y3B)	1-37356-010-0	12	1	1307-
13	COVER; FRT UJT,PROP SHAFT ALLISON MD3560P A/T(Y3B) T=6	1-37355-022-0	12	1	1307-
14	COVER; DUST,SPIDER ALLISON MD3560P A/T(Y3B) (B)	9-37352-023-0	16	1	1307-
14	COVER; DUST,SPIDER (A)	1-37249-131-0	04	1	1010-1306
14	COVER; DUST,SPIDER ZF9S1110 M/T(Y5E) (A)	1-37249-131-0	04	1	1307-
14	COVER; DUST,SPIDER (A)	1-37249-131-0	12	1	1010-1306
14	COVER; DUST,SPIDER ZF9S1110 M/T(Y5E) (A)	1-37249-131-0	12	1	1307-
17	NIPPLE; GREASE,PROP SHAFT ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1010-
17	NIPPLE; GREASE,PROP SHAFT 90 DEGREES PT1/8 ELBOW	0-90301-610-0	01	1	1010-1505
17	NIPPLE; GREASE,PROP SHAFT ALLISON MD3560P A/T(Y3B) PT1/8 ELBOW	0-90301-610-0	01	1	1506-
20	BEARING ASM; CTR,PROP SHAFT ALLISON MD3560P A/T(Y3B) (B)	1-37510-093-3	02	1	1307-
20	BEARING ASM; CTR,PROP SHAFT (A) ID=60	1-37510-115-0	01	1	1010-1306
20	BEARING ASM; CTR,PROP SHAFT (A) ID=60	1-37510-115-0	01	1	1010-1306
20	BEARING ASM; CTR,PROP SHAFT ZF9S1110 M/T(Y5E) (A) ID=60	1-37510-115-0	01	1	1307-
20	BEARING ASM; CTR,PROP SHAFT ZF9S1110 M/T(Y5E) (A) ID=60	1-37510-115-0	01	1	1307-
21	SEAL; OIL,CENTER BRG ALLISON MD3560P A/T(Y3B) (C) D=120	1-09625-126-0	04	1	1307-
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	1010-1306
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	1010-1306
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (A) D=120	1-09625-127-0	01	1	1307-
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (A) D=120	1-09625-127-0	01	1	1307-
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	1010-1306
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	1010-1306
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (B)	1-09625-621-0	01	1	1307-
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (B)	1-09625-621-0	01	1	1307-
22	RUBBER; CUSHION,CENTER BRG,1ST ALLISON MD3560P A/T(Y3B) (B)	1-37516-047-2	02	1	1307-
22	RUBBER; CUSHION,CENTER BRG,1ST (A)	1-37516-048-2	01	1	1010-1306
22	RUBBER; CUSHION,CENTER BRG,1ST (A)	1-37516-048-2	01	1	1010-1306
22	RUBBER; CUSHION,CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37516-048-2	01	1	1307-
22	RUBBER; CUSHION,CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37516-048-2	01	1	1307-
23	BEARING; CENTER,PROP SHAFT ALLISON MD3560P A/T(Y3B) (B)	9-00090-292-0	02	1	1307-
23	BEARING; CENTER,PROP SHAFT (A)	9-00090-256-0	01	1	1010-1306
23	BEARING; CENTER,PROP SHAFT (A)	9-00090-256-0	01	1	1010-1306
23	BEARING; CENTER,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	9-00090-256-0	01	1	1307-
23	BEARING; CENTER,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	9-00090-256-0	01	1	1307-
24	RETAINER; CENTER BRG,1ST ALLISON MD3560P A/T(Y3B) (B)	1-37529-039-0	02	1	1307-
24	RETAINER; CENTER BRG,1ST (A)	1-37529-109-0	01	1	1010-1306
24	RETAINER; CENTER BRG,1ST (A)	1-37529-109-0	01	1	1010-1306
24	RETAINER; CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37529-109-0	01	1	1307-
24	RETAINER; CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37529-109-0	01	1	1307-
25	NIPPLE; GREASE,CENTER BRG ZF9S1110 M/T(Y5E) MT6 STRAIGHT	1-09380-006-0	01	1	1307-
25	NIPPLE; GREASE,CENTER BRG ZF9S1110 M/T(Y5E) MT6 STRAIGHT	1-09380-006-0	01	1	1307-
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1010-1306
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1010-1306
25	NIPPLE; GREASE,CENTER BRG ALLISON MD3560P A/T(Y3B) MT6 STRAIGHT	1-09380-006-0	02	1	1307-
46	FLANGE; SPLINED,PROP SHAFT,1ST ALLISON MD3560P A/T(Y3B) (B)	1-37245-283-1	02	1	1307-
46	FLANGE; SPLINED,PROP SHAFT,1ST (A)	1-37245-348-0	01	1	1010-1306
46	FLANGE; SPLINED,PROP SHAFT,1ST (A)	1-37245-348-0	01	1	1010-1306
46	FLANGE; SPLINED,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) (A)	1-37245-348-0	01	1	1307-
46	FLANGE; SPLINED,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) (A)	1-37245-348-0	01	1	1307-
49	NUT; YOKE ALLISON MD3560P A/T(Y3B) (B) M16 FLANGE	1-09449-065-0	04	1	1307-
49	NUT; YOKE (A) M14 FLANGE	8-97365-444-0	04	1	1010-1306
49	NUT; YOKE ZF9S1110 M/T(Y5E) (A) M14 FLANGE	8-97365-444-0	04	1	1307-
51	NUT; FLANGE,SPLINED ALLISON MD3560P A/T(Y3B) (B) M33 FLANGE	1-09449-051-0	02	1	1307-
51	NUT; FLANGE,SPLINED (A) M39 FLANGE	1-09440-046-0	01	1	1010-1306
51	NUT; FLANGE,SPLINED (A) M39 FLANGE	1-09440-046-0	01	1	1010-1306
51	NUT; FLANGE,SPLINED ZF9S1110 M/T(Y5E) (A) M39 FLANGE	1-09440-046-0	01	1	1307-
51	NUT; FLANGE,SPLINED ZF9S1110 M/T(Y5E) (A) M39 FLANGE	1-09440-046-0	01	1	1307-
56	NUT; YOKE ALLISON MD3560P A/T(Y3B) (B) M16 FLANGE	1-09449-065-0	08	1	1307-
56	NUT; YOKE (A) M14 FLANGE	8-97365-444-0	08	1	1010-1306
56	NUT; YOKE ZF9S1110 M/T(Y5E) (A) M14 FLANGE	8-97365-444-0	08	1	1307-
74	BOLT; YOKE,TRANS (A) M14X50	1-09000-645-0	04	1	1010-1306
74	BOLT; YOKE,TRANS AIR SUS(FGL***) (A) M14X50	1-09000-645-0	04	1	1010-1306
74	BOLT; YOKE,TRANS ZF9S1110 M/T(Y5E) (A) M14X50	1-09000-645-0	04	1	1307-
74	BOLT; YOKE,TRANS ZF9S1110 M/T(Y5E) (A) M14X50	1-09000-645-0	04	1	1307-
74	BOLT; YOKE,TRANS LEAF SUS(FGM***) (A) M14X50	1-09000-645-0	04	1	1307-
74	BOLT; YOKE,TRANS LEAF SUS(FGM***) (A) M14X50	1-09000-645-0	08	1	1010-1306
74	BOLT; YOKE,TRANS ALLISON MD3560P A/T(Y3B) (B) M16X48	1-09000-383-0	04	1	1307-
74	BOLT; YOKE,TRANS ALLISON MD3560P A/T(Y3B) (B) M16X48	1-09000-383-0	04	1	1307-
83	PLATE; LK,UJT,PROP SHAFT ALLISON MD3560P A/T(Y3B)	1-37356-010-0	04	1	1307-
84	COVER; UJT,PROP SHAFT ALLISON MD3560P A/T(Y3B) T=6	1-37355-022-0	04	1	1307-
91	BOLT; HOLDER SET,CTR BRG M16X45	1-09042-030-0	02	1	1010-
92	WASHER; LK,HOLDER SET,CTR BRG ID=17	1-09503-241-1	02	1	1010-
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	0-91116-516-0	02	1	1010-1204
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	8-98049-689-0	02	1	1205-
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	0-81124-025-0	02	1	1010-
104	PLUG; SLEEVE YOKE	1-09600-067-0	01	1	1010-
106	NIPPLE; GREASE,YOKE,PROP SHAFT ALLISON MD3560P A/T(Y3B) (B) MT6 STRAIGHT	1-09380-006-0	01	1	1307-
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	1010-
107	COVER; RET,SLEEVE ALLISON MD3560P A/T(Y3B)	1-37249-137-1	01	1	1307-
128	SEAL; SLEEVE ALLISON MD3560P A/T(Y3B) (B)	1-37247-021-0	01	1	1307-
128	SEAL; SLEEVE (A)	1-37247-019-0	01	1	1010-1306
128	SEAL; SLEEVE ZF9S1110 M/T(Y5E) (A)	1-37247-019-0	01	1	1307-
225	YOKE; SLEEVE,PROP SHAFT ALLISON MD3560P A/T(Y3B) (B) L=332	1-37241-109-1	01	1	1307-
225	YOKE; SLEEVE,PROP SHAFT (A) L=330	1-37241-124-0	01	1	1010-1306
225	YOKE; SLEEVE,PROP SHAFT ZF9S1110 M/T(Y5E) (A) L=330	1-37241-124-0	01	1	1307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
