◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11304 - FVM AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#60465) — 206 parça

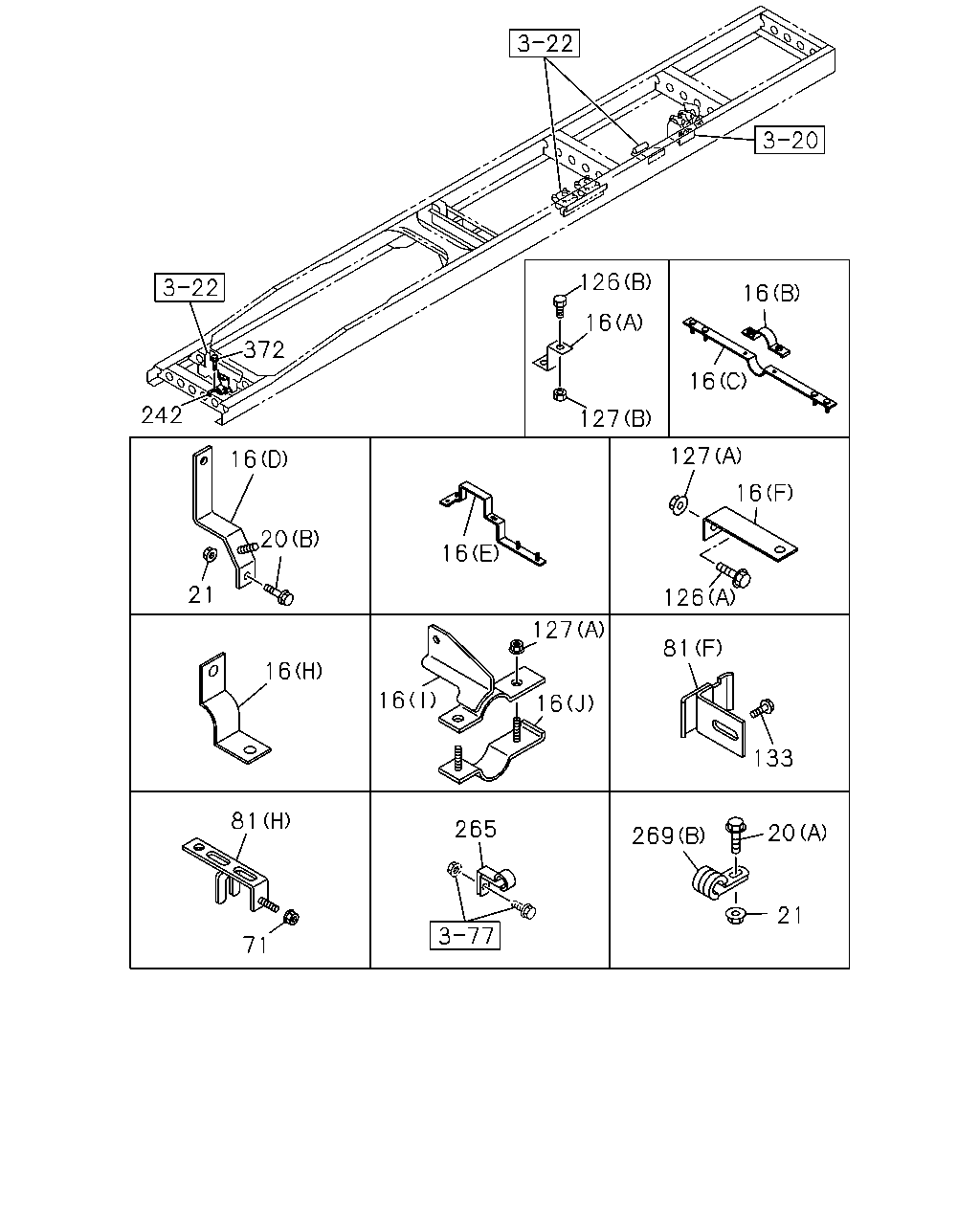

çizim 169199
372 242 126 16 16 127 16 127 16 16 20 21 16 126 16 16 127 16 81 133 81 71 265 269 20 21
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 04 1 1010-1306 ●
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 02 1 1307- ●
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 02 1 1307- ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 1010-1110 ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 1010-1110 ●
16 BRACKET; PIPE CLIP
(I) 		8-98199-761-0 01 1 1111-1306 ●
16 BRACKET; PIPE CLIP
(I) 		8-98199-761-0 01 1 1111-1306 ●
16 BRACKET; PIPE CLIP
(J) 		8-98212-967-0 01 1 1307- ●
16 BRACKET; PIPE CLIP
(J) 		8-98212-967-0 01 1 1307- ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-249-0 01 1 1010-1110 ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-249-0 01 1 1010-1110 ●
16 BRACKET; PIPE CLIP
(J) 		8-98199-763-0 01 1 1111-1306 ●
16 BRACKET; PIPE CLIP
(J) 		8-98199-763-0 01 1 1111-1306 ●
16 BRACKET; PIPE CLIP
(I) 		8-98212-968-0 01 1 1307- ●
16 BRACKET; PIPE CLIP
(I) 		8-98212-968-0 01 1 1307- ●
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 1010- ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-546-0 02 1 1010- ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-720-0 02 1 1010- ●
16 BRACKET; PIPE CLIP
(D) 		1-47479-815-0 01 1 1010- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 1010- ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 02 1 1307- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1010- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1010- ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 03 1 1010-1306 ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 01 1 1307- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1010- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 1010-1110 ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 1010-1110 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1010-1110 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1010-1110 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1111- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1111- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1010- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1010-1110 ●
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1010- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1010- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1010- ●
81 BRACKET; CLIP
(I) 		8-98186-380-0 01 1 1106- ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 02 1 1010- ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1010- ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 1010- ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1010- ● ●
81 BRACKET; CLIP
ZF9S1110 M/T(Y5E) (E) 		8-98129-212-0 04 1 1010-1012 ● ●
81 BRACKET; CLIP
ZF9S1110 M/T(Y5E) (H) 		8-98177-873-0 04 1 1101-1306 ● ●
81 BRACKET; CLIP
(H) 		8-98177-873-0 04 1 1307- ● ●
81 BRACKET; CLIP
(G) L=65 B=25 		8-98135-584-0 01 1 1010- ● ●
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010-1110 ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010-1110 ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1010- ●
126 BOLT; CLIP BRKT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 1010- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1010-1110 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1010-1110 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 1111- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 1111- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1010- ●
127 NUT; CLIP BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1010- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1010- ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1010- ● ●
133 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 1010-1306 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1010-1306 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1307- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1010-1306 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1307- ● ●
242 BRACKET; PIPE CLIP 8-98074-610-0 01 1 1010- ● ●
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1010- ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 06 1 1010-1306 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 1307- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 1307- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1010-1306 ●
269 CLIP; BAND,NYLON TUBE
(C) ID=11X2 L=20 		0-95325-035-0 02 1 1010- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1010- ●
269 CLIP; BAND,NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 06 1 1010- ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1010- ● ●
çizim 169204
16 74 107 128 269 375 74 81 81 71 269 341 322 21 297 20 376 269 341 341 341
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 04 1 1010-1306 ●
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 02 1 1307- ●
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 02 1 1307- ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 1010-1110 ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 1010-1110 ●
16 BRACKET; PIPE CLIP
(I) 		8-98199-761-0 01 1 1111-1306 ●
16 BRACKET; PIPE CLIP
(I) 		8-98199-761-0 01 1 1111-1306 ●
16 BRACKET; PIPE CLIP
(J) 		8-98212-967-0 01 1 1307- ●
16 BRACKET; PIPE CLIP
(J) 		8-98212-967-0 01 1 1307- ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-249-0 01 1 1010-1110 ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-249-0 01 1 1010-1110 ●
16 BRACKET; PIPE CLIP
(J) 		8-98199-763-0 01 1 1111-1306 ●
16 BRACKET; PIPE CLIP
(J) 		8-98199-763-0 01 1 1111-1306 ●
16 BRACKET; PIPE CLIP
(I) 		8-98212-968-0 01 1 1307- ●
16 BRACKET; PIPE CLIP
(I) 		8-98212-968-0 01 1 1307- ●
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 1010- ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-546-0 02 1 1010- ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-720-0 02 1 1010- ●
16 BRACKET; PIPE CLIP
(D) 		1-47479-815-0 01 1 1010- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 1010- ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 02 1 1307- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1010- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1010- ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 03 1 1010-1306 ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 01 1 1307- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1010- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 1010-1110 ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 1010-1110 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1010-1110 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1010-1110 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1111- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1111- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1010- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1010-1110 ●
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1010- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1010- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1010- ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1307- ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1010- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 11 1 1010-1306 ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 1307- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1010-1306 ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1010-1306 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1307- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1307- ● ●
74 CLIP; NYLON TUBE
(B) ID=12 & 15 		1-09709-281-1 01 1 1010- ● ●
81 BRACKET; CLIP
(I) 		8-98186-380-0 01 1 1106- ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 02 1 1010- ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1010- ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 1010- ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1010- ● ●
81 BRACKET; CLIP
ZF9S1110 M/T(Y5E) (E) 		8-98129-212-0 04 1 1010-1012 ● ●
81 BRACKET; CLIP
ZF9S1110 M/T(Y5E) (H) 		8-98177-873-0 04 1 1101-1306 ● ●
81 BRACKET; CLIP
(H) 		8-98177-873-0 04 1 1307- ● ●
81 BRACKET; CLIP
(G) L=65 B=25 		8-98135-584-0 01 1 1010- ● ●
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1010- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 11 1 1307- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 1307- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 1307- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 49 1 1010-1306 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 1307- ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1010- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 1010- ● ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1010- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 06 1 1010-1306 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 1307- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 1307- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1010-1306 ●
269 CLIP; BAND,NYLON TUBE
(C) ID=11X2 L=20 		0-95325-035-0 02 1 1010- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1010- ●
269 CLIP; BAND,NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 06 1 1010- ●
297 NUT; BRKT
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ● ●
322 BRACKET; CLIP
ZF9S1110 M/T(Y5E) 		1-47479-598-0 02 1 1010-1306 ● ●
341 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1307- ● ●
341 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1307- ● ●
341 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 1307- ● ●
341 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 1307- ● ●
341 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307- ● ●
341 CLIP; HARNESS
(C) L=250 		5-09707-030-1 07 1 1307- ● ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) L=350 		1-09707-183-0 01 1 1010-1306 ● ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1010-1306 ● ●
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 1010-1306 ● ●

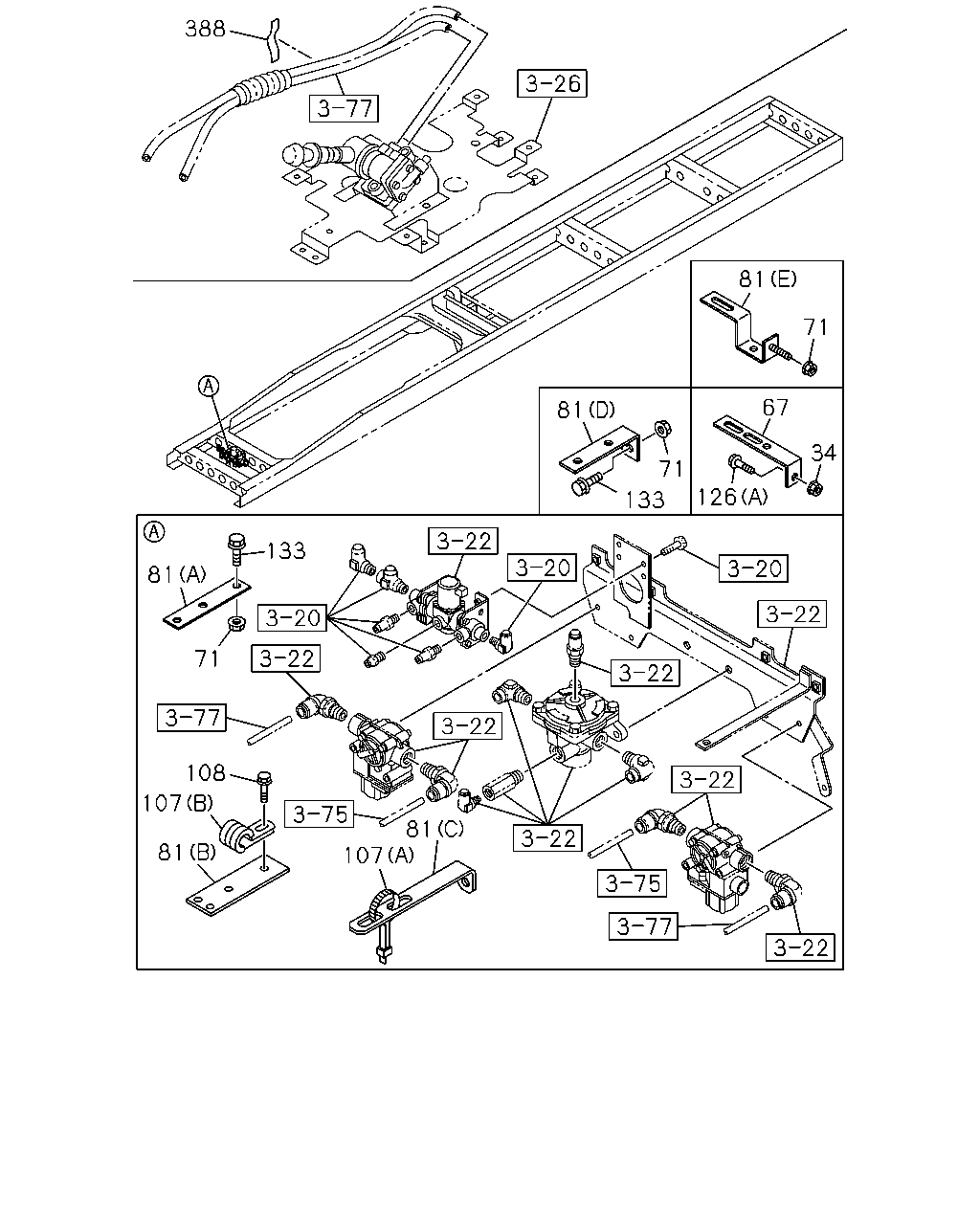

çizim 169220
388 81 71 67 34 126 133 71 81 133 81 107 81 107 81 108 71
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1010- ●
67 BRACKET; CLIP
L=100 H=30 		1-47477-645-2 01 1 1307- ● ●
67 BRACKET; CLIP
L=100 H=30 		1-47477-645-2 02 1 1010- ●
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1010- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1010- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1010- ●
81 BRACKET; CLIP
(I) 		8-98186-380-0 01 1 1106- ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 02 1 1010- ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1010- ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 1010- ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1010- ● ●
81 BRACKET; CLIP
ZF9S1110 M/T(Y5E) (E) 		8-98129-212-0 04 1 1010-1012 ● ●
81 BRACKET; CLIP
ZF9S1110 M/T(Y5E) (H) 		8-98177-873-0 04 1 1101-1306 ● ●
81 BRACKET; CLIP
(H) 		8-98177-873-0 04 1 1307- ● ●
81 BRACKET; CLIP
(G) L=65 B=25 		8-98135-584-0 01 1 1010- ● ●
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1010- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 11 1 1307- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 1307- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 1307- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 49 1 1010-1306 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 1307- ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1010- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 1010- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010-1110 ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010-1110 ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1010- ●
126 BOLT; CLIP BRKT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 1010- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1010- ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1010- ● ●
133 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 1010-1306 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1010-1306 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1307- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1010-1306 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1307- ● ●
388 SEAL
100X40 		1-72498-022-1 03 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
