◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11304 - FVM AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#60462) — 49 parça

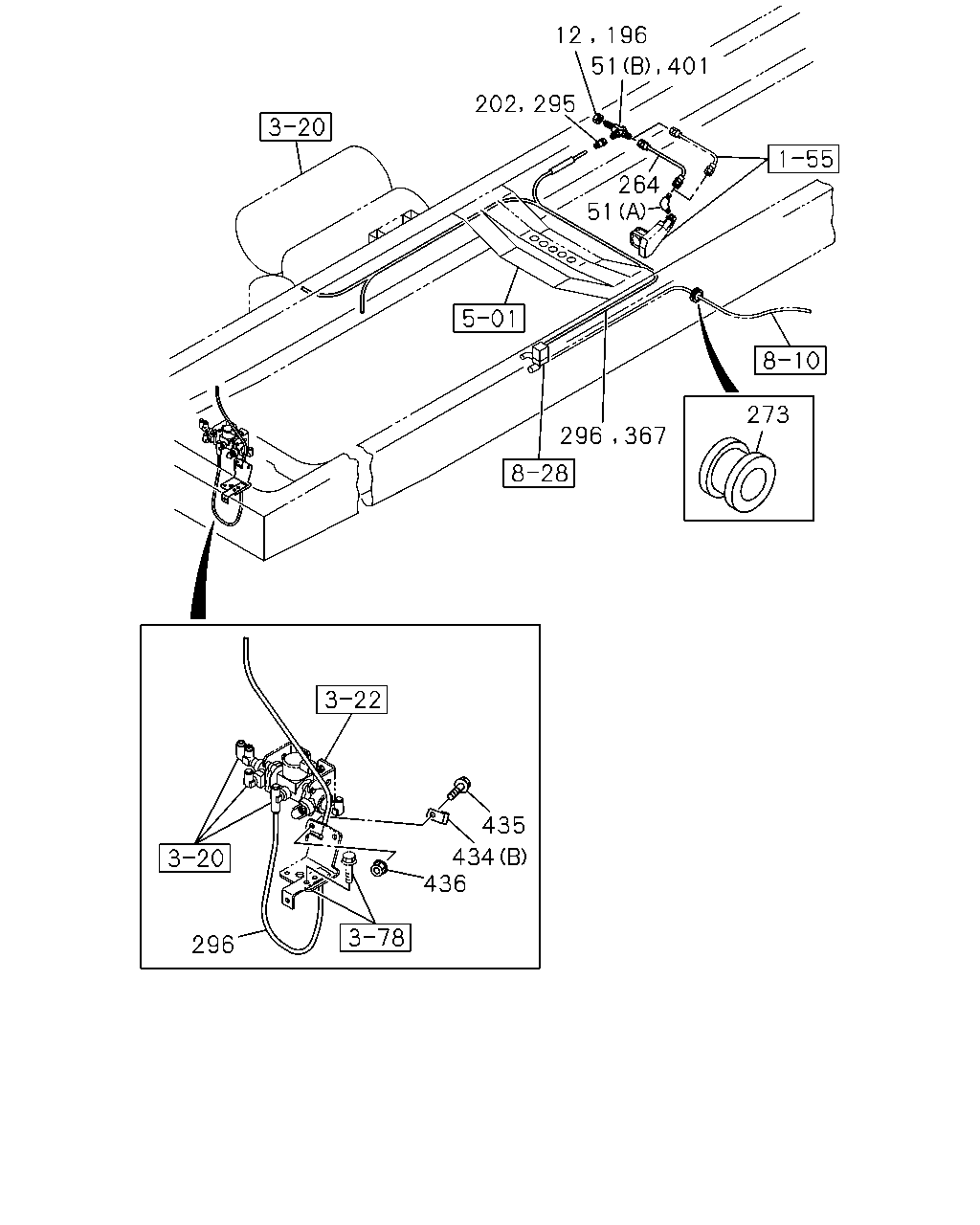

çizim 169212
196 12 51 401 264 51 367 296 295 202 435 434 436 296 273
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
M12 		0-91111-512-0 01 1 1010-1306 ● ●
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1010- ● ●
51 UNION
(B) M12 2WAY 		1-09654-059-2 01 1 1010-1306 ● ●
196 NUT; FLEX HOSE
M12 		0-91111-512-0 01 1 1307- ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1010-1306 ● ●
264 HOSE; FLEX
L=340 		1-09363-617-0 01 1 1010-1306 ● ●
273 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1307- ● ●
273 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1307- ● ●
295 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1307- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1010- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1010- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1010- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1010- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1010- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1010- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1010- ● ●
401 CONNECTOR; FLEX HOSE
M12 2WAY 		1-09654-059-2 01 1 1307- ● ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1010- ● ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1010- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●

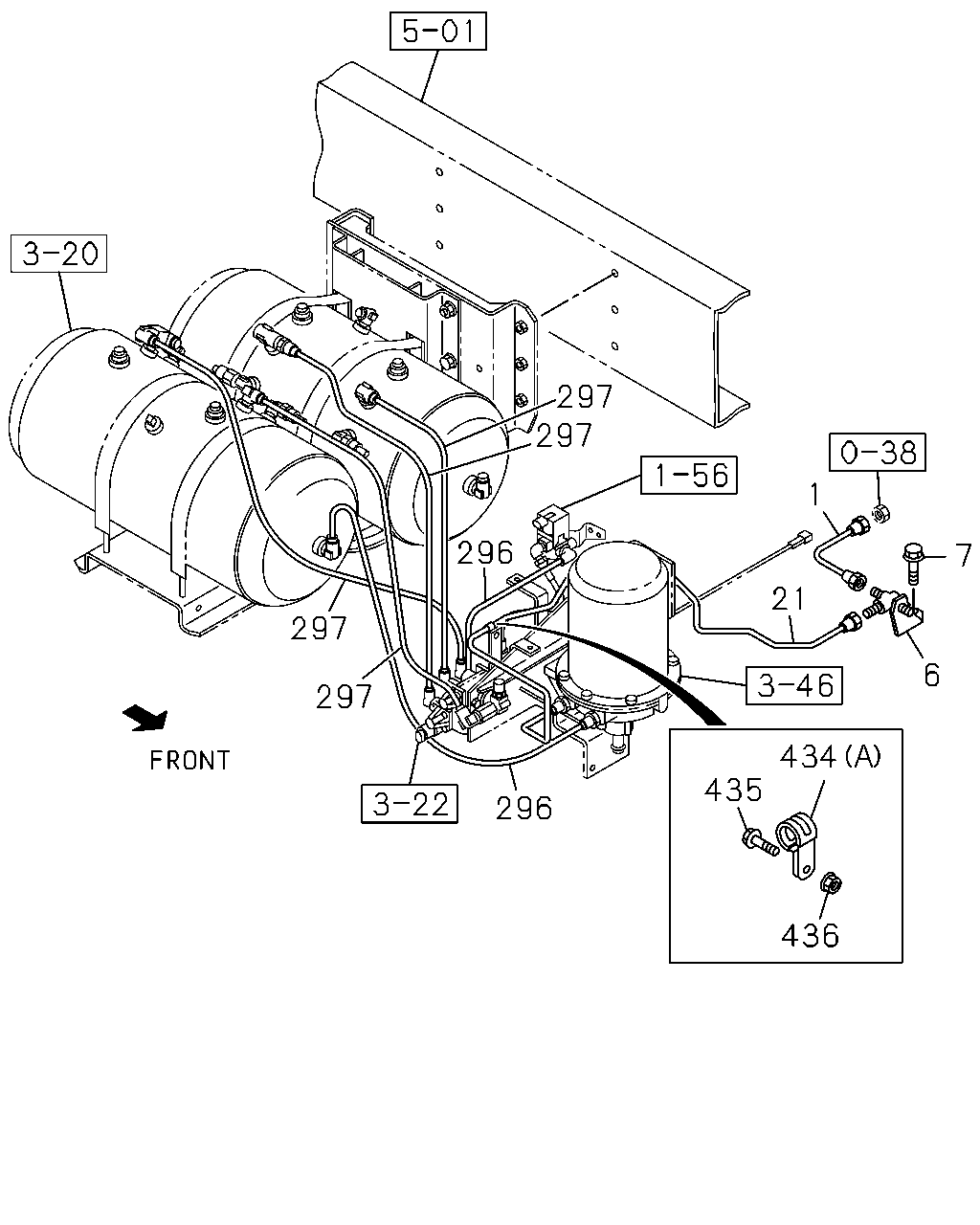

çizim 169258
436 435 434 1 6 7 21 296 297 296 297 297 297
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 1010- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 1010- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1010- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1715 		8-98095-083-0 01 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1010- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1010- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1010- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1010- ● ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1010- ● ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1010- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
