◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11304 - FVM AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#60459) — 82 parça

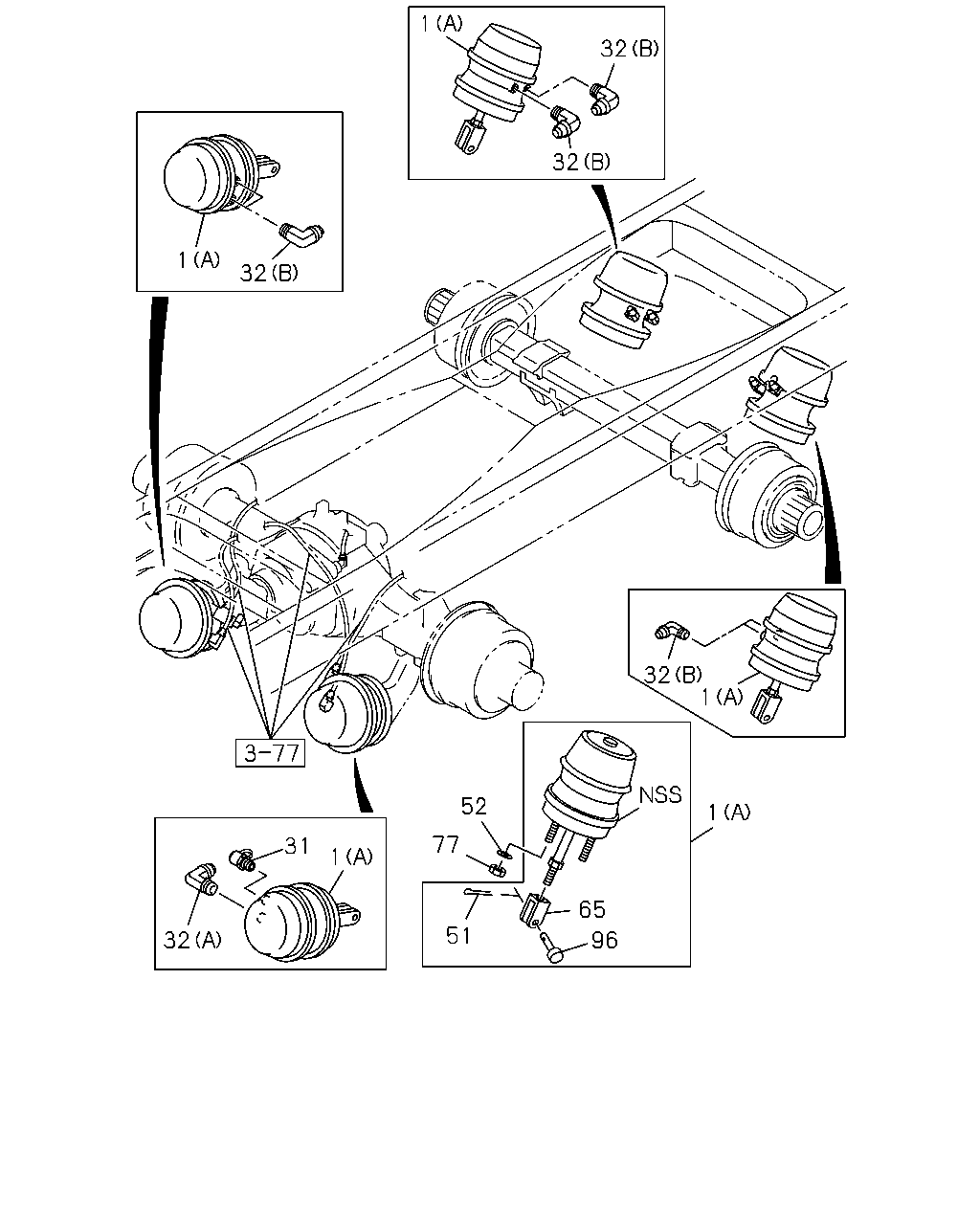

çizim 169152
1 1 32 32 32 1 1 52 77 65 96 51 31 1 32 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
(A) FORWARD RH,REARWARD LH 		1-48250-943-0 01 1 1010-1205 ●
1 CHAMBER ASM; SPRING
(A) FORWARD RH,REARWARD LH 		1-48250-943-0 01 1 1010-1205 ●
1 CHAMBER ASM; SPRING
(A) FORWARD RH,REARWARD LH 		1-48250-957-0 01 1 1206- ●
1 CHAMBER ASM; SPRING
(A) FORWARD RH,REARWARD LH 		1-48250-957-0 01 1 1206- ●
1 CHAMBER ASM; SPRING
(A) FORWARD LH,REARWARD RH 		1-48250-944-0 01 1 1010-1205 ●
1 CHAMBER ASM; SPRING
(A) FORWARD LH,REARWARD RH 		1-48250-944-0 01 1 1010-1205 ●
1 CHAMBER ASM; SPRING
(A) FORWARD LH,REARWARD RH 		1-48250-958-0 01 1 1206- ●
1 CHAMBER ASM; SPRING
(A) FORWARD LH,REARWARD RH 		1-48250-958-0 01 1 1206- ●
1 CHAMBER ASM; SPRING
(B) REARWARD 		1-87412-083-0 01 1 1010- ●
1 CHAMBER ASM; SPRING
(B) REARWARD 		1-87412-084-0 01 1 1010- ●
1 CHAMBER ASM; SPRING
(B) FORWARD 		1-87412-089-0 01 1 1010- ●
1 CHAMBER ASM; SPRING
(B) FORWARD 		1-87412-090-0 01 1 1010- ●
31 CONNECTOR
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1010- ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 03 1 1307- ●
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & NPTF3/8 & RC1/4 3WAY 		1-09660-804-0 01 1 1010- ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 05 1 1010-1306 ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 1307- ●
32 CONNECTOR; SPR CHAMBER
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1010- ●
32 CONNECTOR; SPR CHAMBER
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1010- ●
32 CONNECTOR; SPR CHAMBER
(D) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 1010- ●
51 PIN; SPLIT 1-48259-275-0 02 1 1010- ●
52 WASHER; PL 1-41519-038-0 04 1 1010- ●
52 WASHER; PL 1-41519-038-0 04 1 1010- ●
65 JOINT; JAW 1-48259-321-0 02 1 1010- ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 1010- ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 1010- ●
96 PIN; JAW JOINT 1-48259-273-0 02 1 1010- ●

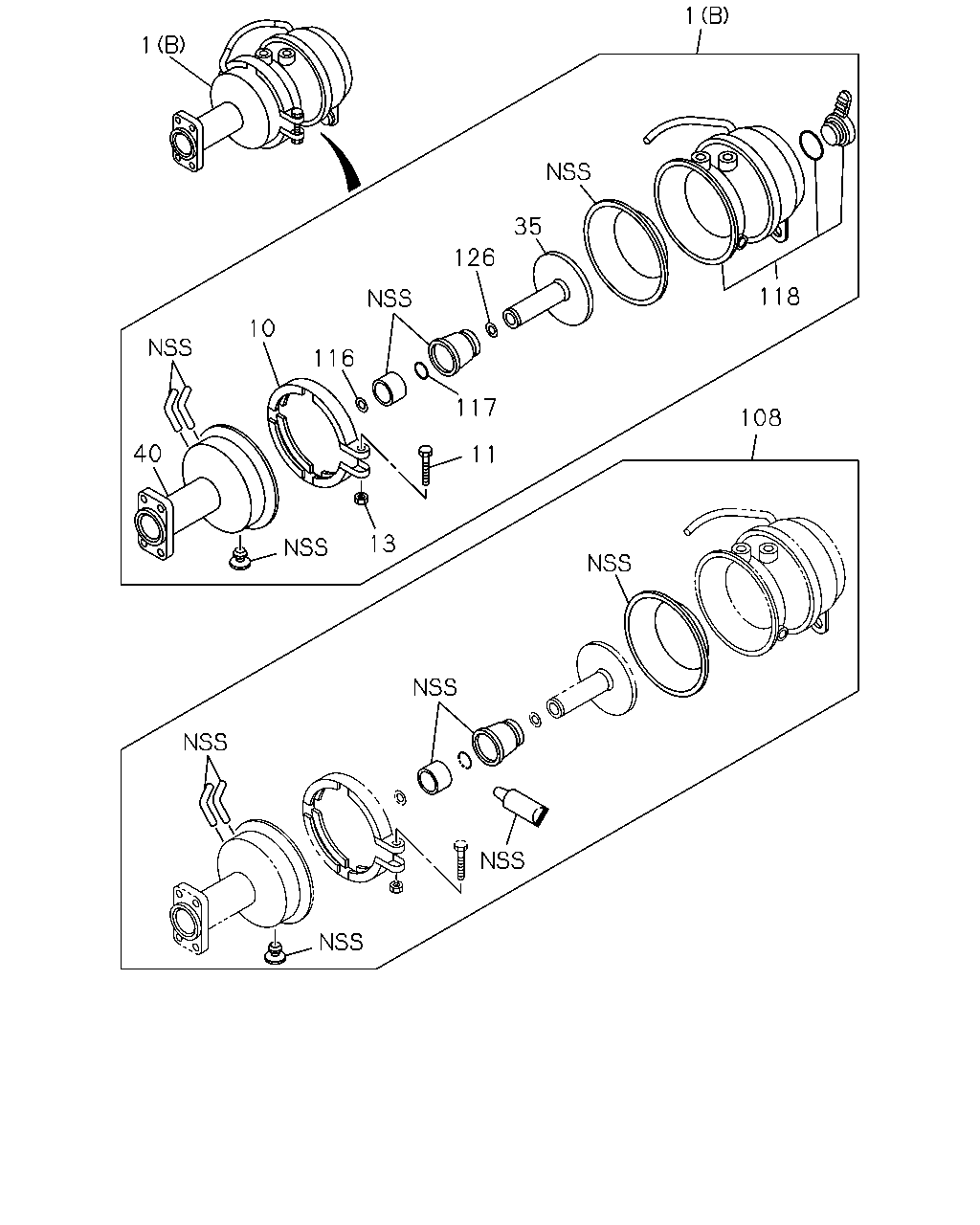

çizim 169166
1 1 35 126 10 117 116 13 11 40 118 108
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
(A) FORWARD RH,REARWARD LH 		1-48250-943-0 01 1 1010-1205 ●
1 CHAMBER ASM; SPRING
(A) FORWARD RH,REARWARD LH 		1-48250-943-0 01 1 1010-1205 ●
1 CHAMBER ASM; SPRING
(A) FORWARD RH,REARWARD LH 		1-48250-957-0 01 1 1206- ●
1 CHAMBER ASM; SPRING
(A) FORWARD RH,REARWARD LH 		1-48250-957-0 01 1 1206- ●
1 CHAMBER ASM; SPRING
(A) FORWARD LH,REARWARD RH 		1-48250-944-0 01 1 1010-1205 ●
1 CHAMBER ASM; SPRING
(A) FORWARD LH,REARWARD RH 		1-48250-944-0 01 1 1010-1205 ●
1 CHAMBER ASM; SPRING
(A) FORWARD LH,REARWARD RH 		1-48250-958-0 01 1 1206- ●
1 CHAMBER ASM; SPRING
(A) FORWARD LH,REARWARD RH 		1-48250-958-0 01 1 1206- ●
1 CHAMBER ASM; SPRING
(B) REARWARD 		1-87412-083-0 01 1 1010- ●
1 CHAMBER ASM; SPRING
(B) REARWARD 		1-87412-084-0 01 1 1010- ●
1 CHAMBER ASM; SPRING
(B) FORWARD 		1-87412-089-0 01 1 1010- ●
1 CHAMBER ASM; SPRING
(B) FORWARD 		1-87412-090-0 01 1 1010- ●
10 RING; CLAMP,SPR CHAMBER
FORWARD 		1-48269-256-0 02 1 1010- ●
10 RING; CLAMP,SPR CHAMBER
REARWARD 		8-98167-056-0 02 1 1010- ●
11 BOLT; CLAMP RING 1-48269-257-0 02 1 1010- ●
11 BOLT; CLAMP RING 1-48269-257-0 02 1 1010- ●
13 NUT; CLAMP RING 1-48269-147-0 02 1 1010- ●
13 NUT; CLAMP RING 1-48269-147-0 02 1 1010- ●
35 PLATE; ROD END,SPR CHAMBER
REARWARD 		8-98146-971-0 02 1 1010- ●
35 PLATE; ROD END,SPR CHAMBER
FORWARD 		8-98146-972-0 02 1 1010- ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD 		1-48251-134-1 01 1 1010- ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD 		1-48251-135-1 01 1 1010- ●
40 COVER ASM; LWR,SPR CHAMBER
REARWARD 		1-48251-138-1 01 1 1010- ●
40 COVER ASM; LWR,SPR CHAMBER
REARWARD 		1-48251-139-1 01 1 1010- ●
108 REPAIR KIT; SPR CHAMBER
REARWARD 		8-98146-981-0 02 1 1010- ●
108 REPAIR KIT; SPR CHAMBER
FORWARD 		8-98146-982-0 02 1 1010- ●
116 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1010- ●
116 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1010- ●
117 RING; SPR CHAMBER 8-98146-966-0 02 1 1010- ●
117 RING; SPR CHAMBER 8-98146-966-0 02 1 1010- ●
118 CHAMBER; PIGGY BACK
REARWARD 		1-87412-107-0 01 1 1010- ●
118 CHAMBER; PIGGY BACK
REARWARD 		1-87412-108-0 01 1 1010- ●
118 CHAMBER; PIGGY BACK
FORWARD 		1-87412-111-0 01 1 1010- ●
118 CHAMBER; PIGGY BACK
FORWARD 		1-87412-112-0 01 1 1010- ●
126 SHIM 8-98146-965-0 AR 1 1010- ●
126 SHIM 8-98146-965-0 AR 1 1010- ●

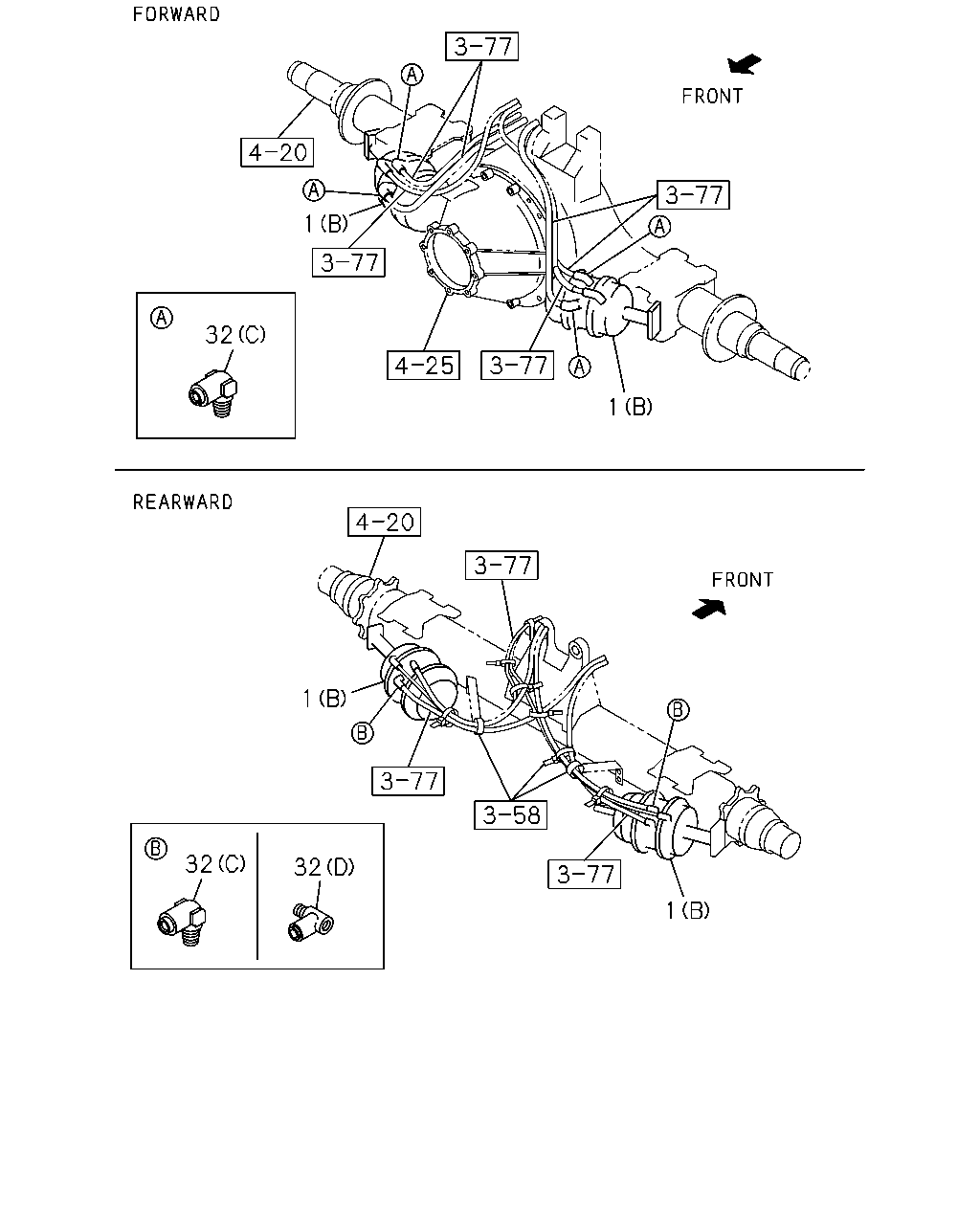

çizim 169182
1 1 32 1 1 32 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
(A) FORWARD RH,REARWARD LH 		1-48250-943-0 01 1 1010-1205 ●
1 CHAMBER ASM; SPRING
(A) FORWARD RH,REARWARD LH 		1-48250-943-0 01 1 1010-1205 ●
1 CHAMBER ASM; SPRING
(A) FORWARD RH,REARWARD LH 		1-48250-957-0 01 1 1206- ●
1 CHAMBER ASM; SPRING
(A) FORWARD RH,REARWARD LH 		1-48250-957-0 01 1 1206- ●
1 CHAMBER ASM; SPRING
(A) FORWARD LH,REARWARD RH 		1-48250-944-0 01 1 1010-1205 ●
1 CHAMBER ASM; SPRING
(A) FORWARD LH,REARWARD RH 		1-48250-944-0 01 1 1010-1205 ●
1 CHAMBER ASM; SPRING
(A) FORWARD LH,REARWARD RH 		1-48250-958-0 01 1 1206- ●
1 CHAMBER ASM; SPRING
(A) FORWARD LH,REARWARD RH 		1-48250-958-0 01 1 1206- ●
1 CHAMBER ASM; SPRING
(B) REARWARD 		1-87412-083-0 01 1 1010- ●
1 CHAMBER ASM; SPRING
(B) REARWARD 		1-87412-084-0 01 1 1010- ●
1 CHAMBER ASM; SPRING
(B) FORWARD 		1-87412-089-0 01 1 1010- ●
1 CHAMBER ASM; SPRING
(B) FORWARD 		1-87412-090-0 01 1 1010- ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 03 1 1307- ●
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & NPTF3/8 & RC1/4 3WAY 		1-09660-804-0 01 1 1010- ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 05 1 1010-1306 ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 1307- ●
32 CONNECTOR; SPR CHAMBER
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1010- ●
32 CONNECTOR; SPR CHAMBER
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1010- ●
32 CONNECTOR; SPR CHAMBER
(D) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 1010- ●
