Isuzu WW
▶
TRUCKS
▶
FVM
▶
11304 - FVM AUST/NZ EURO5
▶
3 - Brakes, Brake System
▶
3-40 - FRONT BRAKE POWER CHAMBER
▶

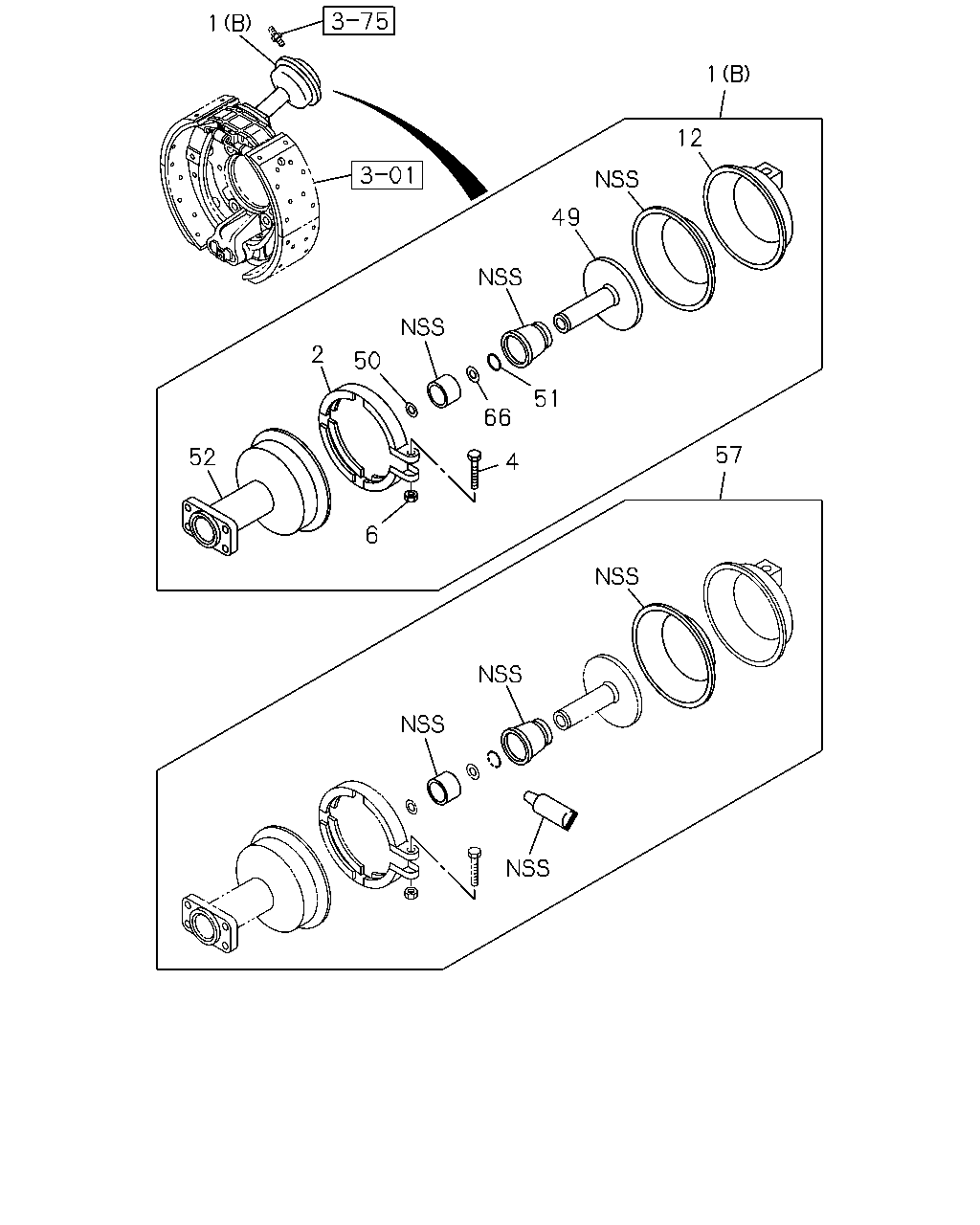

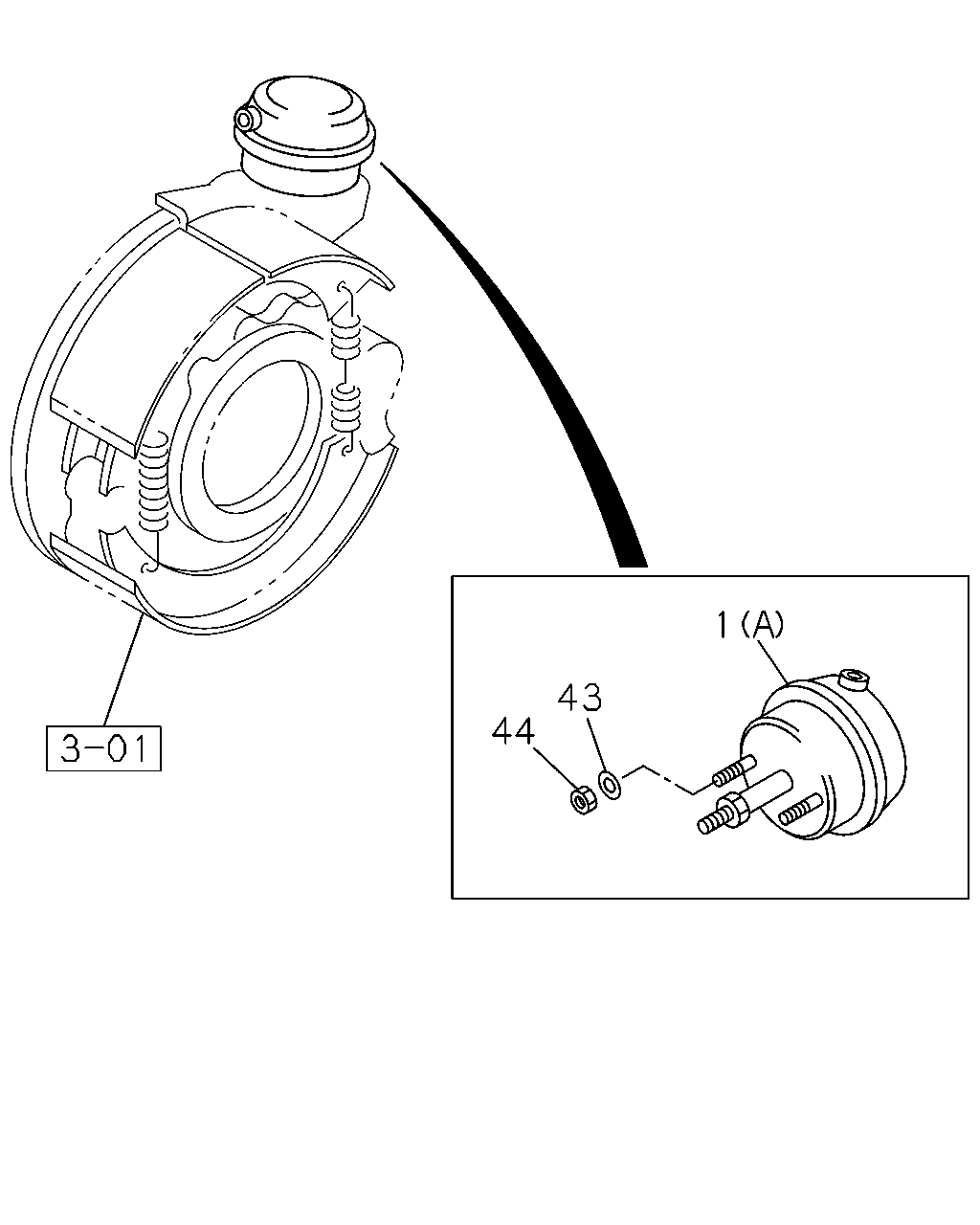

3-40 — FRONT BRAKE POWER CHAMBER
(#60458) — 17 parça
Tümü
A - FGL5MV
B - FGM5MV
◀
[340A] LEAF SUS (13 parça)
[340A] AIR SUS (4 parça)
▶
1
1
12
49
2
52
51
66
6
50
57
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; POWER,FRT BRK
(A)
1-48250-938-0
02
1
1010-
●
1
CHAMBER ASM; POWER,FRT BRK
(B)
8-98145-680-1
02
1
1010-
●
2
RING; CLAMP,SPR CHAMBER
1-48269-256-0
02
1
1010-
●
4
BOLT; CLAMP RING
1-48269-257-0
02
1
1010-
●
6
NUT; CLAMP RING
1-48269-147-0
02
1
1010-
●
12
COVER ASM; LWR,SPR CHAMBER
1-48251-103-0
02
1
1010-
●
49
ROD; PUSH,SPR CHAMBER
8-98146-969-1
02
1
1010-
●
50
GUIDE; SPR CHAMBER
8-98146-963-1
02
1
1010-
●
51
RING; SPR CHAMBER
8-98146-966-0
02
1
1010-
●
52
HOUSING; SPR CHAMBER
1-48251-195-1
02
1
1010-1403
●
52
HOUSING; SPR CHAMBER
8-98248-793-0
02
1
1404-
●
57
REPAIR KIT; SPR CHAMBER
8-98146-978-0
02
1
1010-
●
66
SHIM
8-98146-965-0
AR
1
1010-
●
44
1
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; POWER,FRT BRK
(A)
1-48250-938-0
02
1
1010-
●
1
CHAMBER ASM; POWER,FRT BRK
(B)
8-98145-680-1
02
1
1010-
●
43
WASHER; LK,POWER CHAMBER
1-41519-038-0
04
1
1010-
●
44
NUT; POWER CHAMBER
1-87050-052-0
04
1
1010-
●
