◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11304 - FVM AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#60454) — 328 parça

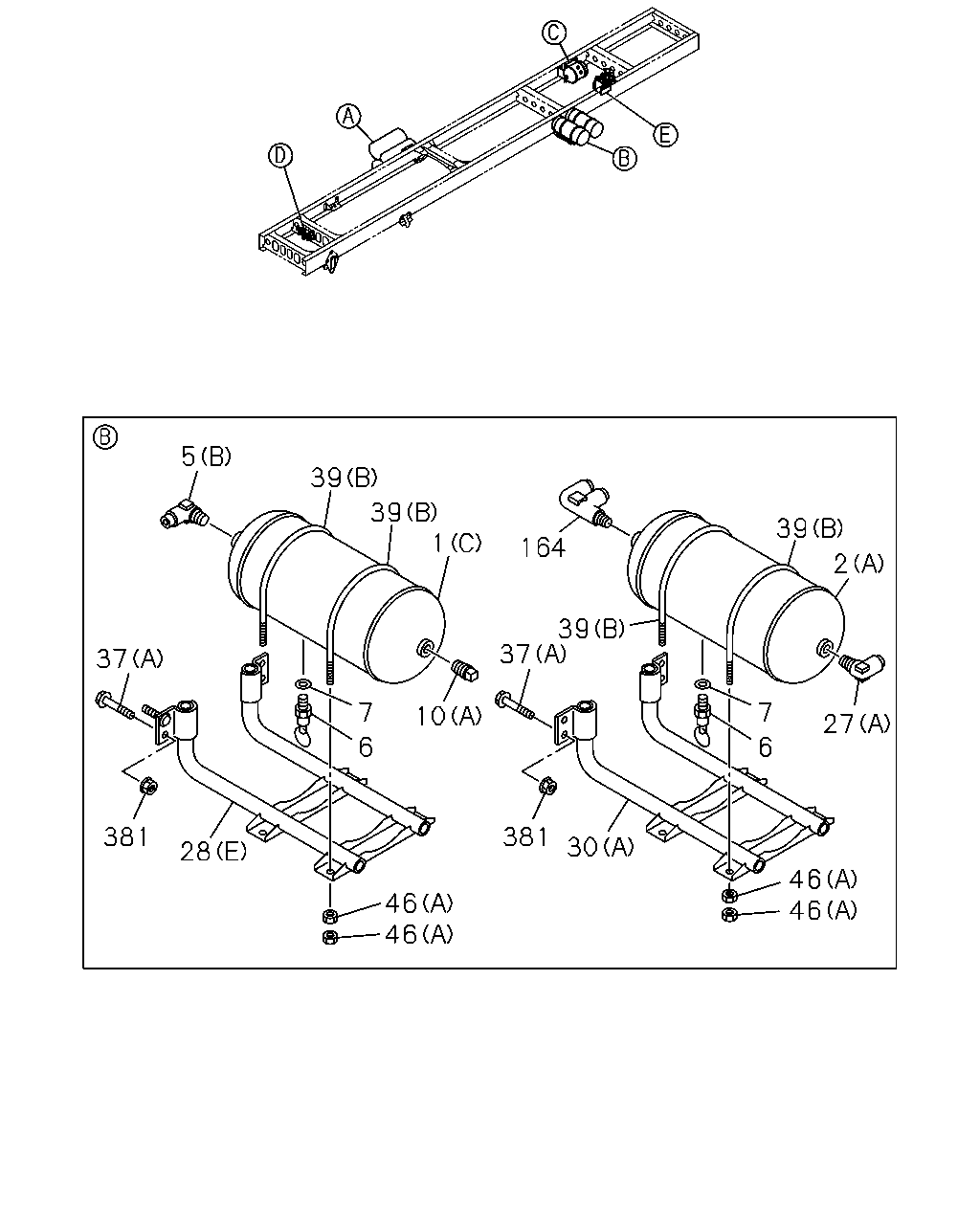

çizim 169151
39 2 27 7 6 46 46 164 1 39 37 39 39 5 37 7 6 10 381 30 46 46 28 381
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
COUNTRY NEW ZEALAND(CX6) (C) 		1-48371-435-0 01 1 1110-1306 ●
1 TANK ASM; AIR
(A) 		1-48370-961-0 02 1 1010- ● ●
1 TANK ASM; AIR
(B) 		8-98081-870-1 01 1 1010- ● ●
2 TANK; AIR
COUNTRY NEW ZEALAND(CX6) (B) 		8-98234-905-1 01 1 1307- ●
2 TANK; AIR
(A) 		1-48371-435-0 01 1 1010-1306 ● ●
2 TANK; AIR
EXC. COUNTRY NEW ZEALAND(CX6) (A) 		1-48371-435-0 01 1 1307- ●
2 TANK; AIR
(A) 		1-48371-435-0 01 1 1307- ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ●
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010- ● ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1010-1109 ●
5 UNION; AIR TANK
COUNTRY NEW ZEALAND(CX6) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1110-1306 ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1110-1306 ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1307- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1307- ● ●
6 COCK; DRAIN,AIR TANK
EXC. COUNTRY NEW ZEALAND(CX6) 		1-48312-015-0 01 1 1307- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1307- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1010- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1010-1109 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1010-1109 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1110-1306 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1110-1306 ● ●
6 COCK; DRAIN,AIR TANK
COUNTRY NEW ZEALAND(CX6) 		1-48312-015-0 01 1 1110-1306 ●
6 COCK; DRAIN,AIR TANK
COUNTRY NEW ZEALAND(CX6) 		1-48312-015-0 02 1 1307- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1307- ● ●
7 GASKET; DRAIN COCK
EXC. COUNTRY NEW ZEALAND(CX6) ID=14 		1-09630-145-0 01 1 1307- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1307- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1010- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1010-1109 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1010-1109 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1110-1306 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1110-1306 ● ●
7 GASKET; DRAIN COCK
COUNTRY NEW ZEALAND(CX6) ID=14 		1-09630-145-0 01 1 1110-1306 ●
7 GASKET; DRAIN COCK
COUNTRY NEW ZEALAND(CX6) ID=14 		1-09630-145-0 02 1 1307- ●
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 04 1 1010- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1010-1109 ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1010-1109 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1110-1306 ● ●
10 PLUG; AIR TANK
COUNTRY NEW ZEALAND(CX6) (A) PT3/8 		9-09204-517-0 01 1 1110-1306 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1307- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1307- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1010- ●
27 UNION; ELBOW,AIR TANK
COUNTRY NEW ZEALAND(CX6) (B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1307- ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1010- ● ●
28 BRACKET; AIR TANK
COUNTRY NEW ZEALAND(CX6) (E) 		8-98047-746-2 01 1 1110-1306 ●
28 BRACKET; AIR TANK
(A) 		8-98048-199-0 01 1 1010- ● ●
28 BRACKET; AIR TANK
(B) 		8-98048-200-2 01 1 1010- ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 1010- ● ●
28 BRACKET; AIR TANK
(C) 		8-98092-757-0 01 1 1010- ● ●
30 BRACKET; AIR TANK,SUB
COUNTRY NEW ZEALAND(CX6) (D) 		1-48316-014-1 01 1 1307- ●
30 BRACKET; AIR TANK,SUB
COUNTRY NEW ZEALAND(CX6) (B) 		1-48316-026-0 01 1 1307- ●
30 BRACKET; AIR TANK,SUB
COUNTRY NEW ZEALAND(CX6) (C) 		1-48317-994-2 01 1 1307- ●
30 BRACKET; AIR TANK,SUB
COUNTRY NEW ZEALAND(CX6) (E) 		8-98157-749-0 01 1 1307- ●
30 BRACKET; AIR TANK,SUB
(A) 		8-98047-746-2 01 1 1010-1306 ● ●
30 BRACKET; AIR TANK,SUB
EXC. COUNTRY NEW ZEALAND(CX6) (A) 		8-98047-746-2 01 1 1307- ●
30 BRACKET; AIR TANK,SUB
(A) 		8-98047-746-2 01 1 1307- ●
37 BOLT; AIR TANK
EXC. COUNTRY NEW ZEALAND(CX6) (A) M14X50 		0-20851-450-0 03 1 1307- ●
37 BOLT; AIR TANK
(A) M14X50 		0-20851-450-0 03 1 1307- ●
37 BOLT; AIR TANK
(A) M14X50 		0-20851-450-0 03 1 1010-1109 ● ●
37 BOLT; AIR TANK
(A) M14X50 		0-20851-450-0 03 1 1110-1306 ● ●
37 BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) (A) M14X50 		0-20851-450-0 03 1 1110-1306 ●
37 BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) (A) M14X50 		0-20851-450-0 02 1 1307- ●
37 BOLT; AIR TANK
(B) M12X40 FLANGE 		0-28651-240-0 06 1 1010- ● ●
39 U-BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) (C) L=303 		1-48317-087-2 02 1 1307- ●
39 U-BOLT; AIR TANK
(B) 		1-48317-289-0 02 1 1010-1109 ● ●
39 U-BOLT; AIR TANK
(B) 		1-48317-289-0 02 1 1110-1306 ● ●
39 U-BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) (B) 		1-48317-289-0 02 1 1110-1306 ●
39 U-BOLT; AIR TANK
EXC. COUNTRY NEW ZEALAND(CX6) (B) 		1-48317-289-0 02 1 1307- ●
39 U-BOLT; AIR TANK
(B) 		1-48317-289-0 02 1 1307- ●
39 U-BOLT; AIR TANK
(A) L=210 		1-48317-458-1 02 1 1010- ● ●
46 NUT; U-BOLT
COUNTRY NEW ZEALAND(CX6) (B) M12 FLANGE 		0-91180-212-0 01 1 1307- ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1010-1109 ● ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1010-1109 ● ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1110-1306 ● ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1110-1306 ● ●
46 NUT; U-BOLT
COUNTRY NEW ZEALAND(CX6) (A) M8 		0-91110-508-0 08 1 1110-1306 ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1307- ● ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1307- ●
164 CONNECTOR; SUB AIR TANK
DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1010-1306 ● ●
164 CONNECTOR; SUB AIR TANK
EXC. COUNTRY NEW ZEALAND(CX6) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1307- ●
164 CONNECTOR; SUB AIR TANK
DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1307- ●
381 NUT; SUB TANK
M14 		0-91110-514-0 04 1 1010-1109 ● ●
381 NUT; SUB TANK
M14 		0-91110-514-0 04 1 1110-1306 ● ●
381 NUT; SUB TANK
COUNTRY NEW ZEALAND(CX6) M14 		0-91110-514-0 04 1 1110-1306 ●
381 NUT; SUB TANK
M14 		0-91110-514-0 04 1 1307- ● ●

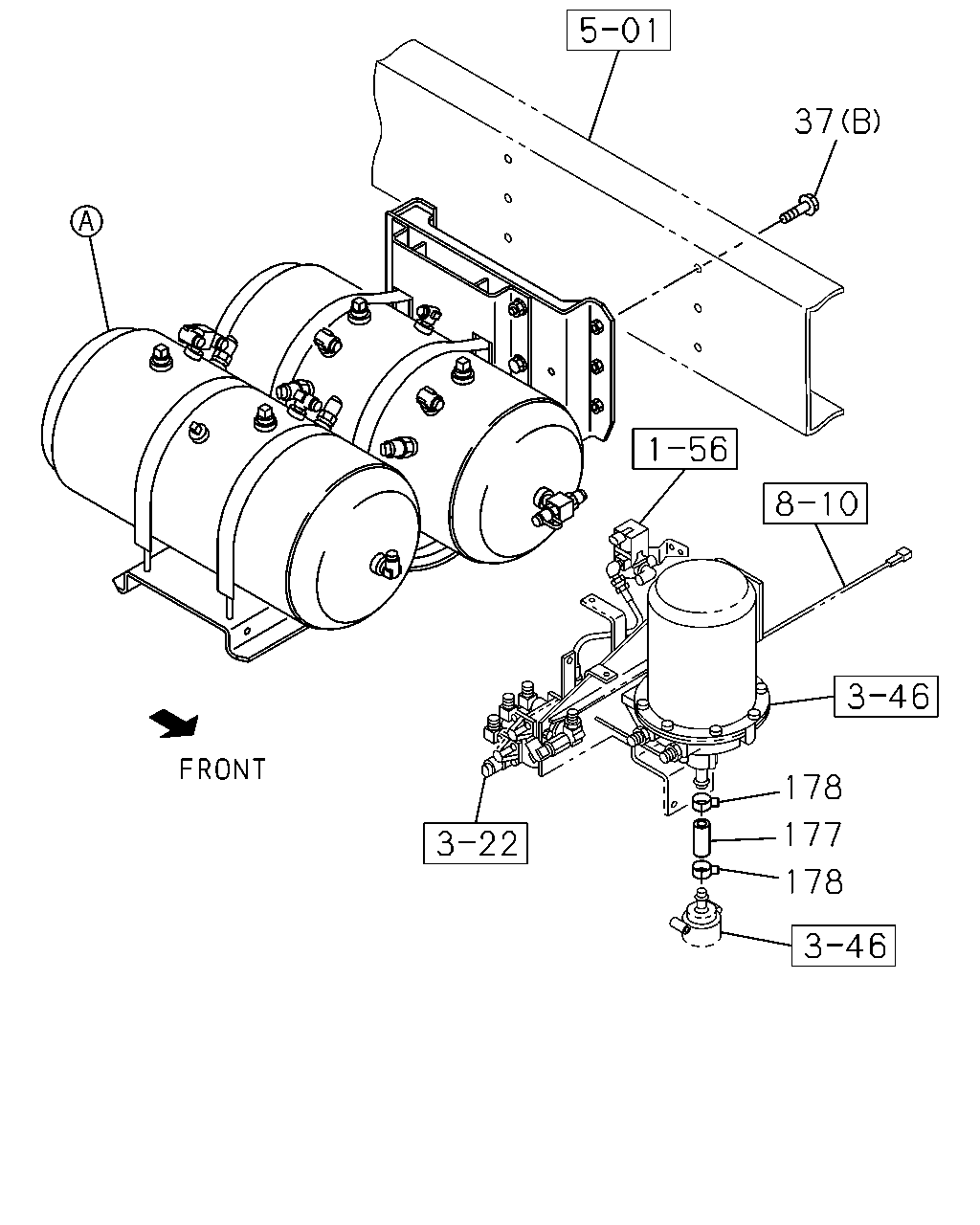

çizim 169153
178 177 178 37
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; AIR TANK
EXC. COUNTRY NEW ZEALAND(CX6) (A) M14X50 		0-20851-450-0 03 1 1307- ●
37 BOLT; AIR TANK
(A) M14X50 		0-20851-450-0 03 1 1307- ●
37 BOLT; AIR TANK
(A) M14X50 		0-20851-450-0 03 1 1010-1109 ● ●
37 BOLT; AIR TANK
(A) M14X50 		0-20851-450-0 03 1 1110-1306 ● ●
37 BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) (A) M14X50 		0-20851-450-0 03 1 1110-1306 ●
37 BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) (A) M14X50 		0-20851-450-0 02 1 1307- ●
37 BOLT; AIR TANK
(B) M12X40 FLANGE 		0-28651-240-0 06 1 1010- ● ●
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1010- ● ●
178 CLIP; HOSE
ID=21 		8-94242-034-0 02 1 1010- ● ●

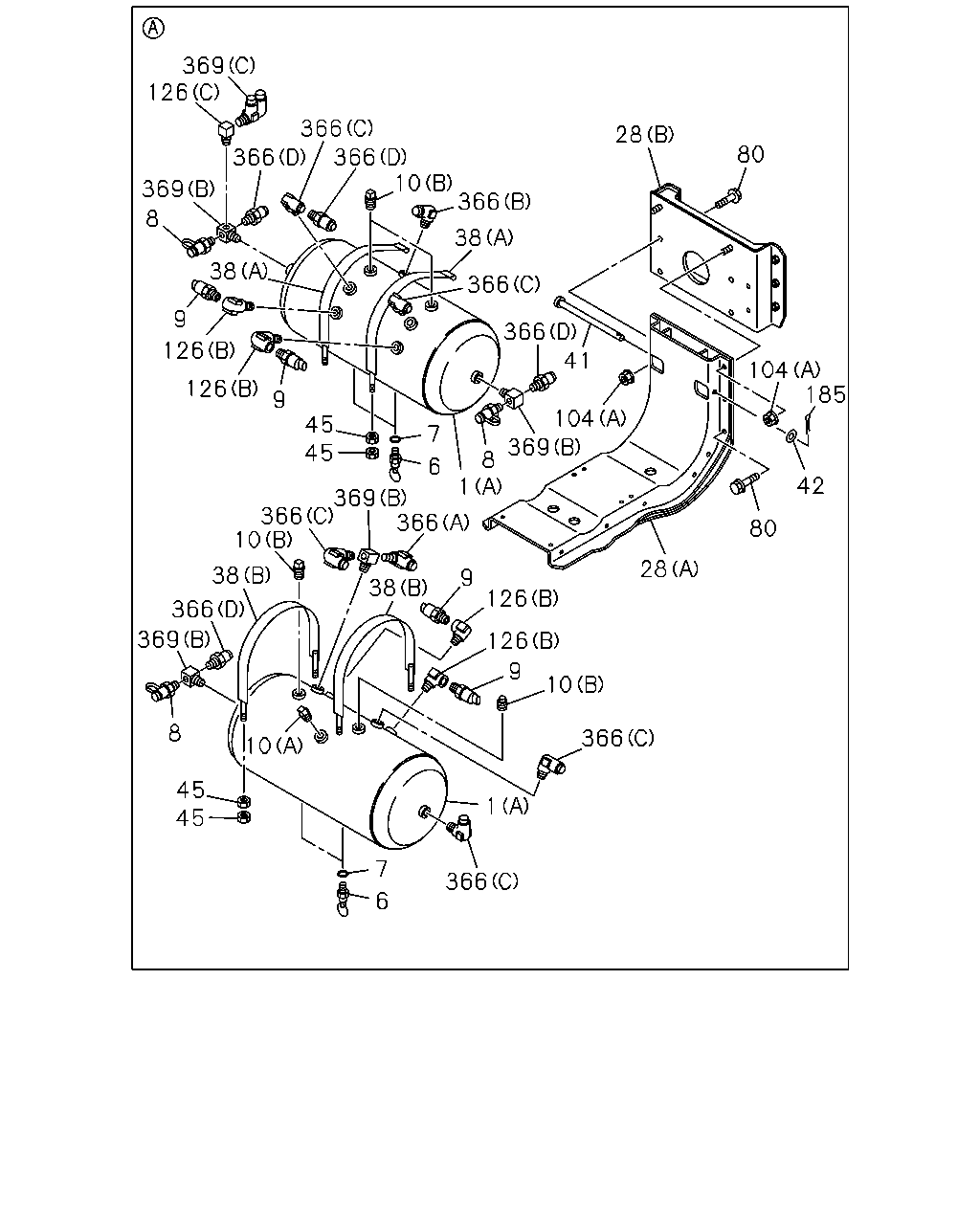

çizim 169154
8 45 45 42 80 185 104 80 28 366 366 366 38 41 104 369 28 126 126 10 366 1 9 7 6 10 369 38 366 10 369 366 38 366 45 45 9 126 126 9 38 7 6 8 9 1 366 10 366 366 366 369 126 369 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
COUNTRY NEW ZEALAND(CX6) (C) 		1-48371-435-0 01 1 1110-1306 ●
1 TANK ASM; AIR
(A) 		1-48370-961-0 02 1 1010- ● ●
1 TANK ASM; AIR
(B) 		8-98081-870-1 01 1 1010- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1307- ● ●
6 COCK; DRAIN,AIR TANK
EXC. COUNTRY NEW ZEALAND(CX6) 		1-48312-015-0 01 1 1307- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1307- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1010- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1010-1109 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1010-1109 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1110-1306 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1110-1306 ● ●
6 COCK; DRAIN,AIR TANK
COUNTRY NEW ZEALAND(CX6) 		1-48312-015-0 01 1 1110-1306 ●
6 COCK; DRAIN,AIR TANK
COUNTRY NEW ZEALAND(CX6) 		1-48312-015-0 02 1 1307- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1307- ● ●
7 GASKET; DRAIN COCK
EXC. COUNTRY NEW ZEALAND(CX6) ID=14 		1-09630-145-0 01 1 1307- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1307- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1010- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1010-1109 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1010-1109 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1110-1306 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1110-1306 ● ●
7 GASKET; DRAIN COCK
COUNTRY NEW ZEALAND(CX6) ID=14 		1-09630-145-0 01 1 1110-1306 ●
7 GASKET; DRAIN COCK
COUNTRY NEW ZEALAND(CX6) ID=14 		1-09630-145-0 02 1 1307- ●
8 CONNECTOR; AIR TANK
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1010- ● ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK 8-97615-622-0 04 1 1010- ● ●
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 04 1 1010- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1010-1109 ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1010-1109 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1110-1306 ● ●
10 PLUG; AIR TANK
COUNTRY NEW ZEALAND(CX6) (A) PT3/8 		9-09204-517-0 01 1 1110-1306 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1307- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1307- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1010- ●
28 BRACKET; AIR TANK
COUNTRY NEW ZEALAND(CX6) (E) 		8-98047-746-2 01 1 1110-1306 ●
28 BRACKET; AIR TANK
(A) 		8-98048-199-0 01 1 1010- ● ●
28 BRACKET; AIR TANK
(B) 		8-98048-200-2 01 1 1010- ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 1010- ● ●
28 BRACKET; AIR TANK
(C) 		8-98092-757-0 01 1 1010- ● ●
38 BAND; AIR TANK
(A) 		1-48317-108-2 02 1 1010- ● ●
38 BAND; AIR TANK
(B) 		1-48317-109-2 02 1 1010- ● ●
41 PIN; BAND FIX 1-09744-068-0 01 1 1010- ● ●
42 WASHER; PL
ID=10.5 		0-91614-510-0 01 1 1010- ● ●
45 NUT; AIR TANK,MAIN
M8 		0-91110-508-0 12 1 1010- ● ●
80 BOLT; BRKT
COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
80 BOLT; BRKT
COUNTRY NEW ZEALAND(CX6) M12X30 FLANGE 		0-28651-230-0 04 1 1307- ●
80 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 06 1 1010- ● ●
80 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1010- ● ●
80 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1010- ● ●
104 NUT; BRKT
COUNTRY NEW ZEALAND(CX6) (C) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
104 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 03 1 1010- ● ●
104 NUT; BRKT
(B) M10 		0-91110-510-0 04 1 1010- ● ●
126 CONNECTOR; ELBOW
COUNTRY NEW ZEALAND(CX6) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 1110-1306 ●
126 CONNECTOR; ELBOW
(B) PT1/4 2WAY 		1-09660-693-0 04 1 1010- ● ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1010- ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1010- ●
185 PIN; SNAP
L=32.6 		8-98062-280-0 01 1 1010- ● ●
366 CONNECTOR; NYLON TUBE
EXC. COUNTRY NEW ZEALAND(CX6) (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 1110-1306 ●
366 CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 1110-1306 ●
366 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 1010- ● ●
366 CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 1010-1109 ● ●
366 CONNECTOR; NYLON TUBE
COUNTRY NEW ZEALAND(CX6) (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1110-1306 ●
366 CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 1307- ● ●
366 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1010- ● ●
366 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010- ● ●
369 CONNECTOR; 3WAY
COUNTRY NEW ZEALAND(CX6) (C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1110-1306 ●
369 CONNECTOR; 3WAY
(B) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 04 1 1010- ● ●
369 CONNECTOR; 3WAY
(A) PT3/8 3WAY 		1-09661-300-0 02 1 1010-1111 ● ●
369 CONNECTOR; 3WAY
(A) DIN9 & RC3/8 ELBOW 		8-98203-578-0 02 1 1112-1306 ● ●
369 CONNECTOR; 3WAY
(A) PT3/8 3WAY 		1-09661-300-0 02 1 1307- ● ●

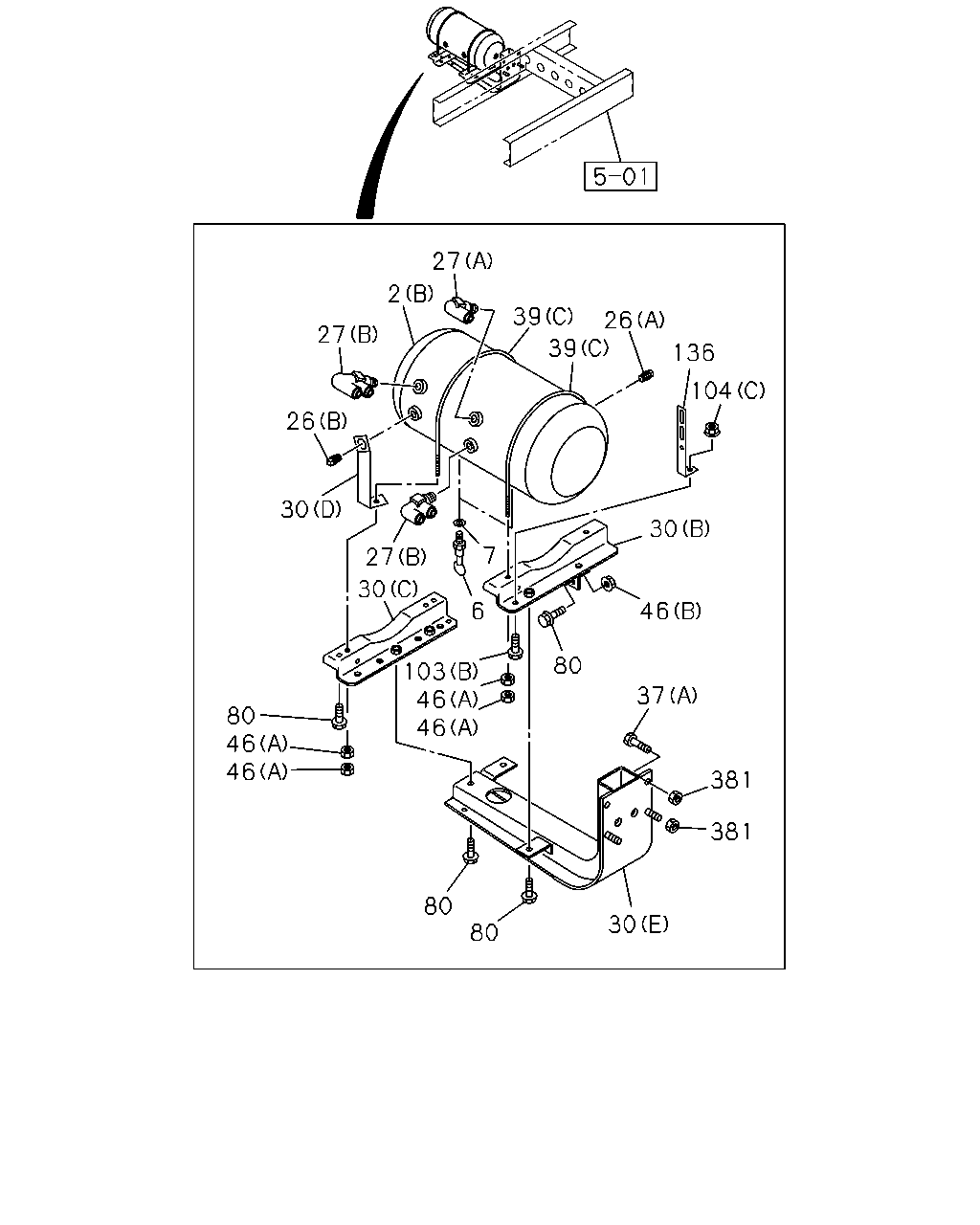

çizim 169156
26 136 104 30 46 37 381 381 30 80 80 103 46 46 80 7 6 27 30 39 39 27 2 27 26 30 80 46 46
BalonParca AdiParca NoAdetTipApplied Date A B
2 TANK; AIR
COUNTRY NEW ZEALAND(CX6) (B) 		8-98234-905-1 01 1 1307- ●
2 TANK; AIR
(A) 		1-48371-435-0 01 1 1010-1306 ● ●
2 TANK; AIR
EXC. COUNTRY NEW ZEALAND(CX6) (A) 		1-48371-435-0 01 1 1307- ●
2 TANK; AIR
(A) 		1-48371-435-0 01 1 1307- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1307- ● ●
6 COCK; DRAIN,AIR TANK
EXC. COUNTRY NEW ZEALAND(CX6) 		1-48312-015-0 01 1 1307- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1307- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1010- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1010-1109 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1010-1109 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1110-1306 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1110-1306 ● ●
6 COCK; DRAIN,AIR TANK
COUNTRY NEW ZEALAND(CX6) 		1-48312-015-0 01 1 1110-1306 ●
6 COCK; DRAIN,AIR TANK
COUNTRY NEW ZEALAND(CX6) 		1-48312-015-0 02 1 1307- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1307- ● ●
7 GASKET; DRAIN COCK
EXC. COUNTRY NEW ZEALAND(CX6) ID=14 		1-09630-145-0 01 1 1307- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1307- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1010- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1010-1109 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1010-1109 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1110-1306 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1110-1306 ● ●
7 GASKET; DRAIN COCK
COUNTRY NEW ZEALAND(CX6) ID=14 		1-09630-145-0 01 1 1110-1306 ●
7 GASKET; DRAIN COCK
COUNTRY NEW ZEALAND(CX6) ID=14 		1-09630-145-0 02 1 1307- ●
26 PLUG; SUB AIR TANK
COUNTRY NEW ZEALAND(CX6) (A) PT3/8 		9-09204-517-0 01 1 1307- ●
26 PLUG; SUB AIR TANK
COUNTRY NEW ZEALAND(CX6) (B) PT3/4 		9-09204-526-0 01 1 1307- ●
27 UNION; ELBOW,AIR TANK
COUNTRY NEW ZEALAND(CX6) (B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1307- ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1010- ● ●
30 BRACKET; AIR TANK,SUB
COUNTRY NEW ZEALAND(CX6) (D) 		1-48316-014-1 01 1 1307- ●
30 BRACKET; AIR TANK,SUB
COUNTRY NEW ZEALAND(CX6) (B) 		1-48316-026-0 01 1 1307- ●
30 BRACKET; AIR TANK,SUB
COUNTRY NEW ZEALAND(CX6) (C) 		1-48317-994-2 01 1 1307- ●
30 BRACKET; AIR TANK,SUB
COUNTRY NEW ZEALAND(CX6) (E) 		8-98157-749-0 01 1 1307- ●
30 BRACKET; AIR TANK,SUB
(A) 		8-98047-746-2 01 1 1010-1306 ● ●
30 BRACKET; AIR TANK,SUB
EXC. COUNTRY NEW ZEALAND(CX6) (A) 		8-98047-746-2 01 1 1307- ●
30 BRACKET; AIR TANK,SUB
(A) 		8-98047-746-2 01 1 1307- ●
37 BOLT; AIR TANK
EXC. COUNTRY NEW ZEALAND(CX6) (A) M14X50 		0-20851-450-0 03 1 1307- ●
37 BOLT; AIR TANK
(A) M14X50 		0-20851-450-0 03 1 1307- ●
37 BOLT; AIR TANK
(A) M14X50 		0-20851-450-0 03 1 1010-1109 ● ●
37 BOLT; AIR TANK
(A) M14X50 		0-20851-450-0 03 1 1110-1306 ● ●
37 BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) (A) M14X50 		0-20851-450-0 03 1 1110-1306 ●
37 BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) (A) M14X50 		0-20851-450-0 02 1 1307- ●
37 BOLT; AIR TANK
(B) M12X40 FLANGE 		0-28651-240-0 06 1 1010- ● ●
39 U-BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) (C) L=303 		1-48317-087-2 02 1 1307- ●
39 U-BOLT; AIR TANK
(B) 		1-48317-289-0 02 1 1010-1109 ● ●
39 U-BOLT; AIR TANK
(B) 		1-48317-289-0 02 1 1110-1306 ● ●
39 U-BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) (B) 		1-48317-289-0 02 1 1110-1306 ●
39 U-BOLT; AIR TANK
EXC. COUNTRY NEW ZEALAND(CX6) (B) 		1-48317-289-0 02 1 1307- ●
39 U-BOLT; AIR TANK
(B) 		1-48317-289-0 02 1 1307- ●
39 U-BOLT; AIR TANK
(A) L=210 		1-48317-458-1 02 1 1010- ● ●
46 NUT; U-BOLT
COUNTRY NEW ZEALAND(CX6) (B) M12 FLANGE 		0-91180-212-0 01 1 1307- ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1010-1109 ● ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1010-1109 ● ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1110-1306 ● ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1110-1306 ● ●
46 NUT; U-BOLT
COUNTRY NEW ZEALAND(CX6) (A) M8 		0-91110-508-0 08 1 1110-1306 ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1307- ● ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1307- ●
80 BOLT; BRKT
COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
80 BOLT; BRKT
COUNTRY NEW ZEALAND(CX6) M12X30 FLANGE 		0-28651-230-0 04 1 1307- ●
80 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 06 1 1010- ● ●
80 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1010- ● ●
80 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1010- ● ●
103 BOLT; BRKT
COUNTRY NEW ZEALAND(CX6) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ●
103 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ● ●
104 NUT; BRKT
COUNTRY NEW ZEALAND(CX6) (C) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
104 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 03 1 1010- ● ●
104 NUT; BRKT
(B) M10 		0-91110-510-0 04 1 1010- ● ●
136 BRACKET; CLIP
COUNTRY NEW ZEALAND(CX6) L=225 		1-47477-646-3 01 1 1307- ●
381 NUT; SUB TANK
M14 		0-91110-514-0 04 1 1010-1109 ● ●
381 NUT; SUB TANK
M14 		0-91110-514-0 04 1 1110-1306 ● ●
381 NUT; SUB TANK
COUNTRY NEW ZEALAND(CX6) M14 		0-91110-514-0 04 1 1110-1306 ●
381 NUT; SUB TANK
M14 		0-91110-514-0 04 1 1307- ● ●

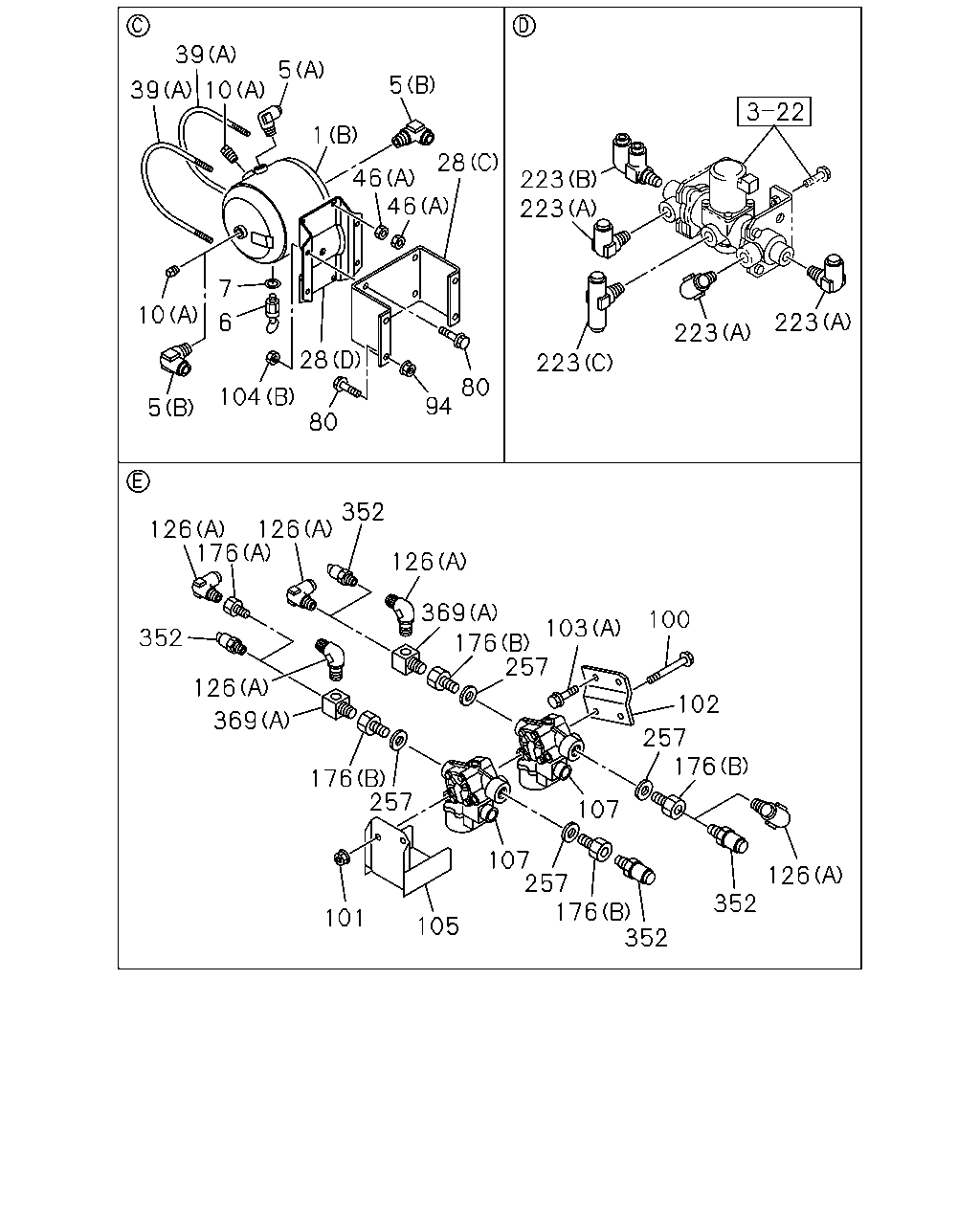

çizim 169172
126 176 257 107 352 352 176 257 107 105 101 257 176 369 126 352 126 176 126 352 126 369 176 257 103 100 102 223 223 223 223 223 94 80 80 28 104 5 6 7 10 1 5 28 46 46 5 10 39 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
COUNTRY NEW ZEALAND(CX6) (C) 		1-48371-435-0 01 1 1110-1306 ●
1 TANK ASM; AIR
(A) 		1-48370-961-0 02 1 1010- ● ●
1 TANK ASM; AIR
(B) 		8-98081-870-1 01 1 1010- ● ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ●
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010- ● ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1010-1109 ●
5 UNION; AIR TANK
COUNTRY NEW ZEALAND(CX6) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1110-1306 ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1110-1306 ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1307- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1307- ● ●
6 COCK; DRAIN,AIR TANK
EXC. COUNTRY NEW ZEALAND(CX6) 		1-48312-015-0 01 1 1307- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1307- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1010- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1010-1109 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1010-1109 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1110-1306 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1110-1306 ● ●
6 COCK; DRAIN,AIR TANK
COUNTRY NEW ZEALAND(CX6) 		1-48312-015-0 01 1 1110-1306 ●
6 COCK; DRAIN,AIR TANK
COUNTRY NEW ZEALAND(CX6) 		1-48312-015-0 02 1 1307- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1307- ● ●
7 GASKET; DRAIN COCK
EXC. COUNTRY NEW ZEALAND(CX6) ID=14 		1-09630-145-0 01 1 1307- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1307- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1010- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1010-1109 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1010-1109 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1110-1306 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1110-1306 ● ●
7 GASKET; DRAIN COCK
COUNTRY NEW ZEALAND(CX6) ID=14 		1-09630-145-0 01 1 1110-1306 ●
7 GASKET; DRAIN COCK
COUNTRY NEW ZEALAND(CX6) ID=14 		1-09630-145-0 02 1 1307- ●
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 04 1 1010- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1010-1109 ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1010-1109 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1110-1306 ● ●
10 PLUG; AIR TANK
COUNTRY NEW ZEALAND(CX6) (A) PT3/8 		9-09204-517-0 01 1 1110-1306 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1307- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1307- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1010- ●
28 BRACKET; AIR TANK
COUNTRY NEW ZEALAND(CX6) (E) 		8-98047-746-2 01 1 1110-1306 ●
28 BRACKET; AIR TANK
(A) 		8-98048-199-0 01 1 1010- ● ●
28 BRACKET; AIR TANK
(B) 		8-98048-200-2 01 1 1010- ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 1010- ● ●
28 BRACKET; AIR TANK
(C) 		8-98092-757-0 01 1 1010- ● ●
39 U-BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) (C) L=303 		1-48317-087-2 02 1 1307- ●
39 U-BOLT; AIR TANK
(B) 		1-48317-289-0 02 1 1010-1109 ● ●
39 U-BOLT; AIR TANK
(B) 		1-48317-289-0 02 1 1110-1306 ● ●
39 U-BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) (B) 		1-48317-289-0 02 1 1110-1306 ●
39 U-BOLT; AIR TANK
EXC. COUNTRY NEW ZEALAND(CX6) (B) 		1-48317-289-0 02 1 1307- ●
39 U-BOLT; AIR TANK
(B) 		1-48317-289-0 02 1 1307- ●
39 U-BOLT; AIR TANK
(A) L=210 		1-48317-458-1 02 1 1010- ● ●
46 NUT; U-BOLT
COUNTRY NEW ZEALAND(CX6) (B) M12 FLANGE 		0-91180-212-0 01 1 1307- ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1010-1109 ● ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1010-1109 ● ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1110-1306 ● ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1110-1306 ● ●
46 NUT; U-BOLT
COUNTRY NEW ZEALAND(CX6) (A) M8 		0-91110-508-0 08 1 1110-1306 ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1307- ● ●
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 1307- ●
80 BOLT; BRKT
COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
80 BOLT; BRKT
COUNTRY NEW ZEALAND(CX6) M12X30 FLANGE 		0-28651-230-0 04 1 1307- ●
80 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 06 1 1010- ● ●
80 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1010- ● ●
80 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1010- ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 1010- ● ●
100 BOLT; MODULATOR
M8X140 FLANGE 		0-28055-814-0 02 1 1010- ● ●
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
102 BRACKET; MODULATOR 8-98034-539-2 01 1 1010-1410 ● ●
102 BRACKET; MODULATOR 8-98273-170-0 01 1 1411- ● ●
103 BOLT; BRKT
COUNTRY NEW ZEALAND(CX6) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ●
103 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ● ●
104 NUT; BRKT
COUNTRY NEW ZEALAND(CX6) (C) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
104 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 03 1 1010- ● ●
104 NUT; BRKT
(B) M10 		0-91110-510-0 04 1 1010- ● ●
105 COVER; MODULATOR 1-47479-792-0 01 1 1010-1410 ●
105 COVER; MODULATOR 8-98272-749-0 01 1 1411- ●
107 MODULATOR; RR 1-48240-115-0 02 1 1010-1410 ● ●
107 MODULATOR; RR 8-98215-454-0 02 1 1411- ● ●
126 CONNECTOR; ELBOW
COUNTRY NEW ZEALAND(CX6) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 1110-1306 ●
126 CONNECTOR; ELBOW
(B) PT1/4 2WAY 		1-09660-693-0 04 1 1010- ● ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1010- ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1010- ●
176 ADAPTER
(A) PT3/8 		1-09664-210-0 01 1 1010- ●
176 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1010- ● ●
223 UNION
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 03 1 1010- ● ●
223 UNION
H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1010- ● ●
223 UNION
H.S.A SYSTEM<6EP> (C) 		1-09661-073-0 01 1 1010- ● ●
257 GASKET; PLUG
ID=22.5 		9-09571-422-0 04 1 1010- ● ●
352 CONNECTOR; STRAIGHT
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1010- ●
352 CONNECTOR; STRAIGHT
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 1010- ●
369 CONNECTOR; 3WAY
COUNTRY NEW ZEALAND(CX6) (C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1110-1306 ●
369 CONNECTOR; 3WAY
(B) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 04 1 1010- ● ●
369 CONNECTOR; 3WAY
(A) PT3/8 3WAY 		1-09661-300-0 02 1 1010-1111 ● ●
369 CONNECTOR; 3WAY
(A) DIN9 & RC3/8 ELBOW 		8-98203-578-0 02 1 1112-1306 ● ●
369 CONNECTOR; 3WAY
(A) PT3/8 3WAY 		1-09661-300-0 02 1 1307- ● ●

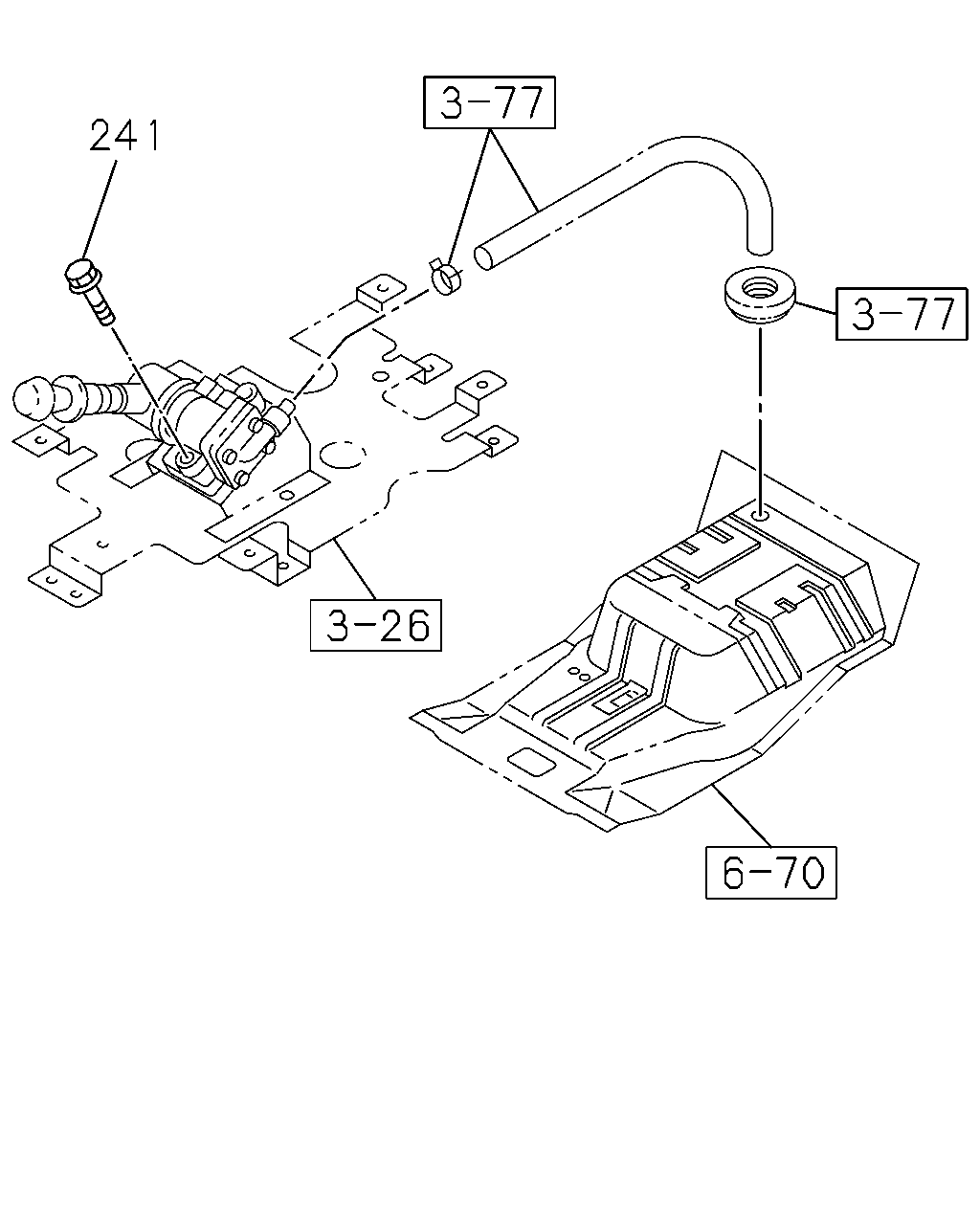

çizim 365561
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
